Marmitek IP EYE ANYWHERE 10 User manual

I
P CAMER
A
SERIES
IP CAMERA
SERIES
IP Eye Anywhere - 10 - 11 - 20 - 21 - 470
IP RoboCam - 10 - 11 - 21 - 541 - 641
20372 / 20101123 • IP Eye Anywhere™ / IP RoboCam™
ALL RIGHTS RESERVED MARMITEK ©
3
UltraViewPro User Guide
ULTRAVIEWPRO

Marmitek UltraViewPro 1
Contents
CHAPTER 1 .............................................................. 2
INTRODUCTION.......................................................... 2
CHAPTER 2 .............................................................. 3
INSTALLATION........................................................... 3
CHAPTER 3 .............................................................. 5
USING MARMITEK ULTRAVIEW PRO................................ 5
3.1 STARTING THE PROGRAM .............................................. 5
3.2 MAIN WINDOW AND ITEM FEATURE ................................ 6
3.3 ACCESSING THE CAMERA ............................................ 10
3.4 RECORDING /PLAYING VIDEO...................................... 16
CHAPTER 4 .............................................................21
CONFIGURING MARMITEK ULTRAVIEW PRO .....................21
4.1 CONFIGURING THE EMAP VIEW SETTING ...................... 21
4.2 CONFIGURING THE SYSTEM ......................................... 26
4.3 EVENT CONFIGURATION .............................................. 27
4.4 TERMINATING OPERATION ........................................... 31
CHAPTER 5 .............................................................32
USING IPFINDER ......................................................32

2
CHAPTER 1
INTRODUCTION
This Software User Guide provides detailed instructions on
operating Marmitek UltraView Pro, a customized software
application with a user-friendly interface allowing you to access
and control your camera(s). You can connect up to 32 cameras to
monitor different places and record events for each camera. With
Marmitek UltraView Pro, you can also change some basic settings
of the camera, such as schedule profiles and motion detecting. In
addition, if your camera supports advanced features, such as audio
or pan/tilt function, you can use these functions through the control
panels of Marmitek UltraView Pro.
To use Marmitek UltraView Pro, you have to install it in your
computer. It is recommended to use a high performance computer
if you want to connect multiple cameras simultaneously.
zPlatform: Microsoft® Windows® XP/Vista*, and Windows 7
zHard Disk: 80GB or above
zResolution: 1024x768 or above
zHardware Requirement
1~8 cameras: Intel Core 2 Duo; 2GB RAM
9~32 cameras: Intel Core 2 Quad; 4GB RAM
* For Windows Vista users: please go to User Accounts and Family Safety
> User Accounts > Turn User Account Control on or off, then uncheck
the “Use User Account Control (UAC) to help protect your computer
checkbox. Restart your computer to validate the setting. For additional
information of User Account Control, please go to
http://www.microsoft.com/windows/products/windowsvista/features/detail
s/useraccountcontrol.mspx

Marmitek UltraViewPro 3
CHAPTER 2
INSTALLATION
IMPORTANT! Before installing the program, make sure that the Avira
AntiVir (the anti-virus application) is not installed in your
computer system. Otherwise, Marmitek UltraView Pro
might be malfunctioned while operating in your system.
1. Insert the Installation CD-ROM into the CD drive of your
computer to initiate the Auto-Run program.
The Auto-Run screen provides the following buttons:
-Quick Guide
-Advanced Guide
-Software Manual
-IPFinder
-Install Software
-Browse
-Exit
2. Click Install Software, and the setup wizard appears to help
you complete the installation step-by-step.
NOTE To use Marmitek UltraView Pro, you must have
Microsoft .NET Framework 2.0 installed in the computer. The
setup wizard will detect it and, if the program is not installed
yet, ask you to install it during the process of installing
Marmitek UltraView Pro.
Microsoft Windows Installer 3.0 or above is a required
component to install Marmitek UltraView Pro. For more
information of the required component during installation,
please visit the Microsoft support Website.
3. Click Install. The InstallShield Wizard starts to install Marmitek
UltraView Pro to your computer.

The Status bar indicates the installation process.
4. When done, click Finish to complete the installation.
You will see the program icon appeared on the desktop of your
computer.
TIP The IPFinder program will be installed in your computer
simultaneously when you install Marmitek UltraView Pro.
For more information of using IPFinder, refer to Chapter 5 or
the User Guide provided by your camera.
4

CHAPTER 3
USING MARMITEK ULTRAVIEW PRO
3.1 Starting the Program
1. Click Start
Æ
Programs
Æ
UltraView Pro
Æ
UltraView Pro.
Alternatively, you can start the program by double-clicking the
program icon on the desktop of your computer.
2. On the login window, enter the User name/Password and
click OK to login.
If this is the first time you start the program and login, use the
default User name / Password:admin / admin.
NOTE For security purpose, you are highly recommended to change the
default user name and password after login. For more information,
see the Configuring the System > User Management section.
Marmitek UltraViewPro 5

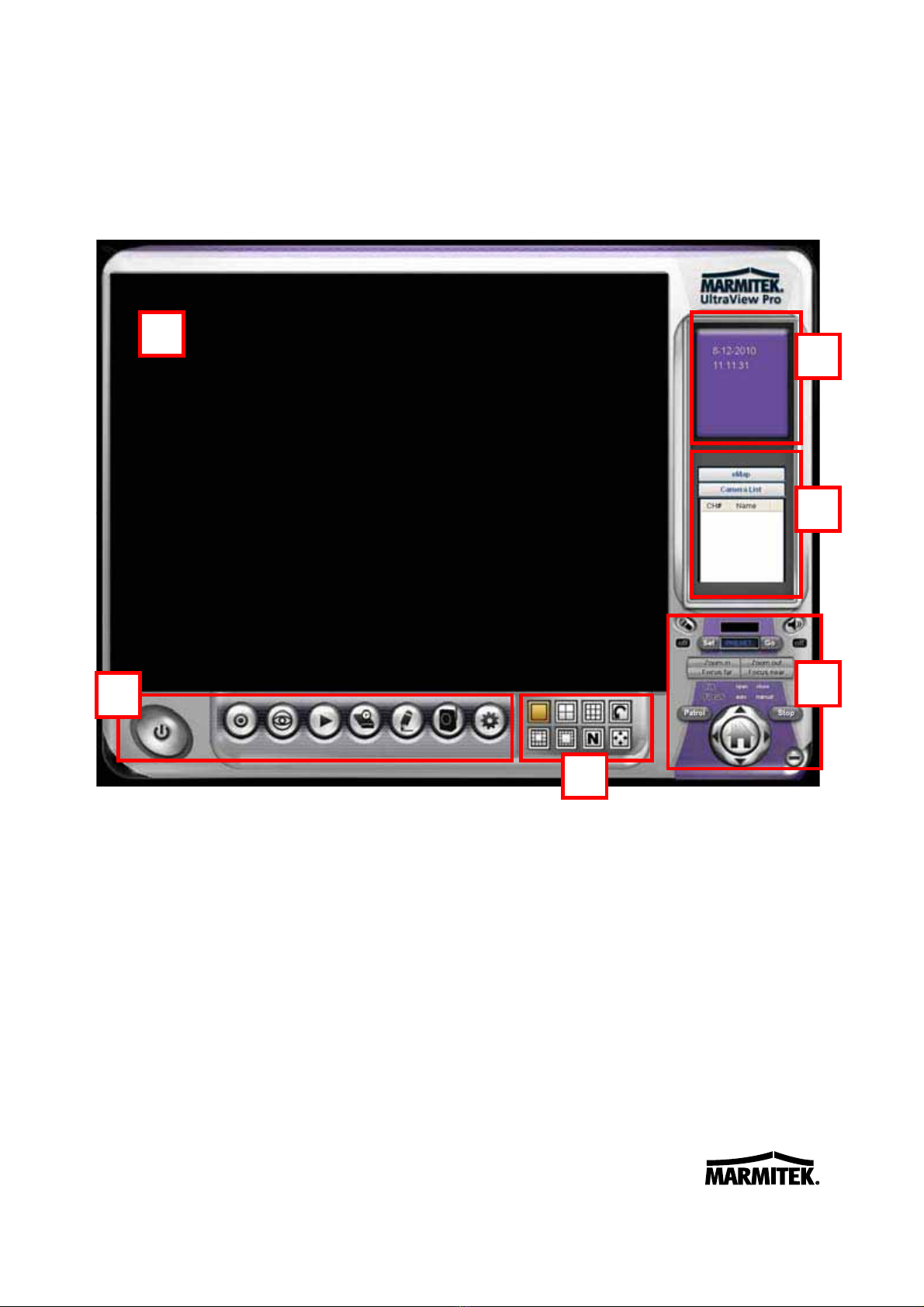

3.2 Main Window and Item Feature
When you start and login to Marmitek UltraView Pro, the Main
window will display as below:
X[
\
]
Y
Z
The Main window provides you with the information on operating
the system, as well as the control panel such as the Quick Launch
buttons, and so on.
NOTE Marmitek UltraView Pro requires the resolution setting up to 1024
x 768. For best view of the application, you are recommended to
configure the resolution setting to 1024 x 768 or higher; otherwise,
it cannot be displayed on the screen when launching the program.
6

XLive View Window displays the live video of the connected
camera(s).
YQuick Launch Buttons are located below the Live View
Window, providing you with the following quick-launch functions:
Button Function
Click to select Logout or Close UltraView Pro.
Click to select Restore Recording Type,All
Continuous Recording, or Stop All Recording.
Click and then select to display the View Setting
window, switch to the eMap View window, or check the
Camera Status.
Click to display the Playback window.
Click to display the Schedule Configuration window.
Click to configure the event settings: Event Server,
Address Book, and Event Trigger.
Click to configure Device Setting and Recording
Setting.
Click to set the Account,Language, and System
Setting; or view the Version or the program.
ZCamera View Mode buttons in this area allow you to switch
the camera view mode.
Button Function
Display the connected camera(s) in single camera view
mode.
Display the connected camera(s) in quad view mode.
Display the connected camera(s) in 3 x 3 grid view
mode.
Marmitek UltraViewPro 7

Display the connected camera(s) in 13-camera view
mode using a split window. The first camera is displayed
as the major view.
Display the connected camera(s) in 17-camera view
mode using a split window. The first camera is displayed
as the major view.
Display the connected camera(s) in N x N grid view
mode, supporting up to 32 cameras.
Display the live view of the selected camera in full
screen mode. Press the ESC key on the PC keyboard to
resume the Main window.
Automatically switch the live view of each connected
cameras in single camera view mode by 30 seconds*.
Click once to start and click again to stop.
* The auto-switch time is set as 30 seconds by default,
which can be changed by clicking the
Æ
System
Setting and then change the value from the pull-down
list of the Auto Switch time interval option.
[System Information displays the system information,
including the date and time, and the available storage space of
the system.
\Live View Status provides the status of live view mode,
including Camera List and eMap.
zCamera List displays the status of the connected cameras.
If multiple cameras are connected, you can switch to the
live view of each camera by simply selecting the camera
from the list.
zeMap allows you to select the desired camera to the view
from the map easily. Please note that you have to set up
the eMap for monitoring in advance.
8

]Camera Control Buttons provides the control buttons that
allow you to control the selected camera.
Button Function
Talk On/Off. Click to enable/disable the speaker
function of the connected camera. This option is
available only in single camera view mode.
Listen On/Off. Click to enable/disable the
microphone function of the connected camera. This
option is available only in single camera view mode.
If the connected camera features pan/tilt functions,
you can use this control panel to set the preset
positions (up to 8 positions). Once configured, you
can move the camera lens to the desired position
quickly.
To set the preset positions, adjust the camera lens
to the desired position using the Navigation buttons,
and then select the position number (1~8) from the
Set button.
To move to the preset position, simply select the
position number (1~8) from the Go button.
Navigation Buttons (Left/Right/Up/Down/Home). If
the connected camera features pan/tilt functions,
the Navigation buttons allow you to move the
camera lens position. Clicking the Home (center)
button will move the camera lens to the assigned
home position.
/
The Patrol/Stop buttons are used to enable/disable
the swinging function of the camera. Click Patrol to
start patrolling through the preset positions once.
Click Stop to stop patrolling.
Marmitek UltraViewPro 9

3.3 Accessing the Camera
Before you can access the camera, you have to add the camera to
the system.
Adding a Camera

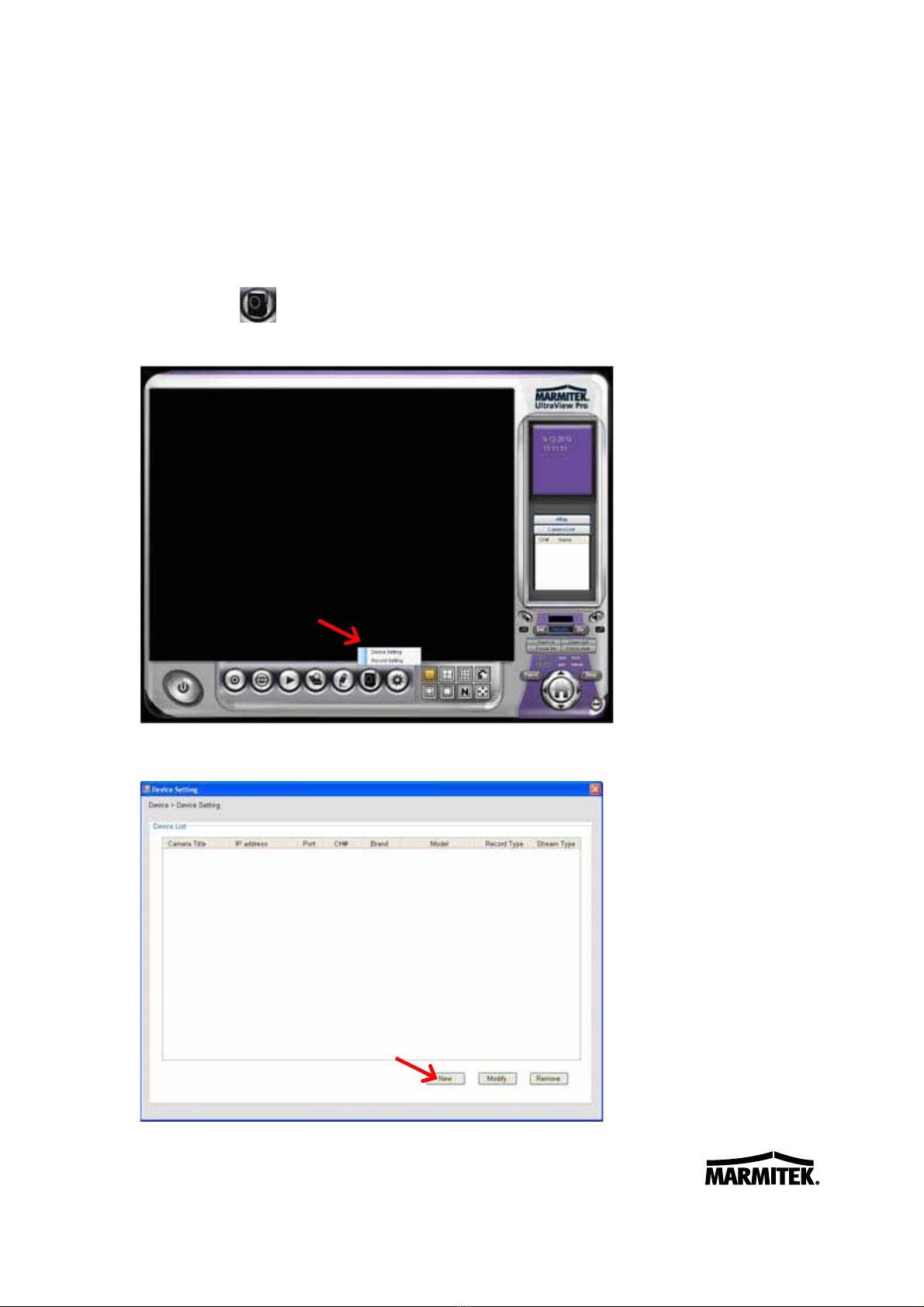

1. Click the button and select Device Setting to display the
Device Setting window.
2. Click New.
10

3. Click Device Search to search the camera(s) within your
network.
4. Click Search to find the IP address of the connected camera(s).
When search is finished, select the camera and click Add.
Marmitek UltraViewPro 11

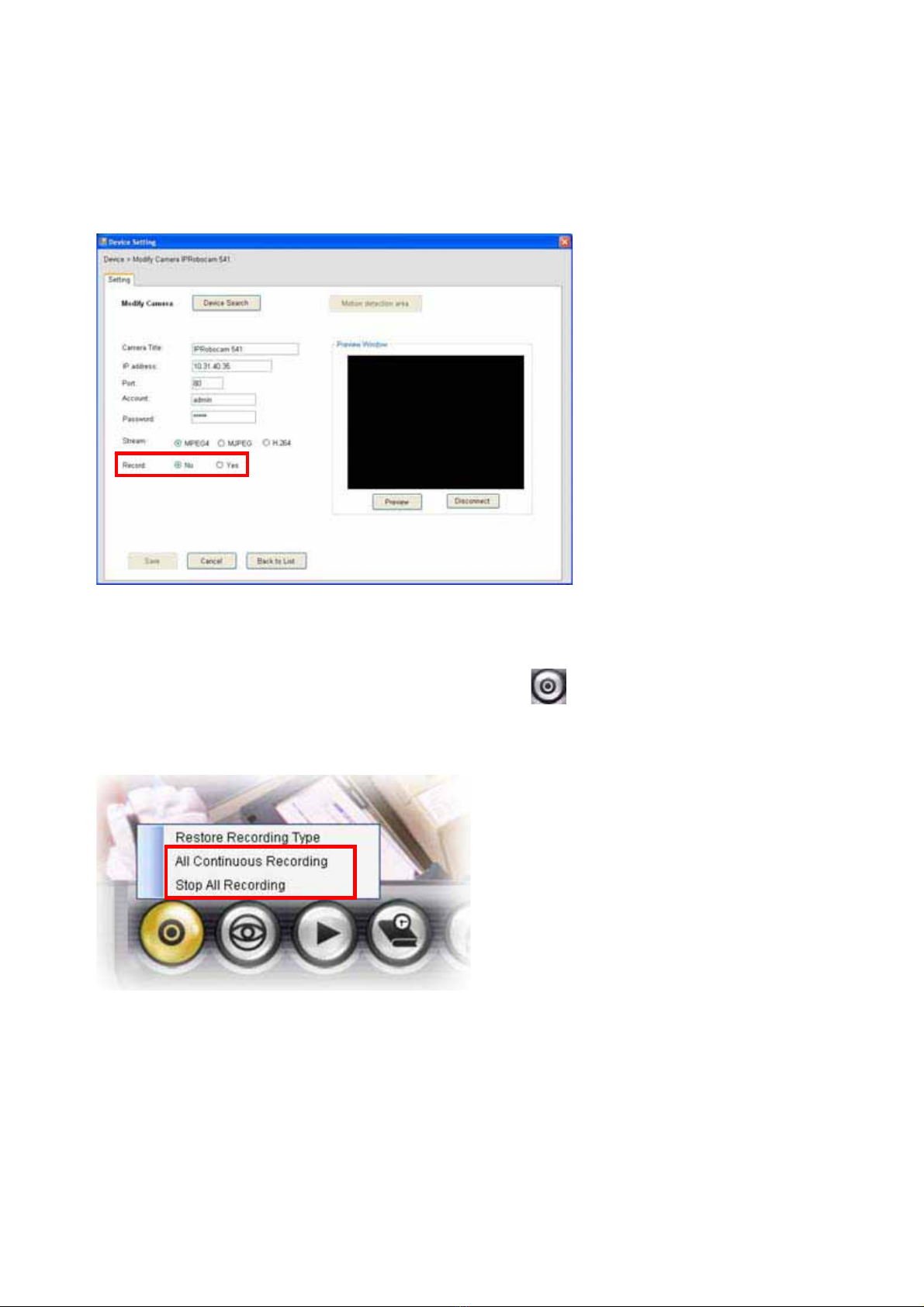

5. The information of the camera will be displayed on the window.
Option Description
Camera
Title
You have to assign a descriptive name for the
camera.
IP Address Display the IP address of the camera.
Port Display the port path of the camera.
Account Display the user name for accessing the camera.
Password The password for accessing the camera will not be
displayed.
Stream Select the stream type as MPEG4,MJPEG, or
H.264.
Record Select Yes or No to set up recording function of the
camera.
Preview
Window
This window allows you to preview the image of the
camera.
NOTE You MUST click Preview to display the
image before clicking Motion detection
area and Save to complete the camera
installation; click Disconnect to stop
previewing.
12

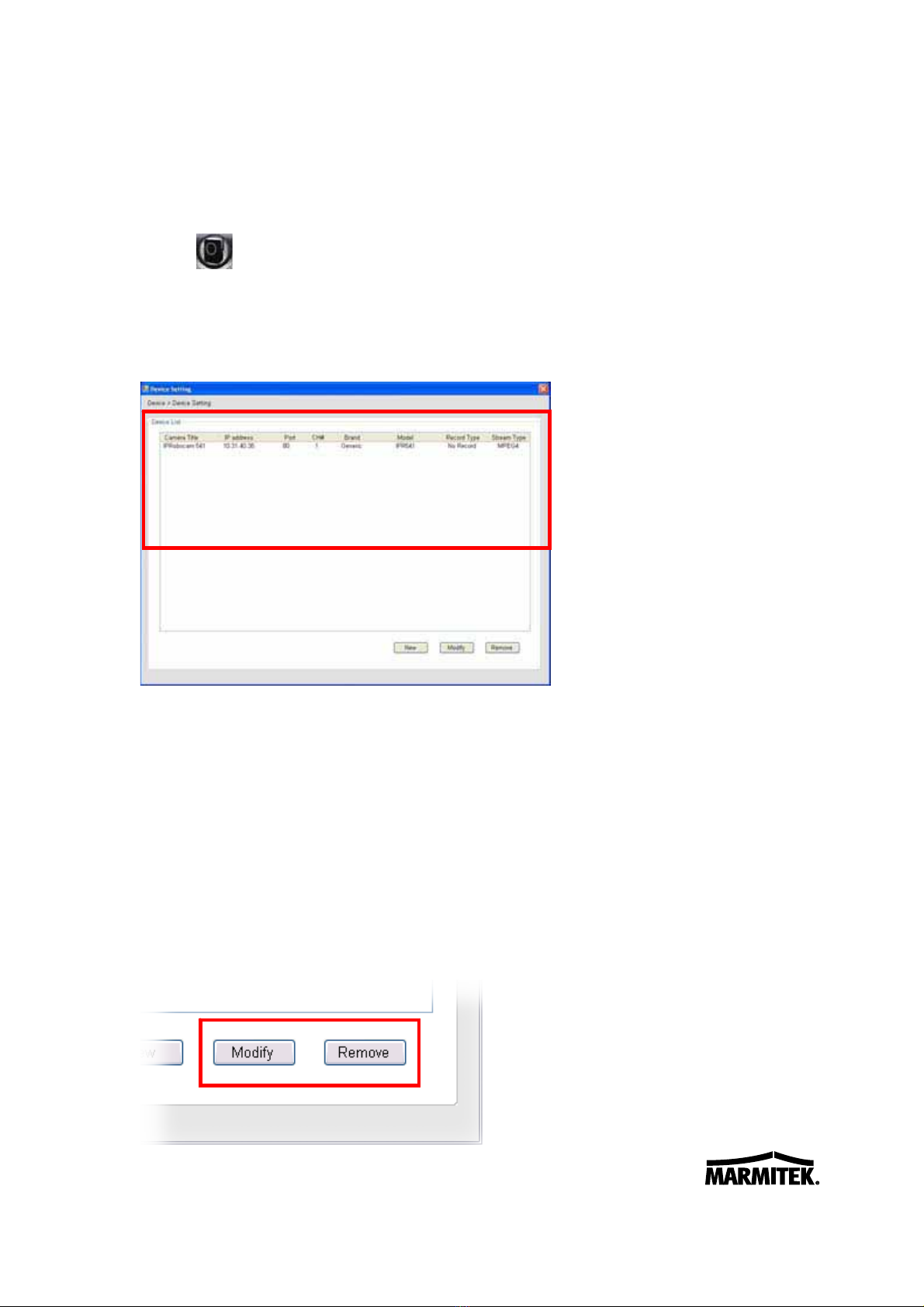

6. When done, click Save and then click OK to return to the
Device Setting window. The added camera will be displayed in
the Device List.
7. Click the “X” button on the Device Setting window to return to
the Main window. The image of the camera will be displayed.
Marmitek UltraViewPro 13

Editing / Deleting a Camera
Since you have added camera(s) to the system, you can select
one to edit or remove.
Click the button and select Device Setting to display the
Device Setting window.
1. On the Device Setting window, the connected camera(s) will
be displayed in the Device List.
14
2. To delete the camera: select the desired one and then click
Remove. When prompted, click Yes and then select OK to
confirm deletion.
To change the configuration of the camera: select the
desired one and then click Modify. The Modify Camera
window will appear that allows you to change the configuration
of the camera. When completed, click Preview to display the
image before clicking Save and then click OK to return to the
Device Setting window.

Viewing Image of the Camera
Since you have added camera(s) to the system, the image of the
selected camera(s) will be displayed on the Live View Window
automatically. You can view a maximum of 32 cameras
simultaneously. Additionally, you can select one-camera or other
view mode to display the video from the Camera View Mode
buttons.
For example, if you use only one camera, select single camera
view mode ( ), and the Live View Window will display the view
as below. You can select the other modes according to your need.
The Information icon ( ) on the top-right corner of the window
provides you with the options to connect/disconnect the camera,
select a camera to be displayed in the window, capture a still
image of the camera live video, or switch to eMap mode. Click the
Information icon to pop up the shortcut menu and select the
desired option.
Marmitek UltraViewPro 15

3.4 Recording / Playing Video
You have to assign the target folder for saving the recorded files
before recording.
Configuring the Recording Settings
1. Click the button and then select Record Setting.
2. To assign the target folder for saving the recorded files, click
the Browse button next to the Recording Path option, and
then select the desired directory.
To change the time of recording, select the desired time setting
from the Record File pull-down menu.
When completed, click Save
16

Enabling / Disabling Recording
While you are adding/editing the camera, you can enable the
recording function for the camera by selecting the Record option.
Marmitek UltraViewPro 17
Alternately, you can set all cameras to start/stop recording when
you connect multiple cameras. Click the button and select All
Continuous Recording to set all cameras to start recording, or
select Stop All Recording to set all cameras to stop recording.
Since you have enabled the recording function of the camera, it will
automatically start recording and save the video clips. The
recording time of each file is set to 60 seconds by default.
NOTE The system will automatically delete the oldest files when storage
space is running out.

Setting up Schedule for Recording
The system features the schedule recording so that you can set up
the schedule to record as you need.
Click the button to display the Schedule Configuration window,
which allows you to configure the recording schedule.
1. Click New, and then enter the Schedule Title.
2. Select the checkboxes below the Schedule Title to set the time
to record video. One checkbox stands for 30 minutes of
recording time. You can choose to assign the single checkbox
repeatedly by using Click, or assign a period of time by using
Slide. Alternately, you can quickly select/cancel the
checkboxes by clicking Select All or Delete All.
3. When completed, click Save. The schedule profile will be
added to the Schedule List.
4. To edit the schedule, select the desired schedule profile from
the list, and then change the settings by using the Modify or
Remove button.
18

Playback the Recording Files
1. Click the button to display the Playback window.
2. On the Playback window, set the conditions for search, such
as selecting the camera and setting the begin/end date and
begin/end time. When the search condition has been set, click
Search.
The search result will be displayed in the Record File list.
Marmitek UltraViewPro 19
