Yamaha Electone BK-20C Series User manual

Welcome to the Yamaha world of
music. We are sure your selection of
a Yamaha Electone was a wise one,
and we want you to know that we
will do everything possible to help
you derive a lifetime of enjoyment
from this fine musical instrument.
Please read this manual carefully to
be sure you are familiar with each of
the Electone’s features and their
expressive possibilities. In that way
you and your Electone can become
lifelong partners in musical creativity.
Contents
Read the following before
playing
This is the BK-20C
Keyboards
The Tone Levers, Preset Tones.. 4
Vibrato, Vibrato Speed, Brilliance,
Upper 8’, 4’ Sustain, Reverb, Upper
Percussive, Percussion, Attack Wah-
Wah, Repeat Speed, Glide, Pedal
Sustain
Tremolo/ Chorus, Manual Balance,
Expression Pedal, Master Volume . 6
Auto Rhythm Section

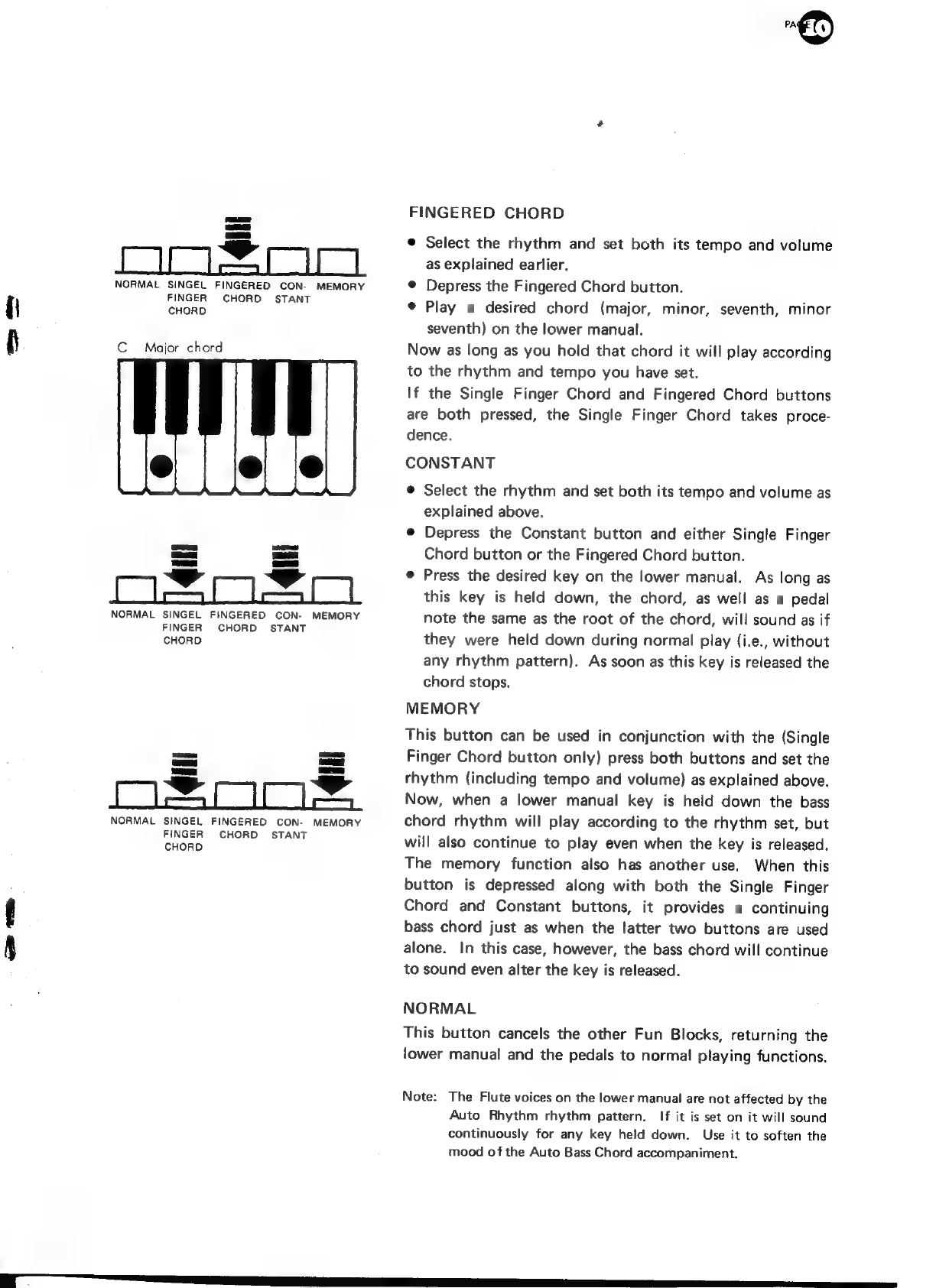

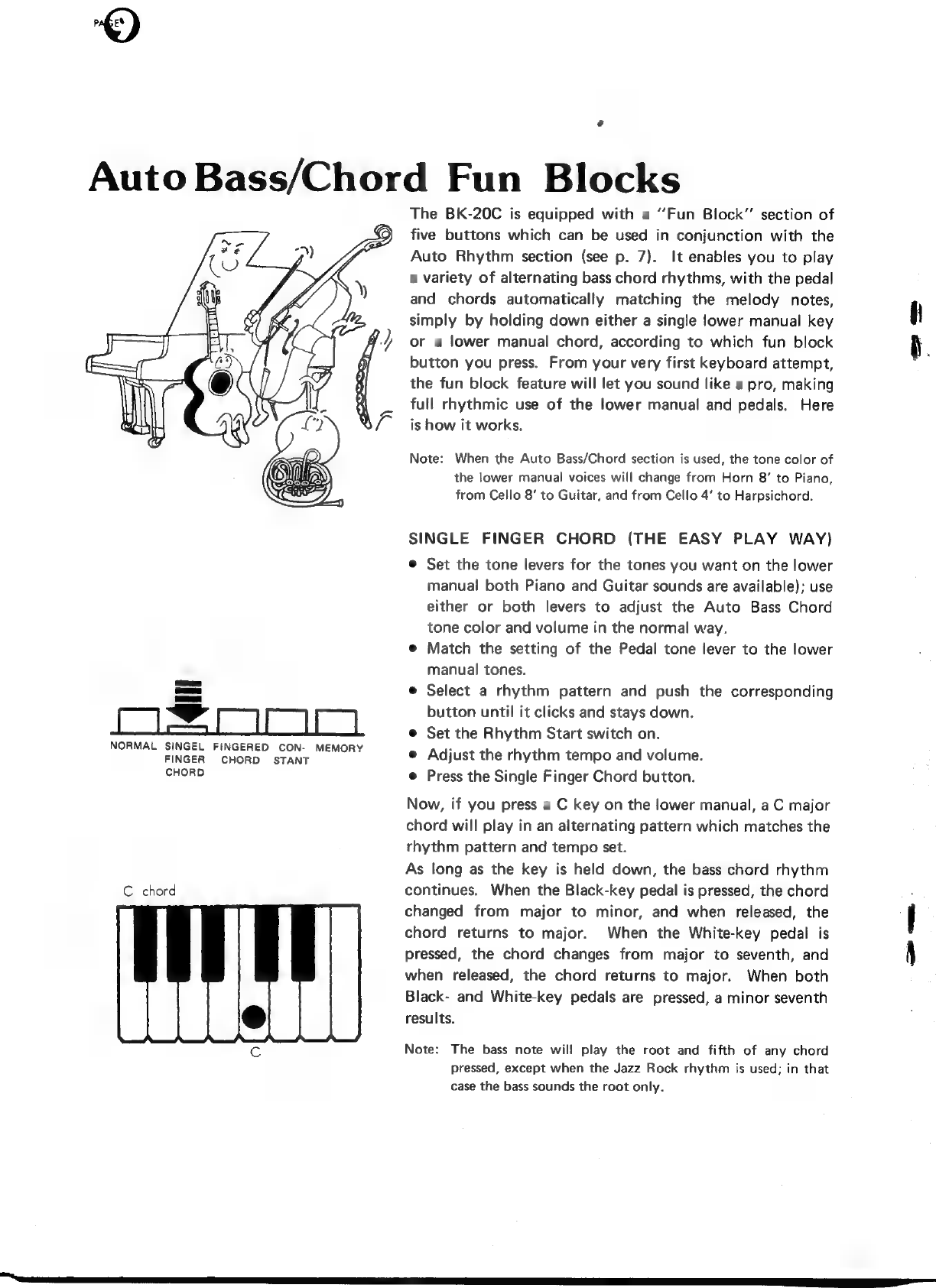

Auto Bass/Chord Fun Blocks ....

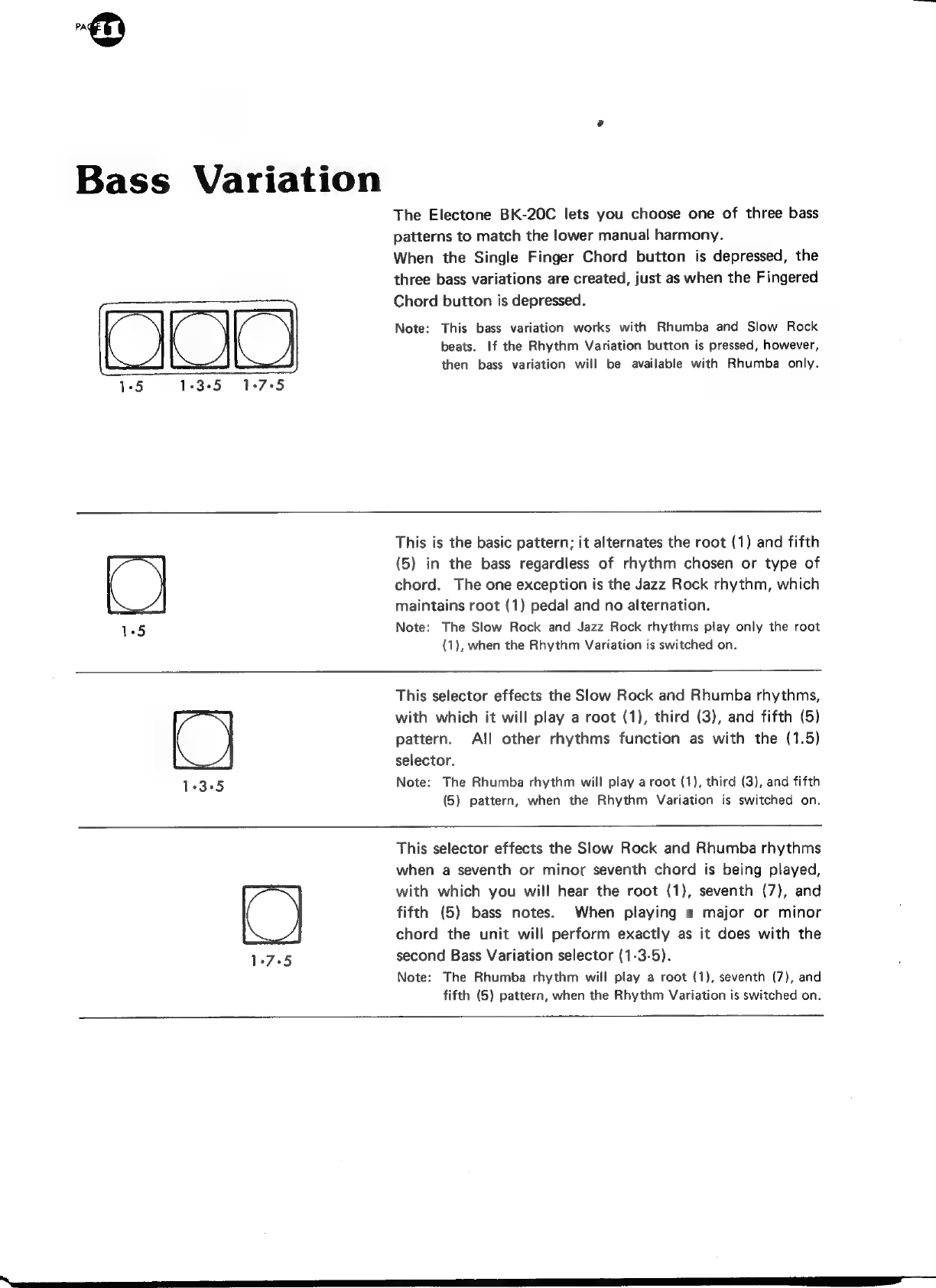

Bass Variation

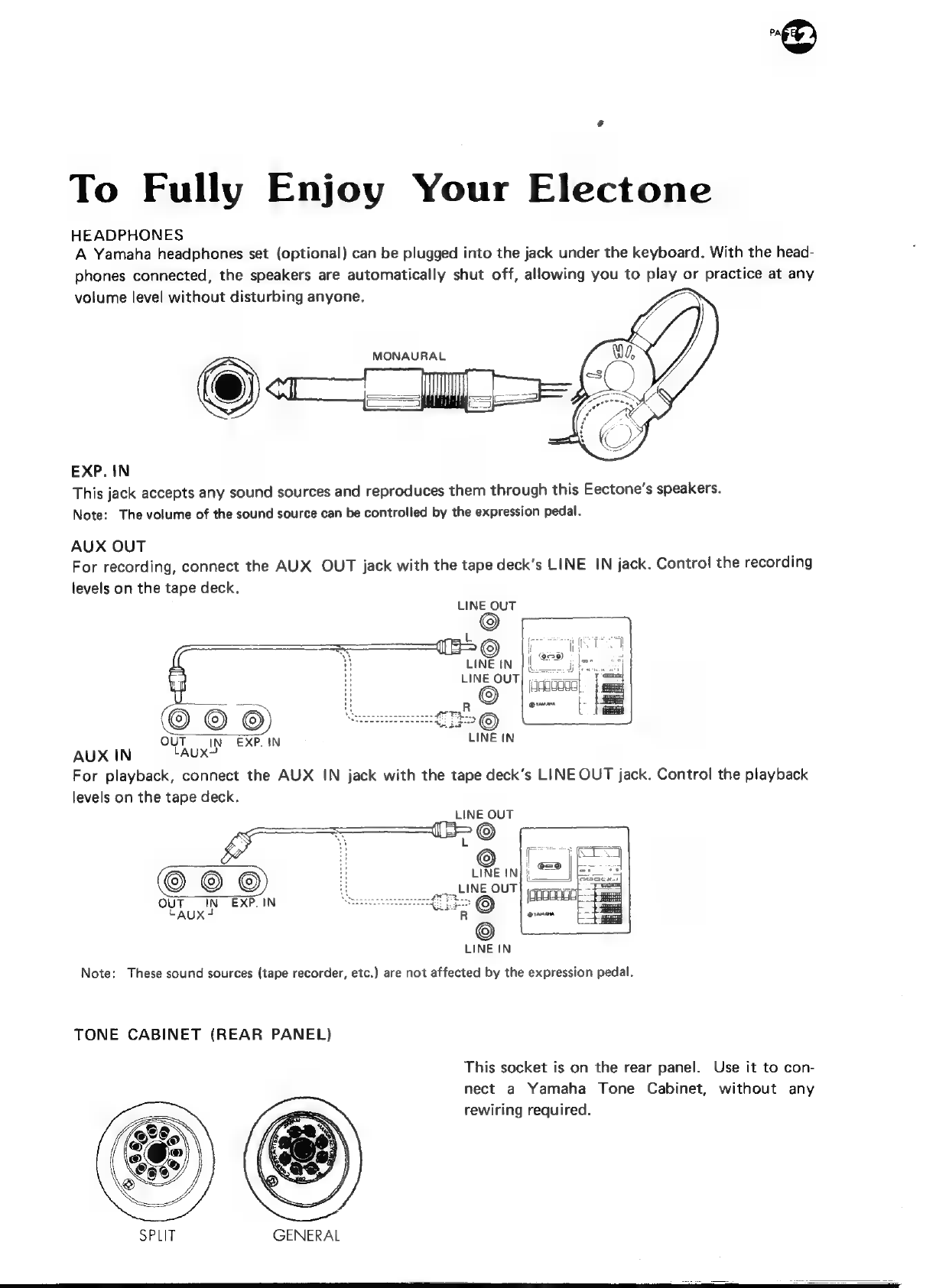

To Fully Enjoy Your Electone . .

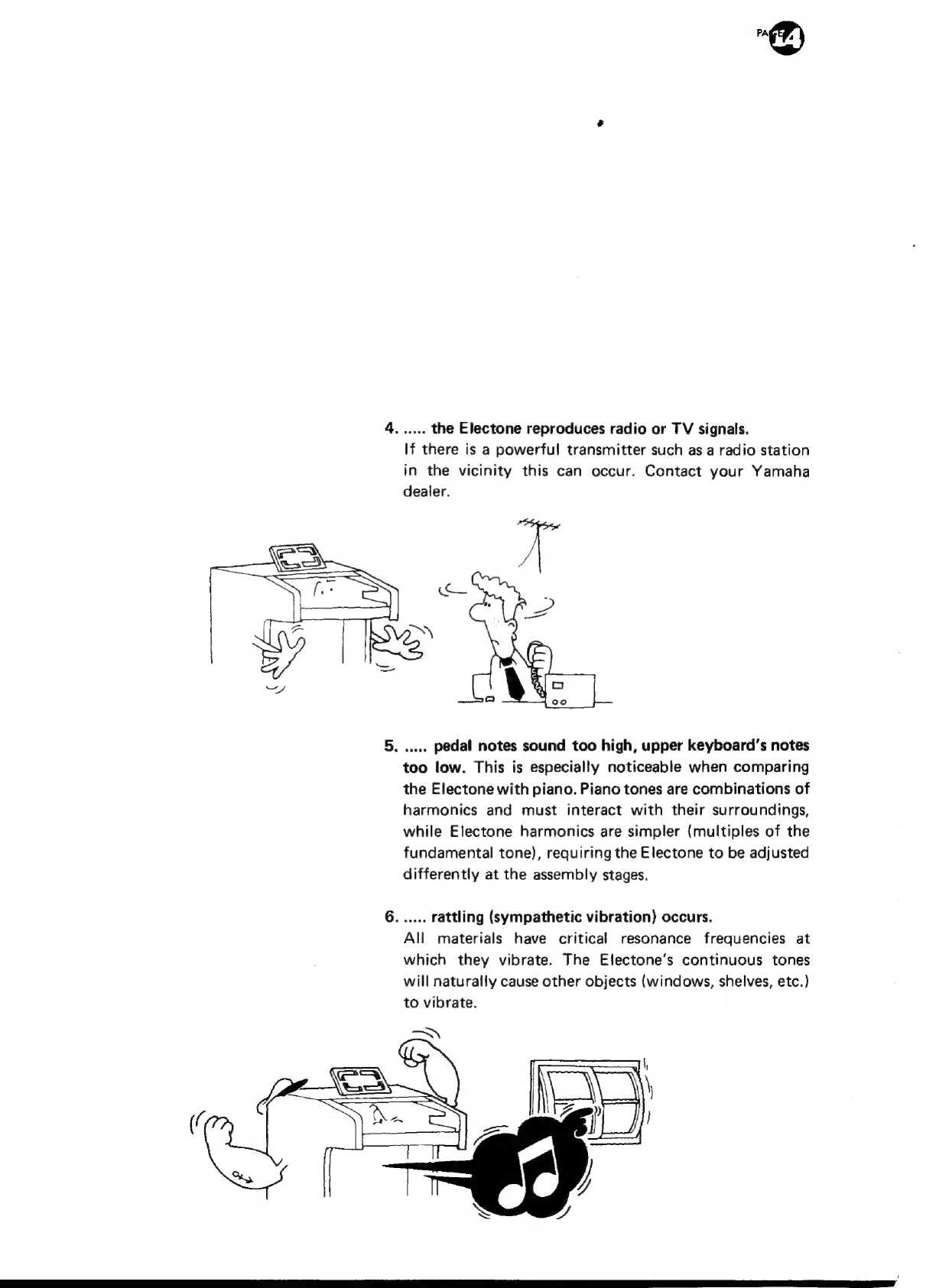

Electone is not out of order if ..

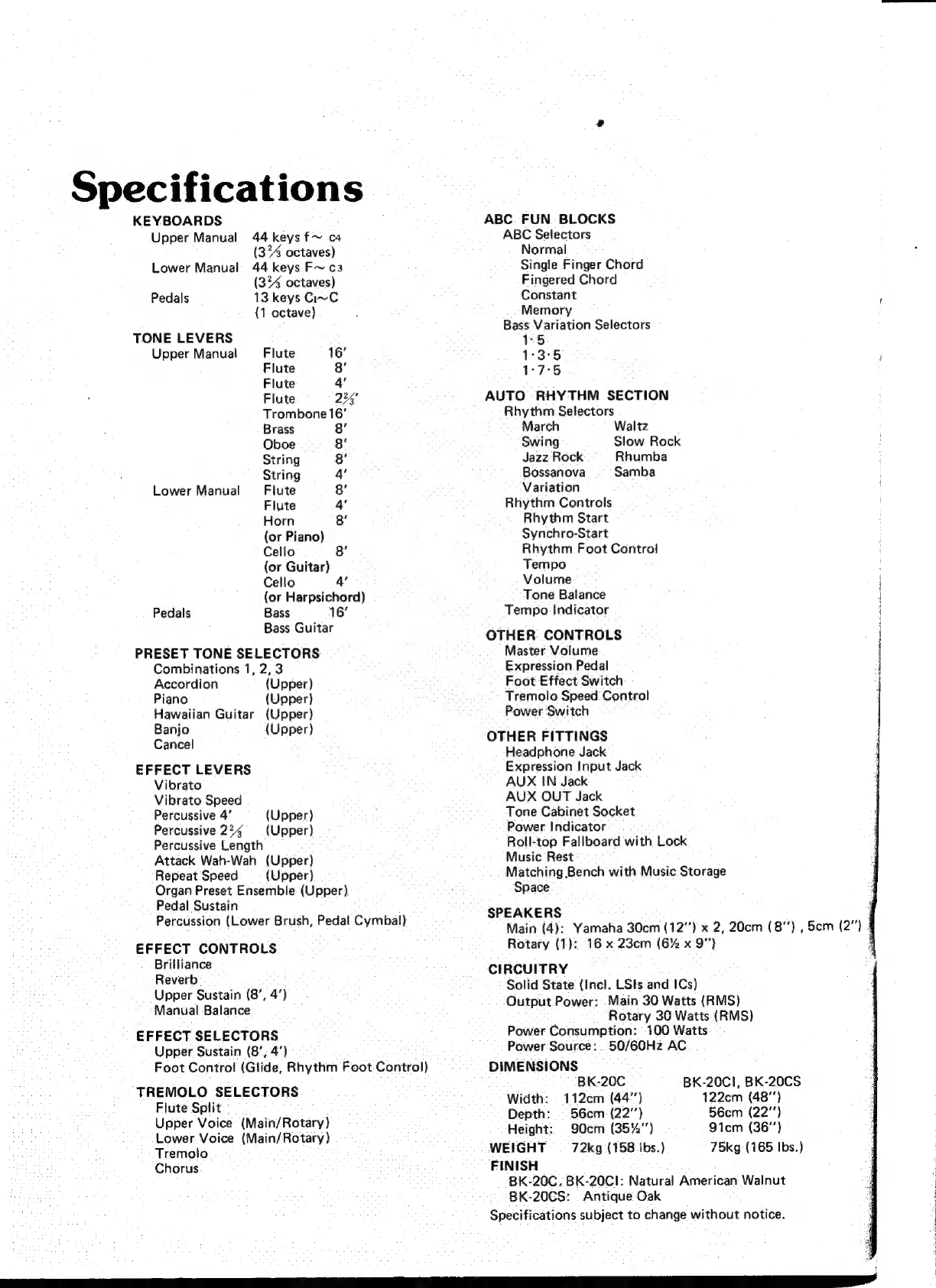

Specifications

ZT)
Read the following before playing
In general, treat your Electone with the same care you would any fine musical instrument. The follow-
ing points are suggested for optimum enjoyment.
1. Use only proper line voltage. Consult your 5. Shield the cabinet from direct sunlight, hu-
Yamaha serviceman for changes. midity and heat to protect the finish and
joints.
As to British-Standard Model, its information is in
‘Specifications’ on the last page.
6. Do not hit or scratch the cabinet with a hard
object.
N
O-
Sg
7. To open or close the fallboard grasp the front
lip with both hands and slide gentiy. Never
pull directly upwards. Do not place anything
3. Always shut off the power after playing. heavy on the fallboard.
4. Clean keys, etc, with a damp cloth only.
Never use solvents such as gasoline; they will
damage the finish.

"2

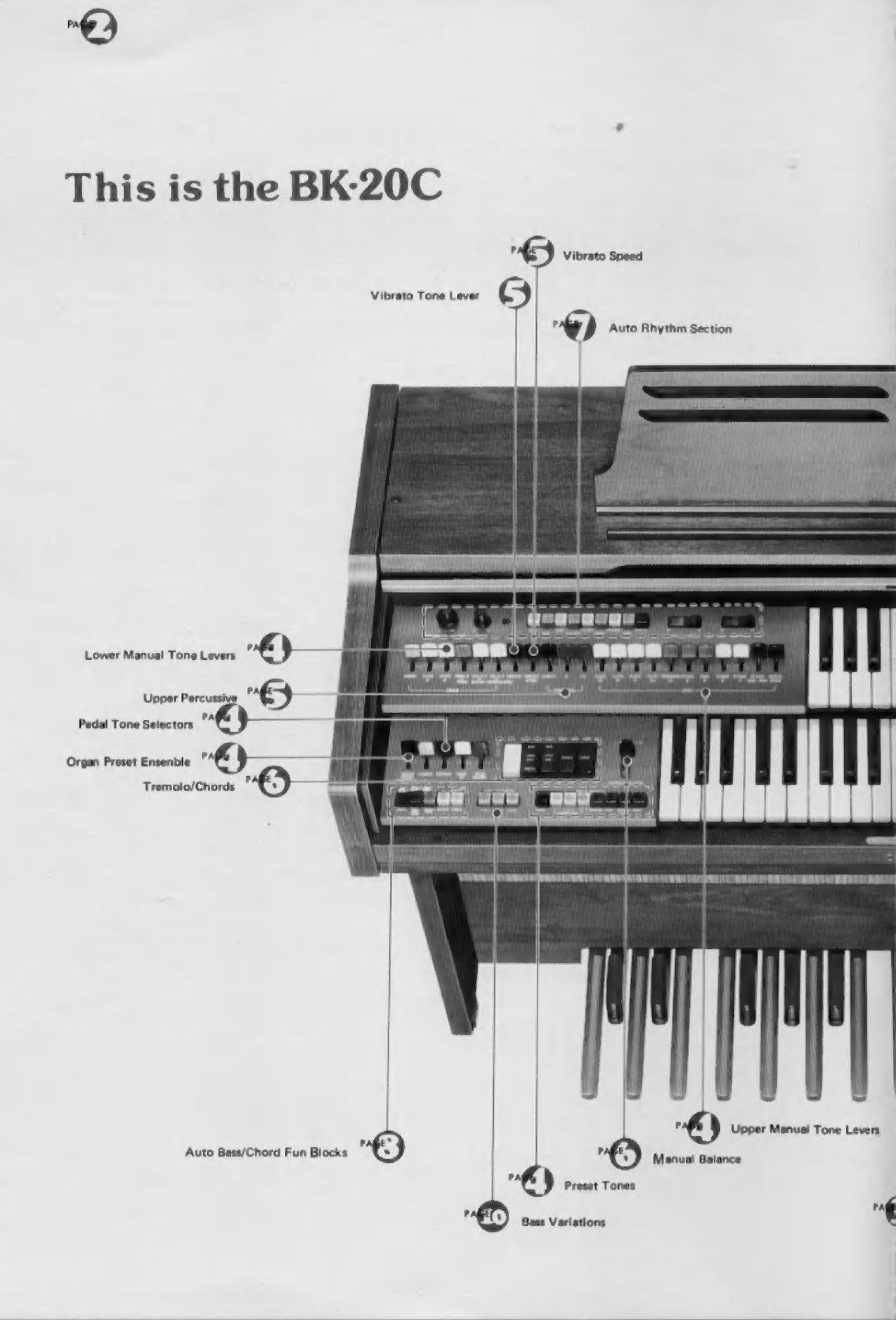

This is the BK-20C
O Vibrato Speed
Vibrato Tone Lever C
yg) Auto Rhythm Section
IELA Lab
TTT
ie
WAN
anenai niaaa anet aiiin n
P.
Lower Manual Tone Levers
Upper Percussive eC
nf }—
Pedal Tone Selectors
Organ Preset Ensenble yi
Tremolo/Chords © EA
}
"io @
P. Upper Manual Tone Levers
of )
P.
Auto Bass/Chord Fun Blocks €) Manual Balance
P
E) Preset Tones
. né
Bass Variations

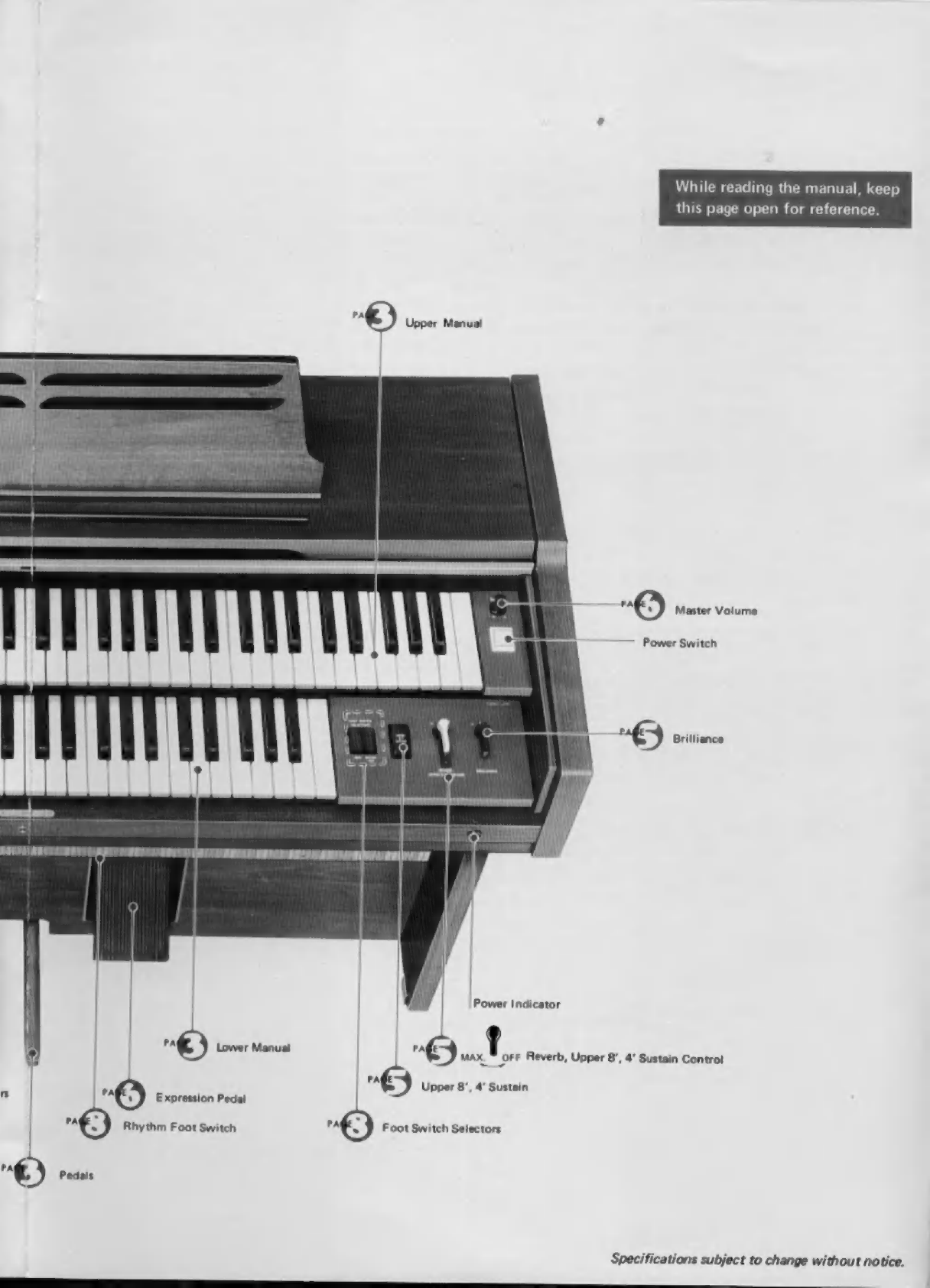

While reading the manual, keep
this page open for reference.
o€) Master Volume
— Power Switch
aU re) aR
| A | Power Indicator
| | |
i
Lower
Mani
D,
t
PA
‘
we
|
ms
max.
™
off
Reverb,
Upper
8°,
4’
Sustain
Control
>e
ZS) Upper 8’, 4' Sustain
Z3)
Rhythm
Foot
Switch
PAI
Foot
Switch
Selectors
"é Pedals
rs | rs Expression Pedal
Specifications
subject
to
change
without
notice.

"€)
Keyboards
This Electone has three keyboards. They have keys and octaves as follows:
Upper Keyboard 44 keys (3-2/3 octaves)
Lower Keyboard 44 keys (3-2/3 octaves)
Pedals 13 keys (1 octave)
This
Electone
is
designed
to
permit
playing
the
melody
on
the
upper
keyboard
with
the
right
hand,
the
chords
on
the
lower
keyboard
with
the
left
hand,
and
bass
note
on
the
pedals
with
the
left
foot.
All
keys
are
arranged
in
the
keyboard
method
layout
shown
below.
Each
white
key
has
a
name
(from
C
to B), and
the
blacks
are
sharps
or
flats.
UPPER KEYBOARD
MELODY
LOWER KEYBOARD
CHORD
ook enti
ie ee oS kane
Bl |i. |
Soke py aa I} iljeoe®
ia acl l)i ite gae2=—
i Ht | | ae 22-====
o 3
ne oo"
Leone” E
Note:
it should be noted that precedence is to the higher note if two more keys are
pressed simultaneously. This assures tonal clarify.

The Tone Levers
(full effect)
ey
Preset Tones
To the left of the upper and lower manuals are series of
tone levers which control the Electone voices that will
sound when the keys are depressed. They are divided
into groups for upper, lower and pedals, so that different
registrations can be set for each.
Upper Manual Levers 9 voices
Lower Manual Levers 5 voices
Pedal Levers 2 voices
Each lever provides two methods of control. One is by
continuously moving the lever from off to full, to achieve
the exact setting for that tone, and thus balancing the
overall tone setting with perfect precision. Each lever also
has two easy-to-feel click stops, at 1/3 and 2/3 positions.
This lets you refind any setting with mathematical pre-
cision and no guesswork in a matter of seconds,
PITCHES OR FOOTAGES
The BK-20C has four different pitch levels, indicated by
the numbers 16’, 8’, 4° and 233". These are standard musi-
cal abbreviations showing the tone’s pitch in relation to
the fundamental (written note). An 8’ tone will sound just
as it has been written. As the numbers increase, the tones
lower. A 16’ tone will provide a tone exactly one octave
lower than the written note.
Similarly, 4° tones are one octave higher than the written
note, 27s tones are one octave and a fifth higher than the
8' fundamental.
To the left of the lower manual are eight Upper Preset
Tone selectors (seven tones plus Cancel). These on/off
switches are special tonal blends that most closely re-
semble the instruments they name (Accordion, Piano,
Hawaiian Guitar, Banjo) as well as three special preset
combinations.
Since these buttons are factory preset, they automatically
cancel all other upper manual tone lever settings. This
lets you switch back and forth. In addition, precedence is
to the right. This means that if two or more buttons are
pressed, the one to the right will take effect. To switch
from one button to another it is not necessary to first
press the cancel button.
Note: Upper Sustain control lever does not work with the Accor-
dion, Piano, Hawaiian Guitar and Banjo preset selectors.
ORGAN PRESET ENSEMBLE
This lever controls the effect which adds the upper tone
lever to the upper preset tone. (Accordion, Piano, Hawaiian
Guitar, Banjo)

&
Vibrato, Vibrato Speed
Vibrato is a waving of the tone. You will see violin and cello players use it freely by an oscillating
motion of the left hand. That increases the emotional quality of the violin tone. This vibrato lever
produces the same vibrato effect. The Vibrato lever provides continuous adjustment of this effect’s
depth, while Vibrato Speed lets you continuously set the desired speed.
Brilliance
With this single, continuously-variable control you can pinpoint the degree of overall softness or clarity
desired for any mood of music.
Upper 8’ 4’ Sustain
When this is switched on, the sustain effect is evoked. As the name of the tab implies, only 8’ and 4’
tones are affected. The length of such sustain is set by the Upper Sustain control.
Note: When combined with Upper Percussive 4’, all sound is canceiled.
Reverb
The reverberation effect, which makes your playing sound full and rich as if you were playing in a large
hall, can be adjusted continuously and smoothly to suit your taste.
Upper Percussive
Changing the beginning of some or all notes can do wonders for lively selections. Your BK-20C’s per-
cussive effects provide subtle but important shading at the moment each note is heard. The special
popping 4’, 2%’ percussive drive can be smoothly blended into all upper manual tones with percussive
4’, 2%", and a percussive length lever regulates the length of decay for this effect.
With percussive, use a detached fingering. Each note should be played cleanly; slurred notes will
diminish the percussive impact.
Note: If Upper Percussive 4’ is set at the same time as Upper Sustain, no sound will be heard.
Percussion (LOWER BRUSH, PEDAL CYMBAL)
Provide lively brush (hissing snare drum brush) and cymbal percussion sounds with each lower manual
or pedal note.
Attack Wah-Wah
Provides a spicy wah-wah sound at the beginning of every upper manual tone.
Repeat Speed
Cuts and repeats each note just like the double-strumming effect of a mandolin. The lever provides
continuous speed adjustment to create a full variety of different moods. Affect upper manual notes
only.
Glide
While the foot switch is pushed when the Glide selector is on, tones will be lowered one half tone.
Pedal Sustain
This control provides continuous adjustment of the sustain effect on the pedals and allows the pedal note
to continue to sound a few seconds after you have released it.

kO)

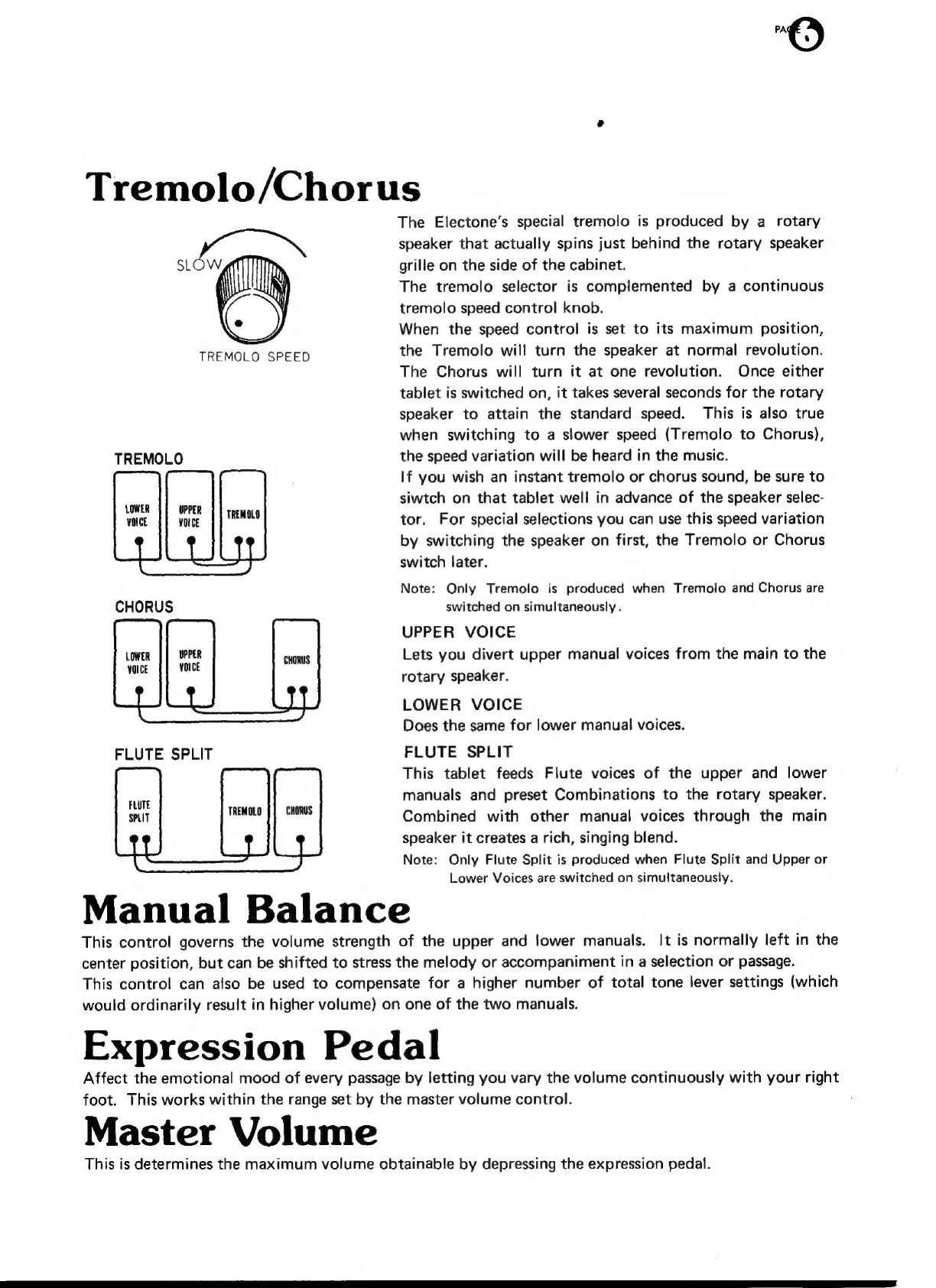

Tremolo/Chorus
The Electone’s special tremolo is produced by a rotary
[ae speaker that actually spins just behind the rotary speaker
SLOW, grille on the side of the cabinet.
The tremolo selector is complemented by a continuous
tremolo speed control knob.
When the speed control is set to its maximum position,
TREMOLO SPEED the Tremolo will turn the speaker at normal revolution.
The Chorus will turn it at one revolution. Once either
tablet is switched on, it takes several seconds for the rotary
speaker to attain the standard speed. This is also true
when switching to a slower speed (Tremolo to Chorus),
TREMOLO the speed variation will be heard in the music.
If you wish an instant tremolo or chorus sound, be sure to
siwtch on that tablet well in advance of the speaker selec-
jaune tor. For special selections you can use this speed variation
by switching the speaker on first, the Tremolo or Chorus
switch later.
Note: Only Tremolo is produced when Tremolo and Chorus are
CHORUS switched on simultaneously .
UPPER VOICE
Lets you divert upper manual voices from the main to the
rotary speaker.
LOWER VOICE
Does the same for lower manual voices.
FLUTE
SPLIT
FLUTE
SPLIT
This tablet feeds Flute voices of the upper and lower
- manuals and preset Combinations to the rotary speaker.
TREMOLO
Combined with other manual voices through the main
speaker it creates a rich, singing blend.
Note: Only Flute Split is produced when Flute Split and Upper or
Lower Voices are switched on simultaneously.
Manual Balance
This control governs the volume strength of the upper and lower manuals. It is normally left in the
center position, but can be shifted to stress the melody or accompaniment in a selection or passage.
This control can also be used to compensate for a higher number of total tone lever settings (which
would ordinarily result in higher volume) on one of the two manuals.
Expression Pedal
Affect the emotional mood of every passage by letting you vary the volume continuously with your right
foot. This works within the range set by the master volume control.
Master Volume
This is determines the maximum volume obtainable by depressing the expression pedal.

“@)

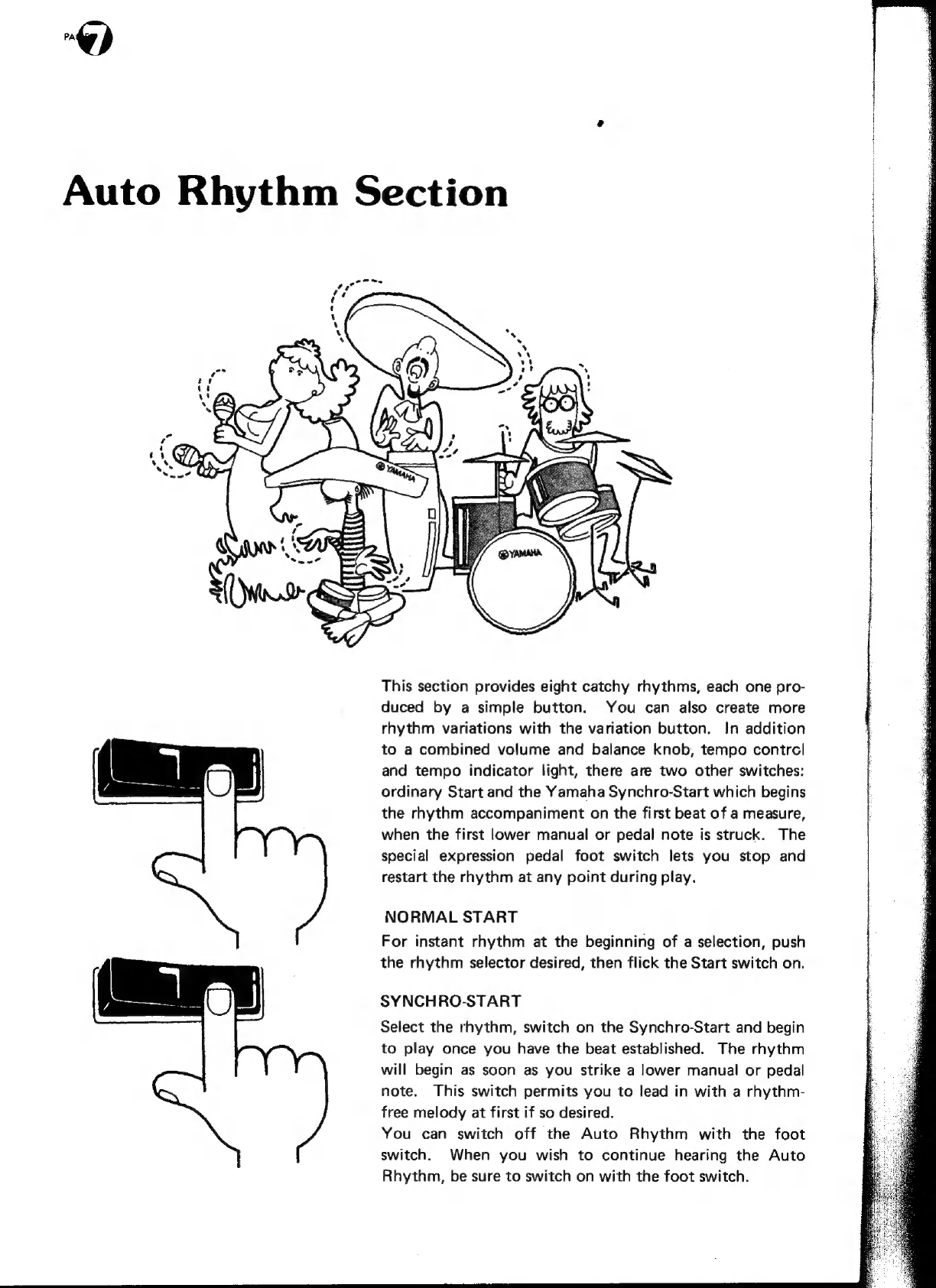

Auto Rhythm Section
This section provides eight catchy rhythms, each one pro-
duced by a simple button. You can also create more
rhythm variations with the variation button. In addition
to a combined volume and balance knob, tempo control
and tempo indicator light, there are two other switches:
ordinary Start and the Yamaha Synchro-Start which begins
the rhythm accompaniment on the first beat of a measure,
when the first lower manual or pedal note is struck. The
special expression pedal foot switch lets you stop and
restart the rhythm at any point during play.
NORMAL START
For instant rhythm at the beginning of a selection, push
the rhythm selector desired, then flick the Start switch on.
SYNCHRO-START
Select the rhythm, switch on the Synchro-Start and begin
to play once you have the beat established. The rhythm
will begin as soon as you strike a lower manual or pedal
note. This switch permits you to lead in with a rhythm-
free melody at first if so desired.

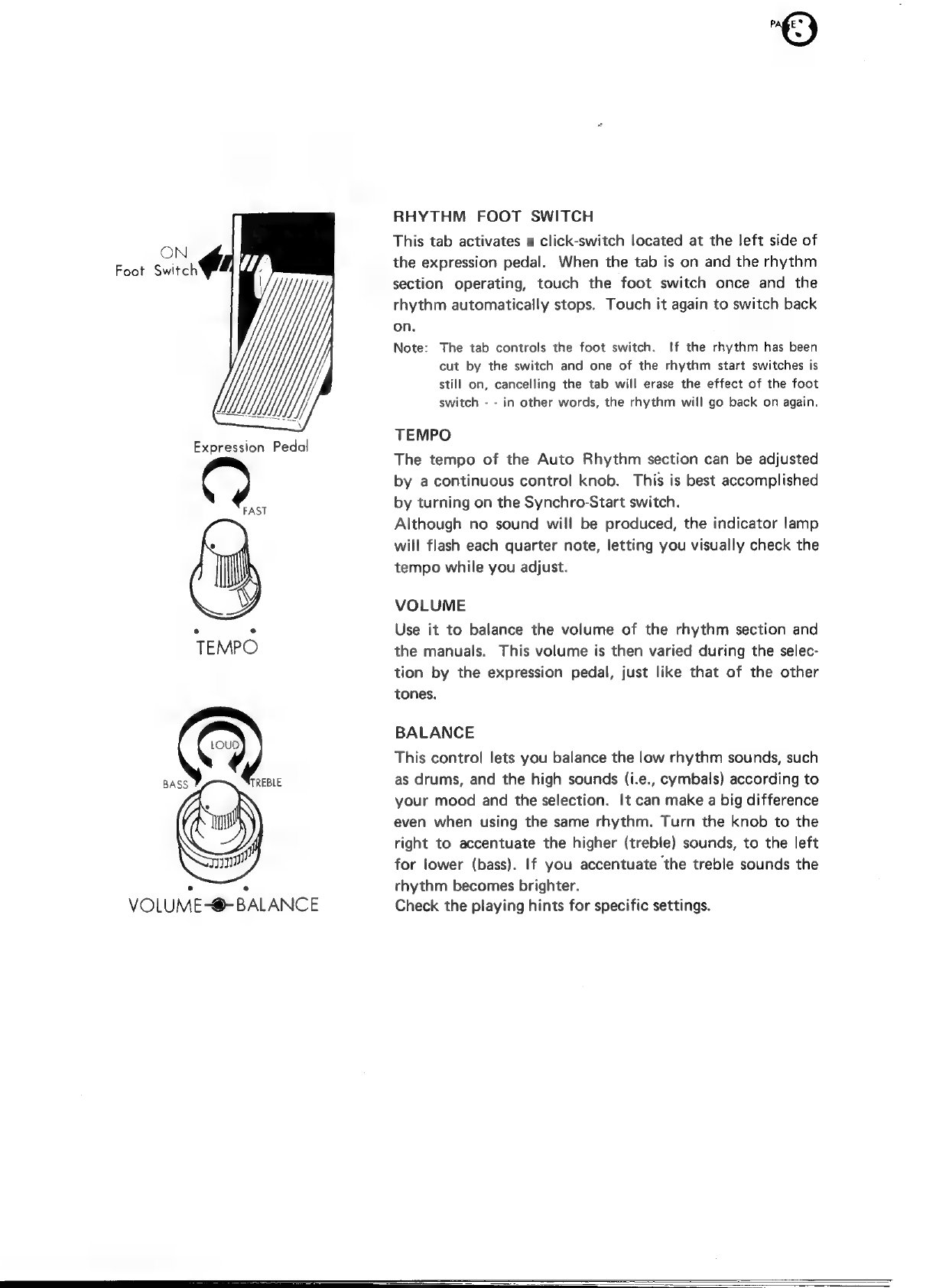

You can switch off the Auto Rhythm with the foot
switch. When you wish to continue hearing the Auto
Rhythm, be sure to switch on with the foot switch.
i
i
|
|
|
i
f:
4
1

ON
Foot Switch
é my
Expression Pedal
5
FAST
©
|
TEMPO
Loud)
BASS | TREBLE
©
y) fi
VOLUME-@®- BALANCE
"€
RHYTHM FOOT SWITCH
This tab activates a click-switch located at the left side of
the expression pedal. When the tab is on and the rhythm
section operating, touch the foot switch once and the
rhythm automatically stops. Touch it again to switch back
on.
Note: The tab controls the foot switch. If the rhythm has been
cut by the switch and one of the rhythm start switches is
stili on, cancelling the tab will erase the effect of the foot
switch - - in other words, the rhythm will go back on again.
TEMPO
The tempo of the Auto Rhythm section can be adjusted
by a continuous control knob. This is best accomplished
by turning on the Synchro-Start switch.
Although no sound will be produced, the indicator lamp
will flash each quarter note, letting you visually check the
tempo while you adjust.
VOLUME
Use it to balance the volume of the rhythm section and
the manuals. This volume is then varied during the selec-
tion by the expression pedal, just like that of the other
tones.
BALANCE
This control lets you balance the low rhythm sounds, such
as drums, and the high sounds (i.e., cymbals) according to
your mood and the selection. It can make a big difference
even when using the same rhythm. Turn the knob to the
right to accentuate the higher (treble) sounds, to the left
for lower (bass). If you accentuate the treble sounds the
rhythm becomes brighter.
Check the playing hints for specific settings.

©
Auto Bass/Chord Fun Blocks
NORMAL SINGEL FINGERED CON- MEMORY
FINGER CHORD STANT
CHORD
C chord
The BK-20C is equipped with a “Fun Block” section of
five buttons which can be used in conjunction with the
Auto Rhythm section (see p. 7). It enables you to play
a variety of alternating bass chord rhythms, with the pedal
and chords automatically matching the melody notes,
simply by holding down either a single lower manual key
or a lower manual chord, according to which fun block
button you press. From your very first keyboard attempt,
the fun block feature will let you sound like a pro, making
full rhythmic use of the lower manual and pedals. Here
is how it works.
Note: When the Auto Bass/Chord section is used, the tone color of
the lower manual voices will change from Horn 8’ to Piano,
from Cello 8’ to Guitar, and from Cello 4’ to Harpsichord.
SINGLE FINGER CHORD (THE EASY PLAY WAY)
è Set the tone levers for the tones you want on the lower
manual both Piano and Guitar sounds are available); use
either or both levers to adjust the Auto Bass Chord
tone color and volume in the normal way.
è Match the setting of the Pedal tone lever to the lower
manual tones.
è Select a rhythm pattern and push the corresponding
button until it clicks and stays down.
è Set the Rhythm Start switch on.
e Adjust the rhythm tempo and volume.
e Press the Single Finger Chord button.
Now, if you press a C key on the lower manual, a C major
chord will play in an alternating pattern which matches the
rhythm pattern and tempo set.
As long as the key is held down, the bass chord rhythm
continues, When the Black-key pedal is pressed, the chord
changed from major to minor, and when released, the
chord returns to major. When the White-key pedal is
pressed, the chord changes from major to seventh, and
when released, the chord returns to major. When both
Black- and White-key pedals are pressed, a minor seventh
results.
Note: The bass note will play the root and fifth of any chord
pressed, except when the Jazz Rock rhythm is used; in that
case the bass sounds the root only.
h

©
NORMAL SINGEL FINGERED CON- MEMORY
FINGER CHORD STANT
{i CHORD
À C Major chord
NORMAL SINGEL FINGERED CON- MEMORY
FINGER CHORD STANT
CHORD
nnns
NORMAL SINGEL FINGERED CON- MEMORY
FINGER CHORD STANT
CHORD
g 10)
FINGERED CHORD
© Select the rhythm and set both its tempo and volume
as explained earlier.
© Depress the Fingered Chord button.
è Play a desired chord (major, minor, seventh, minor
seventh) on the lower manual.
Now as long as you hold that chord it will play according
to the rhythm and tempo you have set.
If the Single Finger Chord and Fingered Chord buttons
are both pressed, the Single Finger Chord takes proce-
dence.
CONSTANT
© Select the rhythm and set both its tempo and volume as
explained above.
e Depress the Constant button and either Single Finger
Chord button or the Fingered Chord button.
e
Press
the
desired
key
on
the
lower
manual.
As
long
as
this
key
is
held
down,
the
chord,
as
well
as
a
pedal
note
the
same
as
the
root
of
the
chord,
will
sound
as
if
they
were
held
down
during
normal
play
(i.e.,
without
any
rhythm
pattern).
As soon
as this
key
is
released
the
chord
stops.
MEMORY
This
button
can
be
used
in
conjunction
with
the
(Single
Finger
Chord
button
only)
press
both
buttons
and
set
the
rhythm
(including
tempo
and
volume)
as
explained
above.
Now,
when
a
lower
manual
key
is
held
down
the
bass
chord
rhythm
will
play
according
to
the
rhythm
set,
but
will
also
continue
to
play
even
when
the
key
is
released.
The
memory
function
also
has
another
use.
When
this
button
is
depressed
along
with
both
the
Single
Finger
Chord
and
Constant
buttons,
it
provides
a
continuing
bass
chord
just
as
when
the
latter
two
buttons
are
used
alone.
In
this
case,
however,
the
bass
chord
will
continue
to
sound
even
alter
the
key
is
released.
NORMAL
This
button
cancels
the
other
Fun
Blocks,
returning
the
lower
manual
and
the
pedals
to
normal
playing
functions.
Note:
The
Flute
voices
on
the
lower
manual
are
not
affected
by
the
Auto
Rhythm
rhythm
pattern.
If
it
is set
on
it
will
sound
continuously
for
any
key
held
down.
Use
it
to
soften
the
mood
of
the
Auto
Bass
Chord
accompaniment.

me)
Bass Variation
1-5 1-3-5 1-75
The Electone BK-20C lets you choose one of three bass
patterns to match the lower manual harmony.
When the Single Finger Chord button is depressed, the
three bass variations are created, just as when the Fingered
Chord button is depressed.
Note: This bass variation works with Rhumba and Slow Rock
beats. If the Rhythm Variation button is pressed, however,
then bass variation will be available with Rhumba only.
D
1-5
This is the basic pattern; it alternates the root (1) and fifth
(5) in the bass regardless of rhythm chosen or type of
chord. The one exception is the Jazz Rock rhythm, which
maintains root (1) pedal and no alternation.
Note: The Slow Rock and Jazz Rock rhythms play only the root
{1), when the Rhythm Variation is switched on.
2
1.3.5
This selector effects the Slow Rock and Rhumba rhythms,
with which it will play a root (1), third (3), and fifth (5)
pattern. All other rhythms function as with the (1.5)
selector.
Note: The Rhumba rhythm will play a root (1), third (3), and fifth
(5) pattern, when the Rhythm Variation is switched on.
1:7-5
This selector effects the Siow Rock and Rhumba rhythms
when a seventh or minor seventh chord is being played,
with which you will hear the root (1), seventh (7), and
fifth (5) bass notes. When playing a major or minor
chord the unit will perform exactly as it does with the
second Bass Variation selector (1-3-5).
Note: The Rhumba rhythm will play a root (1), seventh (7), and
fifth (5) pattern, when the Rhythm Variation is switched on.

ni)
To Fully Enjoy Your Electone
HEADPHONES
A Yamaha headphones set (optional) can be plugged into the jack under the keyboard. With the head-
phones connected, the speakers are automatically shut off, allowing you to play or practice at any
volume level without disturbing anyone.
MONAURAL
EXP. IN
This
jack
accepts
any
sound
sources
and
reproduces
them
through
this
Eectone’s
speakers.
Note:
The
volume
of
the
sound
source
can
be
controlled
by
the
expression
pedal.
AUX OUT
For
recording,
connect
the
AUX
OUT
jack
with
the
tape
deck’s
LINE
IN
jack.
Control
the
recording
levels on the tape deck.
LINE OUT
bo Te
Gest ames
üa
es
i
pO
jem
|
EE TO)
OUT
IN
EXP.
IN
EINEN
AUX IN LAUX-
For playback, connect the AUX IN jack with the tape deck’s LINE OUT jack. Control the playback
levels on the tape deck.
LINE OUT
©
©
©
[e]
ire
pa
“2
m
x
D
2
LINE IN
Note: These sound sources (tape recorder, etc.) are not affected by the expression pedal.
TONE CABINET (REAR PANEL)
This socket is on the rear panel. Use it to con-
nect a Yamaha Tone Cabinet, without any
rewiring required.
SPLIT GENERAL

mE)
Electone
is
not
out
of
order
If...
Tiris
the
set
does
not
go
on
when
the
power
switch
is
turned
on.
Check
the
following.
Is
the
AC
plug
fully
inserted
into
the
electric
wall
outlet?
Reinsert
it
to
be
sure.
Is
there
power
coming
from
that
outlet?
If
there
is
power
in
the
outlet
but
the
Electone
does
not
play,
unplug
the
cord
and
contact
your
Yamaha
dealer.
There
are
NO
USER
SERVICEABLE
PARTS
inside.
2......
a
sound
should
occur
the
instant
you
turn
on
the
switch.
This
merely
indicates
normal
operation
consequent
to
a
surge
of
electricity
in
the
main
amplifier.
Ee Sere occasional unpleasant static occurs.
In
the
majority
of
such
cases,
the
cause
can
be
traced
to
the
turning
on
or
off
of
refrigerators,
washing
machines,
‘
electric
pumps
or
other
household
appliances.
Electrical
]
faults
in
a
neighboring
outdoor
neon
sign
may
also
be
to
j
blame.
If
the
cause
is
a
fault
in
a
neon
or
fluorescent
lighting
fixture,
it
should
be
repaired.
When
the
cause
is
un-
known,
or
in
case
of
doubt,
contact
your
Yamaha
dealer.

aid)
4. ..... the Electone reproduces radio or TV signals.
If there is a powerful transmitter such as a radio station
in the vicinity this can occur. Contact your Yamaha
dealer.
By ices pedal notes sound too high, upper keyboard’s notes
too low. This is especially noticeable when comparing
the Electone with piano. Piano tones are combinations of
harmonics and must interact with their surroundings,
while Electone harmonics are simpler (multiples of the
fundamental tone), requiring the Electone to be adjusted
differently at the assembly stages.
Ge. cis rattling (sympathetic vibration) occurs.
AIl materials have critical resonance frequencies at
which they vibrate. The Electone’s continuous tones
will naturally cause other objects (windows, shelves, etc.)
to vibrate.

Specifications
KEYBOARDS
Upper Manual
Lower Manual
Pedals
TONE LEVERS
Upper Manual
Lower Manual
Pedals
44 keys f~ c4
(374 octaves)
44 keys F~ c3
(324 octaves)
13 keys Ci~C
{1 octave)
Flute 16
Flute 8'
Flute 4'
Flute 224’
Trombone 16’
Brass 8’
Oboe 8’
String 8'
String 4
Flute 8°
Flute 4’
Horn 8’
(or Piano)
Cello 8’
(or Guitar)
Cello 4’
(or Harpsichord)
Bass 16’
Bass Guitar
PRESET TONE SELECTORS
Combinations 1, 2, 3
Accordion (Upper)
Piano (Upper)
Hawaiian Guitar (Upper)
Banjo (Upper)
Cancel
EFFECT LEVERS
Vibrato
Vibrato Speed
Percussive 4’ (Upper)
Percussive 224 (Upper)
Percussive Length
Attack Wah-Wah (Upper)
Repeat Speed
(Upper)
Organ Preset Ensemble (Upper)
Pedal Sustain
Percussion (Lower Brush, Pedal Cymbal)
EFFECT CONTROLS
Brilliance
Reverb
Upper Sustain (8’, 4’)
Manual Balance
EFFECT SELECTORS
Upper Sustain (8’, 4’)
Foot Control (Glide, Rhythm Foot Control}
TREMOLO SELECTORS
Flute Split
Upper Voice (Main/Rotary)
Lower Voice (Main/Rotary)
Tremolo
Chorus
ABC FUN BLOCKS
ABC Selectors
Normal
Single Finger Chord
Fingered Chord
Constant
Memory
Bass Variation Selectors
t5
1:3:5
1:7-5
AUTO RHYTHM SECTION
Rhythm Selectors
March Waltz
Swing Slow Rock
Jazz Rock Rhumba
Bossanova Samba
Variation
Rhythm Controls
Rhythm Start
Synchro-Start
Rhythm Foot Control
Tempo
Volume
Tone Balance
Tempo Indicator
OTHER CONTROLS
Master Volume
Expression Pedal
Foot Effect Switch
Tremolo Speed Control
Power Switch
OTHER FITTINGS
Headphone Jack
Expression Input Jack
AUX IN Jack
AUX OUT Jack
Tone Cabinet Socket
Power Indicator
Roll-top Fallboard with Lock
Music Rest
Matching Bench with Music Storage
Space
SPEAKERS
Main
(4):
Yamaha
30cm
(12”)
x
2,
20cm
(8"")
,
5cm
(2”)
4
Rotary (1): 16 x 23cm (6%-x 9")
CIRCUITRY
Solid State (Incl. LSts and ICs)
Output Power: Main 30 Watts (RMS)
Rotary 30 Watts (RMS)
Power Consumption: 100 Watts
Power Source: 50/60Hz AC
DIMENSIONS
BK-20C
Width: 112cm (44)
Depth: 56cm (22)
Height: 90cm (35%"’)
WEIGHT
FINISH
72kg (158 Ibs.)
BK-20CI, BK-20CS
122cm (48’')
56cm (22”)
91cm (36"’)
75kg (165 Ibs.)
BK-20C, BK-20CI: Natural American Walnut
BK-20CS: Antique Oak
Specifications subject to change without notice.
|
i
J
i
|

Special Instructions for British-Standard Model
As the colours of the wires in the mains lead of the
apparatus may not correspond with the coloured
markings identifying the terminals in your plug pro-
ceed as follows.
The wire which is coloured GREEN-and-YELLOW
must be connected to the terminal in the plug which is
marked by the fetter E or by the safety earth symbol
~} or coloured GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected
to the terminal which is marked with the letter N or
coloured BLACK.
The wire which is coloured BROWN must be con-
nected to the terminal which is marked with the letter
L or coloured RED.
IMPORTANT
THE WIRES IN THE MAINS LEAD ARE COL-
OURED IN ACCORDANCE WITH THE FOLLOW-
ING CODE.
GREEN-AND-YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
WARNING:
THIS APPARATUS MUST BE EARTHED.
