Yamaha Electone DK-40C User manual

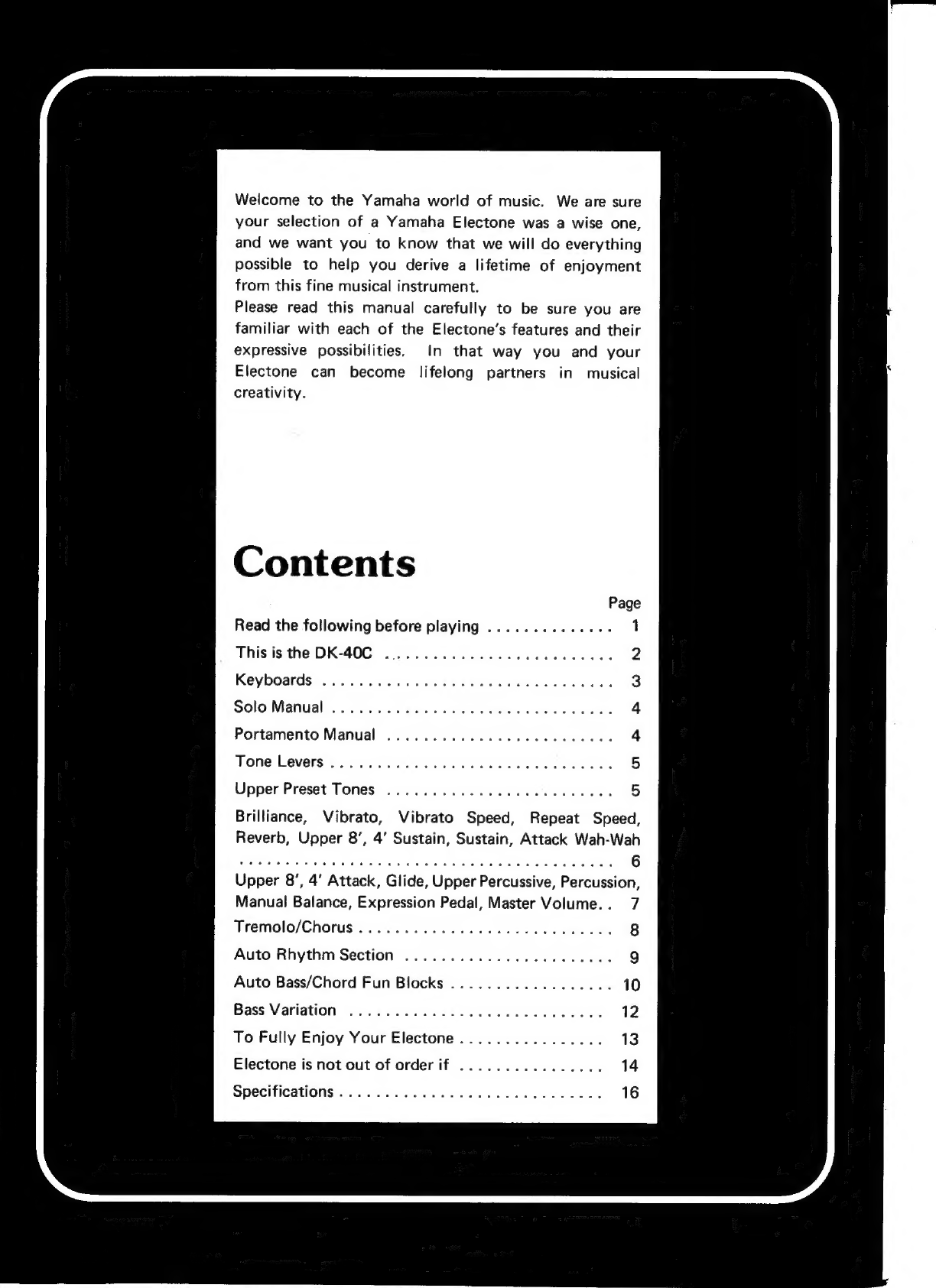

Welcome to the Yamaha world of music. We are sure
your selection of a Yamaha Electone was a wise one,
and we want you to know that we will do everything
possible to help you derive a lifetime of enjoyment
from this fine musical instrument.
Please read this manual carefully to be sure you are
familiar with each of the Electone’s features and their
expressive possibilities. in that way you and your
Electone can become lifelong partners in musical
creativity.
Contents
Read the following before playing
This is the DK-40C ..
Keyboards
Solo Manual
Upper Preset Tones
Brilliance, Vibrato, Vibrato Speed, Repeat Speed,
Reverb, Upper 8’, 4’ Sustain, Sustain, Attack Wah-Wah
6
Upper 8”, 4’ Attack, Glide, Upper Percussive, Percussion,
Manual Balance, Expression Pedal, Master Volume.. 7
Tremolo/Chorus
Auto Rhythm Section
Auto Bass/Chord Fun Blocks
Bass Variation
To Fully Enjoy Your Electone

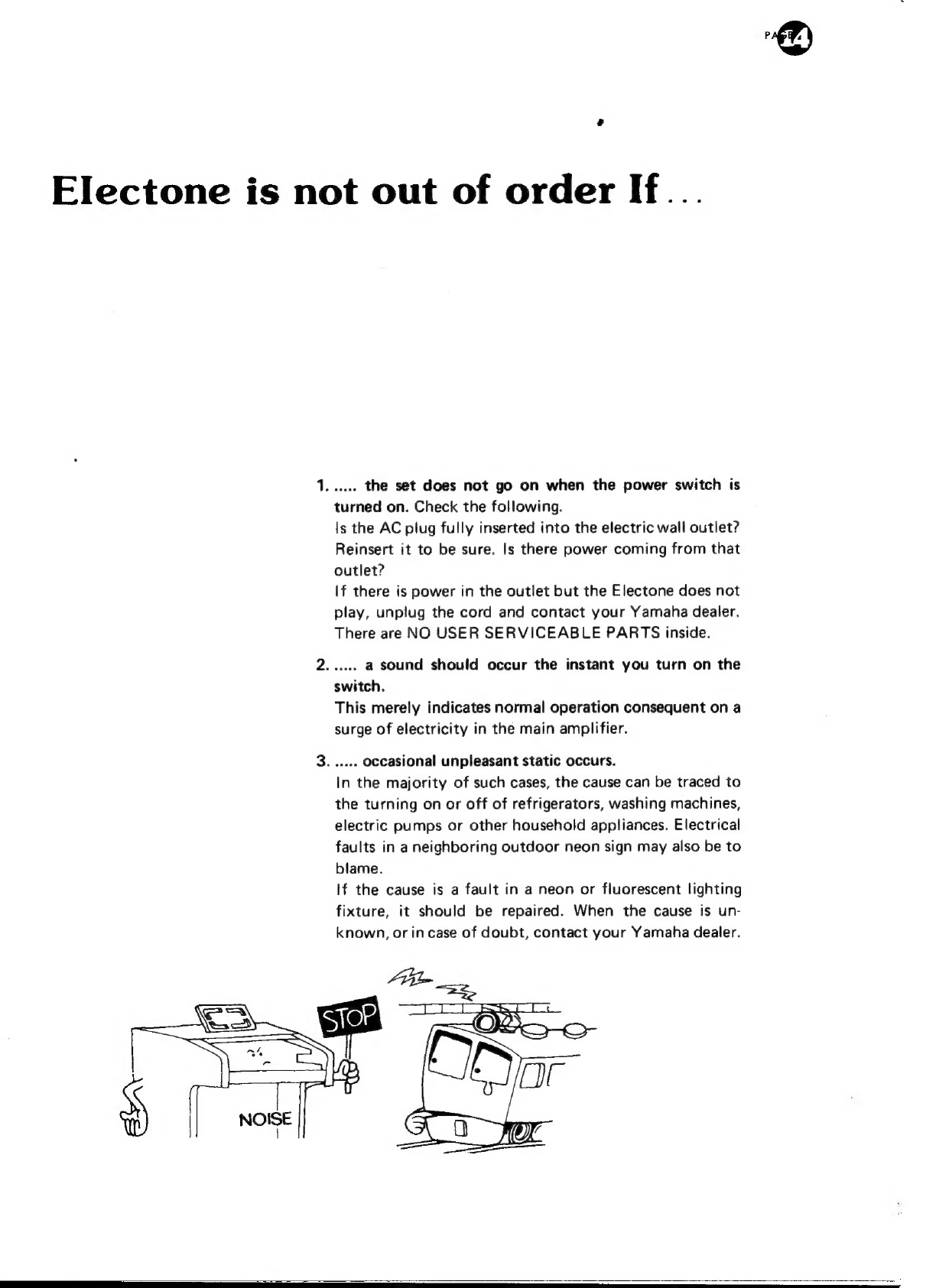

Electone is not out of order if

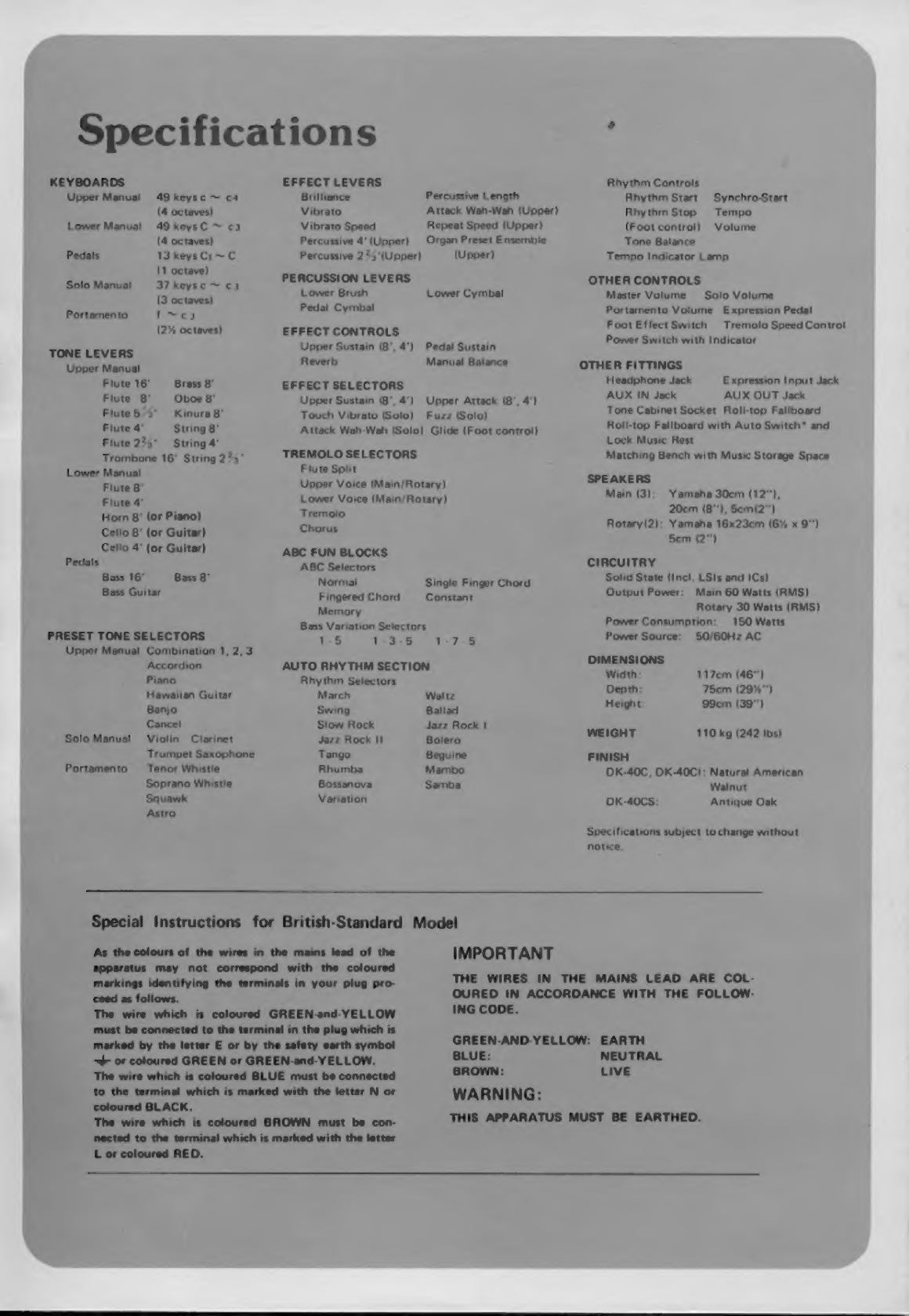

Specifications

E)
The following before playing
In general, treat your Electone with the same care you would any fine musical instrument. The follow-
ing points are suggested for optimum enjoyment.
1. Use only proper line voltage. Consult your 5. Shield the cabinet from direct sunlight, hu-
Yamaha serviceman for changes. midity and heat to protect the finish and
As to British-Standard Model, its information is in joints.
‘Specifications’ on the last page.
6. Do not hit or scratch the cabinet with a hard
object.
7. To open or close the fallboard grasp the front
lip with both hands and slide gently. Never
pull directly upwards. Do not place anything
3. Always shut off the power after playing. heavy on the fallboard.
4. Clean keys, etc, with a damp cloth only.
Never use solvents such as gasoline; they will
damage the finish.
NEUTRAL
DETERGENT

Solo Manual Section
This is the DK-40C Y A
Tone Levers
aliada
Portamento Saction
Auto Rhythm Section
Auto Bass/Chord Fun Blocks
A
(IM
Tremolo/Chorus
Upper Preset Tones
WAAR aaa LOEB ae a
max Y OFF
© Bass Variations

While reading the manual, keep
this page open for reference,
E
D
Vibrato
"E
rk
Bass
Tone
levers
TOY RT a NETTE
nn
bee Bett ete?
«ALIMAMA
DEN = an
N A
E E A
$) "H Foot Switch Selectors
PA Lower Manual
€) Upper Manual
“) Expression Pedal
"© Foot Switch
Specifications subject to change without notice.

E)
Keyboards
The DK-40C has five keyboards. The upper four are called ‘‘manuals” (“‘solo”, “portamento”, “upper”
and ‘‘lower’’), and the bottom, for the feet, is the “pedals”.
Upper Manual 4 octaves c ~ ca Solo Manual 3 octaves C ~ C3
Lower Manual 4 octaves C~ c3 Portamento 2% octaves f ~ c3
Pedals 1 octave Cı-C
The Electone is designed to permit playing the melody on the upper manual with the right hand, the
chords on the lower manual with the left hand, and bass note on the pedals with the left foot. For
special selections the solo manual can be used to provide a melodic line with its own exciting voices. Use
the portamento manual to create a range of unique sounds, pressing or sliding your finger(s) up and
down. All keys and pedals are arranged in the layout shown below. Each white key has a name (from
C to B), and the blacks are sharps or flats.
UPPER MANUAL
MELODY
LOWER MANUAL
CHORD
MIDDLE C
Note: It should be noted that precedence is to the higher note if two
more keys are pressed simultaneously. This assures tonal clarify.

mY

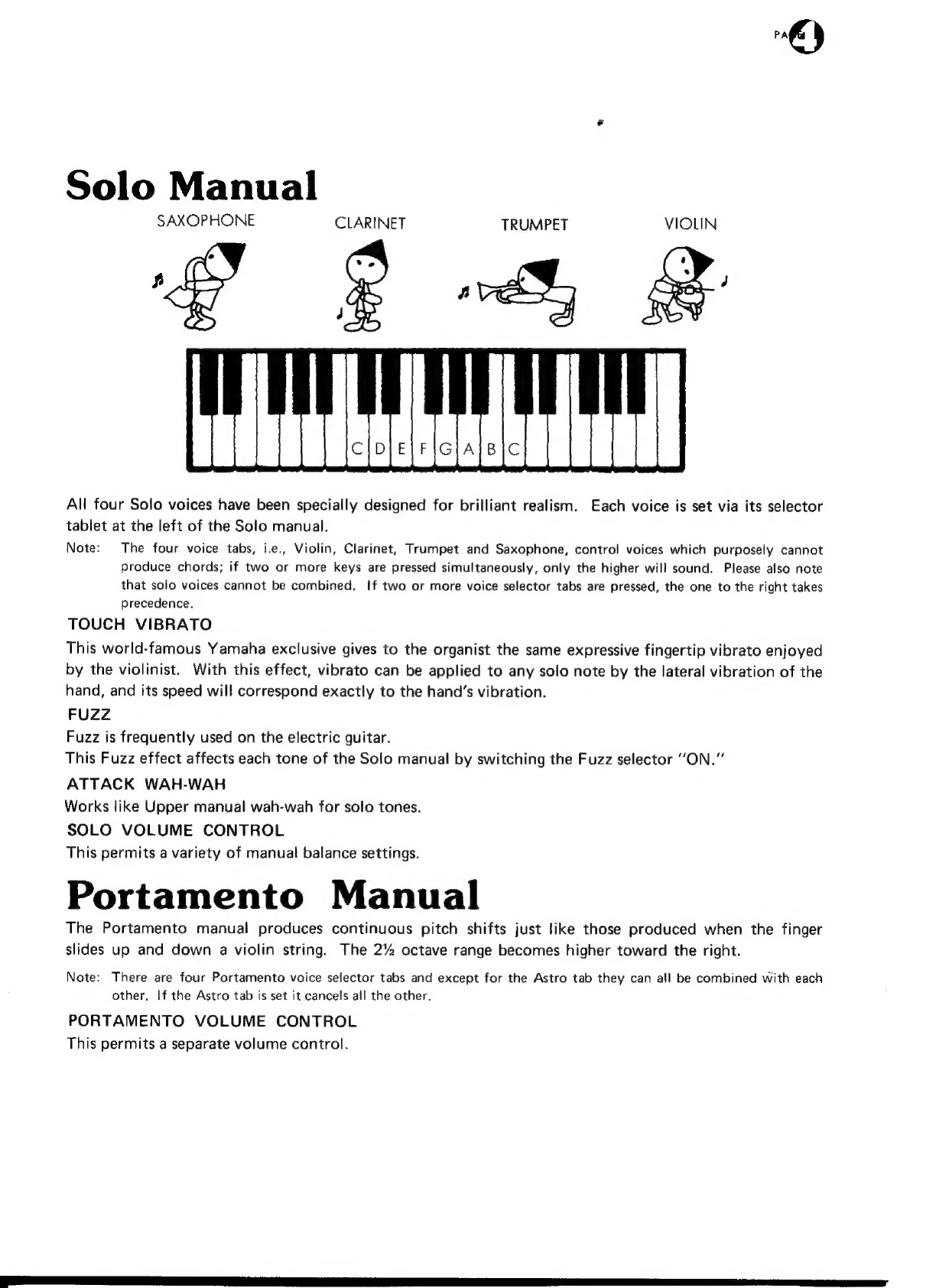

Solo Manual
SAXOPHONE CLARINET TRUMPET VIOLIN
F
ty
we
hallada
All four Solo voices have been specially designed for brilliant realism. Each voice is set via its selector
tablet at the left of the Solo manual.
Note: The four voice tabs, i.e., Violin, Clarinet, Trumpet and Saxophone, control voices which purposely cannot
produce
chords;
if
two
or
more
keys
are
pressed
simultaneously,
only
the
higher
will
sound.
Please
also
note
that solo voices cannot be combined. If two or more voice selector tabs are pressed, the one to the right takes
precedence.
TOUCH VIBRATO
This world-famous Yamaha exclusive gives to the organist the same expressive fingertip vibrato enjoyed
by the violinist. With this effect, vibrato can be applied to any solo note by the lateral vibration of the
hand, and its speed will correspond exactly to the hand’s vibration.
FUZZ
Fuzz is frequently used on the electric guitar.
This Fuzz effect affects each tone of the Solo manual by switching the Fuzz selector “ON.”
ATTACK WAH-WAH
Works like Upper manual wah-wah for solo tones.
SOLO VOLUME CONTROL
This permits a variety of manual balance settings.
Portamento Manual
The Portamento manual produces continuous pitch shifts just like those produced when the finger
slides up and down a violin string. The 2% octave range becomes higher toward the right.
Note: There are four Portamento voice selector tabs and except for the Astro tab they can all be combined with each
other. If the Astro tab is set it cancels all the other.
PORTAMENTO VOLUME CONTROL
This permits a separate volume control.

a>

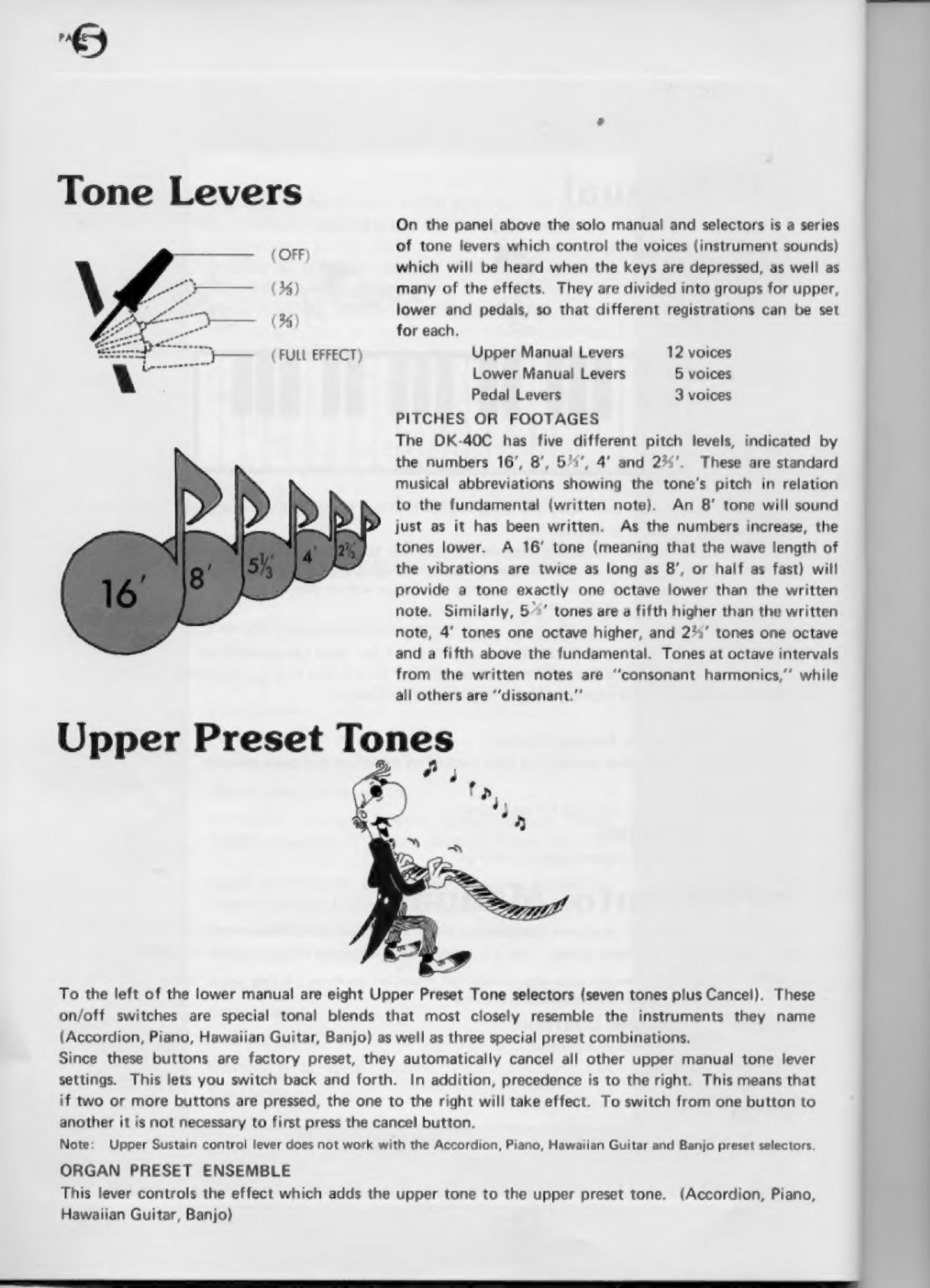

Tone Levers
On the panel above the solo manual and selectors is a series
of tone levers which control the voices (instrument sounds)
which will be heard when the keys are depressed, as well as
many of the effects. They are divided into groups for upper,
lower and pedals, so that different registrations can be set
for each.
Upper Manual Levers 12 voices
Lower Manual Levers 5 voices
Pedal Levers 3 voices
PITCHES OR FOOTAGES
The DK-40C has five different pitch levels, indicated by
the numbers 16’, 8°, 5%”, 4’ and 2%’. These are standard
musical abbreviations showing the tone's pitch in relation
to the fundamental (written note), An 8’ tone will sound
just as it has been written. As the numbers increase, the
tones lower. A 16' tone (meaning that the wave length of
the vibrations are twice as long as 8’, or half as fast) will
provide a tone exactly one octave lower than the written
note. Similarly, 5%’ tones are a fifth higher than the written
note, 4° tones one octave higher, and 2%’ tones one octave
and a fifth above the fundamental. Tones at octave intervals
from the written notes are “consonant harmonics,” while
all others are “dissonant.”*
To the left of the lower manual are eight Upper Preset Tone selectors (seven tones plus Cancel). These
on/off switches are special tonal blends that most closely resemble the instruments they name
(Accordion, Piano, Hawaiian Guitar, Banjo) as well as three special preset combinations.
Since these buttons are factory preset, they automatically cancel all other upper manual tone lever
settings. This lets you switch back and forth. In addition, precedence is to the right. This means that
if two or more buttons are pressed, the one to the right will take effect. To switch from one button to
another it is not necessary to first press the cancel button.
Note: Upper Sustain control lever does not work with the Accordion, Piano, Hawaiian Guitar and Banjo preset selectors,
ORGAN PRESET ENSEMBLE
This lever controls the effect which adds the upper tone to the upper preset tone. (Accordion, Piano,
Hawaiian Guitar, Banjo)

SUSTAIN
+)
Brilliance
With this single, continuously-variable control you can pin-
point the degree of overall softness or clarity desired for
any mood of music.
Vibrato,Vibrato Speed
Vibrato is an emotional wavering applied to a tone most
noticeable in the trembling left hand of violinists and cellists.
It can add a great deal to the emotional depth of a passage,
especially string voices. The Vibrato lever provides conti-
nuous adjustment of this effect's depth, while Vibrato Speed
lets you continuously set the speed.
Repeat Speed
Cuts and repeats each note just like the double-strumming
effect of a mandolin. The lever provides continuous speed
adjustment to create a full variety of different moods.
Affects upper manual notes only.
Reverb
The reverberation effect, which makes your playing sound
full and rich, as if you were playing in a large hall, can be
adjusted continuously and smoothly to suit your taste.
U 8’, 4’S i
pper ð, ustain
When this is switched on, the sustain effect is evoked. As
the name of the tab implies, only 8’ and 4’ tones are affected.
The length of such sustain is set by the Upper Sustain con-
trol.
Note: When combined with Upper Percussive 4’, all sound is cancelled.
Sustain
UPPER, PEDAL SUSTAIN
These controls provide continuous adjustment of the sustain
effect on the upper manual and pedals concerned. For the
pedals, this is the only sustain control, and it affects all pedal
tones with the exception of Bass Guitar, while for the upper
manual this control is only a length adjustment. Length
of upper sustain is controlled by the upper sustain control
knob as explained beside.
Attack Wah-Wah
Provides
a
spicy
wah-wah
sound
at
the
beginning
of
every
upper
manual
tone
with
Attack
Wah-Wah,
use
a
staccato
fingering.

e)

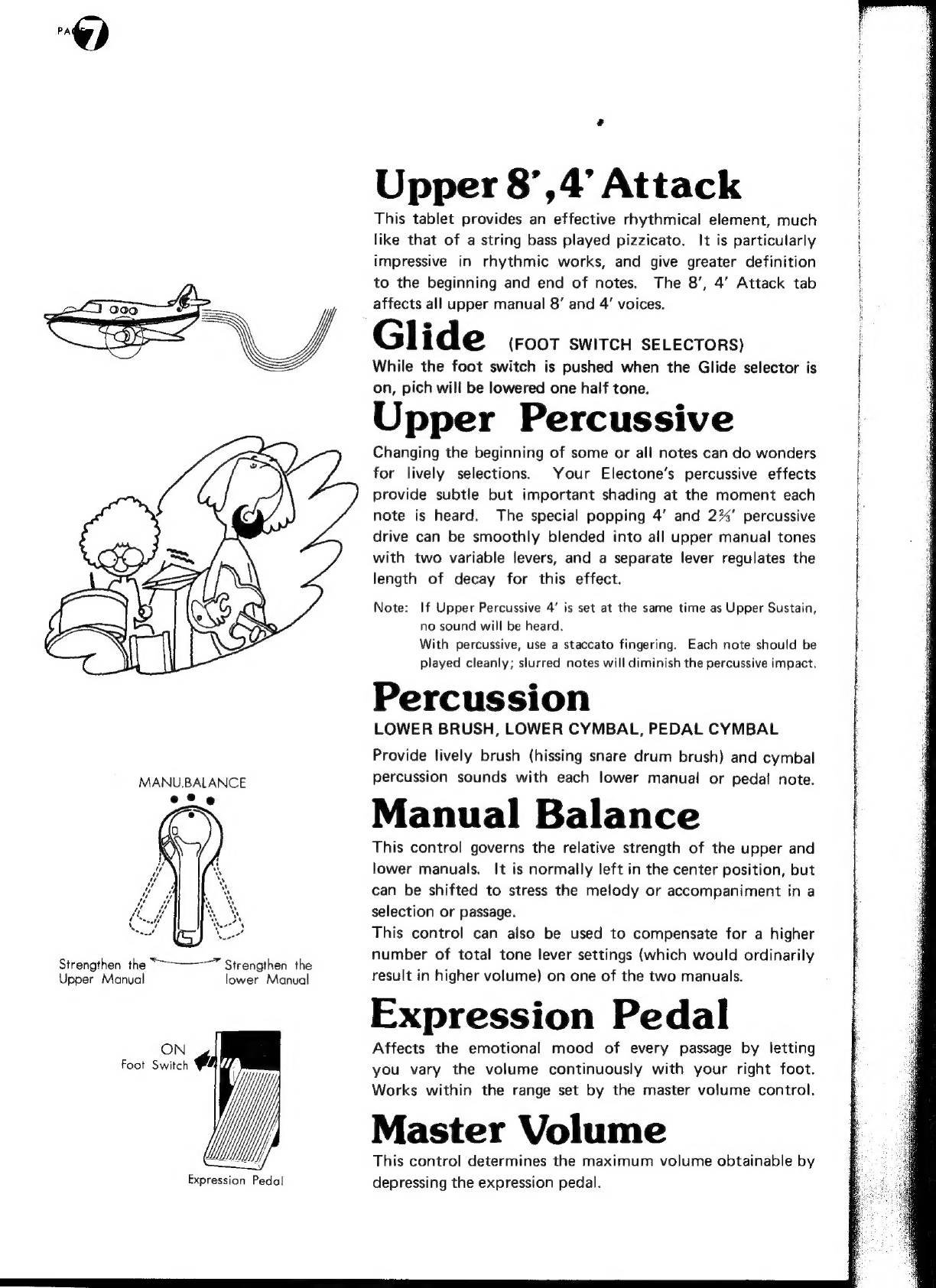

Upper 8’,4’ Attack |
This tablet provides an effective rhythmical element, much
like that of a string bass played pizzicato. It is particularly ;
impressive in rhythmic works, and give greater definition |
to the beginning and end of notes. The 8’, 4’ Attack tab |
affects all upper manual 8’ and 4’ voices.
Glide (FOOT SWITCH SELECTORS)
While the foot switch is pushed when the Glide selector is
on, pich will be lowered one half tone.
Upper Percussive
Changing the beginning of some or all notes can do wonders
for lively selections. Your Electone’s percussive effects
provide subtle but important shading at the moment each
note is heard. The special popping 4’ and 2%’ percussive
drive can be smoothly blended into all upper manual tones
with two variable levers, and a separate lever regulates the
length of decay for this effect.
Note: If Upper Percussive 4’ is set at the same time as Upper Sustain,
no sound will be heard.
With percussive, use a staccato fingering. Each note should be
played cleanly; slurred notes will diminish the percussive impact.
Percussion
LOWER BRUSH, LOWER CYMBAL, PEDAL CYMBAL
Provide
lively
brush
(hissing
snare
drum
brush)
and
cymbal
MANU.BALANCE
percussion
sounds
with
each
lower
manual
or
pedal
note.
Manual Balance |
This control governs the relative strength of the upper and i
lower manuals. It is normally left in the center position, but
can be shifted to stress the melody or accompaniment in a
selection or passage.
This control can also be used to compensate for a higher
il == lila number of total tone lever settings (which would ordinarily
Upper Manual lower Manual result in higher volume) on one of the two manuals.
Expression Pedal
ON Affects the emotional mood of every passage by letting l
Foot Switch M Ki you vary the volume continuously with your right foot. f
Works within the range set by the master volume control.
Master Volume
This control determines the maximum volume obtainable by
Expression Pedal depressing the expression pedal.

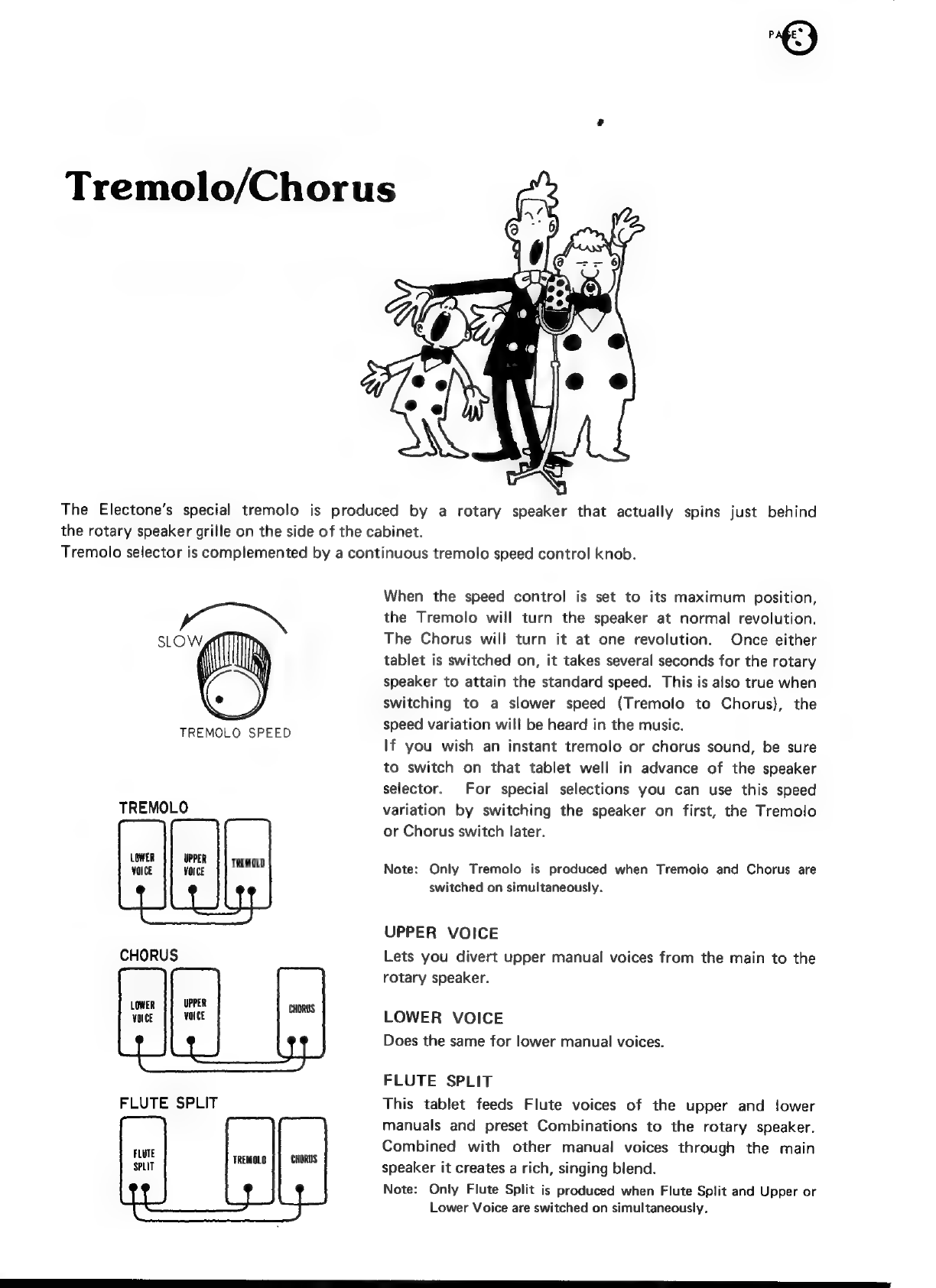

The Electone’s special tremolo is produced by a rotary speaker that actually spins just behind
the rotary speaker grille on the side of the cabinet.
Tremolo selector is complemented by a continuous tremolo speed control knob.
TREMOLO SPEED
TREMOLO
TREMOLO
When the speed control is set to its maximum position,
the Tremolo will turn the speaker at normal revolution.
The Chorus will turn it at one revolution. Once either
tablet is switched on, it takes several seconds for the rotary
speaker to attain the standard speed. This is also true when
switching to a slower speed (Tremolo to Chorus), the
speed variation will be heard in the music.
If you wish an instant tremolo or chorus sound, be sure
to switch on that tablet well in advance of the speaker
selector. For special selections you can use this speed
variation by switching the speaker on first, the Tremolo
or Chorus switch later.
Note: Only Tremolo is produced when Tremolo and Chorus are
switched on simultaneously.
UPPER VOICE
Lets you divert upper manual voices from the main to the
rotary speaker.
LOWER VOICE
Does the same for lower manual voices.
FLUTE SPLIT
This tablet feeds Flute voices of the upper and lower
manuals and preset Combinations to the rotary speaker.
Combined with other manual voices through the main
speaker it creates a rich, singing blend.
Note: Only Flute Split is produced when Flute Split and Upper or
Lower Voice are switched on simultaneously.

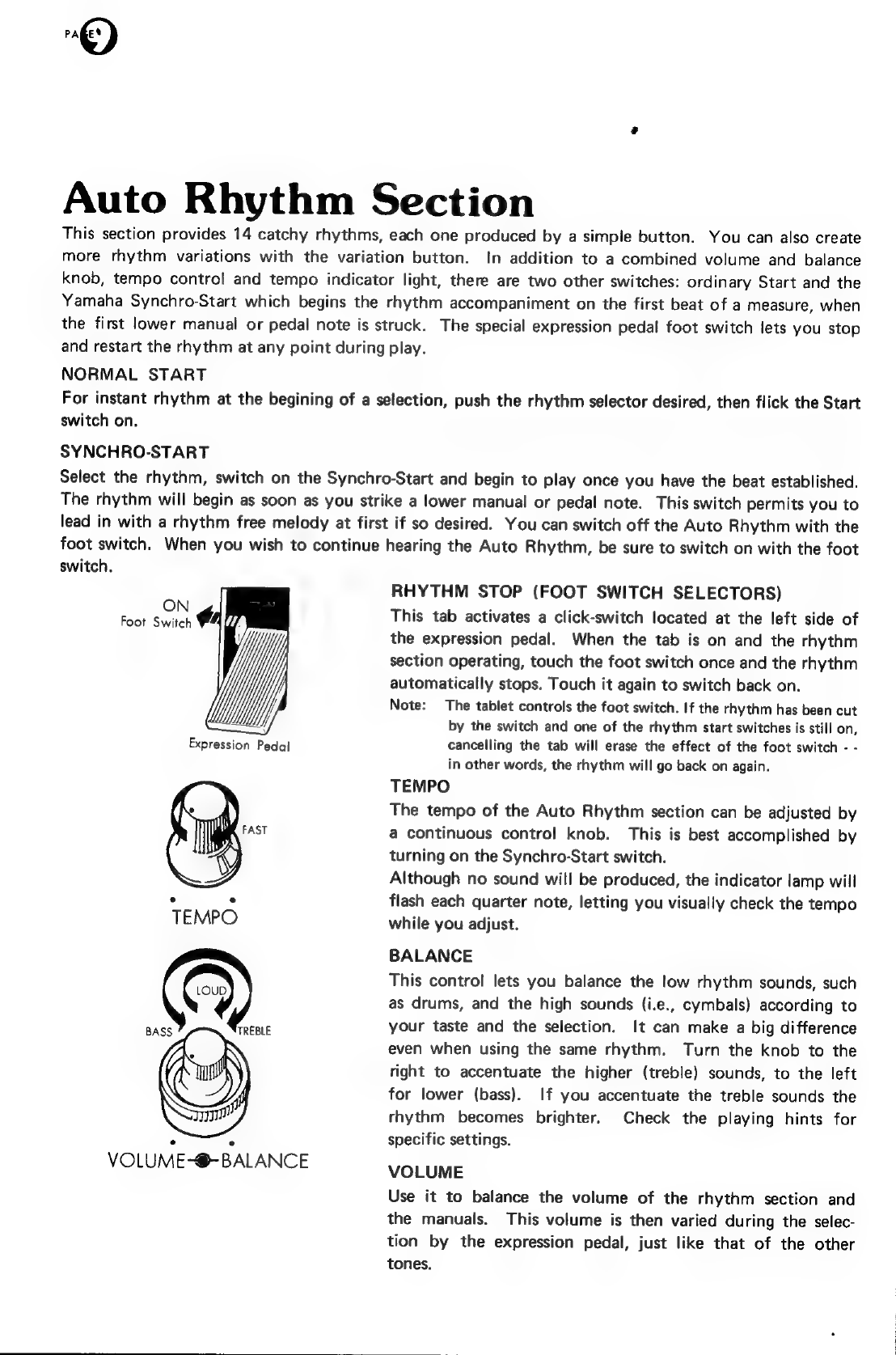

E)
Auto
Rhythm
Section
This
section
provides
14
catchy
rhythms,
each
one
produced
by
a
simple
button.
You
can
also
create
more
rhythm
variations
with
the
variation
button.
In
addition
to
a
combined
volume
and
balance
knob,
tempo
control
and
tempo
indicator
light,
there
are
two
other
switches:
ordinary
Start
and
the
Yamaha
Synchro-Start
which
begins
the
rhythm
accompaniment
on
the
first
beat
of
a
measure,
when
the
first
lower
manual
or
pedal
note
is
struck.
The
special
expression
pedal
foot
switch
lets
you
stop
and
restart
the
rhythm
at any
point
during
play.
NORMAL START
For
instant
rhythm
at
the
begining
of
a
selection,
push
the
rhythm
selector
desired,
then
flick
the
Start
switch on.
SYNCHRO-START
Select
the
rhythm,
switch
on
the
Synchro-Start
and
begin
to
play
once
you
have
the
beat
established.
The
rhythm
will
begin
as
soon
as
you
strike
a
lower
manual
or
pedal
note.
This
switch
permits
you
to
lead
in
with
a
rhythm
free
melody
at
first
if
so
desired.
You
can
switch
off
the
Auto
Rhythm
with
the
foot
switch.
When
you
wish
to
continue
hearing
the
Auto
Rhythm,
be
sure
to
switch
on
with
the
foot
switch.
RHYTHM
STOP
(FOOT
SWITCH
SELECTORS)
fool
an
u,
This
tab
activates
a
click-switch
located
at
the
left
side
of
(y
the
expression
pedal.
When
the tab
is
on
and
the
rhythm
section
operating,
touch
the
foot
switch
once
and
the
rhythm
automatically stops. Touch it again to switch back on.
Note:
The
tablet
controls
the
foot
switch.
If
the
rhythm
has
been
cut
by the switch and one of the rhythm start switches is still on,
Expression
Pedal
cancelling
the
tab
will
erase
the
effect
of
the
foot
switch
- -
in
other
words,
the
rhythm
will
go
back
on
again.
TEMPO
The
tempo
of
the
Auto
Rhythm
section
can
be
adjusted
by
FAST
a
continuous
control
knob.
This
is
best
accomplished
by
turning
on
the
Synchro-Start
switch.
Although
no
sound
will
be
produced,
the
indicator
lamp
will
.
.
flash
each
quarter
note,
letting
you
visually
check
the
tempo
TEMPO
while
you
adjust.
BALANCE
C)
This
control
lets
you
balance
the
low
rhythm
sounds,
such
(
)
as
drums,
and
the
high
sounds
(i.e.,
cymbals)
according
to
BASS
TREBLE
your
taste
and
the
selection.
It
can
make
a
big
difference
even when using the same rhythm. Turn the knob to the
(
)
right
to
accentuate
the
higher
(treble)
sounds,
to
the
left
A
for
lower
(bass).
If
you
accentuate
the
treble
sounds
the
rhythm becomes brighter. Check the playing hints for
specific settings.
VOLUME
Use
it
to
balance
the
volume
of
the
rhythm
section
and
the
manuals.
This
volume
is
then
varied
during
the
selec-
tion
by
the
expression
pedal,
just
like
that
of
the
other
tones.
VOLUME-~@ BALANCE

Auto Bass/Chord Fun Blocks
NORMAL SINGEL FINGERED CON- MEMORY
FINGER CHORD STANT
CHORD
C chord
The DK-40C is equipped with a “Fun Block” section of
five buttons which can be used in conjunction with the
Auto Rhythm section (see p. 9). It enables you to play
a variety of alternating bass chord rhythms, with the pedal
and chords automatically matching the melody notes,
simply by holding down either a single lower manual key
or a lower manual chord, according to which fun block
button you press. From your very first keyboard attempt,
the fun block feature will let you sound like a pro, making
full rhythmic use of the lower manual and pedals. Here is
how it works.
Note: When the Auto Bass/Chord section is used, the tone color of
the lower manual voices will change from Horn 8’ to Piano,
and from Cello 8’, Cello 4’ to Guitar.
Flute voices are not affected. If it is set on it will sound con-
tinuously for any key held down. Use it to soften the mood
of the Auto Bass Chord accompaniment.
SINGLE FINGER CHORD (THE EASY PLAY WAY)
e Set the tone levers for the tones you want on the lower
manual both Piano and Guitar sounds are available); use
either or both levers to adjust the Auto Bass Chord
tone color and volume in the normal way.
e Match the setting of the Pedal tone lever to the lower
manual tones.
e Select a rhythm pattern and push the corresponding
button until it clicks and stays down.
e Set the Rhythm Start switch on.
e Adjust the rhythm tempo and volume.
e Press the Single Finger Chord button.
Now, if you press a C key on the lower manual, a C major
chord will play in an alternating pattern which matches the
rhythm pattern and tempo set.
As long as the key is held down, the bass chord rhythm
continues. When the Black-key pedal is pressed, the chord
changed from major to minor, and when released, the chord
returns to major. When the White-key pedal is pressed,
the chord changes from major to seventh, and when released,
the chord returns to major. When both Black- and White-
key pedals are pressed, a minor seventh results.
Note: The bass note will play the root and fifth of any chord pressed,
except when the Jazz Rock rhythm is used; in that case the
bass sounds the root only.

ey

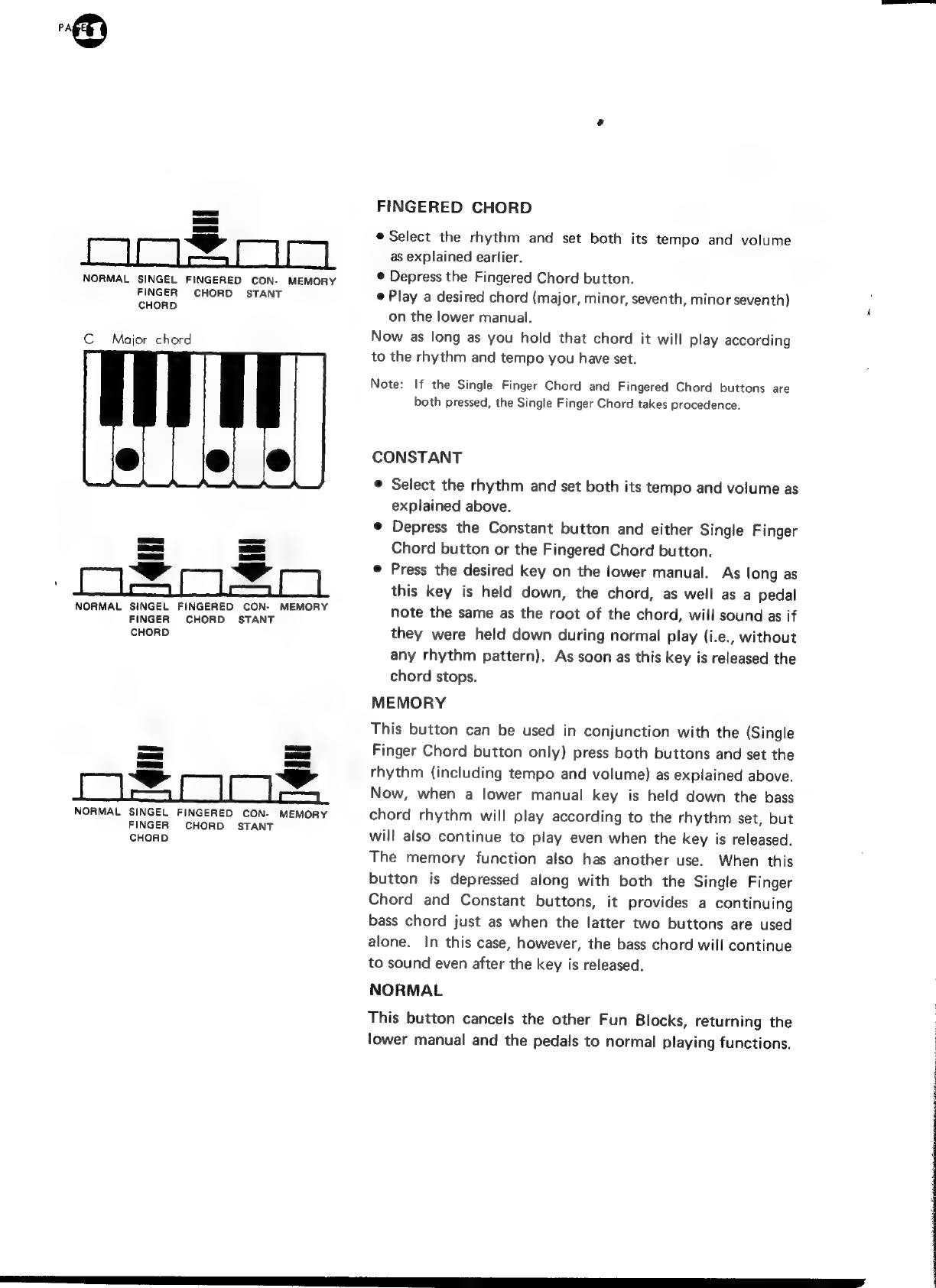

FINGERED CHORD
[|
us
>
7
e
Select
the
rhythm
and
set
both
its
tempo
and
volume
NORMAL
SINGEL
FINGERED
CON-
MEMORY
e
Depress
the
Fingered
Chord
button.
FINGER
CHORD
STANT
e
Play
a
desired
chord
(major,
minor,
seventh,
minor
seventh)
l
CHORD i
on the lower manual.
C
Major
chord
Now
as
long
as
you
hold
that
chord
it
will
play
according
to the rhythm and tempo you have set.
Note:
If
the
Single
Finger
Chord
and
Fingered
Chord
buttons
are
both
pressed,
the
Single
Finger
Chord
takes
procedence.
CONSTANT
e
Select
the
rhythm
and
set
both
its
tempo
and
volume
as
explained
above.
e
Depress
the
Constant
button
and
either
Single
Finger
Chord
button
or
the
Fingered
Chord
button.
e
Press
the
desired
key
on
the
lower
manual.
As
long
as
this
key
is
held
down,
the
chord,
as
well
as
a
pedal
NORMAL
SINGEL
FINGERED
CON-
MEMORY
note
the
same
as
the
root
of
the
chord,
will
sound
as
if
FINGER
CHORD
STANT
: : 5
CHORD
they
were
held
down
during
normal
play
(i.e.,
without
any
rhythm
pattern).
As
soon
as
this
key
is
released
the
chord
stops.
MEMORY
This
button
can
be
used
in
conjunction
with
the
(Single
=
—
Finger
Chord
button
only)
press
both
buttons
and
set
the
<=
>
rhythm
(including
tempo
and
volume)
as
explained
above.
Now,
when
a
lower
manual
key
is
held
down
the
bass
NORMAL
SINGEL
FINGERED
CON-
MEMORY
chord
rhythm
will
play
according
to
the
rhythm
set,
but
FINGER
CHORD
STANT
. .
š
CHORD
will
also
continue
to
play
even
when
the
key
is
released.
The
memory
function
also
has
another
use.
When
this
button
is
depressed
along
with
both
the
Single
Finger
Chord
and
Constant
buttons,
it
provides
a
continuing
bass
chord
just
as
when
the
latter
two
buttons
are
used
alone.
In
this
case,
however,
the
bass
chord
will
continue
to
sound
even
after
the
key
is
released.
NORMAL
This
button
cancels
the
other
Fun
Blocks,
returning
the
lower
manual
and
the
pedals
to
normal
playing
functions.

Ez)

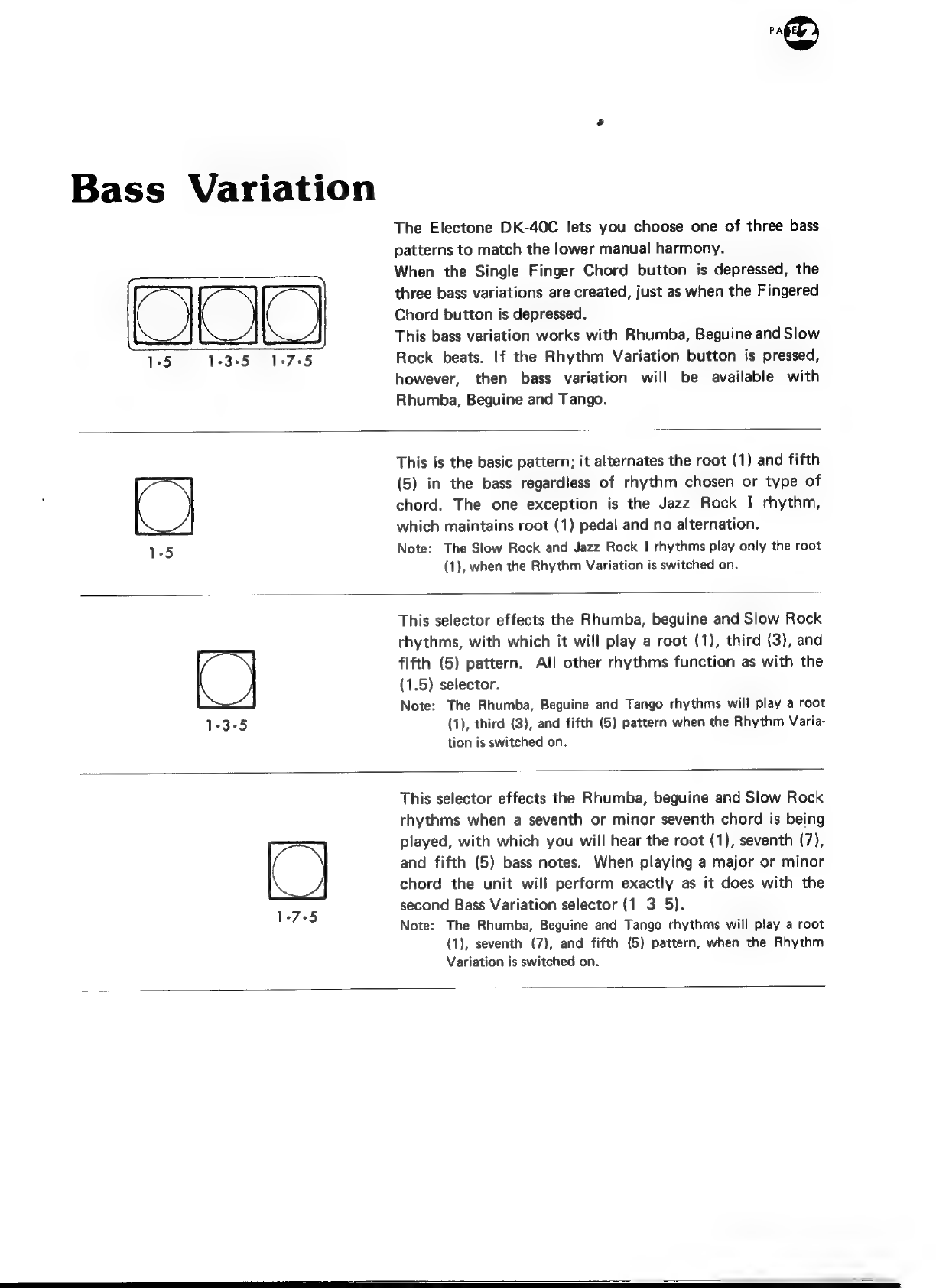

The Electone DK-40C lets you choose one of three bass
patterns to match the lower manual harmony.
When
the
Single
Finger
Chord
button
is
depressed,
the
three
bass
variations
are
created,
just
as
when
the
Fingered
Bass Variation
Chord button is depressed.
This
bass
variation
works
with
Rhumba,
Beguine
and
Slow
1-5
1:3-5
1-7:5
Rock
beats.
If
the
Rhythm
Variation
button
is
pressed,
however,
then
bass
variation
will
be
available
with
Rhumba,
Beguine
and
Tango.
This
is
the
basic
pattern;
it
alternates
the
root
(1)
and
fifth
4
NI
(5)
in
the
bass
regardless
of
rhythm
chosen
or
type
of
®
chord.
The
one
exception
is
the
Jazz
Rock
I
rhythm,
which
maintains
root
(1)
pedal
and
no
alternation.
1-5
Note:
The
Slow
Rock
and
Jazz
Rock
I
rhythms
play
only
the
root
(1), when the Rhythm Variation is switched on.
This selector effects the Rhumba, beguine and Slow Rock
rhythms, with which it will play a root (1), third (3), and
EN fifth (5) pattern. All other rhythms function as with the
(1.5) selector.
Note:
The
Rhumba,
Beguine
and
Tango
rhythms
will
play
a
root
1.3:5
(1),
third
(3),
and
fifth
(5)
pattern
when
the
Rhythm
Varia-
tion
is
switched
on.
This selector effects the Rhumba, beguine and Slow Rock
rhythms when a seventh or minor seventh chord is being
played, with which you will hear the root (1), seventh (7),
and fifth (5) bass notes. When playing a major or minor
A chord the unit will perform exactly as it does with the
second Bass Variation selector (1 3 5).
Note: The Rhumba, Beguine and Tango rhythms will play a root
(1), seventh (7), and fifth (5) pattern, when the Rhythm
Variation is switched on.
1°75

(E)
To Fully Enjoy Your Electone
HEADPHONES
A Yamaha headphones set (optional) can be plugged into the jack under the keyboard. With the head-
phones connected, the speakers are automatically shut off, allowing you to play or practice at any
volume level without disturbing anyone.
MONAURAL
®©
EXP. IN
This
jack
accepts
any
sound
sources
and
reproduces
them
through
this
Eectone’s
speakers.
Note:
The
volume
of
the
sound
source
can
be
controlled
by
the
expression
pedal.
AUX OUT
For
recording,
connect
the
AUX
OUT
jack
with
the
tape
deck’s
LINE
IN
jack.
Control
the
recording
levels on the tape deck,
LINE OUT
L
Y “LINE IN
Hf LINE OUT
i Z
MN EE 3
OUT IN EXP. IN LINE IN
AUX IN LAUx-
For playback, connect the AUX IN jack with the tape deck’s LINEOUT jack. Control the playback
levels on the tape deck.
LINE OUT
LINE IN
Note: These sound sources (tape recorder, etc.) are not affected by the expression pedal.
TONE CABINET SOCKETS
This socket is on the rear panel. Use it to con-
nect a Yamaha Tone Cabinet, without any
rewiring required.
SPLIT GENERAL

Electone is not out of order If...
Tree the set does not go on when the power switch is
turned on. Check the following.
Is the AC plug fully inserted into the electric wall outlet?
Reinsert it to be sure. Is there power coming from that
outlet?
If there is power in the outlet but the Electone does not
play, unplug the cord and contact your Yamaha dealer.
There are NO USER SERVICEABLE PARTS inside.
2...... a sound should occur the instant you turn on the
switch.
This merely indicates normal operation consequent on a
surge of electricity in the main amplifier.
Inc occasional unpleasant static occurs.
In the majority of such cases, the cause can be traced to
the turning on or off of refrigerators, washing machines,
electric pumps or other household appliances. Electrical
faults in a neighboring outdoor neon sign may also be to
blame.
If the cause is a fault in a neon or fluorescent lighting
fixture, it should be repaired. When the cause is un-
known, or in case of doubt, contact your Yamaha dealer.

4. cu. the Electone reproduces radio or TV signals.
If there is a powerful transmitter such as a radio station
in the vicinity this can occur. Contact your Yamaha
dealer.
BL cies pedal notes sound too high, upper keyboard’s notes
too low. This is especially noticeable when comparing
the Electone with piano. Piano tones are combinations of
harmonics and must interact with their surroundings,
while Electone harmonics are simpler (multiples of the
fundamental tone), requiring the Electone to be adjusted
differently at the assembly stages.
Pog rattling (sympathetic vibration) occurs.
All materials have critical resonance frequencies at
which they vibrate. The Electone’s continuous tones
will naturally cause other objects (windows, shelves, etc.)
to vibrate.
