Read this manual carefully before operating this
outboard motor.
OWNER’S MANUAL
6C
8C
6M8-F8199-2D-E0

EMU25052
Read this manual carefully before operating this outboard motor. Keep this
manual onboard in a waterproof bag when boating. This manual should stay
with the outboard motor if it is sold.

Important manual information
EMU25105
To the owner
Thank you for choosing a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding
of these simple instructions will help you ob-
tain maximum enjoyment from your new
Yamaha. If you have any question about the
operation or maintenance of your outboard
motor, please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is
used to alert you to potential personal injury
hazards. Obey all safety messages that fol-
low this symbol to avoid possible injury or
death.
WARNING
EWM00781
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00701
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
T
IP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manu-
al, please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Any damage
resulting from neglect of these instructions is
not covered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the
warranty may not apply in certain regions.
When planning to take the product to another
country, consult the dealer where the prod-
uct was purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
T
IP:
The 6CMH, 8CMH and the standard acces-
sories are used as a base for the explana-
tions and illustrations in this manual.
Therefore some items may not apply to ev-
ery model.
EMU25141
6C, 8C
OWNER’S MANUAL
©2009 by Yamaha Motor Co., Ltd.
1st Edition, March 2009
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in France

Table of contents
Safety information............................. 1
Outboard motor safety .................... 1
Propeller............................................ 1
Rotating parts.................................... 1
Hot parts ........................................... 1
Electric shock.................................... 1
Engine shut-off cord (lanyard)........... 1
Gasoline............................................ 1
Gasoline exposure and spills ............ 1
Carbon monoxide.............................. 1
Modifications ..................................... 2
Boating safety ................................. 2
Alcohol and drugs ............................. 2
Personal flotation devices ................. 2
People in the water ........................... 2
Passengers ....................................... 2
Overloading....................................... 2
Avoid collisions ................................. 2
Weather ............................................ 3
Passenger training ............................ 3
Boating safety publications ............... 3
Laws and regulations ........................ 3
General information .......................... 4
Identification numbers record.......... 4

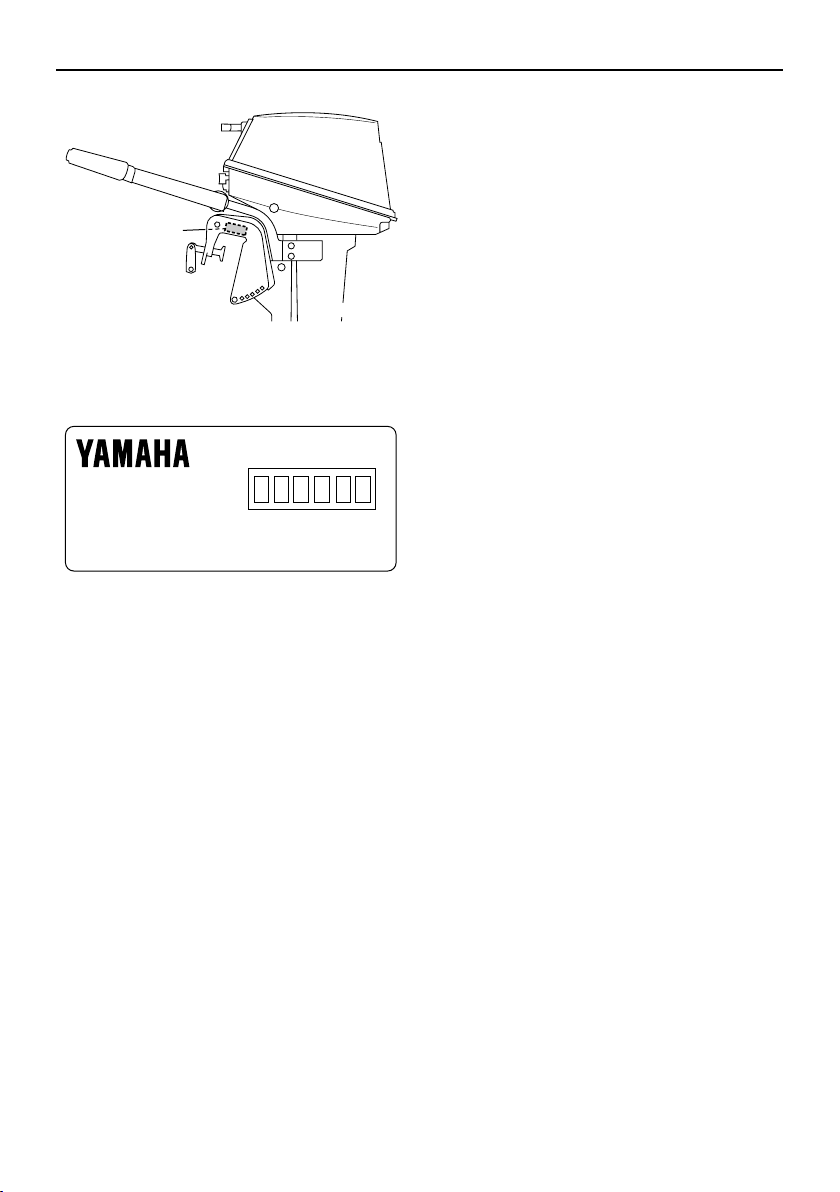

Outboard motor serial number .......... 4
EC Declaration of Conformity
(DoC) ............................................. 4
CE Marking ..................................... 4
C-Tick label ..................................... 4
Read manuals and labels................ 6

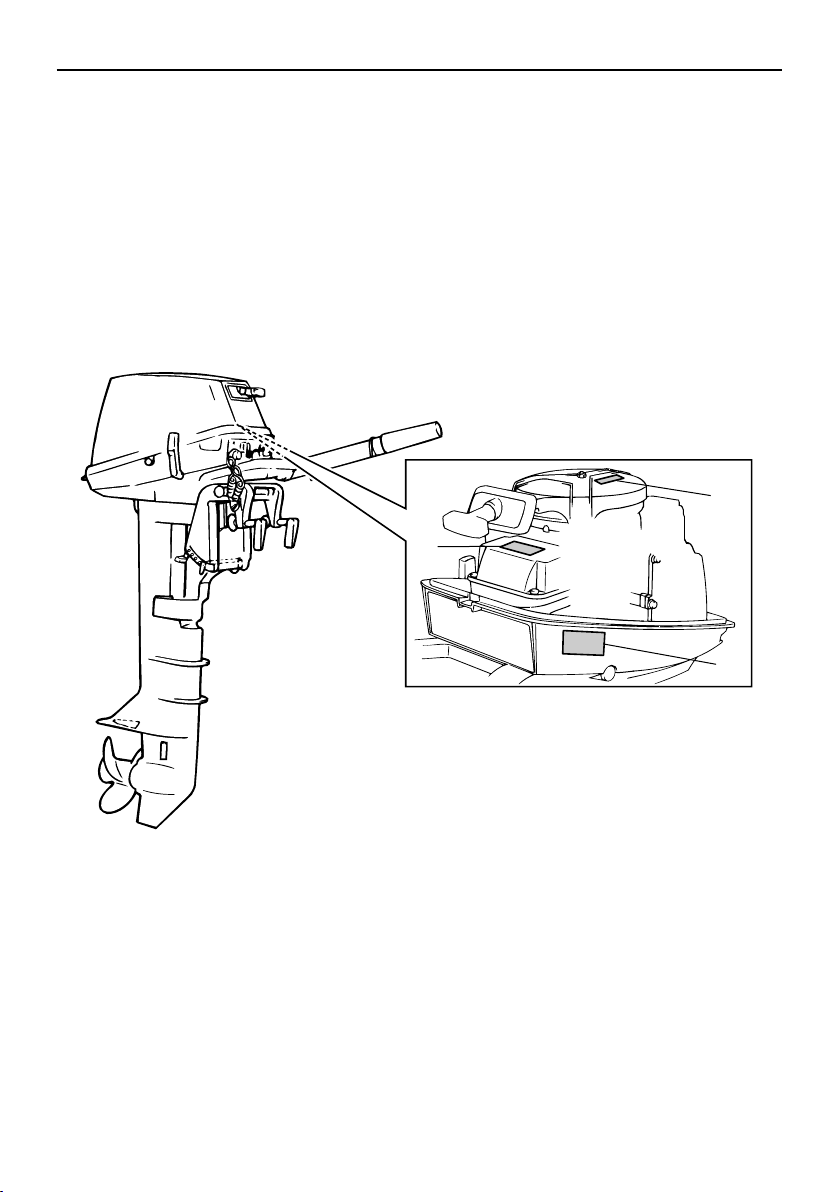

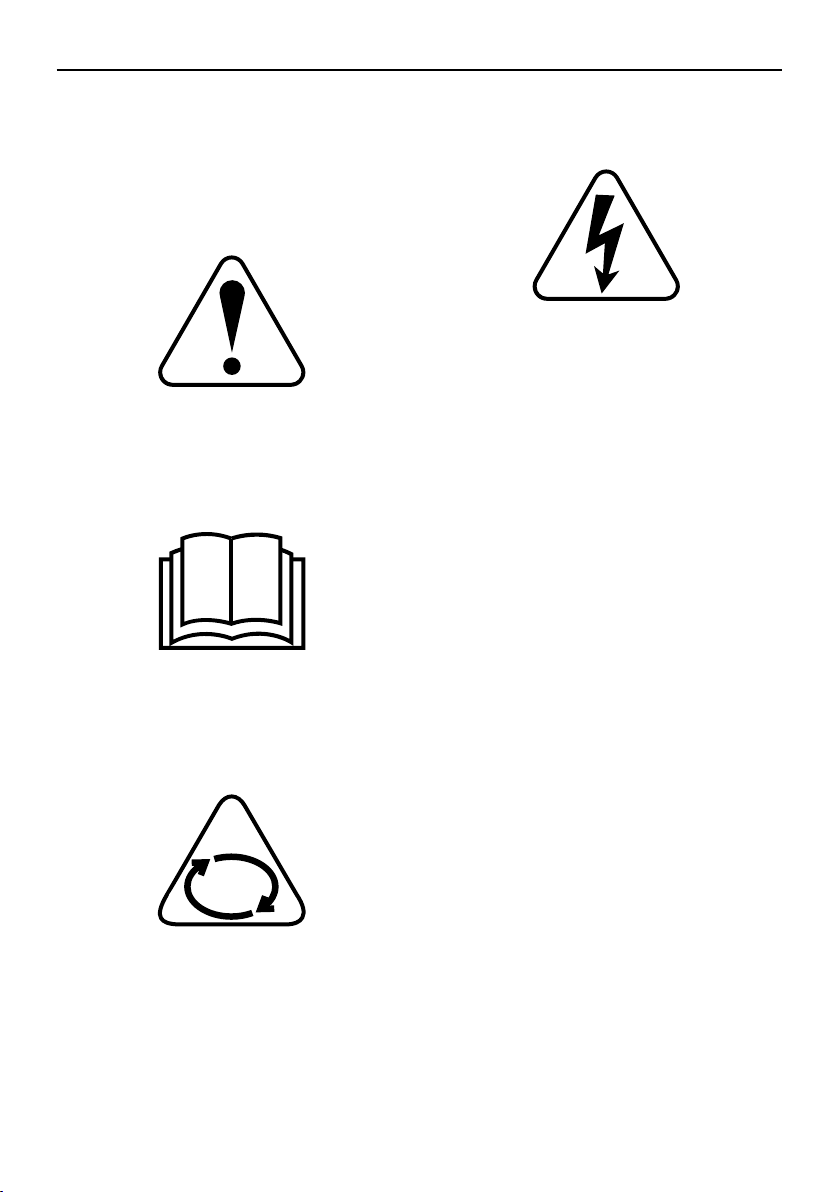

Warning labels .................................. 6
Specifications and requirements..... 9
Specifications .................................. 9
Installation requirements ............... 10
Boat horsepower rating................... 10
Mounting motor ............................... 10

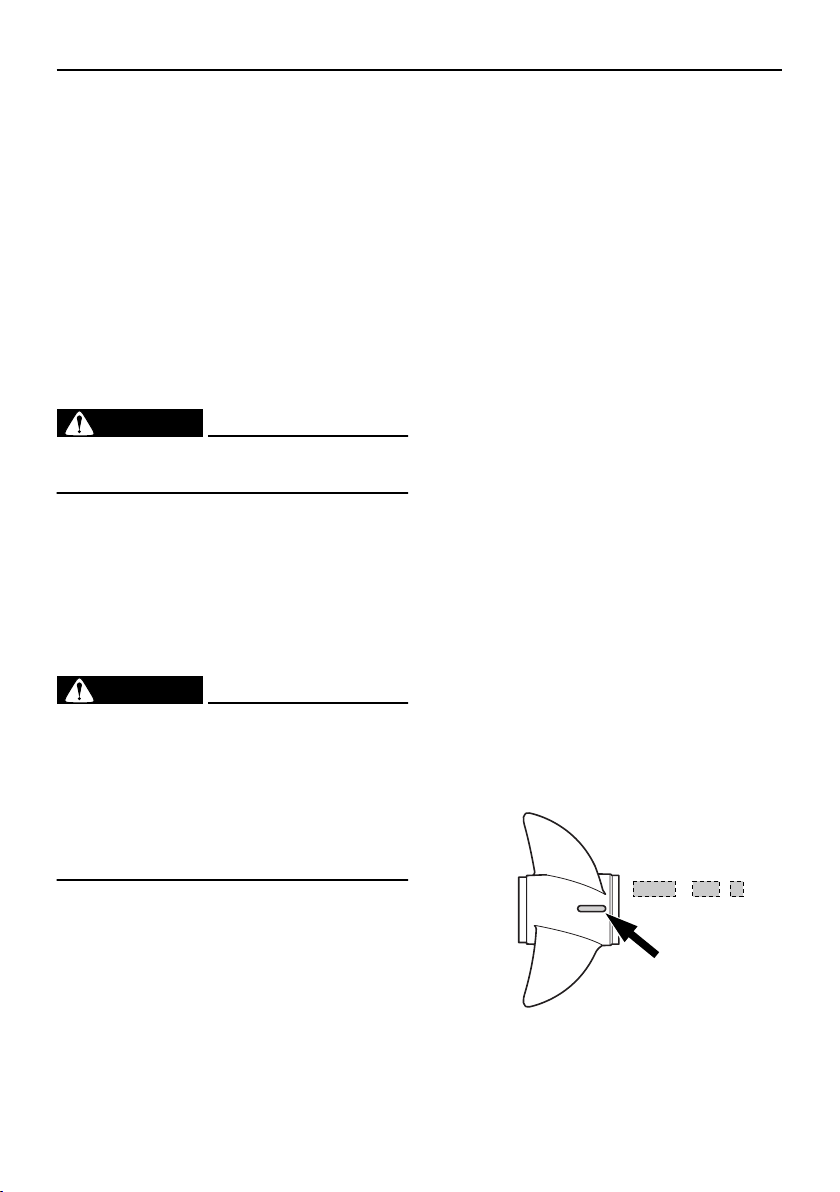

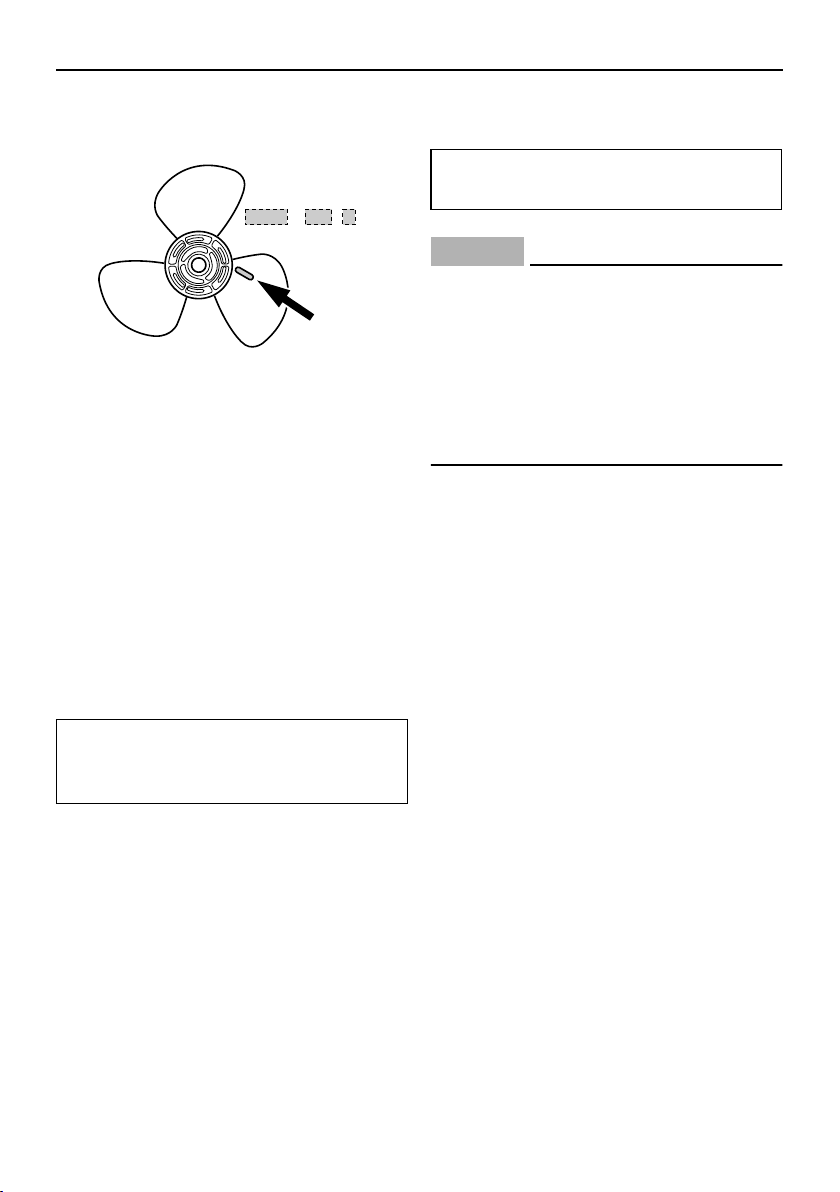

Propeller selection......................... 10
Start-in-gear protection ................. 11
Engine oil requirements ................ 11
Fuel requirements ......................... 11
Gasoline.......................................... 11
Muddy or acidic water ................... 11
Anti-fouling paint ........................... 11
Motor disposal requirements......... 12
Emergency equipment .................. 12
Emission control information......... 12
U.S. insular areas............................12
Components .................................... 14

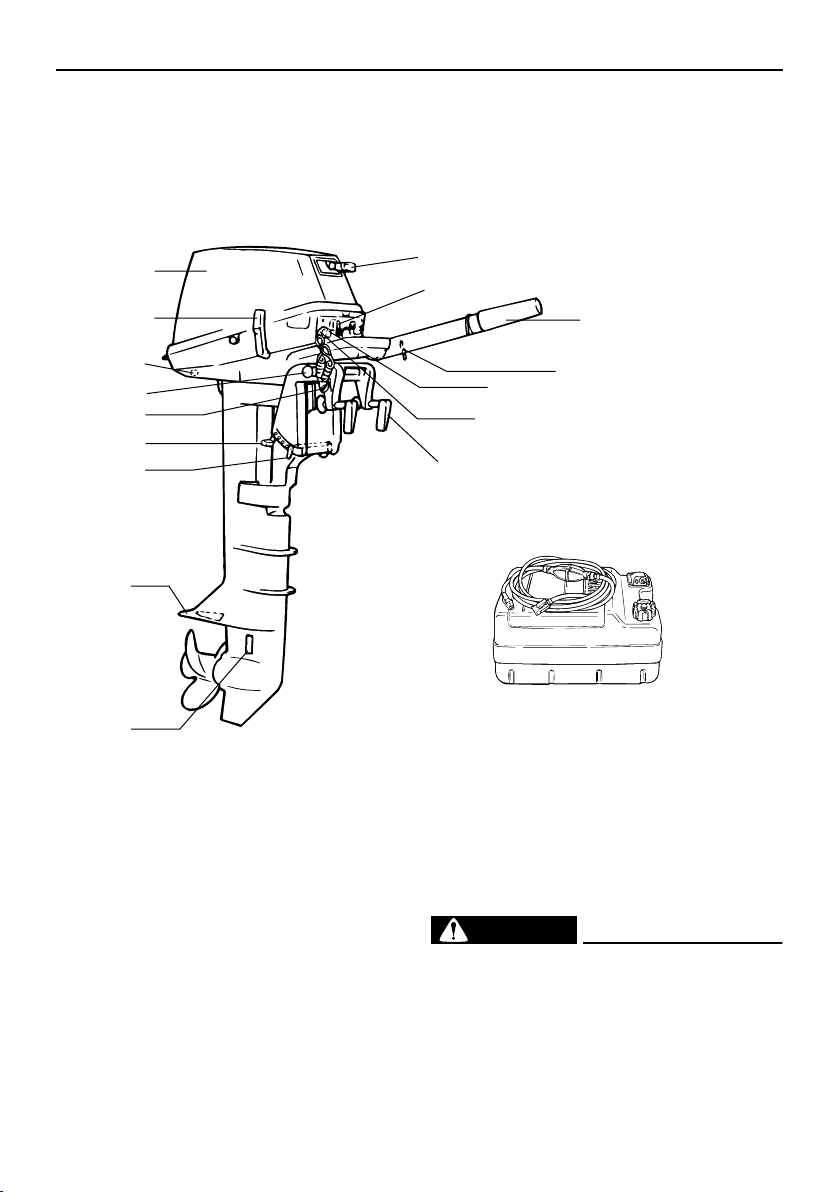

Components diagram.................... 14
Fuel tank ......................................... 14
Fuel joint.......................................... 15
Fuel gauge ...................................... 15
Fuel tank cap...................................15
Air vent screw..................................15
Tiller handle..................................... 15
Gear shift lever................................15
Throttle grip ..................................... 15
Throttle indicator ............................. 16
Throttle friction adjuster...................16
Engine shut-off cord (lanyard) and
clip................................................. 16
Engine stop button .......................... 17
Choke knob for pull type .................17
Manual starter handle .....................17
Steering friction adjuster .................17
Trim rod (tilt pin) .............................. 18
Shallow water lever ......................... 18
Tilt support knob.............................. 18
Cowling lock lever(s) (turn type)...... 18
Installation ....................................... 20
Installation..................................... 20
Mounting the outboard motor .......... 20
Clamping the outboard motor.......... 21
Operation ......................................... 23
First-time operation....................... 23
Breaking in engine ..........................23
Getting to know your boat ............... 23
Checks before starting engine ...... 23
Remove cowling .............................. 24
Fuel system ..................................... 24
Controls ........................................... 24
Engine shut-off cord (lanyard).........24
Oil .................................................... 24
Engine ............................................. 24
Install cowling .................................. 24
Filling fuel and engine oil .............. 25
Filling fuel for portable tank ............. 25
Gasoline and oil mixing (100:1)....... 26
Operating engine .......................... 27
Sending fuel (portable tank) ............ 27

Table of contents
Starting engine................................ 28
Checks after starting engine ......... 30
Cooling water .................................. 30
Warming up engine ....................... 30
Choke start models ......................... 30
Checks after engine warm-up ....... 31
Shifting ............................................ 31
Stop switches.................................. 31
Shifting .......................................... 31
Stopping boat ................................ 32
Stopping engine ............................ 32
Procedure ....................................... 32
Trimming outboard motor.............. 33
Adjusting trim angle for manual tilt
models .......................................... 33
Adjusting boat trim .......................... 34
Tilting up and down ....................... 35
Procedure for tilting up (manual tilt
models) ......................................... 35
Procedure for tilting down (manual
tilt models) .................................... 36
Shallow water................................ 36
Cruising in shallow water (manual
tilt models) .................................... 36
Cruising in other conditions........... 37
Maintenance..................................... 38
Transporting and storing outboard
motor ........................................... 38
Clamp screw mounting models....... 38
Storing outboard motor ................... 38
Procedure ....................................... 39
Lubrication ...................................... 41
Cleaning the outboard motor .......... 41
Checking painted surface of
motor............................................. 41
Periodic maintenance.................... 41
Replacement parts.......................... 42
Severe operating conditions ........... 42
Maintenance chart 1 ....................... 43
Maintenance chart 2 ....................... 45
Greasing ......................................... 46
Cleaning and adjusting spark
plug ............................................... 46
Checking fuel filter .......................... 47
Inspecting idling speed ................... 47
Checking wiring and connectors ..... 48
Checking propeller .......................... 48
Removing propeller ......................... 49
Installing propeller ........................... 49
Changing gear oil ............................ 49
Cleaning fuel tank ...........................51
Inspecting and replacing
anode(s)........................................ 51
Trouble Recovery............................ 53
Troubleshooting ............................ 53
Temporary action in emergency ... 56
Impact damage ............................... 56
Starter will not operate .................... 56
Emergency starting engine .............57
Treatment of submerged motor .... 58

1
Safety information
EMU33622
Outboard motor safety
Observe these precautions at all times.
EMU36501
Propeller
People can be injured or killed if they come
in contact with the propeller. The propeller
can keep moving even when the motor is in
neutral, and sharp edges of the propeller can
cut even when stationary.
●
Stop the engine when a person is in the
water near you.
● Keep people out of reach of the propeller,
even when the engine is off.
EMU33630
Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
straps, etc. can become entangled with inter-
nal rotating parts of the engine, resulting in
serious injury or death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the cowling
with the engine running.
Only operate the engine with the cowling re-
moved according to the specific instructions
in the manual. Keep hands, feet, hair, jewel-
ry, clothing, PFD straps, etc. away from any
exposed moving parts.
EMU33640
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33650
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. They can cause
shock or electrocution.
EMU33671
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the
engine stops if the operator falls overboard
or leaves the helm. This prevents the boat
from running away under power and leaving
people stranded, or running over people or
objects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear
loose, or route the cord where it could be-
come entangled, preventing it from function-
ing.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33810
Gasoline
Gasoline and its vapors are highly flam-
mable and explosive. Always, refuel ac-
cording to the procedure on page 27 to
reduce the risk of fire and explosion.
EMU33820
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33900
Carbon monoxide
This product emits exhaust gases which
contain carbon monoxide, a colorless, odor-
less gas which may cause brain damage or

Safety information
2
death when inhaled. Symptoms include nau-
sea, dizziness, and drowsiness. Keep cock-
pit and cabin areas well ventilated. Avoid
blocking exhaust outlets.
EMU33780
Modifications
Do not attempt to modify this outboard mo-
tor. Modifications to your outboard motor
may reduce safety and reliability, and render
the outboard unsafe or illegal to use.
EMU33740
Boating safety
This section includes a few of the many im-
portant safety precautions that you should
follow when boating.
EMU33710
Alcohol and drugs
Never operate after drinking alcohol or tak-
ing drugs. Intoxication is one of the most
common factors contributing to boating fatal-
ities.
EMU33720
Personal flotation devices
Have an approved personal flotation device
(PFD) on board for every occupant. Yamaha
recommends that you must wear a PFD
whenever boating. At a minimum, children
and non-swimmers should always wear
PFDs, and everyone should wear PFDs
when there are potentially hazardous boat-
ing conditions.
EMU33731
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When
someone is in the water near the boat, shift
into neutral and stop the engine.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Stop the engine when
a person is in the water near you.
EMU33751
Passengers
Consult your boat manufacturer’s instruc-
tions for details about appropriate passenger
locations in your boat and be sure all pas-
sengers are positioned properly before ac-
celerating and when operating above an idle
speed. Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves,
wakes, or sudden changes in speed or direc-
tion. Even when people are positioned prop-
erly, alert your passengers if you must make
any unusual maneuver. Always avoid jump-
ing waves or wakes.
EMU33760
Overloading
Do not overload the boat. Consult the boat
capacity plate or boat manufacturer for max-
imum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturers instruc-
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33772
Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
ZMU06025

Safety information
3
Operate defensively at safe speeds and
keep a safe distance away from people, ob-
jects, and other boats.
●
Do not follow directly behind other boats or
waterskiers.
●
Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
●
Avoid areas with submerged objects or
shallow water.
● Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss
of control, ejection, and collision.
● Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle
can reduce the ability to steer. If you are
not sure that you can stop in time before
hitting an obstacle, apply throttle and turn
in another direction.
EMU33790
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
EMU33880
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33890
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33600
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.

4
General information
EMU25171

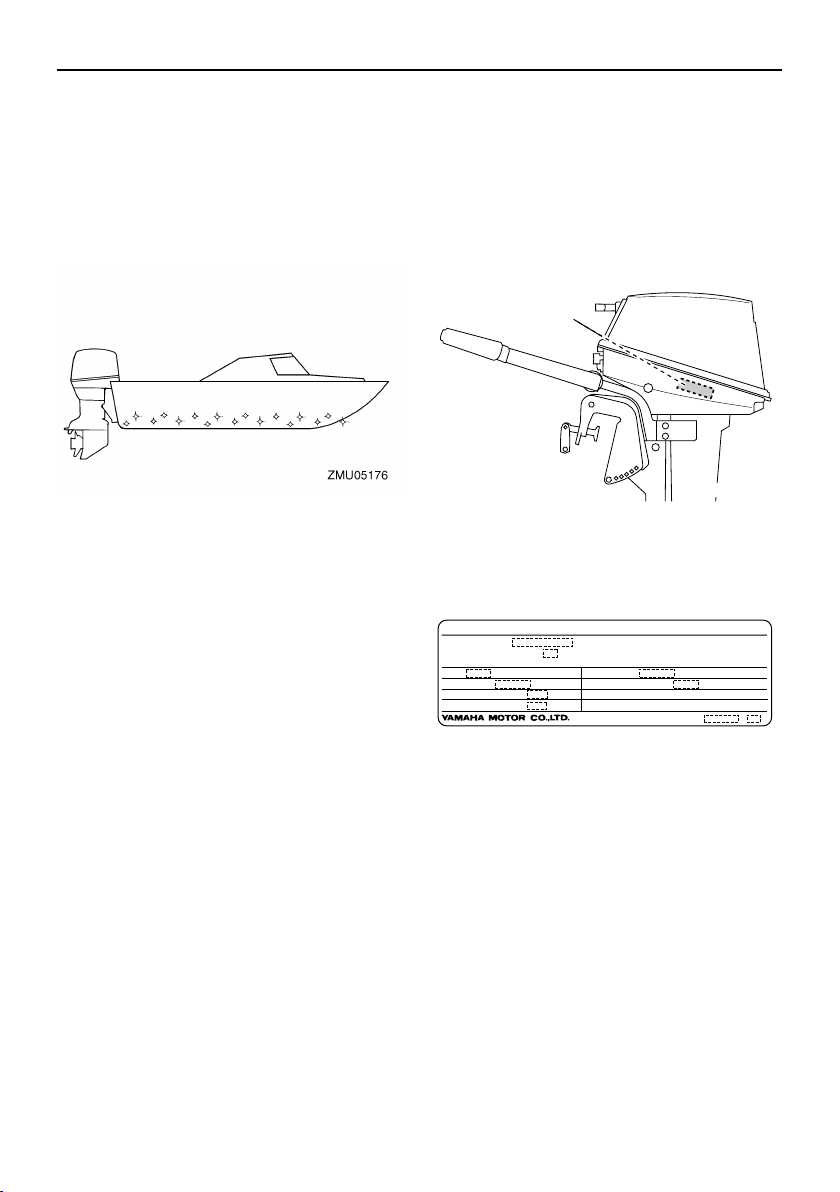

Identification numbers record
EMU25183
Outboard motor serial number
The outboard motor serial number is
stamped on the label attached to the port
side of the clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU37290
EC Declaration of Conformity
(DoC)
This outboard motor conforms to certain por-
tions of the European Parliament directive
relating to machinery.
Each conformed outboard motor accompa-
nied with EC DoC.EC DoC contains the fol-
lowing information;
●
Name of Engine Manufacture
●
Model name
● Product code of model (Approved model
code)
●
Code of conformed directives
EMU25203
CE Marking
Outboard motors affixed with this “CE”mark-
ing conform with the directives of; 98/37/EC,
94/25/EC - 2003/44/EC and 2004/108/EC.
EMU25213
C-Tick label
Engines affixed with this label conform to
certain portion(s) of the Australian Radio
Communications Act.
1. Outboard motor serial number location
1
ZMU02836
1. CE marking location
1
ZMU02837
ZMU06304

General information
5
1. C-Tick label location
1
ZMU02838
ZMU01697

General information
6
EMU33520
Read manuals and labels
Before operating or working on this motor:
●
Read this manual.
●
Read any manuals supplied with the boat.
● Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33831
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
6C, 8C
1
2
3
ZMU06306

General information
7
EMU33912
Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01691
Emergency starting does not have start-
in-gear protection. Ensure shift control is
in neutral before starting engine.
2
WARNING
EWM01681
●
Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
●
Do not touch or remove electrical parts
when starting or during operation.
3
WARNING
EWM01671
● Read Owner’s Manuals and labels.
●
Wear an approved personal flotation
device (PFD).
● Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the
helm, which could prevent a runaway
boat.
12
3
ZMU05697

General information
8
EMU35132
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
ZMU05696
ZMU05664
ZMU05665
ZMU05666

9
Specifications and requirements
EMU31480
Specifications
T
IP:
“(AL)”stated in the specification data below
represents the numerical value for the alumi-
num propeller installed.
Likewise, “(SUS)”represents the value for
stainless steel propeller installed and “(PL)”
for plastic propeller installed.
EMU2821E
Dimension:
Overall length:
802 mm (31.6 in)
Overall width:
343 mm (13.5 in)
Overall height S:
977 mm (38.5 in)
Overall height L:
1104 mm (43.5 in)
Transom height S:
436 mm (17.2 in)
Transom height L:
563 mm (22.2 in)
Weight (AL) S:
27.0 kg (60 lb)
Weight (AL) L:
27.5 kg (61 lb)
Performance:
Full throttle operating range:
6CMH 4000–5000 r/min
8CMH 4500–5500 r/min
Maximum output:
6CMH 4.4 kW@4500 r/min
(6 HP@4500 r/min)
8CMH 5.9 kW@5000 r/min
(8 HP@5000 r/min)
Idling speed (in neutral):
900 ± 50 r/min
Engine:
Type:
2-stroke L
Displacement:
165.0 cm
3
Bore × stroke:
50.0 × 42.0 mm (1.97 × 1.65 in)
Ignition system:
CDI
Spark plug with resistor (NGK):
BR7HS-10
Spark plug gap:
0.9–1.0 mm (0.035–0.039 in)
Control system:
Tiller
Starting system:
Manual
Starting carburetion system:
Choke valve
Alternator output:
80 W
Drive unit:
Gear positions:
Forward-neutral-reverse
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Propeller mark:
N
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Fuel tank capacity:
24 L (6.34 US gal, 5.28 Imp.gal)
Recommended engine oil:
YAMALUBE 2-stroke outboard motor
oil
Fuel:oil ratio:
Regular gasoline:
100 :1
Lubrication:
Pre-mixed fuel and oil

Specifications and requirements
10
Recommended gear oil:
Hypoid gear oil SAE#90
Gear oil quantity:
0.160 L (0.169 US qt, 0.141 Imp.qt)
Tightening torque for engine:
Spark plug:
25.0 Nm (2.55 kgf-m, 18.4 ft-lb)
Propeller nut:
17.0 Nm (1.73 kgf-m, 12.5 ft-lb)
EMU33554
Installation requirements
EMU33563
Boat horsepower rating
WARNING
EWM01560
Overpowering a boat can cause severe
instability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your mo-
tor(s) does not exceed the boats maximum
horsepower rating. See the boat’s capacity
plate or contact the manufacturer.
EMU33571
Mounting motor
WARNING
EWM01570
●
Improper mounting of the outboard mo-
tor could result in hazardous condi-
tions such as poor handling, loss of
control, or fire hazards.
●
Because the motor is very heavy, spe-
cial equipment and training is required
to mount it safely.
Your dealer or other person experienced in
proper rigging should mount the motor using
correct equipment and complete rigging in-
structions. For further information, see page
20.
EMU34192
Propeller selection
Next to selecting an outboard, choosing the
right propeller is one of the most important
purchasing decisions a boater can make.
The type, size, and design of your propeller
have a direct impact on acceleration, top
speed, fuel economy, and even engine life.
Yamaha designs and manufactures propel-
lers for every Yamaha outboard motor and
every application.
Your outboard motor came with a Yamaha
propeller chosen to perform well over a
range of applications, but there may be uses
where a different propeller would be more
appropriate.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, chose a larger pitch propel-
ler for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, chose the propeller
that lets the engine run in the proper range
for your maximum load but remember that
you may need to reduce your throttle setting
to stay within the recommended engine
speed range when carrying lighter loads.
For instructions on propeller removal and in-
stallation, see page 48.
1. Propeller diameter in inches
2. Propeller pitch in inches
ZMU04605
-
x
123

Specifications and requirements
11
EMU25770
Start-in-gear protection
Yamaha outboard motors or Yamaha-ap-
proved remote control units are equipped
with start-in-gear protection device(s). This
feature permits the engine to be started only
when it is in neutral. Always select neutral
before starting the engine.
EMU25651
Engine oil requirements
If the recommended engine oil is not avail-
able, another 2-stroke engine oil with an
NMMA-certified TC-W3 rating may be used.
EMU36360
Fuel requirements
EMU36771
Gasoline
Use a good quality gasoline that meets the
minimum octane rating. If knocking or ping-
ing occurs, use a different brand of gasoline
or premium unleaded fuel. Yamaha re-
comends that you use alcohol-free (see
Gasohol) gasoline whenever possible.
NOTICE
ECM01981
● Do not use leaded gasoline. Leaded
gasoline can seriously damage the en-
gine.
● Avoid getting water and contaminants
in the fuel tank. Contaminated fuel can
cause poor performance or engine
damage. Use only fresh gasoline that
has been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol (E10) and that containing
methanol. Ethanol can be used if the ethanol
content does not exceed 10% and the fuel
meets the minimum octane ratings. All etha-
nol blends containing more than 10% etha-
nol can cause fuel system damage or cause
engine starting and running problems.
Yamaha does not recommend gasohol con-
taining methanol because it can cause fuel
system damage or engine performance
problems.
EMU36880
Muddy or acidic water
Yamaha strongly recommends that you have
your dealer install the optional chromium-
plated water pump kit if you use the outboard
motor in muddy or acidic water conditions.
However, depending on the model it might
not be required.
EMU36330
Anti-fouling paint
A clean hull improves boat performance. The
boat bottom should be kept as clean of ma-
3. Type of propeller (propeller mark)
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
Recommended engine oil:
YAMALUBE 2-stroke outboard motor
oil
ZMU04604
-
x
123
Recommended gasoline:
Regular unleaded gasoline

Specifications and requirements
12
rine growth as possible. If necessary, the
boat bottom can be coated with an anti-foul-
ing paint approved for your area to inhibit
marine growth.
Do not use anti-fouling paint which includes
copper or graphite. These paints can cause
more rapid engine corrosion.
EMU36341
Motor disposal requirements
Never illegally discard (dump) the motor.
Yamaha recommends consulting the dealer
about discarding the motor.
EMU36351
Emergency equipment
Keep the following items onboard in case
there is trouble with the motor.
●
A tool kit with assorted screwdrivers, pli-
ers, wrenches (including metric sizes), and
electrical tape.
●
Waterproof flashlight with extra batteries.
●
An extra engine shut-off cord (lanyard)
with clip.
●
Spare parts, such as an extra set of spark
plugs.
Consult your Yamaha dealer for details.
EMU25221
Emission control information
EMU25310
U.S. insular areas
Engines affixed with the label pictured below
conform to U.S. Environmental Protection
Agency (EPA) regulations for marine SI en-
gines. See the label affixed to your engine for
details.
EMU25322
Approval label of emission control certif-
icate
This label is attached to the bottom cowling.
Existing Technology; N/A
EMU25332
Manufactured date label
This label is attached to the clamp bracket or
the swivel bracket.
1. Approval label location
1
ZMU06311
EMISSION CONTROL INFORMATION
ENGINE FAMILY :
THIS ENGINE CONFORMS TO 2001 U.S. EPA REGULATIONS FOR MARINE SI ENGINES.
REFER TO THE OWNERS MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
FELs :
SPARK PLUG :
DISPLACEMENT :
ADVERTISED POWER :
IDLE SPEED :
SPARK PLUG GAP (mm) :
FUEL : GASOLINE
VALVE LASH (mm) : IN : N/A EX : N/A
cm
kW
g/kW-hr rpm IN NEUTRAL
3
ZMU05230

Specifications and requirements
13
1. Manufactured date label location
1
ZMU02838
Manufactured:
ZMU04346

14
Components
EMU2579M
Components diagram
T
IP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
6C, 8C
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
1
3
4
5
2
6
16
7
8
9
10
11
12
14
15
ZMU02845
13
17
1. Manual starter handle
2. Engine stop button/Engine shut-off switch
3. Choke knob
4. Throttle grip
5. Throttle friction adjuster
6. Clamp screw
7. Cooling water inlet
8. Anti-cavitation plate
9. Trim rod
10. Shallow water lever
11. Restraint cable attachment
12. Tilt support knob
13. Cooling water pilot hole
14. Gear shift lever
15. Top cowling
16. Fuel tank
17. Clip

Components
15
tions.
EMU25830
Fuel joint
This joint is used to connect the fuel line.
EMU25841
Fuel gauge
This gauge is located on either the fuel tank
cap or on the fuel joint base. It shows the ap-
proximate amount of fuel remaining in the
tank.
EMU25850
Fuel tank cap
This cap seals the fuel tank. When removed,
the tank can be filled with fuel. To remove the
cap, turn it counterclockwise.
EMU25860
Air vent screw
This screw is on the fuel tank cap. To loosen
the screw, turn it counterclockwise.
EMU25911
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
EMU25922
Gear shift lever
Pulling the gear shift lever towards you puts
the engine in forward gear so that the boat
moves ahead. Pushing the lever away from
you puts the engine in reverse gear so that
the boat moves astern.
EMU25941
Throttle grip
The throttle grip is on the tiller handle. Turn
the grip counterclockwise to increase speed
and clockwise to decrease speed.
1. Fuel joint
2. Fuel gauge
3. Fuel tank cap
4. Air vent screw
ZMU02284
3
1
4
2
1. Neutral “”
2. Forward “”
3. Reverse “”
ZMU02846
123
ZMU02847
NF
R
