Yamaha F150G User manual

Read this manual carefully before operating this
outboard motor.
OWNER’S MANUAL
F150G
FL150G
F175C
FL175C
F200G
FL200G
6DV-28199-75-E0
U6DV75E0.book Page 1 Tuesday, February 21, 2017 8:33 AM

Read this manual carefully before operating this outboard motor. Keep this
manual onboard in a waterproof bag when boating. This manual should stay
with the outboard motor if it is sold.
U6DV75E0.book Page 1 Tuesday, February 21, 2017 8:33 AM

Important manual information
EMU25108
To the owner
Thank you for selecting a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment from your new Yamaha.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWM00782
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00702
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manual,
please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Any damage
resulting from neglect of these instructions is
not covered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the war-
ranty may not apply in certain regions. When
planning to take the product to another coun-
try, consult the dealer where the product was
purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
TIP:
The F150GET, FL150GET, F175CET,
FL175CET, F200GET, FL200GET and the
standard accessories are used as a base for
the explanations and illustrations in this man-
ual. Therefore some items may not apply to
every model.
U6DV75E0.book Page 1 Tuesday, February 21, 2017 8:33 AM

Important manual information
EMU25122
F150G, FL150G, F175C, FL175C, F200G,
FL200G
OWNER’S MANUAL
©2017 by Yamaha Motor Co., Ltd.
1st Edition, February 2017
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan
U6DV75E0.book Page 2 Tuesday, February 21, 2017 8:33 AM

Table of contents
Safety information ............................. 1
Outboard motor safety.................... 1
Propeller ............................................. 1
Rotating parts..................................... 1
Hot parts ............................................ 1
Electric shock..................................... 1
Power trim and tilt .............................. 1
Engine shut-off cord (lanyard)............ 1
Gasoline ............................................. 2
Gasoline exposure and spills ............. 2
Carbon monoxide .............................. 2
Modifications...................................... 2
Boating safety ................................. 2
Alcohol and drugs .............................. 2
Personal flotation devices (PFDs) ...... 2
People in the water ............................ 2
Passengers......................................... 2
Overloading........................................ 2
Avoid collisions .................................. 3
Weather.............................................. 3
Passenger training ............................. 3
Boating safety publications................ 3
Laws and regulations ......................... 3
General information .......................... 4

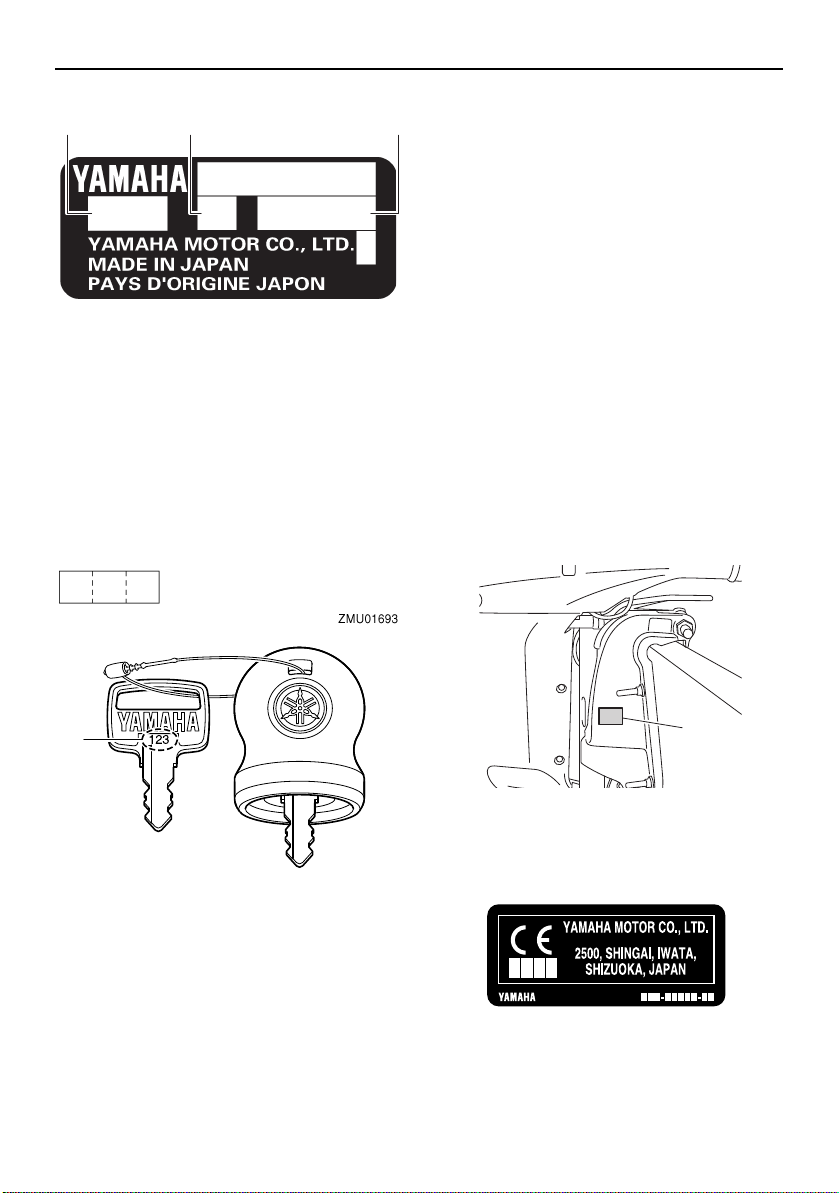

Identification numbers record ......... 4

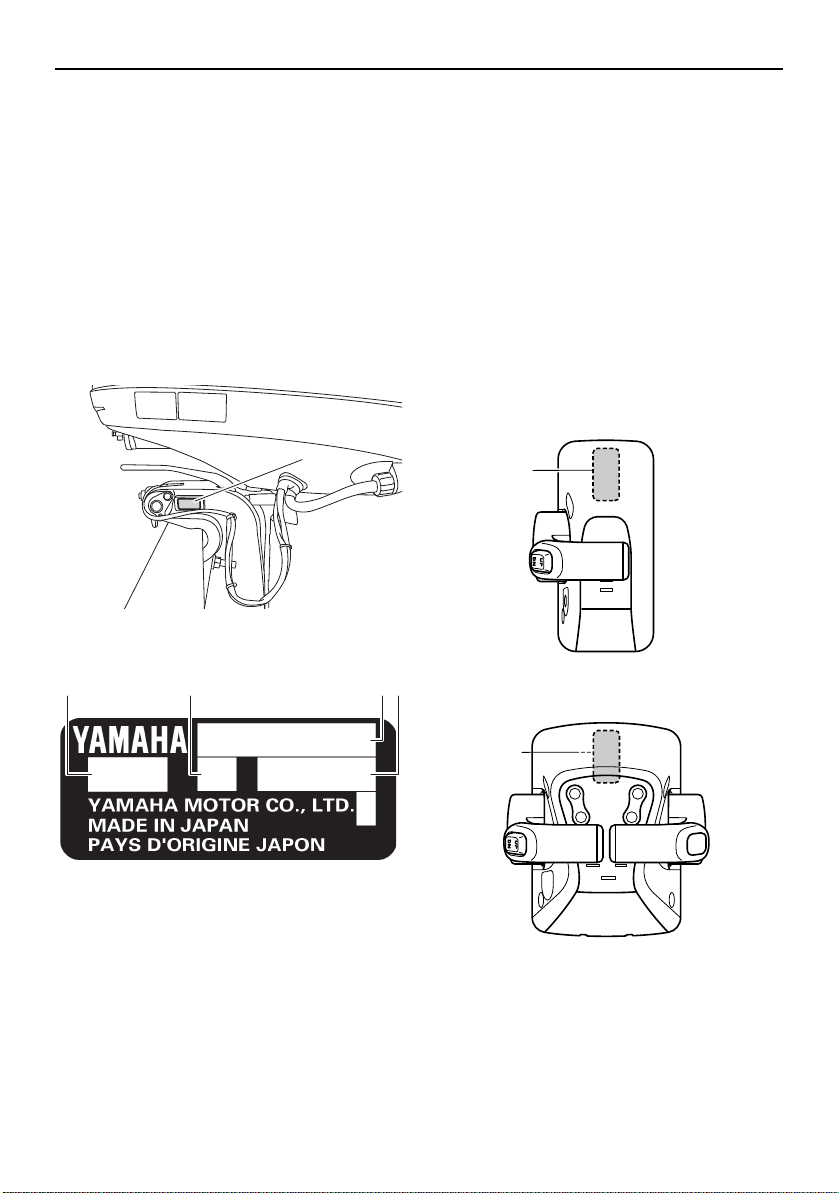

Outboard motor serial number........... 4
Digital electronic control serial
number............................................ 4
Key number........................................ 5
EC Declaration of Conformity
(DoC) ............................................ 5
CE Marking ..................................... 5

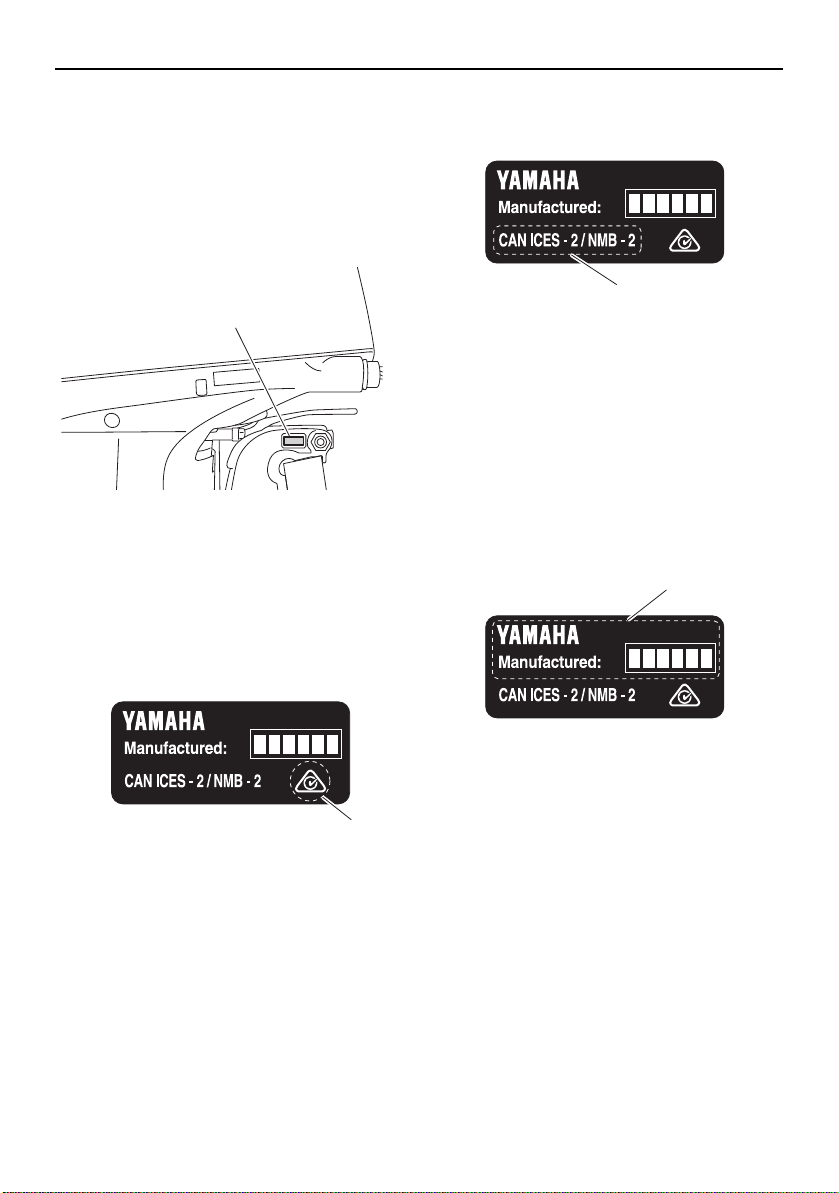

Compliance mark and
manufactured date label .............. 6
Read manuals and labels................ 7

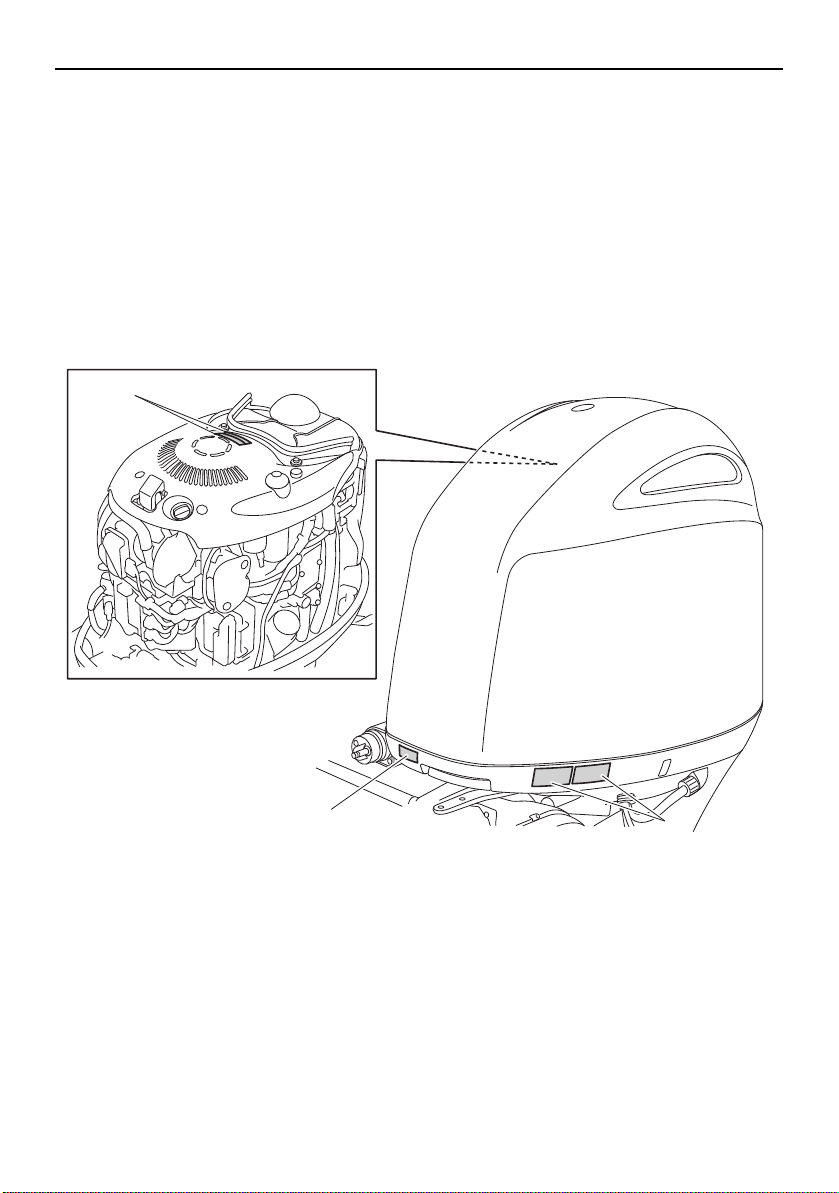

Warning labels ................................... 7
Specifications and requirements... 10
Specifications................................ 10
Installation requirements............... 11
Boat horsepower rating.................... 11
Mounting outboard motor ................ 11
Digital electronic control
requirements.............................. 12
Battery requirements .................... 12
Battery specifications....................... 12
Propeller selection ........................ 13
Counter rotation models .................. 13
Start-in-gear protection ................ 13
Engine oil requirements ................ 14
Fuel requirements ......................... 14
Gasoline ........................................... 14
Muddy or acidic water .................. 15
Anti-fouling paint .......................... 15
Outboard motor disposal
requirements.............................. 15
Emergency equipment.................. 15
Emission control information ........ 15
Star labels ........................................ 16
Components.................................... 18
Components diagram ................... 18
Optional items .................................. 20
Yamaha Security System (Y-COP) ... 21
Digital Electronic Control box........... 22
Digital electronic control-active
indicator ........................................ 22
Digital electronic control-alert
indicator ........................................ 23
Control lever ..................................... 23
Free throttle switch........................... 23
Throttle friction adjuster ................... 24
Engine shut-off cord (lanyard) and
clip ................................................ 25
Main switch ...................................... 25
Start/Stop switch panel.................... 26
All Start/Stop switch panel............... 26
Power trim and tilt switch on digital
electronic control .......................... 26
Power trim and tilt switch on bottom
cowling.......................................... 27
Power trim and tilt switches (twin
type) .............................................. 27
Trim tab with anode ......................... 28
U6DV75E0.book Page 1 Tuesday, February 21, 2017 8:33 AM

Table of contents
Tilt support lever for power trim and
tilt model ....................................... 28
Cowling lock lever ............................ 29
Flushing device ................................ 29
Fuel filter........................................... 29
Instruments and indicators ............ 30
6Y9 Multifunction Color Gauge..... 30
Yamaha Security System indicator
(optional) ....................................... 30
Engine warm-up indicator................ 30
Engine synchronization indicator ..... 30
Overheat alert................................... 31
Low oil pressure-alert....................... 31
Water separator alert........................ 32
Low battery voltage-alert ................. 32
Engine trouble alert .......................... 33
6YC Multifunction meter ............... 33
6Y8 Multifunction meters .............. 37
Engine control system .................... 40
Alert system .................................. 40
Digital Electronic Control alert ......... 40
Overheat alert................................... 40
Low oil pressure alert....................... 41
Water separator alert........................ 42
Installation ....................................... 43
Installation ..................................... 43
Mounting the outboard motor.......... 43
Operation ......................................... 45
First-time operation....................... 45
Filling engine oil................................ 45
Breaking in engine............................ 45
Getting to know your boat ............... 45
Checks before starting engine ...... 46
Fuel level .......................................... 46
Removing top cowling ..................... 46
Fuel system ...................................... 46
Controls............................................ 47
Engine shut-off cord (lanyard).......... 47
Engine oil.......................................... 47
Outboard motor................................ 48
Flushing device ................................ 48
Installing top cowling ....................... 48
Checking power trim and tilt
system........................................... 49
Battery.............................................. 50
Filling fuel ..................................... 51
Operating engine .......................... 51
Sending fuel ..................................... 51
Starting engine ................................. 52
Checks after starting engine......... 54
Cooling water ................................... 54
Warming up engine....................... 54
Electric start models......................... 54
Checks after engine warm up....... 54
Shifting ............................................. 54
Stop switches................................... 54
Shifting.......................................... 54
Stopping boat ............................... 55
Trolling .......................................... 55
Adjusting trolling speed.................... 55
Stopping engine............................ 56
Procedure for stopping engine......... 56
Trimming outboard motor............. 57
Adjusting trim angle (Power trim
and tilt) .......................................... 57
Adjusting boat trim ........................... 58
Tilting up and down ...................... 59
Procedure for tilting up (power trim
and tilt models) ............................. 59
Procedure for tilting down................ 61
Shallow water .............................. 61
Cruising in shallow water ................. 61
Cruising in other conditions.......... 62
Maintenance.................................... 63
Transporting and storing outboard
motor ......................................... 63
Storing outboard motor.................... 63
Procedure......................................... 64
Lubrication ....................................... 65
Flushing cooling water passage....... 65
Cleaning the outboard motor ........... 66
U6DV75E0.book Page 2 Tuesday, February 21, 2017 8:33 AM

Table of contents
Checking painted surface of
outboard motor............................. 66
Periodic maintenance ................... 66
Replacement parts........................... 67
Severe operating conditions ............ 67
Maintenance chart 1 ........................ 68
Maintenance chart 2 ........................ 70
Greasing........................................... 71
Inspecting spark plug....................... 72
Inspecting engine idle speed ........... 73
Changing engine oil.......................... 73
Inspecting wiring and connectors .... 78
Inspecting propeller ......................... 78
Removing propeller .......................... 79
Installing propeller ............................ 79
Changing gear oil ............................. 80
Inspecting and replacing anode(s) ... 82
Checking battery (for electric start
models) ......................................... 82
Connecting the battery..................... 83
Disconnecting the battery ................ 84
Trouble Recovery ............................ 86
Troubleshooting ............................ 86
Temporary action in emergency ... 89
Impact damage ................................ 89
Running single engine (twin
engines) ........................................ 89
Replacing fuse ................................. 89
Power trim and tilt unit will not
operate.......................................... 90
Water separator-alert indicator
blinks while cruising...................... 91
Treatment of submerged motor .... 92
INDEX ............................................... 93
U6DV75E0.book Page 3 Tuesday, February 21, 2017 8:33 AM

1
Safety information
EMU33623
Outboard motor safety
Observe these precautions at all times.
EMU36502
Propeller
People can be injured or killed if they come in
contact with the propeller. The propeller can
keep moving even when the motor is in neu-
tral, and sharp edges of the propeller can cut
even when stationary.
Stop the engine when a person is in the
water near you.
Keep people out of reach of the propeller,
even when the engine is off.
EMU40272
Rotating parts
Hands, feet, hair, jewelry, clothing, personal
flotation device (PFD) straps, etc., can be-
come entangled with internal rotating parts of
the engine, resulting in serious injury or
death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the top cowl-
ing with the engine running.
Only operate the engine with the top cowling
removed according to the specific instruc-
tions in the manual. Keep hands, feet, hair,
jewelry, clothing, PFD straps, etc., away from
any exposed moving parts.
EMU33641
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33651
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. They can cause
shock or electrocution.
EMU33661
Power trim and tilt
Body parts can be crushed between the mo-
tor and the clamp bracket when the motor is
trimmed or tilted. Keep body parts out of this
area at all times. Be sure no one is in this area
before operating the power trim and tilt
mechanism.
The power trim and tilt switches operate even
when the main switch is off. Keep people be
away from the switches whenever working
around the motor.
Never get under the lower unit while it is tilted,
even when the tilt support lever is locked. Se-
vere injury could occur if the outboard motor
accidentally falls.
EMU33672
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the
engine stops if the operator falls overboard or
leaves the helm. This prevents the boat from
running away under power and leaving peo-
ple stranded, or running over people or ob-
jects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear
loose, or route the cord where it could be-
come entangled, preventing it from function-
ing.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
U6DV75E0.book Page 1 Tuesday, February 21, 2017 8:33 AM

Safety information
2
EMU33811
Gasoline
Gasoline and its vapors are highly flamma-
ble and explosive. Always, refuel according
to the procedure on page 51 to reduce the
risk of fire and explosion.
EMU33821
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33901
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking
exhaust outlets.
EMU33781
Modifications
Do not attempt to modify this outboard mo-
tor. Modifications to your outboard motor
may reduce safety and reliability, and render
the outboard unsafe or illegal to use.
EMU33741
Boating safety
This section includes a few of the many im-
portant safety precautions that you should
follow when boating.
EMU33711
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most com-
mon factors contributing to boating fatalities.
EMU40281
Personal flotation devices (PFDs)
Have an approved PFD on board for every
occupant. Yamaha recommends that you
must wear a PFD whenever boating. At a mi-
nimum, children and non-swimmers should
always wear PFDs, and everyone should
wear PFDs when there are potentially hazard-
ous boating conditions.
EMU33732
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When some-
one is in the water near the boat, shift into
neutral and stop the engine.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Stop the engine when
a person is in the water near you.
EMU33752
Passengers
Consult your boat manufacturer’s instruc-
tions for details about appropriate passenger
locations in your boat and be sure all passen-
gers are positioned properly before acceler-
ating and when operating above an idle
speed. Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves,
wakes, or sudden changes in speed or direc-
tion. Even when people are positioned prop-
erly, alert your passengers if you must make
any unusual maneuver. Always avoid jump-
ing waves or wakes.
EMU33762
Overloading
Do not overload the boat. Consult the boat
capacity plate or boat manufacturer for maxi-
mum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturer’s instruc-
U6DV75E0.book Page 2 Tuesday, February 21, 2017 8:33 AM

Safety information
3
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33773

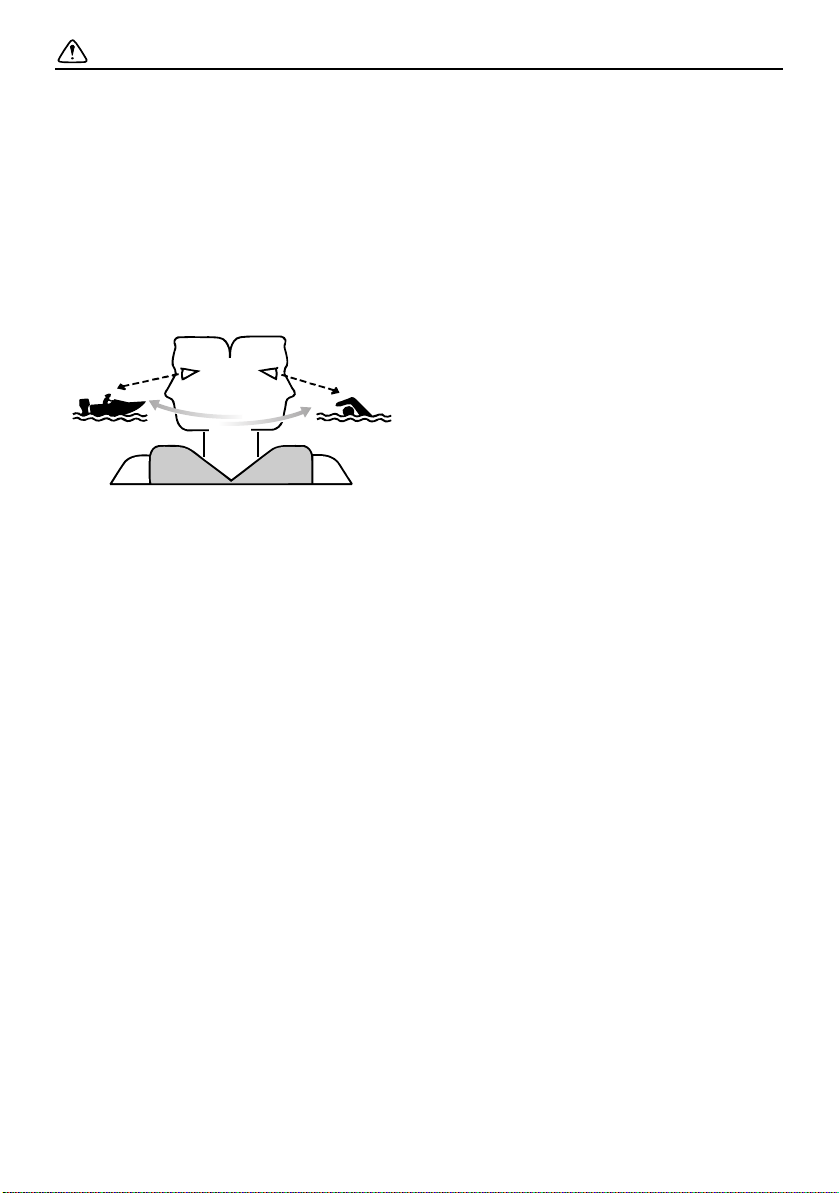

Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and keep
a safe distance away from people, objects,
and other boats.
Do not follow directly behind other boats or
waterskiers.
Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
Avoid areas with submerged objects or
shallow water.
Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss of
control, ejection, and collision.
Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle
can reduce the ability to steer. If you are not
sure that you can stop in time before hitting
an obstacle, apply throttle and turn in an-
other direction.
EMU33791
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
EMU33881
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33891
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33602
Laws and regulations
Know the marine laws and regulations where
you will be boating—and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.
ZMU06025
U6DV75E0.book Page 3 Tuesday, February 21, 2017 8:33 AM

General information
4
EMU25172
Identification numbers record
EMU25186
Outboard motor serial number
The outboard motor serial number is
stamped on the label attached to the port
side of the clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU34944
Digital electronic control serial num-
ber
The digital electronic control serial number is
stamped on the label attached to the digital
electronic control box.
Record your digital electronic control serial
number in the spaces provided to assist you
in newly connecting the digital electronic
control to the outboard motor.
TIP:
Consult your Yamaha dealer if you have any
questions concerning the digital electronic
control serial number.
1. Outboard motor serial number location
1. Serial number
2. Model name
3. Motor transom height
4. Approved model code
1
ZMU07733
3412
ZMU01692
1. Digital electronic control serial number loca-
tion
1. Digital electronic control serial number loca-
tion
ZMU05885
1
ZMU05887
1
U6DV75E0.book Page 4 Tuesday, February 21, 2017 8:33 AM

General information
5
EMU41571
Key number
The key identification number is stamped on
the spare key as shown in the illustration.
Keep the spare key in a safe place and record
this number in the space provided for refer-
ence in case that you need a new key.
EMU38981
EC Declaration of Conformity
(DoC)
This declaration is included with outboard
motors that conform to European regula-
tions.
This outboard motor conforms to certain por-
tions of the European Parliament directive re-
lating to machinery.
Each conformed outboard motor accompa-
nied with EC DoC.EC DoC contains the fol-
lowing information;
Name of Engine Manufacture
Model name
Product code of model (Approved model
code)
Code of conformed directives
EMU38995
CE Marking
This label is affixed to outboard motors that
conform to European regulations.
Outboard motors affixed with this “CE” mark-
ing conform with the directives of;
2006/42/EC, 94/25/EC - 2003/44/EC,
2014/30/EU, and 2004/108/EC, 2013/53/EU.
1. Serial number
2. Motor transom height
3. Approved model code
1. Key number
231
ZMU05917
1
ZMU07133
1. CE marking location
1
ZMU07868
ZMU06040
U6DV75E0.book Page 5 Tuesday, February 21, 2017 8:33 AM

General information
6
EMU46132
Compliance mark and manu-
factured date label
Engines affixed with this label conform to the
regulations for each country.
This label is affixed to the clamp bracket or
swivel bracket.
Regulatory Compliance Mark (RCM)
Engines affixed with this mark conform to
certain portion(s) of the Australian Radio
Communications Act.
ICES-002 Compliance Label
Engines affixed with this mark meet all re-
quirements of the Canadian Interference
Causing Equipment Regulations.
Manufactured date
The manufactured date is stamped on the la-
bel for the engines that conform to the regu-
lations for U.S. Environmental Protection
Agency (EPA). The models that manufac-
tured exclusively for the Oceanian countries
may not have manufactured date on the la-
bel.
1. Compliance mark and manufactured date
label location
1. Regulatory Compliance Mark (RCM)
1
ZMU07736
ZMU08190
1
1. ICES-002 Compliance Label
1. Manufactured date
ZMU08191
1
ZMU08192
1
U6DV75E0.book Page 6 Tuesday, February 21, 2017 8:33 AM

General information
7
EMU33524
Read manuals and labels
Before operating or working on this outboard motor:
Read this manual.
Read any manuals supplied with the boat.
Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33836
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
2
1
3
ZMU08832
U6DV75E0.book Page 7 Tuesday, February 21, 2017 8:33 AM

General information
8
EMU34652
Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01682
Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
Do not touch or remove electrical parts
when starting or during operation.
2
WARNING
EWM01672
Read Owner’s Manuals and labels.
Wear an approved personal flotation de-
vice (PFD).
Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the helm,
which could prevent a runaway boat.
EMU33851
Other labels
6EE-G2794-40
6EE-H1994-40
12
6EE-G2794-50
6EE-H1994-50
ZMU06191
3
ZMU05710
U6DV75E0.book Page 8 Tuesday, February 21, 2017 8:33 AM

General information
9
EMU35133
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
ZMU05696
ZMU05664
ZMU05665
ZMU05666
U6DV75E0.book Page 9 Tuesday, February 21, 2017 8:33 AM

Specifications and requirements
10
EMU40501
Specifications
TIP:
“(SUS)” indicates that the specification is for
the outboard motor when it is equipped with
a stainless steel propeller.
EMU2821V
Dimension and weight:
Overall length:
920 mm (36.2 in)
Overall width:
548 mm (21.6 in)
Overall height L:
1742 mm (68.6 in) (F150GET, F175CET,
F200GET)
Overall height X:
1869 mm (73.6 in)
Motor transom height L:
516 mm (20.3 in) (F150GET, F175CET,
F200GET)
Motor transom height X:
643 mm (25.3 in)
Dry weight (SUS) L:
226 kg (498 lb) (F150GET, F175CET)
227 kg (500 lb) (F200GET)
Dry weight (SUS) X:
227 kg (500 lb) (F150GET, F175CET,
FL150GET, FL175CET)
228 kg (503 lb) (F200GET, FL200GET)
Performance:
Full throttle operating range:
5000–6000 r/min
Rated power:
110.3 kW (150 HP) (F150GET,
FL150GET)
128.7 kW (175 HP) (F175CET,
FL175CET)
147.1 kW (200 HP) (F200GET,
FL200GET)
Idle speed (in neutral):
650–750 r/min
Power unit:
Type:
4-stroke DOHC L4 16 valves
Total displacement:
2785 cm³ (169.9 c.i.)
Bore ×stroke:
96.0 ×96.2 mm (3.78 ×3.79 in)
Ignition system:
TCI
Spark plug (NGK):
LFR6A-11
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)
Steering system:
Remote steering
Starting system:
Electric starter
Starting carburetion system:
Fuel injection
Valve clearance IN (cold engine):
0.17–0.24 mm (0.0067–0.0094 in)
Valve clearance EX (cold engine):
0.31–0.38 mm (0.0122–0.0150 in)
Battery rating (CCA/SAE):
680–1150 A
Battery rating (MCA/ABYC):
770–1370 A
Battery rating (RC/SAE):
160 minutes
Battery rating (CCA/EN):
640–1080 A
Battery rating (20HR/IEC):
80 Ah
Maximum generator output:
50 A
Lower unit:
Gear shift positions:
Forward-neutral-reverse
U6DV75E0.book Page 10 Tuesday, February 21, 2017 8:33 AM

Specifications and requirements
11
Gear ratio:
1.86 (26/14) (F175CET, F200GET,
FL175CET, FL200GET)
2.0 (28/14) (F150GET, FL150GET)
Trim and tilt system:
Power trim and tilt
Propeller mark:
M/T (F150GET, F175CET, F200GET)
ML/TL (FL150GET, FL175CET,
FL200GET)
Fuel and oil:
Recommended fuel:
Premium unleaded gasoline (F200GET,
FL200GET)
Regular unleaded gasoline (F150GET,
F175CET, FL150GET, FL175CET)
Min. pump octane number (PON):
89 (F200GET, FL200GET)
Min. research octane number (RON):
90 (F150GET, F175CET, FL150GET,
FL175CET)
94 (F200GET, FL200GET)
Recommended engine oil:
YAMALUBE 4 or 4-stroke outboard
motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter
replacement):
4.3 L (4.55 US qt, 3.78 Imp.qt)
Engine oil quantity (with oil filter
replacement):
4.5 L (4.76 US qt, 3.96 Imp.qt)
Lubrication system:
Wet sump
Recommended gear oil:
YAMALUBE outboard gear oil or Hypoid
gear oil
Recommended gear oil grade:
SAE 90 API GL-4 / SAE 80W API GL-5 /
SAE 90 API GL-5
Gear oil quantity:
0.980 L (1.036 US qt, 0.862 Imp.qt)
Tightening torque:
Spark plug:
28 N·m (2.86 kgf·m, 20.7 lb·ft)
Propeller nut:
54 N·m (5.51 kgf·m, 39.8 lb·ft)
Engine oil drain bolt:
27 N·m (2.75 kgf·m, 19.9 lb·ft)
Engine oil filter:
18 N·m (1.84 kgf·m, 13.3 lb·ft)
Noise and vibration level:
Operator sound pressure level (ICOMIA
39/94):
80.8 dB(A)
EMU33556
Installation requirements
EMU33565
Boat horsepower rating
WARNING
EWM01561
Overpowering a boat can cause severe in-
stability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your out-
board motor(s) does not exceed the boats
maximum horsepower rating. See the boat’s
capacity plate or contact the manufacturer.
EMU40491
Mounting outboard motor
WARNING
EWM02501
Improper mounting of the outboard mo-
tor could result in hazardous conditions
such as poor handling, loss of control,
or fire hazards.
Because the outboard motor is very
heavy, special equipment and training is
required to mount it safely.
U6DV75E0.book Page 11 Tuesday, February 21, 2017 8:33 AM

Specifications and requirements
12
Your dealer or other person experienced in
proper rigging should mount the outboard
motor using correct equipment and complete
rigging instructions. For further information,
see page 43.
EMU34954
Digital electronic control re-
quirements
The digital electronic control is equipped with
a start-in-gear protection device(s). This de-
vice prevents the engine from starting unless
it is in neutral.
WARNING
EWM01581
If the engine starts in gear, the boat can
move suddenly and unexpectedly, pos-
sibly causing a collision or throwing
passengers overboard.
If the engine ever starts in gear, the
start-in-gear protection device is not
working correctly and you should dis-
continue using the outboard. Contact
your Yamaha dealer.
This digital electronic control unit is only
available for the outboard motor which you
have purchased.
Prior to use of the digital electronic control
unit, set it in order to operate your outboard
motor only. Otherwise, it will not be possible
to operate the outboard motor.
Perform setting of the outboard motor and
the digital electronic control unit in the follow-
ing cases.
If a used outboard motor is installed
If the digital electronic control unit is re-
placed
If the ECM (Electronic control module) of
the used outboard motor is replaced
If the ECM (Electronic control module) of
the digital electronic control unit is re-
placed
Consult your Yamaha dealer for setting.
EMU25695
Battery requirements
EMU46560
Battery specifications
For U.S. insular areas
For Europe
The engine cannot be started if battery volt-
age is too low.
EMU36293
Mounting battery
Mount the battery holder securely in a dry,
well-ventilated, vibration-free location in the
boat. WARNING! Do not put flammable
items, or loose heavy or metal objects in
the same compartment as the battery.
Fire, explosion or sparks could result.
[EWM01821]
Battery cable
The battery cable size and length are critical.
Consult your Yamaha dealer about the bat-
tery cable size and length.
EMU36303
Multiple batteries
To connect multiple batteries, such as for
multiple engine configurations or for an ac-
cessory battery, consult your Yamaha dealer
about battery selection and correct wiring.
Battery rating (CCA/SAE):
680–1150 A
Battery rating (MCA/ABYC):
770–1370 A
Battery rating (RC/SAE):
160 minutes
Battery rating (CCA/EN):
640–1080 A
Battery rating (20HR/IEC):
80 Ah
U6DV75E0.book Page 12 Tuesday, February 21, 2017 8:33 AM

Specifications and requirements
13
Battery isolator
Your outboard motor is capable of charging
an accessory battery separate from the start-
ing battery using an optional isolator lead.
Contact your Yamaha dealer for installation
of an optional isolator lead with over-current
protection.
EMU41603
Propeller selection
Next to selecting an outboard motor, select-
ing the right propeller is one of the most im-
portant purchasing decisions a boater can
make. The type, size, and design of your pro-
peller have a direct impact on acceleration,
top speed, fuel economy, and even engine
life. Yamaha designs and manufactures pro-
pellers for every Yamaha outboard motor and
every application.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, select a larger pitch propeller
for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, select the propeller
that lets the engine run in the proper range for
your maximum load but remember that you
may need to reduce your throttle setting to
stay within the recommended engine speed
range when carrying lighter loads.
Yamaha recommends to use a propeller suit-
able for the “Shift Dampener System (SDS)”.
For further information, consult your Yamaha
dealer.
To check the propeller, see page 78.
EMU36313
Counter rotation models
Standard outboard motors rotate clockwise.
Counter rotation models rotate counterclock-
wise and are typically used in multiple motor
setups.
On counter rotation models, be sure to use a
propeller intended for counterclockwise rota-
tion. These propellers are identified with the
letter “L” after the size indication on the pro-
peller. WARNING! Never use a standard
propeller with a counter rotation motor, or
a counter rotation propeller with a stan-
dard motor. Otherwise the boat could go
in the direction opposite of that expected
(for example, reverse instead of forward),
which could lead to an accident. [EWM01811]
For instructions on propeller removal and ins-
tallation, see page 79.
EMU35141
Start-in-gear protection
Yamaha outboard motors or Yamaha-ap-
proved digital electronic control units are
equipped with start-in-gear protection de-
vice(s). This feature permits the engine to be
started only when it is in neutral. Always se-
lect neutral before starting the engine.
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
ZMU07044
