Yamaha EF5500DE User manual

Generator
LIT-19626-02-82
7P5-F8199-14
PRINTED IN CHINA
2021.06×1 !
(E)
EF5500DE
EF5500D
OWNER’S MANUAL
Read this manual carefully before operating your Yamaha generator.
7P5-F8199-14_hyoshi.indd 1-2 2021/06/23 11:22:56

Read this manual carefully before operating your Yamaha generator. This
manual should stay with this generator if it is sold.

7P5-F8199-14_hyoshi.indd 3-4 2021/06/23 11:22:56

INTRODUCTION
Congratulations on your purchase of your new Yamaha Generator.
This manual will provide you with a good basic understanding of the operation and
maintenance of this generator.
If you have any questions regarding the operation or maintenance of your generator,
please consult a Yamaha dealer.
EF5500DE/EF5500D
OWNER’S MANUAL
© 2021 by Yamaha Motor Corporation, U.S.A.
1st Edition, June 2021
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in China
P/N LIT-19626-02-82
7P5-F8199-14.indd 1 2021/06/23 11:22:09

Particularly important information is distin-
guished in this manual by the following
notations.
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messag-
es that follow this symbol to avoid pos-
sible injury or death.
WARNING
A WARNING indicates a hazardous sit-
uation which, if not avoided, could
result in death or serious injury.
NOTICE
A NOTICE indicates special precau-
tions that must be taken to avoid dam-
age to the generator or other property.
TIP
A TIP provides key information to make
procedures easier or clearer.
WARNING
PLEASE READ AND UNDERSTAND
THIS MANUAL COMPLETELY BEFORE
OPERATING THE GENERATOR.
TIP
9Yamaha continually seeks advance-
ments in product design and quality.
Therefore, while this manual contains
the most current product information
available at the time of printing, there
may be minor discrepancies between
your generator and this manual. If
there is any question concerning this
manual, please consult a Yamaha
dealer.
9This manual should be considered a
permanent part of this generator and
should remain with this generator
when resold.
* Product and specifications are subject to
change without notice.
IMPORTANT MANUAL INFORMATION
7P5-F8199-14.indd 2 2021/06/23 11:22:10

SAFETY INFORMATION ...................... 1
Exhaust Fumes are Poisonous .......... 1
Carbon Monoxide Poisoning .............. 2
Fuel is Highly Flammable and
Poisonous........................................... 3
Engine and Muffler May be Hot.......... 3
Electric Shock Prevention .................. 4
Connection Notes............................... 5
Connection......................................... 5
Extension Cord Notes ........................ 5
LOCATION OF IMPORTANT
LABELS ................................................ 6
DESCRIPTION...................................... 7

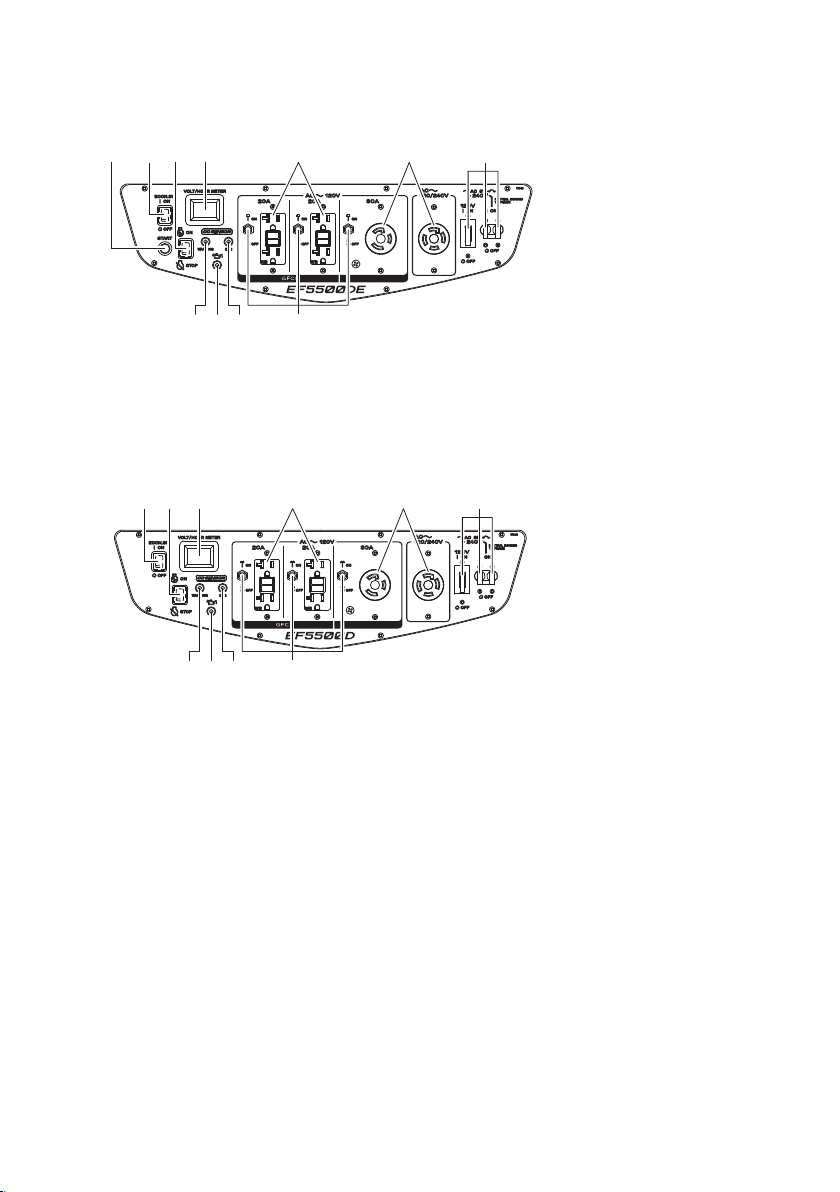

Control Panel (For EF5500DE) .......... 8
Control Panel (For EF5500D)............. 8
CONTROL FUNCTION ......................... 9
Engine Switch .................................... 9
Oil Warning Light (Red)...................... 9
CO SENSOR.................................... 10
AC Switch (N.F.B.)............................ 14
Fuel Tank Cap .................................. 14
Fuel Cock Lever ............................... 14

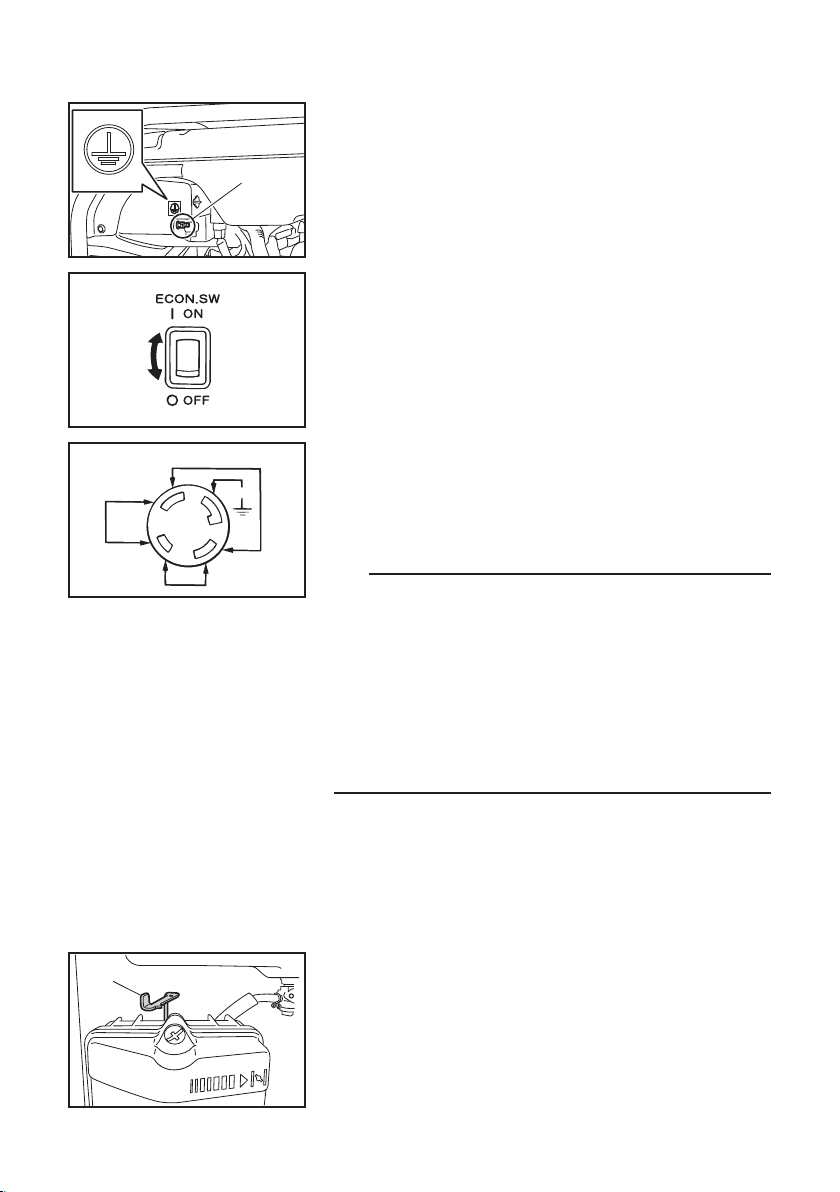

Ground (Earth) Terminal................... 15
Economy Control Switch.................. 15
Choke Lever ..................................... 15
Recoil Starter ................................... 16
Starter Switch (For EF5500DE) ....... 16
G.F.C.I. Receptacle .......................... 17
PREPARATION ................................... 18
Two Wheel Kit Installation ................ 18
Fuel .................................................. 23
Engine Oil......................................... 25
Battery (For EF5500DE) .................. 26
Ground (Earth) Terminal................... 27
PRE-OPERATION CHECK ................. 28
Pre-Operation Check ....................... 28
OPERATION ....................................... 29
Starting The Engine ......................... 29
Stopping The Engine........................ 32
Connection....................................... 34
Application Range............................ 36
High Altitude Operation ................... 37
PERIODIC MAINTENANCE................ 38
Maintenance Chart........................... 38
Carburetor Adjustment ..................... 40
Spark Plug Inspection ...................... 40
Engine Oil Replacement .................. 41
Muffler Screen and Spark Arrester... 43
Air Filter............................................ 45
Fuel Cock ......................................... 46
Fuel Tank Filter................................. 47
Battery (For EF5500DE) .................. 48
Recommended Battery
(For EF5500DE)............................... 48
Fuse Replacement
(For EF5500DE)............................... 49
G.F.C.I. Receptacle Test ................... 50
STORAGE ........................................... 51
Drain The Fuel.................................. 51
Engine.............................................. 53
Battery (For EF5500DE) .................. 54
TROUBLESHOOTING ........................ 55
SPECIFICATIONS............................... 60
Dimensions ...................................... 60
Engine.............................................. 60
Generator ......................................... 60
CONSUMER INFORMATION.............. 61
Identification Number Records......... 61
Generator Identification.................... 61
EXHAUST EMISSION CONTROL
SYSTEM AND COMPONENTS .......... 62
WIRING DIAGRAM ............................. 63
EF5500DE........................................ 63
EF5500D.......................................... 64
YAMAHA EXTENDED SERVICE
(Y.E.S.) ................................................ 65
CONTENTS
7P5-F8199-14.indd 3 2021/06/23 11:22:10

– 1 –
SAFETY INFORMATION
9This generator is not designed for on-board use.
Do not use it while installed on the vehicle.
9Do not modify the generator or use it with its parts
removed.
9Do not allow children to operate the generator.
9Do not place any obstacles on the generator.
Exhaust Fumes are Poisonous
9Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon
monoxide. This is a poison you cannot see or
smell.
9NEVER use inside a home or garage, EVEN IF
doors and windows are open.
9Only use OUTSIDE and far away from windows,
doors, and vents with engine exhaust directed
away from any structures.
7P5-F8199-14.indd 1 2021/06/23 11:22:10

– 2 –
Carbon Monoxide Poisoning
9CO gas is toxic and can cause serious injury or
death.
9Get fresh air and seek medical care immediately, if
you are suspected to be inhaled carbon monoxide.
9Early symptoms of carbon monoxide exposure
include headache, fatigue, shortness of breath,
nausea, and dizziness and so on. Continued expo-
sure to carbon monoxide can cause loss of mus-
cular coordination, loss of consciousness, and
then result in death.

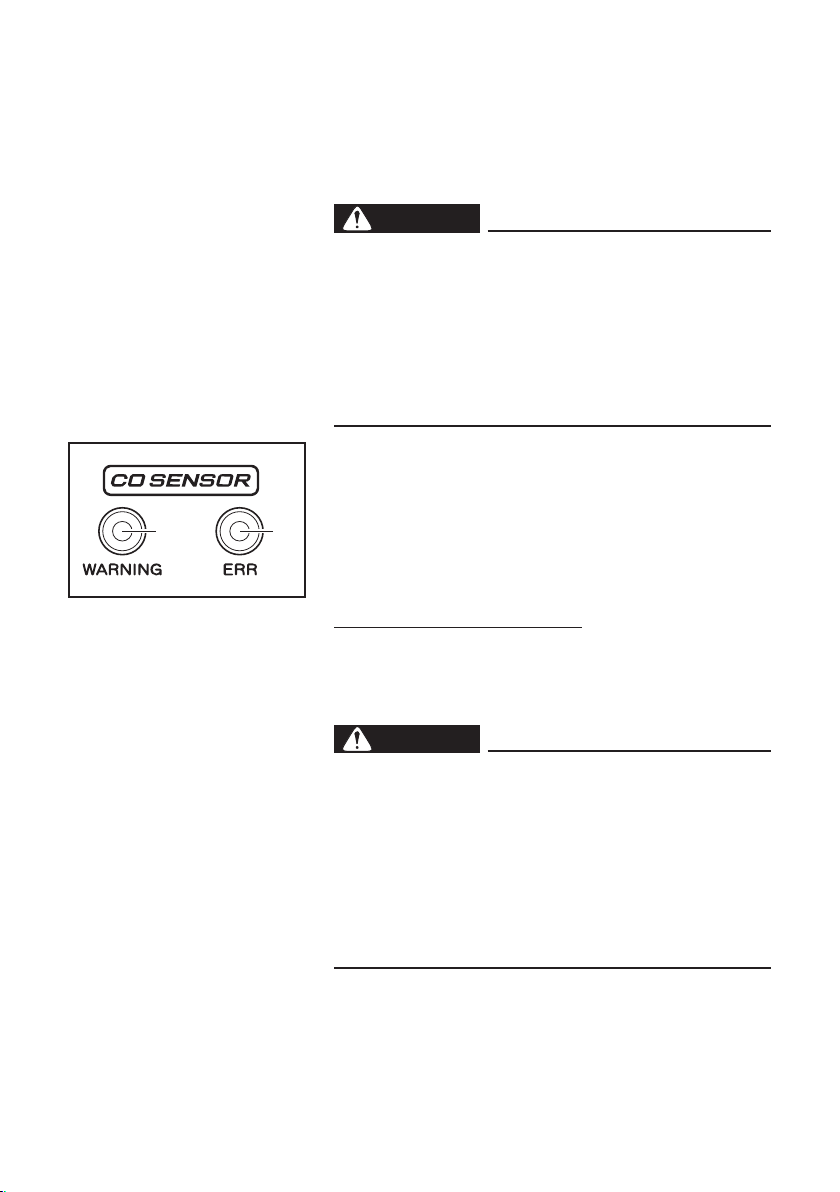

9This generator is equipped with the CO SENSOR
system that automatically stops the engine before
the surrounding carbon monoxide concentration
increases to a dangerous concentration.
9Do not remove or modify the CO SENSOR sys-
tem.
9Make sure that the CO SENSOR system works
correctly.
9The CO SENSOR cannot prevent all danger asso-
ciated with or caused by carbon monoxide. Pay
careful attention to the location of the generator.
9If the CO SENSOR stopped the generator, relo-
cate the generator and address symptoms of car-
bon monoxide poisoning prior to restart the gener-
ator.
9Install battery-operated or plug-in carbon monox-
ide alarms to alert you to potentially dangerous
levels of carbon monoxide in accordance with the
alarm’s instructions.
7P5-F8199-14.indd 2 2021/06/23 11:22:10

– 3 –
Fuel is Highly Flammable and Poisonous
9Always turn off the engine when refuelling.
9Never refuel while smoking or in the vicinity of an
open flame.
9Take care not to spill any fuel on the engine or
muffler when refuelling.
9Do not leave the generator inside the vehicle or in
the trunk.
9If you swallow any fuel, inhale fuel vapor, or allow
any to get in your eye(s), see your doctor immedi-
ately. If any fuel spills on your skin or clothing,
immediately wash with soap and water and
change your clothes.
9When operating or transporting the generator, be
sure it is kept upright. If it tilts, fuel may leak from
the carburetor or fuel tank.
Engine and Muffler May be Hot
9Place the generator in a place where pedestrians
or children are not likely to touch the generator.
9Avoid placing any flammable materials near the
exhaust outlet during operation.
9In order to prevent overheating, ensure adequate
airflow by keeping the generator at least 1 m (3 ft)
from objects or other equipment.
9Do not operate the engine with a dust cover or
other objects covering it.
9When covering the generator, be sure to do so
only after the engine and muffler have completely
cooled down.
7P5-F8199-14.indd 3 2021/06/23 11:22:10

– 4 –
Electric Shock Prevention
9Never operate the engine in rain or snow.
9Never touch the generator with wet hands or elec-
trical shock will occur.
9When the connected electric device is grounded
(earthed), always ground (earth) the generator.
9Connect the ground (earth) terminal to a ground
source. In order to prevent electrical shock, the
generator must be grounded when using a
grounded electrical device.

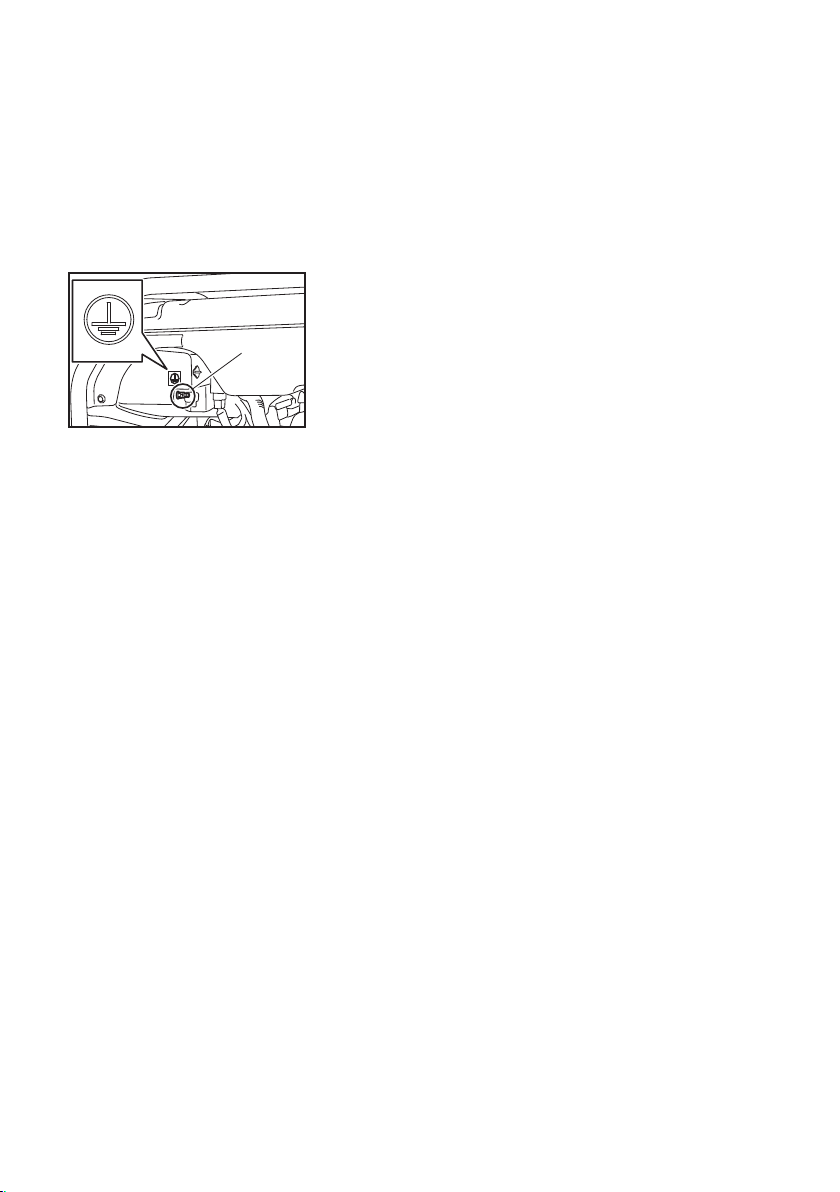

1Ground (earth) terminal
1
7P5-F8199-14.indd 4 2021/06/23 11:22:10

– 5 –
741-040a
1
2
1
2
Connection Notes
9Avoid connecting the generator to commercial
power outlet.
9Avoid connecting the generator in parallel with any
other generator.
1Correct
2Incorrect
Connection
WARNING
Before the generator can be connected to a build-
ing’s electrical system, a licensed electrician must
install an isolation (transfer) switch in the build-
ing’s main fuse box. The switch is the connection
point for generator power and allows selection of
generator or main line power to the building. This
will prevent the generator from charging the main
power line (backfeeding) when the main power
supply has failed or has been turned off for line
repair. Backfeeding can electrocute or injure line
maintenance personnel. Also, generator and build-
ing electrical system damage can occur when nor-
mal operating power returns if unit is used without
an isolation switch.
Extension Cord Notes
Extension cords should be protected by a tough flexi-
ble rubber sheath (IEC 245) or the equivalent to with-
stand mechanical stresses.
7P5-F8199-14.indd 5 2021/06/23 11:22:10

– 6 –
LOCATION OF IMPORTANT LABELS
Please read the following labels carefully before oper-
ating this generator.
TIP
Maintain or replace safety and instruction labels, as
necessary.
2
4
OIL
5
DISPLACEMENT :
3
6
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside a home
or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and
far away from windows,
doors, and vents. 7C2-F4877-00
1
7
8
1
2
3
4
5
6 7 8
7P5-F8199-14.indd 6 2021/06/23 11:22:11

– 7 –
DESCRIPTION
1Carrying handles (shaded)
2Fuel tank cap
3Fuel level gauge
4Fuel tank
5Ground (earth) terminal
6Battery (For EF5500DE)
7Oil filler cap
8Oil drain bolt
9Spark plug
0Fuel cock
qRecoil starter handle
wAir filter case cover
eChoke lever
rMuffler
EF5500DE
2
7
5
1 13 4
8
6
2
5
113 4
7
8
EF5500D
9 0
q
ew
r
9 0
q
ew
r
7P5-F8199-14.indd 7 2021/06/23 11:22:12

– 8 –
Control Panel
(For EF5500DE)
1Starter switch
2Economy control
switch
3Engine switch
4Voltage/hour meter
5G.F.C.I. receptacle
6AC receptacle
7AC switch (N.F.B.)
8ERR (Error) indicator
light (Orange)
9Oil warning light (Red)
0WARNING indicator
light (Red)
EF5500DE
7
3 421 5 6 7
90 8
Control Panel
(For EF5500D)
1Economy control
switch
2Engine switch
3Voltage/hour meter
4G.F.C.I. receptacle
5AC receptacle
6AC switch (N.F.B.)
7ERR (Error) indicator
light (Orange)
8Oil warning light (Red)
9WARNING indicator
light (Red)
EF5500D
6
2 31 4 5 6
89 7
7P5-F8199-14.indd 8 2021/06/23 11:22:12

– 9 –
1
2
CONTROL FUNCTION
Engine Switch
The engine switch controls the ignition system.
1 “7” (ON)
Ignition circuit is switched on.
The engine can be started.
2 “5” (STOP)
Ignition circuit is switched off.
The engine will not run.
700-027c
Oil Warning Light (Red)
When the oil level falls below the lower level, the oil
warning light comes on and then the engine stops
automatically. Unless you refill with oil, the engine will
not start again.
TIP
If the engine stalls or does not start, turn the engine
switch to “7” (ON) and then push the starter switch
(for EF5500DE) or pull the recoil starter. If the oil warn-
ing light flickers for a few seconds, the engine oil is
insufficient. Add oil and restart.
7P5-F8199-14.indd 9 2021/06/23 11:22:12

– 10 –
1 2
CO SENSOR
The CO SENSOR is a system that automatically stops
the engine before the surrounding CO concentration
exceeds a certain level.
WARNING
9Do not remove or modify the CO SENSOR sys-
tem.
9The CO SENSOR cannot prevent all danger
associated with or caused by carbon monox-
ide. Pay careful attention to the location of the
generator.
9Do not spray any organic solvent on the CO
SENSOR.
There are two indicator lights in relation to the CO
SENSOR.
1WARNING indicator light (Red)
2ERR (Error) indicator light (Orange)
WARNING indicator light (Red)
If the CO SENSOR detects a high carbon monoxide
concentration, the engine will stop and the WARNING
indicator light will flash for approximately 5 minutes.
WARNING
Continuous use of the generator in areas with high
concentrations of carbon monoxide can cause
serious health hazards due to carbon monoxide
poisoning. If you are in the same area as the gen-
erator, evacuate the area immediately. Get fresh air
and seek medical attention immediately, if you feel
sick or suspect you have inhaled carbon monox-
ide. Ventilate the area or space where the genera-
tor is located.
7P5-F8199-14.indd 10 2021/06/23 11:22:12

– 11 –
If the engine is stopped by the CO SENSOR system,
change the operating location of the generator to well-
ventilated area.
TIP
9Place the generator so that the muffler is pointed
in the same direction as the wind is blowing, and
the exhaust gas is directed away from buildings,
other structures, or vehicles.
9Avoid placing the generator near devices that emit
carbon monoxide, such as other generators.
WARNING
9Do not operate the generator in an enclosed or
partly enclosed area such as a garage.
9Do not enclose or cover the generator with
boards or a tent, even if it is outside and away
from of a building.
While this indicator light is flashing and the CO
SENSOR is activated, the engine cannot be restarted
for approximately 5 minutes. Restarting the generator
is possible only after the WARNING indicator light is
turned off.
7P5-F8199-14.indd 11 2021/06/23 11:22:12

– 12 –
ERR (Error) indicator light (Orange)
If the CO SENSOR detects a system malfunction or
service life over, the engine will stop automatically and
the ERR (Error) indicator will come on approximately 5
minutes.
TIP
9The CO SENSOR has a limited service life and
must be replaced when it no longer functions. The
battery is non-replaceable battery.
9The generator stopping period and storage period
are also in the useful service life of the CO
SENSOR.
9The lithium battery adopted on this sensor con-
tains perchlorate, a toxic substance controlled in
perchlorate Best Management Practices (BMP)
regulations passed by the California legislature.
When you discard the lithium battery in California,
USA, please follow the related regulations in
advance.
Perchlorate material-special handling may apply,
see www.dtsc.ca.gov/hazardouswaste/perchlorate
9Consult a Yamaha dealer for the CO SENSOR
replacement.
7P5-F8199-14.indd 12 2021/06/23 11:22:13

– 13 –
On starting the engine
Each indicator light flashes 5 times upon starting.
When starting the engine, make sure that each indica-
tor light flashes 5 times.
WARNING
9If the indicator lights do not flash 5 times upon
starting, discontinue generator use immediate-
ly and consult a Yamaha dealer. The CO
SENSOR system may be malfunctioning.
9If the CO SENSOR WARNING indicator light
(red) is flashing, immediately clear the area of
all people and animals while moving the gen-
erator to an open, outdoor area. Once the gen-
erator is relocated to a well-ventilated area, it
can be restarted after 5 minutes. Be sure to
point the exhaust away from people and build-
ings. Thoroughly ventilate the location where
the generator had stopped.
9If the CO SENSOR system is malfunctioning, it
cannot warn you of potential high concentra-
tions of carbon monoxide. Move the generator
to a well-ventilated location and consult a
Yamaha dealer.
9While the CO SENSOR is activated, the engine
cannot be restarted for approximately 5 min-
utes. Relocate the generator and address
symptoms of carbon monoxide poisoning
prior to restart the generator.
NOTICE
If you stop the engine in the following situations,
the CO SENSOR system may not be able to restart
the engine immediately. Wait approximately 15 sec-
onds before restarting the engine.
9By the engine switch.
9By the oil level warning device.
9By running out of gasoline.
TIP
If the indicator lights come on or flash abnormally,
check “TROUBLESHOOTING” (See page 56).
7P5-F8199-14.indd 13 2021/06/23 11:22:13

– 14 –
AC Switch (N.F.B.)
The AC switch (Non-Fuse Breaker) turns off automati-
cally when the load exceeds the generator rated out-
put.
1“I” (ON)
2“3” (OFF)
1
2
1
2
2
1
A
1
1
B
åSupplies AC 120 V
∫Supplies AC 120 V and 240 V
NOTICE
Reduce the load to the specified generator rated
output if the AC switch (N.F.B.) turns off. If it turns
off again, consult a Yamaha dealer.
Fuel Tank Cap
Remove the fuel tank cap by turning it counterclock-
wise.
7DF-106
1
22
Fuel Cock Lever
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has two positions.
1ON
With the lever in this position, fuel flows to the carbure-
tor. Normal using is done with the lever in this position.
2OFF
With the lever in this position, fuel will not flow. Always
turn the lever to this position when the engine is not
running.
7P5-F8199-14.indd 14 2021/06/23 11:22:13

– 15 –
1
Ground (Earth) Terminal
Ground (earth) terminal connects the earth line for
prevention of electric shock.
When the electric device is earthed, always the gener-
ator must be earthed.
1Ground (earth) terminal
1
Choke Lever
Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the choke lever.
1Choke lever
1
2
240V
120V
120V
GR
WX
G
Y
Economy Control Switch
1“I” (ON)
When the economy control switch is turned to “I” (ON),
the economy control unit controls the engine speed
according to the connected load. The results are better
fuel consumption and less noise.
2“3” (OFF)
When the economy control switch is turned to “3”
(OFF), the engine runs at the rated r/min (3600 r/min)
regardless of whether there is a load connected or not.
TIP
9The economy control switch must be turned to “3”
(OFF) when using electric devices that require a
large starting current, such as a compressor or a
submersible pump.
9The economy control switch must be turned to “3”
(OFF) to increase engine speed to rated r/min
when:
- using a load of 0.8 A or less.
- supplying AC 120 V only from W with X.
7P5-F8199-14.indd 15 2021/06/23 11:22:13
