Yamaha R-N800A User manual

EnglishEspañol Français
Quick Guide
Guide rapide
Guía rápida
Receiver
Ampli-Tuner Hi-Fi
Receptor
ES
FR
EN

2
Introduction
Thank you very much for purchasing this Yamaha product.
This product is a network-compatible Receiver (2 channel stereo amplifier) which lets you play music content from the radio or a network
in your home as well as analog and digital audio inputs. With the YPAO function which optimizes the sound field automatically, you can
enjoy the sound that best matches your room.
About the Manuals
Please be sure to read the following guides. Keep the guides that are included with the product in a handy place for easy reference.
■Safety Guide (included with the product)
Lists important safety precautions that should be read prior to use.
■Quick Guide (this manual)
This guide explains basic connections, playback of Internet radio, and more.
■User Guide (Web)
This explains all functions, such as information not explained in the Quick Guide. To see the User Guide, go to the following URL.
Please note that the User Guide is provided only on the website.
https://manual.yamaha.com/av/22/rn800a
/

3
English
PREPARATION & OPERATION — Getting Started
Read this guide according to the following flow.
1 PREPARATION ...................................................................... 4
1-1 Checking the included accessories ...................................................... 4
1-2 This guide requires the following items .............................................. 4
1-3 Connecting Speakers ............................................................................ 5
1-4 Flipping up the wireless antenna......................................................... 6
1-5 Connecting the power cord .................................................................. 6
2 OPERATION ...........................................................................7
2-1 Turning the power on ............................................................................ 7
2-2 Automatic adjustment of speaker settings (YPAO)............................ 8
2-3 Configuring network settings ............................................................ 10
2-4 Playing Internet radio ......................................................................... 11

4
1 PREPARATION

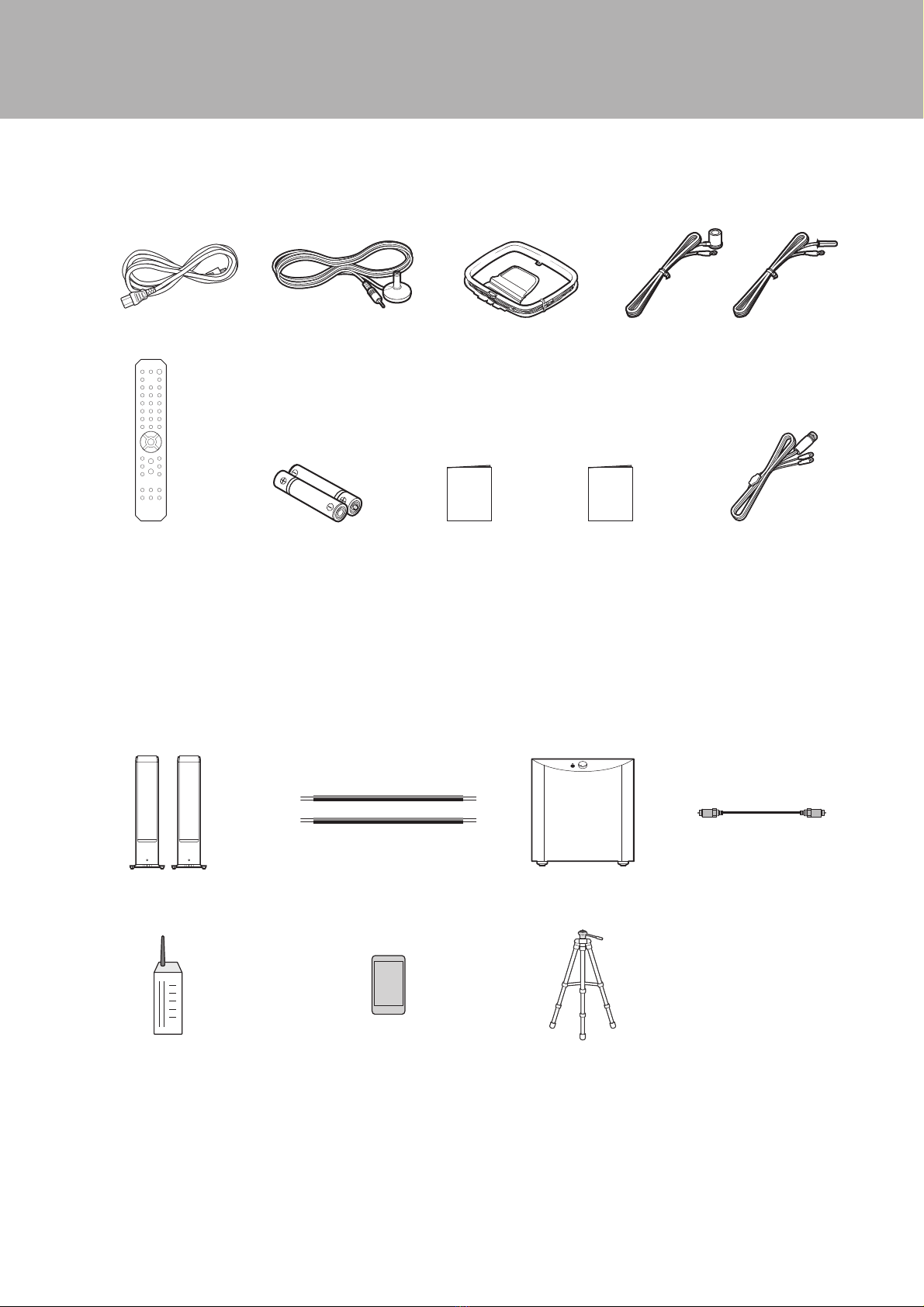

1-1 Checking the included accessories
Check and make sure that you have all the following items.
Items marked with * are not explained in this guide. See the User Guide for more information.
Be sure to fill in the correct date of purchase and name of the store of purchase in the warranty, and then keep it in a safe place.
1-2 This guide requires the following items
Have the following items on hand, in addition to the product.
Items marked with * are not required in some cases. Have them ready if needed.
Power cord YPAO microphone
DAB/FM antenna
(U.K., Europe, Russia and
Australia models)*
Remote control* Batteries
(AA, R6, UM-3) (×2)*
Safety Guide Quick Guide
(this manual)
AM antenna
(Except for U.K., Europe,
Russia and Australia
models)*
FM antenna (Except for U.K., Europe,
Russia and Australia models)*
One of the above is supplied depending
on the region of purchase.
Speakers (×2) Speaker cable
(×2)
Subwoofer
(built-in amp)*
Monaural pin cable
(RCA)*
Wireless router Android™ or iOS
smartphone or tablet
(smart device)
Stand for holding the
YPAO microphone*
This is used for connecting to
the Internet in your home.
Have one ready that is already
connected to your wireless
router.
Refer to page 8, and have a camera tripod, etc.
ready that is adjusted to the height of the
listening position.
(compatible with a 1/4-inch screw)

5
English

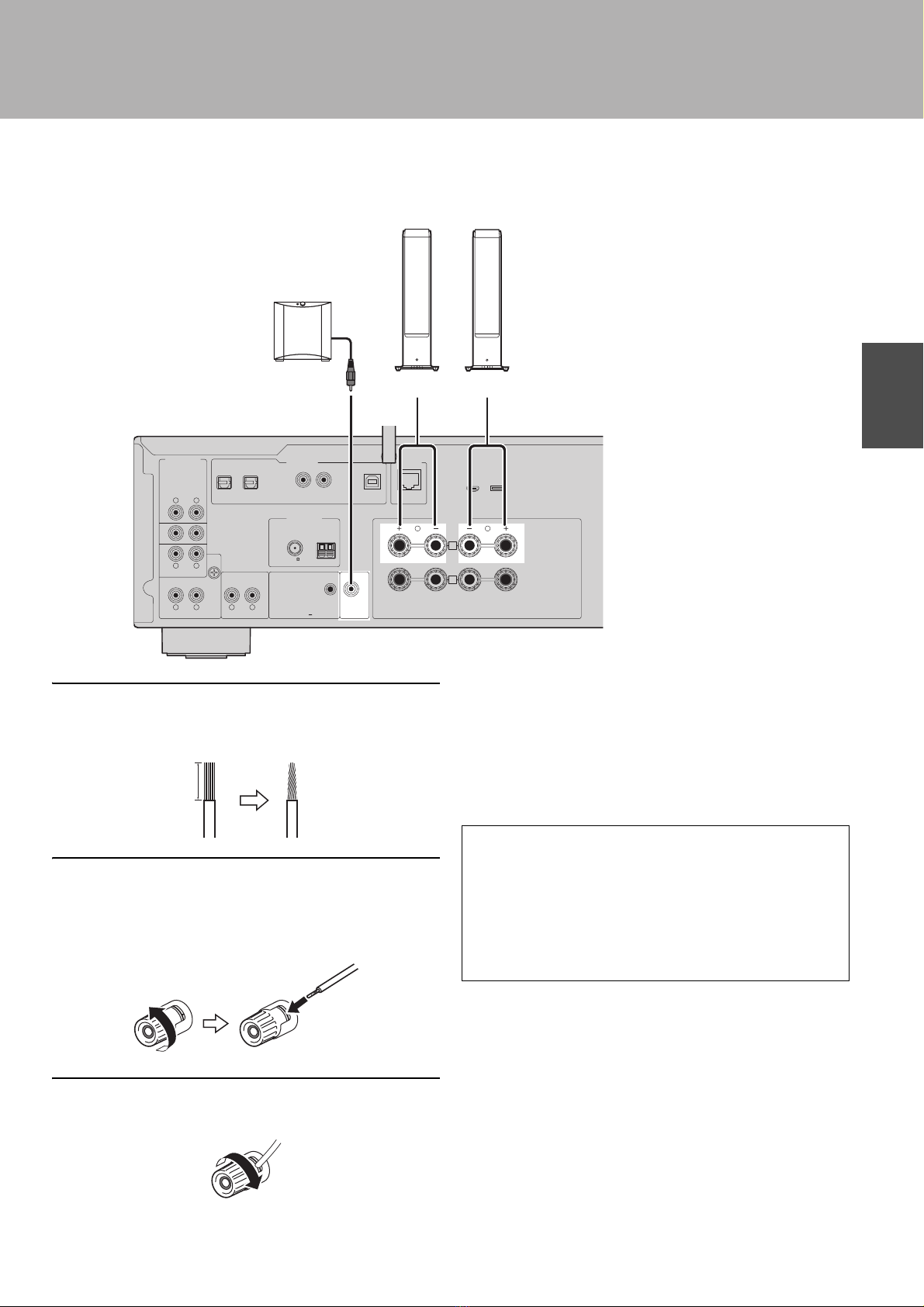

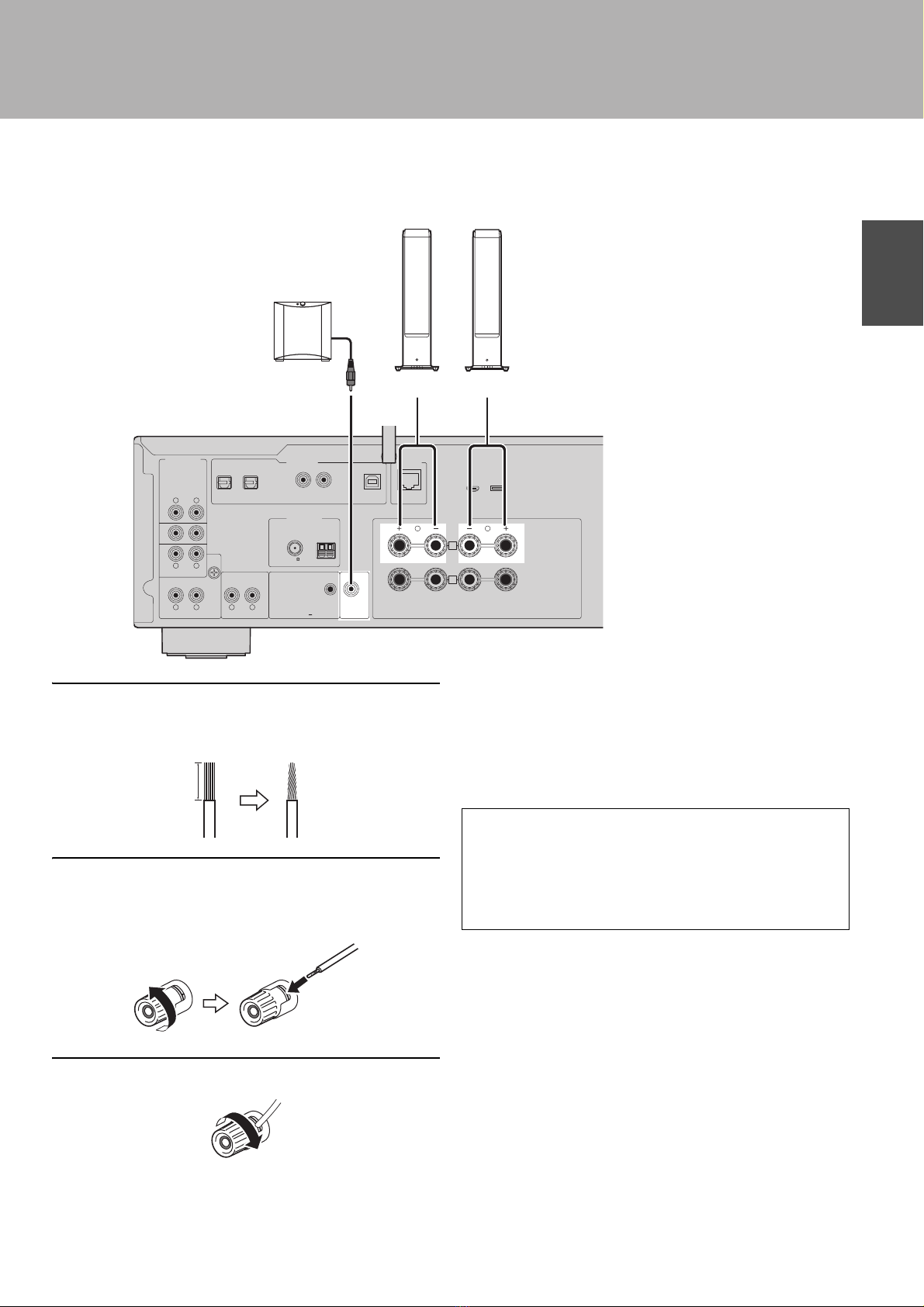

1-3 Connecting Speakers
Connect the speakers as illustrated. Connect a subwoofer if needed.
1 Peel back about 10 mm of insulation from the
end of the speaker cable and twist the core
wires tightly.
2 Turn the knob of the speaker jack to the left to
loosen it, and insert the core wires of the
speaker cable into the hole of the jack.
3 Turn the knob back to the right to tighten it.
NOTE
• Use speakers with an impedance of 4-ohms or higher.
• If using 4-ohm speakers (or higher than 4-ohm but lower than
8-ohm), change the impedance settings of this product. These
settings can be changed in the product’s Advanced Setup menu.
See the User Guide for details.
ANALOG IN
COAXIALOPTICAL USB
SERVICE
NETWORK
DIGITAL IN
ANTENNA SPEAKERS
CD
LINE
LR
LR
12V 0.1A
TRIGGER
OUT
SUBWOOFER
OUT
FM AM
75
PHONO
LR
PRE OUT
L
L
R
GND
1
2
R
A
B
21 1 2
+–
–+
Speaker
(Right channel)
Subwoofer (built-in amp)
Speaker
(Left channel)
10 mm
NOTICE NOTICE is used with information for preventing
product failure, damage or malfunction.
• Do not allow the core wires of a speaker cable to touch the
core wires of another speaker cable or any metal parts of the
product. Doing so may damage the product and/or the
speakers.

6

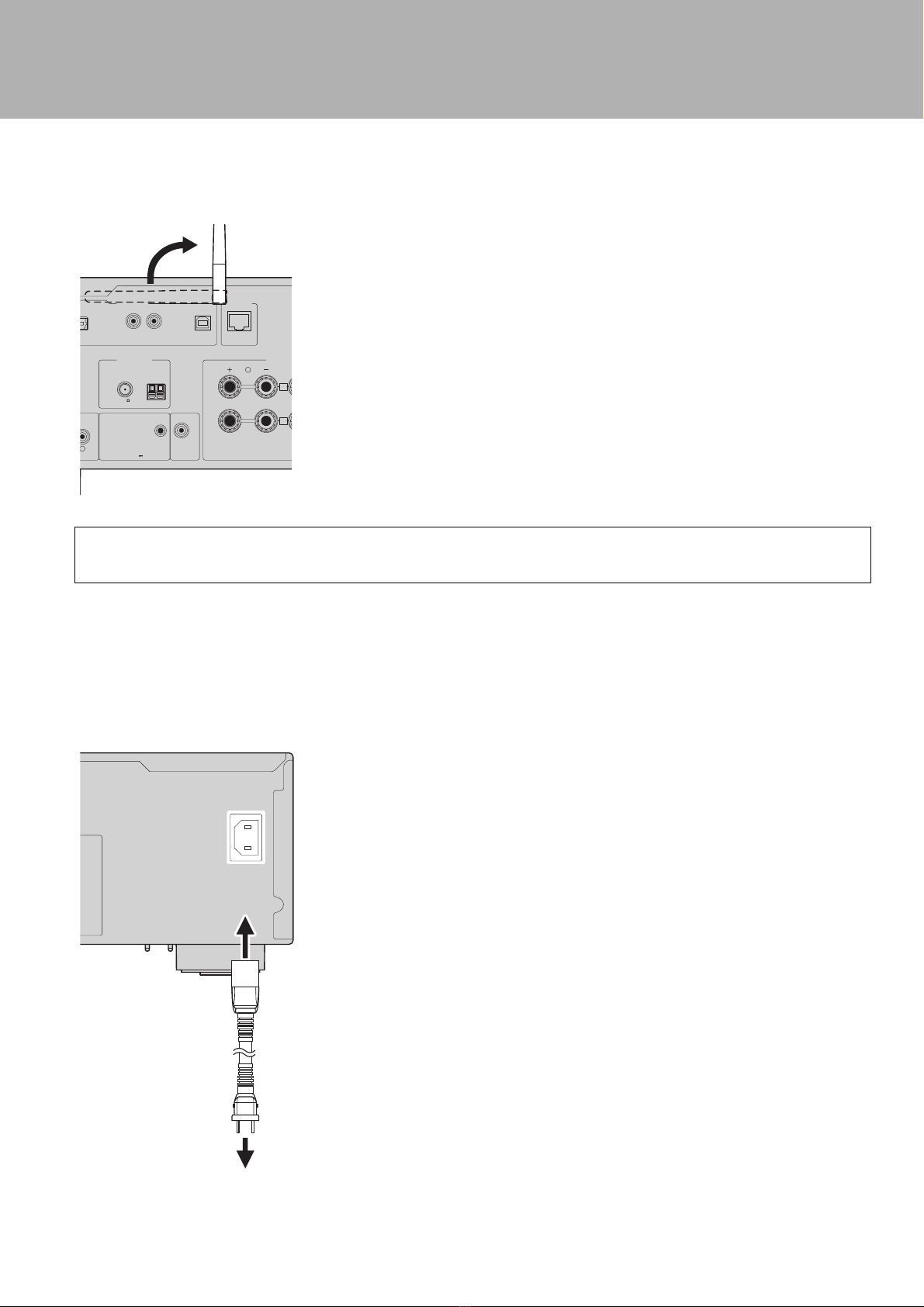

1-4 Flipping up the wireless antenna
Flip up the wireless antenna as illustrated.
1-5 Connecting the power cord
Connect the included power cord.
NOTICE
• Do not exert excessive force on the wireless antenna. Doing so may damage it.
USB
NETWORK
DIGITAL IN
ANTENNA SPEAKER
12V 0.1A
TRIGGER
OUT
SUBWOOFER
OUT
FM AM
75
T
L
R
A
B
2
COAXIAL
1 2
AC IN
Connect to a power outlet

7
English
2OPERATION
2-1 Turning the power on
Turn the product on.
1 Press the z(Power) switch to turn the power on.
The power indicator lights up.
2 After the following message appears on the front display, press RETURN on the front panel to clear the
message.
It may take about 30 seconds for the message to appear. The portion shown as * differs depending on the
device.

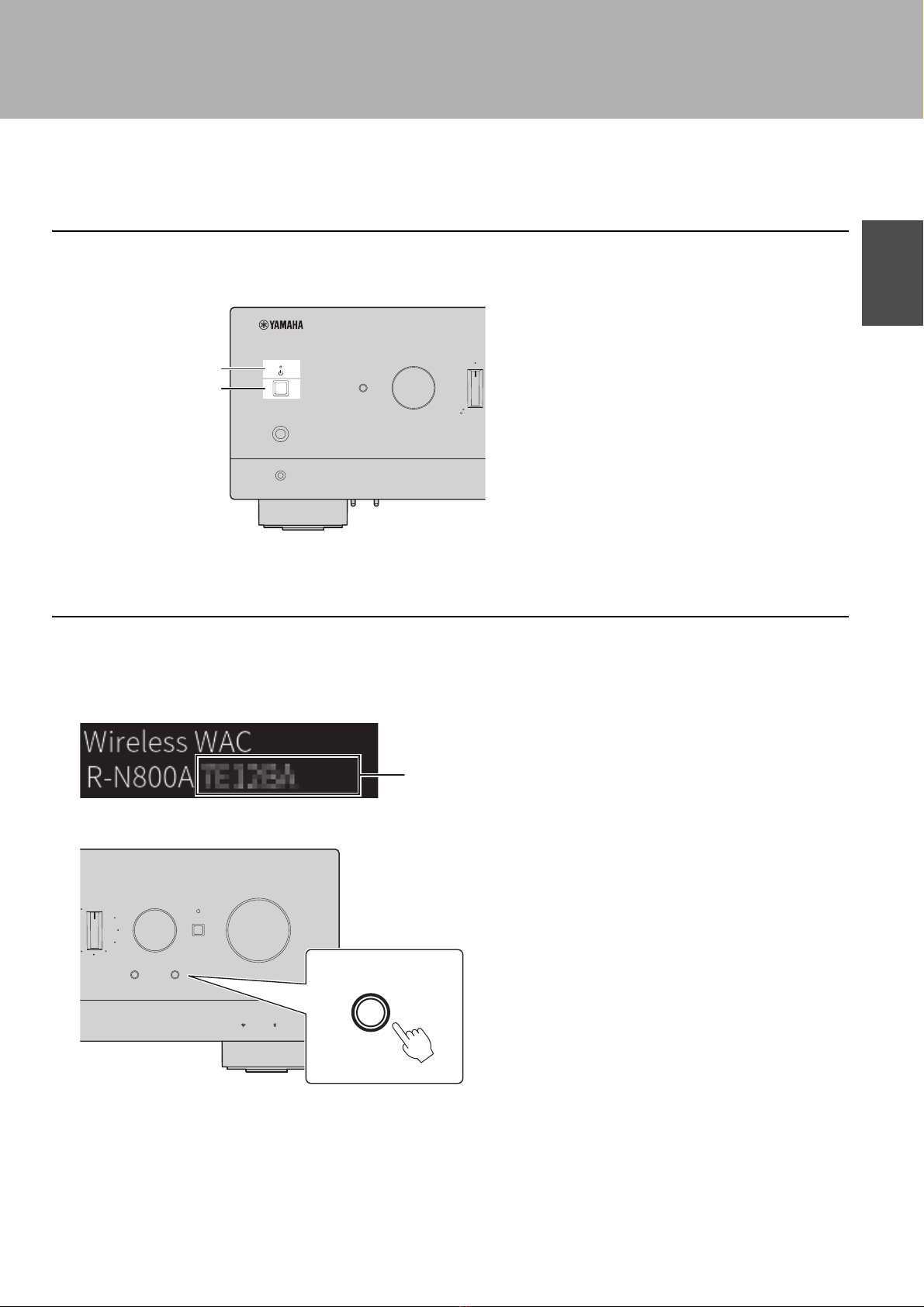

Wireless WAC Display
The WAC (Wireless Accessory Configuration) function is for applying the wireless settings of an iOS device to
another device and wirelessly connecting to the network. Because it is explained on a later page how to
connect to networks with the MusicCast Controller app, how to cancel WAC is explained here.
PHONES
YPAO MIC
SPEAKERS
INPUT BASS
Power indicator
z(Power) switch
*
LOUDNESS
VOLUME
FLAT
-30dB
PURE DIRECT
PRESET RETURN
CONNECT
PUSH
- ENTER
SELECT
RETURN
CONNECT

8
2-2 Automatic adjustment of speaker settings (YPAO)
Use the included YPAO microphone and run YPAO.
YPAO is a function that detects speaker connections and the distance from the listening position, then
automatically adjusts the speaker settings, such as volume balance and tone.
1 Turn your subwoofers on and adjust the volume to its midpoint.
If the crossover frequency can be adjusted, set it to the maximum.
This step is not necessary if a subwoofer is not connected.
2 Put the included YPAO microphone in the listening position and connect it to the YPAO MIC jack on the
front panel.
The following message appears on the front display.
NOTE
Secure the YPAO microphone in place so it does not move. If a camera tripod is used for the microphone, its
screws can be used to secure the microphone.
VOLUME HIGH CUT
CROSSOVER/
MIN MAXMIN MAX
9
YPAO MIC
12
9
YPAO MIC jack
Listening position
Ear height
YPAO microphone

9
English

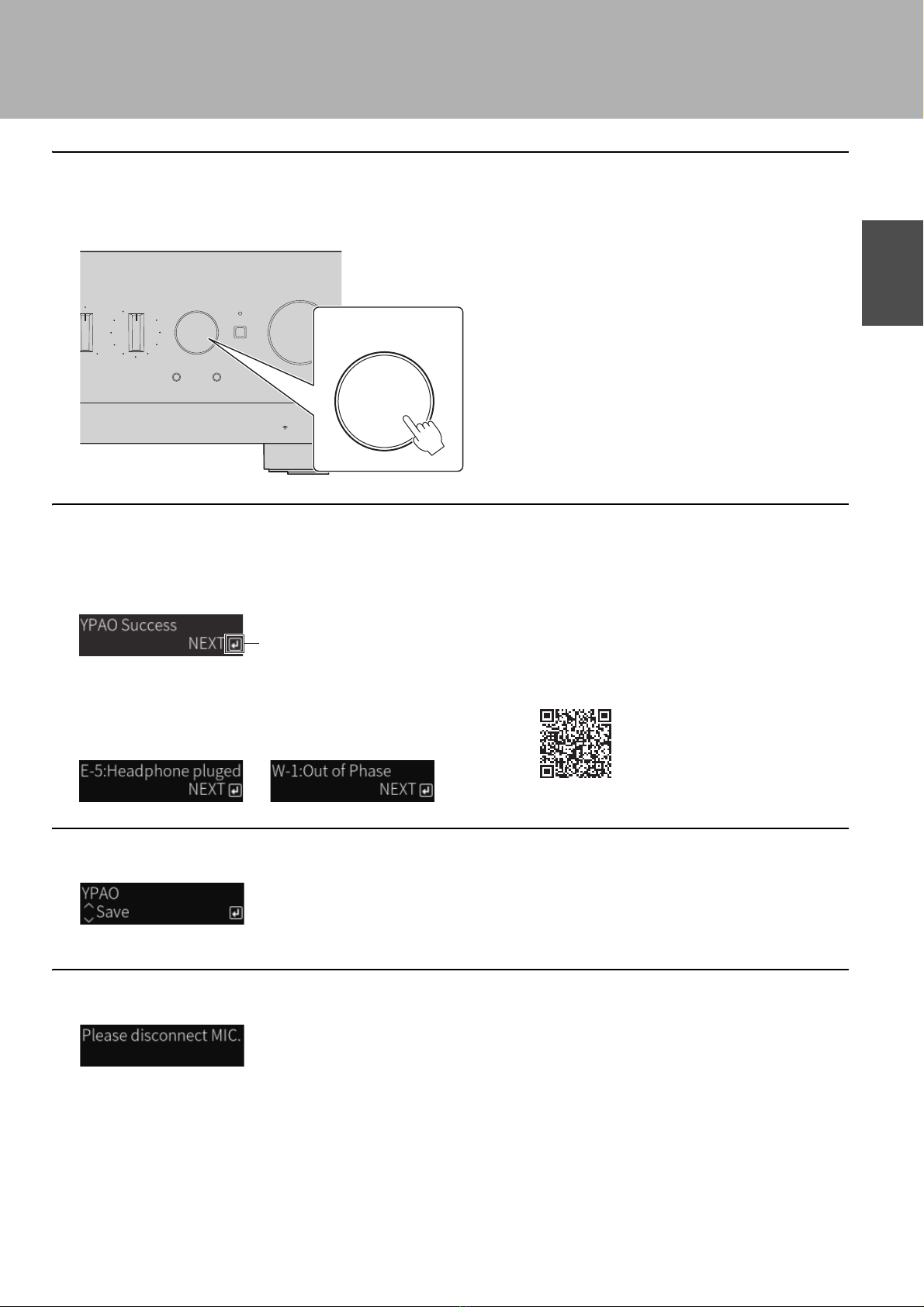

3 Press SELECT on the front panel to start the automatic adjustment of speaker settings with YPAO.
Adjustment starts automatically after about 10 seconds. It takes about 1 minutes.
Do not make any unnecessary noise until the adjustments are complete.
4 Check the results on the front display.
After all adjustments are complete, the results are shown on the front display. Follow the instructions that are
displayed, and use the SELECT buttons to complete adjustments.
If an error message or warning message appears on the
display, refer to the User Guide.
5 Save the YPAO results.
Check the following display, and press SELECT to save the adjustment results.
6 Remove the YPAO microphone from the YPAO MIC jack.
After checking the following display, disconnect the YPAO microphone.
This completes the YPAO settings.
A
LANCE LOUDNESS
VOLUME
FLAT
-30dB
PURE DIRECT
PRESET RETURN
CONNECT
PUSH
- ENTER
SELECT
R
PUSH - ENTER
SELECT
If there are no errors or warnings:
This prompts you to press SELECT to go to the next step.
https://manual.yamaha.com/av/22/rn800a/q1ypao.html
User Guide
"E-" means error. "W-" means warning.
To cancel or readjust (Retry), turn SELECT to choose the desired item.

10
2-3 Configuring network settings

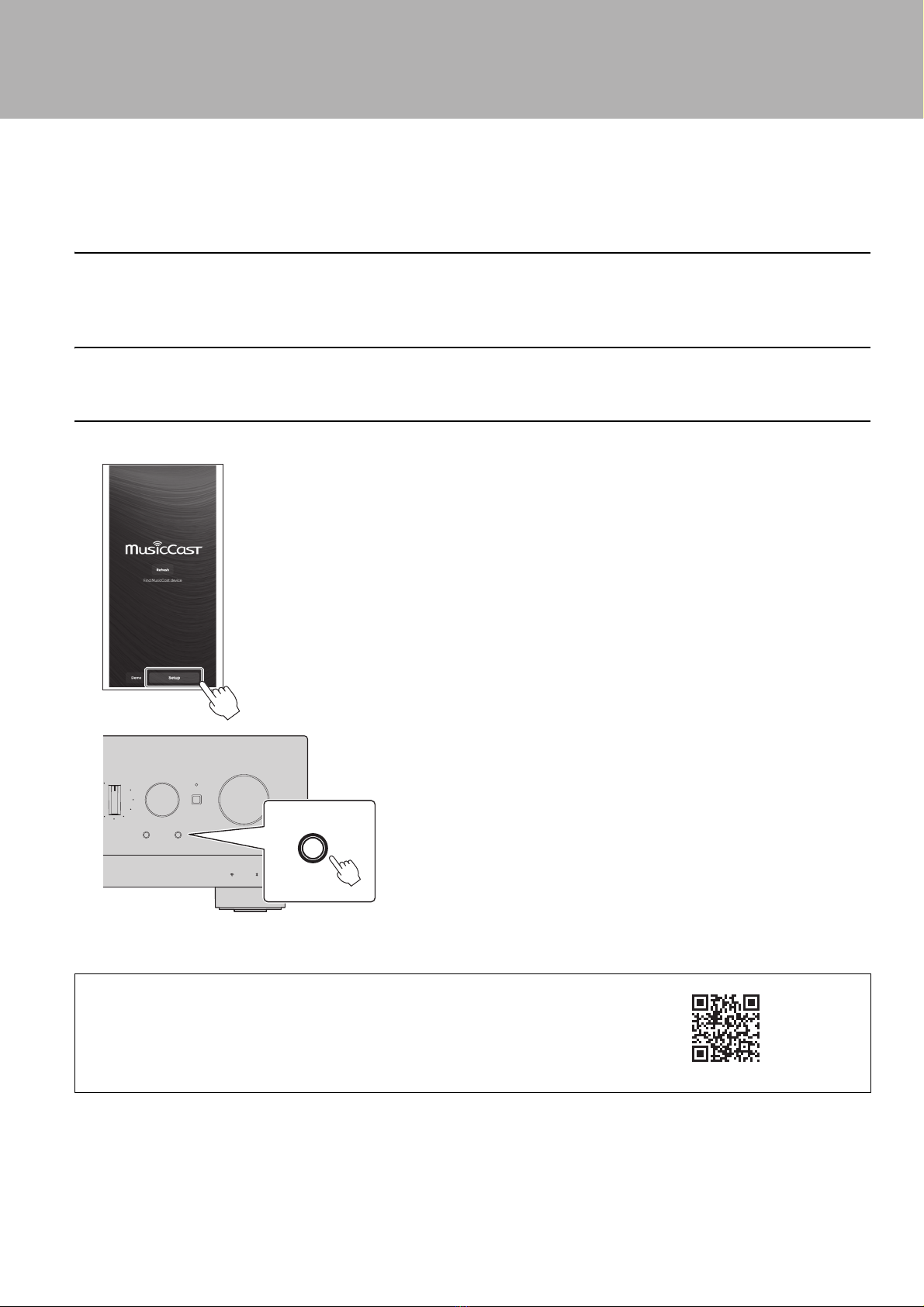

After installing the dedicated smart-device app, “MusicCast Controller”, connect the product wirelessly to your
network from the screen of the app.
1 Prepare your smart device.
Refer to the Wi-Fi settings of the smart device and confirm that it is connected to the network of your wireless
router.
2 Install “MusicCast Controller” on your smart device.
Search for “MusicCast Controller” on the App Store or Google Play to download the app.
3 Start the app and start configuring settings as directed by the app.
NOTE
• You can also connect to the network via a wired connection. See the User Guide for more information.
• If you want to cancel the configuration before it is complete, press RETURN on the front panel.
• If the connection fails, quit the app, and then try again from Step 3.
Important Notice about Information Security
For details, go to the URL at right.
LOUDNESS
VOLUME
FLAT
-30dB
PURE DIRECT
PRESET RETURN
CONNECT
PUSH
- ENTER
SELECT
RETURN
CONNECT
Following the app's guide, press
CONNECT for 5 seconds or longer.
https://manual.yamaha.com/av/policy/mcc
/
