Yamaha YAS-71CU User manual

IMPORTANT SAFETY INSTRUCTIONS
I
•Explanation of Graphical Symbols
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5
Do not use this apparatus near water.
6Clean only with dry cloth.
7
Do not block any ventilation openings. Install in accordance
with the
manufacturer's instructions.
8
Do not install near any heat sources such as radiators, heat
registers, stoves,
or other apparatus (including amplifiers) that
produce heat.
9
Do not defeat the safety purpose of the polarized or
grounding-type plug. Apolarized plug has
two blades with
one wider than the other. Agrounding type plug has two
blades and athird grounding prong. The wide blade or the
third prong are provided for
your safety. If the provided plug
does not fit into
your outlet, consult an electrician for
replacement
of the obsolete outlet.
10 Protect the power cable from being walked on or pinched
particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11
Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod, bracket,
I)
or table specified by the manufacturer, or sold
with the apparatus. When acart is used, use •
caution
when moving the cart/apparatus
combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused
for long periods
of time.
14 Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has
been damaged in any way,
such as power-supply cable or
plug is damaged, liquid has
been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain
or moisture, does not
operate normally, or has been dropped.
CAUTION
RISK OF ELECTRIC SHOCK DO
NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle. is intended to alert you to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert you to the presence of important
operating
and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer's attention to Article 820-40
of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system
of the building, as
close to the point
of cable entry as practical.
IMPORTANT
Please record the serial number of this unit in the space
below.
MODEL:
Serial No.:
The serial number
is located on the rear of the unit.
Retain this Owner's Manual in asafe place for future
reference.
IEn

IMPORTANTSAFETY INSTRUCTIONS
FCC INFORMATION (for US customers)
1IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!
This product, when installed as indicated in the
instructions contained
in this manual, meets FCC
requirements. Modifications not expressly approved
by
Yamaha may void your authority, granted by the FCC, to
use the product.
2IMPORTANT: When connecting this product to
accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product MUST
be used. Follow all installation instructions. Failure to
follow instructions could void your FCC authorization to
use this product
in the USA.
3NOTE: This product has been tested and found to comply
with the requirements listed
in FCC Regulations, Part IS
for Class "B" digital devices. Compliance with these
requirements provides areasonable level
of assurance that
your use
of this product in aresidential environment will
not result
in harmful interference with other electronic
devices.
This equipment generates/uses radio frequencies and, if
not installed and used according
to the instructions found
in the users manual, may cause interference harmful to the
operation
of other electronic devices.
Compliance with FCC regulations does not guarantee that
interference will not occur in all installations.
If this
product
is found to be the source of interference, which can
be determined by turning the unit "OFF" and "ON", please
try
to eliminate the problem by using one of the following
measures:
Relocate either this product
or the device that is being
affected
by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits
or install AC line filter/so
In the case of radio or TV interference, relocate/reorient
the antenna.
If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in
to coaxial type cable.
If these correcti ve measures do not produce satisfactory
results, please contact the local retailer authorized
to
distribute this type of product. If you can not locate the
appropriate retailer, please contact Yamaha Electronics
Corp., U.S.A. 6660 Orangethorpe Ave., Buena Park,
CA
90620.
The above statements apply ONLY to those products
distributed by Yamaha Corporation
of America or its
subsidiaries.
ii En

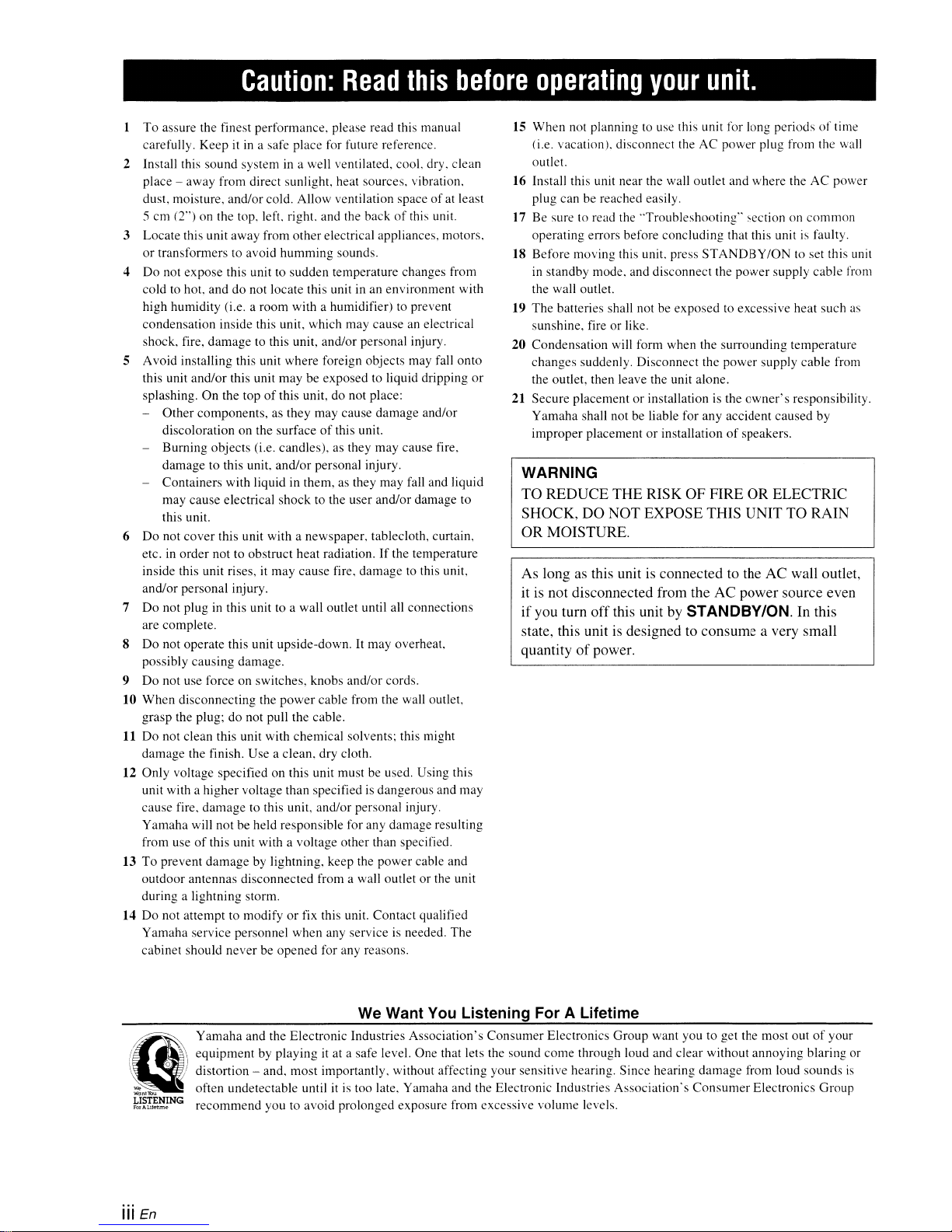

Caution: Read this before operating your unit.
To assure the finest performance, please read this manual
carefully. Keep it
in asafe place for future reference.
2Install this sound system
in awell ventilated, cool. dry. clean
place -away from direct sunlight, heat sources, vibration.
dust, moisture, and/or cold. Allow ventilation space
of at least
5cm
(2") on the top. left. right. and the back of this unit.
3Locate this unit away from other electrical appliances, motors.
or transformers to avoid humming sounds.
4Do not expose this unit to sudden temperature changes from
cold to hot,
and do not locate this unit in an environment with
high humidity (i.e. aroom with ahumidifier) to prevent
condensation inside this unit, which may cause an electrical
shock. fire.
damage to this unit, and/or personal injury.
5 Avoid installing this unit where foreign objects may fall
onto
this unit and/or this unit may be exposed to liquid dripping or
splashing. On the top of this unit, do not place:
-
Other components, as they may cause damage and/or
discoloration on the surface
of this unit.
-Burning objects (i.e. candles). as they may cause fire.
damage to this unit. and/or personal injury.
-Containers with liquid in them. as they may fall and liquid
may
cause electrical shock to the user and/or damage to
this unit.
6
Do not cover this unit with anewspaper. tablecloth, curtain,
etc. in order not to obstruct heat radiation.
If the temperature
inside this unit rises. it may cause fire.
damage to this unit,
and/or personal injury.
7
Do not plug in this unit to awall outlet until all connections
are complete.
8
Do not operate this unit upside-down. It may overheat.
possibly causing damage.
9
Do not use force on switches, knobs and/or cords.
10
When disconnecting the power cable from the wall outlet.
grasp the plug; do not pull the cable.
11
Do not clean this unit with chemical solvents; this might
damage the finish. Use aclean. dry cloth.
12 Only voltage specified on this unit must be used. Using this
unit with ahigher voltage than specified is dangerous and may
cause fire.
damage to this unit. and/or personal injury.
Yamaha will not be held responsible for any damage resulting
from use
of this unit with avoltage other than specified.
13
To prevent damage by lightning, keep the power cable and
outdoor antennas disconnected from awall outlet or the unit
during alightning storm.
14 Do not attempt to modify or fix this unit. Contact qualified
Yamaha service personnel
when any service is needed. The
cabinet should never be opened for any reasons.
15 When not planning to use Ihis unit for long periods of time
(i.e. vacation). disconnect the AC
power plug from the wall
outlet.
16 Install this unit near the wall outlet and where the AC power
plug can be reached easily.
17 Be sure to read the "Troubleshooting" section on common
operating errors before concluding that this unit is faulty.
18 Before moving this unit. press STANDBY/ON to set this unit
in standby mode. and disconnect the
power supply cable from
the wall outlet.
19 The batteries shall not be exposed to excessive heat such as
sunshine, fire or like.
20 Condensation will form when the surrounding temperature
changes suddenly. Disconnect the power supply cable from
the outlet. then leave the unit alone.
21 Secure placement or installation is the owner's responsibility.
Yamaha shall not be liable for any accident caused by
improper placement or installation of speakers.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
As long
as this unit is connected to the AC wall outlet,
it
is not disconnected from the AC power source even
if you tum off this unit
by STANDBY/ON. In this
state, this unit is designed
to consume avery small
quantity
of power.
IAJ
Y
WCIIlI'lbu
LISTENING
f'OI .... Li!@t\me
iii En
We Want You Listening For ALifetime
Yamaha and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your
equipment by playing it at asafe level. One that lets the sound come through loud and clear without annoying blaring or
distortion -and. most importantly. without affecting your sensitive hearing. Since hearing
damage from loud sounds is
often undetectable until it is too late. Yamaha and the Electronic Industries Association's Consumer Electronics Group
recommend you to avoid prolonged exposure from excessive volume levels.

CONTENTS
INTRODUCTION
GETTING ST ARTED 2
Supplied parts 2
Controls and functions 3
PREPARATION
PLACING THIS SySTEM 8
Placing the center system 8
CONNECTION 11
Connecting the center system and the subwoofer/system
control I!
Connecting external components 12
Connecting the Yamaha iPod universal dock.. 14
Connecting the Yamaha Bluetooth audio receiver 14
Connecting the indoor FM antenna 14
Connecting the power cable 15
BASIC OPERATION
BASIC PLAYBACK OPERATION 16
AIR SURROUND
XTREME 17
What is AIR SURROUND XTREME ? 17
Listening to surround mode of AIR SURROUND
XTREME 18
Shifting the optimum listening area
from side to side
19
Selecting the optimum listening area 20
Checking the virtual surround effect 20
Using extended stereo mode
21
Setting compressed music enhancer 21
OTHER FUNCTIONS
LISTENING TO FM BROADCASTS 22
Overview 22
Controls and functions for the FM tuning 22
Basic tuning operation 23
Using station preset feature 24
USING OPTIONAL EQUIPMENT 27
Using iPod™ 27
Using Bluetooth™ components 29
USEFUL OPERATION
ADJUSTING THE AUDIO DELAY 31
LISTENING AT LOW VOLUME (NIGHT
LISTENING MODE) 32
ADJUSTING
THE VOLUMEBALANCE DURING
PLAYBACK 32
CHANGING
THE BRIGHTNESS OF THE FRONT
PANEL DISPLAY33
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION 34
Troubleshooting 34
Glossary 37
Specifications 38
•Introduction
YAS-71 consists of acenter system (YAS-71 CD) and subwoofer/system control (YAS-71SPX). This product provides
excellent sound with simple operations, allowing you to enjoy various audio sources. We hope the "YAS-71" brings you
great listening pleasure and satisfaction.
•About this manual
•In this manual, operations that can be performed using either the front panel buttons or remote control are explained
using the remote control.
• :'ci{~ indicates atip for your operation. Notes contain important information about safety and operating instructions.
•This manual is printed prior to production. Design and specifications are subject to change in part as aresult
of
improvements, etc. In case of differences between the manual and the product, the product has priority.
1En

GETTING STARTED
Supplied parts
This product consists of the following items. Before making connections, make sure you received all of the following
items.
•Units
Center system (YAS-71CU)
•Accessories
Subwooferlsystem control
(YAS-71SPX)
System control cable
(4 m) Speaker cable (4 m)
(For US customers only) Speaker cable (4 m) (For Australian customers only)
Remote control
Indoor FM
antenna
Spacer x 2 Battery x 2
(AAA, R03, UM4)
Mounting template
~~
'"
S'
<:; I
'-'I(~~
I ~
~ I
2 En
Double-sided tape (2 pieces)
Non-skid pad (2 pieces)
Screw x 6
Cover Owner's manual

GETTING STARTED
Controls and functions
•Front panel of the center system
2
....... -- .....
,'
-
-
-[
__ 1°
STANDBY/ON INPUT -VOLUME+
-
Q 10
'-------,------'
3456
CD Front panel display
Shows infonnation about the operational status of the
system.
(1& P.4)
®Remote control sensor
Receives infrared signals from the remote control.
(1& P. 5, 7)
@Power indicator
Lights up when the system is turned on.
(1& P.16)
Q) STANDBY/ON
Turns on the system, or sets it to standby mode.
(1& P. 16)
Note
Asmall amount of electricity is consumed to receive the
infrared signal from the remote control even when the
system
is in standby mode.
®INPUT
Selects an input source you want to listen to.
(1& P. 16)
® VOLUME-/+
Controls the volume of the system. (1& P. 16)
3En

GETTING STARTED
•Front panel display of the center system
.- D6 iiiGITAL :
,
,
DOPLn '
::-.:.-,: .. ;I~I-'" -':I~; .. ;.:;." "I:'~'-" ,-.:.-, .. ~;.~."''' .-.:.~" ~I-';'-" .~;.~ .. :.-.:.- -.~;.: .. :.-.:,- .... : .... ::
:: ::::: ::::: H::: ::::: H::: iii:: iii:: iii:: ::::: iii:: ::::: iii:: ::::: ii::::
I •••••••• 111 I"" •••••••••••••••••••••••••••••••••••••••••• 111 •••••••••• 1
:1::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::: ::::::
,
,
:etts
,
,
,
,
:IPCM]
,--1
1
__ r_!_4
1
_
-I--
DOCK ENHANCER : MEMORY· ••.. ------::- - ... i·fEi 8~
NIGHT : ••• .'~U.T~ .T~~~D. ~T~~E.? ~ !MUTE Cf L1 !
------------------·---------······---------------1---------------------------..
7
CD Decoder indicators
The respective indicator lights up when any of the
decoders of the system is functioning.
®DOCK indicator
•Lights up when the system is receiving asignal
from an iPod stationed in the Yamaha iPod
universal dock (such as YDS-lO or YDS-ll, sold
separately) connected to the DOCK terminal of the
subwoofer/system control. (~ P. 27)
Lights up while the Yamaha Bluetooth audio
receiver (such as YBA-lO, sold separately) is
connected to the Bluetooth component. (~ P. 29)
•Flashes while the connected Yamaha Bluetooth
audio receiver (such as YBA-lO, sold separately)
and the B1uetooth component are pairing or while
the Yamaha Bluetooth audio receiver is searching
for the Bluetooth component. (~ P. 29)
@ENHANCER indicator
Lights up when compressed music enhancer mode is
selected. (1tF P.21)
@NIGHT indicator
Lights up when you select night listening mode.
(~ P.32)
®Tuner indicators (AUTOfTUNED/STEREOI
MEMORY)
AUTO indicator
Lights up when the system is in automatic tuning
mode. (~ P.23)
TUNED indicator
Lights up when the system is receiving astation.
(~ P.23)
STEREO indicator
Lights up when the system is receiving astrong signal
from an FM stereo broadcast in automatic tuning
mode. (~ P. 23)
MEMORY indicator
Flashes to show astation can be stored.
(1tF P. 24, 25)
®Multi information display
Shows the selected input source, current surround
mode and other information.
(j) MUTE indicatorNOLUME indicator
Flashes while the mute function is activated.
(1tF P. 16)
Indicates the current volume level.
4En

•Remote control
Infrared signal
transmitter
GETTING STARTED
CD Input buttons
Select an input source you want
to listen to.
(1& P. 16)
®STEREO
•Turns extended stereo mode on and offalternately.
(1& P.21)
•Turns off surround mode. (1& P. 18)
@Cursors ( .... 1 ~ I .A./"')/ENTER
Position: Change the setting. (1& P. 19)
Audio delay: Change the setting. (1& P.31)
iPod: Move the cursor. (1& P. 27)
FM: Move apreset group and number forward or
backward.
(1& P. 22)
@PRESETITUNE, AUTO/MAN'L, MEMORY
Control
an FM tuner. (1& P. 22)
®0I DO II> II<J<J II>t>I
Control an iPod or aBluetooth component.
(1& P. 27, 29)
®BLUETOOTH ON/BLUETOOTH OFF
Connects or disconnects aBluetooth component.
(1& P.30)
(j) STANDBY/ON
Turns on the system, or sets it to standby mode.
(1& P. 16)
®MOVIEIMUSIC/SPORTS/GAME
Select surround mode.
(1& P. 18)
®VOLUME (+I-)/MUTE
Control the volume
of the system. (1& P. 16)
®SW (+I-)/CENTER (+I-)/SUR. (+1-)
Adjust the volume balance. (1& P. 32)
®DOCK MODE
Switches operation mode
of the iPod. (1& P. 27)
5En

GETTING STARTED
STANDBY/ON
o
SURROUND V
OOOlO~
INPUT1 INPUT2 INPUT3
00GC3
INPUT4 FM OOCK VOWME]
88G@
nO~O
A'E + A'E
G~~m
r---lif--{16
6En
@POSITION
Shifts the optimum listening area according to your
listening position.
(~ P. 19)
@TEST
Outputs the test tone. (c::-..r P. 20)
@ENHANCER
Turns on and off compressed music enhancer mode
alternately.
(1& P.21)
@NIGHT
Turns night listening mode on or off. (~ P. 32)
@AREA
Selects the optimum listening area. (~ P. 20)
@AUDIO DELAY
Delays the output sound to synchronize it with the
video image.
(1& P.31)
@DISP. MODE
Changes the brightness of the front panel display.
(~ P.33)

GETTING STARTED
•Using the remote control
~
~
-I
.1
I:
Within 6m
(20')
Use the remote control within 6 m (20') of the center system and point it toward the remote control sensor.
Notes
•Be careful not to spill liquid on the remote control.
•Be careful not
to drop the remote control.
•Do not leave the remote control
in aplace that is:
-hot or humid, such as near aheater
or in abathroom
-extremely cold
-dusty
•Installing the batteries
1Take off the battery compartment cover.
2Insert the 2supplied batteries (AAA, R03, UM4), observing
the polarity markings
(+ and -) on the inside of the battery
compartment.
3Snap the battery compartment cover back into place.
Notes
• If the effective operation distance of the remote control decreases considerably, replace the batteries with two new ones as soon as
possible.
•Do not use
an old battery together with new one.
•Do not use different types
of batteries (for example, alkaline and manganese) together. Their performance will vary, even if they are
similar in shape.
•
If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.
•Dispose
of batteries according to regional regulations.
•If abattery starts leaking, dispose
of it immediately. Be careful not to let leaking battery acid come into contact with your skin or
clothing. Before inserting new batteries, wipe the compartment clean.
7En

PLACING THIS SYSTEM
To enjoy quality sound thoroughly, you need to place this system in the appropriate positions, and install the components
correctly. After deciding the layout, follow the procedure below to install this system.
SUbwooferlsystem control
Center system (YAS-71SPX)
(YAS·71CU) f
\Q 'Center system (YAS-71 CU)
Place the center system beneath aTV or under the TV so that the
center system and your TV align vertically. Make sure that the
center system
is placed in parallel with the wall.
Main roles: Produces front channel (stereo) sounds. Also
produces virtual centerchannel sounds (dialogue. etc.) and virtual
surround channel sounds effectively using the Yamaha front
surround system.
Subwooferlsystem control (YAS-71 SPX)
Place the subwoofer near the center system and turn it slightly
toward the center
of the room to reduce wall reflections.
Main roles: Produces low frequency (LFE) sounds.
Notes
•This system is shielded against magnetic fields. However, if the picture on your TV screen becomes blurred or distorted, we
recommend moving the system away from your TV.
•
Low frequency sound produced by the subwoofer/system control may be heard differently depending on the listening position and
subwoofer location. To enjoy desired sounds, try changing the location
of the subwoofer.
•Depending on your installation environment, connections to external components can be done before installing this system.
We
recommend that you temporarily place and arrange all components in order to decide which procedure is best done first.
Placing the center system
You can place the center system on arack or attach it to awall. Select an installation method that suits your environment.
Side. B
~Double
~ sided tape
t
~ Non-skid pad
Attach the supplied double-sided tapes on
the spacers and non-skid pads
on the rear of
the spacers.
Side. A
Double-
~ sided rape
t
~ Non-skid pad
....•....
/
/
Example 1:
Beneath your TV
•Placing the center system beneath/under aTV
1
,/
Example 2:Under your TV 2Attach the spacers to the bottom.
'"
~'il~
If there is any obstacle (TV stand, etc.) under the center system,
use the supplied spacers as follows. o
Notes
•Do not cover the remote control sensor of your TV. etc .. by the center system.
•
The spacers may scratch or damage the surface of your rack or floor. Be careful when placing or moving the center system.
•For your safety. take measures in advance to prevent the center system from falling.
SEn

PLACING THIS SYSTEM
•Attaching the center system to awall
Installing the center system using the keyholes
You can attach the center system to awall using commercially available screws (#8, Diameter: 7.5 mm or more
(5116" or more».
When installing the center system on awall, all installation work must be performed by aqualified
contractor or dealer. The customer must never attempt to perform this installation work. Improper or
inadequate installation could cause the center system to fall, resulting
in personal injury.
1Attach the supplied mounting template on a
wall and mark the holes of the mounting
template.
Installing the cables above the center system
To pass the cables upward, you need to attach the
spacers to make room on the back
of the center system.
In step 2 of the left column;
2·a: Attach the supplied spacers to the rear panel of the
center system using the supplied double-sided
tapes. You can choose either the side Aor the side
B.
Remove the mounting template and then
install the commercially available screws at
the marks.
2
Diameter:
7.5 mm or more
(#8,5/16" or more)
4to 6 mm (3/i6" to 1/4")
A: For narrow space
00 Double-sided
lIJJJ tape
+
Attach
B: For wide space
ru
Double-sided
tape
+
Attach
2·b: Remove the mounting template and then install
the commercially available screws at the marks.
~11!l1""""C>
34 to 36 mm
(1-5/16" to 1-7116")
~
22 to 24 mm
(7/8" to 15/16")
,0,
~<il~
To install the cables above the center system, refer to the right
column.
3Hang the center system on the screws using
the keyholes on the back of the center
system.
9En

PLACING THIS SYSTEM
Installing the center system using the screw holes
You can also use the inner or outer screw holes on the rear of the center system for installing the center system using a
commercially available bracket or rack.
YAS-71CU
L- Screw hole
---- Bracket or rack. etc.,
Screw
(M6)
Screw holes
Hole depth:
15 mm (9/16")
Diameter: 6mm (1/4")
Inner pitch: 290 mm (11-7/16")
Outer pitch: 550 mm (21-5/S")
77 mm (3") 1- 550 mm (21-5/S") -I
1--1--1-( ~~-~~~;') -I
~~~
52.5 mm (2-1/16") \\
'------ ......
Notes
•The center system weighs about 5kg (11 Ibs.). Attach the center system to abracket, rack or wall. Do not attach the center system to a
wall that
is made of weak materials such as plaster or veneered woods. Doing so may cause the center system to fall.
•Use commercially available screws that can support the weight
of the installation.
•Make sure you use specified screws to attach the center system. Using clamps other than specified screws, such as short screws, nails.
or two-sided tape, may cause the center system to fall.
•
When connecting the center system, fix the speaker cables in place where they will not become loose. If your foot or hand accidentally
gets caught on aloose speaker cable, the center system may fall.
•After attaching the center system, check that the center system
is fixed securely. Yamaha will bear no responsibility for any accidents
caused by improper installations.
10 En

CONNECTION
•Do not connect the power cable until all connections are completed.
•Do not use excessive force when inserting the cable plug. Doing so may damage the cable plug and/or
terminal.
Connecting the center system and the subwoofer/system control
Connect the cable plug
to the speakerjack of
the same color.
Speaker cable (supplied)
Connect the
cable plug to
the speaker
jack of the
same color.
Follow the procedure below to connect the center system and the subwoofer/system control.
Connecting speaker cables
,',
~<i>~
It is possible to route the supplied speaker cable behind awall. (For US customers only)
Connecting system control cable
,..-s_y_s_t_em_c_o_n_tr_o_1 _ca_b_le_( s_U_P_p_li_ed_)_-:-:II-iI...-:-I_1 E] 1
l1J
Tighten the screws.
Tighten the screws.
It is possible to route the supplied system control cable behind awall. (For US customers only)
11 En

CONNECTION
Connecting external components
The subwoofer/system control has 3digital input jacks (optical digital x2, coaxial digital xI) and Ianalog input jack.
Before connecting your external components, check the output
jacks of the components and be sure to use correct
connection cables.
•Digital connection
Notes
•The digital jacks of this system support peM, Dolby Digital. and DTS bitstream.
•The digital
jacks support digital signals of 96 kHz sampling frequency or less.
[INPUT 1, 2] OPTICAL jack
Example 1: DVD player
TV
DVD player
/1'\
[!J
[--
...A~~
~-,
~~ ..
~~
, ~.;.
'======
em
::: -
Example 2: TV game console
Game console
12 En
TV
.
.1---
~
I'
/
"-
[!J
I
[-
e.
mJ~
,@I, ..
.,...Jf=
~".
~"
. ~;.
'======
[JJJ
;;: """"
, OIG1:::';~~PUT 'Optical digital cabl
-c::;~~

CD player
[INPUT 3] COAXIAL jack
L!J
f
;~
r--------, , ml~
t=
J
COAXIAL c.oaXial digital cab. Ie
10lGiTAl OUTPUT, __ ~-l--l.....-'~-
_____ (}--~ ~ JlW
-=--- ...... == ~
DIJ
•Analog connection
[INPUT 4] ANALOG jacks
Example1 :TV
/
[!J
r
;~
, [@~
----_._---------_._------- ' ~-
C .• -------- I ~ l()~~. _~....;.......;I ....... g~
TV ,o..l~ IIII ~
I AUOIO OUTPUT 1 III I [I}
Example 2: VCR or video camera
VCR or video camera, etc., with no digital output.
/
lh ~,EJ
VCR,etc.
AUDIO OUTPUT
'D
Video camera
CONNECTION
13 En

Yamaha iPod universal dock
(such as YDS-I0or
YDS-ll. sold separately)
CONNECTION
Connecting the Yamaha iPod universal dock
The system is equipped with the DOCK terminal, which allows you to connect the Yamaha iPod universal dock (such as
YDS-lO or YDS-II, sold separately) where you can dock your iPod. Connect the Yamaha iPod universal dock to the
DOCK terminal
of the subwoofer/system control using its dedicated cable. Refer to "Using iPodTw'on page 27 for
details.
[I]
.--
· 1l!J-
· 1l!J-
· 0-
e·
·(1);'
1-~@~YAUM~AHiUAl""-1--------c:m3 --~~ ..... ~+
III I
Connecting the Yamaha Bluetooth audio receiver
You can also connect the Yamaha Bluetooth audio receiver (such as YBA-lO, sold separately) to the DOCK terminal.
Connect the Yamaha Bluetooth audio receiver to the DOCK terminal
of the subwoofer/system control using its dedicated
cable. Refer to "Using
Bluetooth™ Components" on page 29 for details.
Yamaha Bluetooth audio receiver
(such as YBA-IO. sold separately) [I]
.=
1l!J-
1l!J-
· $-
e·
~
II
II
~m+
Connecting the indoor FM antenna
To enjoy FM radio broadcasts, connect the supplied indoor FM antenna.
/
~
Indoor FM antenna
(supplied)
[ C0~~-----+;'+-~
---
14 En
If the radio wave reception is weak in your area or you want to
improve the radio wave reception. we recommend that you use an
outdoor antenna. For details, consult your nearest authorized
Yamaha dealer or Service Center.

Connecting the power cable
After you have made all connections, connect the power cable of the subwoofer/system control.
CONNECTION
,',
~tiI~
You can attach the cover after you have made all connections or detach according to your preference.
Attach the cover to the rear panel
of the subwoofer/system control using the 6supplied screws as shown.
!f-+
To AC wall outlet
15 En

BASIC PLAYBACK OPERATION
Once you have finished all cable connections (~if' P. I I to IS) and remote control preparation (~ P. 7), follow the
procedure below to start basic playback operation.
Using various sound features
•To enjoy highly realistic sounds with surround mode
~ P.18
•To shift the optimum listening area from side to side
1& P.19
•To select the optimum listening area 1& P. 20
•To experience wider stereo sound when surround
mode is not activated 1& P.2l
•To play back compressed audio signals with high-
quality sound 1& P.21
•To delay the sound output in order to synchronize it
with the video image 1& P. 31
•To enjoy various input sources at lower volume
1& P.32
Now, try various features of this system!
1Press STANDBY/ON.
This system is turned on and the power indicator
lights up. To set the system to standby mode, press
STANDBY/ON again.
'"
~<i\~
To turn off the volume temporarily, press MUTE. While the
mute function
is activated, the MUTE indicator flashes. To
resume the volume. press MUTE again.
This system has the auto-sleep function. which will
automatically switch the system to standby mode
if the
system is left turned
on for 24 hours without any operation
being performed.
2Press one of the input buttons to select an
input source.
For example, if aDVD player is connected to the
INPUT 1jack of the subwoofer/system control, press
INPUT 1to select the DVD player.
Enjoying FM broadcastsl
optional equipment
•To listen to FM broadcasts
•To control iPod playback
•To play back aBluetooth component
1& P.22
1& P.27
1& P.29
,',
~<i\~
You can also switch the input source by pressing INPUT on
the
center system repeatedly. The input source changes as
follows:
3Start playback on the selected external
component.
For information on the external component, refer to
the manual for the product.
4Press VOLUME +/- to adjust the volume
level.
16 En
