Yamaha TX-396L User manual

TX-396L
SERVICE MANUAL
AM/FM STEREO TUNER
TX-396L
The data provided is believed to be accurate and applicable to the unit(s)
indicated on the cover. The research, engineering, and service departments
of YAMAHA are continually striving to improve YAMAHA products.
Modifications are, therefore, inevitable and specifications are subject to
change without notice or obligation to retrofit. Should any discrepancy
appear to exist, please contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components.
Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in
the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part
replacement. Recheck all work before you apply power
to the unit.
100700
■CONTENTS
TO SERVICE PERSONNEL .......................................... 1
SPECIFICATIONS .......................................................... 1
INTERNAL VIEW ........................................................... 2
REAR PANELS .............................................................. 2
DISASSEMBLY PROCEDURES ................................... 2
ADJUSTMENTS ......................................................... 3~7
µCOM DATA .................................................................. 8
DISPLAY DATA ............................................................. 9
BLOCK DIAGRAM ................................................. 10~11
PRINTED CIRCUIT BOARD .................................. 12~13
SCHEMATIC DIAGRAM ........................................ 14~15
PARTS LIST ........................................................... 16~21
This manual has been provided for the use of authorized YAMAHA
Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry,
and more specifically YAMAHA Products, are already known and
understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety
procedures when servicing this product may result in
personal injury, destruction of expensive components,
and failure of the product to perform as specified. For
these reasons, we advise all YAMAHA product owners
that any service required should be performed by an
authorized YAMAHA Retailer or the appointed service
representative.
IMPORTANT: The presentation or sale of this manual to any individual
or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or
establish a principle-agent relationship of any form.
IMPORTANT NOTICE
TX-396L
P.O.Box 1, Hamamatsu, Japan

TX-396L
263.5 11.33.27016
27886
435
WALL
OUTLET
EQUIPMENT
UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
1
■TO SERVICE PERSONNEL
Critical Components Information.
Components having special characteristics are marked
and must be replaced with parts having specifications
equal to those originally installed.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic
(where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency
(and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
■SPECIFICATIONS
■FM SECTION
Tuning Range 87.50 to 108.00 MHz
50dB Quieting Sensitivity (IHF)
Mono 1.55 µV(15.1 dBf)
Stereo (1 kHz 100% MOD) 21 µV(37.7 dBf)
Usable Sensitivity (DIN)
Mono (S/N 26 dB) 0.9 µV
Stereo (S/N 46 dB) 24 µV
Alternate Channel Selectivity
Selectivity (two signals) 40 kHz Dev. ±300 kHz 70 dB
Signal to Noise Ratio (DIN-Weighted 40 kHz)
Mono 75 dB
Stereo 70 dB
Harmonic Distortion 1 kHz
Mono 0.1 %
Stereo 0.2 %
Stereo Separetion 1kHz (40 kHz Dev.) 50 dB
Frequency Response
20 Hz to 15 kHz 0±0.5 dB
■MW SECTION
Tuning Range 531 to 1611 kHz
Usable Sensitivity 200 µV/m
Signal to Noise Ratio 50 dB
Harmonic Distortion 1 kHz 0.3 %
■LW SECTION
Tuning Range 153 to 288 kHz
Usable Sensitivity 400 µV/m
Signal to Noise Ratio 50 dB
Harmonic Distortion 1 kHz 0.3 %
■AUDIO SECTION
Output Level/Impedance (Fixed)
FM 100 % MOD 1 kHz 500 mV/2.2 kΩ
MW/LW 30 % MOD 1 kHz 200 mV/2.2 kΩ
■GENERAL
Power Supply AC230V, 50Hz
Power Consumption 7 W
Dimensions (W x H x D) 435 x 86 x 278mm
Weight 3.2 kg
* Specifications subject to change without notice.
• DIMENSIONS
• MODEL COLOR
Black and Gold

TX-396L
2
34 5 6
1
2
■INTERNAL VIEW
■REAR PANEL
1Tuner P. C. B (1)
2Front-end pack
3Operation P. C. B. (2)
4Tuner P. C. B. (2)
5Operation P. C. B. (1)
6Operation P. C. B. (3)
■DISASSEMBLY PROCEDURES
(Remove parts in the order as numbered.)
1. Removal of Top Cover
Remove 4 screws (1) and 2 screws (2) in Fig. 1.
2. Removal of Front Panel
a. Disconnect the connectors (CB3 anf CB4) in Fig. 1.
b. Remove 2 plastic rivets (3) in Fig. 1.
c. Remove 5 screws (4) in Fig. 1.
d. Unhook at 2 place (5) in Fig. 1.

TX-396L
FM
SG
Oscilloscope
ACVM
DIST. M
FM
ANT L
R
OUT
PUT
GND
FM
dummy
antenna
Tuner
P. C. B.
FM
SG
Oscilloscope
ACVM
DIST. M
FM
ANT L
R
YLF-15
(LPF)
OUT
PUT
GND
FM
dummy
antenna
Tuner
P. C. B.
SSG
FM
SG
Oscilloscope
ACVM
DIST. M
FM
ANT L
R
OUT
PUT
GND
FM
dummy
antenna
Tuner
P. C. B.
oscillator
FM
SG DCVM
FM
ANT
TP1
TP2
R51
GND
FM
dummy
antenna
Tuner
P. C. B.
oscillator
3
■ADJUSTMENTS
1. Before Adjustment
(1)With the power turned on, wait for 5 minutes before
starting adjustment so that operation becomes stable.
(2)Adjust the OSC coil and IFT with insulated screwdriver.
(3)Set the TUNING MODE to AUTO.
(4)Decibel abbreviations
dBµ: Decibels above or below 1µV
Example :
0dBµ= 1 µv, 60dBµ= 1 mV
X dBµ= (X + 11.2) dBf
When substituting 60 for X,
60 dBµ= 72.2 dBf
2. Measuring instrument abbreviations
FM SG : FM signal generator
SSG : Stereo signal generator
AM SG : AM signal generator
DIST. M : Distortion meter
FC : Frequency counter
ACVM : AC voltage meter
DCVM : DC voltage meter
<POWER SUPPLY CHECK>
Check that the voltage obtained across each test point
and ground on the tuner circuit is as follows.
Test points Rating or Standard
+5 V terminal +5.6 ±0.5 V
-VP terminal -23.0 ±1.0 V
CAUTION :
Before setting to the TEST mode, write down the user
preset memory content in the table as shown below. (This
is because setting to the TEST mode will cause the
memory content to be the factory preset memory content,
i.e. all the user preset memory content will be erased.)
<User preset memory content>
Preset keys P1 P2 P3 P4 P5 P6 P7 P8
A
B
C
D
E
<TEST mode>
• Turn on the POWER switch while pressing the A/B/C/D/
E and FM/AM(FM/MW/LW) keys simultaneously, and
the unit enters the TEST mode for the display check.
After this, repeat (1) to (4).
(1)All the segments on the display light up.
(2)The model name, TX-396L is displayed.
(3)The place of destination is displayed.
(4)The µCOM-version is displayed.
Pressing the P1 key will cause operation to start from (1).
Pressing any other key will cause the mode to return to the
NORMAL mode.
<Factory preset memory content>
Preset P1 P2 P3 P4 P5 P6 P7 P8
A, E 87.50 90.10 95.10 98.10 108.00 88.10 106.10 108.00
B, D 630 1080 1440 531 1611 900 1350 1404
C 153 171 225 270 288 180 207 252

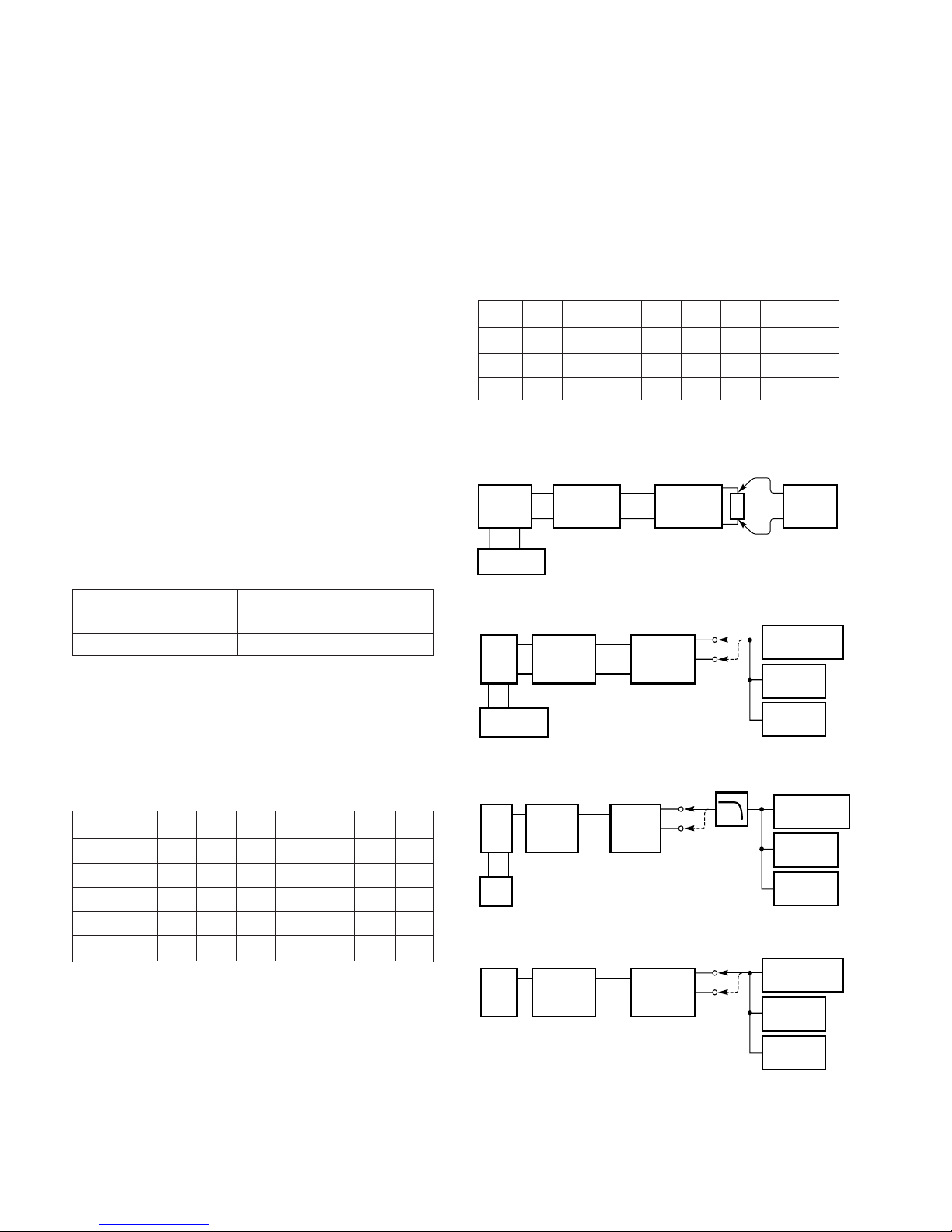

<Connection Diagram (Measuring Instruments)>
1) Discriminator balance adjustment
2) Monaural distortion adjustment
3) Stereo distortion adjustment
4) Sensitivity verification

TX-396L
LINEOUT AMANT GND FMANT
LR
L13 L12 VR4
VR3
R51
J6
J7
VR2
VR1
L10
L5
L8
PK2
PK1
J73
TP2
TP1
TP3
DISCRIMINATOR
BALANCE
MONAURAL
DISTORTION
FRONTEN
D
IFT
STEREO
DISTORTION
AMSENSITIVITY
SEPARATION
SIGNAL
METER
●TEST POINTS
4
<FM TUNER SECTION>
Adjustment item
Rough adjustment of
discriminator balance.
Rough adjustment of
monaural distortion.
Fine adjustment of
discriminator balance.
Fine adjustment of
monaural distortion.
Verification of
discriminator balance.
Adjustment of frontend
IFT.
Adjustment of stereo
distortion.
Step
1
2
3
4
5
6
7
Signal (ANT IN)
FM SG:
98.1 MHz 70 dBµ
Modulation : 100 %
Monaural : 1 kHz
Same as Step 1.
Same as Step 1.
Same as Step 1.
Same as Step 1.
FM SG:
98.1 MHz 30 dBµ
Modulation : 100 %
Monaural : 1 kHz
FM SG:
98.1 MHz 70 dBµ
Modulation : 100 %
Stereo L or R : 1 kHz
Adjusted
point
L8
(right side)
L8
(left side)
L8
(right side)
L8
(left side)
Frontend
IFT
VR1, VR2
Reception
frequency
Preset
A-4: 98.1 MHz
Same as Step 1.
Same as Step 1.
Same as Step 1.
Same as Step 1.
Same as Step 1.
Same as Step 1.
Rating
DC 0 V ±100mV
at tuning point.
Minimize distortion.
DC 0 V ±50mV
Minimize distortion.
(to less than 0.7%)
DC 0 V ±50mV
Adjust so that the
DC voltage is
maximum.
CAUTION:
If IFT core is turned
excessively, the
sensitivity reduces.
(Maximum ±90°)
Minimize distortion.
Tuning mode is
AUTO.
Test point
TP1, TP2
(both end
of R51)
OUTPUT
TP1, TP2
OUTPUT
TP1, TP2
TP3, GND
OUTPUT

TX-396L
5
Adjustment item
Verification of monaural
distortion.
Verification of stereo
distortion.
Verification of
sensitivity.
Adjustment of
separation.
Adjustment of the signal
meter.
Verification of the signal
meter to turn off.
Verification of AUTO
TUNING.
Step
8
9
10
11
12
13
14
Signal (ANT IN)
FM SG:
98.1 MHz 70 dBµ
Modulation : 100 %
Monaural : 1 kHz
FM SG:
98.1 MHz 70 dBµ
Modulation : 100 %
Stereo L or R : 1 kHz
FM SG:
88.1/98.1/106.1 MHz
Modulation : 100 %
Monaural : 1 kHz
FM SG:
98.1 MHz 70 dBµ
Modulation : 100 %
Stereo L or R : 1 kHz
FM SG:
98.1 MHz 45 dBµ
Modulation : 30 %
Monaural : 1 kHz
ANT input minimum.
FM SG:
98.1 MHz 23 dBµ
Modulation : 30 %
Stereo L or R : 1 kHz
Adjusted
point
VR4
VR3
Tuning
buttons
Reception
frequency
Same as Step 1.
Same as Step 1.
A-6: 88.1 MHz
A-4: 98.1 MHz
A-7: 106.1 MHz
Preset
A-4: 98.1 MHz
Preset
A-4: 98.1 MHz
Preset
A-4: 98.1 MHz
Rating
Minimize distortion.
(to less than 0.7%)
Minimize distortion.
(to less than 1.4%)
Tuning mode is
AUTO.
S/N should be 30 dB
at each frequency of
88.1 MHz, 98.1 MHz
and 106.1 MHz.
Make sure that the
voltage at the ANT
terminal is 7 dBµor
less.
To more than 35 dB.
Tuning mode is
AUTO.
Adjust so that the
signal meter is
maximum at rating
level.
Make sure that the
signal meter is
turned off.
Automatic reception
should be available
when the tuning UP
or DOWN key is
pressed.
Stereo indicator is
turned on.
Audio muting should
be applied during
tuning.
Test point
OUTPUT
OUTPUT
OUTPUT
Signal
meter

TX-396L
6
AM
SG
AM ANT
GND
AM dummy antenna
AM loop antenna

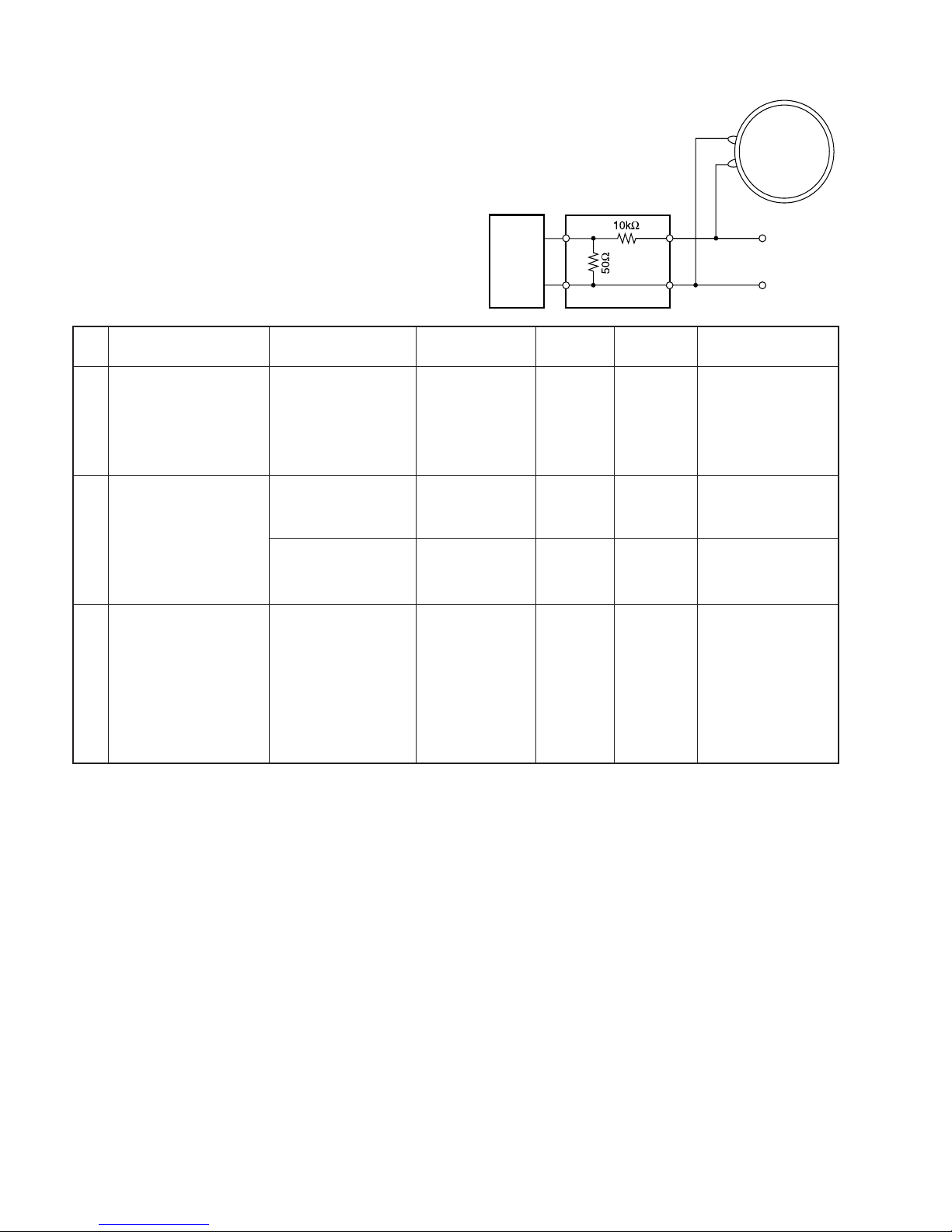

<MW TUNER SECTION>
•To be adjusted after FM section adjustment.
•Use the specified dummy anetenna for loop antenna.
Adjustment item
Adjustment of
sensitivity.
Verification of
sensitivity.
Verification of the signal
meter.
Verification of auto
tuning.
Step
1
2
3
4
Signal (ANT IN)
AM SG:
630 kHz 50 dBµ,
1 kHz,
30% modulation
AM SG:
630 kHz/1080 kHz/
1440 kHz 50 dBµ,
1 kHz,
30% modulation
AM SG:
1080 kHz 90 dBµ,
ANT input 90 dBµ
ANT input -10 dBµor
less
AM SG:
1080 kHz 60 dBµ,
1 kHz,
30% modulation
Adjusted
point
L5
Tuning
button
Reception
frequency
Preset
B-1: 630 kHz
Preset
B-1: 630 kHz
B-2: 1080 kHz
B-3: 1440 kHz
Preset
B-2: 1080 kHz
Preset
B-2: 1080 kHz
Rating
Maximize detected
signal output.
To be less than 54
dBµ.
Make sure that the
signal meter is
turned on.
Make sure that the
signal meter is
turned off.
Automatic reception
should be available
when the tuning UP
or DOWN key is
pressed.
Audio muting should
be applied during
tuning.
Test point
OUTPUT

TX-396L
AM
SG
AM ANT
GND
AM dummy antenna
AM loop antenna
7
Adjustment item
Verification of
sensitivity.
Verification of the signal
meter.
Verification of auto
tuning.
Step
1
2
3
Signal (ANT IN)
AM SG:
171 kHz/225 kHz/270
kHz 90 dBµ,
1 kHz,
30% modulation
AM SG:
225 kHz 90 dBµ,
ANT input 90 dBµ
ANT input -10 dBµor
less
AM SG:
225 kHz 60 dBµ,
1 kHz,
30% modulation
Adjusted
point
Tuning
button
Reception
frequency
Preset
C-2: 171 kHz
C-3: 225 kHz
C-4: 270 kHz
Preset
B-2: 225 kHz
Preset
B-2: 225 kHz
Rating
To be less than 66
dBµ.
Make sure that the
signal meter is
turned on.
Make sure that the
signal meter is
turned off.
Automatic reception
should be available
when the tuning UP
or DOWN key is
pressed.
Audio muting should
be applied during
tuning.
Test point
OUTPUT
<LW TUNER SECTION>
•To be adjusted after MW section adjustment.
•Use the specified dummy anetenna for loop antenna.

TX-396L
■µ-COM DATA
IC501 : LC866420A
8 bit µ-COM
8
No. Port I/O Name Function
1 P17/PWM0 O /MMUTE Main mute
2 P30 I ROT1 Rotary encoder input
3 P31 I ROT0 This input available for ROTSW=H
4 P32 I MODEL Model 0
5 P33 I ROTSW Rotary encoder yes(H) or no(L)
6 P70/INT0 I — —
7 /RES I /RESET Reset
8 /P74/XT1 I — —
9 P75/XT2 I — —
10 VSS1 I GND GND
11 CF1 CF 6MHz
12 CF2 CF 6MHz
13 VDD1 I VDD +5V
14 P80/AN0 ADI KEYIN1 AD key input
15 P81/AN1 ADI KEYIN2 AD key input
16 P82/AN3 ADI KEYIN3 AD key input
17 P83/AN3 ADI METER Signal level input
18 P84/AN4 I — —
19 P85/AN5 I — —
20 P86/AN6 I — —
21 P87/AN7 ADI VER Version input
22 P71/INT1 I — —
23 P72/INT2 I /POWERDOWN Power down detect
24 P73/INT3 I REM REM input
25 S0/T0 O 13G FL segment
26 S1/T1 O 12G FL segment
27 S2/T2 O 11G FL segment
28 S3/T3 O 10G FL segment
29 S4/T4 O 9G FL segment
30 S5/T5 O 8G FL segment
31 S6/T6 O 7G FL segment
32 S7/T7 O 6G FL segment
33 S8/T8 O 5G FL segment
34 S9/T9 O 4G FL segment
35 S10/T10 O 3G FL segment
36 S11/T11 O 2G FL segment
37 S12/T12 O 1G FL segment
38 S13/T13 — —
39 S14/T14 — —
40 S15/T15 — —
No. Port I/O Name Function
41 VDD2 I VDD +5V
42 VP I VDDVPP –24V
43 S16/PC0 O P1 FL segment
44 S17/PC1 O P2 FL segment
45 S18/PC2 O P3 FL segment
46 S19/PC3 O P4 FL segment
47 S20/PC4 O P5 FL segment
48 S21/PC5 O P6 FL segment
49 S22/PC6 O P7 FL segment
50 S23/PC7 O P8 FL segment
51 S24/PD0 O P9 FL segment
52 S25/PD1 O P10 FL segment
53 S26/PD2 O P11 FL segment
54 S27/PD3 O P12 FL segment
55 S28/PD4 O P13 FL segment
56 S29/PD5 O P14 FL segment
57 S30/PD6 O P15 FL segment
58 S31/PD7 O — —
59 S32/PE0 I/O — —
60 S33/PE1 I/O — —
61 S34/PE2 I/O — —
62 S35/PE3 I/O — —
63 S36/PE4 I/O — —
64 S37/PE5 I/O — —
65 P00 O — —
66 P01 O — —
67 P02 O — —
68 P03 O — —
69 P04 O /TMUTE Tuner mute
70 P05 O — —
71 P06 O — —
72 P07 O — —
73 VSS2 I GND GND
74 P10/S00 O — —
75 P11/SI0 SIN — —
76 P12/SCK0 SCL — —
77 P13/SO1 I PLLDAT-in Data input from PLL
78 P14/SI1 O PLLDAT-out Data output for PLL
79 P15/SCK1 O PLL-CLK PLL clock
80 P16/BUZ O PLLCE PLLCE
KEY INPUT
Key Input 1 2 3 4 5 6 7
Resistance (Ω) 0k 1.8k 2.7k 3.9k 6.8k 13k 39k
Extent of AD 00H~15H 16H~3DH 3EH~64H 65H~8AH 8BH~B0H B1H~D3H D4H~F0H
Extent of Voltage (V) 0.00~0.41 0.41~1.19 1.19~1.95 1.95~2.70 2.70~3.44 3.44~4.12 4.12~4.69
Pin No.14 KEYIN1 P3 P4 P5 P6 P7 P8 —
Pin No.15 KEYIN2 MODE EDIT (KMODE) MEMORY PAGE P1 P2 —
Pin No.16 KEYIN3 — — — — FM/AM (MW/LW) TUNING DOWN TUNING UP

TX-396L
13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G
P1
PRESET
aaaaaaaaaaa
AUTO
P2
MEMO
bbbbbbbbbbb
kHz
P3
□ (PS)
ccccccccccc
MHz
P4
PS
ddddddddddd
ST
P5
□ (PTY)
eeeeeeeeeee
B1
P6
PTY
fffffffffff B2
P7
□ (RT)
ggggggggggg B3
P8
RT
hhhhhhhhhhh B4
P9
□ (CT)
jjjjjjjjjjj B5
P10
CT
kkkkkkkkkkk B6
P11
EON
mmmmmmmmmmm S1
P12
NEWS
nnnnnnnnnnn EDIT
P13
INFO
ppppppppppp
PTYHOLD
P14
AFFAIRS
rrrrrrrrrrr
−
P15
SPORT
ttttttttttt
−
PIN NO. 1 2 3 456789101112131415161718
CONNECTION F1 F1 NP P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1
PIN NO. 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
CONNECTION NC 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G NP F2 F2
9
■DISPLAY DATA (13-BT-152GK)
ANODE CONNECTION
PIN CONNECTION
NOTE:
1) F1, F2 ................. Filament
2) NP ....................... No pin
3) NC ....................... No connection
4) DL ....................... Datum line
5) 1G~13G .............. Grid

ABCDEFGH I J
1
2
3
4
5
6
7
TX-396L
FM 75Ω
GND
AM
FM FRONT END
RF AMP MIXER L2 L3 L4
IC2 : LA1266
Q3, 4 Q10 Q13
L7
FM IF AMP
LEVEL DET
L9
CERAMIC
FILTER
RF AMP
AM COIL PACK PK2
ANT
COIL
OSC
COIL
Q502
RESET
CMOS
TUNING
CONTROL
LSI
IC501
LC866420A
8 bit CPU
*B
D502
V501
C502
BACKUP
Q501
POWER
ON
CONTROL & DATA BUS
REMOTE
CONTROL
RECEPTER POWER
SUPPLY
U501
SW520
POWER SW
VP
*B
12V
5V
KEY BOARD
IC1 : LC72130
SW501 ~ 519
MIXER
OSC
AGC
Q16 L10
FM/AM
MUTING
PLL
ST IND. MUTE
XL3
L12
L13
LPF
L ch
R ch
MUTE
SW
Q19,20
Q22,23
CONTROL
DECODER
DE-EMPHASIS
AM
DET
S. METER LED
DRIVER
L5
Q15
QUADRATURE
DET
FM DET
COIL
IF
BUFFER
IF
BUFFER
VR1, 2
Q2, 5
OSC
BUFFER
PK1
17 1
0
C
A
H
J
K
M
N
7
D~F
O~[
c~q
M
N
1
G
XY12
Ca
F8
B2
1
G
C
5
8
K
76
58
PLL -COM
AM/FM IF IC
IC3 : LA3401
MPX IC
24
1
15
14
3
4
5
6
12
22
21
17
18
20
19
16
23
1/2
REFERENCE
DIVIDER
SWALLOW COUNTER
1/16, 1/17 4bits
12bits PROGRAMMABLE
DIVIDER
DATA SHIFT REGISTER LATCH
POWER
ON
RESET
C2B
I/F UNIVERSAL
COUNTER
PHASE DETECTOR
CHARGE PUMP
UNLOCK
DETECTOR
789
10
11 13
2
11
■BLOCK DIAGRAM
10

ABCDEFGH I J
1
2
3
4
5
7
TX-396L
6
W503B
SW519 SW518
R528R529
TUNING
UP DOWN
KEY3 GND
To OPE P.C.B.(1)
DG VP FL2 FL1
To OPE P.C.B.(1)
POWER
To TUNER P.C.B.(2)
DG VP FL2 FL1 AC1* AC1
124
25
4065
80
4164
✻
✻✻✻✻
Note) Those parts marked with "✻" are not use.
4321
8765
TUNING MODE
AUTO/MAN'MONO
MEMORY
MAN'L/AUTO FMFM/MW/LW EDIT A/B/C/D/E
DG
KEY3 GND
VP
FL2
FL1
From OPE P.C.B.(2)
From OPE P.C.B.(3) To/From TUNER P.C.B.(1)
GNDD
5V
*B
/TMUT
RSYN
RCE
RDI
RDO
RCL
PLDO
PLDI
PLCL
PLCE
/MMUT
MTR
VER
GNDD
To TUNER P.C.B.(2)
From OPE P.C.B.(2)
*B
ANGND
DG VP FL2 FL1 AC1* AC1
-B
12 13
124
112
1324
111
1222
FM ANT GND AM ANT
LINE OUT
RL
To/From OPE P.C.B.(1)
From TUNER P.C.B.(2)
TP3
TP1
TP2
AM SENSITIVITY
SIGNAL
METER
DISCRIMINATOR
BALANCE
MONAURAL
DISTORTION
STEREO
DISTORTION
SEPARATION
*B
ANGND
-B
GNDD
5V
*B
/TMUT
RSYN
RCE
RDI
RDO
RCL
PLDO
PLDI
PLCL
PLCE
/MMUT
MTR
VER
GNDD
12
■PRINTED CIRCUIT BOARD (Foil side)
TUNER P.C.B. (1)
13
TUNER P.C.B. (2)
OPE P.C.B. (1)
OPE P.C.B. (2)
OPE P.C.B. (3)

A
1
2
3
4
5
6
7
8
9
B C D E F G H I J K L
TX-396L
★ All voltage are measured with a 10MΩ/V DC electric volt meter.
★ Components having special characteristics are marked sand must be replaced
with parts having specifications equal to those originally installed.
★ Schematic diagram is subject to change without notice.
14

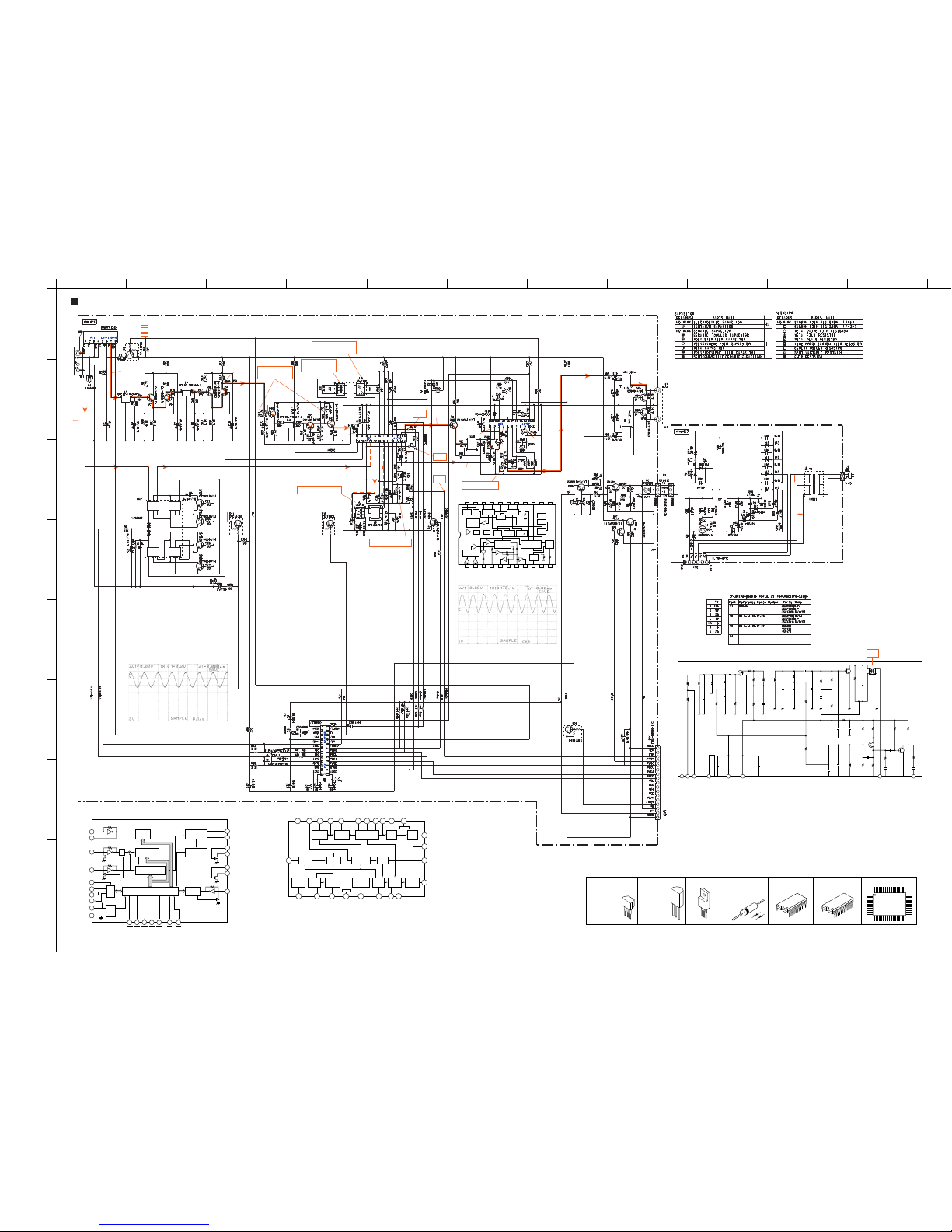

SCHEMATIC DIAGRAM
L11
L1
C2
10p
L10
D5 DT1
R2
100k
R3
100k
R5
100k
R1
22
R8
1k
R9
100
C5
7p
C33
2200p
C32
2200p
L2 L3
C13
0.018u
C31
7.5p
DT2
C2
5p
C10
27p
L5
R38
1k
C9
470p
R7
390k
Q1 Q2
R19
10k
C24
47p
L7
R23
330
R15
330
R22
330k
R12
10k
C27
0.018u
C29
2p
R10
2.7k
DT4
C14
100p
C15
0.3p L6 R13
10k R14
1.8k
C18
27p
R17
10
C20
39p
C19
5p
Q4
Q6
R25
R15
C23
15p
C12
0.018u
C25
0.018u
1 2 3 4 5 6 7 8
OSC OUTIF OUT+BBTGND3GND2ANT2ANT1
PK1 : ENV-17297G1 (VQ98760)
22 21 20 19 18 17 16 15 14 13 12
1 2 3 4 5 6 7 8 9 10 11
Vol Reg OSC
VCO Stop
Pilot Det
Lamp
Driver
Phase
Comparator
Symmetrical
Reactance
Circuit
Trigger
Stereo
Switch
Vcc On
Muting
FF FF
Decoder
FF
38kHz
Muting
FM AM Change
FF
19kHz 90°
FF
19kHz 0°
Muting Control
FM AM Change over
Muting
Output
1k
Ra Rc
Rc
Rb Rb
1k80k
IC3 : LA3401 (FM MPX)
IC1 : LC72130 (PLL)
pin 24 of IC1
pin 21 of IC3
IC2 : LA1266 (AM/FM IF)
IF
BUFFER
OSC
BUFFER
OSCREG. AGC
NARROW
S-METER
S-
METER
LED
DRIVER
IF
BUFFER FM-IF
AM-IF
Q. D.
VCC
POST
AMP.
MIX DETRF
GND
20 18 11 13 10 1 2 3 5 6 7
12
15
16171914242322
21
4
9
8
24
1
15
14
3
4
5
6
7 8 9 10 11 13
12
22
21
17
18
20
19
2
16
23
1/2
REFERENCE
DIVIDER
SWALLOW COUNTER
1/16, 1/17 4bits
12bits PROGRAMMABLE
DIVIDER
DATA SHIFT REGISTER LATCH
POWER
ON
RESET
C2B
I/F
UNIVERSAL
COUNTER
PHASE DETECTOR
CHARGE PUMP
UNLOCK
DETECTOR
PD1
PD2
AIN1
AOUT1
AIN2
IFIN
IO2
AOUT2
IO1BO5BO4BO3BO2BO1
VSS
VDD
DO
CL
DI
CE
AMIN
FMIN
XOUT
XIN
PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS.
ECB
DTA114ES
2SC1809S(N,P)
2SC1740S(R,S)
DTC114ES
DTC144ES
2SA933S(Q,R)
2SC2061(P,Q,R)
2SC2878(A,B)
2SC4495
BCE
1SS133
HZS6C2TD6.0V
HZS11B2TD
HZS9A2TD9.0V
1T2
HZS242TD
Anode
Cathode
LA3401 LC72130
LA1266
LC866420B
1
12
24
1
11
22
64 41
40
25
241
65
80
ECB
0(9.4)
9.9(0)
5.3 (5.4)
5.3
(5.3)
5.3
(5.3)
5.3 (5.3)
4.6(4.6)
4.6(4.6)
9.2
(9.3)
9.2
(9.2)
8.6(8.6)
8.6(8.6) STEREO
DISTORTION
MONAURAL
DISTORTION
AM SENSITIVITY
8.8(8.8)
6.0(6.0)
2.4(2.4)
2.7(2.2)
3.1(2.9)
2.5
(1.1)
8.8
(8.8)
2.5(2.6)
6.7(6.7)
2.5(1.1) 2.5(1.1) 9.7(9.7) 9.7(9.7) 9.6(9.7) 0(0) 0(0)
0(0)
0(0)
2.7(1.5)
2.7(1.8)
2.7(5.3) 2.7(5.2) 2.7(6.6)
3.4(2.0)
10.0(10.1)
4.9(0)
0.5(10.1)
0(0)
0(6.1)
3.1(3.1)
4.7(4.6)
4.7(4.7)
3.1(3.1)
3.1(3.1)
3.1(3.1)
3.1(3.1)
3.2(3.1)
3.1(3.1)
1.3(1.3)
1.5(2.0) 2.6(2.8)
0(3.5)
2.5(1.1) 1.5(1.9)
0(9.3)
4.0(3.6) 4.0(3.6) 4.0(3.6)
3.4(2.2)
4.1(3.8)
6.7
(6.7)
3.1(3.2)
10.0(10.1)
0(0)
0(0)
0(0)
2.7(8.5)
3.1(2.9)
2.5(2.3)
5.5(5.6)
9.4(10.6)
10.0(10.1)
-7.5(-7.8)
13.0(14.1)
10.6(10.7)
10.6
(10.7)
6.2(6.2)
0(0) 0(0)
0(0)
0(0)
0(0)
0(0)
0(0)
0(0)
8.4(4.9)
0.6(1.0)
0.5(1.0)
0.5(10.1)
1.0(1.0)
1.0(1.0)
4.1(3.1)
4.8(5.0) 2.4(0)
0(0)
0(0)
0(0)
0(0)0(2.5)
4.9(5.0)
5.5(5.6)
2.4 (2.4)
2.4 (2.4)
2.4 (2.4)
0(5.3)
0(9.4)
10.0(0)
4.7(4.7)
9.8(9.9) 0(0)
4.8(4.8)
0(0)
6.7
(7.2)
6.7
(7.2)
13.5(14.6)
13.5(14.6)
6.7 (7.2)
6.7 (7.2)
AC13.1
AC3.6
-14.6(-15.6)
-15.5(-15.6)
-29.5(-31.1) -24.5(-25.9)
-15.1(-16.0)
-5.8(-6.2)
-23.6
(-23.8)
-24.2
(-24.4)
-19.7
(-20.9)
-10.4
(-11.1)
-24.2
0
0(0)
0(0)
0(0)
0(0)
0.7(0.6)
-10.0
(-10.6)
0(0)
0(0)
0(0)
0(0)
-9.9(-10.4)
-9.9(-10.5)
9.5(9.6)
0(0)
0.6 (0.6)
9.8(9.8)
8.0(8.1)
0(0)
0(0)
0(0)
0(0)
0(0)
0(0)
0.7(0.7)
0.7(0.7)
0.6(0.6)
4.0(3.6)
4.0(3.6) 4.6(4.2)
10.0
(10.1) 0(10.0)
10.0(0)
7.9
(7.9)
8.6
(8.6)
10.0(10.1)
Each voltage given here represents that in the FM (98.1 MHz, STEREO) reception mode
but the one in the parentheses ( ) is that in the AM (1080 kHz, MAN'L) reception mode.
VT : FM 87.5 MHz 1.6
  98.1 MHz 4.1
  108 MHz 8.3
 AM 531 kHz 0.9
  1080 kHz 4.1
  1611 kHz 6.3
SEPARATION
SIGNAL METER
TP2
TP1
FM
FM
AM
AM
TP3
IFT
DISCRIMINATOR
BALANCE
To OPE (1)
see page 15
To OPE (2)
see page 15
FRONTEND
FM IF FM/AM DETECT MPX DECODE
LPF
MUTE SW
VOLTAGE
REGULATOR
AM IFT
PLL

A
1
2
3
4
5
6
7
8
9
B C D E F G H I J K L
★ All voltage are measured with a 10MΩ/V DC electric volt meter.
★ Components having special characteristics are marked sand must be replaced
with parts having specifications equal to those originally installed.
★ Schematic diagram is subject to change without notice.

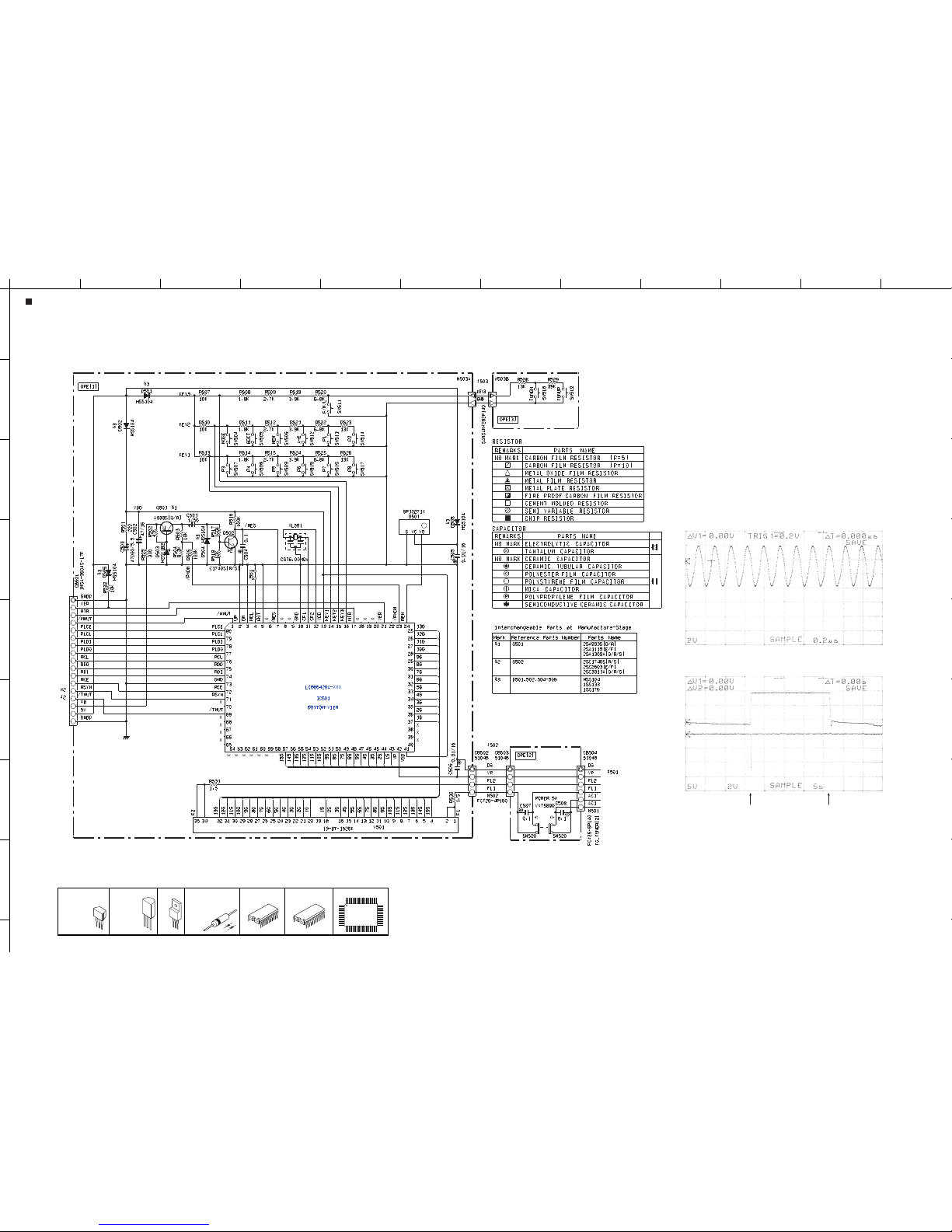

SCHEMATIC DIAGRAM
15
TX-396L
pin 12 of IC501
emitter of Q501 and collector of Q502
Q501
Q502
POWER ON
(Connect the power cord)
POWER OFF
(Disconnect the power cord)
PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS.
ECB
DTA114ES
2SC1809S(N,P)
2SC1740S(R,S)
DTC114ES
DTC144ES
2SA933S(Q,R)
2SC2061(P,Q,R)
2SC2878(A,B)
2SC4495
BCE
1SS133
HZS6C2TD6.0V
HZS11B2TD
HZS9A2TD9.0V
1T2
HZS242TD
Anode
Cathode
LA3401 LC72130
LA1266
LC866420B
1
12
24
1
11
22
64 41
40
25
241
65
80
ECB
5.5(5.5)
5.5(5.5)
5.2(5.2)
5.2(5.2)
11.5(11.5) 11.4(11.5)
10.7 (10.7)
0(0)
0(0)
0(0)
0(0)
0(0)
0(0)
-13.4(-13.6)
-11.7(-12.0)
-11.2(-11.5)
-11.0(-11.2)
-10.7(-10.9)
-10.6(-10.8)
-10.5(-10.8)
-20.8(-20.9)
-20.8(-20.9)
-20.8(-20.9)
-20.8(-20.9)
-20.8(-20.9)
-20.9(-21.0)
0(0) 0(0) 0(0) 0(0.1) 4.7(4.7) 0(0) 2.0(2.0) 2.3(2.3) 4.8(4.9) 5.2(5.2) 5.2(5.2) 5.2(5.2) 5.1(5.1) 4.9(4.9)
4.9 4.9 0
2.6(0) 5.2(5.2)
-23.7(-23.7) -8.0(-19.6) -7.8(-3.7) -5.9(-6.4) -15.6(-16.3) -8.0(-6.0) -5.7(-5.9) -10.0(-15.1) -17.8(-17.8) -20.6(-20.6) -17.8(-17.6) -10.0(-15.2) -20.6(-20.6) -14.2(-14.6) -13.9(-11.1) -13.5(-13.5)
-15.5(-15.6)
-15.5(-15.6) -15.5(-15.6)
-15.5(-15.6)
-11.2 (-11.5) -11.0 (-11.2) -10.7 (-10.9) -10.6 (-10.8) -10.5 (-10.8) -13.5 (-16.3) -10.0 (-15.1) -10.0 (-15.2) -14.2 (-14.6) -13.9 (-11.1) -13.5 (-13.5) -17.8 (-17.8) -17.8 (-17.6) -20.6 (-20.6) -20.6 (-20.6) -20.8 (-20.9) -20.8 (-20.9) -20.8 (-20.9) -20.8 (-20.9) -20.8 (-20.9) -20.9 (-21.0) -8.0 (-10.9) -8.0 (-6.0) -5.7 (-5.9) -5.9 (-6.4) -11.7 (-12.0)
-13.4 (-13.6)
0(0)
0(0)
5.3(0)
0(0.1)
0(0.1)
0(0)
0(0)
0(0)
0(0)
4.8(4.8)
4.7 (4.7)
4.7(4.7)
5.5(5.5)
5.5(5.5)
4.9(4.9)
4.8(4.8)
To TUNER (1)
see page 14
To TUNER (2)
see page 14

TX-396L
16
■WARNING
Components having special characteristics are marked sand must be
replaced with parts having specifications equal to those originally in-
stalled.
●Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL
PARTS List. For the parts No. of the carbon resistors, refer to last page.
ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS:
C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP
C.CE : CERAMIC CAP
C.CE.ARRAY : CERAMIC CAP ARRAY
C.CE.CHP : CHIP CERAMIC CAP
C.CE.ML : MULTILAYER CERAMIC CAP
C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP
C.CE.SAFTY : RECOGNIZED CERAMIC CAP
C.CE.TUBLR : CERAMIC TUBULAR CAP
C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP
C.EL : ELECTROLYTIC CAP
C.MICA : MICA CAP
C.ML.FLM : MULTILAYER FILM CAP
C.MP : METALLIZED PAPER CAP
C.MYLAR : MYLAR FILM CAP
C.MYLAR.ML : MULTILAYER MYLAR FILM CAP
C.PAPER : PAPER CAPACITOR
C.PLS : POLYSTYRENE FILM CAP
C.POL : POLYESTER FILM CAP
C.POLY : POLYETHYLENE FILM CAP
C.PP : POLYPROPYLENE FILM CAP
C.TNTL : TANTALUM CAP
C.TNTL.CHP : CHIP TANTALUM CAP
C.TRIM : TRIMMER CAP
CN : CONNECTOR
CN.BS.PIN : CONNECTOR,BASE PIN
CN.CANNON : CONNECTOR,CANNON
CN.DIN : CONNECTOR,DIN
CN.FLAT : CONNECTOR,FLAT CABLE
CN.POST : CONNECTOR,BASE POST
COIL.MX.AM : COIL,AM MIX
COIL.AT.FM : COIL,FM ANTENNA
COIL.DT.FM : COIL,FM DETECT
COIL.MX.FM : COIL,FM MIX
COIL,OUTPT : OUTPUT COIL
DIOD.ARRAY : DIODE ARRAY
DIODE.BRG : DIODE BRIDGE
DIODE.CHP : CHIP DIODE
DIODE.VAR : VARACTOR DIODE
DIOD.Z.CHP : CHIP ZENER DIODE
DIODE.ZENR : ZENER DIODE
DSCR.CE : CERAMIC DISCRIMINATOR
FER.BEAD : FERRITE BEADS
FER.CORE : FERRITE CORE
FET.CHP : CHIP FET
FL.DSPLY : FLUORESCENT DISPLAY
FLTR.CE : CERAMIC FILTER
FLTR.COMB : COMB FILTER MODULE
FLTR.LC.RF : LC FILTER,EMI
GND.MTL : GROUND PLATE
GND.TERM : GROUND TERMINAL
HOLDER.FUS : FUSE HOLDER
IC.PRTCT : IC PROTECTOR
JUMPER.CN : JUMPER CONNECTOR
JUMPER.TST : JUMPER,TEST POINT
L.DTCT : LIGHT DETECTING MODULE
L.EMIT : LIGHT EMITTING MODULE
LED.DSPLY : LED DISPLAY
LED.INFRD : LED,INFRARED
MODUL.RF : MODULATOR,RF
PHOT.CPL : PHOTO COUPLER
PHOT.INTR : PHOTO INTERRUPTER
PHOT.RFLCT : PHOTO REFLECTOR
PIN.TEST : PIN,TEST POINT
PLST.RIVET : PLASTIC RIVET
R.ARRAY : RESISTOR ARRAY
R.CAR. : CARBON RESISTOR
R.CAR.CHP : CHIPRESISTOR
R.CAR.FP : FLAME PROOF CARBON RESISTOR
R.FUS : FUSABLE RESISTOR
R.MTL.CHP : CHIP METAL FILM RESISTOR
R.MTL.FLM : METAL FILM RESISTOR
R.MTL.OXD : METAL OXIDE FILM RESISTOR
R.MTL.PLAT : METAL PLATE RESISTOR
RSNR.CE : CERAMIC RESONATOR
RSNR.CRYS : CRYSTAL RESONATOR
R.TW.CEM : TWIN CEMENT FIXED RESISTOR
R.WW : WIRE WOUND RESISTOR
SCR.BND.HD : BIND HEAD B-TITE SCREW
SCR.BW.HD : BW HEAD TAPPING SCREW
SCR.CUP : CUP TITE SCREW
SCR.TERM : SCREW TERMINAL
SCR.TR : SCREW,TRANSISTOR
SUPRT.PCB : SUPPORT,P.C.B.
SURG.PRTCT : SURGE PROTECTOR
SW.TACT : TACT SWITCH
SW.LEAF : LEAF SWITCH
SW.LEVER : LEVER SWITCH
SW.MICRO : MICRO SWITCH
SW.PUSH : PUSH SWITCH
SW.RT.ENC : ROTARY ENCODER
SW.RT.MTR : ROTARY SWITCH WITH MOTOR
SW.RT : ROTARY SWITCH
SW.SLIDE : SLIDE SWITCH
TERM.SP : SPEAKERTERMINAL
TERM.WRAP : WRAPPING TERMINAL
THRMST.CHP : CHIP THERMISTOR
TR.CHP : CHIP TRANSISTOR
TR.DGT : DIGITAL TRANSISTOR
TR.DGT.CHP : CHIP DIGITAL TRANSISTOR
TRANS : TRANSFORMER
TRANS.PULS : PULSE TRANSFORMER
TRANS.PWR : POWER TRANSFORMER ASS’Y
TUNER.AM : TUNER PACK,AM
TUNER.FM : TUNER PACK,FM
TUNER.PK : FRONT-END TUNER PACK
VR : ROTARY POTENTIOMETER
VR.MTR : POTENTIOMETER WITH MOTOR
VR.SW : POTENTIOMETER WITH ROTARY SW
VR.SLIDE : SLIDE POTENTIOMETER
VR.TRIM : TRIMMER POTENTIOMETER
Note) Those parts marked with “#”are not included in the P.C.B. ass’y.
PARTS LIST
■ELECTRICAL PARTS

TX-396L
17
* V4907000 P.C.B. TUNER
CB1 Vi878100 CN.BS.PIN 3P
CB2 Vi878100 CN.BS.PIN 3P
CB3 VF728300 CN 6P
CB4 VU271700 CN 17P
CB5 VG879900 CN.BS.PIN 2P
C2 UR837470 C.EL 47uF 16V
C4 VF467300 C.CE.TUBLR 0.01uF 16V
C5 VJ599000 C.CE.TUBLR 0.047uF 16V
* C6 FG650800 C.CE 8pF 50V
C7 VF467300 C.CE.TUBLR 0.01uF 16V
C8 VF467300 C.CE.TUBLR 0.01uF 16V
C9 VJ599000 C.CE.TUBLR 0.047uF 16V
C10 VF467300 C.CE.TUBLR 0.01uF 16V
C11 VF467300 C.CE.TUBLR 0.01uF 16V
C13 UR866100 C.EL 1uF 50V
C14 UA656100 C.MYLAR 1uF 50V
C16 UR838100 C.EL 100uF 16V
C17 VF467300 C.CE.TUBLR 0.01uF 16V
C18 VF467300 C.CE.TUBLR 0.01uF 16V
C19 VF467300 C.CE.TUBLR 0.01uF 16V
C20 UR866470 C.EL 4.7uF 50V
C21 UR837100 C.EL 10uF 16V
C22 VF466800 C.CE.TUBLR 100pF 50V
C23 VF466800 C.CE.TUBLR 100pF 50V
C24 VF466700 C.CE.TUBLR 47pF 50V
* C25 VG273300 C.CE.TUBLR 10pF 50V
* C26 VG273300 C.CE.TUBLR 10pF 50V
C27 UR837100 C.EL 10uF 16V
C28 UR837100 C.EL 10uF 16V
C29 VF467300 C.CE.TUBLR 0.01uF 16V
C30 VF467300 C.CE.TUBLR 0.01uF 16V
C31 UR866220 C.EL 2.2uF 50V
C32 VF467300 C.CE.TUBLR 0.01uF 16V
C33 UR866330 C.EL 3.3uF 50V
C34 VF467300 C.CE.TUBLR 0.01uF 16V
C35 UR866470 C.EL 4.7uF 50V
C36 UR865470 C.EL 0.47uF 50V
C37 UR837100 C.EL 10uF 16V
C38 VF466800 C.CE.TUBLR 100pF 50V
C39 VF467300 C.CE.TUBLR 0.01uF 16V
C42 UR866100 C.EL 1uF 50V
C43 UR865470 C.EL 0.47uF 50V
C44 UR866100 C.EL 1uF 50V
C45 UR866220 C.EL 2.2uF 50V
C46 VJ599000 C.CE.TUBLR 0.047uF 16V
C47 UR866220 C.EL 2.2uF 50V
C48 UR837100 C.EL 10uF 16V
C49 UR837100 C.EL 10uF 16V
C50 UA952270 C.MYLAR 270pF 50V
C51 VF466900 C.CE.TUBLR 470pF 50V
C52 VA777400 C.CE 120pF 50V
C53 VJ599000 C.CE.TUBLR 0.047uF 16V
C54 UA952270 C.MYLAR 270pF 50V
C73 UR837100 C.EL 10uF 16V
C74 UR837470 C.EL 47uF 16V
C75 UR866330 C.EL 3.3uF 50V
C76 UA953390 C.MYLAR 3900pF 50V
C77 UA953390 C.MYLAR 3900pF 50V
C78 UR866330 C.EL 3.3uF 50V
C79 UR838100 C.EL 100uF 16V
C80 UR837470 C.EL 47uF 16V
C81 UR867100 C.EL 10uF 50V
C82 UR867100 C.EL 10uF 50V
C83 FG644100 C.CE 0.01uF 50V
C84 FG644100 C.CE 0.01uF 50V
C85 FG644100 C.CE 0.01uF 50V
C86 UJ749220 C.EL 2200uF 25V
C87 FG644100 C.CE 0.01uF 50V
C88 UR867470 C.EL 47uF 50V
C89 UR867470 C.EL 47uF 50V
C90 UR867470 C.EL 47uF 50V
C93 UR867470 C.EL 47uF 50V
C94 UR867220 C.EL 22uF 50V
C95 UR867470 C.EL 47uF 50V
C96 UR867470 C.EL 47uF 50V
C97 UR867100 C.EL 10uF 50V
C98 UR866220 C.EL 2.2uF 50V
* C99 VF467100 C.CE.TUBLR 4700pF 16V
D1 VD631600 DIODE 1SS133,176,HSS104
D2 VD631600 DIODE 1SS133,176,HSS104
D3 VD631600 DIODE 1SS133,176,HSS104
D7 VM974500 DIODE.ZENR HZS6C2TD 6.0V
D8 VM975300 DIODE.ZENR HZS11B2TD 11V
D9 VM974900 DIODE.ZENR HZS9A2TD 9.0V
D10 VS997800 DIODE 1T2
D11 VS997800 DIODE 1T2
D12 VS997800 DIODE 1T2
D13 VS997800 DIODE 1T2
D14 VD631600 DIODE 1SS133,176,HSS104
D15 VD631600 DIODE 1SS133,176,HSS104
D16 VM976300 DIODE.ZENR HZS242TD 24V
D17 VD631600 DIODE 1SS133,176,HSS104
D18 VD631600 DIODE 1SS133,176,HSS104
D19 VD631600 DIODE 1SS133,176,HSS104
D20 VD631600 DIODE 1SS133,176,HSS104
D21 VD631600 DIODE 1SS133,176,HSS104
D22 VD631600 DIODE 1SS133,176,HSS104
G1 VR463400 TERM.GND D3.5 TP00385
G2 VR463400 TERM.GND D3.5 TP00385
IC1 XQ360A00 IC LC72130
IC2 XB760A00 IC LA1266
IC3 iG158100 IC LA3401
L1 Vi546100 COIL 220uH
L2 GG000560 FLTR.CE SFE10.7MS3GHY-A
L3 GG000560 FLTR.CE SFE10.7MS3GHY-A
L4 GG000560 FLTR.CE SFE10.7MS3GHY-A
L5 VR895700 COIL.IF 450KHz
L6 Vi546100 COIL 220uH
L7 Vi546100 COIL 220uH
L8 VC218600 COIL.DT.FM 10.7MHz
L9 VC219000 FLTR.CE SFZ450JL3
L10 VT486800 COIL XYA2
L12 VQ138200 FLTR.LC 19KHz
L13 VQ138200 FLTR.LC 19KHz
* PJ1 VM725600 JACK.PIN 2P
PK1 VQ987600 TUNER.PK ENV-17297G1
PK2 VU333600 COIL.RF.AM 940536046B
Q1 VD678500 TR.DGT DTA114ES
* Q2 VR497000 TR 2SC1809S N,P
* Q3 VR497000 TR 2SC1809S N,P
* Q4 VR497000 TR 2SC1809S N,P
* Q5 VR497000 TR 2SC1809S N,P
Q6 iC174020 TR 2SC1740S R,S
Q7 iC174020 TR 2SC1740S R,S
Q8 iC174020 TR 2SC1740S R,S
Schm
Ref. PARTNO. Description
✻New Parts
Schm
Ref. PARTNO. Description
✻New Parts

TX-396L
18
Schm
Ref. PARTNO. Description
✻New Parts
Schm
Ref. PARTNO. Description
✻New Parts
Q9 iC174020 TR 2SC1740S R,S
* Q10 VR497000 TR 2SC1809S N,P
Q11 VG722000 TR.DGT DTC144ES
* Q13 VR497000 TR 2SC1809S N,P
Q14 iC174020 TR 2SC1740S R,S
Q15 VD678500 TR.DGT DTA114ES
Q16 iC174020 TR 2SC1740S R,S
Q17 iC174020 TR 2SC1740S R,S
* Q18 iC206110 TR 2SC2061 P,Q,R
Q19 iC287820 TR 2SC2878 A,B
Q20 iC287820 TR 2SC2878 A,B
sQ21 VN996900 TR 2SC4495
Q22 iA093320 TR 2SA933S Q,R
Q23 iC174020 TR 2SC1740S R,S
Q24 iA093320 TR 2SA933S Q,R
Q25 VG722000 TR.DGT DTC144ES
sR90 HV755330 R.CAR.FP 330Ω1/4W
sR91 HV755330 R.CAR.FP 330Ω1/4W
R92 HV753470 R.CAR.FP 4.7Ω1/4W
* R104 HV753330 R.CAR.FP 3.3Ω1/4W
sT1 XN911A00 TRANS.PWR
TE1 VU477800 TERM.ANT AJ-2038-040
* VR1 VJ693200 VR.TRIM B2.2KΩ
* VR2 VJ693200 VR.TRIM B2.2KΩ
VR3 VJ694000 VR.TRIM B47KΩ
VR4 VJ693800 VR.TRIM B22KΩ
XL1 VY734600 RSNR.CRYS 7.2MHz
XL3 GG000750 RSNR.CE 18.95KHz
* V4907100 P.C.B. OPERATION
CB501 VU281700 CN 17P
CB502 Vi878200 CN.BS.PIN 4P
CB503 Vi878200 CN.BS.PIN 4P
CB504 Vi878400 CN.BS.PIN 6P
C501 UR866100 C.EL 1uF 50V
C502 UR837470 C.EL 47uF 16V
C503 VU545000 C.EL 47000uF 5.5V
C504 VJ599100 C.CE.TUBLR 0.1uF 50V
C505 VF467300 C.CE.TUBLR 0.01uF 16V
C506 VF467300 C.CE.TUBLR 0.01uF 16V
C507 UA655100 C.MYLAR 0.1uF 50V
C508 UA655100 C.MYLAR 0.1uF 50V
D501 VD631600 DIODE 1SS133,176,HSS104
D502 VD631600 DIODE 1SS133,176,HSS104
D503 VM975300 DIODE.ZENR HZS11B2TD 11V
D504 VD631600 DIODE 1SS133,176,HSS104
D505 VD631600 DIODE 1SS133,176,HSS104
D506 VD631600 DIODE 1SS133,176,HSS104
* IC501 XY118A00 IC.CPU
LC866420B-5N84 CPU
Q501 iA093320 TR 2SA933S Q,R
Q502 iC174020 TR 2SC1740S R,S
SW504 VG392900 SW.TACT SKHVAA
SW505 VG392900 SW.TACT SKHVAA
SW506 VG392900 SW.TACT SKHVAA
SW507 VG392900 SW.TACT SKHVAA
SW508 VG392900 SW.TACT SKHVAA
SW509 VG392900 SW.TACT SKHVAA
SW511 VG392900 SW.TACT SKHVAA
SW512 VG392900 SW.TACT SKHVAA
SW513 VG392900 SW.TACT SKHVAA
SW514 VG392900 SW.TACT SKHVAA
SW515 VG392900 SW.TACT SKHVAA
SW516 VG392900 SW.TACT SKHVAA
SW517 VG392900 SW.TACT SKHVAA
SW518 VG392900 SW.TACT SKHVAA
SW519 VG392900 SW.TACT SKHVAA
SW520 VY758900 SW.PUSH PS016-PA022BA-B
U501 VU591000 L.DTCT GP1U271X
V501 VV115200 FL.DSPLY 13-BT-152GK
* XL501 VH611900 RSNR.CE CST6.00MGW-TF01
VQ948800 SHEET.FL GD
VR380100 SPACER FL-T6

ABCDE
1
2
3
4
5
6
7
TX-396L
202
203
204
205
19

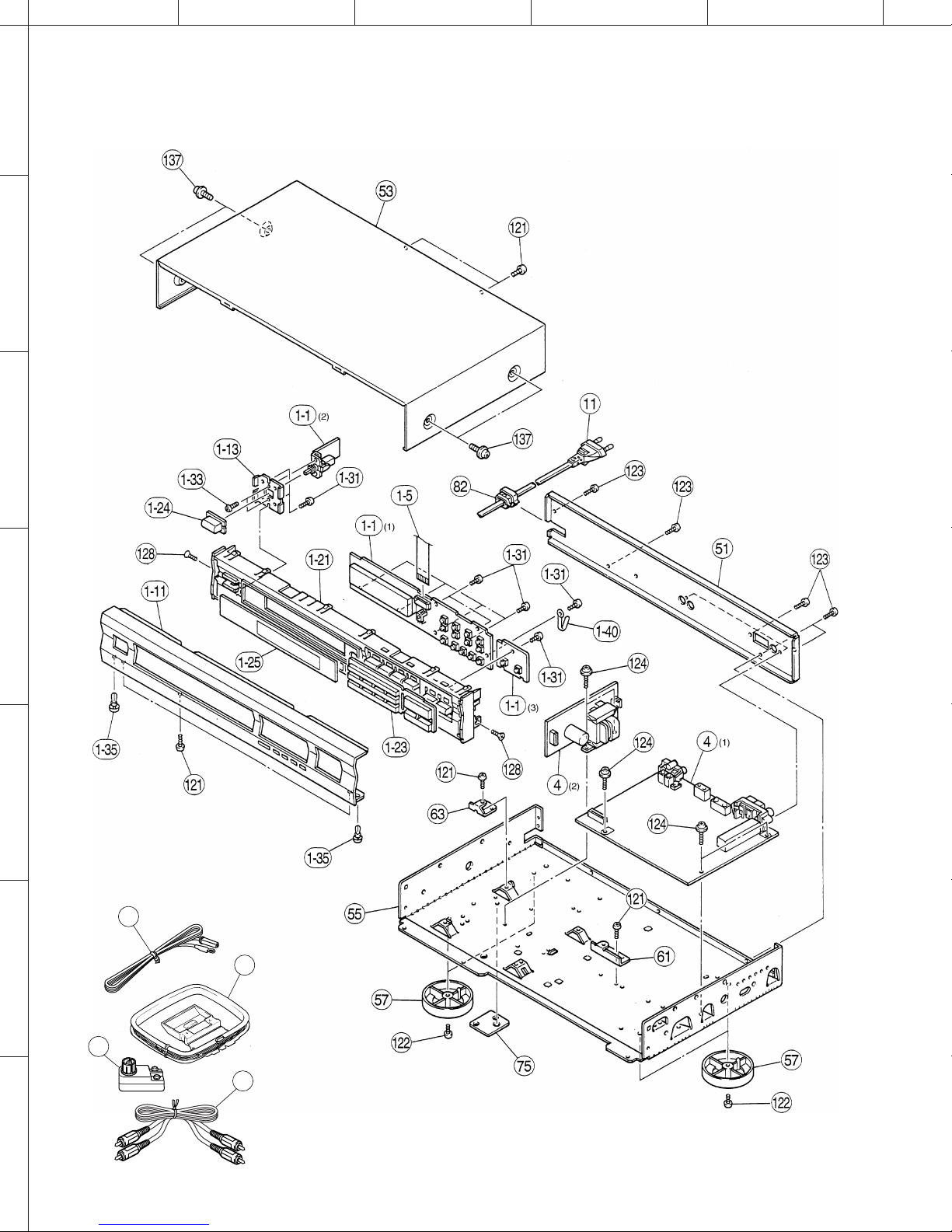

■EXPLODED VIEW

TX-396L
■MECHANICAL PARTS
20
* 1- 1 V4907100 P.C.B. ASS’Y OPERATION
1- 5 MF117160 FLEXIBLE FLAT CABLE 17P 160mm
* 1-11 V4857100 FRONT PANEL BL
* 1-11 V4857200 FRONT PANEL GD
1-13 VV244200 SUPPORT PWR
* 1-21 V4857400 SUB PANEL GD
1-21 VV292700 SUB PANEL BL
* 1-23 V4857600 ESCUTCHEON GD
1-23 VV245000 ESCUTCHEON BL
* 1-24 V4857700 BUTTON GD
1-24 VV501000 BUTTON 9.5x22V BL
1-25 VV245300 SHEET, WINDOW PANEL
1-31 EP630220 BIND HEAD P-TITE SCREW 3x8 ZMC2-BL
1-33 EP630210 BIND HEAD S-TITE SCREW 3x6 ZMC2-BL
1-35 VQ368600 PUSH RIVET P3555-B
1-40 CB836200 BINDING TIE S-70B
* 4 V4907000 P.C.B. ASS’Y TUNER
s11 VN363700 POWER CORD ASS’Y(G)
s11 VV437300 POWER CORD ASS’Y (B)
* 51 V4857300 REAR PANEL
* 53 V4887400 TOP COVER GD
53 VV245400 TOP COVER BL
55 VQ709000 CHASSIS
57 V0049900 LEG D60xH16 GD
57 VQ780300 LEG D60xH16 BL
61 VV244600 SUPPORT, PCB PCB
63 VZ037300 SUPPORT
75 VY735100 SPACER
82 V2438700 CORD STOPPER ’10P1
121 EP600830 BIND HEAD B-TITE SCREW 3x8 FCRM3BL
122 EP600250 BIND HEAD B-TITE SCREW 3x8 ZMC2Y
123 VN413300
BIND HEAD BONDING B-T. SCREW 3x8 MFZN2BL
124 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2
128 VF378100 FLAT HEAD SCREW 3x6 ZMC2Y
137 21991500 PW HEAD S-TITE SCREW 4x8-10 FCRM3BL BL
137 VD069600 PW HEAD S-TITE SCREW 4x8-10 MFNI33 GD
ACCESSORIES
202 VQ147100 ANTENNA, FM 1.4m
203 VR248500 ANTENNA, AM LOOP 1.0m
204 VE364900 ANTENNA ADAPTER PAL 75-300Ω(B)
205 VY952200 AUDIO CONNECTION CORD 2P 1.0m
✻New Parts
Ref.
No. PART NO. Description Remarks Markets

TX-396L
10mm
HJ35
1/4W Type
5mm
HF85
1/6W Type
HF45
1/4W Type
Value 1/4W Type Part No. 1/6W Type Part No.
10 kΩHF45 7100 HF45 7100
11 kΩHF45 7110 HF45 7110
12 kΩHJ35 7120 HF85 7120
13 kΩHF45 7130 HF45 7130
15 kΩHF45 7150 HF45 7150
18 kΩHF45 7180 HF45 7180
22 kΩHF45 7220 HF45 7220
24 kΩHF45 7240 HF45 7240
27 kΩHJ35 7270 HF85 7270
30 kΩHF45 7300 HF45 7300
33 kΩHF45 7330 HF45 7330
36 kΩHF45 7360 HF45 7360
39 kΩHF45 7390 HF45 7390
47 kΩHF45 7470 HF45 7470
51 kΩHF45 7510 HF45 7510
56 kΩHF45 7560 HF45 7560
62 kΩHF45 7620 HF45 7620
68 kΩHF45 7680 HF45 7680
82 kΩHF45 7820 HF45 7820
91 kΩHF45 7910 HF45 7910
100 kΩHF45 8100 HF45 8100
110 kΩHF45 8110 HF45 8110
120 kΩHF45 8120 HF45 8120
150 kΩHF45 8150 HF45 8150
180 kΩHF45 8180 HF45 8180
220 kΩHJ35 8220 HF85 8220
270 kΩHF45 8270 HF45 8270
300 kΩHF45 8300 HF45 8300
330 kΩHF45 8330 HF45 8330
390 kΩHJ35 8390 HF85 8390
470 kΩHF45 8470 HF45 8470
560 kΩHJ35 8560 HF85 8560
680 kΩHJ35 8680 HF85 8680
820 kΩHJ35 8820 HF85 8820
1.0 MΩHF45 9100 HF45 9100
1.2 MΩHJ35 9120 ❊
1.5 MΩHJ35 9150 HF85 9150
1.8 MΩHJ35 9180 HF85 9180
2.2 MΩHJ35 9220 HF85 9220
3.3 MΩHJ35 9330 HF85 9330
3.9 MΩHJ35 9390 ❊
4.7 MΩHJ35 9470 HF85 9470
Value 1/4W Type Part No. 1/6W Type Part No.
1.0 ΩHJ35 3100 HF85 3100
1.8 ΩHJ35 3180 ❊
2.2 ΩHJ35 3220 HF85 3220
3.3 ΩHJ35 3330 HF85 3330
4.7 ΩHJ35 3470 HF85 3470
5.6 ΩHJ35 3560 HF85 3560
10 ΩHF45 4100 HF45 4100
15 ΩHJ35 4150 HF85 4150
22 ΩHF45 4220 HF45 4220
27 ΩHJ35 4270 HF85 4270
33 ΩHF45 4330 HF45 4330
39 ΩHJ35 4470 HF85 4390
47 ΩHF45 4470 HF45 4470
56 ΩHF45 4560 HF45 4560
68 ΩHF45 4680 HF45 4680
75 ΩHF45 4750 HF45 4750
82 ΩHF45 4820 HF45 4820
91 ΩHF45 4910 HF45 4910
100 ΩHF45 5100 HF45 5100
110 ΩHJ35 5110 HF85 5110
120 ΩHF45 5120 HF45 5120
150 ΩHF45 5150 HF45 5150
160 ΩHJ35 5160 ❊
180 ΩHF45 5180 HF45 5180
200 ΩHF45 5200 HF45 5200
220 ΩHF45 5220 HF45 5220
270 ΩHF45 5270 HF45 5270
330 ΩHF45 5330 HF45 5330
390 ΩHF45 5390 HF45 5390
430 ΩHF45 5430 HF45 5430
470 ΩHF45 5470 HF45 5470
510 ΩHF45 5510 HF45 5510
560 ΩHF45 5560 HF45 5560
680 ΩHF45 5680 HF45 5680
820 ΩHF45 5820 HF45 5820
910 ΩHF45 5910 HF45 5910
1.0 kΩHF45 6100 HF45 6100
1.2 kΩHF45 6120 HF45 6120
1.5 kΩHF45 6150 HF45 6150
1.8 kΩHF45 6180 HF45 6180
2.0 kΩHJ35 6200 HF85 6200
2.2 kΩHF45 6220 HF45 6220
2.4 kΩHJ35 6240 HF85 6240
2.7 kΩHF45 6270 HF45 6270
3.0 kΩHF45 6300 HF45 6300
3.3 kΩHF45 6330 HF45 6330
3.6 kΩHJ35 6360 HF85 6360
3.9 kΩHF45 6390 HF45 6390
4.7 kΩHF45 6470 HF45 6470
5.1 kΩHF45 6510 HF45 6510
5.6 kΩHF45 6560 HF45 6560
6.8 kΩHF45 6680 HF45 6680
8.2 kΩHF45 6820 HF45 6820
9.1 kΩHF45 6910 HF45 6910
Parts List for Carbon Resistors
❊: Not available
21
