YAMARIN 63 Hard Top User manual

Yamarin 63 Hard Top
Owner’s manual

Yamarin 63 Hard Top 2 (47)
FOREWORD
Congratulations on choosing a Yamarin craft!
This manual will familiarise you with the features of your new vessel and help with its care
and maintenance. It has been written to help you learn to handle your craft safely and avoid
any problems. Make sure that you have received manuals for all equipment fitted on your
boat. upplement this manual with the specifications and manuals of equipment you
purchase later for your boat. pace has been left for your own notes at the end of the
manual. Please read this manual carefully and familiarise yourself with the craft before using
it.
If this is your first craft, or you are changing to a type of craft you are not familiar with,
please ensure that you obtain sufficient handling and operating experience before assuming
command of the craft. This is highly important for your own comfort and safety. Your dealer
or national sailing association or yacht club will be happy to advise you of local boating
schools or competent instructors.
This owner’s manual is not a detailed maintenance or troubleshooting guide. In case of
difficulty please contact the dealer. Always use qualified and competent people for the
maintenance, repair and modification of the boat. Modifications that may affect the safety
characteristics of the craft must be assessed, executed and documented by competent
people. The manufacturer is not responsible for modifications they have not approved.
Always keep your boat in a good condition and be aware that the boat requires maintenance
and servicing. Any craft, no matter how strong it may be, can be severely damaged if not
used properly. Always adjust the speed and direction of the craft to prevailing weather
conditions.
We wish You enjoyable and relaxin times on board your Yamarin boat!
Konekesko Marine
PO Box 145
01301 VANTAA, Finland
Tel. [phone]
www.yamarin.com
Please keep this manual in a secure place, and hand it over to the new owner if you sell
the craft.

Yamarin 63 Hard Top 3 (47)
Table of contents
1 General 6
1.1 DECLARATION OF CONFORMITY 6
2 Definitions 10
3 Warranty 10
4 Before use 10
4.1 Registration 10
4.2 Insurance 10
4.3 Training 11
5 Characteristics and use of your boat 12
5.1 General 12
5.2 Basic information 12

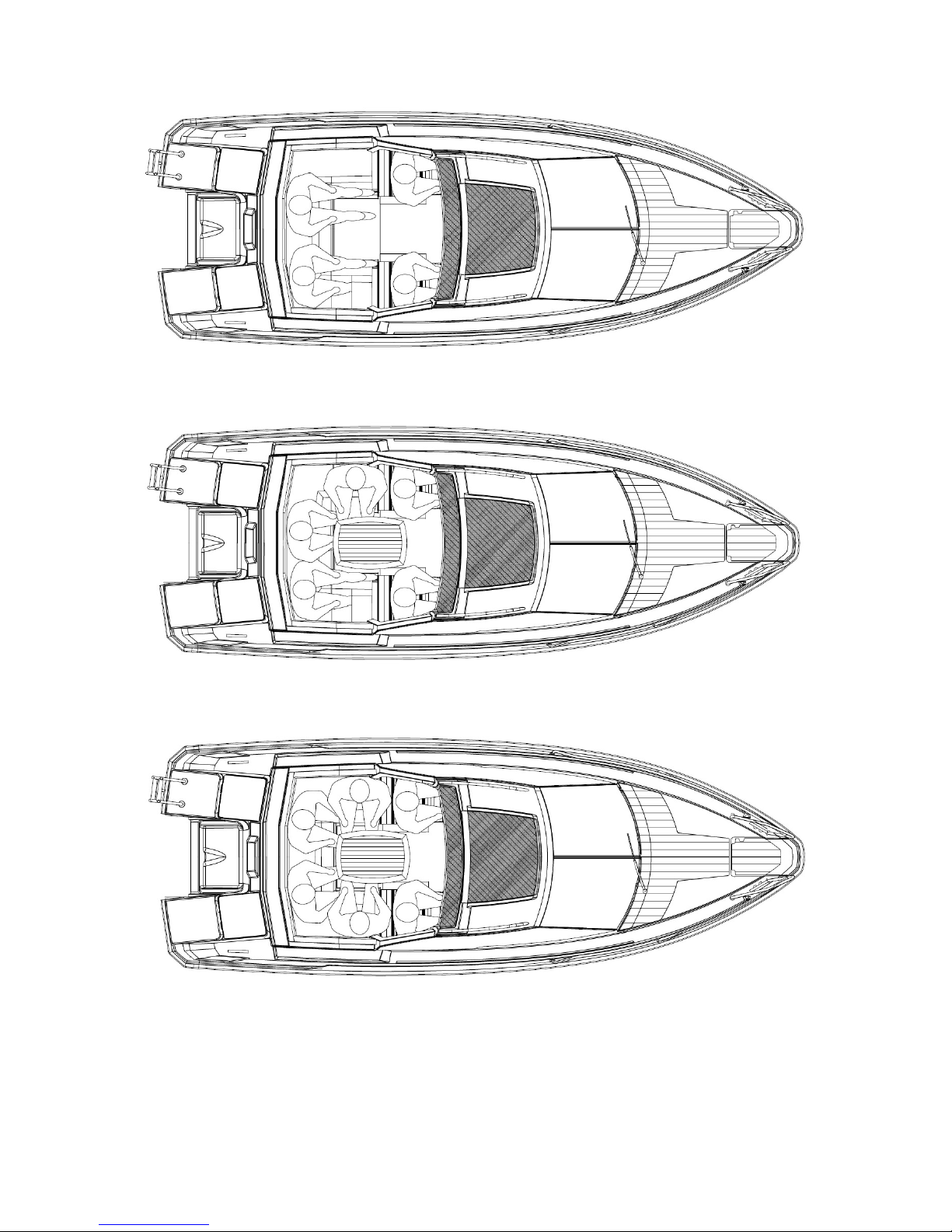

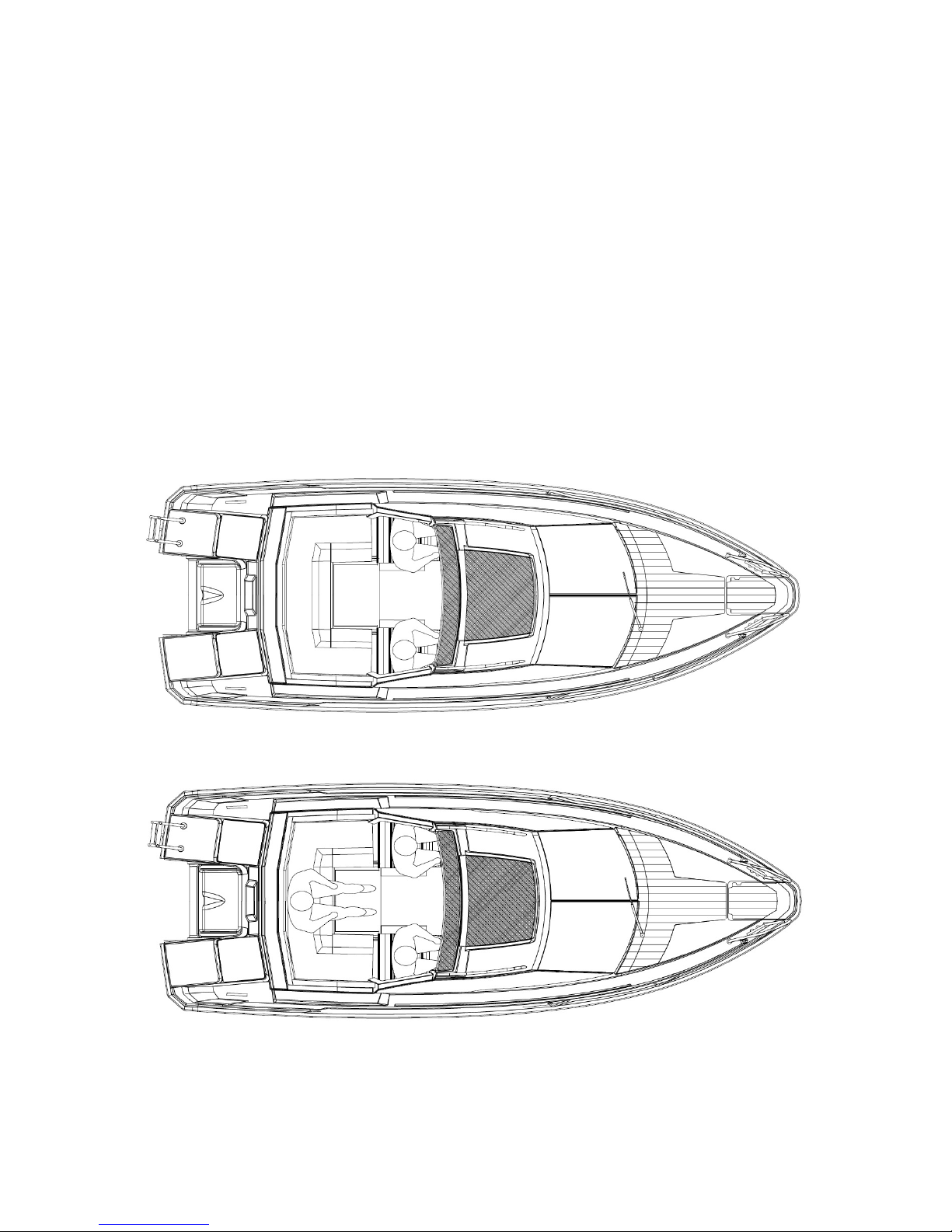

5.3 Maximum recommended number of passengers: 15
5.4 Loading 17
5.5 Engine and propeller 17
5.6 Prevention of water incursion and stability 18

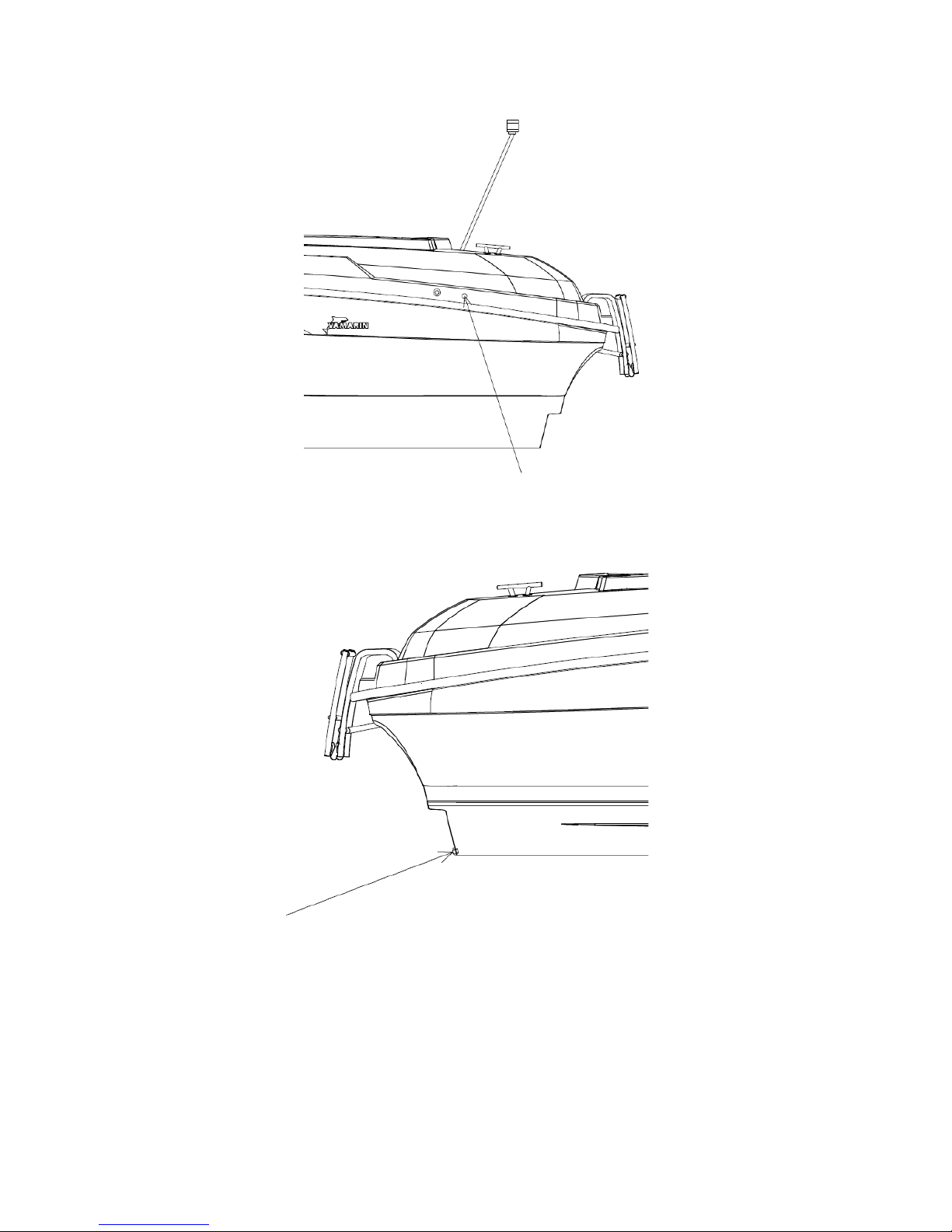

5.6.1 Through fittings in the hull and deck 18
5.6.2 tability and buoyancy 21
5.7 Preventing fires and explosion hazards 21
5.7.1 Refuelling 21
5.7.2 Fire protection 21
5.8 Main power switch and fuses 23
5.9 Operation 24
5.9.1 Controls 24
5.9.2 Emergency switch 24
5.9.3 Gearshift and throttle 25
5.9.4 Adjusting the trim angle 25
5.9.5 tarting the engine 26
5.9.6 Driving 26
5.9.7 Approaching and leaving the dock 27
5.9.8 Using the canopy 28
5.9.9 Windscreen door 29
5.9.10 Teak composite in the bow deck 29
5.9.11 Fresh water system 29
5.9.12 Driver and co-driver seats 31
5.10 Proper use – other recommendations and guidelines 31
5.10.1 Man overboard 31
5.10.2 ecuring loose equipment 32
5.10.3 Respect for the environment 32
5.10.4 Anchoring and mooring the boat 32
5.10.5 Towing 33

Yamarin 63 Hard Top 4 (47)
5.10.6 Trailer transport 34
5.10.7 Docking 35
6 ervicing and maintenance 36
6.1 Washing and waxing the boat 37
6.2 Care instructions for seat cushions 37
6.3 Care instructions for the canopy 38
6.4 Care instructions for the windscreen 38
6.5 Care instructions for the stainless steel components 38
6.6 Care instructions for the remote control 39
6.7 Care instructions for the steering system 39
6.8 Care instructions for electrical components 39
6.9 Minor superficial repairs 39
7 Winter storage 40
7.1 Measures before winter storage 40
7.2 Measures before launching the boat 41
8 Lay-out 42
8.1 General lay-out 42
8.2 Fuel system 43
8.3 teering system 44
8.4 Electrical system 44
8.5 Wiring diagram 45

Yamarin 63 Hard Top 5 (47)
BEFORE YOU ET OFF
Familiarise yourself with this owner’s manual.
Always check at least the following before leaving:
−
−−
− Weather conditions and forecast
Take the wind, waves and visibility into account. Are the design category, size and
equipment of your boat, as well as the skills of the skipper and crew, adequate for the
waters you are headed for? Hull windows and hatches must be battened down during
high wind and rough seas to prevent water incursion.
−
−−
− Loadin and stability
Do not overload the craft, and distribute loads appropriately. Heavy items are to be
placed in the storage compartments under the aft seat. Also note that the boat is less
stable if people stand up when on board.
−
−−
− Passen ers
Ensure that there are personal flotation devices or lifejackets for all people on board.
Agree on crew tasks before setting off.
−
−−
− Fuel and fuel system
Make sure that the boat has enough fuel, including a 20% reserve for heavy weather or
other unforeseen eventualities.
−
−−
− En ine and manoeuvrin equipment
Check the function and condition of steering and remote control, and carry out routine
checks according to the engine manual.
−
−−
− Seaworthiness of the boat
Check the boat’s seaworthiness: no fuel or water leaks, safety equipment available on
board, etc. Check that there is no water in the bilge.
−
−−
− Equipment stowa e
Check that all onboard items are positioned so that they will stay in place even in rough
seas and high winds. Please note that the seat cushions may fly overboard if they are not
fixed properly with press studs.
−
−−
− Nautical charts
Unless you are navigating in completely familiar waters, ensure you have nautical charts
on board that cover a large enough area! If your boat is equipped with a chart plotter,
learn to use it before setting off. Ensure that the plotter charts are of the latest edition.
−
−−
− Leavin the berth
Agree with the crew who will release each mooring line, etc. Be careful not to let
mooring lines or the anchoring line become fouled in the propeller during manoeuvring.
−
−−
− Obli atory equipment
What is considered obligatory equipment varies between different countries. Find out
what is required for your boat.
You will find additional instructions concernin the en ine in the separate en ine manual.

Yamarin 63 Hard Top 6 (47)
1General
The owner’s manual will help you familiarise yourself with the properties and features of
your new boat and with its care and maintenance. eparate manuals for installed equipment
are attached and are referred to in many sections of the owner’s manual. You can
supplement this owner’s manual by adding the manuals of devices that are installed
afterwards. There is also space for your own notes at the end of the manual.
The craft has a running serial number, a CIN code (Craft Identification Number). The CIN
code can be found on the starboard side of the transom just below the bathing platform. We
recommend that you note down your CIN-code in the appropriate section of the declaration
of conformity contained in this manual. When contacting the dealer, please provide the CIN
code and the type of craft. This helps in delivering the correct spare parts.
1.1 DECLARATION OF CONFORMITY

Yamarin 63 Hard Top 7 (47)
DECLARATION OF CONFORMITY
Recreational Craft Directives 94/25/EC and 2003/44/EC
Manufacturer: Fenix Marin Oy
Module used: B (EC Type Examination)
-----------------------------------------------------------------------------------------------------------------
THIS DECLARATION IS PREPARED BY
Marketer: Konekesko Oy Marine
Address: Vanha Porvoontie 245
Postal code: 01380 City/town: Vantaa
Country: FIN Finland
----------------------------------------------------------------------------------------------------------------
NOTIFIED BODY
Name: VTT Identification number: 0537
Address: PL1000
Postal code: 02044 VTT City/town: Espoo
Country: FIN Finland
EC Type Examination certificate: VTT-C-11305-10-vene-003-15
-----------------------------------------------------------------------------------------------------------------
DESCRIPTION OF THE RECREATIONAL CRAFT
Hull identification number (CIN):
Brand name of the recreational craft: Yamarin
Model or number: 63 Hard Top
Desi n cate ory: C
Boat type*: 03
Hull type*: 01
Deck*: 02
Construction material*: 02
Propulsion*: 02
En ine type*: 01
Maximum permitted en ine power (kW): 111
Len th and width of hull (m): 6.25 / 2.30
Drau ht (m): approximately 0.4
* Please refer to codes on next page
I declare under my own and sole responsibility that the recreational craft mentioned above complies with all
applicable essential requirements as specified on the following page.
Peter Krusber
Product Development and Production Mana er, Konekesko Oy Marine
06 Feb 2015
-

Yamarin 63 Hard Top 8 (47)
Boat type:
Deck:
01 sailboat
01 decked
02
inflatable
02 partly decked
03 other: motor boat/190>
03 open
Hull type:
Propulsion:
01 monohull
01 sails
02 multihull
02 petrol engine
03 other:
03 diesel engine
04 electrical motor
05 oars
06 other:
Construction material:
En ine type:
01 aluminium, aluminium alloys
01 outboard
02 plastic, fibre reinforced plastic
02 inboard
03 steel, steel alloys
03 z or stern drive
04 wood
04 other:
05 other:

Yamarin 63 Hard Top 9 (47)
General requirements tandard list
Basic information EN I O 8666:2002
A2.1 Vessel identification I O 10087:1996 / A1:2000
A2.2 Builder’s plate RCD annex I, 2.2
A2.5 Owner’s manual EN I O 10240:2004
Arran ements and equipment
A2.3 Protection from falling overboard EN I O 15085:2003
A3.7 torage of life rafts R G Guidelines
A3.8 Exit
A3.9 Anchoring, mooring and towing EN I O 15084:2003
A5.7 Navigation lights, shapes and sound
signals
1972 COLREG
A5.8 Discharge prevention
Installation requirements
A5.1 Engines and engine spaces
A5.2 Fuel system EN I O 10088:2001, EN I O 11105:1997
A5.3 Electrical system EN I O 10133:2000, I O 8846:1990
A5.4 teering system EN I O 10592:1994 / A1:2000
A5.5 Gas system
A5.6 Fire protection EN I O 9094-1:2003
Dimensions
A3.1 tructure R G Guidelines, NB -VTT Extended rule
Hydrostatics
A3.2 tability and freeboard EN I O 12217-3:2002 + A1:2009
A3.3 Carrying and floatation capacity EN I O 12217-3:2002 + A1:2009
A3.6 Manufacturer’s recommendation for
the maximum load
EN I O 14946:2001 / AC 2005
A3.4 Openings in hull, deck and
superstructure
EN I O 9093-1:1997
A3.5 Water incursion EN I O 15083:2003
Handlin characteristics
A4 Handling characteristics EN I O 11592:2001, EN I O 8665:2006
A2.4 Visibility from the principal steering
station
R G Guidelines, EN I O 11591:2000

Yamarin 63 Hard Top 10 (47)
2Definitions
The warnings and cautions in this manual are defined as follows:
DANGER Denotes an extreme hazard that will result in a high probability of death
or permanent injury if proper precautions are not taken.
WARNING Denotes a hazard that can result in injury or death if proper precautions
are not taken.
NOTE Denotes a reminder of safe practices or directs attention to unsafe
practices which could result in personal injury or damage to the craft or
components or the environment.
I system units are used in this manual. In some cases, other units have been added in
brackets. An exception is wind speed, for which the Beaufort scale is used in the
Recreational Craft Directive.
3Warranty
The boat and its factory-installed equipment have a two-year warranty, starting on the first
day of use. Please contact your dealer regarding any potential warranty issues. Please
remember to provide the CIN code. If possible, please provide a digital photograph of the
subject of your claim. This usually speeds up the claims process.
4Before use
4.1 Registration
Every boat in Finland of more than 5.5 m in length or with an engine with a rated output of
more than 20 hp (15 kW) must be entered in the National Boat Register. Detailed
instructions on registration are available from the Finnish Transport afety Agency, Trafi
(www.trafi.fi).
In order to register a motor-powered vessel, the user must be at least 15 years of age.
4.2 Insurance
Boat insurance can compensate damage occurring on water or during transport and lifting.
Check who has insurance liability each time when having the boat lifted. Insurance also has
an indirect effect on safety at sea: In the event of a serious accident or damage, you must,
above all, concentrate on saving people. Insurance companies will be able to give more

Yamarin 63 Hard Top 11 (47)
information about different insurance alternatives. Check who has insurance liability each
time when having the boat lifted or transported!
4.3 Training
No one is a born sailor. There is plenty of boating literature available. Navigation courses are
arranged by local yacht clubs or national boating associations where you can gain basic skills.
However, please remember that you only become confident in boat handling, navigation,
docking and anchoring after long practical experience.

Yamarin 63 Hard Top 12 (47)
5Characteristics and use of your boat
5.1 General
This user manual is not intended to be a complete service or repair manual; it simply guides
the user on how to use the boat in the proper manner.
5.2 Basic information
Recreational crafts can be constructed according to 4 categories (A, B, C and D)
under the Recreational Craft Directive 94/25/EC. This boat has been
constructed according to design category C, which means the following:
The boat is built for conditions where the wind reaches a maximum of 6
Beaufort (approximately 14 m/s) and for corresponding sea conditions
(significant wave height no more than 2 m). uch conditions may be
encountered on exposed inland waters, in estuaries, and in coastal waters in
moderate weather conditions.
ignificant wave height is the mean height of the highest third of the waves,
which approximately corresponds to the wave height as estimated by an
experienced observer. Individual waves may reach up to twice this height.
If the significant wave height is 2.0 m, the mean height of all waves is roughly
1.2 m.
Maximum recommended load: ee technical specifications
ee also section 5.4 ‘Loading’.
Main dimensions and capacities: ee technical specifications
Craft length, width, draught, total weight, etc., and tank capacities are shown in
the technical specifications.
Builder’s plate:
Part of the aforementioned information is given on the builder’s plate, which is
affixed next to the remote control. upplementary information is provided in
the appropriate sections of this manual.

Yamarin 63 Hard Top 13 (47)
Model YAMARIN 63 Hard Top
Design category C
Overall length (swim
ladder not included)
6.25 m
Width 2.30 m
Weight without engine,
fluids and equipment
Approximately 950 kg
Weight on trailer with
largest recommended
engine
Approximately 1,283 kg
Includes the boat (approximately 950 kg), a Yamaha F150 hp
engine (223 kg) and an estimate for the weight of fuels, battery
and equipment (110 kg).
NOTE! This is not the maximum total weight of fuels, fluids,
battery and equipment.
Weight on trailer with
smallest recommended
engine
Approximately 1,233 kg
Includes the boat (approximately 950 kg), a Yamaha F115 hp
engine (173 kg) and an estimate for the weight of fuels, battery
and equipment (110 kg).
NOTE! This is not the maximum total weight of fuels, fluids,
battery and equipment.
Maximum weight of load
/ maximum number of
passengers
627 kg
6 persons (450 kg)
Maximum load includes 450 kg / 6 persons (75 kg each) + personal equipment 25 kg +
fuel 80 kg + fresh water 32 kg + basic equipment 15 kg + life raft
25 kg
Maximum load on
builder’s plate (CE sign)
515 kg
Includes passengers 6 x 75 kg = 450 kg + basic equipment 15 kg
+ personal equipment 25 kg + life raft 25 kg
Weight at full load 1,777 kg
Includes boat 950 kg + engine 235 kg + battery 20 kg + fuel 80 kg
+ fresh water 32 kg + basic equipment 10 kg + persons 450 kg.
Maximum engine power 111 kW / 150 hp
Weight of largest
recommended engine
235 kg
Fuel tank capacity 107 litres
Fresh water tank capacity 32 litres
Maximum draught at full
load, engine up
Approximately 0.4 m
Maximum height from
water line at light load
Approximately 1.5 m
Construction material Reinforced plastic
Colour codes: RAL 9016
Remote control cables 12 feet / 3.6 m
teering cables 4.5 m
Maximum speed at boat
test
Approximately 44 knots

Yamarin 63 Hard Top 14 (47)

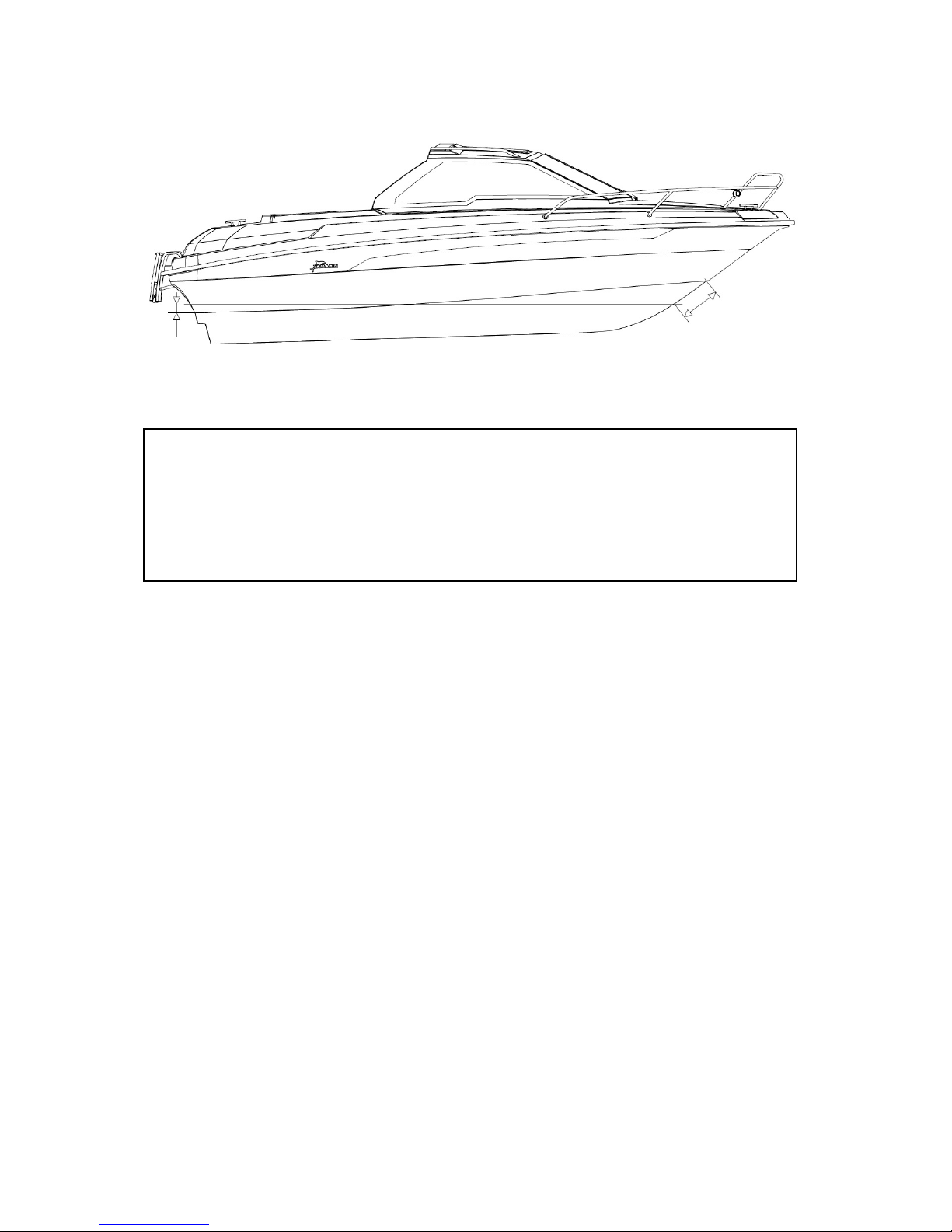

Image: Boat’s water line.
Water line:
-at stern
-at bow
Yamaha F115 / F130: 90 mm up from chine
Yamaha F150: 100 mm up from chine
340 mm down from chine along the bow
NOTE! Water line dimensions represent the upper limit for antifouling
paint, not the actual waterline.

Yamarin 63 Hard Top 15 (47)
5.3 Maximum recommended number of passengers:
The maximum recommended number of passengers on board this boat is 6 persons.
WARNING! Do not exceed the maximum recommended number of
passengers. Regardless of the number of passengers, the total
weight of people and equipment must never exceed the
maximum recommended load (please refer to ‘Loading’). All
passengers must remain seated during travel.

Yamarin 63 Hard Top 16 (47)
Image: eats on the boat.
NOTE! If you load the boat from stern to bow, you will have better fuel
economy.

Yamarin 63 Hard Top 17 (47)
5.4 Loading
The boat’s maximum permitted load is 627 kg. This load includes the following weights:
a) the total weight of passengers, 450 kg (the weight of an adult is assumed to be 75 kg
and that of a child 37.5 kg)
b) basic equipment, 15 kg, and life raft, 25 kg
c) liquids (fresh water, fuel, etc.) in fixed tanks, 112 kg
d) personal equipment (e.g. recreational and camping equipment), 25 kg
NOTE! The maximum permitted load only includes the weights
mentioned above.
WARNING! When loadin the craft, never exceed the maximum
recommended load. Always load the craft carefully and distribute
loads appropriately so that the boat is on an even keel. Heavy
equipment should usually be placed in the storage compartment
under the aft seat. Always avoid placing heavy items high up.
5.5 Engine and propeller
The maximum recommended engine power for the boat is 150 hp (111 kW). Do not use the
boat with an engine that has an output higher than the kW limit given on the CE plate. Using
a more powerful engine than specified on the CE plate will void the boat’s warranty. Follow
the dealer’s instructions when choosing the propeller for your craft.
Yamaha F115 13 x 19" kss 688
Yamaha F150 13¾ x 21” Reliance M D

Yamarin 63 Hard Top 18 (47)
5.6 Prevention of water incursion and stability
5.6.1 Through fittings in the hull and deck
The boat is equipped with an electric bilge pump.
The switch of the bilge pump is dual-action:
-automatic function (always on)
-manual function (when the switch is pressed).
When the bilge pump is running, the switch is lit.

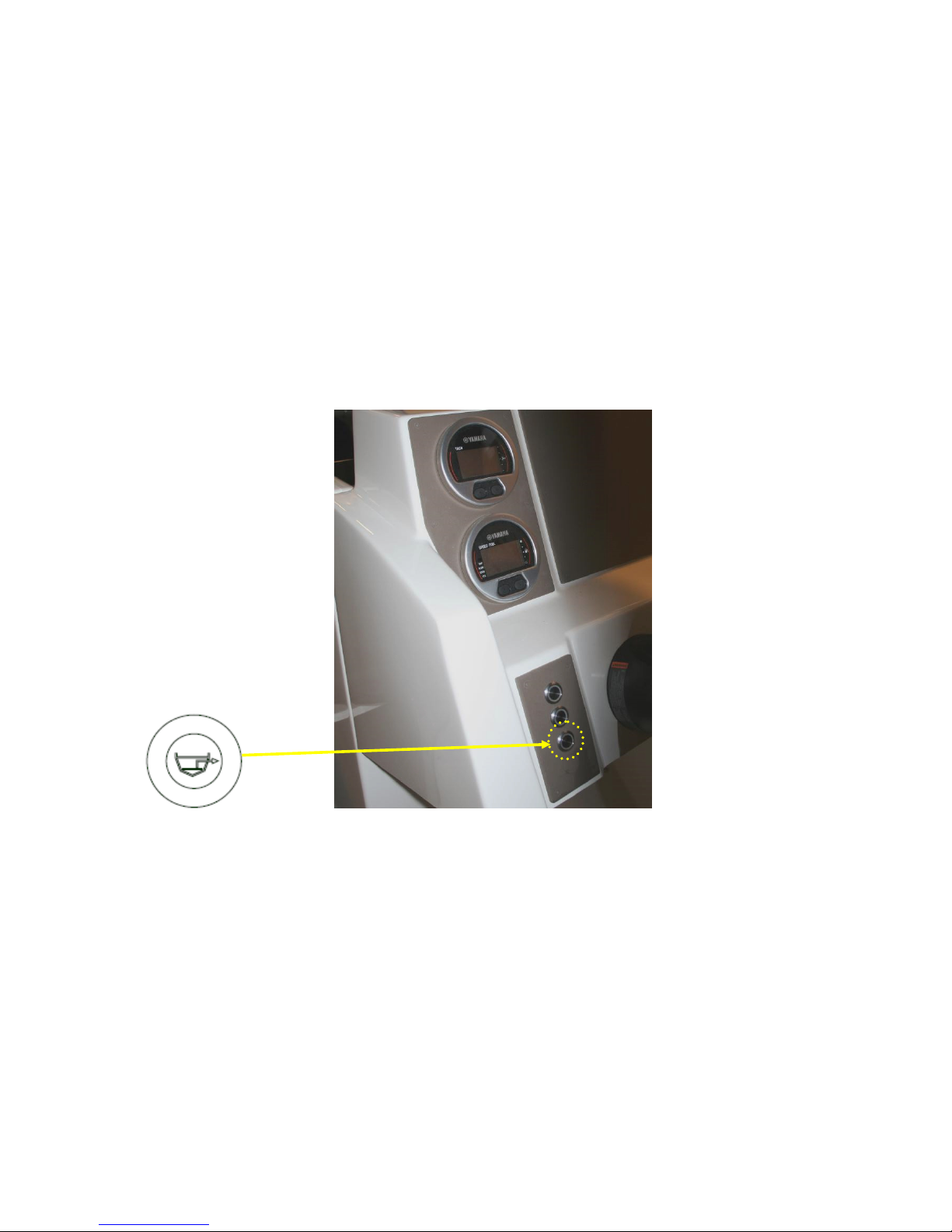

Image: Bilge pump switch.

Yamarin 63 Hard Top 19 (47)
Image: Bilge pump bushing.
Image: Transom/bilge compartment drain plug.
NOTE! It the light is lit, immediately check the boat’s bilge and find out
the reason for the leakage. Take immediate corrective action.

Yamarin 63 Hard Top 20 (47)
The owner of the boat is responsible for ensuring that there is at least one bailer or bucket
on the boat and that it has been secured.
NOTE! There is always some condensed water in the bilge. The hull
bushings may also allow water to seep through, particularly as the
boat ages. Have any leaks repaired at an authorised repair shop.
NOTE! Regularly check that there is no litter in the bilge pump.
The electrical bilge pump can be checked by removing the tread
plate in front of the aft seat. The tread plate is fixed by screws.
WARNING! The boat’s handling properties may become extremely dangerous
if there is water in the bilge.
WARNING! In rough weather, hatches and drawers should be kept shut to
prevent them from filling with water.
