YAMARIN Cross 57 Bow Rider User manual

Yamarin Cross 57 Bow Rider
Owner’s manual

Yamarin Cross 57 Bow Rider 2 (51)
FOREWORD
Congratulations on choosing a Yamarin Cross boat!
This manual will familiarise you with the features of your new boat and help with its care
and maintenance. It has been written to help you learn to handle your boat safely and avoid
any problems. Make sure that you have received manuals for all equipment fitted on your
boat. upplement this manual with the specifications and manuals of equipment you
purchase later for your boat. pace has been left for your own notes at the end of the
manual. Please read this manual carefully and familiarise yourself with the craft before using
it.
If this is your first craft, or you are changing to a type of craft you are not familiar with,
please ensure that you obtain sufficient handling and operating experience before ‘assuming
command’ of the craft. This is highly important for your own comfort and safety. Your dealer
or national sailing association or yacht club will be happy to advise you of local boating
schools or competent instructors.
This owner’s manual is not a detailed maintenance or troubleshooting guide. In case of
difficulty please contact the dealer. Always use qualified and competent people for the
maintenance, repair and modification of the boat. Modifications that may affect the safety
characteristics of the craft must be assessed, executed and documented by competent
people. The manufacturer is not responsible for modifications they have not approved.
Always keep your boat in a good condition and be aware that the boat requires maintenance
and servicing. Any craft, no matter how strong it may be, can be severely damaged if not
used properly. Always adjust the speed and direction of the craft to prevailing weather
conditions.
We wish you enjoyable and relaxing imes on board your Yamarin Cross boa !
Konekesko Marine
PO Box 145
FI-01301 VANTAA, FINLAND
Tel. [phone]
www.yamarin.com
Please keep his manual in a secure place, and hand i over o he new owner if you sell
he craf .

Yamarin Cross 57 Bow Rider 3 (51)
Table of contents
1 General 6
1.1 Declaration of conformity 6
2 Definitions 10
3 Warranty 10
4 Before use 10
4.1 Registration 10
4.2 Insurance 10
4.3 Training 11
5 Characteristics and use of your boat 12
5.1 General 12
5.2 Basic data 12
5.3 Maximum recommended number of passengers 15
5.4 Loading 18
5.5 Engine and propeller 18
5.6 Prevention of water incursion and stability 18
5.6.1 Hull and deck through fittings and closing valves 18
5.6.2 tability and buoyancy 20
5.7 Preventing fires and explosion hazards 20
5.7.1 Refuelling 20
5.7.2 Fire protection 21
5.8 Main power switch and fuses 23
5.9 Operation 24
5.9.1 Controls 24
5.9.2 Emergency switch 24
5.9.3 Gearshift and throttle 25
5.9.4 Adjusting of trim angle 25
5.9.5 tarting the engine 27
5.9.6 Driving 27
5.9.7 Approaching and leaving the dock 28
5.9.8 Using the canopy 29
5.9.9 Doors between the windshield and the control consoles 29
5.10 Proper use – other recommendations and guidelines 30
5.10.1 Man overboard 30
5.10.2 ecuring loose equipment 30
5.10.3 Respect for the environment 30
5.10.4 Anchoring and mooring the boat 31
5.10.5 Towing 31
5.10.6 Trailer transport 32
5.10.7 Docking 33

Yamarin Cross 57 Bow Rider 4 (51)
6 ervicing and maintenance 34
6.1 Washing and waxing the boat 36
6.2 Care instructions for seat cushions 37
6.3 Care instructions for the canopy (optional accessory) 38
6.4 Care instructions for the windshield 38
6.5 Care instructions for the stainless steel components 38
6.6 Care instructions for the remote control 39
6.7 Care instructions for the steering system 39
6.8 Care instructions for electrical components 39
6.9 Minor superficial repairs 39
7 Winter storage 40
7.1 Measures before winter storage 40
7.2 Measures before launching the boat 41
8 Lay-out 42
8.1 General lay-out 42
8.2 Fuel system 44
8.3 teering system 45
8.4 Electrical system 45
8.5 Wiring diagram 46

Yamarin Cross 57 Bow Rider 5 (51)
BEFORE YOU ET OFF
Familiarise yourself with this owner’s manual.
Always check at least the following items before leaving:
−
−−
− Wea her condi ions and forecas
Take the wind, waves and visibility into account. Are the design category, size and
equipment of your boat, as well as the skills of the skipper and crew, adequate for the
waters you are headed for? Hull windows and hatches must be battened down during
high wind and rough seas to prevent water incursion.
−
−−
− Loading and s abili y
Do not overload the craft, and distribute loads appropriately. Heavy items are to be
placed in the storage compartments under the aft bench. Also note that the boat is less
stable if people stand up when on board.
−
−−
− Passengers
Ensure that there are personal flotation devices or lifejackets for all people on board.
Agree on crew tasks before setting off.
−
−−
− Fuel and fuel sys em
Make sure that the boat has enough fuel, including a 20% reserve for heavy weather or
other unforeseen eventualities.
−
−−
− Engine and manoeuvring equipmen
Check the function and condition of steering and remote control, and carry out routine
checks according to the engine manual.
−
−−
− Seawor hiness of he boa
Check the boat’s seaworthiness: no fuel or water leaks, safety equipment available on
board, etc. Check that there is no water in the bilge.
−
−−
− Equipmen s owage
Check that all onboard items are positioned so that they will stay in place even in rough
seas and high winds. Please note that the seat cushions may fly overboard if they are not
fixed properly with press studs.
−
−−
− Nau ical char s
Unless you are navigating in completely familiar waters, ensure you have nautical charts
on board that cover a large enough area! If your boat is equipped with a chart plotter,
learn to use it before setting off. Ensure that the plotter charts are of the latest edition.
−
−−
− Leaving he ber h
Agree with the crew who will release each mooring line, etc. Be careful not to let
mooring lines or the anchoring line become fouled in the propeller during manoeuvring.
−
−−
− Obliga ory equipmen
What is considered obligatory equipment varies between different countries. Find out
what is required for your boat.
You will find addi ional ins ruc ions concerning he engine in he separa e engine manual.

Yamarin Cross 57 Bow Rider 6 (51)
1General
The owner’s manual will help you familiarise yourself with the properties and features of
your new boat and with its care and maintenance. eparate manuals for installed equipment
are attached and are referred to in many sections of the owner’s manual. You can
supplement this owner’s manual by adding the manuals of devices which are installed
afterwards. There is also space for your own notes at the end of the manual.

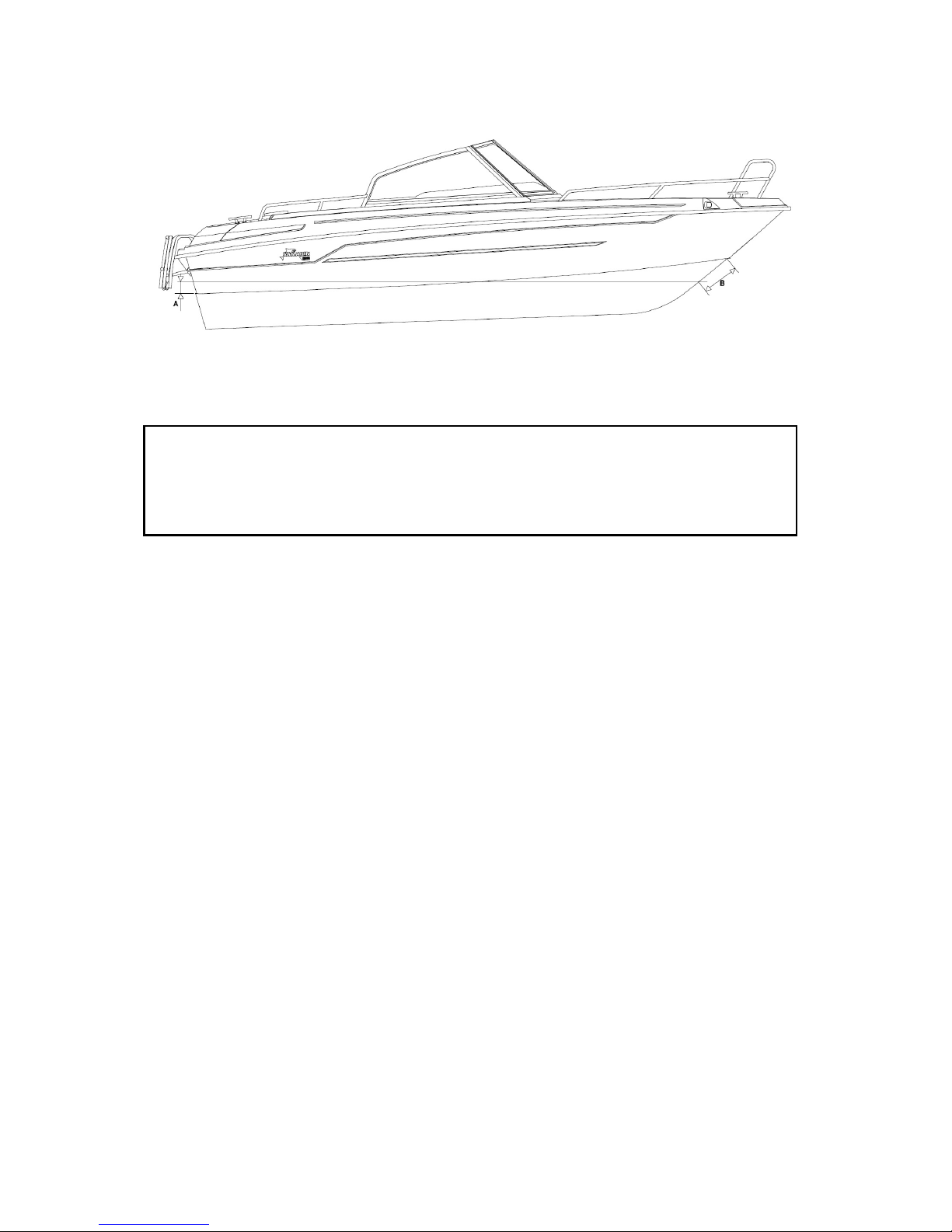

The craft has a running serial number, a CIN code (Craft Identification Number). The CIN
code can be found on the starboard side of the transom just below the bathing platform. We
recommend that you write down the CIN code in the declaration of conformity in this book.
When contacting the dealer, please provide the CIN code and the type of craft. This helps in
delivering the correct spare parts.
1.1 Declaration of conformity

Yamarin Cross 57 Bow Rider 7 (51)
DECLARATION OF CONFORMITY
Recrea ional Craf Direc ives 94/25/EC and 2003/44/EC
Manufac urer: Fenix Marin Oy
Module used: B (EC Type Examination)
-----------------------------------------------------------------------------------------------------------------
THIS DECLARATION IS PREPARED BY
Marke er: Konekesko Oy Marine
Address: Vanha Porvoontie 245
Pos al code: 01300 Ci y/ own: Vantaa
Coun ry: FIN Finland
----------------------------------------------------------------------------------------------------------------
NOTIFIED BODY
Name: VTT Iden ifica ion number: 0537
Address: PO Box 1000
Pos al code: 02044 VTT Ci y/ own: Espoo
Coun ry: FIN Finland
EC Type Examina ion cer ifica e: No. VTT-C-10546-10-vene-001-13
--------------------------------------------------------------------------------------------------------------
DESCRIPTION OF THE RECREATIONAL CRAFT
Hull iden ifica ion number (CIN):
Brand name of he recrea ional craf : Yamarin Cross
Model or number: 57 Bow Rider
Design ca egory: C
Boa ype*: 03
Hull ype*: 01
Deck*: 03
Cons ruc ion ma erial*: 01 / 02
Propulsion*: 02
Engine ype*: 01
Maximum permi ed engine power (kW): 85
Leng h and beam of hull (m): 5,66 / 2,17
Draugh (m): c. 0.4
* Please refer to codes on next page
I declare under my own and sole responsibility that the recreational craft mentioned above complies with all
applicable essential requirements as specified on the following page.
Pe er Krusberg
Produc Developmen and Produc ion Manager, Konekesko Oy Marine
19.12.2013
-

Yamarin Cross 57 Bow Rider 8 (51)
Boa ype:
Deck:
01 sailboat
01 decked
02 inflatable
02 partly decked
03 other: motor boat/190>
03 open
Hull ype:
Propulsion:
01 monohull
01 sails
02 multihull
02 petrol engine
03 other:
03 diesel engine
04 electrical motor
05 oars
06 other:
Cons ruc ion ma erial:
Engine ype:
01 aluminium, aluminium alloys
01 outboard
02 plastic, fibre reinforced plastic
02 inboard
03 steel, steel alloys
03 z or stern drive
04 wood
04 other:
05 other:

Yamarin Cross 57 Bow Rider 9 (51)
Essential safety requirements in the Recreational Craft
Directive, by inspection group
Inspection standards used
General requirements
Basic information EN ISO 8666:2002
A2.1 Hull Identification Number – CIN ISO 10087:2006
A2.2 Builder’s plate RCD annex I, 2.2
A2.5 Owner's manual EN ISO 10240:2004
Arrangements and equipment
A2.3 Protection from falling overboard EN ISO 15085:2003/A1:2009
A3.7 Life raft stowage
A3.8 Evacuation
A3.9 Anchoring, mooring and towing EN ISO 15084:2003
A5.7 Navigation lights 1972
COLREG
A5.8 Discharge prevention
Installation requirements
A5.1 Engines and engine spaces
A5.2 Fuel system EN ISO 10088:2009
A5.3 Electrical system EN ISO 10133:2012,
EN ISO 28846:1993/A1:2000
A5.4 Steering system EN ISO 10592:1995/A1:2000
A5.5 Gas system
A5.6 Fire protection EN ISO 9094-1:2003
Dimensions
A3.1 Structure RSG Guidelines, ISO 12215-5:2008
Hydrostatics
A3.2 Stability and freeboard EN ISO 12217-3:2013
A3.3 Buoyancy and floating EN ISO 12217-3:2013
A3.6 Maximum permitted load EN ISO 14946:2001/AC 2005
A3.4 Openings in hull, deck and superstructure EN ISO 9093-1:1997
A3.5 Water incursion EN ISO 15083:2003
Handling characteristics
A4 Handling characteristics EN ISO 11592:2001,
EN ISO 8665:2006
A2.4 Visibility from the main steering position EN ISO 11591:2011

Yamarin Cross 57 Bow Rider 10 (51)
2Defini ions
The warnings and cautions in this manual are defined as follows:
DANGER Denotes an extreme intrinsic hazard that will result in a high probability
of death or permanent injury if proper precautions are not taken.
WARNING Denotes a hazard which can result in injury or death if proper
precautions are not taken.
NOTE Denotes a reminder of safe practices or directs attention to unsafe
practices which could result in personal injury or damage to the craft or
components or the environment.
I system units are used in this manual. In some cases, other units have been added in
brackets. An exception is wind speed, for which the Beaufort scale is used in the
Recreational Craft Directive.
3Warran y
The boat and its factory-installed equipment have a two-year warranty, starting on the first
day of use. Please contact your dealer regarding any potential warranty issues. Please
remember to provide the CIN code. If possible, please provide a digital photograph of the
subject of your claim. This usually speeds up the claims process.
4Before use
4.1 Registration
Registration regulations vary between different countries. Find out what is required in
relation to your own boat.
4.2 Insurance
Boat insurance can compensate damage occurring on water or during transport and lifting.
Check who has insurance liability each time when having the boat lifted. Insurance also has
an indirect effect on safety at sea: In the event of a serious accident or damage, you must,
above all, concentrate on saving people. Insurance companies will be able to give more
information about different insurance alternatives. Check who has insurance liability each
time when having the boat lifted or transported!

Yamarin Cross 57 Bow Rider 11 (51)
4.3 Training
No one is a born sailor. There is plenty of boating literature available. Navigation courses are
arranged by local yacht clubs or national boating associations where you can gain basic skills.
However, please remember that you only become confident in boat handling, navigation,
docking and anchoring after long practical experience.

Yamarin Cross 57 Bow Rider 12 (51)
5Charac eris ics and use of your boa
5.1 General
The owner’s manual is not meant to be a complete service or repair manual; it simply guides
the user to use his/her boat in a proper way.
5.2 Basic data
Recreational crafts can be constructed according to 4 categories (A, B, C and D)
under the Recreational Craft Directive 94/25/EC. This boat has been
constructed according to design category C , which means the following:
The boat is built for conditions where the wind reaches a maximum of 6
Beaufort (approx. 14 m/s) and for corresponding sea conditions (significant
wave height no more than 2 m). uch conditions may be encountered on
exposed inland waters, in estuaries, and in coastal waters in moderate weather
conditions.
ignificant wave height is the mean height of the highest third of the waves,
which approximately corresponds to the wave height as estimated by an
experienced observer. Individual waves may reach up to twice this height. If
the significant wave height is 2.0 m, the mean height of all waves is roughly 1.2
m.
Maximum recommended load: ee technical specifications
ee also section 5.4 ‘Loading’.
Main dimensions and capaci ies: ee technical specifications
Craft length, width, draught, total weight, etc., and tank capacities are shown in
the technical specifications.
Builder's pla e:
Part of the aforementioned information is given on the builder’s plate, which is
affixed next to the remote control. upplementary information is provided in
the appropriate sections of this manual.

Yamarin Cross 57 Bow Rider 13 (51)
Model YAMARIN CRO 57 Bow Rider
Design category C
Overall length (swim
ladder not included)
5.66 m
Width 2.17 m
Weight without engine,
fluids and equipment
c. 680 kg
Weight on trailer with
largest recommended
engine
c. 996 kg
Includes the boat (c. 680 kg), a Yamaha F115 hp engine (186 kg)
and an estimate for the weight of fluids, battery and equipment
(130 kg). NOTE! This is not the maximum total weight of fluids,
battery and equipment.
Weight on trailer with
smallest recommended
engine
c. 980 kg
Includes the boat (c. 680 kg), a Yamaha F80 hp engine (170 kg)
and an estimate for the weight of fluids, battery and equipment
(130 kg).
NOTE! This is not the maximum total weight of fluids, battery
and equipment.
Maximum weight of load
/ Maximum number of
passengers
530 kg
6 persons (450 kg)
Maximum load includes 450 kg / 6 persons (75 kg each) + fuel 80 kg
Maximum load on
builder’s plate (CE sign)
450 kg
Includes people 6 x 75 kg = 450 kg
Weight at full load 1520 kg
Includes boat 680 kg + engine 260 kg + battery 20 kg + fuel 80 kg
+ equipment 30 kg + persons 450 kg.
Maximum engine power 85 kW / 115 hp
Weight of largest
recommended engine
260 kg
Fuel tank capacity 107 l
Maximum draught at full
load, engine up
c. 0.4 m
Maximum height from
water line at light load
c. 1.3 m
Construction material Deck: Reinforced plastic
Hull: 5083 Aluminium
Colour codes:
-Deck RAL 7046
Remote control cables 11 ft / 3.3 m x 2
Hydraulic hoses for
steering system
15 ft / 4.5 m x 2
Maximum speed at boat
test
c. 38 knots

Yamarin Cross 57 Bow Rider 14 (51)
Image: Boat’s water line.
Water line:
-at stern (A)
-at bow (B)
95 mm up from chine
395 mm down from chine along the bow
NOTE! Water line dimensions represent the upper limit for
antifoulingpaint, not the actual waterline.

Yamarin Cross 57 Bow Rider 15 (51)
5.3 Maximum recommended number of passengers
The maximum recommended number of passengers on board this boat is 6 persons.
WARNING! Do not exceed the maximum recommended number of
passengers. Regardless of the number of passengers, the total
weight of people and equipment must never exceed the
maximum recommended load (please refer to ‘Loading’). All
passengers must remain seated during travel.

Yamarin Cross 57 Bow Rider 16 (51)
Image: eats on the boat.

Yamarin Cross 57 Bow Rider 17 (51)
NOTE! If you load the boat from stern to bow, you will have better fuel
economy.

Yamarin Cross 57 Bow Rider 18 (51)
5.4 Loading
The boat’s maximum permitted load is 530 kg. This load includes the following weights:
a) the total weight of passengers, 450 kg (the default weight of an adult is assumed to
be 75 kg and that of a child 37.5 kg);
b) and fluids (fuel) in fixed tanks, 80 kg.
NOTE! The maximum permitted load only includes the weights
mentioned above.
WARNING! When loading he craf , never exceed he maximum
recommended load. Always load the craft carefully and distribute
loads appropriately so that the boat is on an even keel. Heavy
equipment should usually be placed in the storage compartment
under the aft seat. Always avoid placing heavy items high up.
5.5 Engine and propeller
The maximum recommended engine power for the boat is 115 hp (85 kW). The construction
of the boat is not designed to bear more power than 115 hp. Manoeuvring the boat can be
very dangerous if the boat has an engine more powerful than 115 hp. The warranty is void if
the boat is used with more power than 115 hp. Follow the dealer’s instructions when
choosing the propeller for your craft.
Yamaha F115 13 x 19” kss 688
5.6 Prevention of water incursion and stability
5.6.1 Hull and deck through fittings and closing valves
The boat has a rainwater draining system, which means that rainwater is drained from the
undecked part of the boat when the boat is on the water. The system also functions when
the boat is out of water, provided that the bow is higher than the stern and closing valve is
open.
The rainwater drainage closing valve is located under the middle hatch of the aft seat. This
drain valve is meant to be shut only when at maximum load to prevent potential water
incursion. In o her loading condi ions, he drain valve should remain open o le rainwa er
drain from he boa .

Yamarin Cross 57 Bow Rider 19 (51)
1. Hand-operated bilge pump
2. Rainwater drainage valve
Image: Boat drainage system.
The owner of the boat is responsible for ensuring that there is at least one bailer or bucket
on the boat and that it has been secured.
WARNING! Always keep the drainpipe shut when its inboard end is constantly
below the waterline due to loading. The shut-off flap on the
transom only prevents water from entering the boat when
reversing!
1. hut-off flap
2. Drain plug
3. Rainwater drainage valve
Image: Locations of through fittings and drainage valves.

Yamarin Cross 57 Bow Rider 20 (51)
NOTE! Make sure that water can flow unobstructed through the
drainpipe. Debris such as autumn leaves may obstruct the water
flow, which can cause the boat to fill with water and sink. The
bilge pump system does not work in conditions below 0°C.
NOTE! There is always some condensed water in the bilge. A small
amount of water may also come through the hull through fittings,
especially as the boat ages. Always remember to check the bilge,
via the inspection hatch under the aft seat, before you leave the
boat at quay or buoy and always before setting off. You can
empty out any water through this inspection hatch using a
separate tubular drainage pump (optional accessory). Have any
leaks repaired at an authorised repair shop.
WARNING! The boat’s handling properties may become extremely dangerous
if there is water in the bilge.
WARNING! In rough weather, hatches and drawers should be kept shut to
prevent them filling with water.
5.6.2 tability and buoyancy
Please note that stability is reduced by any weight added high up. Any change in the
distribution of weight on board may significantly affect the stability, trim and performance of
your craft. Please remember that large breaking waves always present a serious danger to
stability.
The amount of water in the bilge must be kept as low as possible.
The boat’s stability may be impaired during towing, or when passenger are lifting heavy
items.
This craft will carry its passengers even when filled with water.
5.7 Preventing fires and explosion hazards
5.7.1 Refuelling
hut off the engine and extinguish any cigarettes before starting to refuel. During refuelling,
do not use switches or appliances that can cause a spark.
Always keep a spare can of fuel on board. The anchor boxes at the stern are especially
suitable for storing the spare canister. There is no risk of vaporised fuel coming into contact
with battery compartments or the electrical system from either of these boxes.
