Yanmar 6LY3 series User manual

Electronic Control System: Technical Manual for 6LY3 Series Engines
Electronic Control System
Technical Manual
for 6LY3 Series Engines
Revision 1.0

ii Electronic Control System: Technical Manual for 6LY3 Series
NOTICE TO INSTALLER
The WARNINGS and CAUTIONS within this manual are used to alert the installer to hazards that exist
concerning a particular service, operation or component. They also may convey special instructions to
reduce the risk of injury during the operation or servicing of the engine.
However, these safety alerts alone cannot eliminate the hazards that they signal. Strict compliance to
these
special instructions when performing installation, operation, and maintenance is the most effective ac-
cident prevention measure along with exercising care and using common sense when performing such
American Boat & Yacht Council (http://www.abycinc.org )
RECREATIONAL CRAFT DIRECTIVE 94/25/EC
This product has been designed to be compliant with the above Directive.
Maximum performance, and compliance with the EMC Directive, can only be ensured
by correct installation. It is strongly recommended that the installation conforms with
the following standards:
APPLICABLE STANDARDS
a) ISO 8846 Small Craft-Electrical Devices
Protection against ignition of surrounding flammable gases.
b) ISO = International Standards Organization
SAFE BOATING STATEMENT
This device meets or exceeds the applicable ABYC, ISO, and USCG safe boating rules,
regulations, standards, and guidelines.
SAFE BOATING ON THE WEB
U.S. Coast Guard www.uscg.mil
U.S. Power Squadron www.usps.org
NMEA 2000® is a regiatered trademark of the National Marine Electronics Association.
The information contained in this manual is believed to be accurate at the time of going to print but no responsibility, direct or consequential, can
be accepted for damage resulting from the use of this information. The manufacturers reserve the right to make changes, without notice, to any of
its products.

Electronic Control System: Technical Manual for 6LY3 Series Engines
Table of Contents
1. Components
2. System Overview
3. i5601E Digital Display
Specifications
Operators Interface
Maintenance Alarm
Main Menu
Change Set Up
4. Control Head
5. i83xx Engine Interface Module
Specifications
Pint-Outs
6. Gauges
i2000
Specifications
Connections
i2200
Specifications
Connections
7. System Default Settings
8. NMEA 2000® Network
9. System Diagrams
Single Engine CE415xx Engine Harness
Single Engine CE425xx Engine Harness
Dual Engine CE415xx Engine Harness
Dual Engine CE425xx Engine Harness
Power Diagram Outline
Power Diagram Single Engine
Power Diagram Dual Engine
10. Transmission Diagrams
Twin Disc
Twin Disc with Trolling
ZF
ZF with Trolling
11. Cable Information
CE415xx
CE405xx
CE404xx
CE425xx
CE42006
CE41906
CE42206
CE41800
CE40300
Rocker Switch Panel
Key Switch Panel
12. Deutsch Connectors
13. Mounting Templates
CH64600
CH67500
4400
5600
Palm Beach
i5601e Front Panel Mount
1st Station Ignition Panel – CP19100
i5601e Rear Panel Mount
1st Station Key Swtich Panel – CE40100
14. Troubleshooting
15. Parts Information

iv Electronic Control System: Technical Manual for 6LY3 Series

Electronic Control System: Technical Manual for 6LY3 Series Engines

vi Electronic Control System: Technical Manual for 6LY3 Series
1
Components

Electronic Control System: Technical Manual for 6LY3 Series Engines
Components
Engine Interface Modules
Dual CANBus Control Head
Digital Engine Displays (i5601E)
First Station Ignition Rocker Panels
Note: Key Switch Panel assemblies are also available.
The pin-outs are the same.
Note: Other style controls are also available.

2 Electronic Control System: Technical Manual for 6LY3 Series
2
System Overview

Electronic Control System: Technical Manual for 6LY3 Series Engines
System Overview
This electronic control system consists of the following equipment:
One Yanmar i5501E Digital Display per engine Shift & Throttle Control Head
Yanmar i5601E Digital Display
The unit displays real-time data as well as warnings or alarms for any engine abnormality. Diagnostic
codes are also displayed for use by Yanmar technicians.
Shift & Throttle Control Head
The Shift and Throttle Control Head selects the gear positions and the throttle settings. The Control
Head has several lights that confirm modes of operation and display warnings if present. Buttons enable

4 Electronic Control System: Technical Manual for 6LY3 Series
3
i5600 Digital Display

Electronic Control System: Technical Manual for 6LY3 Series Engines
Specifications
Display Graphical FSTN
Resolution 160 x 128 pixel
Power Consumption 140mA backlight off, 160mA backlight on at 12 volts DC
Audible Alarm 4KHz Internal sounder
External output Open Collector - 500mA
Communication NMEA 2000®
Operating Temperature -25C to +75C (-13F to 167F)
Storage Temperature -40C to +80C (-40F to +176F)
Protection IP67
Salt Spray IEC60068-2-52: 1996
EMC IEC61000 and EN55022
Case Color Anthracite Grey
Rear Panel Specifications
i5600 Digital Display
Front Rear, with cable CM10504
Start-up Splash Screen

6 Electronic Control System: Technical Manual for 6LY3 Series

Electronic Control System: Technical Manual for 6LY3 Series Engines
MAIN MENU
The Main Menu is the first menu list that occurs after holding the right most button. From this menu the sub
menus are chosen. The listed menus will depend on options selected or available. For instance, the Troll
menu will not display if unavailable or not enabled. Upon entry into the Main Menu, any flashing Notices
will be suppressed until the menu mode is exited.
Down Arrow: moves menu selection down.
Up Arrow: moves menu selection down.
Right Arrow: acts on current menu item
EXIT: Exits Menus and returns to Display Mode
Down Arrow: moves menu selection down.
Up Arrow: moves menu selection down.
Right Arrow: acts on current menu item
EXIT: Moves back to previous menu
ALARMs/DIAGs SCREEN
The ALARMs / DIAGs Screen Menu allows user to go the Alarm or Diag Code Screen. This is very use-
ful in the HOT KEY Mode, as a dedicated hot key is not required to view these screens. User can hold
Rightmost key down go into the menu mode and then via this menu access the desired screen.
Alarms
Accesses the Alarm Summary screen. The menu mode is exited upon going to the screen.
Diag Codes
Accesses the Diag Code Summary screen. The menu mode is exited upon going to the screen

8 Electronic Control System: Technical Manual for 6LY3 Series
The Monitor Settings Menu allows setting of parameters that are specific to the display unit. Some settings such
as Language and Lighting will be communicated via the CANBus to the other like display Units.
The MENU Selection allow a choice of how the keys will function in the normal display mode.
The default mode for the i5601E is Hot Keys locked. That allows use of the keys for all major engine
data. In this mode the keys match the quick reference card that comes with the system.
Display Description Function
POP UP MENUS Sets key functionality
Units Menu Eng units
Language Menu Select one of 8 languages
Tach Range 0-3000 Select Tachometer Scale (Range)
SPEED Adjust speed
Depth Offset Set Hull offset
Default Monitor Set i5501E unit back to default settings
Beeper ON Turns audible sound on and off
About Information about unit
Display choice Function
“POP-UP” Pop-up menus displayed for key choices
“HOT KEYS” Preprogrammed hot key choices only
“HOT KEYS
LOCKED”
Same as above, but right arrow choices on
some screens are removed.
Down Arrow: moves menu selection down.
Up Arrow: moves menu selection down.
Right Arrow: acts on current menu item
BACK: Moves back to previous menu
MONITOR Settings
MENUS
Down Arrow: moves menu selection down.
Up Arrow: moves menu selection down.
Right Arrow: acts on current menu item
BACK: Moves back to previous menu

Electronic Control System: Technical Manual for 6LY3 Series Engines
The items in this menu navigated with the up and down arrow as with all menus. The right arrow will
toggle the value of the setting thru its available choices as defined in the below table.
The Language check box selection menu allows for easy selection of the desired Language. This will
switch displays over to display the appropriate text per the language table selected.
Menu Item Selections
“SPEED” MPH, Km/h, Knots
“DEPTH” Feet, Fathoms, Meters
“TEMP” Fah, Cels
“DISTANCE” Miles, Km, Nm
“WIND” APP, TRUE, VMG,
“WIND” MPH, Knots, m/s,
Beaufort,
“BEARING” MAG, TRUE,
“PRESSURE” psi, kPa, Bar,
“FUEL RATE” Gal/hr, USG/hr, Ltr/hr
Display choice
“ENGLISH”
“FRANCAIS”
“DEUTSCH”
“ITALIANO”
“ESPANOL”
“SVENSKA”
“NORSK”
“NEDERLAND”
Units Menu
Down Arrow: moves menu selection down.
Up Arrow: moves menu selection down.
Right Arrow: acts on current menu item
BACK: Moves back to previous menu
Language Menu

10 Electronic Control System: Technical Manual for 6LY3 Series
Tach Range
Pushing the "Right Arrow" button causes the display value to sequence
through the settings
Display choice
“0-3000”
“0-4000”
“0-5000”
“0-6000”
“0-7000”
Displayed screen shows current depth value and allows Depth Offset to be added
The DEPTH OFFSET is a fixed amount to be added or subtracted from the depth reading. This allows
compensation for keels or depths from the water surface to be displayed. Select a positive number
equal to the vertical distance between the transducer and waterline for depth at the waterline; or select a
negative number equal to the vertical distance between the transducer and keel for depth at the keel. The
current depth as measured by the transducer is listed for comparison to a known depth value.
Display choice Function
“DEPTH OFFSET”
Variable % adjustment factor. 0=no adjustment.
For meters the Range is 32.8 to 32.7m. For feet
Range is -107 to 107.4 Ft.
Depth Offset
The SPEED option changes the speed transducer reading by the percentage set here.
It is also possible to calibrate this option automatically against a GPS speed input if a GPS device is
present. If there is very little tidal flow and the GPS is giving good SOG (Speed Over Ground) data,
simply press the AUTO softkey and the i5501E will automatically calculate the correct percentage value
to ensure that both water speed and ground speed are identical.
Display choice Function
“SPEED” Variable % adjustment factor. 100%=no
adjustment. Incrementally adjust by +/-1%
“SOG” Variable % adjustment factor. 100%=no
adjustment. Incrementally adjust by +/-1%
Speed

Electronic Control System: Technical Manual for 6LY3 Series Engines
WARNING
This setting should be used with caution since all
calibration data and user settings will be lost.
The DEFAULT MONITOR function resets all
settings for the display unit back to a default values.
Press OK! to reset your i5601E or press BACK to
cancel.
The ABOUT screen displays useful information about your i5501E, such as
part number and software version. This information may be needed by Yanmar
Customer Support in the event you contact them.
Beeper
Default Monitor
Display choice Function
“ON” Turns on Audible Beeper
“OFF” Turns off Audible Beeper
About
Upon entry into the User Setttings Menu the software will get data from the network i83xx and CH67
Control Head Units. If necessary the software will try up to 3 times to connect and retrieve data from the
units.
The following status will be displayed:
RETRY: will try to retieve the settings again. This will give the user a chance to
try to fix a problem and then retry again.
OK: to continue without retieving the failed settings. If this is done some menu
items will be missing and others will display "…" for not available data.
BACK: to returns back to the Main Menu
USER Settings
i83xx: “Processing”
“Transfer OK”
“Transfer Failed”, “Is ignition on?”
CH67 “Processing”
“Transfer OK”
“Transfer Failed”, “Connection Problem?”

12 Electronic Control System: Technical Manual for 6LY3 Series

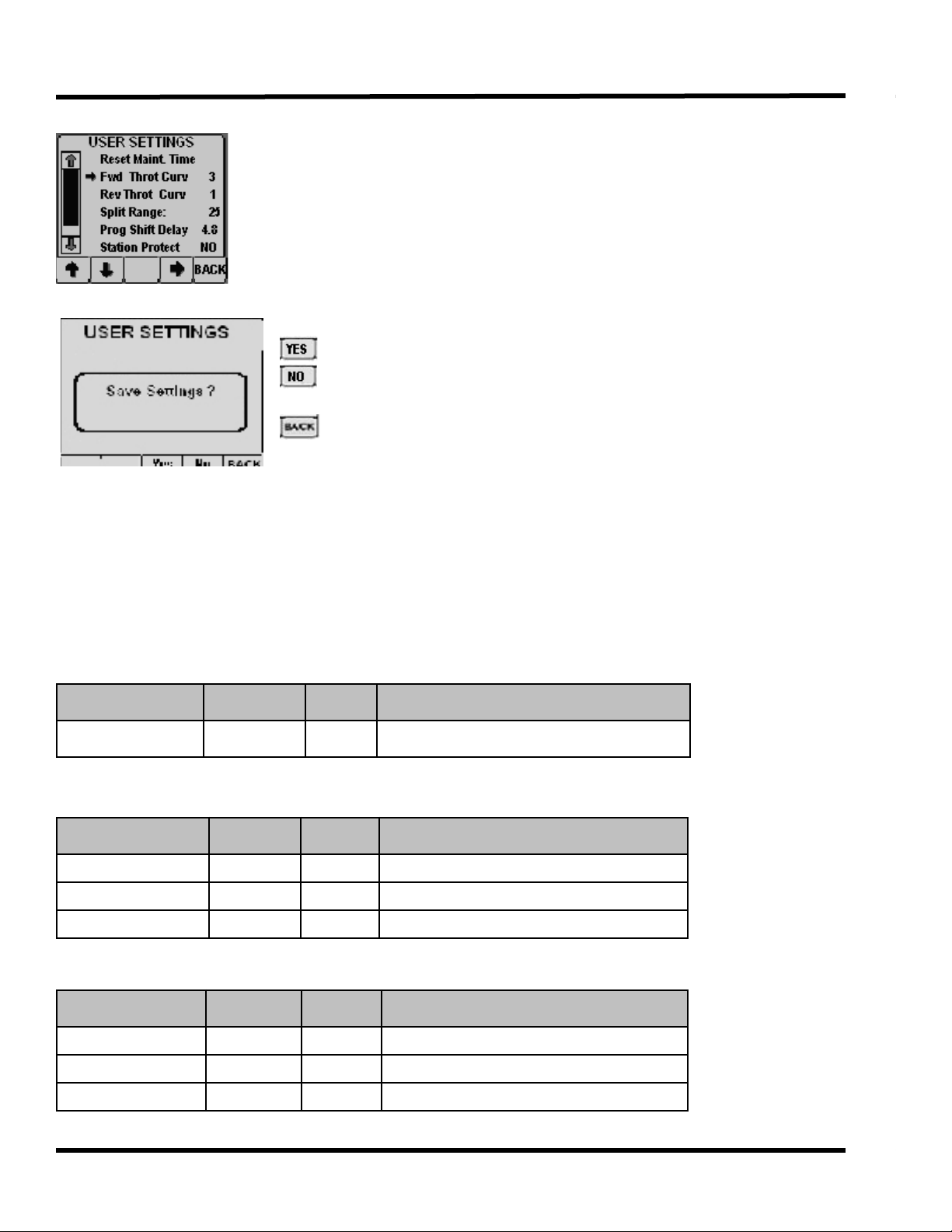

If retieval is successful, the user will be presented the User Settings Menu.
Check, Save Settings
Yes will save settings (see next screen)
No will return back to Main Menu.
All settings will be restored back and changes will be lost.
Back will return back to the User Settings menu
Reset Maint. Time
This selection allows resetting of the maintenance timer.
The "Right Arrow" button is used to reset the I2 Unit’s Maintenance Timer. A message will be sent to the
i83XX unit to cause the reset of the timer.
Docking Mode
Displayed only if the Number of Engines is 3 or more.
Forward Throttle Curve
Reverse Throttle Curve
Menu Item Display
Choice value Action
“Docking Mode” “0” 0 Center follows port
Center follows its side (Quad)
Menu Item Display
choice Function
“Fwd Throt Curv” “1” 0 Forward Throttle Curve 1
thru
“8” 7 Forward Throttle Curve 8
Menu Item Display
choice Value Function
“Rev Throt Curv” “1” 0 Reverse Throttle Curve 1
thru
“8” 7 Reverse Throttle Curve 8

Electronic Control System: Technical Manual for 6LY3 Series Engines
Split Range Percent
This is the percentage of Wide Open Throttle (WOT) that the throttle control lever will apply when fully
forward. For example 25 represents 25% of normal range, so when the lever is fully forward the throttle
will be set to 25% of its normal WOT position.
Proportional Shift Delay
Station Protect
This feature applies to systems with multiple helm stations. It is intended to prohibit an un-authorized
person, like a child from accidentally taking control of the boat. When set for "N" the stations are
selected by pressing the select button with the control lever in neutral. When set to "Y" the sequence
Select, Select, N (Port), Select must be entered in a short time before the station can be selected.
Trolling Settings
When the trolling option is available it may be configured in a variety of ways. The default is set to split
the throttle range between trolling operation and throttle operation with 60 % of the range used to operate
the trolling valve and 40% of the throttle range used to operate the throttle. The default setting also
places a maximum throttle setting of 40% of WOT when the lever is full forward.
Note: The trolling function of the transmission is automatically disabled before any throttle can be
applied.
Insert the diagram on the bottom of page 14 of the LY3 operators manual here
The Troll Settings menu allows setting the trolling parameters and
Calibration of the Trolling valve limits.
Menu Item Display
choice Value Function
“Split Range:” “0” 0 0 %
Thru Increments at 5
“90” 90 90 % (22.5 % range of lever for throttle)
Menu Item Display
choice Value Function
“Prog Shift Dly” “0.0” 0 Delay of 0 seconds
Thru Increments at 1.2 second
“12.0” 10 Delay of 12.0 seconds
Menu Item Display
choice Value Function
“Station Protect:” “N” 0 Protection is off.
“Y” 1 Protection is on.

14 Electronic Control System: Technical Manual for 6LY3 Series
Validation of OptionAvailable
The entry of the Troll Settings is allowed only if the Trolling Option is available in the i83xxx unit. This will be
validated on entry into the menu. If not allowed this warning will be displayed.
Check, Load Settings
Upon entry into the User Setttings Menu the software will get data from the network i83xx and CH67 Control
Head Units. If necessary the software will try up to 3 times to connect and retrieve data from the units.
If retieval is successful, the user will be presented the Troll Settings Menu.
RETRY: will try to retieve the settings again. This will give the user a chance to
try to fix a problem and then retry again.
OK: to continue without retieving the failed settings. If this is done some menu
items will be missing and others will display "…" for not available data.
BACK: to returns back to the Main Menu
i83xx: “Processing”
“Transfer OK”
“Transfer Failed”
“Is ignition on?”
CH67 “Processing”
“Transfer OK”
The following status will be displayed:
