Yard-Man 107.249820 User manual

0ATTAC
A
E
TO
AL
T
Rear Engine
for Single Bag
Mfg. No.
7600101
107.249820
Description
Single Bag Catcher
Foranswerstoyourquestionsaboutthisproduct, call:
1-800-935-2967
Briggs & Stratton Yard Power Products
8 am -4 pm, Monday -Friday CAUTION: Read and follow all instructions
7104048 -
Rev.: A
Rev. Date: 01/2010

Tableof Contents
Operator Safety .................................................................... 4
GeneralWarnings ................................................................................. 4
SafetyDecals........................................................................................ 4
Assembly............................................................................ 5
Bag Rod installation.............................................................................. 5
FrameAssembly................................................................................... 5
Dust Skirt installation ........................................................................... 5
CoverAssembly.................................................................................... 6
Muffler Shield installation..................................................................... 6
Attach Coverand FrameAssembly to Tractor....................................... 6

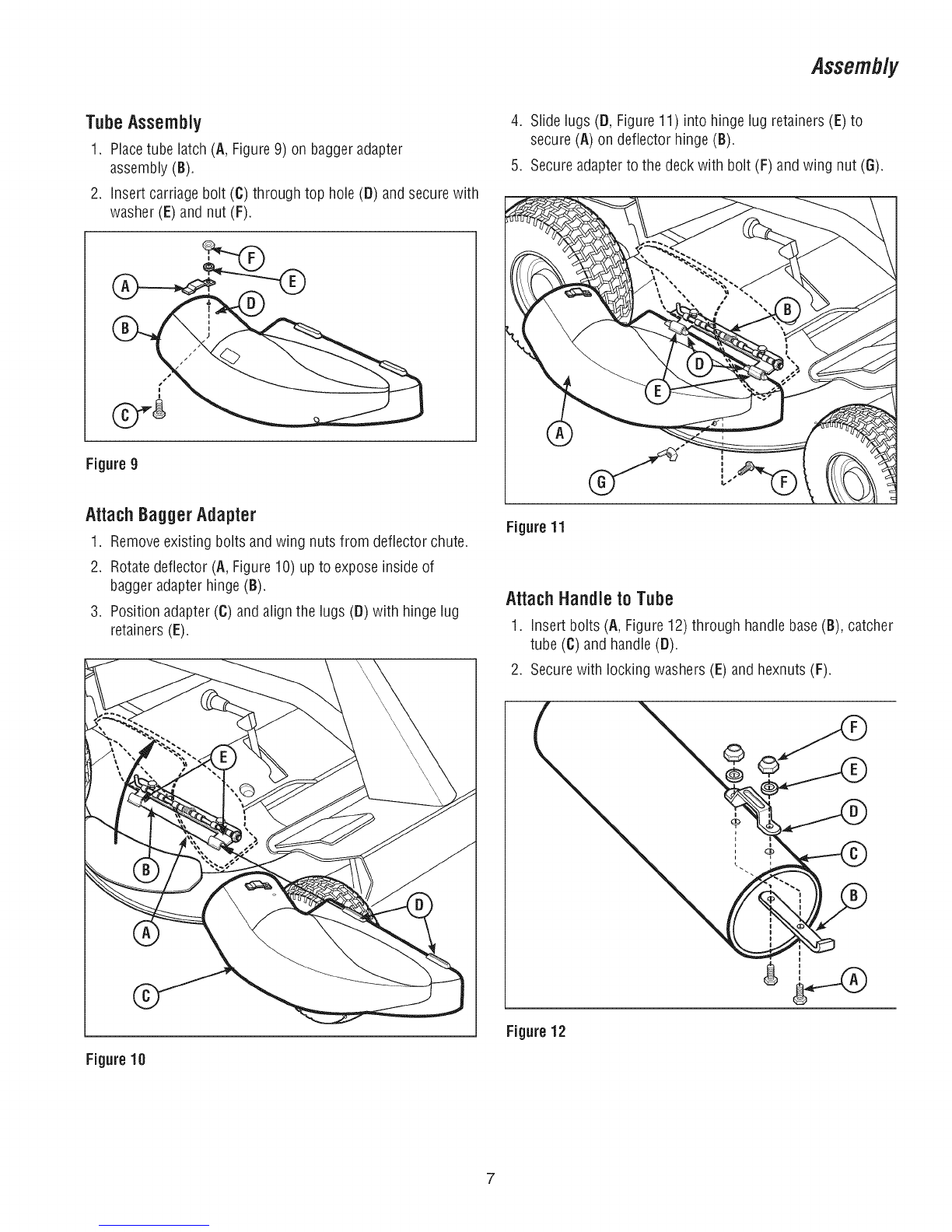

TubeAssembly...................................................................................... 7
Attach BaggerAdapter.......................................................................... 7
Attach Handleto Tube........................................................................... 7

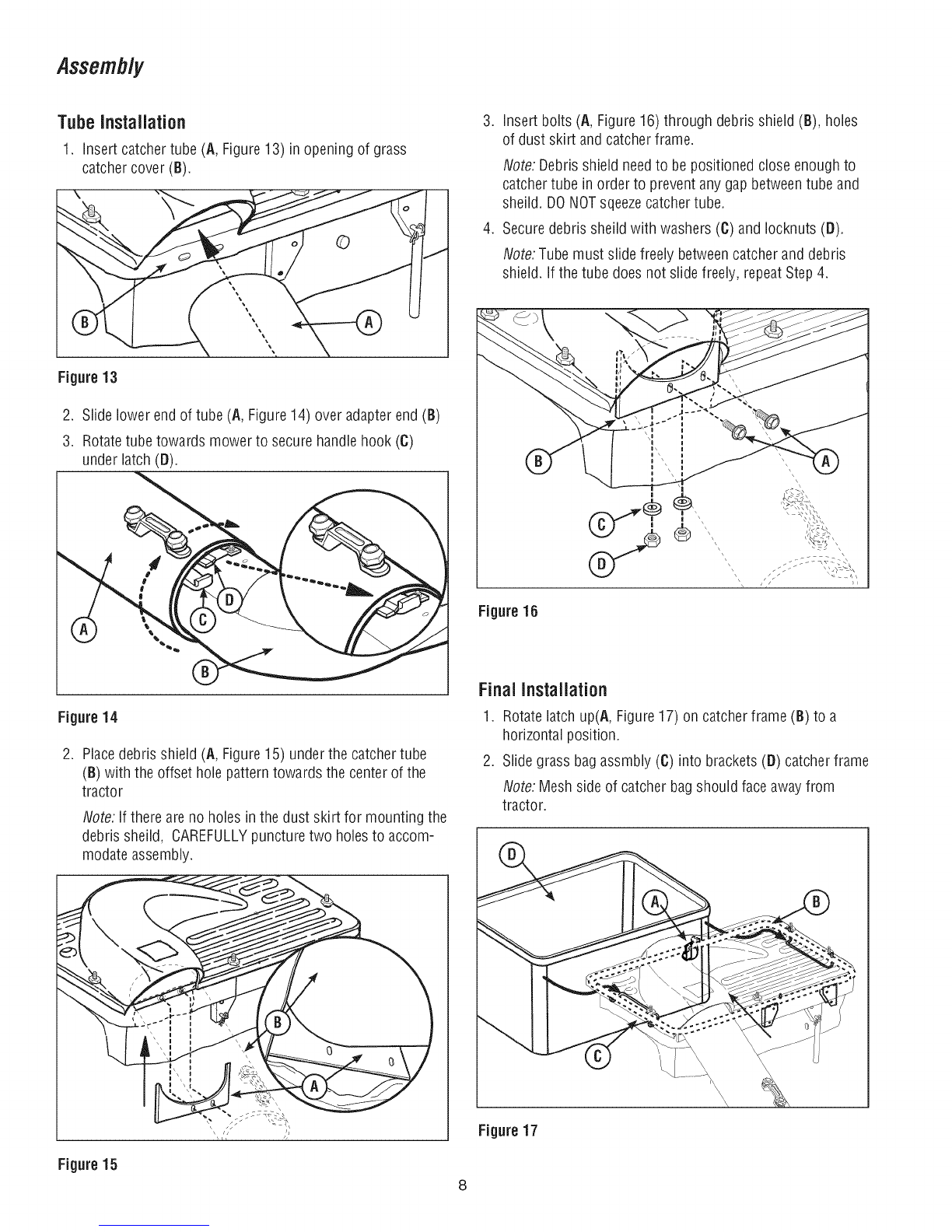

Tubeinstallation.................................................................................... 8
Finalinstallation.................................................................................... 8
Operation............................................................................ 9

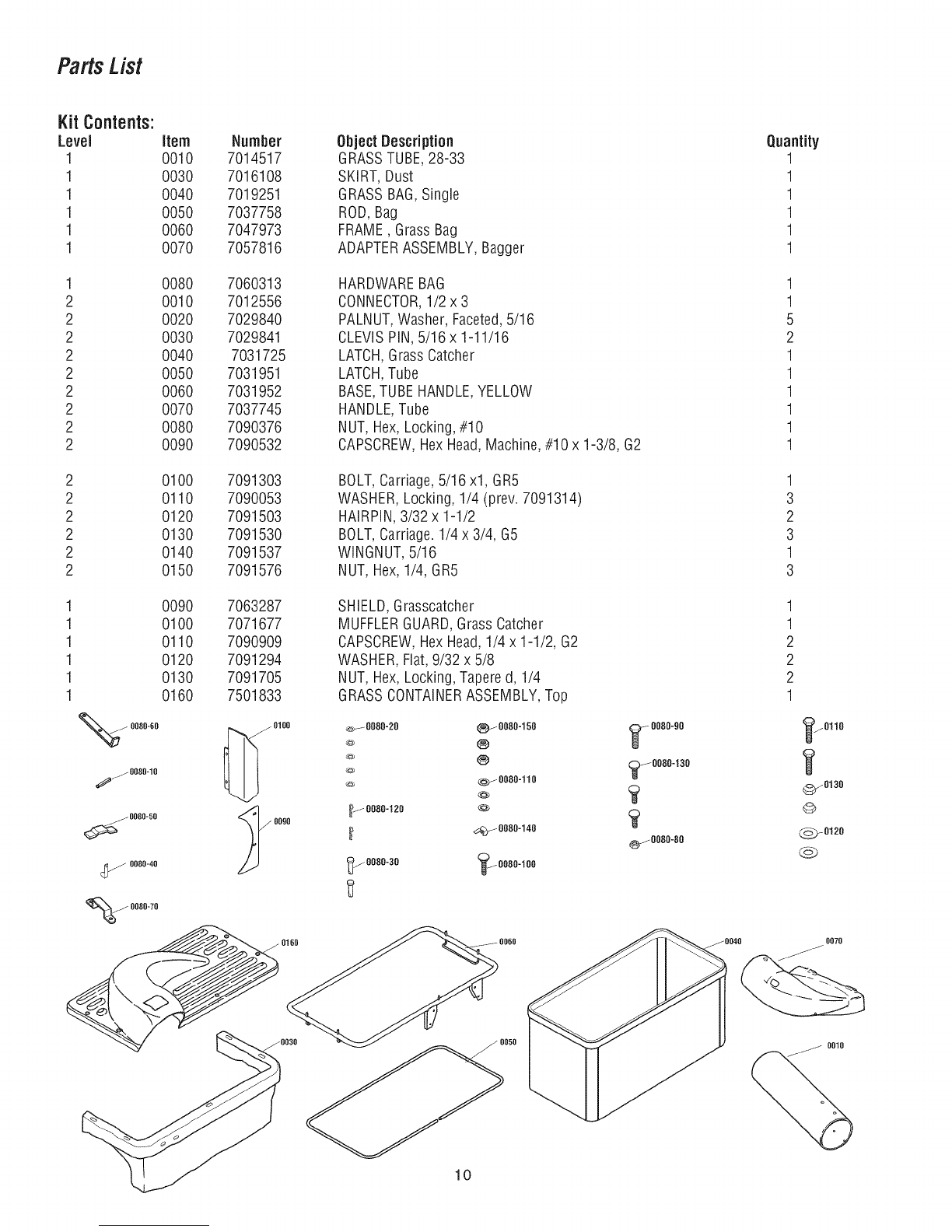

PartsList............................................................................ 10
Warranty............................................................................. 11
NOTE. In these instructions, "left" and "right" are referencedfrom the operating
position.

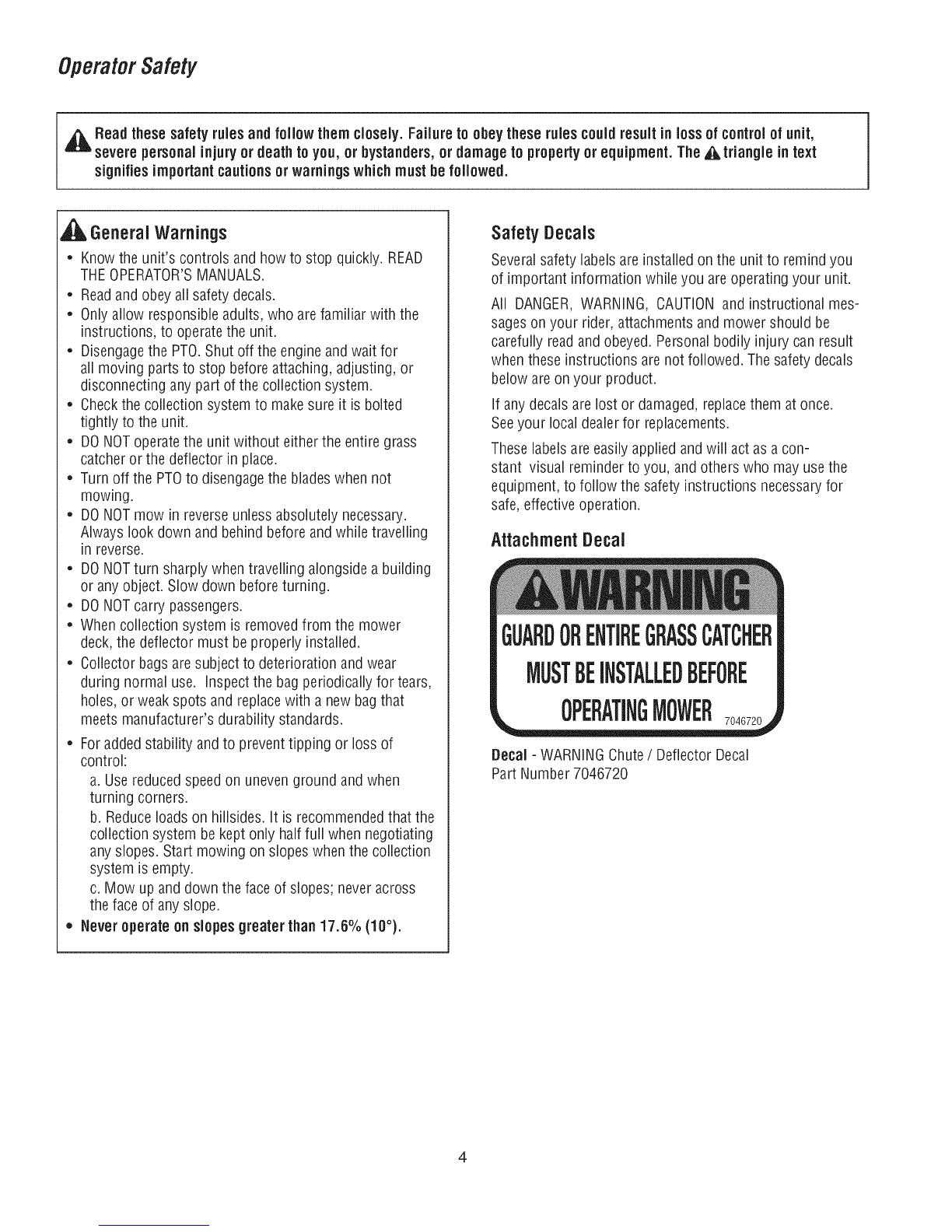

OperatorSafety
ReadthesesafetyruJesandfoiJowthemcJoseJy.Failureto obeytheserules couJdresult in lossof controJof unit,
severepersonal injuryor deathtoyou, or bystanders,or damageto propertyor equipment.The_,triangJe in text
signifiesimportantcautionsor warningswhichmustbefollowed.
GeneralWarnings
*Knowthe unit's controls and how to stop quickly. READ
THEOPERATOR'SMANUALS.
,Readand obeyall safety decals.
Onlyallow responsible adults, who arefamiliar with the
instructions, to operatethe unit.
Disengagethe PTO.Shutoff the engineandwait for
all moving parts to stop beforeattaching, adjusting, or
disconnecting any part ofthe collection system.
Checkthe collection systemto make sureit is bolted
tightly to the unit.
DONOToperatethe unit without eitherthe entiregrass
catcheror the deflector in place.
Turn off the PTOto disengagethe bladeswhen not
mowing.
DONOTmow in reverseunless absolutely necessary.
Always look down and behind before andwhile travelling
in reverse.
DONOTturn sharply whentravelling alongsidea building
or any object. Slow down beforeturning.
DONOTcarry passengers.
When collection system is removed from the mower
deck,the deflector must be properly installed.
Collectorbagsare subject to deterioration andwear
during normal use. inspectthe bagperiodically for tears,
holes, or weak spots and replacewith a new bagthat
meetsmanufacturer's durability standards.
,Foraddedstability and to preventtipping or loss of
control:
a.Use reducedspeedon unevenground andwhen
turning corners.
b. Reduceloadson hillsides, it is recommendedthat the
collection system be kept only half full when negotiating
anyslopes. Start mowing on slopeswhen the collection
system is empty.
c. Mow up anddown the face of slopes; neveracross
the face of any slope.
o Never operate on slopes greater than 17.6% (10°).
Safety Decals
Severalsafety labelsare installed on the unit to remind you
of important information while you areoperating your unit.
All DANGER,WARNING, CAUTIONand instructional mes-
sages on your rider, attachments and mower should be
carefully readand obeyed. Personalbodily injury can result
when these instructions arenot followed. Thesafety decals
beloware on your product.
If anydecalsare lost or damaged,replacethem at once.
Seeyour localdealer for replacements.
These labelsare easily applied andwill act asa con-
stant visual reminderto you, and others who may usethe
equipment, to follow the safetyinstructions necessaryfor
safe,effective operation.
Attachment Decal
Decal- WARNINGChute/Deflector Decal
PartNumber 7046720

Assembly
NOTE:Inthis manual, "left" and "right" are alwaysdefinedfrom
the standpoint of the operator position facing forward from seat.
_WARNING: Beforebeginning anyservicework turn off
the PTO,set the parking brake, turn off the ignition, and
disconnect the spark plug wires).
BagRodInstallation
1. Slide bag rod (A,Figure1) through sleeveon upper edge of
grass bag (B).
%
FrameAssembly
1. insert capscrew (A, Figure3) through hole of catcher latch
(B) and grass catcherframe (C). Securewith Iocknut (D).
Figure 3
Figure 1
.
3. Standgrass bag assembly (A, Figure2) on end.
Securerod ends (B) with connector (C).
NOTE.Useof a rubber mallet may benecessaryto carefully
tap rod endstightly intothe connector.
DustSkirt Installation
1. Placedust skirt (A, Figure4) over catcherframe (B).
NOTE.Short sideof dust skirt wraps around to the inside of
catcherframe.
2. insert all frame pegs(C)through all holes(D) of dust skirt.
NOTE.Elongatedholes (E) in dust skirt extendto holesof
frame brackets (F).
Figure 4
Figure 2
5

Assembly
CoverAssembly
1. Placecover (A,Figure5) overtop of grass catcher
assembly(B) and insert frame pegs(C) through holes(D)
of cover.
2. Using a 1/2' socket wrench, secureframe pegswith fac-
etedwashers(E).
Figure 5
Muffler Shield Installation
1. Removethe two screws (A, Figure6) securing the right side
rear bumper (B).
Figure 6
2. install shield (C, Figure7) to right side rearbumper (B) and
securewith existing screws (A).
Figure 7
Attach Cover/FrameAssemblyto Tractor
1. Postion baggerframe brackets (A, Figure8) onto bumper
posts (B).
2. insert clevis pins (C)through bottom holeson eachsideof
baggerframe bracketsand secure with hairpins (D).
Figure 8
