Instruction Manual
6.5HP High Pressure Petrol Pump
Model: YW65PHP

TABLE OF CONTENTS
WARRANTY ………………………………………….
INTRODUCTION………………………………………
SPECIFICATIONS …………………………………….
KNOW YOUR PRODUCT ……………………………….
PACK CONTENTS…………………………………….
DESCRIPTION OF SYMBOLS……………………………
GENERAL SAFETY INSTRUCTIONS……………………….
ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS …………
SET-UP & INSTALLATION………………………………
OPERATION………………………………………….
MAINTENANCE ………………………………………
SPARE PARTS ……………………………………….
TROUBLESHOOTING ………………………………….
2
3
3
4
7
7
8
9
10
12
15
17
18
1

WARRANTY
YARDWORKS TWO YEARS LIMITED WARRANTY
Your YARDWORKS product is covered for a period of 2 years from the ORIGINAL date of
purchase and is intended for home use only.
The warranty covers faulty parts or workmanship.
The warranty is only made available by returning the product to your point of purchase with a
confirmed cash register receipt.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY OR REPAIR PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
Yardworks. 1-23 Letcon Drive Bangholme, Victoria, Australia
2

INTRODUCTION
Congratulations on purchasing the YARDWORKS 6.5HP Petrol High Pressure Water Pump.
We aim to provide quality products at an affordable price. Before using, it is most important that
you read and follow the instructions in this manual, even if you feel you are quite familiar with
this type of product.
This product has been designed for numerous water transfer applications.
These include draining flooded laundries, bathrooms, basements or garages, emptying rainwater
tanks, pools and spas, emptying garden ponds and transferring water for domestic &
agricultural irrigation.
Motor Power: 6.5HP
Engine Type: 4 Stroke, air-cooled
Fuel Type: Unleaded petrol
Fuel Tank Capacity: 3.6 Litres
Engine Capacity: 196cc
Engine Speed: 3600rpm
Engine Oil Type: SAE 10W - 30
Oil Tank Capacity: 0.6 Litre
Max. Head: 55m
Max. Lift: 6m
Max. Flow Rate: 17,000 Litres/hour
Suction Inlet Size: 40mm (11/2")
Discharge Outlet Size: 2 x 25.4mm (1"), 1 x 40mm (11/2")
Spark Plug: Champion L90C
Weight: 28kg
SPECIFICATIONS
3
Performance Curve
Flow Rate (l/hr)
Height/ Head (m)
100
90
80
70
60
50
40
30
20
10
0
3,000 6,000 9,000 12,000 15,000 18,000 21,000 24,000

KNOW YOUR PRODUCT
1. Priming Cap
2. Fuel Cap
3. Fuel Tank
4. Motor Housing
5. Recoil Starter
6. Throttle Lever
7. Fuel Lever
8. Choke Lever
9. Air Filter
10. Exhaust
4
1
3
2
5
10
4
6
7
8
9
WARNING! THIS PRODUCT IS NOT SUITABLE FOR USE WITH DRINKING(POTABLE) WATER.

KNOW YOUR PRODUCT (cont.)
KNOW YOUR PRODUCT (cont.)
5
12
18
11
13
14
15
16
17
11. Discharge Outlet
12. Pump Housing
13. Suction Inlet
14. Drain Screw
15. Oil Fill Plug
16. Low Oil Sensor
17. On/Off Switch
18. Spark Plug

KNOW YOUR PRODUCT (cont.)
6
19
30 31
25
26
28
29
27
22
24
21
20 23
19. 5m Suction Hose
20. 25.4mm (1”) Outlet Cap
21. 25.4mm (1”) Collar
22. 25.4mm (1”) Hose Adaptor
23. 25.4mm (1”) Hose Clamp
24. 25.4mm (1”) O-ring
25. 40mm (11/2”) Inlet/ Outlet Cap
26. 40mm (11/2”) Collar
27. 40mm (11/2”) Hose Adaptor
28. 40mm (11/2”) Hose Clamp
29. 40mm (11/2”) O-ring
30. Filter
31. Spark Plug Spanner

1 x 6.5HP Petrol High Pressure Water Pump
1 x 5m Suction Hose
2 x 25.4mm (1") Outlet Caps
2 x 25.4mm (1") Collars
2 x 25.4mm (1") Hose Adaptors
3 x 25.4mm (1") Hose Clamps
4 x 25.4mm (1") O-rings
1 x 40mm (11/2”) Inlet/ Outlet Cap
2 x 40mm (11/2”) Collars
2 x 40mm (11/2”) Hose Adaptors
3 x 40mm (11/2”) Hose Clamps
3 x 40mm (11/2”) O-rings
1 x Filter
1 x Spark Plug Spanner
1 x Instruction Manual
DESCRIPTION OF SYMBOLS
Hp Horse power Hz Hertz
~
Alternating current WWatts
/minRevolutions or
n oNoload speed
reciprocation per minute
l Litres kW kiloWatt
p/hrPer hour kPa Pressure rating (kilopascals)
bar Pressure rating FInsulation class
PVC Polyvinyl chloride IPX8 Ingress protection from water
Regulator compliance mark Warning
Read instruction manual
7
PACKED CONTENTS

8
GENERAL SAFETY INSTRUCTIONS
1) WORK AREA
a) Do not operate pump in explosive atmospheres, such as in the presence of flammable liquids, gases
or dust. Engine may create sparks which may ignite the dust or fumes.
b) Never run engine in an enclosed area. Exhaust gases contain deadly, poisonous carbon monoxide,
which has no odor or taste. Exposure may cause loss of consciousness and may lead to death.
c) Keep by-standers, children and visitors away while installing pump. Distractions can result in mistakes.
d) Keep the engine at least 1 meter (3 feet) away from buildings and other equipment during
operation. Do not place flammable objects close to the engine. Procedure should be followed to prevent
fire hazards and to provide adequate ventilation.
2) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating this pump. Do not
attempt to use pump while tired or under the influence of drugs, alcohol or medications. A moment of
inattention while operating power tools may result in serious personal injury.
b) Dress appropriately. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
c) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better
control of the pump in unexpected situations.
d) Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes and hard hat must be
used for appropriate conditions.
3) PUMP USE AND CARE
a) Store idle pump out of reach of children and other untrained persons. Pumps are dangerous in the hands
of untrained users.
b) Maintain pump. Keep hoses in proper operating condition. Properly maintained pumps are less likely to
malfunction and cause injury.
c) Check for misalignment or binding of moving parts, breakage of parts and any other condition that
may affect the pumps operation. If damaged, have the pump serviced before using. Accidents can be caused
by poorly maintained pumps.
d) Always shut off the engine, allow the engine to cool and remove the spark plug before performing any
maintenance. Such preventative measures reduce the risk of starting the pump accidentally.
e) Keep handles dry and clean; free from oil and grease. Allows for better control of the pump.
4) SERVICE
a) Pump service must be performed only by qualified repair personnel. Service or maintenance performed by
unqualified repair personnel could result in injury.
b) When servicing a pump, use only identical replacement parts. Follow instructions in the Maintenance
Section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a
risk of injury and may void your warranty.

ADDITIONAL SAFETY INSTRUCTIONS FOR PETROL PUMPS
1) Never refuel while engine is running or hot. Fuel spilled on a hot engine could result in a fire or explosion.
2) Use caution when handling petrol. Refuel in well-ventilated area. Do not overfill fuel tank and do
not spill fuel. Make sure tank cap is closed properly. Petrol is extremely flammable and is explosive
under certain conditions.
3) Never run the engine in an enclosed or confined area. Exhaust contains poisonous carbon monoxide gas;
exposure may cause loss of consciousness and may lead to death.
4) Do not use to pump flammable or explosive liquids such as gasoline, fuel oil, kerosene, solvents or
thinners. Pump should only be used with liquids compatible with pump component materials. Failure
to follow to this warning can result in serious personal injury, death and/or property damage.
5) Pump must be located on a solid level surface. Pump could tip or fall causing serious injury.
6) Do not hold or suspend pump by means of a discharge pipe. Pipe could break or come loose.
7) Be careful not to touch the muffler while it is hot. To avoid severe burns or fire hazards, let the
engine cool before transporting or storing it indoors. The muffler becomes very hot during operation and
remains hot for a while after stopping the engine. Exhaust may contain chemicals that may cause cancer or
reproductive harm.
This appliance is not intended for use by person (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
•Ensure the water pump is not running during the assembly process.
•Do not install or operate the water pump in an explosive environment or near flammable material.
•Do not operate the water pump without liquid.
•Do not run the water pump dry.
WARNING! The water pump together with associated pipework operate under pressure. Do not disconnect
water pump or pipework until internal pressure has been released. Failure to do this could result in
personal injury and damage to property.
WARNING! The muffler becomes very hot during operation and remains hot for a period of time after
stopping the engine. Be careful not to touch the muffler or exhaust while it is hot. To avoid severe burns or
fire hazards, let the engine cool before transporting or storing.
9

10
SETUP & INSTALLATION
Positioning The Pump

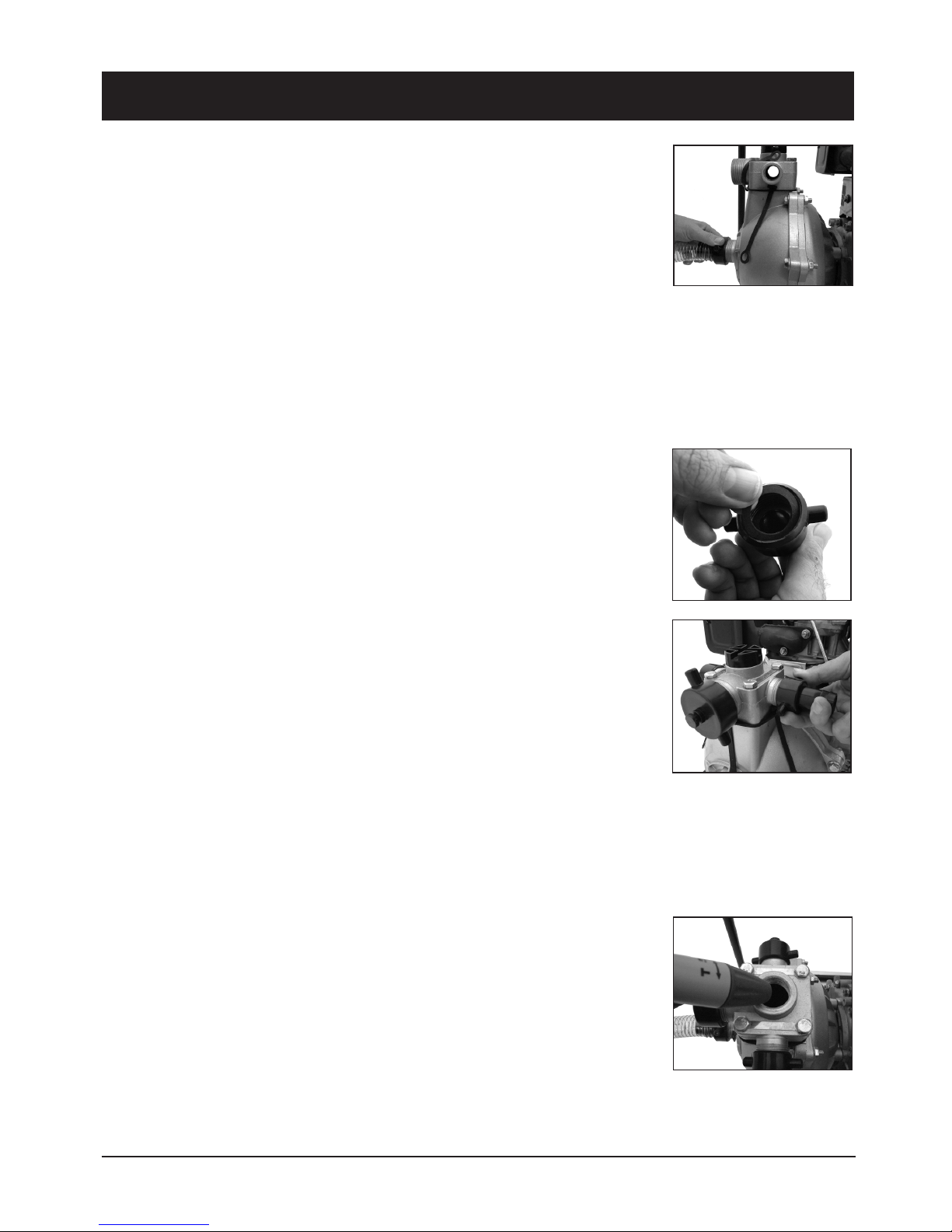

1. Place the pump close to the water that is required to be pumped (Fig. 1).
Note: Ensure the pump is no further than 5m away from the water's edge.
2. Fill the engine crank case with oil (not included).
Note: SAE 10W-30 oil is recommended, refer to the maintenance section for more
information.
Suction Inlet
Connecting Hose or Pipe to the Suction Inlet
Note: Keep all hoses short and as straight as possible, failure to do so may decrease the pressure pumps performance.
Note: It is recommended that a filter (30) and check valve (not included) is installed at the end of the suction hose or pipe.
In order to prevent long priming periods and unnecessary damage to the pump as a result of stones and solid
foreign materials entering.
Note: Reinforced or ridge suction hoses are required on the suction line to prevent the pipe from collapsing due to
pressure from suction.
Caution: All connections require being air tight, failure to do so cause result in an air leak which can prevent the
pump from priming. It is recommended that a thread sealant (not included) and/or Teflon tape (not included) is
used on threads to ensure a water tight seal and prevent any leakage during assembly.
1. Assemble the 40mm (11/2") hose clamp (28) and filter (30) strainer to the intake
side of the suction hose (Fig. 2).
2. Tighten the 40mm (11/2") hose clamp (28) tightly ensuring it clamps the hose
against the filter (30) strainer (Fig. 2)
3. Assemble the inlet adaptor (a) by inserting into the 40mm (11/2") collar (26) in (Fig. 3).
Note: Ensure the 40mm (11/2") o-ring (29) is fitted into the 40mm (11/2") collar (26),
failure to do so may result in an air leak.
4. Assemble the 40mm (11/2") hose clamp (28) and the assembled inlet adaptor to
the outlet side of the suction hose (Fig. 4).
5. Add thread sealant (not included) and/or Teflon tape (not included) on to the
suction inlet (13).
Fig. 1
Fig. 2
Fig. 3
Fig. 4

SETUP & INSTALLATION (cont.)
11
6. Align and screw the collar of the assembled inlet adaptor onto the thread on the
suction inlet (13) port of the pump (Fig. 5).
Note: Ensure the collar is tightly fastened onto the suction inlet (13); failure to do so
may result in an air leak.
Discharge Outlet
Connecting Hose or Pipe to the Discharge outlet
Note: Keep all hoses short and as straight as possible, failure to do so may decrease the pressure pumps performance.
Caution: All connections require being air tight, failure to do so may result in an air leak which can prevent the
pump from priming. It is recommended that a thread sealant (not included) and/or Teflon tape (not included) is
used on threads to ensure a water tight seal and prevent any leakage.
1. Assemble the 25.4mm (1") hose adaptor (22) by inserting into the
25.4mm (1") collar (Fig. 6).
Note: Ensure the 25.4mm (1") o-ring (24) is fitted into the 25.4mm (1")
collar (24), failure to do so may result in an air leak.
2. Determine which discharge outlet (11) port that will be used. Screw the outlet caps
onto the 2 of the 3 discharge outlets (11) that are not going to be used (Fig. 7).
Note: Multiple outlets can be used to pump water simultaneously but this will result
in lower pressure and flow rate.
Note: If the unused discharge outlets (11) are not blocked off this will result in water
expelling out of the discharge outlet (11).
3. Add thread sealant (not included) and/or Teflon tape (not included) on to the
discharge outlet (11).
4. Align and screw the 25.4mm (1") collar of the assembled outlet adaptor onto the
thread on the discharge outlet (11) port of the pump (Fig. 7).
Note: Ensure the collar is tightly fastened onto the discharge outlet (11); failure to do so may result in an air leak.
Priming
Priming the pump prepares the motor for safe operation.
Caution: Do not run the pump dry, this may result damage to the pump.
1. Unscrew the priming cap (1) by turning anti-clockwise. Using a hose, fill the
pump by pouring water into the priming hole (Fig. 8).
2. Ensure the pump and suction line are full.
3. Replace the priming cap (1) and ensure it is secure.
4. Fully open any shut off mechanisms (eg: spray nozzle, valves etc.) in the input and output hose or pipe so that
the air can escape without obstruction.
Fig. 6
Fig. 7
Fig. 5
Fig. 8

12
Pre Operation Inspections
Environment Conditions
The operation of a four-stroke (unleaded) engine is affected by:
1. Temperature
a. Working in low temperatures could lead to difficult cold starting.
b. Working in very high temperatures could lead to difficult hot starting due to evaporation of the fuel.
c. In any case, the correct oil must be used according to the operating temperatures.
2. Altitude
a. The higher the altitude (above sea level), the lower the pressure and flow rate will be.
b. When there is a considerable increase in altitude, the load on the machine should be reduced and heavy
work load should be avoided.
Fuel inspection
WARNING! Be sure to stop the engine before re-fueling. A good quality fuel is the major issue for engine
reliability of operation.
WARNING! Do not over fill the fuel tank.
WARNING! Do not smoke while re-fueling.
1. Use unleaded petrol with a minimum of Octane 91.
2. Use clean, fresh fuel; purchase fuel in quantities that can be used every 30 days, to prevent gum or foaming
inside the container and/or fuel tank.
3. Do not use fuel which contains methanol.
4. Do not add oil or any kind of fuel additive.
Engine oil inspection
The high pressure pump is shipped without oil. Before starting ensure an oil inspection is conducted.
Always use high quality oils, select their viscosity grade according to the operating temperatures.
Note: It is recommended that SAE-10W-30 (multi viscosity) oils are used at temperatures from 5 to 35ºC and
synthetic oils 5W-30 (multi viscosity) is used for temperatures -5 to 5ºC.
To change or top up the oil in the engine refer to the maintenance section of this instruction manual.
OPERATION

OPERATION (cont.)
Air Filter
The air filter (9) must always be in perfect working order, to prevent debris and dust from being sucked into the
engine thus reducing the efficiency and life of the machine.
1. Always keep the air filter (9) free of debris and in perfect working order.
2. If necessary, replace the filter with an original spare part. Incompatible filtering can impair the efficiency and
life of the engine.
3. Never start the engine without the air filter (9) assembled.
To change the air filter (9) refer to the maintenance section of this instruction manual.
Spark Plugs
Note: Not all spark plugs (18) for engines are the same.
1. Use only the spark plug (18) that is recommended for this high pressure petrol pump (Champion L90C).
2. Check the length of the thread, because if the thread is to long is will damage the engine beyond repair.
3. Make sure that the electrode is clean and the air gap is correct (refer to the specs of the spark plug manufacture).
To remove, install and inspect the spark plug (18) refer to the maintenance section of this instruction manual.
Starting the Engine
WARNING! Before starting please ensure all inspections stated above have been completed.

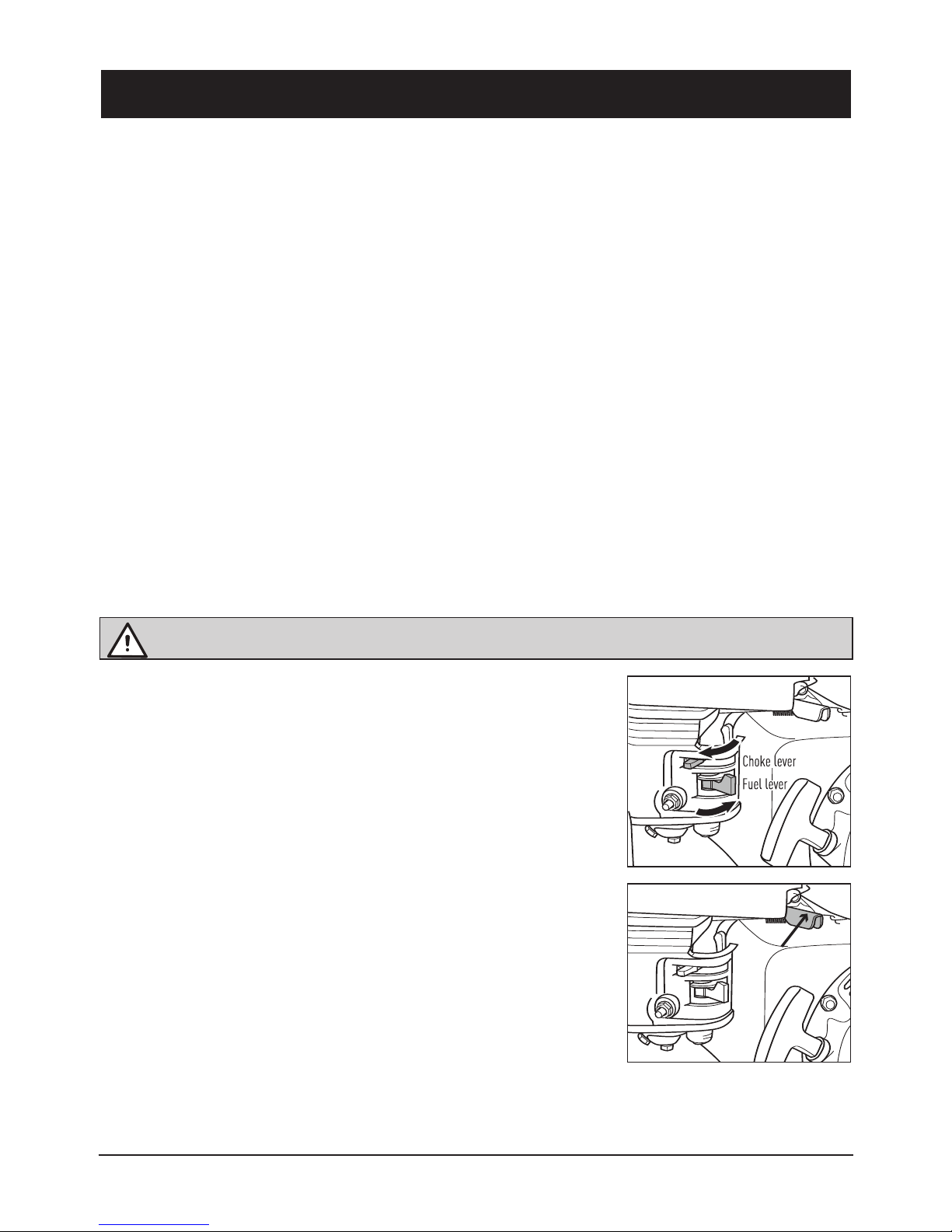

1. Move the choke lever (8) to the left/closed position and fuel lever (7) to
the right/open position (Fig. 9).
2. Move the throttle lever (6) to the right (Fig. 10).
13
Fig. 9
Throttle leverThrottle leverThrottle lever
Fig. 10

14
OPERATION (cont.)
3. Turn the engine on/off switch (17) to "ON" position (Fig. 11).
4. Hold the recoil starter (5) handle firmly and pull it slightly until the
compression position is reached, and then pull it swiftly all the way out.
Slowly return the recoil starter (5) handle to its original position (Fig. 12).
5. Once the motor has started move the choke lever (7) to the right/open
away from the choke symbol and the throttle lever (6) to the slow
position and let the engine idle no load for 3 minutes.
6. The throttle lever (6) can now be adjusted to obtain the desire pressure at
the outlet.
Adjusting the Throttle
The throttle is used to regulate the RPM of the engine, which also controls the water
flow out of the discharge outlet.
1. To increase the speed of the engine and water flow move the throttle lever (6) to
the left towards the fast symbol (Fig. 13).
2. To decrease the speed of the engine and water flow, move the throttle lever (6) to
the right towards the slow symbol
Stopping the Engine
1. Decrease the speed of the engine and water flow by moving the throttle lever (6)
to the right towards the slow symbol and allow to idle for 10-20 seconds.
2. Then turn the ON/OFF switch (17) to the off position and move the fuel lever (8) to
the left/closed position towards the fuel symbol (Fig. 14).
Recoil starter handle
Fig. 12
Fig. 13
Fig. 14
Fig. 11

15
MAINTENANCE
Storing the Pump
Before storing the pump, it is recommended to empty the pump body of any water.
Turn the drain screw (14) anti-clockwise and remove from the pump body. This will
drain any excess water. Replace the drain screw (14) (Fig. 15).
Changing the Oil
Note: After the first 25 hours of use the engine oil requires to be replaced, and then every 50 hours after that.
The high pressure pump is shipped without oil. Before starting ensure an oil inspection is conducted.
Always use high quality oils, choosing their viscosity grade according to the operating temperatures.
Note: It is recommended that SAE-10W-30 (multi viscosity) oils are used at temperatures from 5 to 35ºC and
synthetic oils 5W-30 (multi viscosity) is used for temperatures -5 to 5ºC.
1. Place the high pressure pump on a level surface.
2. Clean around the oil fill plug (15).
3. Remove the oil fill plug (15) from both the left and right side of the engine
(Fig. 16) and clean the dip stick and re-insert without screwing down.
4. Remove the dipstick and ensure the oil lays between the min and max marks
(Fig. 17).
5. Fill the engine with SAE 10W-30 oil up to the max level of the oil gauge.
Note: Ensure the engine is not over filled with oil.
6. Fully retighten both the left and right oil fill plug (15).
Replacing the Air-cleaner
1. Remove the cover by unscrewing and removing the wingnut (g), washer (h) and
cover (i) (Fig. 18).
2. Remove and inspect the filter (j). It must be intact and clean, if not either clean
or replace the filter.
3. Replace the filter (j), filter cover (i), washer (h) and wingnut (g).
Fig. 15
Fig. 16
Fig. 17
Fig. 18
min max

MAINTENANCE (cont.)
Removing, installing and inspecting of the spark plug
1. Remove the spark plug lead.
2. Remove the spark plug (18) using the spanner supplied (Fig. 19).
3. Clean the electrode (m) with a metal brush and remove any carbon build-up.
4. Using a thickness gauge, check the for the right gap (0.6-0.8mm) between the
center electrode and side electrode (Fig. 20).
5. Refit the spark plug (18) and tighten with the spanner supplied.
Cleaning the Pump Body
Use a moist cloth to wipe down the pump housing (12). Allow to dry thoroughly before storing in a dry location that
is protected from bad weather conditions.
If the pump is not going to be used for a long period of time, it is advisable to rinse with water. Ensure the pump is
completely dry before storing.
16
Fig. 19
(top up if required and
check for leaks)
(check for leaks)(change if neccesary)
(only required after first
20 hours / 1 month of use)
(required after first
20 hours / 1 month of use)
(Frequency depends on pump location. i.e. High dust environment every 10 Hrs)
*
To be performed by qualified service centre
Recommended Check & Maintenance Chart
Item Time Every operation / daily After 20 hours or 1 month After 50 hours or 3 months After 100 hours or yearly
Check Change Clean
*
*
Inspect and tighten all nuts and bolts
Engine Oil
Air Filter
Fuel Tank
Fuel Tank Nozzle
Fuel lines
Spark Plug
Adjust inlet and exhaust valves
Remove carbon in combustion chamber
Fig. 20

17
SPARE PARTS
Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to
order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Air Filter SPYW65PHP-08019
Fuel Tank Filter SPYW65PHP-1103
Fuel Tank Cap SPYW65PHP-1102
On/off Switch SPYW65PHP-1210
Recoil Starter SPYW65PHP-0603A

TROUBLE SHOOTING
18
Symptom Possible Cause Corrective Action
Unit runs but delivers little or
no water
Leak in suction hose or piping Tighten suction hoses and use thread sealer.
Clogged suction strainer Clear debris from suction strainer
Air-filter clogged Check, clean or replace filter as required
Water level below pump intake Lower suction hose into water
Pump not primed Fill pump with water before trying to prime
Unit will not start Engine switch OFF Turn engine switch ON
No fuel Fill engine fuel tank. Refer to engine
operating instructions
Fuel tap in "off" position Turn fuel valve to "on" position
Oil level too low Fill with correct oil per operating instructions
Choke adjusted incorrectly Move choke lever to "CLOSED" unless engine is
warm. Refer to engine operating instructions
Unit starts but runs and
performs poorly
Air Filter clogged Check, clean or replace filter as required
Fuel evaporation in carburetor (vapor lock) due
to high temperatures
Wait a 10 to 20 minutes then re-try the
starting procedure
Temperature to hot or cold for the oil being used Refer to the maintenance section for the correct
oil to be used and replace if required
Spark plug is wet or the spark plug electrode is
dirty, placed inadequately or is faulty
Refer to the maintenance section on how to
remove and inspect
Water level more than maximum lift of 6m Move pump closer to water level and increase
discharge line length if necessary
Choke is still engaged Return the choke to the closed position
Engine or carburetor difficulties Contact YARDWORKS customer service
