Enerpac XC-Series User manual

XC-Series Cordless Hydraulic Pump
Instruction Manual
3

54
General Safety
Never set the relief valve to a higher pressure than the maximum
rated pressure of the pump. Higher settings may result in equipment
damage or personal injury. Do not remove relief valve.
To avoid personal injury keep hands and feet away from cylinder and
work piece during operation.
Do not handle pressurized hoses.
Escaping oil under pressure can penetrate the skin, causing serious
injury. If oil is injected under the skin, see a doctor immediately.
Do not pressurize disconnected couplers.
Safety First
Read all instructions, DANGER, WARNING and
CAUTION paragraphs carefully.
Follow all safety precautions to avoid personal
injury or property damage during system
operation. Save these instructions.
ENERPAC cannot be responsible for damage or
injury resulting from unsafe product use, lack of
maintenance or incorrect product and/or system
operation. Contact ENERPAC when in doubt as
to the safety precautions and operations
Conformance to
National & International
Standards.
We declare that this product has been tested
and conforms to applicable standards and is
approved to carry the CE, TUV C and US, and
FCC certification marks. An EC Declaration of
Conformity is enclosed separately.
Model / Serial Number
The model and serial number are found on the
back side of unit, above the battery area.
Important
Danger icons are only used when your action or lack
of action may cause serious injury or even death.
Failure to comply with DANGER, WARNING or CAUTION statements
could cause equipment damage and personal injury.
General Safety 4
Electrical Safety 6
Installation 7
Use 8
Operation 9
Disconnecting 10
Oil Fill 11
Pressure Setting 12
Technical Specifications 13
Troubleshooting 14
Contents

5
General Safety
Failure to comply with DANGER, WARNING or CAUTION statements
could cause equipment damage and personal injury.
Immediately replace worn or damaged parts with genuine ENERPAC
parts. Non genuine ENERPAC parts may break, causing personal injury
and property damage. ENERPAC parts are designed to fit properly and
withstand high loads.
Stay clear of loads supported by hydraulics.
A cylinder, when used as a load lifting device, should never be used as
a load holding device. After the load has been raised or lowered,
it must always be blocked mechanically.
Only use hydraulic cylinders in a coupled system.
Never use a cylinder with unconnected couplers. If the cylinder becomes
extremely overloaded, components can fail catastrophically, causing
severe personal injury.
Use only rigid pieces to hold loads.
Carefully select steel or wood blocks that are capable of supporting the
load. Never use a hydraulic cylinder as a shim or spacer in any lifting or
pressing application.
Avoid situations where loads are not directly centered on the cylinder
plunger. O-center loads produce considerable strain on cylinders and
plungers. In addition, the load may slip or fall, causing potential danger.
The system operating pressure must not exceed the pressure rating of
the lowest rated component in the system. Install pressure gauge in the
system to monitor operating pressure. It is your window to see what is
happening in the system.
Do not exceed equipment ratings. Never attempt to lift a load weighing
more than the capacity of the cylinder. Overloading causes equipment
failure and possible personal injury. The cylinders are designed for a
max. pressure of 700 bar/10,000 psi/70 MPa. Do not connect a jack or
cylinder to a pump with a higher pressure rating.
Wear proper personal protective gear when operating hydraulic
equipment.
Be sure setup is stable before lifting load.
Cylinders should be placed on a flat surface that can support the load.
Where applicable, use a cylinder base plate for added stability.
Do not weld or otherwise modify the cylinder to attach a base or other
support.
Avoid damaging hydraulic hose.
Avoid sharp bends and kinks when routing hydraulic hoses.
Using a bent or kinked hose will cause severe back-pressure.
Sharp bends and kinks will internally damage the hose, leading to
premature hose failure.
Do not drop heavy objects on hose.
A sharp impact may cause internal damage to hose wire strands.
Applying pressure to a damaged hose may cause it to rupture.
Distribute the load evenly across the entire saddle surface.
Always use a saddle to protect the plunger.
Do not lift hydraulic equipment by the hoses or swivel couplers.
Use the carrying handle.
Keep hydraulic equipment away from flames and heat.
Excessive heat will soften packings and seals, resulting in fluid leaks.
Heat also weakens hose materials and packings. For optimum
performance do not expose equipment to temperatures of 65 °C
[150 °F] or higher. Protect all hydraulic equipment from weld spatter.
Hydraulic equipment must only be serviced by a qualified hydraulic
technician. For repair service, contact the Authorized ENERPAC
Service Center in your area. To protect your warranty, use only
ENERPAC oil.
Do not exceed 25 percent duty cycle. Allow sucient time for the
pump to cool between operations.
Indicates a potential danger that requires correct procedures or
practices to avoid possible serious personal injury or death.
Is used to indicate correct operating or maintenance procedures
and practices to prevent minor or moderate injury or damage to /
destruction of equipment or other property.
WARNING CAUTION

76
Electrical Safety
Failure to comply with DANGER, WARNING or CAUTION statements
could cause equipment damage and personal injury.
Do not operate the pump in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The pump creates sparks which may ignite the dust of fumes.
Do not expose the pump to rain or wet conditions. Water entering the pump will increase the risk of shock.
To avoid accidental starting, when carrying or moving the pump ensure the safety switch is in the locked position, and do not carry with hand or fingers on the trigger.
Do not operate pump if safety switch does not function. Seek repair assistance from an ENERPAC service center.
Remove battery pack from the pump before making any adjustments, performing maintenance or storing the pump.
Ensure the switch is in the locked position prior to inserting the battery pack.
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create risk of fire when used with another battery pack.
Use the ENERPAC XC-Series pump only with MILWAUKEE ELECTRIC TOOL M28TM or V28TM Li-Ion battery packs. Use of any other battery packs may create risk of injury or fire.
When battery pack is not in use, keep it away from other metal objects like paperclips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or fire.
Under abusive conditions, liquid may be ejected from the battery. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery can cause irritation or burns.
Read and understand the safety and operation instructions provided separately with the MILWAUKEE ELECTRIC TOOL battery and charger.
Additional Warnings for Battery Operated Electric Pumps.
WARNING

7

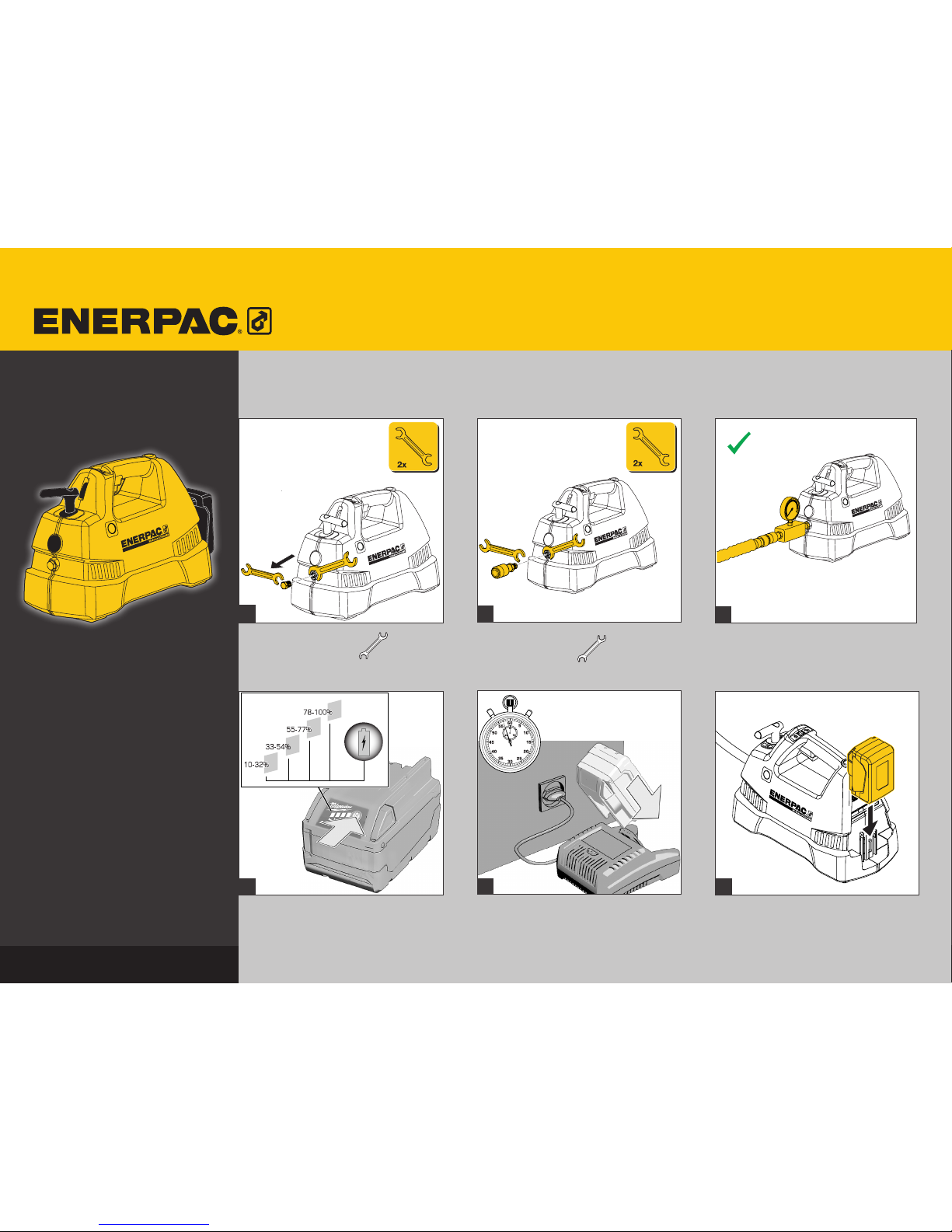

Installation
1
456
60 - 70 Nm
44 - 53 ft lb
2
11/16"
& 15/16"
3/8” NPTF
60 Min = 100%
3
Gauge Recommended

98
Use
12 3
Optional Strap Shown

9
Operation
21 3
4 5
P
6

1110
Disconnecting
2
4
3
P
1

11
Oil Fill
2 3
456
1/4"
1/4" 4.5 - 5.7 Nm
40 - 50 in lb
< Ø13mm
Pour slowly
P
1

1312

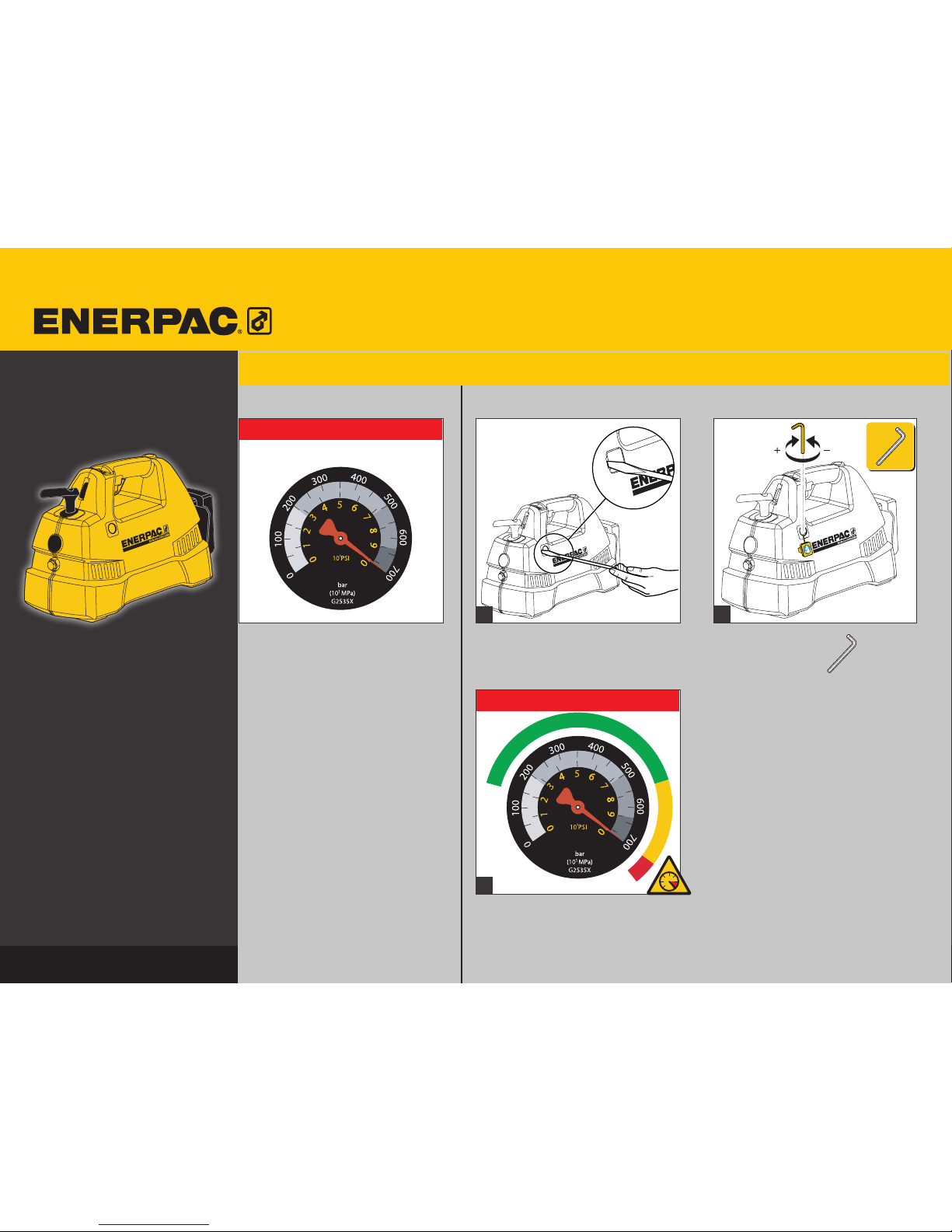

Pressure Setting
Factory Setting User Adjustable
2
1
7/32" x 6"
PMAX = 700 bar/10,000 psi/70 MPa
3
PMAX = 700 bar/10,000 psi/70 MPa
Pmin = 150 bar / 2,175 psi / 15 MPa
Flat head screwdriver

13
Technical Specifications
Cylinder / Tool Valve Charger Voltage
1 PH, 50/60Hz *
Usable Oil Capacity Weight Model Number
Litres in³ kg lb
Single acting Manual 3 way, 2 position
115 V 1,0 60 9,9 21.9 XC-1201MB
2,0 120 10,8 23.8 XC-1202MB
230 V 1,0 60 9,9 21.9 XC-1201ME
2,0 120 10,8 23.8 XC-1202ME
- - - 1,0 60 9,9 21.9 XC-1201M**
2,0 120 10,8 23.8 XC-1202M**
Maximum Pressure Flow Rate (Fig A) Valve Function Motor Battery *
No load 2,000 psi / 140 bar Max Load Voltage Type
700 bar 2,05 l/min. 0,50 l/min. 0,25 l/min Advance / Release 0,37 KW 28 V Li-Ion
10,000 psi 125 in³/min. 30 in³/min. 15 in³/min. 0.50 HP
* For more information visit www.milwaukeetool.com
** Batteries and Charger not included.
0 140 280 420 560 700
0,33
0,66
1,00
1,33
1,66
2,00
2,33
0 2000 4000 6000 8000 10,000
20
40
60
80
100
120
140
Pressure (bar)
Flow
(l/min)
Pressure (psi)
Flow
in3/min
Fig A

14
Troubleshooting
Problem Possible Cause Solution
Pump will not start.
Battery pack not installed. Install battery pack.
Electrical contacts dirty or corroded. Clean contacts on the battery, pump and charger.
Battery pack discharged. Charge battery.
Battery pack shut o. Refer to battery/charger instruction sheet.
Brushes worn. Contact ENERPAC service center.
Trigger lock engaged. Undo trigger lock.
Motor damaged. Contact ENERPAC service center.
Pump clicks when trigger is depressed, but does not
start.
Electrical contacts dirty or corroded. Clean contacts on the battery, pump and charger.
Battery pack discharged. Charge battery.
Battery too cool or too warm. Get battery back to operating range (-20°C / 60°C)
Battery pack damaged or not functioning. Replace battery pack.
Pump jammed due to obstruction. Possible
internal damage to pump. Contact ENERPAC service center.
Low fluid output.
Bypass valve malfunction. Contact ENERPAC service center.
Oil intake screens clogged with debris. Contact ENERPAC service center.
Internal damage to pump. Contact ENERPAC service center.
Cylinder will not advance or retract.
Oil level low. Add oil until reservoir is completely full.
Oil intake screen clogged. Contact ENERPAC service center.
Valve handle in wrong position. Shift valve to extend (pressure) position.
Pump slows down and stops. Battery pack discharged. Charge battery.
Cylinder advances and retracts erratically.
Air in the system. Extend and retract the cylinder until operation is smooth.
External hydraulic leak. Tighten connections. Replace damaged components.
Internal leakage in valve. Contact ENERPAC service center.
Internal damage to valve. Contact ENERPAC service center.
Internal damage to pump. Contact ENERPAC service center.
Pump pulses and/or stops during prolonged or heavy
operation. Current draw too high.
Immediately release the trigger to prevent battery from
shutting o. Allow time for battery pack to cool before
restarting pump.
Note: If battery pack shuts o, place pack on charger to
reset.
Pump does not build pressure. User adjustable relief valve set too low. Adjust pressure (see page 10).
Noisy pump operation. Pump element piston sticking. Contact ENERPAC service center.
Motor or gear damaged. Contact ENERPAC service center.

PB
xxxxx
220
e-mail: [email protected]
Internet: www.enerpac.com
ENERPAC © 2013 - Subject to change without notice.
Australia and New Zealand
Actuant Australia Ltd.
Block V Unit 3,
Regents Park Estate
391 Park Road,
Regents Park NSW 2143
(P.O. Box 261) Australia
T [phone]
F [phone]
[email protected]
Brazil
Power Packer do Brasil Ltda.
Rua Luiz Lawrie Reid 548
09930-760 - Diadema (SP)
T [phone]
F [phone]
Toll Free: 0800 891 5770
[email protected]
Canada
Actuant Canada Corporation
6615 Ordan Drive, Unit 14-15
Mississauga, Ontario L5T 1X2
T [phone]
F [phone]
Toll Free:
T [phone]
F [phone]
customer[email protected]
中国（太仓）
实用动力(中国)工业有限公司
中国江苏省
太仓经济技术开发区
南京东路 6 号
T [phone]
F [phone]
免费电话：
T [phone]
[email protected]
France, Switzerland, North Africa
and French speaking African
countries
ENERPAC, Une division d’ACTUANT
France S.A.S.
ZA de Courtaboeuf
32, avenue de la Baltique
91140 VILLEBON /YVETTE
France
T [phone]
F [phone]
[email protected]
Germany and Austria
ENERPAC GmbH
P.O. Box 300113
D-40401 Düsseldorf
Willstätterstrasse 13
D-40549 Düsseldorf, Germany
T [phone]
F [phone]
[email protected]
India
ENERPAC Hydraulics Pvt. Ltd.
No. 1A, Peenya Industrial Area
IInd Phase, Bangalore, 560 058, India
T [phone]
F [phone]
[email protected]
Italy
ENERPAC S.p.A.
Via Canova 4
20094 Corsico (Milano)
T [phone]
F [phone]
[email protected]
日本
アプライドパワージャパン株式会社
(エナパック )
〒331-0821
埼玉県さいたま市北区別所町 85-7
Tel [phone]
Fax[phone]
[email protected]
Middle East, Egypt and Libya
ENERPAC Middle East FZE
Oce 423, LOB 15
P.O. Box 18004,
Jebel Ali, Dubai
United Arab Emirates
T [phone]
F [phone]
[email protected]
Russia
Rep. oce ENERPAC
Russian Federation
Admirala Makarova Street 8
125212 Moscow, Russia
T [phone]
F [phone]
[email protected]
Southeast Asia, Hong Kong
andTaiwan
Actuant Asia Pte Ltd.
83 Joo Koon Circle,
Singapore 629109
전화 [phone]
팩스 [phone]
무료전화:
전화 [phone]
[email protected]
대한민국
Actuant Korea Ltd.
시화공단 3Ba 717
정왕동
경기도 시흥시
대한민국 429-450
전화 [phone]
팩스 [phone]
[email protected]
Spain and Portugal
ENERPAC SPAIN, S.L.
Avda. Los Frailes, 40 – Nave C & D
Pol. Ind. Los Frailes
28814 Daganzo de Arriba
(Madrid) Spain
T [phone]
F [phone]
[email protected]
Sweden, Denmark, Norway, Finland
and Iceland
ENERPAC Scandinavia AB
Fabriksgatan 7
412 50 Gothenburg, Sweden
T [phone]
F [phone]
[email protected]
The Netherlands, Belgium,
Luxembourg, Central and Eastern
Europe, Baltic States, Greece,
Turkey and CIS countries
ENERPAC B.V.
Galvanistraat 115
6716 AE Ede
P.O. Box 8097
6710 AB Ede
The Netherlands
T [phone]
F [phone]
[email protected]
South Africa and other English
speaking African countries
ENERPAC AFRICA ( PTY ) Ltd.
Cambridge Oce Park,
Block E 5 Bauhinia Avenue
Highveld Techno Park, Centurion
Republic of South Africa
T 0027 (0) 12 940 0656
[email protected]
United Kingdom and Ireland
ENERPAC Ltd.,
Bentley Road South
Darlaston, West Midlands
WS10 8LQ
England
T [phone]
F [phone]
[email protected]
USA, Latin America and Caribbean
ENERPAC World Headquarters
P.O. Box 3241
Milwaukee, WI 53201-3241 USA
N86 W12500 Westbrook Crossing
Menomonee Falls, WI 53051
T [phone]
F [phone]
User inquiries:
[phone]
Distributor inquiries/orders:
[phone]
[phone]
Technical inquiries:
[email protected]
[email protected]
L4004_b
Rev. B/04/2013
