Yard Works YW1100TP User manual

0911
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions
for future reference.
Instruction Manual
1100W Transfer Pump on Trolley
Model: YW1100TP

TABLE OF CONTENTS
WARRANTY…………………………………………
INTRODUCTION……………………………………..
SPECIFICATIONS…………………………………....
KNOW YOUR PRODUCT ………………………………
PACK CONTENTS……………………………………
FITTINGS AND TOOLS REQUIRED FOR INSTALLATION …….
ELECTRICAL SAFETY…………………………………
DESCRIPTION OF SYMBOLS ………………………….
GENERAL SAFETY INSTRUCTIONS………………………
ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS ……….
SET-UP & INSTALLATION……………………………..
OPERATION ………………………………………..
MAINTENANCE ……………………………………..
SPARE PARTS ……………………………………...
TROUBLESHOOTING………………………………….
2
3
3
4
4
4
5
6
7
8
9
12
13
13
14
1

WARRANTY
YARDWORKS TWO YEARS LIMITED WARRANTY
Your YARDWORKS product is covered for a period of 2 years from the ORIGINAL
date of purchase and is intended for home use only.
The warranty covers faulty parts or workmanship.
The warranty is only made available by returning the product to your point of purchase with a
confirmed cash register receipt.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY OR REPAIR PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
Yardworks. 1-23 Letcon Drive Bangholme, Victoria, Australia
2

INTRODUCTION
Congratulations on purchasing the YARDWORKS 1100W Transfer Pump on Trolley.
We aim to provide quality products at an affordable price. Before using, it is most important that
you read and follow the instructions in this manual, even if you feel you are quite familiar with
this type of product.
This product has been designed for numerous water transfer applications.
These include draining flooded laundries, bathrooms, basements or garages, emptying rainwater
tanks, pools and spas, emptying garden ponds and transferring water for domestic irrigation.
Input Voltage: 230-240V ~50Hz
Input Power: 1100W
Max. Lift: 6m
Max. Head: 48m
Max. Flow Rate: 4,600 litres/hour
Max. Particle Size: 3mm
Max. Water Temp: 35°C
Outlet Size: 25.4mm (1")
Power Cable Length: 1.5m
IP Rating: IPX4
Weight: 10.9kg
SPECIFICATIONS
3
0
5
10
15
20
25
30
35
40
45
50
0 1000 2000 3000 4000 5000
Height/ Head
Flow Rate (litres/hour)

KNOW YOUR PRODUCT
1. Power Cord
2. Discharge Outlet
3. Power Cord Retainer
4. Adjustable Handle
5. Suction Inlet
6. Drain Screw
7. Wheels
8. On/off Switch
1 x Transfer pump on trolley (YW1100TP)
1 x Instruction manual
6
8
7
5
4
23
1
PACKED CONTENTS
4
Note: Recommended items below are not included and are readily available from your local Bunnings store.
Suitable hose/tube/piping
2 x 25.4mm (1") Male threaded hose adaptors
Teflon tape
Non return valve/tap
FITTINGS AND TOOLS REQUIRED FOR INSTALLATION
WARNING! THIS PRODUCT IS NOT SUITABLE FOR USE WITH DRINKING (POTABLE) WATER.

ELECTRICAL SAFETY
WARNING! When using mains-powered equipment, basic safety precautions, including the following,
should always be followed to reduce risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this pump.
Save these instructions and other documents supplied with this pump for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Yardworks pumps are interchangeable for Australia and New Zealand.
This pump is earthed in accordance with AS/NZS 60335-2-41.
Note: The power outlet used for the water pump is recommended to be protected by a 30mA residual current device
or earth leakage circuit breaker.
If the power outlet is external, ensure that it is weather proof. If the supply cord is damaged, it must be replaced by
an electrician or a power tool repairer to avoid a hazard.
The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The
motor restarts automatically after it has cooled down.
Using an extension lead
Always use an approved extension lead suitable for the power input of this product. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable
for the power input of this product or which is damaged or defective may result in a risk of fire and electric shock.
5

DESCRIPTION OF SYMBOLS
V Volts Hz Hertz
~
Alternating current WWatts
/minRevolutions or
n oNoload speed
reciprocation per minute
l Litres ºC Degrees celsius
p/hrPer hour kPa Pressure rating (kilopascals)
bar Pressure rating FInsulation class
PVC Polyvinyl chloride IPX8 Ingress protection from water
Regulator compliance mark Warning
Read instruction manual
6

GENERAL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Pumps create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a pump. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Pump plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) pumps. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d) When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a pump. Do not use a
pump while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating pumps may result in serious personal injury.
b) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying pumps
with your finger on the switch or plugging in pumps that have the switch on invites accidents.
c) Remove any adjusting key or wrench before turning the pump on. A wrench or a key left attached to a
rotating part of the pump may result in personal injury.
d) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
4) PUMP USE AND CARE
a) Disconnect the plug from the power source before making any adjustments, changing accessories,
or storing pumps. Such preventive safety measures reduce the risk of starting the pump accidentally.
b) Maintain pumps. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the pumps operation. If damaged, have the pump repaired before
use. Many accidents are caused by poorly maintained pumps.
c) Use the pump, accessories and tool bits etc., in accordance with these instructions and in the manner
intended for the particular type of pump, taking into account the working conditions and the work to
be performed. Use of the pump for operations different from intended could result in a hazardous situation.
5) SERVICE
a) Have your pump serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the pump is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
7

ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS
Caution: Not intended for cleaning and other maintenance of swimming pool.
WARNING! This product is intended for pumping water in a Home Domestic application. Do not use it for
corrosive, abrasive, explosive or dangerous liquids. Fluids other than water may damage the water pump
and/or create a fire hazard.
This appliance is not intended for use by person (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
•Ensure the water pump is disconnected from mains power when installing.
•Do not install or operate the water pump in an explosive environment or near flammable material.
•Do not operate the water pump without liquid.
•Do not run the water pump dry.
WARNING! The water pump together with associated pipework operate under pressure. Do not disconnect
water pump or pipework until internal pressure has been released. Failure to do this could result in
personal injury and damage to property.
•Avoid inserting hands into the inlets/outlets of the water pump while it is connected to mains power.
•Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged.
If the water pump is damaged, contact Yardworks customer service.
•The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs.
The motor restarts automatically after it has cooled down. The pump must not be used when people are in
the water.
Never work or perform maintenance on the pump without first making sure it has been disconnected from the
mains power.
Pollution of the liquid could occur due to leakage of lubricants.
Important: Avoid inserting hands into the mouth of the pump if it is connected to the mains. The electrical
connection must always be made in a dry area. Make sure that electrical connections are protected from
inundations. Protect the plug and the power cable from heat, oil or sharp edges. If damaged, the power cable must
be replaced by a qualified electrician.
8

SET-UP & INSTALLATION
Suction Inlet
Connecting Hose or Pipe to the Suction Inlet

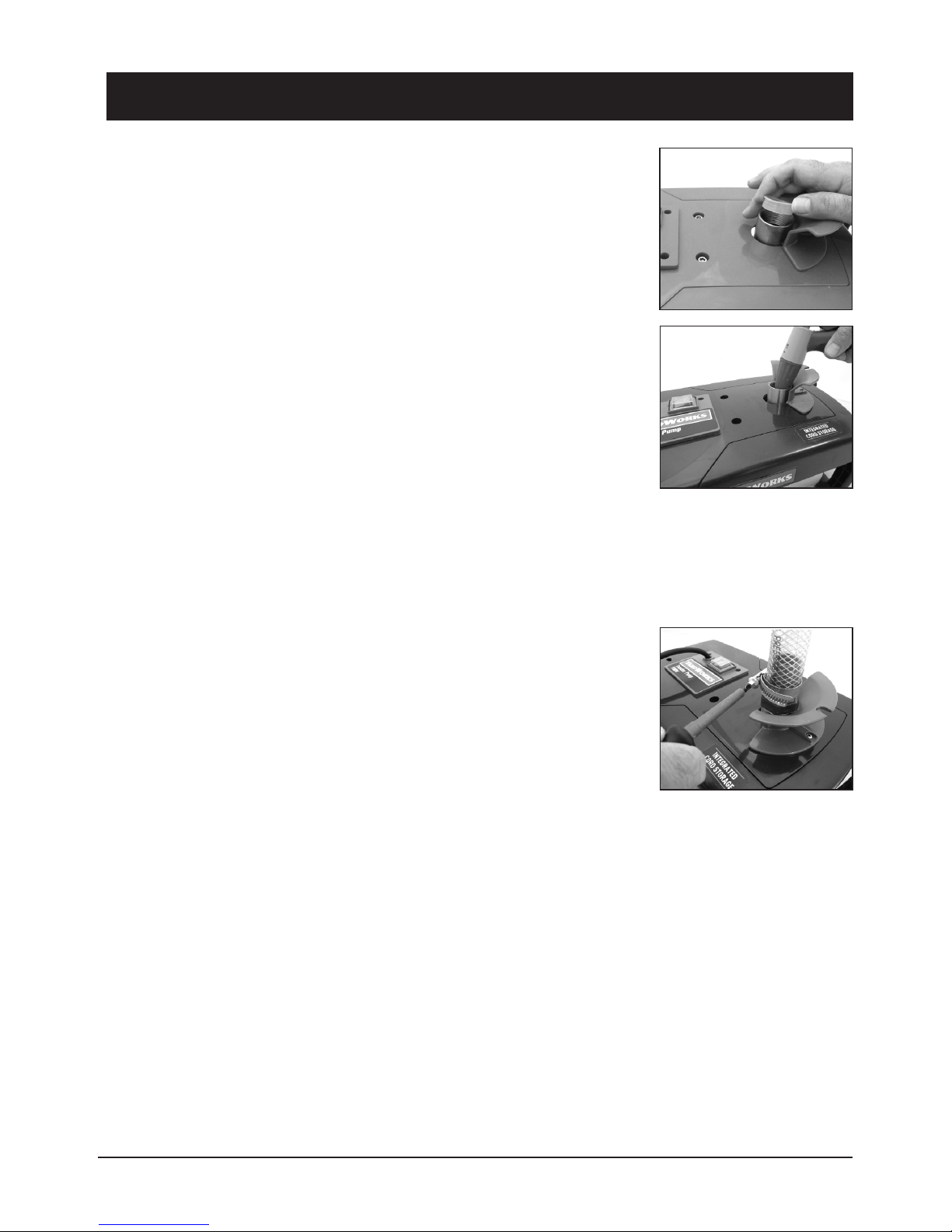

1 Remove the plastic protection cover from the suction inlet (5) (Fig. 1).
Note: It is recommended that you use a preliminary filter and suction set with
suction hose, suction strainer and non-return valve, in order to prevent long
priming periods and unnecessary damage to the pump as a result of stones and
solid foreign materials entering.
Note: If the suction inlet is higher that the water level a non return valve should be fitted to the suction line.
Note: Teflon tape (not included) is required on threads to ensure a water tight seal and prevent any leakage.
2. Insert a 25.4mm (1’’) male threaded hose adaptor (not included) into the
suction inlet (5) (Fig. 2).
3. Securely attach the input hose or pipe to the other end of the 25.4mm (1’’)
male threaded hose adaptor (not included) (Fig. 3). Ensure you have the correct
diameter hose or pipe that is compatible with your water drawing source.
Note: The input hose or pipe you are using must have a minimum diameter of
25.4mm (1’’).
Note: Ensure the input hose or pipe is not restricted in any way and no pressure is obstructing the input hose or
pipe when the pump is in operation.
Fig. 1
Fig.
Fig. 3
9

SET-UP & INSTALLATION (cont.)
Positioning the Hose or Pipe
Position the input hose or pipe so that it rises from the water drawing source to the pump. Avoid positioning the
input hose or pipe higher than the pump, as this would delay the escape of air bubbles from the input hose or pipe
and impede the priming process (see section ‘starting the pump’ for description on priming the pump) (Fig. 4-5).
mm051mm051
WATER TANK
GATE VALVE IN-LINE
FILTER
NON-RETURN
VALVE
UNION COUPLING
SUCTION LINE
FIRM BASE
DISCHARGE
OUTLET
CONNECTION WITH TANK BASE LEVEL WITH WATER PUMP
SOLID STRUCTURE
150mm
WATER TANK
GATE VALVE
IN-LINE
FILTER
NON-RETURN
VALVE
UNION COUPLING
SUCTION LINE
FIRM BASE
DISCHARGE
OUTLET
CONNECTION WITH TANK BASE BELOW WATER PUMP
150mm
SOLID STRUCTURE
Fig. 4
Fig. 5
10
RECOMMENDED SET-UP - CONNECTION WITH TANK BASE LEVEL WITH WATER PUMP
RECOMMENDED SET-UP - CONNECTION WITH TANK BASE BELOW WATER PUMP

SET-UP & INSTALLATION (cont.)
Priming
Priming the pump prepares the motor for safe operation.
1. Ensure the pump is turned off at the mains power.
2. Remove the plastic protection cover from the discharge outlet (2) pump
housing (Fig. 6).
3. Using a hose, fill the pump by pouring water into the discharge outlet (2).
Ensure the pump and suction line are full (Fig. 7).
Discharge Outlet
Connecting Hose or Pipe to the Discharge Outlet
Note: Teflon tape (not included) is required on threads to ensure a water tight seal and prevent any leakage.
1. Screw a 25.4mm (1’’) male threaded hose adaptor (not included) into the
discharge outlet (2). Securely attach the output hose or pipe to the other end
of the 25.4mm (1’’) male threaded hose adaptor (not included) (Fig. 8). Ensure
you have the correct diameter of hose or pipe that is compatible with your
water discharge application.
Note: The discharge hose or pipe you are using must have a minimum diameter of
19mm (3/4").
Note: Ensure the discharge hose or pipe is not restricted in any way and no pressure is obstructing the hose or
pipe when the pump is in operation.
Fig. 6
Fig. 7
Fig. 8
11

OPERATION
Turning the Pump On and Off
Note: When the pump is fully primed and air is flushed out of the suction cycle,
the pump is ready to operate. The pump may take several minutes to fully prime air
from the suction line and inside the pump.

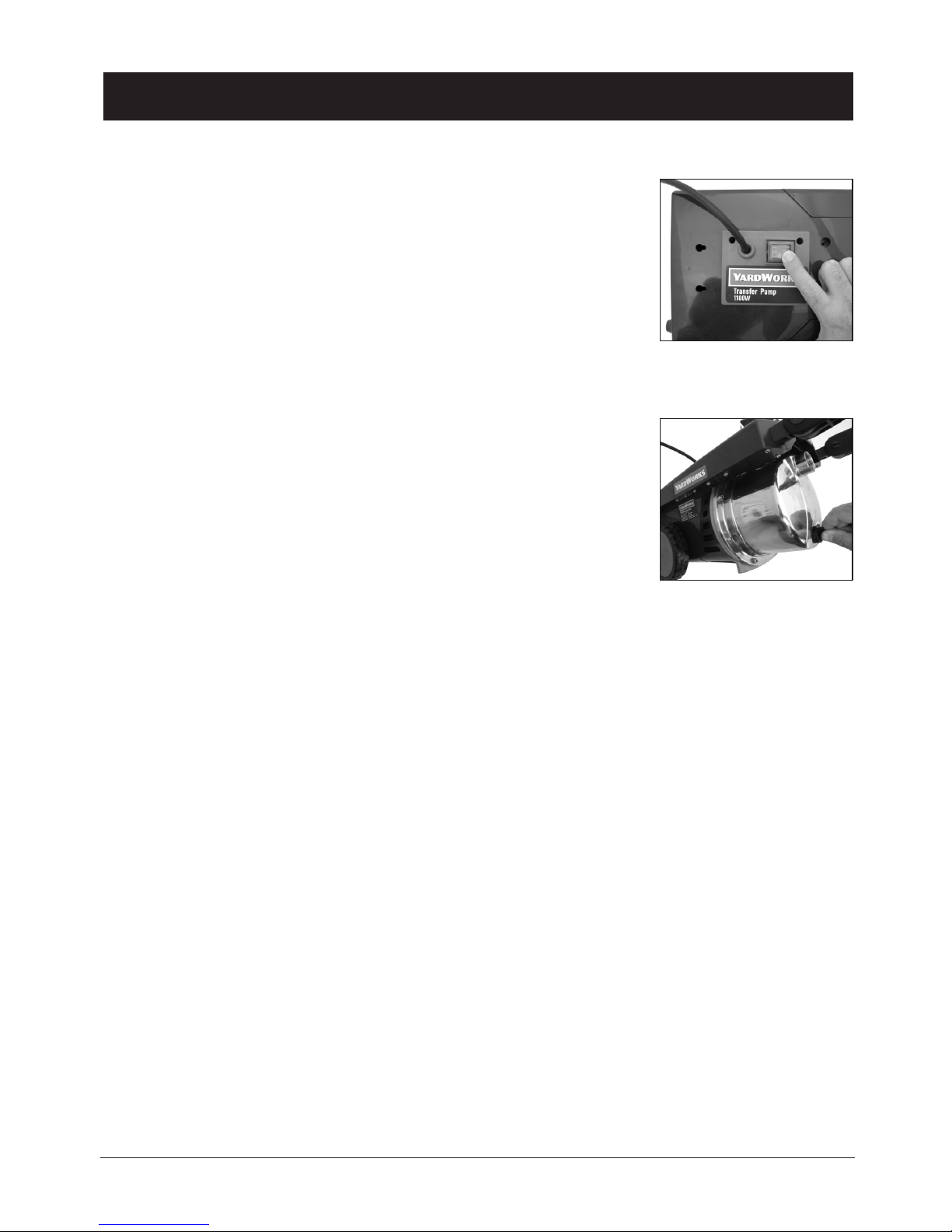

1. Turn the pump on at the mains power.
2. Depress the ON/OFF switch (8) to the "l" position (Fig. 9).
3. To turn the pump off, depress the ON/OFF switch (8) to the "0" position.
Storing the Pump
Before storing the pump, it is recommended to empty the pump body of any water.
Turn the drain screw (6) anti-clockwise and remove from the pump body (Fig. 10).
This will drain any excess water. Replace the drain screw (6).
Note: Ensure the gate valve on your water tank is not left open as this will allow
water to drain from the tank.
Fig. 9
Fig. 10
12

MAINTENANCE
In ordinary conditions, this pump does not require any maintenance.
Make sure the pump is disconnected from electric power supply before performing maintenance operation.
Cleaning the pump body
Use a moist cloth to wipe down the pump body (5). Allow to dry thoroughly before storing in a dry location that is
protected from bad weather conditions.
If the pump is not going to be used for a long period of time, it is advisable to rinse with water. Ensure the pump
is completely dry before storing.
SPARE PARTS
13
Drain Screw SPYW1100TP-03
Wheel SPYW1100TP-29
On/Off Switch SPYW1100TP-67

TROUBLE SHOOTING
Symptom Possible Cause Suggested Solution
The pump does not pump
water/the motor does
not run
There is no power reaching the pump Check the mains power outlet, ensure that the
electrical plug of the pump has been correctly
inserted
The motor thermal overload
protection is activated
Turn the pump off and switch power off at the
mains power outlet and wait for the motor to cool
down and then restart the pump
The pump doesn’t build up enough
pressure to operate
Check the suction line connections for air leaks and
tighten or fix where found
Check the water source tank has water in it
The inlet or outlet hose is blocked Determine the cause and unblock the pump
The motor runs but the
pump is not pumping
water
The pump is sucking air Verify the joints are sealed tightly
The pump is not primed Fill the pump with water or wait for it to
finish priming
The pump or discharge outlet is
blocked
Check the pump and discharge outlet for any
foreign matter and remove if found
The pump does not
produce adequate
pressure
Incorrect assembly leads to air and
water leakage in the suction and
discharge lines
Ensure the suction and discharge lines are the
correct length and all assembly instructions are
adhered to
The failure light continues
to illuminate red after
pressing the restart button
Air leak in the suction line Check the suction line connections for air leaks
and tighten or fix where found
Electrical fault with the pump Contact YARDWORKS Customer Service
14
