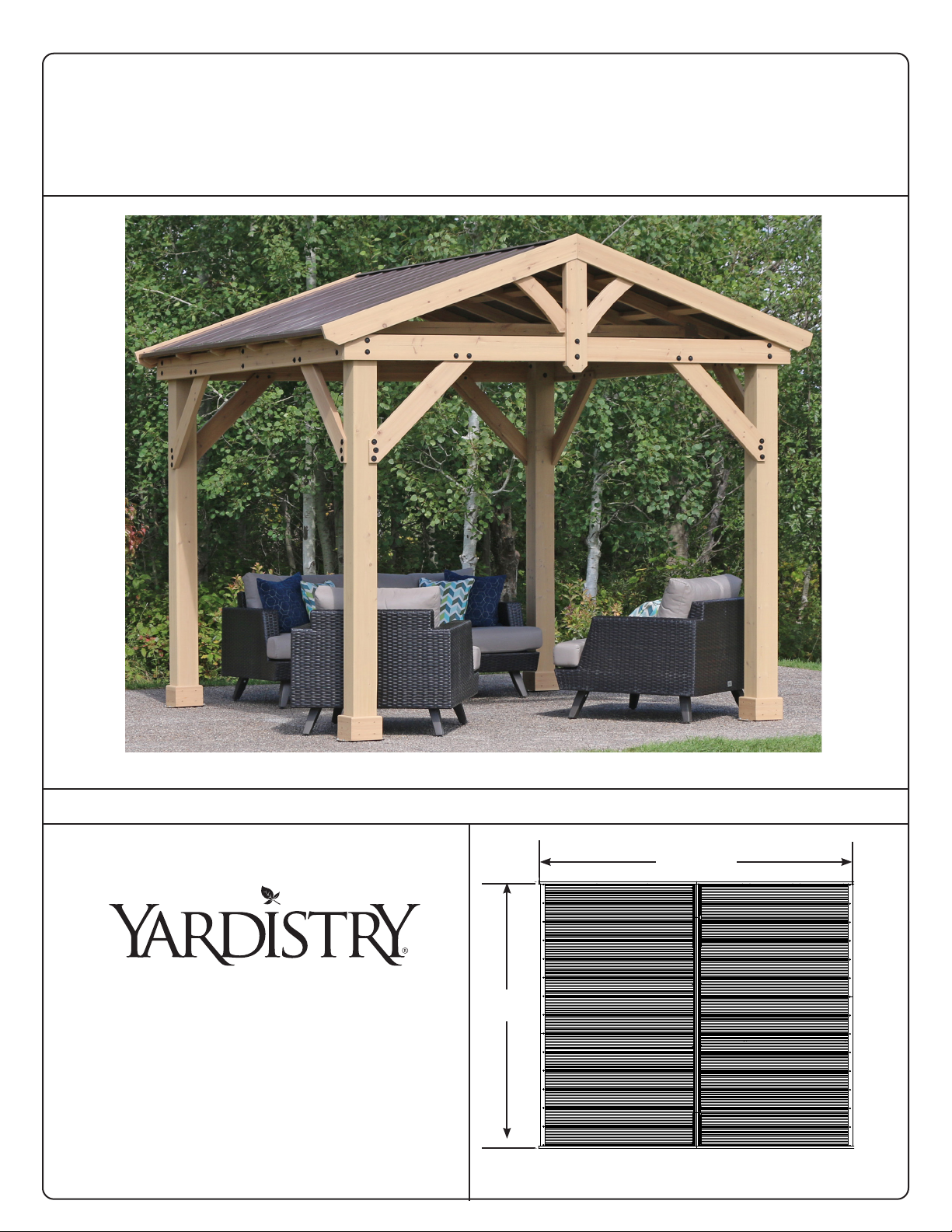

Yardistry YM11909 User manual

10’ x 10’ PAVILION
Installaon and Operang Instrucons – YM11909
Revised 08-24-2020
Height: 9’ 3-1/2” (2.83 m)
9’ 11”
10’
(3.04 m)
(3.02 m)
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Y40000-909
120
119
Height: 9ft - 3½"

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chimnea for
safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OHSA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending
General Information

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your unit
so that it does not create any unreasonable hazards at the time it is discarded. Be sure to
follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• 7/16”, 1/2” & 9/16” Wrench
• 7/16”, 1/2” & 9/16” Socket
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Ratchet
• Check that assembly is square before
tightening bolts

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pavilion.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
post to post
plinth to plinth
"
3
9'- 4
"
32
13'-2 19
"
32
13'-219
"
1"
2
9'-4
10'-2 1
4
10'-6"
8’ 6”
Plinth to Plinth
Plinth to Plinth
11’ 7-1/8”
Post to Post
9’ 6-1/2”
Post to Post
7’ 7-1/2”
(2.64 m)
Post to Post
8’ 8”
(2.91m) (3.53 m) (2.59 m)
(2.32 m)

7 [email protected]
Permanent Installation Examples cont.
Anchoring Hardware not included
Anchoring Hardware not included
Anchoring Hardware (not included)
Post
Mount
Post Mounts have a 1/2” diameter
hole for anchoring hardware.
Concrete Patio [min. 10’ 1” x 10’ 6-1/2” (3.073 m x 3.213 m)] with 6” (15.24 cm) clearance on all sides
Wood Deck [min. 10’ 1” x 10’ 6-1/2” (3.073 m x 3.213 m)] with 6” (15.24 cm) clearance on all sides

8 [email protected]
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
2235.2mm ( 88")4pc. (752) - Post
Y70131-752
1492.3mm (58-3/4")4pc. (836) - Side Beam Outside
Y50131-836
177.8mm (7")16pc. (738) - Plinth
Y50131-738
Y50131-840
6pc. (840) - Strap Long 1779.9mm (70")
Y50131-832
2pc. (832) - Gable Inside 1295.4mm (51")
Y50131-831
12pc. (831) - Rafter 1553mm (61-1/8")
876.3mm (34-1/2") 4pc. (842) - Gusset Right
Y50131-842
1485.9mm ( 58½")4pc. (837) - Rafter Top
Y50131-837 Y70131-846
2pc. (846) - Gable Upright Assembly 672mm (26½")
Y50131-843
4pc. (843) - Gusset Left 876.3mm (34-1/2")
4pc. (833) - Gable Beam 1422.4mm (56")
Y50131-833
1191.9mm (46-15/16")6pc. (839) - Strap Short
Y50131-839
Y50131-835
4pc. (835) - Side Beam Ends 452.4mm (17-13/16")
Y50131-848
4pc. (848) - Gable End 530.2mm (20-7/8")
Y50131-830
4pc. (830) - Fascia 1621.4mm (63-7/8")
Y50131-847
4pc. (847) - Gable Gusset 457mm (18")
2235.2mm (88")4pc. (841) - Tie
Y50131-841
553mm (21¾")2pc. (838) - Rafter Brace
Y50131-838
2156.9mm (84-15/16")2pc. (834) - Side Beam Inside
Y50131-834

9 [email protected]

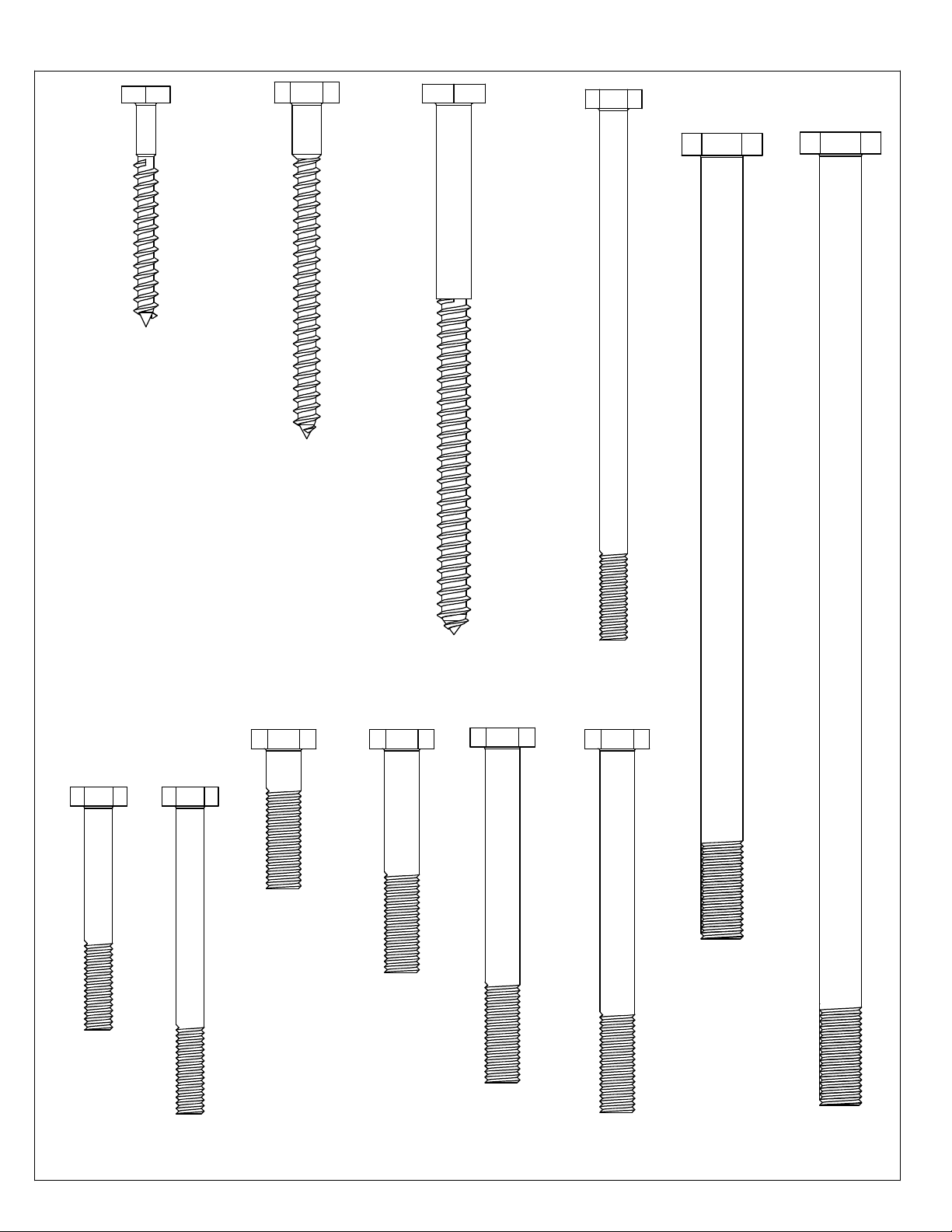

Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
24pc. Lag Screw 1/4" x 1-15/16"
No.12 Shank
(Y06218-219)
8pc. Hex Bolt
1/4 x 2"
(Y07718-220)
4pc. Hex Bolt
3/8 x 7-1/4"
(Y07718-871)
8pc. Hex Bolt
1/4 x 2-3/4"
(Y07718-223)
4pc. Hex Bolt
3/8 x 8-1/2"
(Y07718-882)
8pc. Hex Bolt
5/16 x 3-1/4"
(Y07718-331)
20pc. Hex Bolt
5/16 x 1-1/4"
(Y07718-311)
4pc. Lag Screw
5/16 x 4-3/4"
(Y06218-343)
4pc. Lag Screw (1/4" Shank)
5/16 x 3"
(Y06218-330)
10pc. Hex Bolt
5/16 x 2"
(Y07718-320)
2pc. Hex Bolt
1/4 x 4-3/4"
Y07718-243
2pc. Hex Bolt
5/16 x 3"
(Y07718-330)

10 [email protected]
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
1pc. - 1/8" Drill Bit
(Y00400-002)
40pc. 5/16 - T-Nut
(Y08518-300)
8pc. - 3/8" Lock Nut
(Y08318-803)
40pc. 5/16" Lock Washer
(Y05318-300)
90pc. Pan Screw #10 x 1-1/4"
(Y06491-711)
1pc. - Hex Driver (Y00400-004)
126pc. Hex Roofing Screw #8x 1"
(Y06733-510)
26pc. Wood Screw #7 x 3/4"
(Y06091-003)
236pc. Wood Screw #8 x 1-3/4"
(Y06091-513)
8pc. Pan Screw #10 x 2-1/2" (Y06491-722) 18pc. - 1/4" Lock Nut
(Y08318-203)
60pc. Wood Screw #8 x 2 1/4" - (Y06091-521)
4pc. Wood Screw #10 x 4" - (Y06091-740)
108pc.
1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
16pc.
3/8 x 1-1/4" Large Washer
(Y05118-811)
4pc. Sheet Metal Screw #8 x 3/4"
(Y06433-503)
8pc. Wood Screw #8 x 2" - (Y06091-520)
1pc. #2 x 2" Robertson Driver (Y00400-005)

11 [email protected]
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )
Main Panel
Y01033-274
4pc.
1pc. - 10 x 10 Pavilion Roof Set
(Y70833-272)
2pc.
Ridge Clip
(Y01033-114)
1pc. - Tie Wrap
Bracket Set (8Pk)
(Y70819-106)
1pc. - Post Mount
Bracket Set (8Pk)
(Y70819-109)
1pc. - Gazebo ID Plaque
(Y70800-104)
4pc.
Ridge Clip 15
(Y01033-276)
1pc. - Weather Seal -
Ridge Clip (6Pk)
(Y70818-280)
1pc. - Rafter Beam
Bracket Set (8Pk)
(Y70829-281)
2pc.
Roof Edge Right
(Y01033-275)
2pc.
Roof Edge Left
(Y01033-152)
Y01033-273
4pc.Side Panel
1pc.
Ridge Cap
(Y01033-277)
2pc.
Ridge Cap Short
(Y01033-278)

12 [email protected]
PRODUCT NUMBER: YM11909
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI
warnings; notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four
people, DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check
for gas, telephone, other utilities or sprinkler line locations prior to excavating any
holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if
you contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well
as any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your
assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

13 [email protected]
S15-Wood Screw #8 x 1-3/4,
Y708XX-109 - Post Mount Set
S15-Wood Screw #8 x 1-3/4,
Y708XX-109 - Post Mount Set
S15-Wood Screw #8 x 1-3/4,
Y708XX-109 - Post Mount Set
A: At the bottom of each (752) Post insert two 5/16” T-Nuts as shown in F2.1 and F2.2.
B: At the bottom of each (752) Post place two Post Mounts tight to the bottom and inside faces as shown in F2.1
and F2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16” large washer) per
mount so they connect to the T-Nuts.
C: On each side of the Posts, place one (738) Plinth ush to the bottom and attach with four #8 x 1-3/4” Wood
Screws per plinth. Rounded edges on top. (F2.1 and F2.3)
D: From the bottom of each Post Mount attach to posts with two #8 x 1-3/4” Wood Screws per mount and then from
the inside with two #10 x 1-1/4” Pan Screws per mount These screws are installed at a slight angle. Tighten all
bolts. There will be four Post Assemblies. (F2.4)
Step 2: Post Assemblies
HardwareWood Parts
F2.2
(738) Plinth
4 x (752) Post
16 x (738) Plinth
Top
Bottom #8 x 1-3/4” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-3/4”
Wood Screws
(x 4 per Plinth)
Post
Mount
F2.3
16 x #10 x 1-1/4” Pan Screw
80 x #8 x 1-3/4” Wood Screw
8 x Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
F2.1
Post
Mount
(752)
Post
Rounded
Edge on Top
F2.4
Post
Mount
#10 x 1-1/4” Pan Screws (x 2
per Post Mount, from inside)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
5/16” T-Nut (x 2
per Post)
Post
Mount
(752)
Post
(752)
Post
(752)
Post

14 [email protected]
5/16 x 3 - Y07718-330, 5/16 x 2 -Y07718-320
#8 x 3” Wood Screw Y06091-530
Y50000-833 -Gable Beam, Y50000-832 -Gable Inside
Y50000-848 - Gable End
5/16 x 3 - Y07718-330, 5/16 x 2 -Y07718-320
#8 x 3” Wood Screw Y06091-530
Y50000-833 -Gable Beam, Y50000-832 -Gable Inside
Y50000-848 - Gable End
Step 3: Gable Beam Assembly
Hardware
Wood Parts
A: Place two (833) Gable Beams tight together, then place one (846) Gable Upright Assembly centred, on one side
of (833) Gable Beams and one (832) Gable Inside on the other side. (832) Gable Inside to be ush to top of (833)
Gable Beams. Loosely attach (846) Gable Upright Assembly to (833) Gable Beams and (832) Gable Inside with
one 5/16 x 3” Hex Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) in the top hole and 5/16 x
2” Hex Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) in the bottom hole. Note: Bolt holes to
the bottom of each (833) Gable Beam. (F3.1 and F3.2)
B: Attach (832) Gable Inside to (833) Gable Beams with six #8 x 1-3/4” Wood Screws. Tighten bolts from Step A.
(F3.1 and F3.2)
C: Place one (848) Gable End tight to each side of (832) Gable Inside, ush to the top of (833) Gable Beams then
attach with three #8 x 1-3/4” Wood Screws per board. (F3.1 and F3.2)
D: Repeat Steps A - C one more time to make a second Gable Beam Assembly.
F3.1
2 x 5/16 x 2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
2 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
24 x #8 x 1-3/4” Wood Screw
1/4 - 5/16”
Large Washer
5/16 x 2”
Hex Bolt
5/16”
T-nut
Flush
(848) Gable End
(833) Gable
Beam
Front
4 x (833) Gable Beam
2 x (846) Gable Upright Assembly
2 x (832) Gable Inside
4 x (848) Gable End
(846) Gable
Upright
Assembly
5/16” Lock
Washer
#8 x 1-3/4”
Wood Screw
x 12
Notice holes
on bottom of
both boards
(833) Gable
Beam
(832) Gable
Inside
F3.2
Back
5/16 x 3”
Hex Bolt
(848) Gable End
Flush and
Tight Flush
(846) Gable
Upright
Assembly
(848) Gable End
(832) Gable
Inside
(848) Gable End
Notice the
direction the
bolts are being
installed.
Notice bolt
hole on top of
board
(833) Gable
Beam

15 [email protected]
G3 ---5/16 x 1-1/4 - Y07718-311
Y50000-834 - Side Beam Inside
Y50000-835 -Side Beam Ends x2
Y50000-836 -Side Beam Outside
HardwareWood Parts

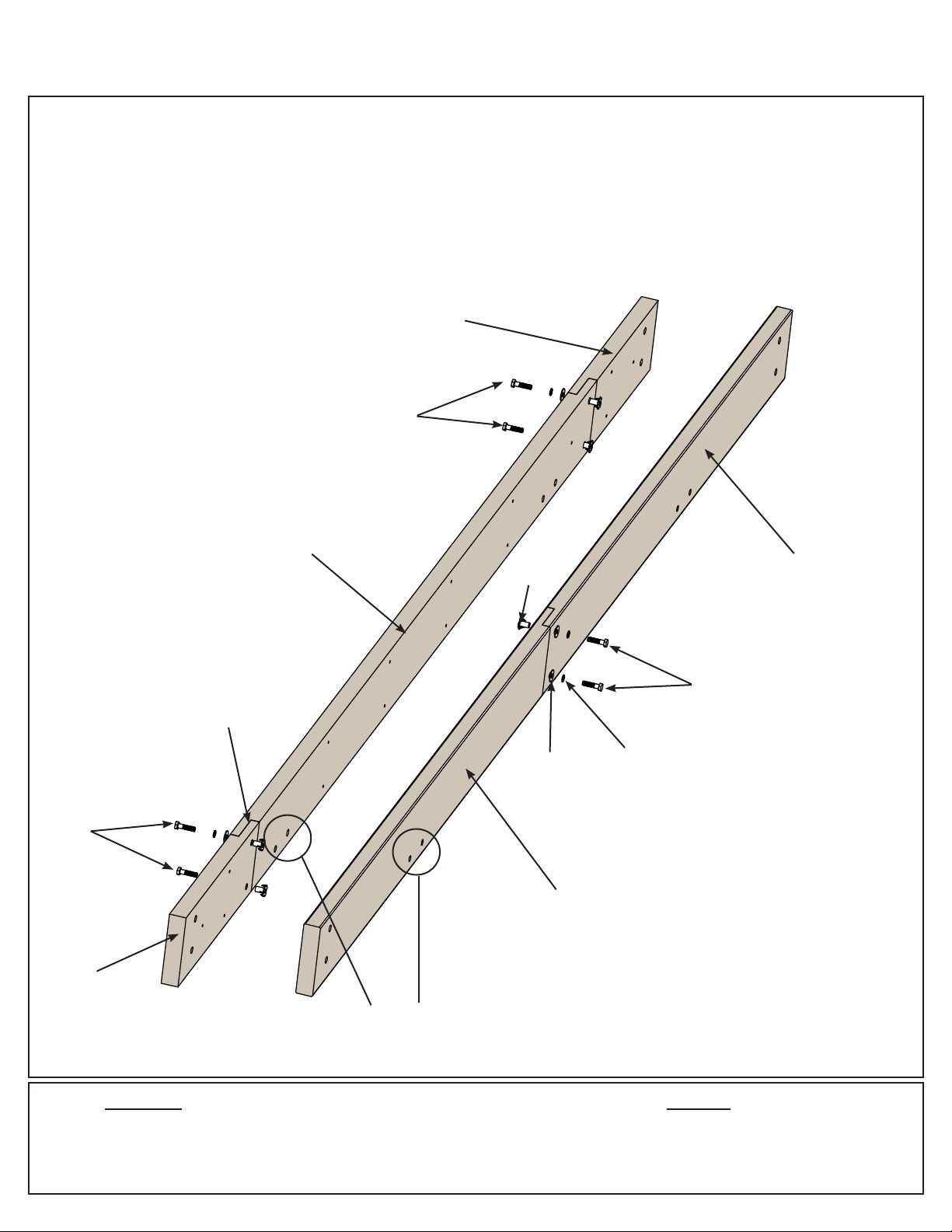

A: Fit two (836) Side Beam Outsides together so the middle pilot holes are at the bottom for both. Connect using
two 5/16 x 1-1/4” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F4.1.
B: Connect one (835) Side Beam Ends to each end of one (834) Side Inside Beam using two 5/16 x 1-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in F4.2.
C: Repeat Steps A and B one more time to make two Outside Beam Assemblies and two Inside Beam Assemblies.
4 x (836) Side Beam Outside
2 x (834) Side Beam Inside
4 x (835) Side Beam Ends
F4.1
12 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F4.2
5/16 x 1-1/4”
Hex Bolt
5/16”
T-nut
Tight
(834) Side
Beam Inside
Step 4: Side Beam Assembly
Part 1
5/16 x 1-1/4”
Hex Bolt
5/16 x 1-1/4”
Hex Bolt
5/16” Lock
Washer
(835) Side
Beam Ends
(836) Side
Beam Outside
1/4 - 5/16”
Large Washer
Notice holes
on bottom of
both boards
(836) Side
Beam Outside
(835) Side
Beam Ends

16 [email protected]
G25-5/16 x 7-1/4
S35-Wood Screw #8 x 2 1/4,
Hardware
32 x #8 x 2-1/4” Wood Screw
F4.3
Inside Beam
Assembly
Flush
Step 4: Side Beam Assembly
Part 2
D: Place one Outside Beam Assembly and one Inside Beam Assembly together so the ends are ush. Match
the bolt holes in each assembly. Attach assemblies with 16 #8 x 2-1/4” Wood Screws. (F4.3)
E: Repeat Step D one more time to make a second Side Beam Assembly.
Flush
Outside Beam
Assembly
#8 x 2-1/4” Wood
Screws (x 16 per
assembly)
Match
bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(836) Side
Beam Outside
(835) Side
Beam Ends
(835) Side
Beam Ends

17 [email protected]
Avery Inst 4 - Frame Assembly
A: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.
B: With one person at each Post stand two complete Post Assemblies. A third person places one Side Beam
Assembly against the outside of each Post, ush to the tops and outside corners. Notice bolt hole orientation
on the assemblies. A fourth person attaches Beam to Post with one 3/8 x 8-1/2” Hex Bolt (with two 3/8” large
washers and one 3/8” lock nut) in the top hole, per Post. The distance from the outside of one Post to the outside
of the second Post should be 9’ 6-1/2” (2.91 m). (F5.1, F5.2 and F5.3)
C: Place one Gable Beam Assembly against two Post Assemblies so the (832) Gable Inside faces the inside and
is ush to the top and outside corner of Side Beam Assembly, then attach with one 3/8 x 7-1/4” Hex Bolt (with two
3/8” large washers and one 3/8” lock nut) in the bottom hole, per Post. The distance from the outside of one Post
to the outside of the second Post should be 9’ 1” (2.77 m). (F5.1 and F5.2) See F5.3 for accurate positioning of
Posts.
Step 5: Frame Assembly and Anchoring
Part 1
F5.1
F5.2
Hardware
4 x 3/8 x 8-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
4 x 3/8 x 7-1/4” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Note hole
orientation (on
bottom)
F5.3
3/8” Lock
Nut
3/8” Large
Washer
3/8” Large
Washer
3/8 x 7-1/4”
Hex Bolt
3/8 x 8-1/2”
Hex Bolt
Side Beam
Assembly
Post Assembly
Post
Assembly
(832) Gable
Inside
Post
Assembly
Plinth
Gable Beam
Assembly
Gable Beam
Assembly
Side Beam
Assembly
post to post
plinth to plinth
"
3
9'- 4
"
32
13'-2 19
"
32
13'-219
"
1"
2
9'-4
10'-2 1
4
10'-6"
D: Repeat Steps B and C for remaining
Beam Assemblies. See F5.3 for accurate
positioning of Posts.
Flush
x 3
Gable Beam
Assembly
Side Beam
Assembly
Post
Assembly
8’ 6”
Plinth to Plinth
Plinth to Plinth
11’ 7-1/8”
Post to Post
9’ 6-1/2”
Post to Post
7’ 7-1/2”
(2.64 m)
Post to Post
8’ 8”
(2.91m) (3.53 m) (2.59 m)
(2.32 m)

18 [email protected]
Avery Inst 4 - Frame Assembly
E: Make sure each corner is square and level then attach Side Beam Assembly to Post Assemblies with
one 5/16 x 4-3/4” Lag Screw (with 1/4-5/16” large washer) per corner and Gable Beam Assembly to Post
Assemblies with one 5/16 x 3” Lag Screw (with 1/4-5/16” large washer) per corner as shown below. (F5.4)
F: Depending on what you are placing the Pavilion on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
4 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
4 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
5/16 x 4-3/4”
Lag Screw
5/16 x 3”
Lag Screw
F5.4
Post Assembly
Step 5: Frame Assembly and Anchoring
Part 2
Gable Beam
Assembly
Side Beam
Assembly
1/4 - 5/16”
Large Washer
1/4 - 5/16”
Large Washer

19 [email protected]
L10 ---1/4 x 1-15/16 Lag w. N12 shank -
Y0618-219
Y50000-842- Gusset Right
Y50000-843 -Gusset Left
L10 ---1/4 x 1-15/16 Lag w. N12 shank -
Y0618-219
Y50000-842- Gusset Right
Y50000-843 -Gusset Left

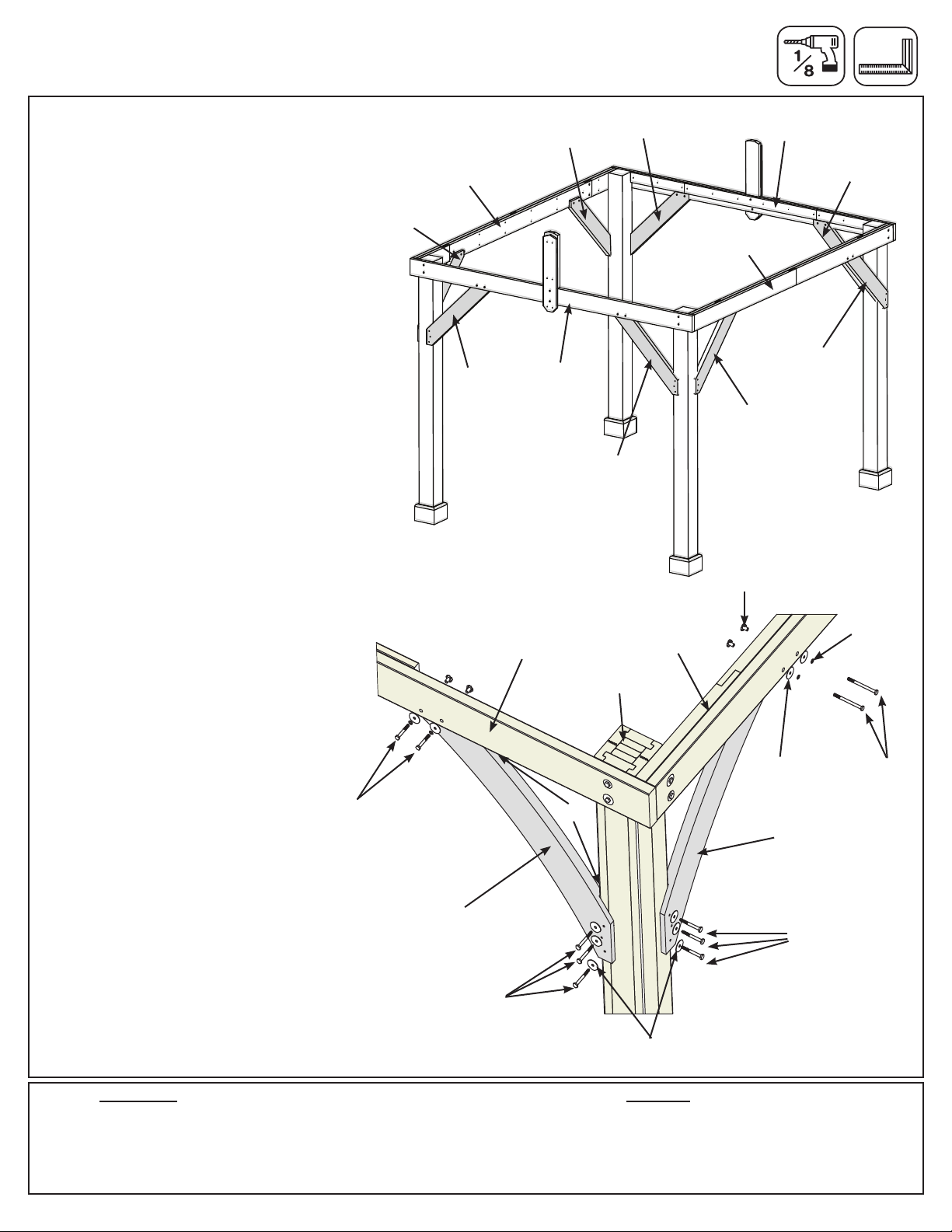

Note: The bevelled ends on each
gusset should always face away from
the wood it is attaching to.
A: Make sure the assembly is still square
and level then facing one Side Beam
Assembly place one (842) Gusset Right
on the right hand side so the top ts
tight to the Side Beam Assembly and the
bottom ts tight to the Post Assembly.
Attach gusset to Side Beam Assembly
with two 5/16 x 3-1/4” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large washer
and 5/16” t-nut). Pre-drill with a 1/8” drill
bit then attach gusset to Post Assembly
with three 1/4 x 1-15/16” Lag Screws
(with 1/4-5/16” large washer). Repeat for
the left hand side with one (843) Gusset
Left. (F6.1 and F6.2)
B: Repeat Step A for Gable Beam
Assembly using two 5/16 x 2” Hex Bolts
(with 5/16” lock washer, 1/4-5/16” large
washer and 5/16” t-nut) to attach gussets
to Gable Beam Assembly. (F6.1 and
F6.2)
C: Repeat Steps A and B so all 8 gussets
are attached. (F6.1 and F6.2)
Step 6: Attach Gussets
F6.1
Tight
4 x (842) Gusset Right
4 x (843) Gusset Left
HardwareWood Parts
24 x 1/4 x 1-15-16” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-1/4” Hex Bolt (5/16” lock washer, 1/4-5/16” large
washer, 5/16” t-nut)
8 x 5/16 x 2” Hex Bolt (5/16” lock washer, 1/4-5/16” large washer,
5/16” t-nut)
F6.2
(843)
Gusset
Left
Post
Assembly
(842)
Gusset
Right
(843)
Gusset
Left
5/16”
T-nut
5/16” Lock
Washer
5/16 x 2”
Hex Bolt
5/16 x 3-1/4”
Hex Bolt
(842) Gusset
Right
(843)
Gusset
Left
(842) Gusset
Right
(843)
Gusset
Left
(842)
Gusset
Right
(842)
Gusset
Right
(843)
Gusset
Left
Gable Beam
Assembly
Side Beam
Assembly
Side Beam
Assembly
Side Beam
Assembly
Gable Beam
Assembly
Gable Beam
Assembly
1/4 - 1-15/16”
Lag Screw
1/4 - 5/16”
Large Washer
1/4 - 5/16”
Large Washer
1/4 - 1-15/16”
Lag Screw

20 [email protected]
S15-Wood Screw #8 x 1-3/4,
Y50000-840 - Strap Long
Y50000-839 -Strap Short
Y50000-837 -Rafter Top
Avery Inst 6A - Frame Roof Panel
Avery Inst 6A - Frame Roof Panel
A: Lay out three (831) Rafters on a hard at surface as shown in F7.1. You will need lots of room for this step.
B: Place 1 (839) Strap Short on the bottom of three (831) Rafters, ush to the outside edge of the rst and
centred on the last. Be sure the wider gap on (839) Strap Short is on the rst (831) Rafter. Follow by placing one
(840) Strap Long then another (839) Strap Short in the same manner. Make sure the assembly is square, pre-
drill the rst (839) Strap Short with a 1/8” drill bit as shown below, then attach both (839) Strap Short and (840)
Strap Long with six #8 x 1-3/4” Wood Screws per board. The screws on the third (831) Rafter are inserted at an
angle. (F7.1, F7.2 and F7.3)
C: Place one (837) Rafter Top on the angled ends of the (831) Rafters so the outside edges are ush then attach
to (831) Rafters with six #8 x 2-1/4” Wood Screws. (F7.1 and F7.4)
Step 7: Roof Panel Frame
Part 1
F7.1
F7.2
HardwareWood Parts
12 x (831) Rafter
4 x (839) Strap Short
2 x (840) Strap Long
2 x (837) Rafter Top
36 x #8 x 1-3/4” Wood Screw
12 x #8 x 2-1/4” Wood Screw
(839) Strap Short
(839) Strap Short
(pre-drill pilot holes
for this board only)
(837)
Rafter Top
(831) Rafter
Flush
Notice
screws at
an angle
Flush
(840) Strap Long
(831)
Rafter
(831) Rafter
F7.3
F7.4
(839) Strap
Short
(840) Strap
Long
Notice large
notch gap on
outside ends Notice small notch
gap on inside ends
where straps meet
Notice large
notch gap on
outside ends
#8 x 1-3/4” Wood
Screws
#8 x 2-1/4”
Wood Screws
(x 6)
Side View
Bottom
(837)
Rafter Top
(839) Strap Short
