Yazoo/Kees 968999694/ZEKH42200 User manual

968999694/ZEKH42200
968999698/ZEKH48240
968999701/ZEKH52240
Parts Manual

MODELNUMBER _______________________________
SERIALNUMBER _______________________________
DATE PURCHASED _____________________________
DEALER ADDRESS _____________________________
NOTES:_________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
©2007 Yazoo/Kees Power Equipment. All rights reserved.
Beatrice, NE. Printed in U.S.A.

SECTION PAGE
CHASSIS / FRAME ............................................................................................................................4-7
ENGINE,KOHLER..............................................................................................................................8-9
STEERING...................................................................................................................................... 10-11
PARK BRAKE................................................................................................................................. 12-13
HYDRAULICPUMP/ MOTOR......................................................................................................... 14-15
MOWERLIFT /DECK LIFT............................................................................................................. 16-17
42INCHCUTTINGDECK ................................................................................................................ 18-19
48INCHCUTTINGDECK ................................................................................................................ 20-21
52INCHCUTTINGDECK ................................................................................................................ 22-23
SEAT .............................................................................................................................................. 24-25
CASTERS ....................................................................................................................................... 26-27
CONTROLS .................................................................................................................................... 28-29
DECALS ......................................................................................................................................... 30-31
ACCESSORY,42” MULCHKIT ............................................................................................................ 32
ACCESSORY,52” MULCHKIT ............................................................................................................ 33
SCHEMATICS ...................................................................................................................................... 34
CONTENTS
NOTE: ALLFASTENERSAREGRADE5 UNLESSOTHERWISESPECIFIED.

4
CHASSIS / FRAME
1
2
3
4
5
15
7
8
9
10
11
12
13
14 15
16
17
18
19
20
12
10
12
14
14
15
13
7
15
13
6
14
15 13
14 15
5

5
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
1... 539102587 .... 2 ... GROMMET,BUMPER
2... 539104763 .... 2 ... NUT,5/16 -18,U-TYPE
3... 539105974 .... 1 ... GROMMET,RUBBER
4... 539106959 .... 1 ... ENGINE,GUARD
5....539 107116 .... 2... GROMMET
6....539 112754 .... 1 ... FLOORPAN
7....539 112780 .... 2 ... GUARD,LOWER
8....539 112781 .... 1 ... GUARD,UPPERRIGHT
9....539 112782 .... 1 ... GUARD,UPPERLEFT
10....539112783 .... 4 ... PLATE, SKID
11... 539977778 .... 3... PAD,ABRASIVE
12... 539990208 .... 6... RHSNB, 5/16 -18 x 1
13... 539990316 ...20 ... RHSNB, 5/16 -18 x 3/4
14... 539990692 ...10 ... WASHER, 5/16
CHASSIS / FRAME
15... 539990717 ...26 ... NUT, 5/16 -18, NYLOC
16....539112795 .... 1 ... FRAME W/DECALS
17....539112212 .... 2 ... TIRE&RIM,MODEL
968999694
... 539130820 .... 2 ... TIRE& RIM, MODELS:
968999698,968999701
18....539112213 .... 1 ... TIRE,MODEL968999694
... 539130822 .... 1 ... TIRE,MODELS968999698,
968999701
19....539112214 .... 1 ... RIM,MODEL968999694
....539112217 .... 1 ... RIM,MODELS968999698,
968999701
20... 539912234 .... 1 ... VALVE STEM

6
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
17
17
18
10
CHASSIS / FRAME
19
20
21

7
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
1... 539102436 ... 1...BATTERY, DRY
2... 539102502 ... 6...STUD,5/16C
3... 539 102845 ... 8...SPRING, FUELTANK
4... 539 105452 ... 1...TANK, FUEL,LEFT
5... 539 106188 ... 1...FUELCAP,ANTI-SPLASH
6... 539 107270 ... 2...HCS, 5/16 -18 x 31/2
7... 539 107628 ... 1...BATTERYHOLDDOWN
8... 539 107629 ... 2...NUT, 1/4,PUSH NYLON
9... 539 107632 ... 2...BOLT, 1/4x 71/2, SPEC
10....539 110815 ... 5...WIRECLIP,PUSH MOUNT
11....539112408 ... 1...BATTERYTRAY
12....539 112446 ... 2...TANK SPACER
CHASSIS / FRAME
13... 539 916325 ... 1... VALVE, FUEL
14... 539 976934 ... 2... HCS, 5/16 -18 x 3/4
15... 539 990187 ... 2... WASHER, 5/16
16... 539 990209 ... 2... HCS, 5/16 -18 x 1
17... 539 990692 ... 2... WASHER, 5/16
18... 539 990717 ... 2... NUT, 5/16 -18,NYLOC
19... 539 104736 ... 2...“U”RETAINER,5/16C
20... 539 990196 ... 2... NUT, 5/16 -18
21... 539 108394 ... 2... HCS, 5/16 -18 x 1¾, TAP
NOTSHOWN:
....539 112409 ... 1... HARNESS,MAIN
unitsproduced before
Serial No. 0737xxxxx1
....539 113793 ... 1... HARNESS,MAIN
unitsproduced after
Serial No. 0737xxxxx1

8
ENGINE
KOHLER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
4
8
4

9
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
ENGINE
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
KOHLER
1....539 113441 ... 1... TIEDOWN,CLUTCH
2... 539 100141 ... 1... HCS, 7/16 -20 x 1½
3... 539 990247 ... 1... LOCKWASHER,7/16
4... 539 976978 ... 7... NUT, ¼ -20, NYLOC
5... 539 109800 ... 2... RHSNB, ¼ -20 x 1
6... 539 101714 ... 1... SOLENOID
7....539 111786 ... 2... RHSSNB, ¼ -20 x 5/8
8... 539 102759 ... 3... INSULATOR
9... 539 990053 ... 2... LOCKWASHER,¼
10... 539 912222 ... 4... HOSECLAMP
11....539110093 ... 1... PLUG, EZOILDRAIN
12... 539 105280 ... 1... FUELLINE,35"
13....539 110425 ... 1... FUELLINE,5"
14....539 113437 ... 1... CLUTCH
15....539 113436 ... 1...PULLEY,DRIVE
16... 539 106504 ... 1... HEAVY WASHER
17... 539 910210 ... 1... KEY, ¼ SQ. x 2
18....539 110815 ... 1...PUSH-MOUNTWIRECLIP
19... 539 976934 ... 1... HCS, 5/16 -18 x ¾
20... 539 990717 ... 1... NUT, 5/16 -18,NYLOC
21... 539 109556 ... 1... LCKWASHER,5/16,EXTSTAR
22... 539 990692 ... 1... WASHER, 5/16
23... 539 107476 ... 4... BOLT, 3/8-16 x 1, THD FORM
24... 539 976856 ... 1...WIRETIE
NOTSHOWN:
... 539107516 ... 1... KOHLERPIGTAIL
... 539 103306 ... 2... CABLE,POSITIVE

10
STEERING
REF.
1
23
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
25
21
12
25
21
25
22
25
14
26
21

11
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
STEERING
1... 539 102592 ... 2... CUSHION-DRIVE LEVER
2... 539 102593 ... 2... WASHER,SPRING, SPEC
3... 539102720 ... 2... DAMPENER
4... 539 109368 ... 2...BUSHING, PLASTIC
5....539 110826 ... 1...DRIVELEVER,RIGHT
6....539 110827 ... 1... DRIVELEVER, LEFT
7....539 112300 ... 2... DAMPENERBRACKET
8....539 112096 ... 1...CONTROL,LEFT
9....539 112095 ... 1... CONTROL,RIGHT
10... 539 101080 ... 2...SWITCH,N.C.
11....539112088 ... 2... CONTROLARM
12... 539 991034 ... 4... SCREW, 10-24 x 5/8, WSHR
13... 539 990655 ... 1... HCS, 3/8-16 x 11/2
(LEFTCONTROLONLY)
14... 539 976979 ... 6... NUT, 3/8-16,NYLOC
15... 539 103547 ... 2... WASHER
16... 539 976998 ... 2... ZERK
17....539 113107 ... 2...RIVET, NYLONPUSH-IN
18....539 112306 ... 2... PIVOTSHAFT
19....539 112313 ... 1... BRAKESHAFT
20... 539 976988 ... 2... PIN HAIR, .073 x 17/16
21... 539 990316 ... 8... RHSNB, 5/16 -18 x 3/4
22... 539 990585 ... 4... NUT, 5/16 -18,WHIZLK
23... 539 990655 ... 4... HCS, 3/8-16 x 11/2
24... 539 990692 ... 1... WASHER, 5/16
25... 539 990717 . 18... NUT, 5/16 -18,NYLOC
26... 539 990627 ... 4... HCS, 5/16 -18 x 11/4
NOTSHOWN:
....539 110122 ... 1... HCS, 3/8-16 x 21/2,TPBLT
(RIGHTCONTROLONLY)
... 539 990546 ... 1... NUT, 3/8-16, LOCK,
(RIGHTCONTROLONLY)

12
PARK BRAKE
2
3
4
5
6
7
8
9
10
11
12
13
19 15 16
1
16
14
17
18

13
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
1... 539 101080 ... 1... SWITCH,BRAKE
unitsproduced before
Serial No. 0737xxxxx1
....539 113792 ... 1... SWITCH,INTERLOCK
unitsproduced after
Serial No. 0737xxxxx1
2... 539 101836 ... 1... BUSHING
3... 539 109363 ... 1... BRAKE LEVER
4... 539 109368 ... 2...BUSHING, PLASTIC
5... 539 109798 ... 1... GRIP, PARK BRAKE
6... 539 976979 ... 4... NUT, 3/8-16,NYLOC
7....539 112306 ... 2... PIVOTSHAFT
8....539 112314 ... 1... LINKAGE
9... 539 976988 ... 2... PIN HAIR, .073 x 17/16
10... 539 990316 ... 2... RHSNB, 5/16 -18 x 3/4
PARK BRAKE
11... 539 990517 ... 1... WASHER, 3/8
12... 539 990692 ... 4... WASHER, 5/16
13... 539 990717 ... 4... NUT, 5/16 -18,NYLOC
14... 539 991034 ... 2... SCREW, #10-24 x 5/8, WSH HD
15... 539 990613 ... 1... NUT, 3/8-16,WHIZLK
16... 539 990629 ... 3... HCS, 3/8-16 x 21/4
17....539 114803 ... 1... BRACKET,BRAKE SWITCH
unitsproduced after
Serial No. 0737xxxxx1
18... 539 990071 ... 2... HCS, ¼-20 x ½ ZD
unitsproduced after
Serial No. 0737xxxxx1
19... 539 976978 ... 2...NUT, ¼ - 20,NYLOC
unitsproduced after
Serial No. 0737xxxxx1
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION

14

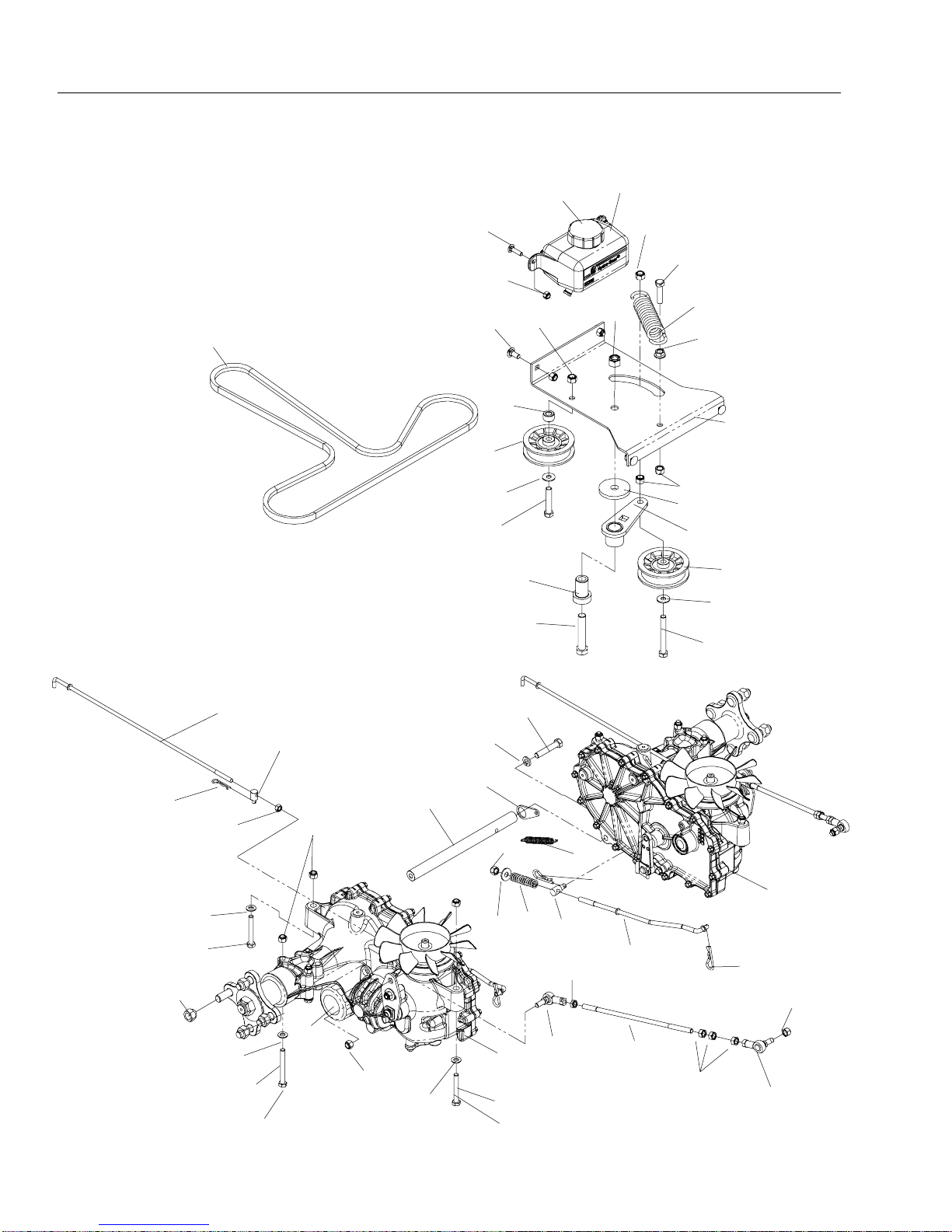

HYDRAULIC PUMP / MOTOR
TORQUE TO 19 FT./LBS.
TORQUE TO 19 FT./LBS.
2
3
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18 19
20
22
23
24
25
26
27
28
29
30
32
33
34
35
36
37
38
39
40
42
43
44
45
16
16
17
13
21
37
40
33
17
1
31
41
33
31
35
8
35
46

15
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
1....539 101173 ... 8... NUT, 1/2-20,LUG
2... 539 101721 ... 4... HCS, 5/16 -18 x 23/4
3... 539 101224 ... 2... SPRING
4... 539 103256 ... 1... SPRING,EXTENSION
5... 539 104334 ... 1... BELT
6... 539 108739 ... 2... NUT, 1/2-28
7... 539 109800 ... 2... RHSNB, 1/4-20 x 1
8....539 110943 ... 4... NUT, 5/16F, NYLOC
9... 539 101231 ... 1...SPINDLE,IDLER
10... 539 101331 ... 1... NUT, 1/2-13,NYLOC
11... 539 101332 ... 1... HCS, 1/2-13 x 23/4
12... 539 101350 ... 1... HCS, 3/8-16 x 3, TAPBOLT
13....539110311 ... 2...PULLEY, IDLER
14....539112092 ... 1...IDLERARM
15....539 112670 ... 1... HEAVY WASHER
16... 539 976979 ... 4... NUT, 3/8-16,NYLOC
17... 539 990692 ... 4... WASHER, 5/16
18....539 112308 ... 2... BRAKE SWIVEL
19....539 112309 ... 2... BRAKELINKAGE
20....539 112316 ... 1...ZT2800,RIGHT
21....539 112317 ... 1...ZT2800, LEFT
22....539 112318 ... 1... EXPANSIONTANKW/CAP
23....539112449 ... 1... CAP, TANK
24....539 112319 ... 2... BYPASS LINKAGE
HYDRAULIC PUMP / MOTOR
25....539 112342 ... 1...CROSSSUPPORT
26....539 112407 ... 1... IDLERPULLEYPLATE
27....539113466 ... 2... OILFILTER
28....539 112949 ... 2... SWIVEL, 1/4-28
29....539 112099 ... 2... LINKAGE,DRIVE
30... 539923515 ... 1...SPACER
31... 539 976938 ... 4... HCS, 5/16 -18 x 21/4
32... 539 976978 ... 2... NUT, 1/4-20,NYLOC
33... 539 976988 ... 6... PIN HAIR, .073 x 17/16
34....539 990118 ... 2... WASHER, 3/8
35... 539990188 . 12...WASHER, 5/16, SAE
36... 539 990316 ... 4... RHSNB, 5/16 -18 x 3/4
37... 539 990588 ... 3... HCS, 3/8-16 x 2
38... 539 990613 ... 1... NUT, 3/8-16,WHIZLK
39... 539 990655 ... 1... HCS, 3/8-16 x 11/2
40... 539 990717 . 14... NUT, 5/16 -18,NYLOC
41... 539 990223 ... 3... NUT, 5/16-24
42... 539 991073 ... 1... NUT, 5/16 -24,LH
43....539 110604 ... 1... SPHERICALRODEND,LH
44....539 110603 ... 1... SPHERICALRODEND,RH
45... 539 130516 ... 2...TAB, SPRING
46... 539 977250 ... 2... SPRING
NOTSHOWN:
....539 112669 ... 1...HOSEKIT

16
MOWER LIFT / DECK LIFT
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19 20 21
22
23
24
25
26
27
28
29
30
16
22
722
28
9

17
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
1....539 101175 ... 8... HCS, 7/16 -14 x 11/2
2... 539 101331 ... 1... NUT, 1/2-13,NYLOC
3... 539 101721 ... 8... HCS, 5/16 -18 x 23/4
4... 539 102526 ... 1... PIN LIFT, 1/2x 2, W/RINGS
5... 539 102582 ... 8... NUT, 7/16 -14,WHIZLK
6... 539 102612 ... 1... HCS, 3/8-16 x 23/4
7... 539104530 ... 2...SPACER
8... 539104807 ... 4... REINFORCERBAR
9... 539 104808 ... 8... BLOCK,PILLOW
10... 539105059 ... 1... LANYARD
11... 539 105187 ... 1... PAD,ANTISKID
12... 539 108346 ... 1... HCS, 1/2-13 x 21/2
13... 539 109693 ... 4...LIFTCHAIN,3LINK
14....539 110808 ... 2...CROSSLINK
15....539112220 ... 1... FRONTLIFTSHAFT
16....539112223 ... 2... STRUTLINKAGE
MOWER LIFT / DECK LIFT
17....539 112224 ... 1... REAR LIFT SHAFT
18....539 112230 ... 1... HEIGHTADJUSTPLATE
19....539 112232 ... 1... HEIGHTADJPLATE,OUTER
20....539 112234 ... 1... PAWL, STOP
21....539 112236 ... 1...SPACER
22... 539 976979 ... 5... NUT, 3/8-16,NYLOC
23... 539 976982 ... 4... WASHER, 5/8, SAE
24... 539 976989 ... 1... PIN, HAIR, 1/8x 21/2
25... 539 990250 ... 2... WASHER, 1/2, SAE
26... 539 990563 ... 2... HCS, 3/8-16 x 1
27... 539 990629 ... 3... HCS, 3/8-16 x 21/4
28... 539 990654 ... 6... PINCOTTER, 5/32 x11/4
29... 539 990717 ... 8... NUT, 5/16 -18,NYLOC
30... 539 990839 ... 8... NUT, 7/16 -14,CNTLK, GRA
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION

18
42 INCH CUTTING DECK
TORQUETO
55-75 FT/LBS
3 PLACES
TORQUETO
15-20 FT/LBS
12 PLACES
TORQUETO
45-55 FT/LBS
3 PLACES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
40 26
26 19
19
35
40
41
39
3
1

19
ITEM PARTNO. QTY. DESCRIPTION ITEM PARTNO. QTY. DESCRIPTION
42 INCH CUTTING DECK
1... 539 101341 ... 2... HCS, 3/8-16 x 3
2... 539 103256 ... 1... SPRING-EXTENSION
3... 539 103303 ... 2... PAD
4... 539 103491 ... 1... DECAL,42
5... 539104763 ... 8... NUT, 5/16 -18,RETAINER-U
6... 539 107520 ... 3... WASHER, .675, SPACER
7... 539 107522 ... 3... BOLT, 7/16, SPEC
8... 539107590 ... 3... NUT, 9/16,CENTERLOCK
9... 539 107612 ... 1... ROLLER,NOSE
10... 539 107613 ... 1... ROD,ROLLER,NOSE
11... 539107630 . 12...SCREW, 5/16 -18 x 13/8, WSH HD
12....539 110315 ... 3... PULLEY
13....539110731 ... 1...DISCHARGECHUTE
14....539110735 ... 1...SPRING -TORSION
15....539 110736 ... 1... PIN - CLEVIS, 5/16 DIA x 5.19
16....539112078 ... 3...BLADE
17....539112169 ... 2... IDLERBUSHING
18....539 112170 ... 3... HOUSING
19....539131148 ... 3... IDLERPULLEY, NYLON
20... 539 101331 ... 1... NUT, 1/2-13,NYLOC
21... 539 102243 ... 1... WASHER, .65
22... 539 103427 ... 1...BUSHING,PIVOT
23... 539 103433 ... 1... HCS, 1/2-13 x 31/4
24....539112198 ... 1...IDLERARM
25... 539 976998 ... 1... ZERK, STRAIGHT, 1/4-28
26... 539 990517 ... 3... WASHER, 3/8
27... 539 990550 ... 1... WASHER, 9/16
28... 539 990582 ... 1... HCS, 3 /8-16 x 1
29....539 112248 ... 2... DECKSTOP
30....539 112334 ... 1... BELT
31....539 112413 ... 1... CONFINEMENTPLATE
32....539 112796 ... 1... DECKW/DECALS
33....539 112765 ... 1...BELTSHIELD, RIGHT
34....539 112766 ... 1... BELT SHIELD,LEFT
35... 539 976979 ... 2... NUT, 3/8-16,NYLOC
36... 539 990187 ... 8... LOCKWASHER,5/16
37... 539 990209 ... 8... HCS, 5/16 -18 x 1
38... 539 990316 ... 4... RHSNB, 5/16 -18 x 3/4
39... 539 990365 ... 2... PINCOTTER, 1/8x3/4
40... 539990692 . 10...WASHER, 5/16
41... 539 990717 ... 6... NUT, 5/16 -18,NYLOC
42... 539 990799 ... 2... RHSNB, 5/16 -18 x 5/8

20

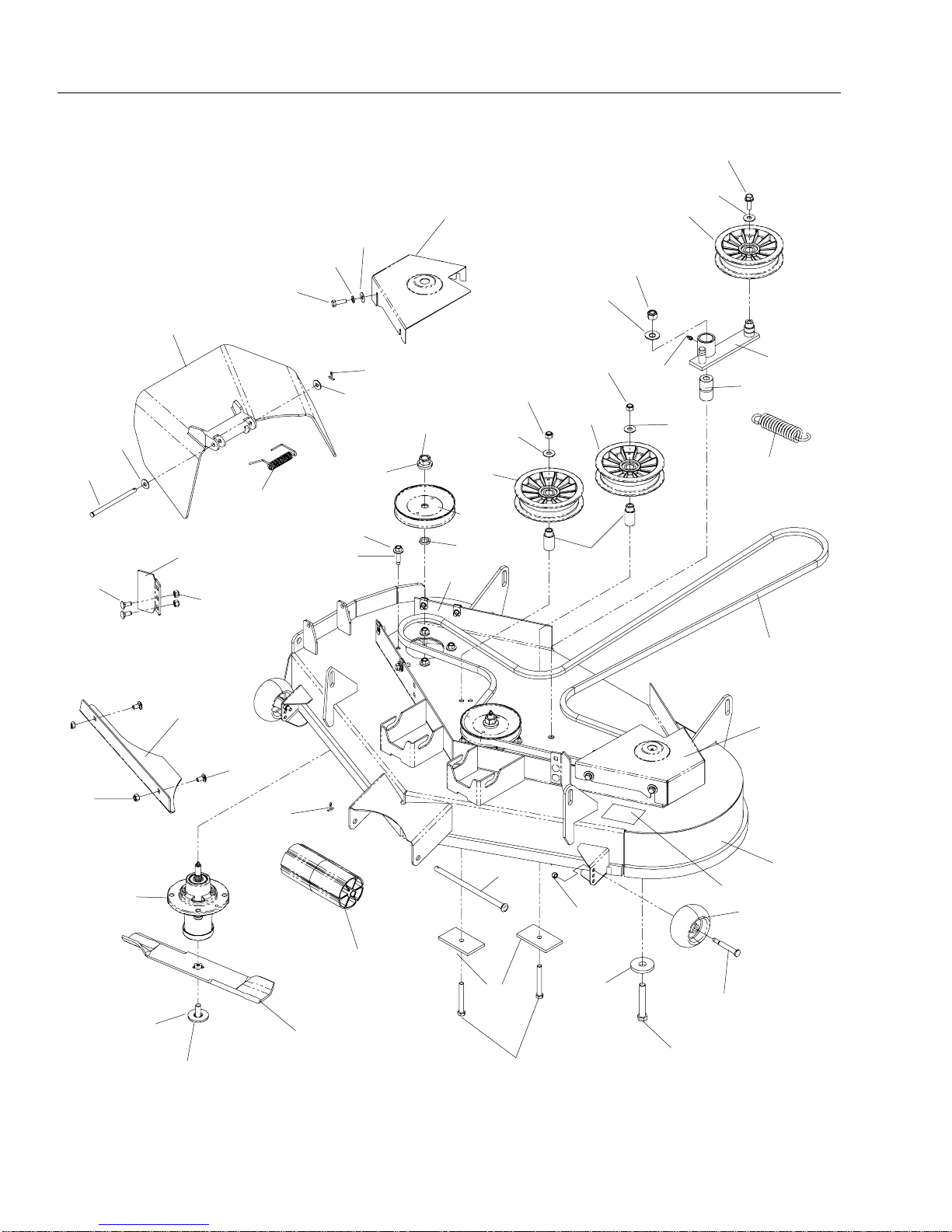

48 INCH CUTTING DECK
TORQUETO
55-75 FT/LBS
3 PLACES
TORQUETO
15-20 FT/LBS
12 PLACES
TORQUETO
45-55 FT/LBS
3 PLACES
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33
34
35
36
37
38
39
40
41
42
43
36
27
27 20
31
20
41
41
36
42 40
44
