Warning: Important safety instructions
 It is important for the safety of the persons to follow these instructions. Save
these instructions.
 Children should be supervised to ensure that they do not play with the appliance.
Do not allow children to play with fixed controls. Keep Hub & Remote away from
children.
Frequently examine the installation for imbalance and signs of wear of damage
to cable springs and fixing. Do not use if repair or adjustment is necessary.
 WARNING: The drive shall be disconnected from its power source during
cleaning, maintenance and when replacing parts.
 WARNING: Important safety instructions. Follow all instructions since incorrect
installation can lead to sever injury.
Before installing the drive, remove any unnecessary cords and disable any
equipment not needed for powered operation.
 Install the actuating member of a manual release at a height less than 1.8m.
 That the characteristics of the driven part must be compatible with the rated
torque and rated operating time.

Fixed controls must be clearly visible after installation.
 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. (For non-EU&UKCA
market)
 This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. (For EU&UKCA
market)
 Cleaning and user maintenance shall not be made by children without
supervision.
 The product contains rechargeable lithium battery, which is harmful to the
environment when it is discarded. Please take the battery out of the battery pack
before discarding. Pry along the dividing line of the battery pack and remove the
battery. Removed batteries should be disposed of by a professional recycling
organization.
 Under normal use of condition, this equipment should be kept a separation
distance of at least 20cm between the antenna and the body of the user.
The mass and the dimension of the driven part shall be compatible with the rated
torque and rated operating time.

3
Replaceable adapter wheel
Indicator light
Single panel: 1
Setting
Removable battery compartment
Type-C charging port
Velcro loop
Type-C connector

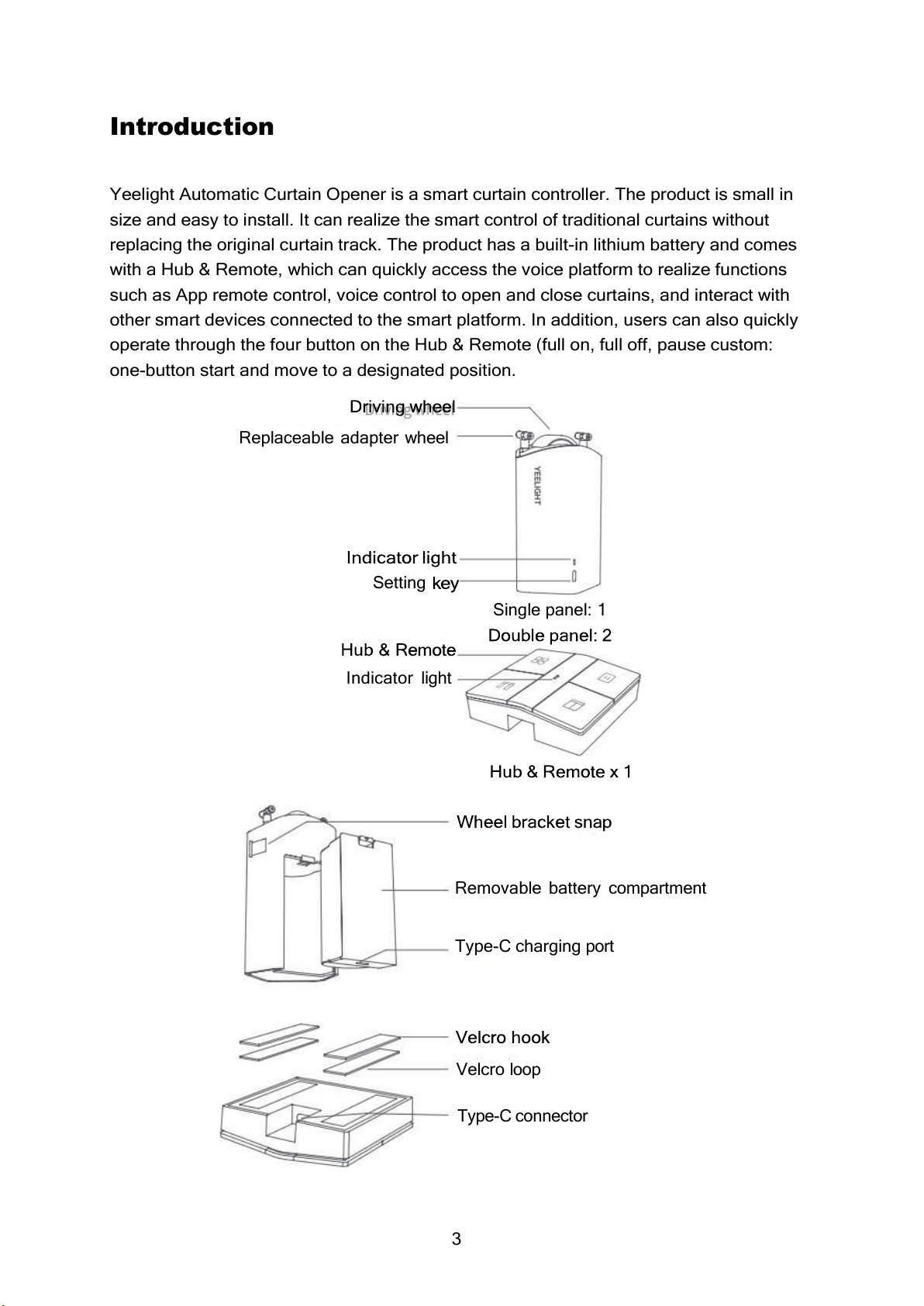

Introduction
Yeelight Automatic Curtain Opener is a smart curtain controller. The product is small in
size and easy to install. It can realize the smart control of traditional curtains without
replacing the original curtain track. The product has a built-in lithium battery and comes
with a Hub & Remote, which can quickly access the voice platform to realize functions
such as App remote control, voice control to open and close curtains, and interact with
other smart devices connected to the smart platform. In addition, users can also quickly
operate through the four button on the Hub & Remote (full on, full off, pause custom:
one-button start and move to a designated position.

4
Accessories List
USB to Type-C
power cable x 1
Velcro hook x 2
Velcro loop x 2
Screwdriver x 1
Extension wheel
Single panel: 4
Double panel: 8
Stent sleeve
Single panel: 2
Double panel: 4
5 x 16mm Adapter
wheel
Single panel: 2
Double panel: 4
4x10mm Adapter
Wheel
Single panel: 2
Double Panel: 4
Bracket screw
Single panel: 2
Double panel: 4
Tip: Due to the update and upgrade of the product, the actual product may be slightly
different from the schematic diagram, please refer to the actual product.
Instructions
Instructional video
Please scan the QR code to view the instructional video or follow the steps to install and
use it.
Tip: In order to ensure the installation effect of the product, please wipe the surface of
the curtain track to remove the dust on the surface before installation.
Scan the code to view the instructional video.

5
Alexa, close the curtain
Guide for first time use
1. Support smartphones and tablets with Android 4.4&iOS 10.0 and above.
2. Scan the below QR code or search in APP store or Google to download “Mi Home”
APP.
3. Open Mi Home App and register a “Mi Home”account or log in directly if you
have an account.
4. Connect your phone to the internet. Please ensure that the Wi-Fi network is
available and can access the internet normally (the product does not support 5G
network)
5. Take out the Hub & Remote and connect the power cable and adapter (the
adapter needs to be configured by yourself, DC5V 1A with USB port).
6. Remove the battery compartment of Yeelight Automatic Curtain Opener, remove
the battery separator, install the battery compartment again, and charge the
Yeelight Automatic Curtain Opener for the first time for more than 3 hours, until
the white indicator stops flashing (It takes about 6 hours to fully charge)
7. Open the “Mi Home”APP, click “+”in the upper right corner of the home page,
and add devices according to the APP prompts. Note: Please set the route after
installing the product on the track accurately, see the next page for the
installation instruction. Tip: Due to the upgrade and update of the “Mi Home”
APP, the actual operation may be slightly different from the above description,
please operate according to the current “Mi Home”APP.
8. You can link multiple third-party services to your Mi Home account.
Installation
Yeelight Automatic Curtain Opener (C-shaped track) only support C-shaped curtain track.
The cross-section of the curtain track and the matching size are shown in the figure
below.
Notice:
If you need to install it on I-shaped and O-shaped tracks, please purchase the
corresponding version of Yeelight Automatic Curtain Opener.
Please ensure that the bottom of the C-shaped track is flat, and the dimensions
of the track meet the requirements in the figure.

6
Special shaped track
Track bend
A > 10.5mm
B > 4mm
4mm < C < 10mm
0mm ≤ H ≤ 0.5mm
There needs to be seals on both sides of the track.

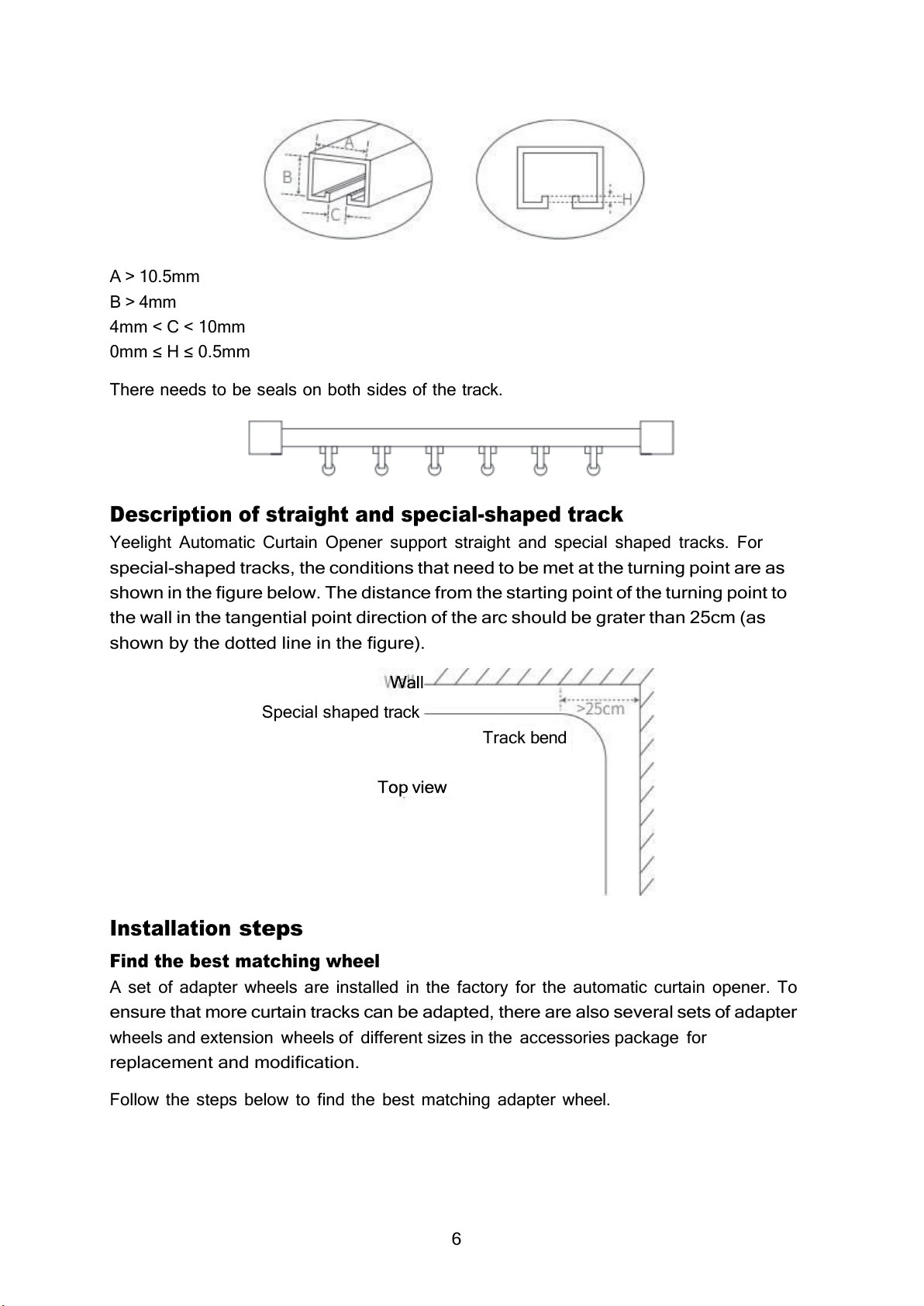

Description of straight and special-shaped track
Yeelight Automatic Curtain Opener support straight and special shaped tracks. For
special-shaped tracks, the conditions that need to be met at the turning point are as
shown in the figure below. The distance from the starting point of the turning point to
the wall in the tangential point direction of the arc should be grater than 25cm (as
shown by the dotted line in the figure).
Installation steps
Find the best matching wheel
A set of adapter wheels are installed in the factory for the automatic curtain opener. To
ensure that more curtain tracks can be adapted, there are also several sets of adapter
wheels and extension wheels of different sizes in the accessories package for
replacement and modification.
Follow the steps below to find the best matching adapter wheel.

7
Insert the adapter wheel on the non-snap side of the automatic curtain
opener into the curtain track and rotate it 90°.
 If the adapter wheels do not fir in or rotate within the track, please replace a set
of smaller adapter wheels.
 If the adapter wheel can be rotated 90°, after installing it into the track, please try
to pull the whole machine to one side and tilt it. If the adapter wheel is easy to
slip out, please replace the larger adapter wheel or use bracket sleeve.
 If the adapter wheel firs perfectly in the track, there is no need to replace the
adapter wheel.
Schematic
Replace the adapter wheel and install the extension wheel
Take out the screwdriver in the box, remove the screw in the middle of the adapter
wheel, remove the adapter wheel, and keep the screws.
Find a suitable adapter wheel and screw it on the bracket, pay attention to align the
bracket gap when installing.

8
Curtain opening direction
Curtain opening direction
Second hook
First hook

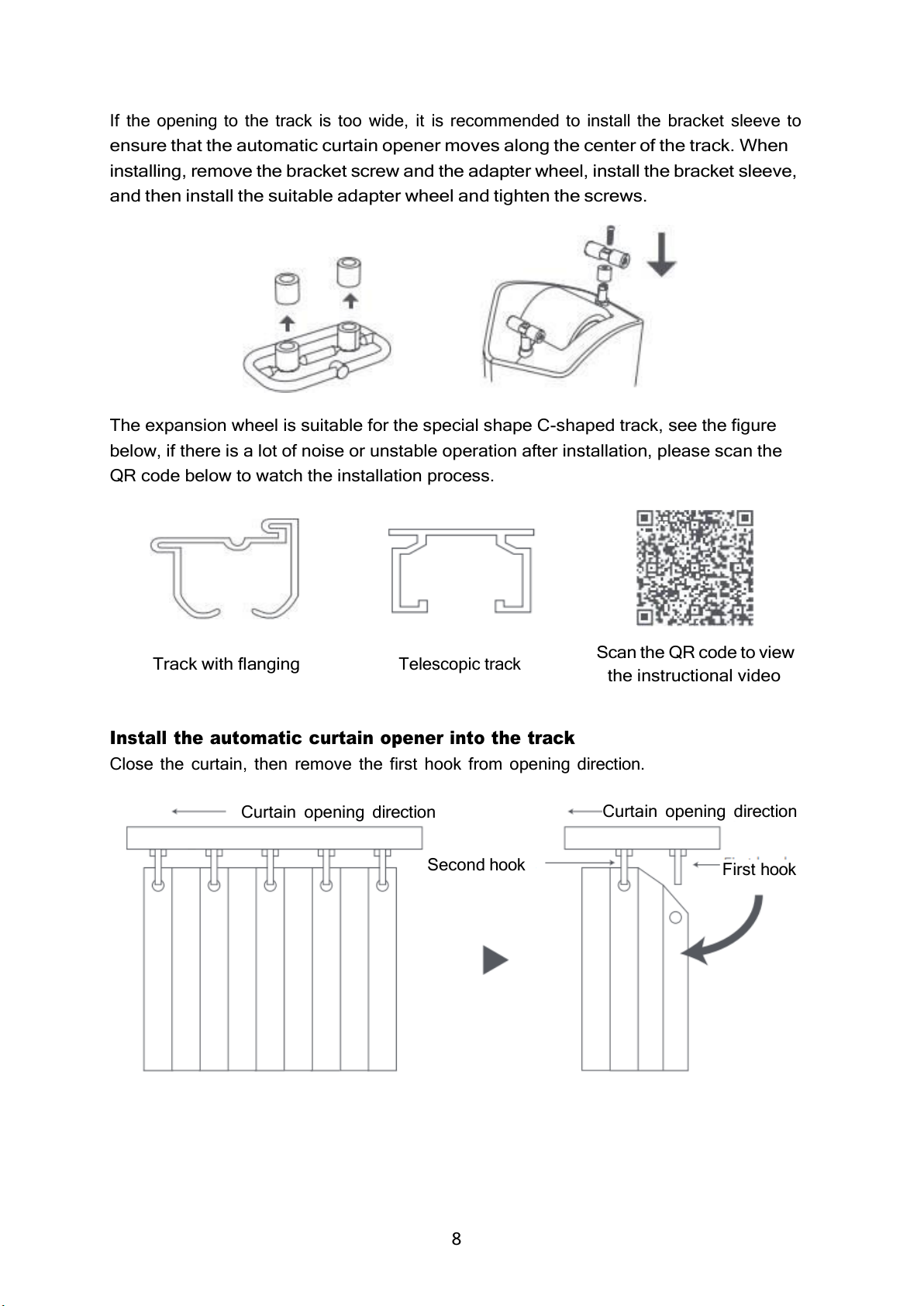

If the opening to the track is too wide, it is recommended to install the bracket sleeve to
ensure that the automatic curtain opener moves along the center of the track. When
installing, remove the bracket screw and the adapter wheel, install the bracket sleeve,
and then install the suitable adapter wheel and tighten the screws.
The expansion wheel is suitable for the special shape C-shaped track, see the figure
below, if there is a lot of noise or unstable operation after installation, please scan the
QR code below to watch the installation process.
Track with flanging
Telescopic track
Scan the QR code to view
the instructional video
Install the automatic curtain opener into the track
Close the curtain, then remove the first hook from opening direction.

9
Curtain opening direction
Rotate the snap of the curtain bracket to the maximum position, insert the non-snap
side of the automatic curtain opener into the track and rotate 90°, take the roller as the
center, and pull down the non-snap side, make the non-snap side reach the maximum
length, insert the adapter wheel on the snap side into the curtain track, rotate the snap
to return and clamp it, push the curtain to move left and right, if the curtain runs
smoothly, the installation is complete.
Han the curtains back to hide the automatic curtain opener.
When using dual tracks, please install it back-to-back, and the distance between the
track is greater than 22mm.
Double panel curtains (requires two automatic curtain opener)
Refer to the installation method of single panel curtain, hang the two curtain motors
between the first and second hooks of the curtains on the left and right side
respectively. If the curtain cannot fully close after calibration, please install the curtain
motor between the second and third hooks (as shown in the figure), then please try to
calibrate it again.

10
Hub & Remote Instructions
In order to ensure that the curtain motor can be used normally and can be connected to
the third-party platform, the hub remote control needs to be connected to the adapter
(prepared by yourself) before using the curtain motor, and it should be always powered
on and can be connected to Wi-Fi normally.
You can stick the Hub & Remote on a clean, flat, and stable surface such as the bedside
table or the wall.
1. Take out the Velcro loop from the accessories package and remove the isolation
paper on the back.
2. Paste the Velcro loop into the groove on the back of the Hub & Remote and press
it for 1 minute to ensure that the self-adhesive is cured.
3. Confirm where you want to paste and wipe the surface with a clean cloth.
4. Paste the Velcro hook to the loop, then remove the isolation paper behind the
Velcro hook, paste the entire Hub & Remote to the selected location, and press It
for 1 minute to ensure that the self-adhesive is cured.
Notice:
Do not press the button of the Hub & Remote during the whole process.
The Hub & Remote only supports Yeelight automatic curtain opener.
Instructions to the Hub Remote Control Buttons
Custom button: Move the curtain to the set position, which can be set in the App.
Pause button: Curtain stops moving.
Fully open button: Fully open the curtains.
Fully closed button: Fully close the curtains.
Note: The remote control will take effect only after the Yeelight Automatic Curtain
Opener completes the calibration settings. For the calibration process, please refer to
the installation guide in the App.

11
Curtain fully closed
Automatic curtain opener starts auto-turning at this point
Auto Calibration Settings
Single panel curtain auto calibration
1. Place the automatic curtain opener to the position where the curtain is fully
closed.
2. Quickly click the fully closed button on the Hub & Remote for 5 times. At this
time, the indicator lights of the Hub & Remote and the automatic curtain opener
start to flash blue slowly, indicating that both the automatic curtain opener and
the Hub & Remote are in the auto calibration mode.
3. Gently pull the curtain about 10cm in the fully open direction, and the automatic
curtain opener will automatically move in the fully open direction. After the
curtain stops moving or moves to the designated position, click the fully closed
button again.

12

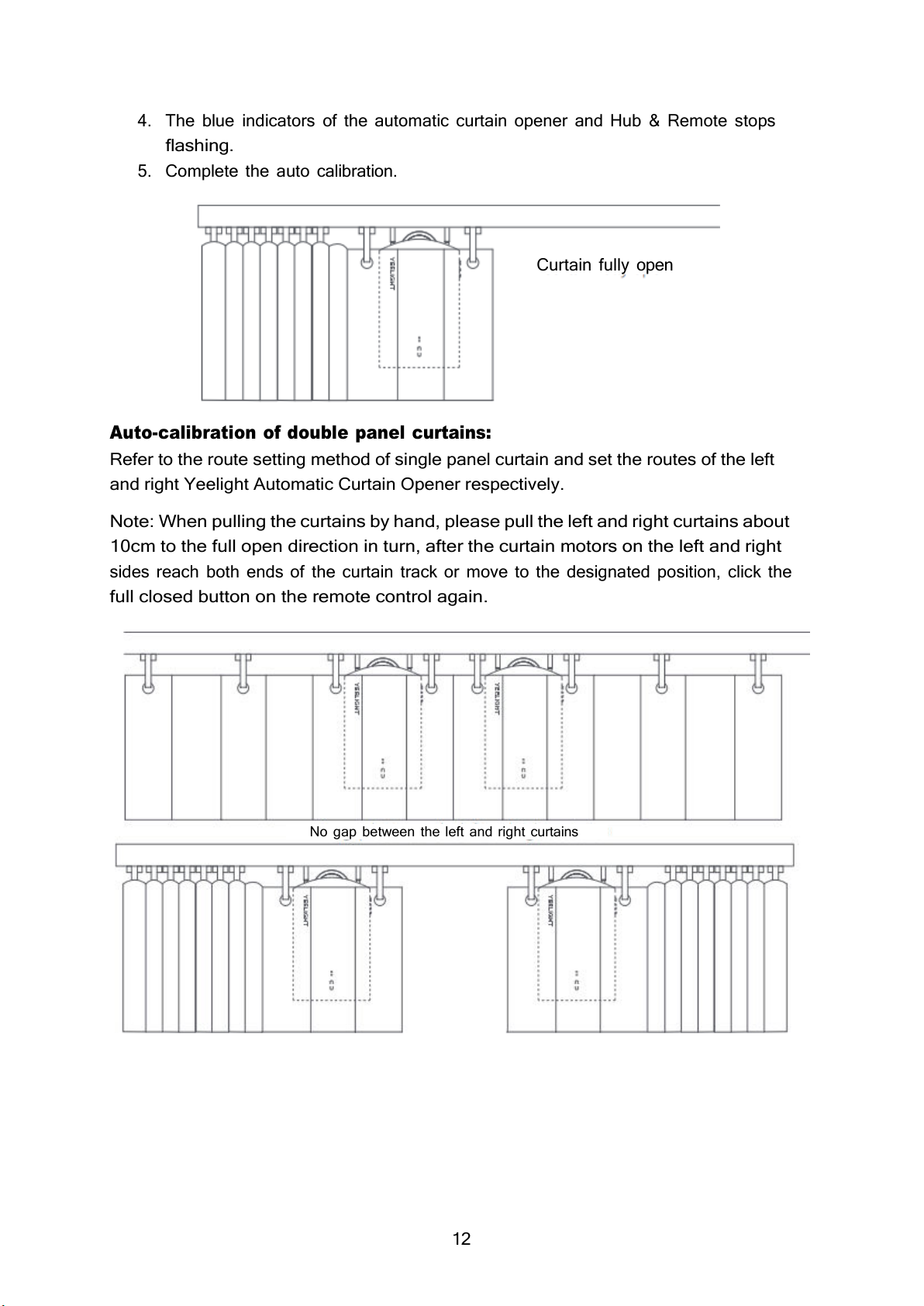

Curtain fully open
No gap between the left and right curtains
4. The blue indicators of the automatic curtain opener and Hub & Remote stops
flashing.
5. Complete the auto calibration.
Auto-calibration of double panel curtains:
Refer to the route setting method of single panel curtain and set the routes of the left
and right Yeelight Automatic Curtain Opener respectively.
Note: When pulling the curtains by hand, please pull the left and right curtains about
10cm to the full open direction in turn, after the curtain motors on the left and right
sides reach both ends of the curtain track or move to the designated position, click the
full closed button on the remote control again.

13

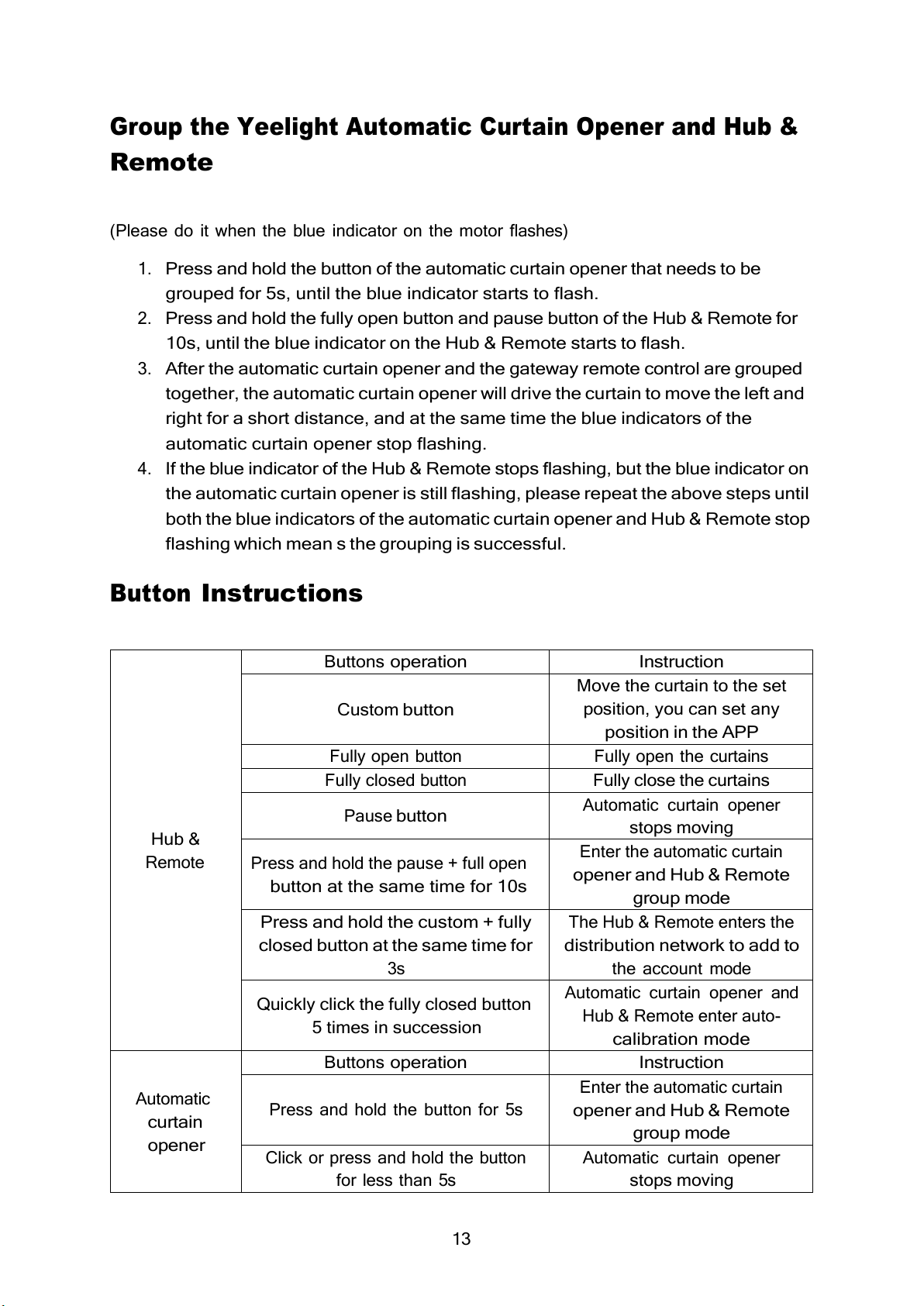

Group the Yeelight Automatic Curtain Opener and Hub &
Remote
(Please do it when the blue indicator on the motor flashes)
1. Press and hold the button of the automatic curtain opener that needs to be
grouped for 5s, until the blue indicator starts to flash.
2. Press and hold the fully open button and pause button of the Hub & Remote for
10s, until the blue indicator on the Hub & Remote starts to flash.
3. After the automatic curtain opener and the gateway remote control are grouped
together, the automatic curtain opener will drive the curtain to move the left and
right for a short distance, and at the same time the blue indicators of the
automatic curtain opener stop flashing.
4. If the blue indicator of the Hub & Remote stops flashing, but the blue indicator on
the automatic curtain opener is still flashing, please repeat the above steps until
both the blue indicators of the automatic curtain opener and Hub & Remote stop
flashing which mean s the grouping is successful.
Button Instructions
Hub &
Remote
Buttons operation
Instruction
Custom button
Move the curtain to the set
position, you can set any
position in the APP
Fully open button
Fully open the curtains
Fully closed button
Fully close the curtains
Pause button
Automatic curtain opener
stops moving
Press and hold the pause + full open
button at the same time for 10s
Enter the automatic curtain
opener and Hub & Remote
group mode
Press and hold the custom + fully
closed button at the same time for
3s
The Hub & Remote enters the
distribution network to add to
the account mode
Quickly click the fully closed button
5 times in succession
Automatic curtain opener and
Hub & Remote enter auto-
calibration mode
Automatic
curtain
opener
Buttons operation
Instruction
Press and hold the button for 5s
Enter the automatic curtain
opener and Hub & Remote
group mode
Click or press and hold the button
for less than 5s
Automatic curtain opener
stops moving

14

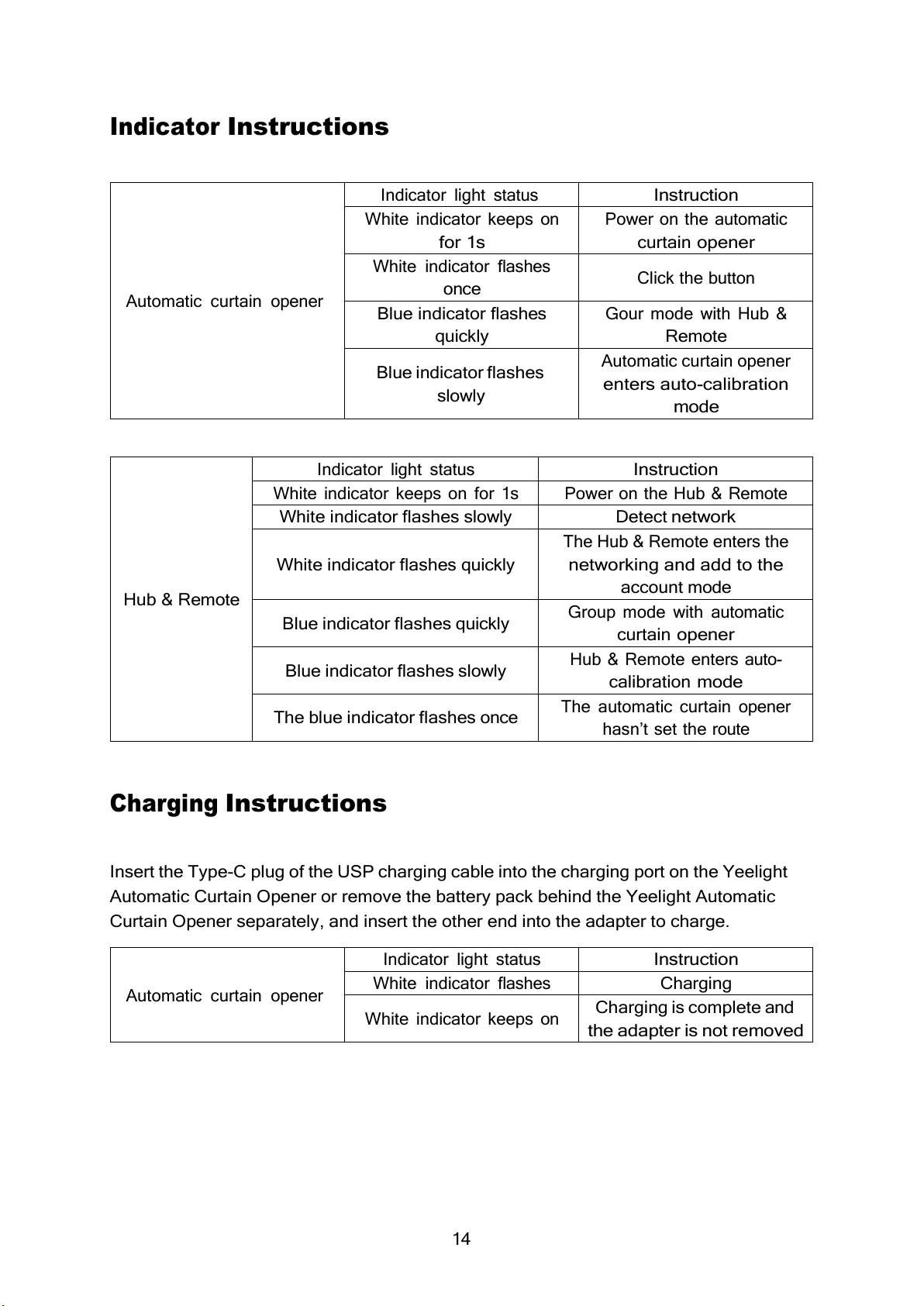

Indicator Instructions
Automatic curtain opener
Indicator light status
Instruction
White indicator keeps on
for 1s
Power on the automatic
curtain opener
White indicator flashes
once
Click the button
Blue indicator flashes
quickly
Gour mode with Hub &
Remote
Blue indicator flashes
slowly
Automatic curtain opener
enters auto-calibration
mode
Hub & Remote
Indicator light status
Instruction
White indicator keeps on for 1s
Power on the Hub & Remote
White indicator flashes slowly
Detect network
White indicator flashes quickly
The Hub & Remote enters the
networking and add to the
account mode
Blue indicator flashes quickly
Group mode with automatic
curtain opener
Blue indicator flashes slowly
Hub & Remote enters auto-
calibration mode
The blue indicator flashes once
The automatic curtain opener
hasn’t set the route
Charging Instructions
Insert the Type-C plug of the USP charging cable into the charging port on the Yeelight
Automatic Curtain Opener or remove the battery pack behind the Yeelight Automatic
Curtain Opener separately, and insert the other end into the adapter to charge.
Automatic curtain opener
Indicator light status
Instruction
White indicator flashes
Charging
White indicator keeps on
Charging is complete and
the adapter is not removed

15

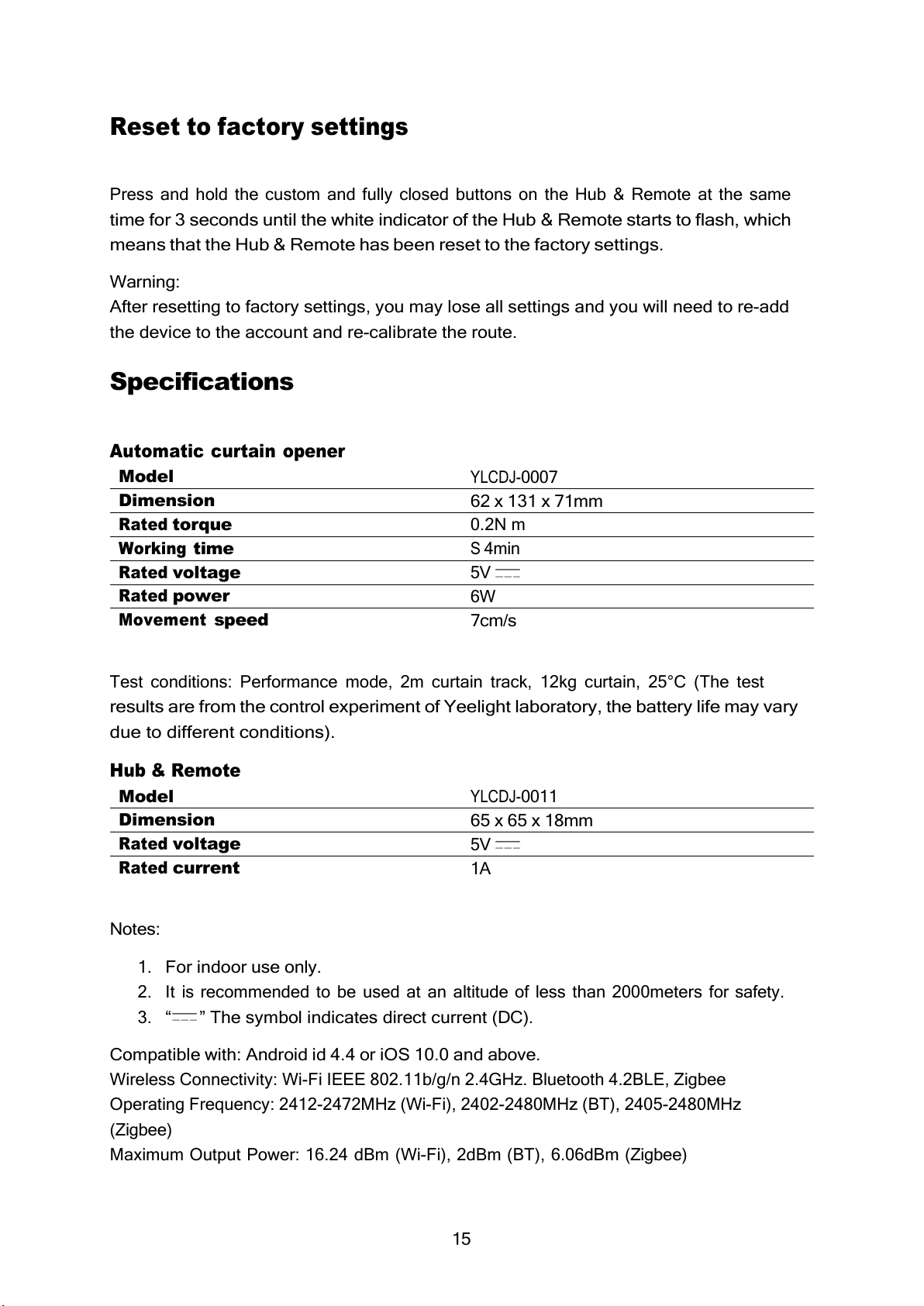

Reset to factory settings
Press and hold the custom and fully closed buttons on the Hub & Remote at the same
time for 3 seconds until the white indicator of the Hub & Remote starts to flash, which
means that the Hub & Remote has been reset to the factory settings.
Warning:
After resetting to factory settings, you may lose all settings and you will need to re-add
the device to the account and re-calibrate the route.
Specifications
Automatic curtain opener
Model
YLCDJ- 0007
Dimension
62 x 131 x 71mm
Rated torque
0.2N m
Working time
S 4min
Rated voltage
5V
Rated power
6W
Movement speed
7cm/s
Test conditions: Performance mode, 2m curtain track, 12kg curtain, 25°C (The test
results are from the control experiment of Yeelight laboratory, the battery life may vary
due to different conditions).
Hub & Remote
Model
YLCDJ- 0011
Dimension
65 x 65 x 18mm
Rated voltage
5V
Rated current
1A
Notes:
1. For indoor use only.
2. It is recommended to be used at an altitude of less than 2000meters for safety.
3. “ ”The symbol indicates direct current (DC).
Compatible with: Android id 4.4 or iOS 10.0 and above.
Wireless Connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz. Bluetooth 4.2BLE, Zigbee
Operating Frequency: 2412-2472MHz (Wi-Fi), 2402-2480MHz (BT), 2405-2480MHz
(Zigbee)
Maximum Output Power: 16.24 dBm (Wi-Fi), 2dBm (BT), 6.06dBm (Zigbee)

16

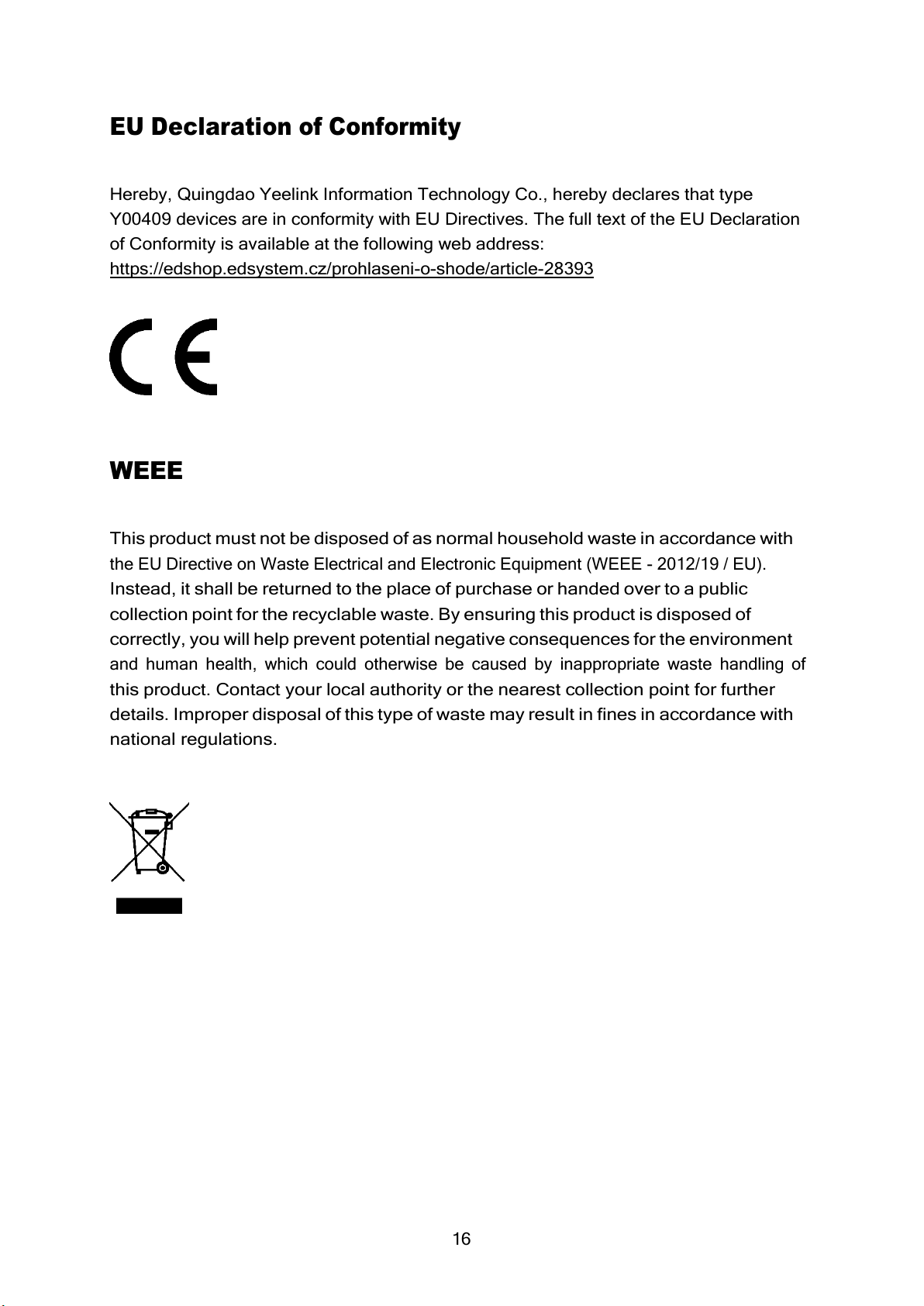

EU Declaration of Conformity
Hereby, Quingdao Yeelink Information Technology Co., hereby declares that type
Y00409 devices are in conformity with EU Directives. The full text of the EU Declaration
of Conformity is available at the following web address:
https://edshop.edsystem.cz/prohlaseni-o-shode/article-28393
WEEE
This product must not be disposed of as normal household waste in accordance with
the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or handed over to a public
collection point for the recyclable waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further
details. Improper disposal of this type of waste may result in fines in accordance with
national regulations.

17
Varování: Důležité bezpečnostní pokyny
1. Důležité bezpečnostní pokyny. Pro bezpečnost osob je důležité dodržovat tyto
pokyny. Tyto pokyny si uložte.
2. Děti by měly být pod dohledem, aby si se spotřebičem nehrály.
3. Nedovolte dětem, aby si hrály s pevnými ovládacími prvky. Dálkové ovladače
uchovávejte mimo dosah dětí.
4. Často kontrolujte instalaci, zda není nevyvážená a zda nejeví známky opotřebení
nebo poškození pružin kabelů a upevňovacích prvků. Pokud je nutná oprava
nebo seřízení, nepoužívejte je.
5. Varování: Při čištění, údržbě a výměně dílů musí být pohon odpojen od zdroje
napájení.
6. Varování: Důležité bezpečnostní pokyny. Dodržujte všechny pokyny, protože
nesprávná instalace může vést k vážnému zranění.
7. Před instalací jednotky odstraňte všechny nepotřebné kabely a vypněte všechna
zařízení, která nejsou potřebná pro napájený provoz.
8. Ovládací prvek ručního uvolňovače instalujte ve výšce menší než 1,8 m.
9. Vlastnosti poháněné části musí odpovídat jmenovitému krouticímu momentu a
jmenovité době provozu.
10. Pevné ovládací prvky musí být po instalaci jasně viditelné.
11.
Tento spotřebič není určen k používání osobami (včetně dětí se sníženými
fyzickými, smyslovými nebo duševními schopnostmi nebo s nedostatkem
zkušeností a znalostí, pokud jim osoba odpovědná za jejich bezpečnost
neposkytla dohled nebo je nepoučila o používání spotřebiče. (Pro trh mimo EU a
UKCA).
12. Tento spotřebič mohou používat děti od 8 let a starší a osoby se sníženými
fyzickými, smyslovými nebo duševními schopnostmi nebo s nedostatkem
zkušeností a znalostí, pokud jsou pod dohledem nebo byly poučeny o bezpečném
používání spotřebiče a rozumí souvisejícím nebezpečím. (Pro trh EU a UKCA)
13. Čištění a uživatelskou údržbu nesmí provádět děti bez dozoru.
14. Výrobek obsahuje dobíjecí lithiovou baterii, která je při likvidaci škodlivá pro
životní prostředí. Před vyhozením vyjměte baterii z akumulátoru. Vypáčte podél
dělící čáry bateriového bloku a baterii vyjměte. Vyjmuté baterie by měly být
zlikvidovány odbornou recyklační organizací.
15. Při běžném používání tohoto zařízení by měla být vzdálenost mezi anténou a
tělem uživatele nejméně 20 cm.
16. Hmotnost a rozměry poháněné části musí odpovídat jmenovitému točivému
momentu a jmenovité době provozu.

18
Hnací kolo
Vyměnitelné kolo adaptéru
Rozbočovač a dálkové ovládání
Jednoduchý panel: 1
Rozbočovač a dálkové ovládání x 1
Nastavovací klávesa
Úvod
Yeelight Automatic Curtain Opener je chytrý ovladač záclon. Výrobek má malé rozměry a
snadno se instaluje. Dokáže realizovat inteligentní ovládání tradičních záclon bez
nutnosti výměny původní záclonové dráhy. Výrobek má vestavěnou lithiovou baterii a je
dodáván s rozbočovačem a dálkovým ovladačem, který umožňuje rychlý přístup k
hlasové platformě pro realizaci funkcí, jako je dálkové ovládání aplikace, hlasové
ovládání pro otevírání a zavírání záclon a interakce s dalšími chytrými zařízeními
připojenými k chytré platformě. Kromě toho mohou uživatelé také rychle ovládat
prostřednictvím čtyř tlačítek na dálkovém ovladači Hub & Remote (úplné zapnutí, úplné
vypnutí, vlastní pauza: spuštění jedním tlačítkem a přesun do určené polohy.

19
Seznam příslušenství
Napájecí kabel z USB
na Type-C x 1
Háček na suchý zip x 2
Smyčka na suchý zip x 2
Šroubovák x 1
Prodlužovací kolo
Jednoduchý panel: 4
Dvojitý panel: 8
Pouzdro stentu
Jednoduchý panel: 2
Dvojitý panel: 4
5 x 16 mm adaptérové
kolečko
Jednoduchý panel: 2
Dvojitý panel: 4
4x10mm adaptérové
kolečko
Jednoduchý panel: 2
Dvojitý panel: 4
Šroub držáku
Jednoduchý panel: 2
Dvojitý panel: 4
Tip: V důsledku aktualizace a upgradu výrobku se může skutečný výrobek mírně lišit od
schématu, viz skutečný výrobek.
Pokyny
Instruktážní video
Naskenováním QR kódu zobrazte instruktážní video nebo postupujte podle pokynů k
instalaci a používání.
Tip: Aby byl zajištěn účinek instalace výrobku, otřete před instalací povrch záclonové
dráhy, abyste odstranili prach na povrchu.
Naskenováním kódu zobrazíte instruktážní video.

20
Alexo, zatáhni závěs
OK Google, zatáhni mi závěs v ložnici
Příručka pro první použití
1. Podpora chytrých telefonů a tabletů se systémem Android 4.4 a iOS 10.0 a
novějším.
2. Stáhněte si aplikaci "Mi Home" naskenováním níže uvedeného QR kódu nebo
vyhledáním v obchodě APP store či Google.
3. Otevřete aplikaci Mi Home APP a zaregistrujte si účet "Mi Home" nebo se přímo
přihlaste, pokud účet máte.
4. Připojte telefon k internetu. Ujistěte se, že je k dispozici síť Wi-Fi a že můžete
normálně přistupovat k internetu (výrobek nepodporuje síť 5G).
5. Vyjměte rozbočovač a dálkové ovládání a připojte napájecí kabel a adaptér
(adaptér je třeba nakonfigurovat samostatně, DC5V 1 A s portem USB.
6. Vyjměte přihrádku na baterie automatického otvírače záclon Yeelight, vyjměte
oddělovač baterií, znovu nainstalujte přihrádku na baterie a poprvé nabíjejte
automatický otvírač záclon Yeelight déle než 3 hodiny, dokud nepřestane blikat
bílý indikátor (úplné nabití trvá přibližně 6 hodin).
7. Otevřete aplikaci "Mi Home", klikněte na tlačítko "+" v pravém horním rohu
domovské stránky a přidejte zařízení podle pokynů aplikace;
Poznámka: Po instalaci produktu na trati přesně nastavte trasu, viz další stránka s
pokyny k instalaci.
Tip: V případě, že je zařízení v provozu, je nutné jej nainstalovat: Z důvodu
aktualizace a upgradu aplikace "Mi Home" APP se může skutečné ovládání mírně
lišit od výše uvedeného popisu, ovládejte se prosím podle aktuální aplikace "Mi
Home" APP.
8. K účtu Mi Home můžete připojit více služeb třetích stran.
Instalace
Automatický otvírač záclon Yeelight (kolejnice ve tvaru C) podporuje pouze kolejnice ve
tvaru C. Průřez záclonové dráhy a odpovídající velikost jsou uvedeny na obrázku níže.
Upozornění:
 Pokud jej potřebujete nainstalovat na kolejnice ve tvaru I a O, zakupte si
odpovídající verzi automatického otvírače záclon Yeelight.
 Ujistěte se, že spodní část dráhy ve tvaru písmene C je rovná a rozměry dráhy
odpovídají požadavkům uvedeným na obrázku.
