Yeelight YL00461 User manual
2
Warning
1. Important safety instructions. It is important for safety of persons to follow these
instructions. Save these instructions.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Do not allow children to play with fixed controls. Keep remote controls away form
children.
4. Frequently examine the installation for imbalance and signs of wear or damage to
cables springs and fixings. Do not use if repair or adjustment is necessary.
5. Warning: The drive shall be disconnected from its power source during cleaning,
maintenance and when replacing parts.
6. Warning: Important safety instructions. Follow all instructions, since incorrect
installation can lead to sever injury.
7. Before installing the drive, remove any unnecessary cords and disable any equipment
not needed for powered operation.
8. Install the actuating member of amanual release at aheight less than 1.8 m.
9. That the characteristics of the driven part must be compatible with the rated torque
and rated operating time.
10. Fixed controls must be clearly visible after installation.
11. This appliance is not intended for use by persons (including children with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. (For non-EU &UKCA market).
12. This appliance can be used by children aged from 8years and above and person with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. (For EU &UKCA market)
13. Cleaning and user maintenance shall not be made by children without supervision.
14. The product contains rechargeable lithium battery, which is harmful to the
environment when it is discarded. Please take the battery out of the battery pack
before discarding. Pry along the dividing line of the battery pack and remove the
battery. Removed batteries should be disposed of by aprofessional recycling
organization.
15. Under normal use of condition, this equipment should be kept aseparation distance
of at least 20cm between the antenna and the body of the user.
16. The mass and the dimension of the driven part shall be compatible with the rated
torque and rated operating time.
3
Top cover
Driving
wheel
Indicator light
Setting key
Removable battery
compartment
Hub &Remote
Indicator light
Velcro hook
Velcro loop
Hub &Remote
Type-C
connector
Type-C charging
port

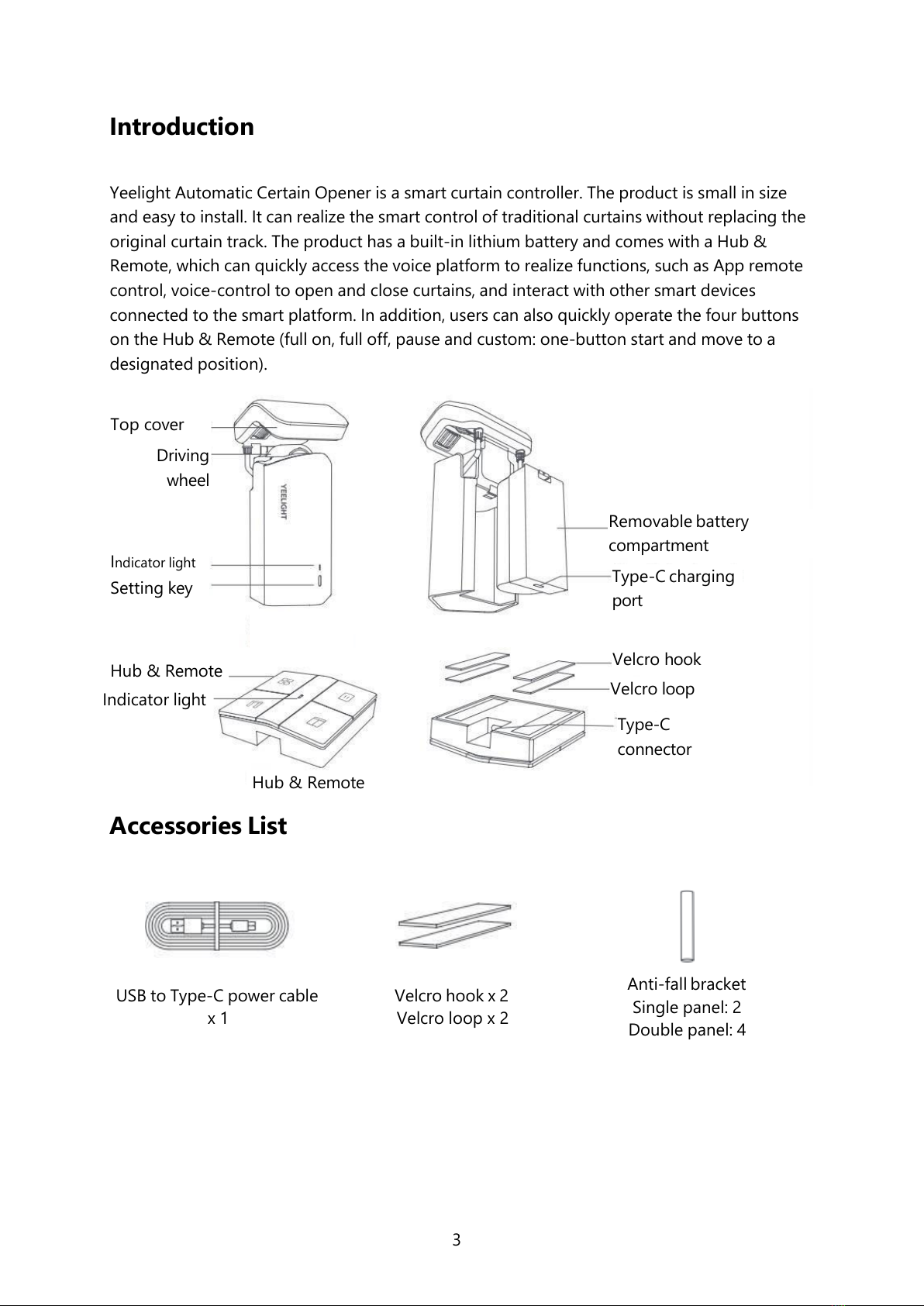

Introduction
Yeelight Automatic Certain Opener is asmart curtain controller. The product is small in size
and easy to install. It can realize the smart control of traditional curtains without replacing the
original curtain track. The product has abuilt-in lithium battery and comes with aHub &
Remote, which can quickly access the voice platform to realize functions, such as App remote
control, voice-control to open and close curtains, and interact with other smart devices
connected to the smart platform. In addition, users can also quickly operate the four buttons
on the Hub &Remote (full on, full off, pause and custom: one-button start and move to a
designated position).
Accessories List
USB to Type-C power cable
x1
Velcro hook x2
Velcro loop x2
Anti-fall bracket
Single panel: 2
Double panel: 4
4
Bead clip
Single panel: 8
Double panel: 16
Beads
Single panel: 2m
Double panel: 4m
Tip: Due to the update and upgrade of the product, the actual product may be slightly
different from the schematic diagram, please refer to the actual product.
Instructions
Instructional video
Please scan the QR code to view the instructional video or follow the steps to install and use
it.
Tip: In order to ensure the installation effect of the product, please wipe the surface of the
curtain track to remove the dust on the surface before installation.
Scan to code to view the instructional video.
Guide for first time use
1. Support smartphones and tablets with Android 4.4 &iOS 10.0 and above.
2. Scan the below QR code or search in APP store or Google to download “Mi Home”
App.
3. Open Mi Home APP and register a“Mi Home”account or log in directly if you have
an account.
4. Connect your phone to the internet. Please ensure that the Wi-Fi network is available
and can access the internet normally (the product does not support 5G network)
5. Take out the Hub &Remote and connect the power cable and adapter (the adapter
needs to be configured by yourself, DC5V 1A with USB port.
6. Remove the battery compartment of Yeelight Automatic Curtain Opener, remove the
battery separator, install the battery compartment again, and charge the Yeelight
5
Alexa, close the curtain
OK Google, close my bedroom curtain
There needs to be tight-fitting trim
seals on both sides of the rod
Suitable for telescopic Roman rod
(O-track)
Automatic Curtain Opener for the first time for more than 3hours, until the white
indicator stops flashing (it takes about 6hours to fully charge)
7. Open the “Mi Home”APP, click “+”in the upper right corner of the home page, and
add devices according to the APP prompts; Note: Please set the route after installing
the product on the track accurately, see the next page for the installation instruction.
Tip: Due to the upgrade and update of the “Mi Home”APP, the actual operation may
be slightly different from the above description, please operate according to the
current “Mi Home”APP.
8. You can link multiple third-party services to your Mi Home account.
Installation
Yeelight Automatic Curtain Opener (O-shaped track) only support O-shaped curtain track.
The cross-section of the curtain track and the matching size are shown in the figure below.
Notice:
If you need to install it on I-shaped and C-shaped tracks, please purchase the
corresponding version of Yeelight Automatic Curtain Opener and are reference only.
Due to the update and upgrade of the product, the actual product may be slightly
different from the schematic diagram, please refer to the actual product.
The diameter of the rod should be between 16-40mm, or the perimeter should be between
51-125mm, whichever meets one of the two.
6
The second
hanging ring
The third
hanging
ring
Suitable for grommet curtains. When it is
used for grommet curtains, please make
sure the shortest distance between the
adjacent grommets is more than 90mm.
Suitable for ring top curtains. When it is
used for ring top curtains, please make sure
that the thickness of the hanging ring is
more than 4mm.

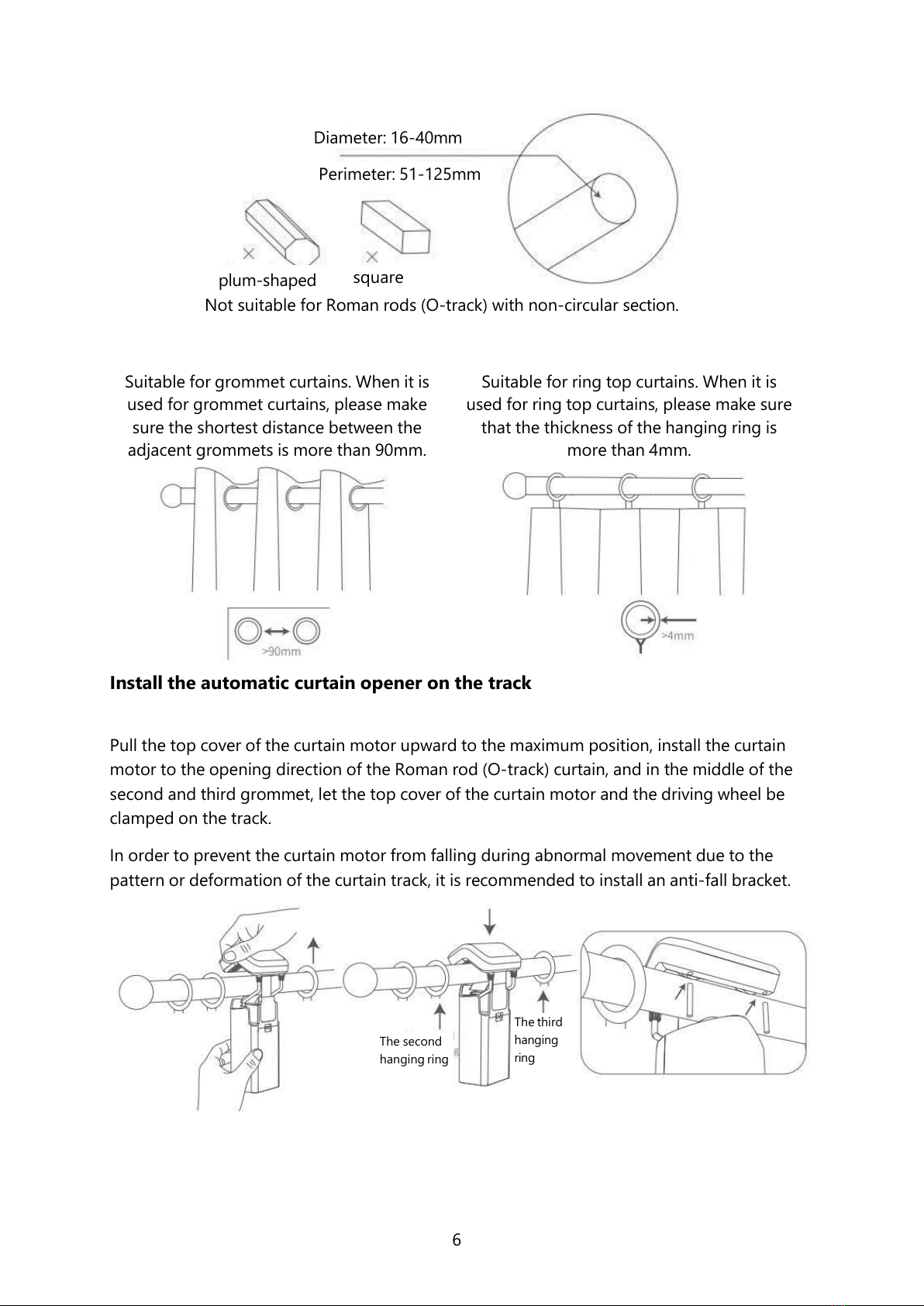

Install the automatic curtain opener on the track
Pull the top cover of the curtain motor upward to the maximum position, install the curtain
motor to the opening direction of the Roman rod (O-track) curtain, and in the middle of the
second and third grommet, let the top cover of the curtain motor and the driving wheel be
clamped on the track.
In order to prevent the curtain motor from falling during abnormal movement due to the
pattern or deformation of the curtain track, it is recommended to install an anti-fall bracket.
Diameter: 16-40mm
Perimeter: 51-125mm
plum-shaped
square
Not suitable for Roman rods (O-track) with non-circular section.
7
Opening direction of curtain
Opening direction of curtain
The third hanging ring The second hangning ring
The third hanging ring
Indoor view
Indoor view
Grommet curtains
Rip top curtains
The second hanging
ring
Same distance N
Same distance N

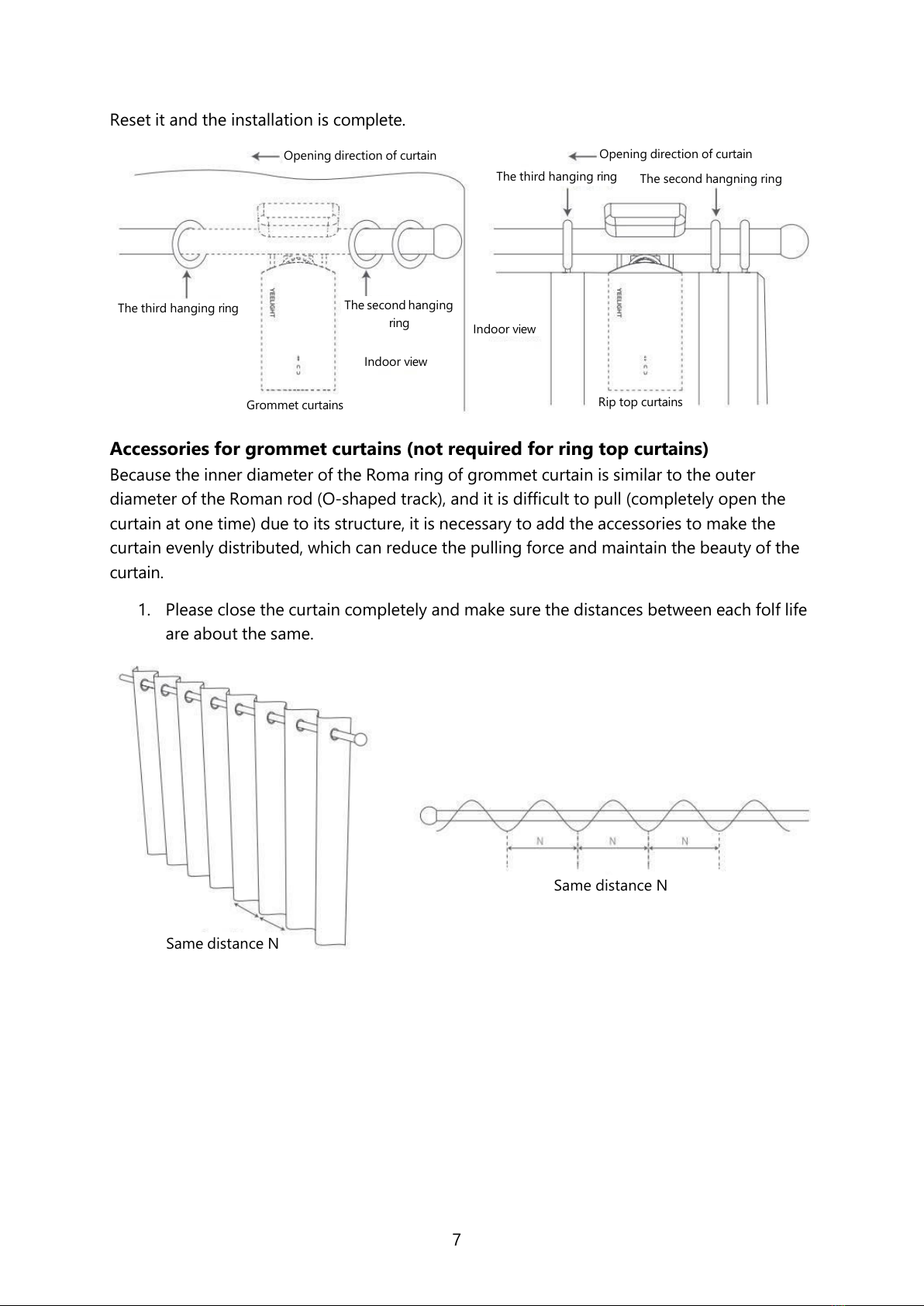

Reset it and the installation is complete.
Accessories for grommet curtains (not required for ring top curtains)
Because the inner diameter of the Roma ring of grommet curtain is similar to the outer
diameter of the Roman rod (O-shaped track), and it is difficult to pull (completely open the
curtain at one time) due to its structure, it is necessary to add the accessories to make the
curtain evenly distributed, which can reduce the pulling force and maintain the beauty of the
curtain.
1. Please close the curtain completely andmake sure the distances between each folf life
are about the same.
8
How to open the clip
straighten

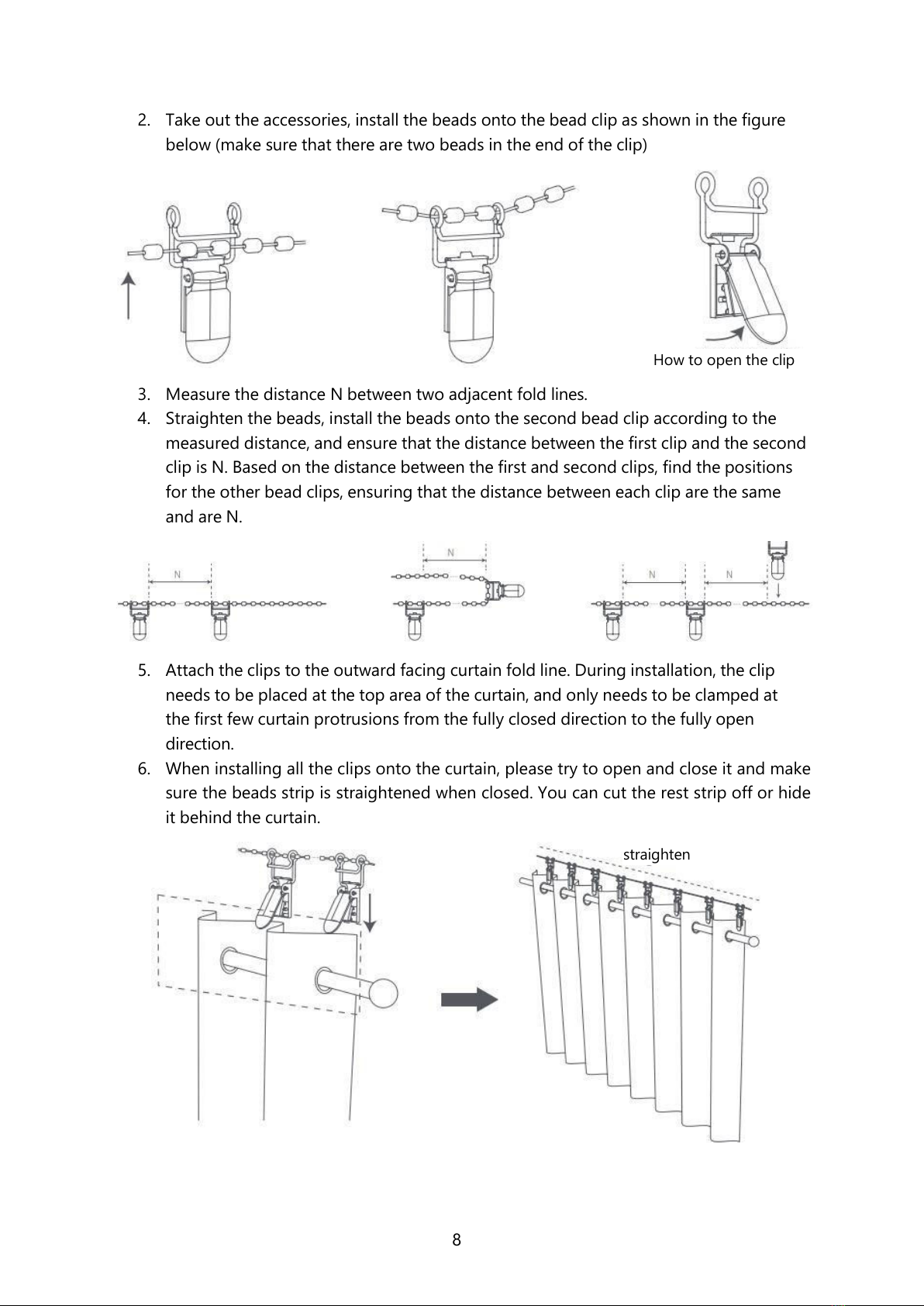

2. Take out the accessories, install the beads onto the bead clip as shown in the figure
below (make sure that there are two beads in the end of the clip)
3. Measure the distance Nbetween two adjacent fold lines.
4. Straighten the beads, install the beads onto the second bead clip according to the
measured distance, and ensure that the distance between the first clip and the second
clip is N. Based on the distance between the first and second clips, find the positions
for the other bead clips, ensuring that the distance between each clip are the same
and are N.
5. Attach the clips to the outward facing curtain fold line. During installation, the clip
needs to be placed at the top area of the curtain, and only needs to be clamped at
the first few curtain protrusions from the fully closed direction to the fully open
direction.
6. When installing all the clips onto the curtain, please try to open and close it and make
sure the beads strip is straightened when closed. You can cut the rest strip off or hide
it behind the curtain.
9
Automatic curtain opener Beads
Curtain
The Roman rod
(O-shaped track)
First clip
Opening direction of curtain
Indoor direction
Automatic curtain opener Beads
The Roman rod
(O-shaped track)
Curtain
First clip
Opening direction of curtain
Indoor direction

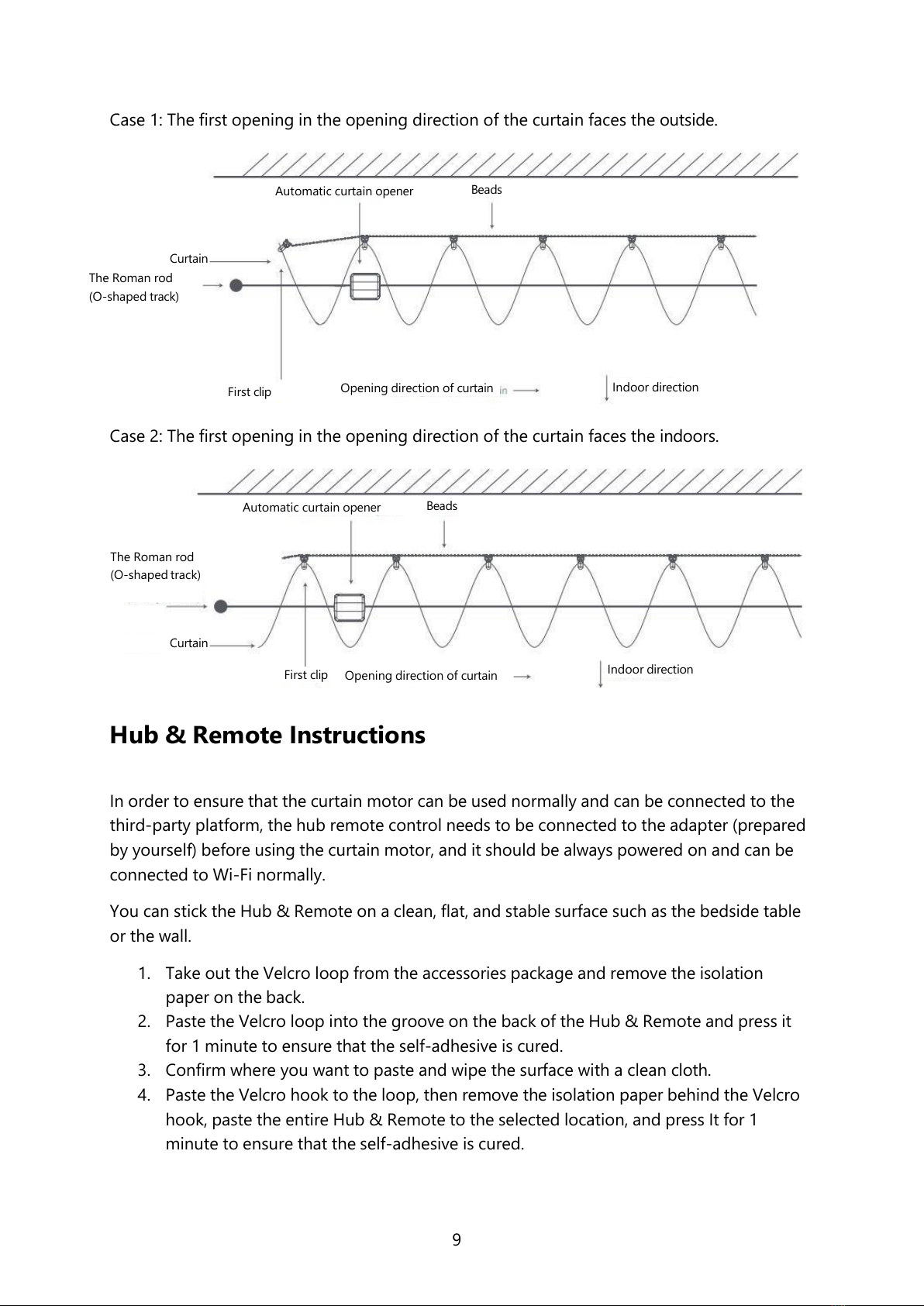

Case 1: The first opening in the opening direction of the curtain faces the outside.
Case 2: The first opening in the opening direction of the curtain faces the indoors.
Hub &Remote Instructions
In order to ensure that the curtain motor can be used normally and can be connected to the
third-party platform, the hub remote control needs to be connected to the adapter (prepared
by yourself) before using the curtain motor, and it should be always powered on and can be
connected to Wi-Fi normally.
You can stick the Hub &Remote on aclean, flat, and stable surface such as the bedside table
or the wall.
1. Take out the Velcro loop from the accessories package and remove the isolation
paper on the back.
2. Paste the Velcro loop into the groove on the back of the Hub &Remote and press it
for 1minute to ensure that the self-adhesive is cured.
3. Confirm where you want to paste and wipe the surface with aclean cloth.
4. Paste the Velcro hook to the loop, then remove the isolation paper behind the Velcro
hook, paste the entire Hub &Remote to the selected location, and press It for 1
minute to ensure that the self-adhesive is cured.
10
Notice:
Do not press the button of the Hub &Remote during the whole process.
The hub only supports Yeelight automatic curtain opener.
Instructions to the Hub Remote Control Buttons
Custom button: Move the curtain to the set position, which can be set in the App.
Pause button: Curtain stops moving.
Fully open button: Fully open the curtains.
Fully closed button: Fully close the curtains.
Note: The remote control will take effect only after the Yeelight Automatic Curtain Opener
completes the calibration settings. For the calibration process, please refer to the installation
guide in the App.
Auto Calibration Settings
Single panel curtain auto calibration
1. Place the automatic curtain opener to the position where the curtain is fully closed.
2. Quickly click the fully closed button on the Hub &Remote for 5times. At this time,
the indicator lights of the Hub &Remote and the automatic curtain opener start to
flash blue slowly, indicating that both the automatic curtain opener and the Hub &
Remote are in the auto calibration mode.
11
Curtain fully closed
About 10cm
Automatic curtain opener starts auto-running at this point
Certain fully open

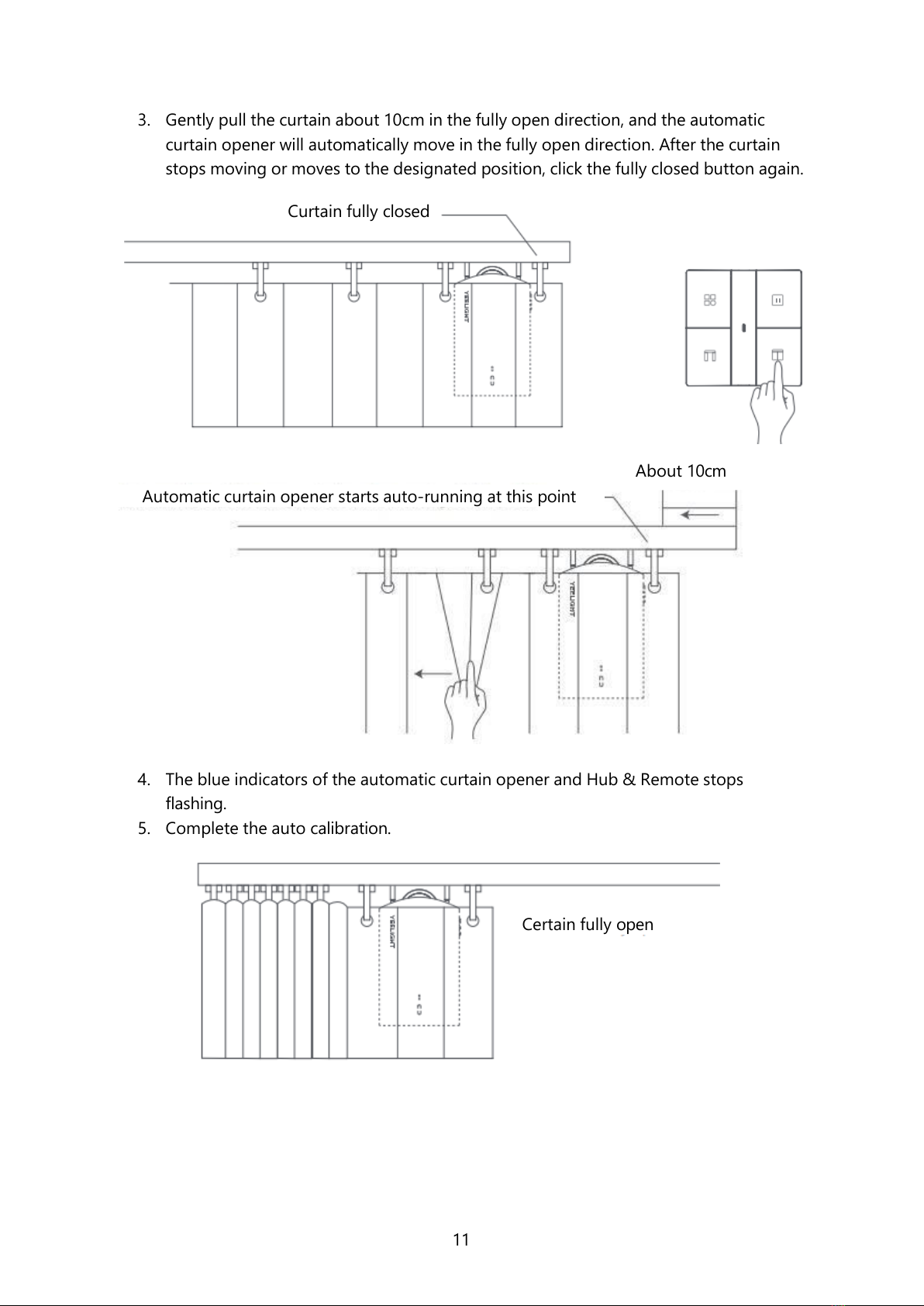

3. Gently pull the curtain about 10cm in the fully open direction, and the automatic
curtain opener will automatically move in the fully open direction. After the curtain
stops moving or moves to the designated position, click the fully closed button again.
4. The blue indicators of the automatic curtain opener and Hub &Remote stops
flashing.
5. Complete the auto calibration.
12
No gap between the left and right curtains
Auto-calibration of double panel curtains:
Refer to the route setting method of single panel curtain and set the routes of the left and
right Yeelight Automatic Curtain Opener respectively.
Note: When pulling the curtains by hand, please pull the left and right curtains about 10cm to
the full open direction in turn, after the curtain motors on the left and right sides reach both
ends of the curtain track or move to the designated position, click the full closed button on
the remote control again.
Warning:
1. The product is not atoy, pleas keep children away from it.
2. Only for indoor use, please do not use it outdoors.
3. The product is not moisture-proof, please do not spill water or other liquids product.
4. Please keep the product away from heat.
5. If the product fails during use, please hand it over to authorized professionals for
repair, and do not attempt to repair it by yourself.
13

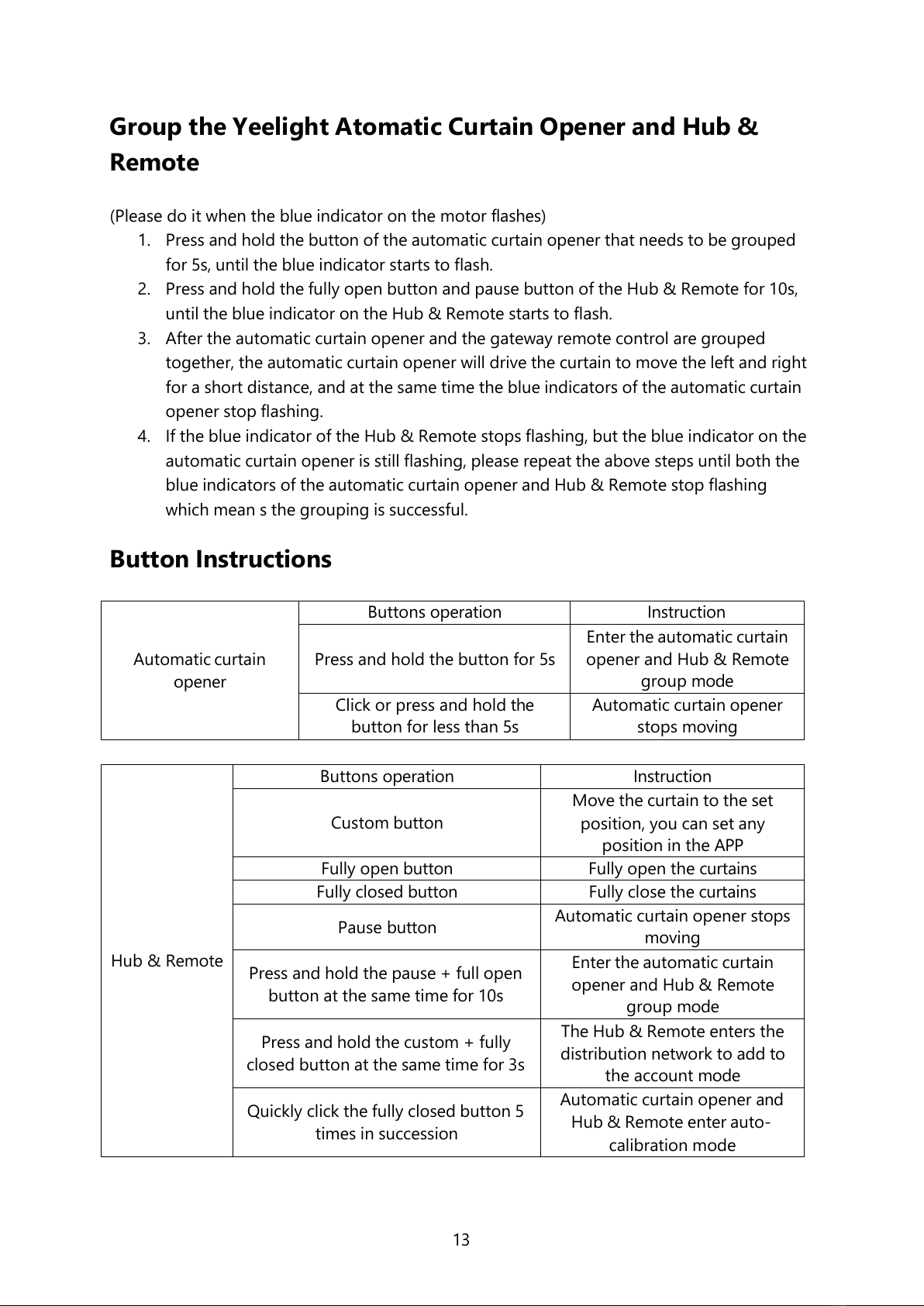

Group the Yeelight Atomatic Curtain Opener and Hub &
Remote
(Please do it when the blue indicator on the motor flashes)
1. Press and hold the button of the automatic curtain opener that needs to be grouped
for 5s, until the blue indicator starts to flash.
2. Press and hold the fully open button and pause button of the Hub &Remote for 10s,
until the blue indicator on the Hub &Remote starts to flash.
3. After the automatic curtain opener and the gateway remote control are grouped
together, the automatic curtain opener will drive the curtain to move the left and right
for ashort distance, and at the same time the blue indicators of the automatic curtain
opener stop flashing.
4. If the blue indicator of the Hub &Remote stops flashing, but the blue indicator on the
automatic curtain opener is still flashing, please repeat the above steps until both the
blue indicators of the automatic curtain opener and Hub &Remote stop flashing
which mean sthe grouping is successful.
Button Instructions
Automatic curtain
opener
Buttons operation
Instruction
Press and hold the button for 5s
Enter the automatic curtain
opener and Hub &Remote
group mode
Click or press and hold the
button for less than 5s
Automatic curtain opener
stops moving
Hub &Remote
Buttons operation
Instruction
Custom button
Move the curtain to the set
position, you can set any
position in the APP
Fully open button
Fully open the curtains
Fully closed button
Fully close the curtains
Pause button
Automatic curtain opener stops
moving
Press and hold the pause +full open
button at the same time for 10s
Enter the automatic curtain
opener and Hub &Remote
group mode
Press and hold the custom +fully
closed button at the same time for 3s
The Hub &Remote enters the
distribution network to add to
the account mode
Quickly click the fully closed button 5
times in succession
Automatic curtain opener and
Hub &Remote enter auto-
calibration mode
14
Indicator Instructions
Automatic curtain opener
Buttons operation
Instruction
White indicator keeps on for
1s
Power on the automatic
curtain opener
White indicator flashes once
Click the button
Blue indicator flashes quickly
Group mode with Hub &
Remote
Blue indicator flashes slowly
Automatic curtain opener
enters auto-calibration
mode
Hub &Remote
Buttons operation
Instruction
White indicator keeps on for 1s
Power on the Hub &Remote
White indicator flashes slowly
Detect network
White indicator flashes quickly
The Hub &Remote enters the
networking and add to the
account mode
Blue indicator flashes quickly
Group mode with automatic
curtain opener
Blue indicator flashes slowly
Hub &Remote enters auto-
calibration mode
The blue indicator flashes once
The automatic curtain opener
hasn’tset the route
Charging Instructions
Insert the Type-C plug of the USP charging cable into the charging port on the Yeelight
Automatic Curtain Opener or remove the battery pack behind the Yeelight Automatic Curtain
Opener separately, and insert the other end into the adapter to charge.
Automatic curtain opener
Buttons operation
Instruction
White indicator flashes
Charging
White indicator keeps on
Charging is complete and
the adapter is not removed
15
Reset to factory settings
Press and hold the custom and fully closed buttons on the Hub &Remote at the same time
for 3seconds until the white indicator of the Hub &Remote starts to flash, which means that
the Hub &Remote has been reset to the factory settings.
Warning:
After resetting to factory settings, you may lose all settings and you will need to re-add the
device to the account and re-calibrate the route.
Specifications
Automatic curtain opener
Model
YLCDJ-0009
Dimension
79 x166 x72mm
Rated torque
0.2N m
Working time
S2 4min
Rated voltage
5V
Rated power
6W
Movement speed
7cm/s
Test conditions: Performance mode, 2m curtain track, 12kg curtain, 25°C (The test results are
from the control experiment of Yeelight laboratory, the battery life may vary due to different
conditions).
Hub &Remote
Model YLCDJ-0011
Dimension 65 x65 x18mm
Rated voltage 5V
Rated current 1A
Notes:
1. For indoor use only.
2. It is recommended to be used at an altitude of less than 2000meters for safety.
3. “”The symbol indicates direct current (DC).
Compatible with: Android id 4.4 or iOS 10.0 and above.
Wireless Connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz. Bluetooth 4.2BLE, Zigbee
Operating Frequency: 2412-2472MHz (Wi-Fi), 2402-2480MHz (BT), 2405-2480MHz (Zigbee)
Maximum Output Power: 16.24 dBm (Wi-Fi), 2dBm (BT), 6.06dBm (Zigbee).
16
EU Declaration of Conformity
Quingdao Yeelink Information Technology Co., hereby declares that type Y00409 devices are in conformity
with EU Directives. The full text of the EU Declaration of Conformity is available at the following web
address: https://edshop.edsystem.cz/prohlaseni-o-shode/article-28393
WEEE
This product must not be disposed of as normal household waste in accordance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU). Instead, it shallbe returned to the place
of purchase or handed over to a public collection point for the recyclable waste. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this product. Contact
your local authority or the nearest collection point for further details. Improper disposal of this type of
waste may result in fines in accordance with national regulations.
17

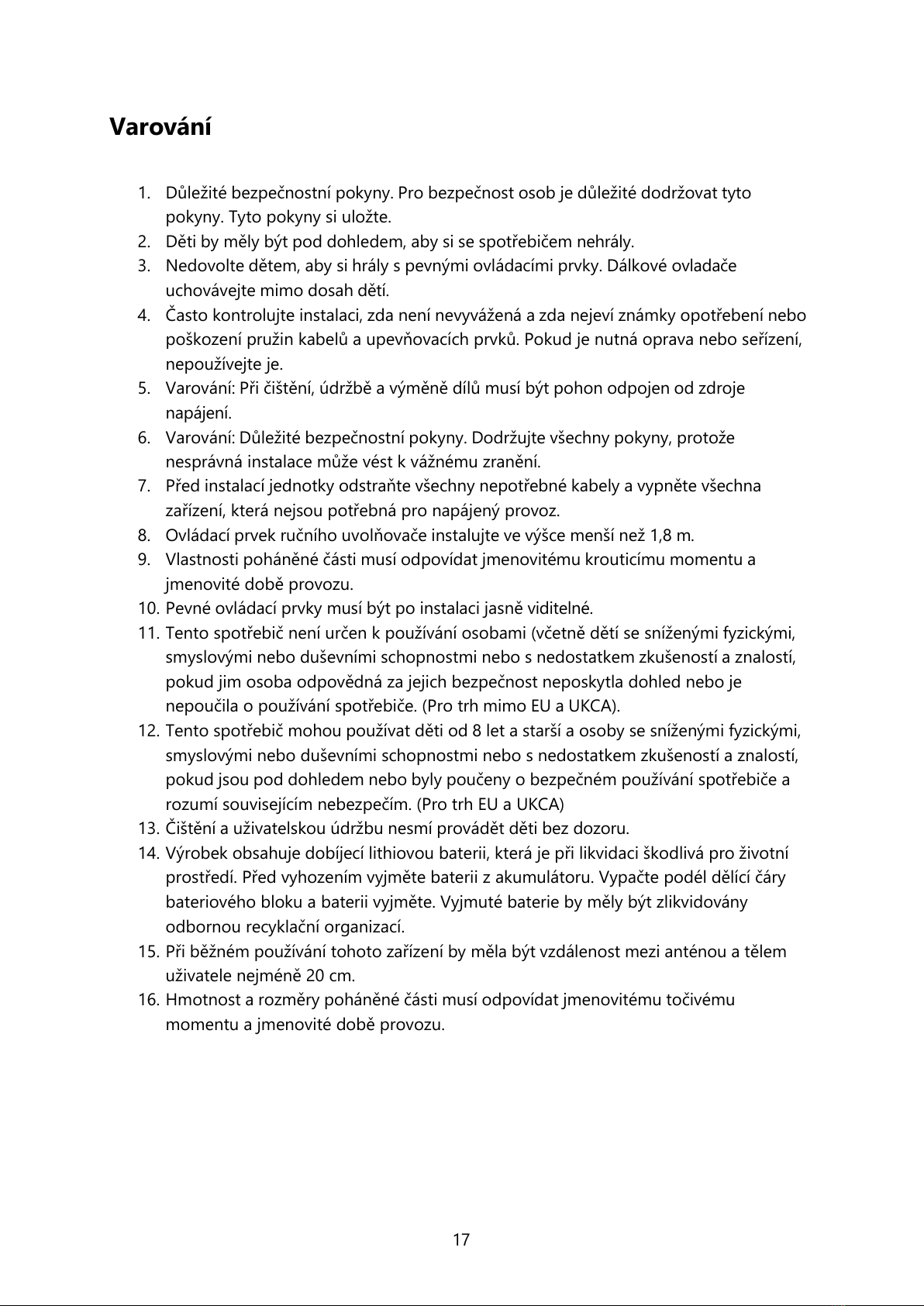

Varování
1. Důležité bezpečnostní pokyny. Pro bezpečnost osob je důležité dodržovat tyto
pokyny. Tyto pokyny si uložte.
2. Děti by měly být pod dohledem, aby si se spotřebičem nehrály.
3. Nedovolte dětem, aby si hrály s pevnými ovládacími prvky. Dálkové ovladače
uchovávejte mimo dosah dětí.
4. Často kontrolujte instalaci, zda není nevyvážená a zda nejeví známky opotřebení nebo
poškození pružin kabelů a upevňovacích prvků. Pokud je nutná oprava nebo seřízení,
nepoužívejte je.
5. Varování: Při čištění, údržbě a výměně dílů musí být pohon odpojen od zdroje
napájení.
6. Varování: Důležité bezpečnostní pokyny. Dodržujte všechny pokyny, protože
nesprávná instalace může vést k vážnému zranění.
7. Před instalací jednotky odstraňte všechny nepotřebné kabely a vypněte všechna
zařízení, která nejsou potřebná pro napájený provoz.
8. Ovládací prvek ručního uvolňovače instalujte ve výšce menší než 1,8 m.
9. Vlastnosti poháněné části musí odpovídat jmenovitému krouticímu momentu a
jmenovité době provozu.
10. Pevné ovládací prvky musí být po instalaci jasně viditelné.
11. Tento spotřebič není určen k používání osobami (včetně dětí se sníženými fyzickými,
smyslovými nebo duševními schopnostmi nebo s nedostatkem zkušeností a znalostí,
pokud jim osoba odpovědná za jejich bezpečnost neposkytla dohled nebo je
nepoučila o používání spotřebiče. (Pro trh mimo EU aUKCA).
12. Tento spotřebič mohou používat děti od 8 let a starší a osoby se sníženými fyzickými,
smyslovými nebo duševními schopnostmi nebo s nedostatkem zkušeností a znalostí,
pokud jsou pod dohledem nebo byly poučeny o bezpečném používání spotřebiče a
rozumí souvisejícím nebezpečím. (Pro trh EU a UKCA)
13. Čištění a uživatelskou údržbu nesmí provádět děti bez dozoru.
14. Výrobek obsahuje dobíjecí lithiovou baterii, která je při likvidaci škodlivá pro životní
prostředí. Před vyhozením vyjměte baterii z akumulátoru. Vypačte podél dělící čáry
bateriového bloku a baterii vyjměte. Vyjmuté baterie by měly být zlikvidovány
odbornou recyklační organizací.
15. Při běžném používání tohoto zařízení by měla být vzdálenost mezi anténou a tělem
uživatele nejméně 20 cm.
16. Hmotnost a rozměry poháněné části musí odpovídat jmenovitému točivému
momentu a jmenovité době provozu.
18

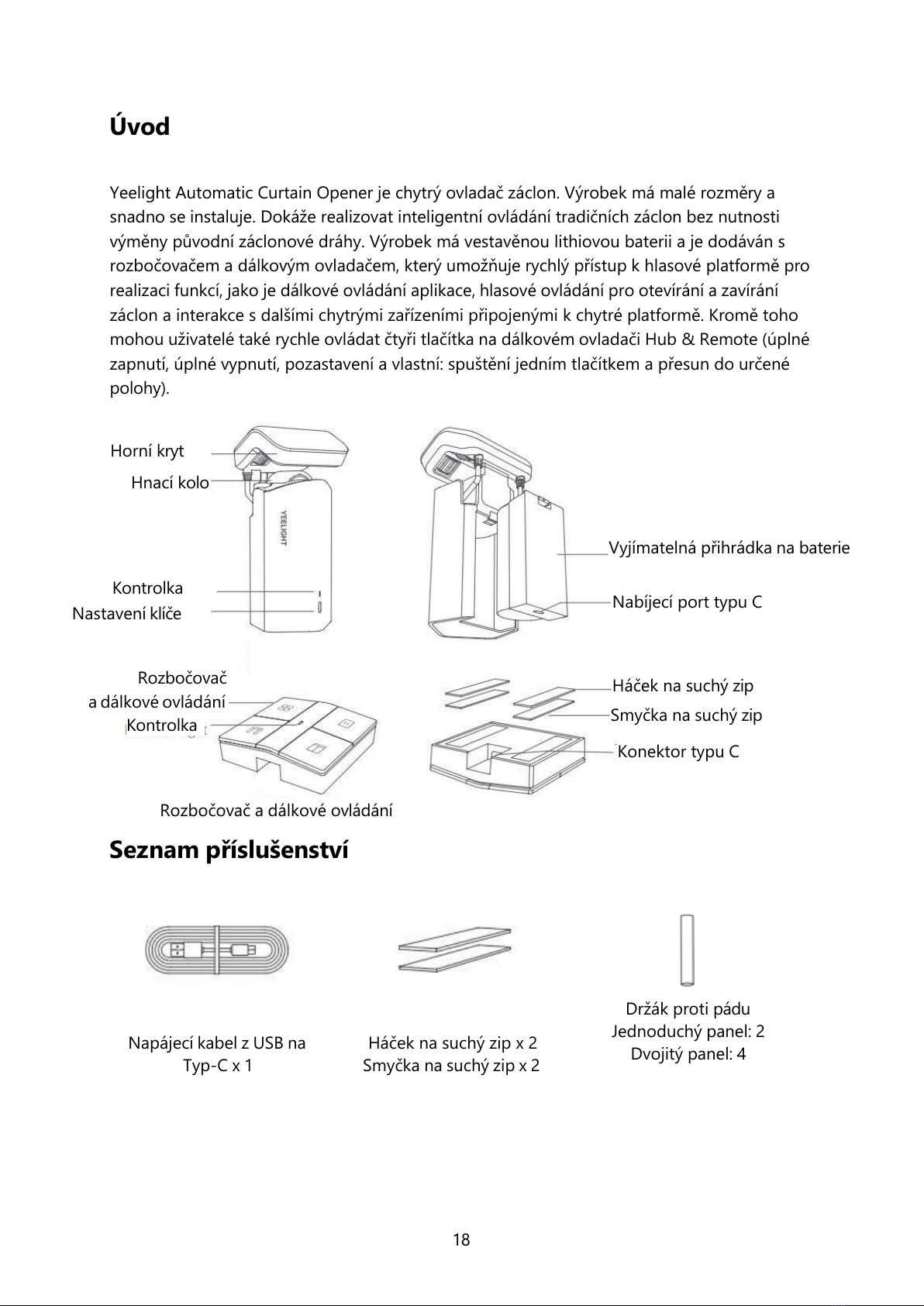

Úvod
Yeelight Automatic Curtain Opener je chytrý ovladač záclon. Výrobek má malé rozměry a
snadno se instaluje. Dokáže realizovat inteligentní ovládání tradičních záclon bez nutnosti
výměny původní záclonové dráhy. Výrobek má vestavěnou lithiovou baterii a je dodáván s
rozbočovačem a dálkovým ovladačem, který umožňuje rychlý přístup k hlasové platformě pro
realizaci funkcí, jako je dálkové ovládání aplikace, hlasové ovládání pro otevírání azavírání
záclon a interakce s dalšími chytrými zařízeními připojenými k chytré platformě. Kromě toho
mohou uživatelé také rychle ovládat čtyři tlačítka na dálkovém ovladači Hub & Remote (úplné
zapnutí, úplné vypnutí, pozastavení a vlastní: spuštění jedním tlačítkem a přesun do určené
polohy).
Seznam příslušenství
Napájecí kabel zUSB na
Typ-C x1
Háček na suchý zip x 2
Smyčka na suchý zip x 2
Držák proti pádu
Jednoduchý panel: 2
Dvojitý panel: 4
Horní kryt
Hnací kolo
Vyjímatelná přihrádka na baterie
Kontrolka
Nastavení klíče
Nabíjecí port typu C
Rozbočovač
adálkové ovládání
Kontrolka
Háček na suchý zip
Smyčka na suchý zip
Rozbočovač a dálkové ovládání
Konektor typu C
19

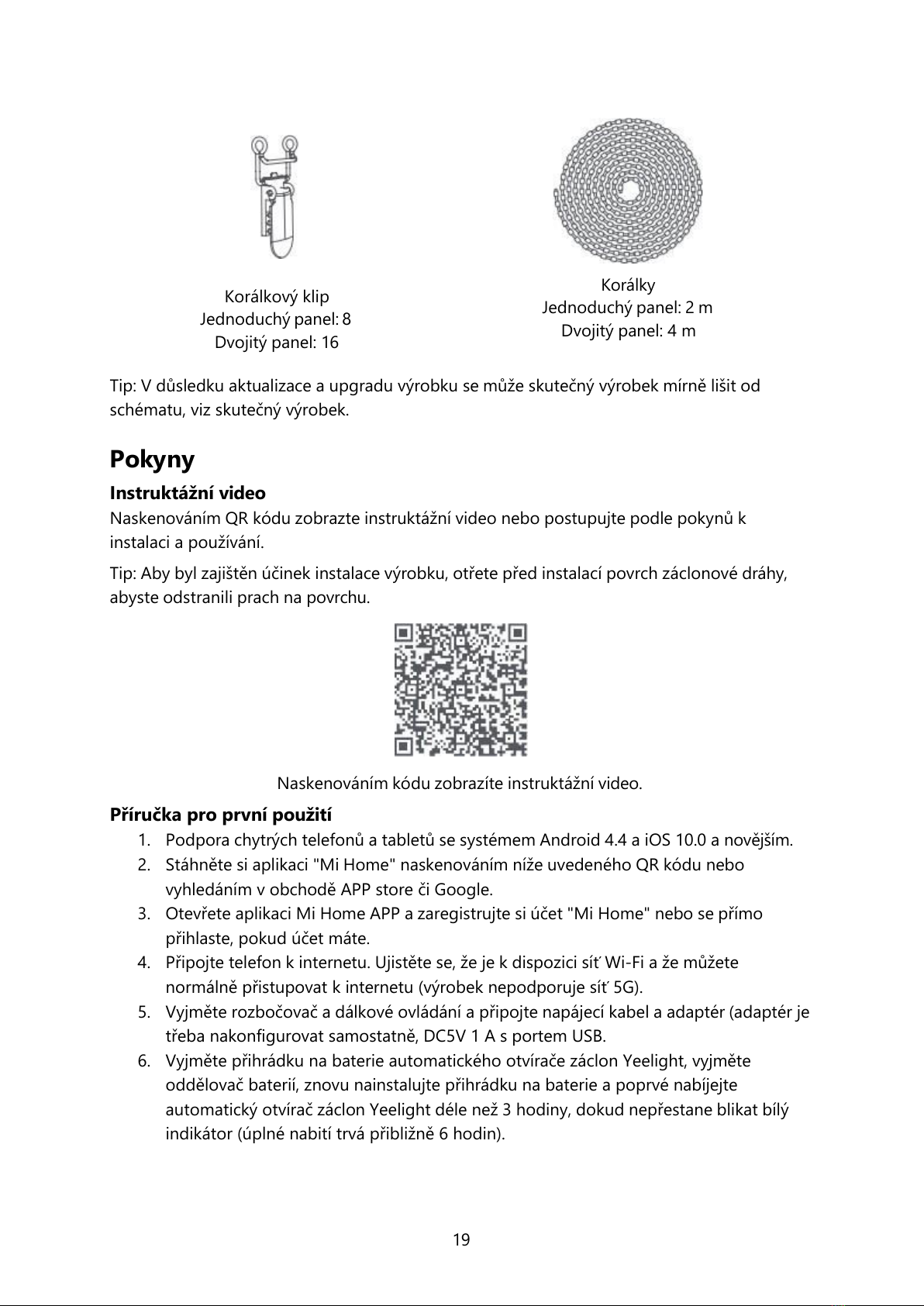

Korálkový klip
Jednoduchý panel: 8
Dvojitý panel: 16
Korálky
Jednoduchý panel: 2m
Dvojitý panel: 4m
Tip: V důsledku aktualizace a upgradu výrobku se může skutečný výrobek mírně lišit od
schématu, viz skutečný výrobek.
Pokyny
Instruktážní video
Naskenováním QR kódu zobrazte instruktážní video nebo postupujte podle pokynů k
instalaci a používání.
Tip: Aby byl zajištěn účinek instalace výrobku, otřete před instalací povrch záclonové dráhy,
abyste odstranili prach na povrchu.
Naskenováním kódu zobrazíte instruktážní video.
Příručka pro první použití
1. Podpora chytrých telefonů a tabletů se systémem Android 4.4 aiOS 10.0 a novějším.
2. Stáhněte si aplikaci "Mi Home" naskenováním níže uvedeného QR kódu nebo
vyhledáním v obchodě APP store či Google.
3. Otevřete aplikaci Mi Home APP a zaregistrujte si účet "Mi Home" nebo se přímo
přihlaste, pokud účet máte.
4. Připojte telefon k internetu. Ujistěte se, že je k dispozici síť Wi-Fi a že můžete
normálně přistupovat k internetu (výrobek nepodporuje síť 5G).
5. Vyjměte rozbočovač a dálkové ovládání a připojte napájecí kabel a adaptér (adaptér je
třeba nakonfigurovat samostatně, DC5V 1 A s portem USB.
6. Vyjměte přihrádku na baterie automatického otvírače záclon Yeelight, vyjměte
oddělovač baterií, znovu nainstalujte přihrádku na baterie a poprvé nabíjejte
automatický otvírač záclon Yeelight déle než 3 hodiny, dokud nepřestane blikat bílý
indikátor (úplné nabití trvá přibližně 6 hodin).
20
Alexo, zatáhni závěs
OK Google, zatáhni mi závěs v ložnici.
Na obou stranách tyče musí být těsně
přiléhající těsnění.
Vhodné pro teleskopickou římskou tyč
(O-track)

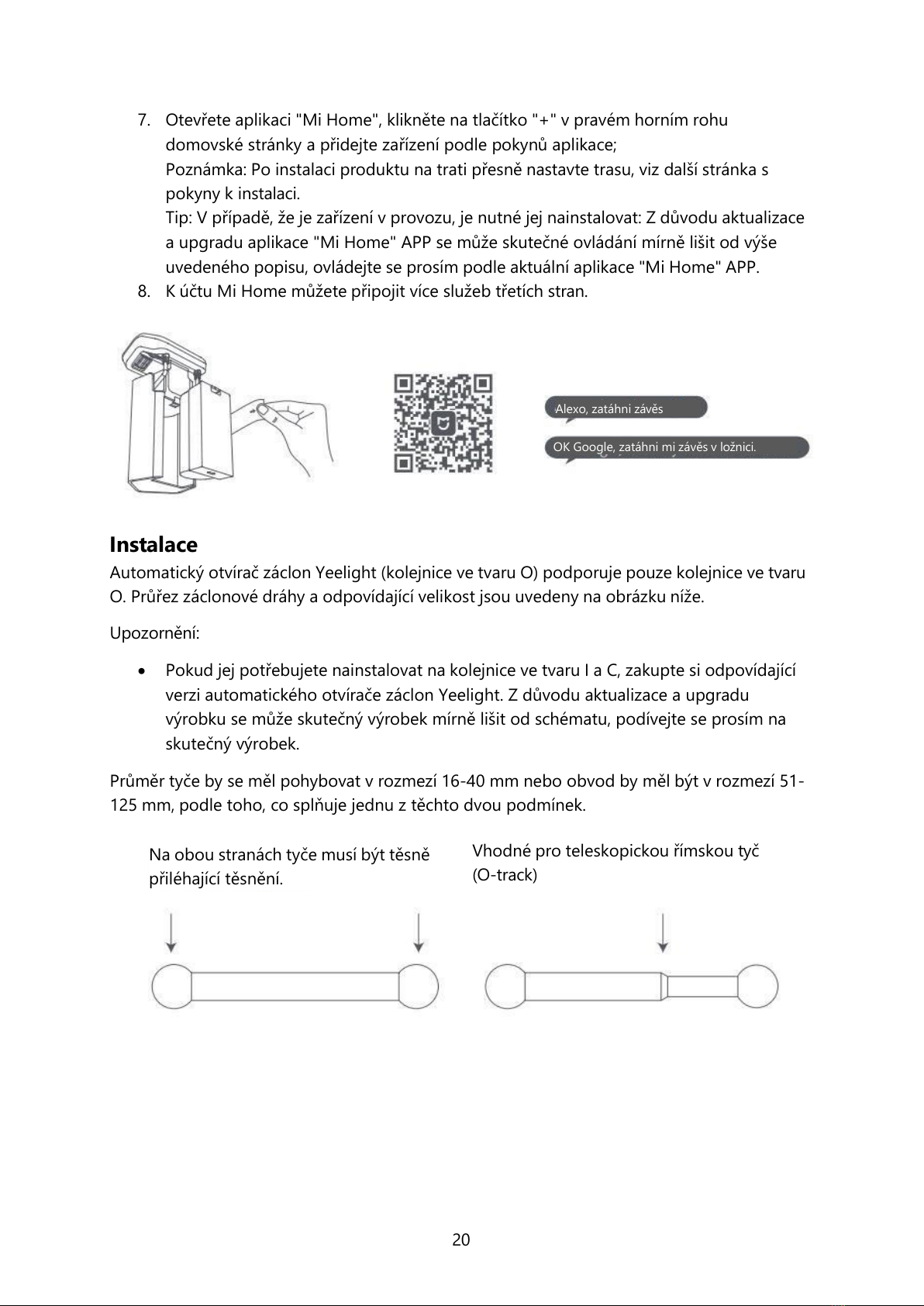

7. Otevřete aplikaci "Mi Home", klikněte na tlačítko "+" v pravém horním rohu
domovské stránky a přidejte zařízení podle pokynů aplikace;
Poznámka: Po instalaci produktu na trati přesně nastavte trasu, viz další stránka s
pokyny kinstalaci.
Tip: V případě, že je zařízení v provozu, je nutné jej nainstalovat: Z důvodu aktualizace
a upgradu aplikace "Mi Home" APP se může skutečné ovládání mírně lišit od výše
uvedeného popisu, ovládejte se prosím podle aktuální aplikace "Mi Home" APP.
8. K účtu Mi Home můžete připojit více služeb třetích stran.
Instalace
Automatický otvírač záclon Yeelight (kolejnice ve tvaru O) podporuje pouze kolejnice ve tvaru
O. Průřez záclonové dráhy a odpovídající velikost jsou uvedeny na obrázku níže.
Upozornění:
Pokud jej potřebujete nainstalovat na kolejnice ve tvaru I a C, zakupte si odpovídající
verzi automatického otvírače záclon Yeelight. Z důvodu aktualizace a upgradu
výrobku se může skutečný výrobek mírně lišit od schématu, podívejte se prosím na
skutečný výrobek.
Průměr tyče by se měl pohybovat v rozmezí 16-40 mm nebo obvod by měl být v rozmezí 51-
125 mm, podle toho, co splňuje jednu z těchto dvou podmínek.
Table of contents
Languages:
Other Yeelight Home Automation manuals
