MODEL: 32001 SERIES
OWNERS MANUAL
WARNING:
Read Tecumseh Engine Owners Manual and Important
Rules for Safe Operation before Operating Vehicle
WARNING:
YOU MUST ADD OIL TO THE ENGINE PRIOR TO USE!!!
20 oz. or 1 ¼ Pints (.6 Liters) OF SAE 30 MOTOR OIL
This vehicle is sold for off-road use only. Before operating
this vehicle, read all the instructions for safe assembly and
operation as well as the instructions governing the engine
and other portions of the vehicle. Pay close attention to all
caution and warning labels on the Fun-Kart.
For Replacements Parts Call:
1-888-389-5522 (U.S.) 1-888-707-1880 (Cana a)
05/08/02
01465
Rev. D

2
NOTE: All the items (1-33) below should be read and understood by
the Operator and Parent. Failure to follow these instructions
could endanger personal safety of the operator.
1. This vehicle is not licensable. IT IS NOT TO BE OPERATED ON ANY PUBLIC ROAD, STREET,
SIDEWALK o ALLEY. To do so would be a violation of local law. This vehicle may be operated only
on private property and upon areas approved by local law.
2. This vehicle should NEVER be operated indoors. The exhaust from the engine contains carbon
monoxide, which is tasteless, odorless, and poisonous gas.
3. This Fun- art is not intended nor designed for racing.
4. The ope ato of this vehicle should always wea a D.O.T app oved helmet and othe
p otective equipment as ecommended by state and local laws. The ope ato should also
wea face shields o goggles, boots, gloves, and othe app op iate p otective clothing.
5. Unless otherwise specified in this manual, all screws, nuts, and bolts must be kept tight to ensure
that the vehicle is in safe operating condition. The engine must be kept free of all dirt and other
accumulations, paying particular attention to throttle linkage area.
6. Prevailing Torque type locknuts lose their locking capability with repeated use and require
replacement. Ensure locknuts are functioning properly.
Rea These Important Rules For Safe Operation

3
7. The tire pressure should be checked prior to each use. The recommended inflation pressure is the
maximum tire pressure which is printed on the tires sidewall. Imp ope ti e p essu e may cause
instability and may p event p ope b aking o stee ing.
8. Modification of this vehicle or removal of any original equipment or safety decals may render the
vehicle unsafe or illegal. Neve emove any chained gua d, o belt clutch gua d. These covers
are for the riders protection.
9. The vehicle should never be started without first checking to see that the throttle is in idle position. Do
not start engine without verifying proper function of the throttle.
10. Neve attempt to sta t this vehicle without having the ope ato sitting in the p ope position
to ensu e cont ol of the ka t.
11. The operators ability to operate this off-road vehicle safely is largely dependent upon the operators
ability to exercise proper judgement. An operator also must not be too small or too large for controlled
operation. The operator must be at least 16 years of age and have understanding, mental capacity and
physical capability to safely operate this vehicle. This vehicle should only be operated after mature,
supervised instruction and sufficient practice in non-congested areas.
12. This vehicle is designed fo one ope ato only. An operator on any vehicle must be of
sufficient age, understanding, mental capacity, and physical capability to act to protect himself/herself,
and wear a D.O.T approved helmet at all times. This ka t is not ecommended fo weights
exceeding 200 pounds.
13. The engine should be stopped when the vehicle is not in use.
14. Loose clothing, long hai , o a ticles wo n by any ide s must be fully contained, o
cove ed to p event them f om possibly being caught in otating pa ts of the vehicle o the
su ounding envi onment while iding. Failu e to obey could endange the pe sonal safety
of the Ride .
15. Do not place hands, feet, o any othe pa t of the body o any clothing nea the engine,
muffle , wheels, chain, and othe otating pa ts of the vehicle while iding o unning the
engine. Caution must be used in performing required maintenance on or near an operating engine.
Special caution should be taken after the engine has been running, since the engine and other drive
components may be extremely hot.
16. Wet, slippery, rough, or steep terrain is potentially dangerous and may result in injury if proper caution
is not observed. Slow speeds are required to safely operate this vehicle under those conditions. The
Operator must use mature judgement, skill, and experience to choose a speed suitable for the terrain
and riding conditions.
17. The Gove no settings fo this vehicles engine must not be tampe ed with, alte ed o
changed. The governor is set by the engine manufacturer and limits the maximum speed of the
engine (and vehicle) and protects the engine from damage. Excessive speeds are potentially
dangerous to the rider and the engine. The top speed fo this vehicle is 34 mph.

4
18. Each time before using this vehicle, the fuel supply should be checked. The fuel tank shouldnever
be filled while the engine is running or while the engine is hot. Do not fill tank in closed area such as a
garage, while smoking, or in the vicinity of an open flame. Do not overfill the tank. Always allow at
least ¼ inch of space at the top of the tank for expansion. Never top off tank. Replace cap tightly to
prevent spillage of fuel and potential fire hazard. After filling tank, move the vehicle at least 15 feet
away from spot of filling before starting.
19. If the vehicle should start making unusual noise or vibrating abnormally, the engine should be stopped
and the spark plug wire disconnected. The vehicle should then be checked for damage. Excessive
noise or vibration is generally a warning of loose or worn parts.
20. When making repairs or adjustments to the vehicle which do not involve adjustments to the engine,
the spark plug wire must be disconnected and kept away from the spark plug to prevent accidental
starting. When working on or around or when restarting engine, use extreme cautionto avoid
contact with the muffler, cylinder head, or any other potentially hot area on or around the engine.
21. Always perform a Pre-Ride Inspection before starting the engine. See Pre-Ride Inspection in the
manual.
22. The custom brush guard assembled on this vehicle is for deflecting loose vegetation and must not be
removed.
23. When storing the vehicle, it must be kept in a place where gasoline fumes will not reach an open flame
or spark. For long periods of storage, such as for winter, the fuel tank should be drained in the open,
cool area. The engine must be allowed to cool before storage in any enclosure. Read and keep all
printed material supplied with this vehicle. Timely and specific instructions and an Operators Manual
revisions are included in supplements. If any printed material included is unclear, please call
1-888-389-5522 for assistance.
24. Neve ope ate this vehicle while unde the influence of alcohol, d ugs, o medication of any
kind. Such ope ation could be dange ous to you and/o othe s.
25. Always slow down while turning. High speed turning may cause loss of control, possible injury to the
Operator.
26. Do not race, jump, and perform stunt riding or spinouts when operating the Fun-Kart.
The Fun-Kart is not designed or intended for such operation.
27. This manual provides guidelines for the assembly, maintenance, and operation of this Fun- art and is
not intended as a service manual.
28. Assembly, maintenance, and/or repair of this Fun- art should only be performed by persons of
sufficient mechanical skill, experience, and judgment (such as outdoor equipment dealers,
motorcycle dealer/shops, or small engine dealers) so that no unsafe condition or modification is made.
29. Always use extreme caution when starting the engine. Avoid touching the engine, muffler, or drive
components. These areas could cause burns on contact.
30. Ope ato must always be app op iately supe vised at all times while ope ating this vehicle.

5
31. Riding your Fun- art requires skill acquired through practice over a period of time. Take the time to
learn the basic techniques before attempting to ride the vehicle.
32. Ride only on safe and familiar terrain. Avoid loose gravel and rocks. Be careful on wet surfaces and
allow for extra braking distance.
33. ALWAYS mount the caution flag provided on the Fun- art for safety purposes. This flag could help
prevent dangerous situations.
Pay close attention to all Caution and Warning
labels on the Fun-Kart.
ASSUMP IONS OF RISK
The Owner Or Operator Assumes All The Risks
Incident To Or Arising Out Of The Operation Of This
Vehicle.
Failure To Follow And Comply With All Warnings ay
Cause Serious Injury Or Death

6
YERF-DOG Fun-Karts by Flexible Flyer
LIMITED WARRANTY
The Li ited Warranty on this vehicle is in two (2 parts:
We offer the original purchaser of this product the following warranty:
PART 1
ENGINE
Tecumseh warrants the engine for (2) years, not Flexible Flyer. See Tecumseh Engine Owners
Manual. Engine repair, replacement parts, and warranty claims must be handled through an
authorized dealer in your locality. Tecumseh has an extensive authorized sales and service dealer
network. (See yellow pages of phone directory under Engine-Gas).
PART 2
FRAME
The frame and related components are warranted by Flexible Flyer and are applied to any part found to
be defective due to material and/or workmanship when inspected at the Flexible Flyer factory.
Flexible Flyer will at its option, repair or replace the defective parts to the original purchaser at no
charge.
The warranty periods are as follows from the date of purchase:
A. Frame for 90 days, Void if:
1. Frame is broken or bent due to abuse (underside scraped abusively).
2. Wheels are bent or broken due to impact.
3. Spindles are bent due to impact.
4. Paint is worn off of rear bumper indicating an extra rider.
5. Axles are bent out of ordinary position either horizontally or vertically.
6. Non-Factory altering of engine or its components
B. Bearings and sprocket for 30 days
C. Clutch for 30 days against breakage of its parts. No warranty is applied for wear of clutch shoes or
clutch bearings due to service.
D. Throttle cable, brake cable, brake band, chain, tires, seat, shocks, fasteners and other
components are not warranted because due to normal service they are subject to excessive wear
and abuse.
All Warranties are voided if the vehicle has been altered in any way or is used in racing or competition, any
commercial use or rented, used under abnormal conditions, or subject to abuse, misuse, neglect, or
impropermaintenance.
Flexible Flye is not liable fo any damage claim o liability claim, pe sonal o othe wise
esulting f om the ope ation of this vehicle in any way.

7
FL XIBL FLY R
100 Tubb Avenue
West Point, MS 39773
FOR REPLACEMENT PARTS PLEASE CALL:
1-888-389-5522 (U.S.) 1-888-707-1880 (Canada)
ASSEMBLY
1. Complete the Fun- art registration and warranty confirmation on the back of this owners manual
and mail in within 10 days of purchase. The information is required when ordering parts.
2. Steering Wheel - Bolt the steering wheel to the anchor plate with fasteners provided in the parts
bag included with the Fun- art. See Steering Wheel Assembly Instructions page 12.

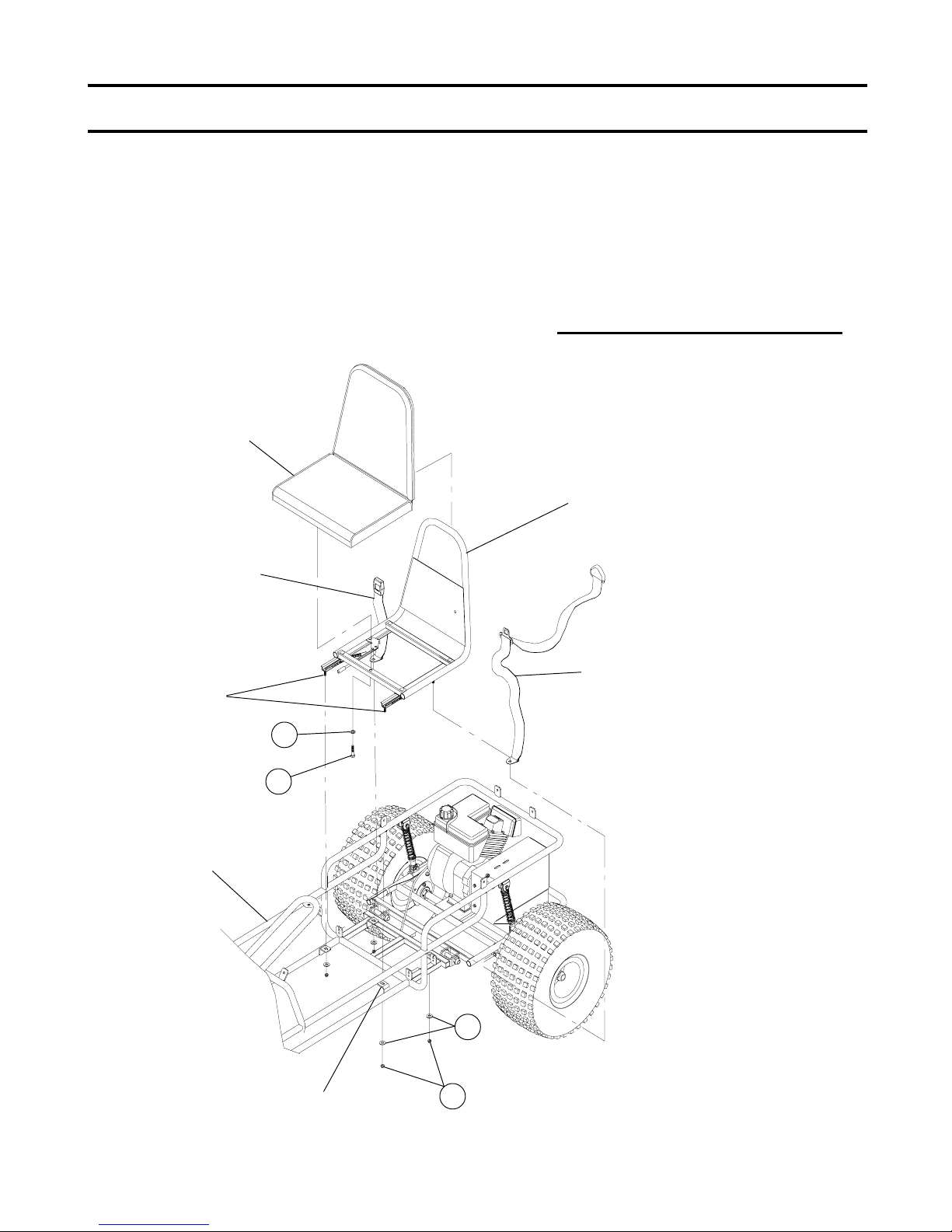

3. Seat - Install the seat frame to chassis frame with fasteners provided in the parts bag. See Seat
Assembly Instructions page 13.
4. Brush Guard - Bolt the brush guard to chassis frame with fasteners provided in the parts bag. See
Brush Guard Assembly Instructions page 14.
5. Foam - Attach Foam to Brush Guard. See Foam Attachment Diagram page 15.
6. Bolts - Check the screws, nuts and bolts on your vehicle to see that all are tightened securely. For
safe operating conditions, do periodic checks and tighten securely.
7. Engine - Fill the c ankcase with oil until it eaches the FULL ma k on the dip stick. DO NOT
fill above the FULL ma k. Approximately 20 oz. or 1¼ pints (.6 Liters) of SAE 30 weight oil.
For additional information refer to Tecumseh engine manual for servicing the engine.
8. Fill fuel tank with regular gasoline, leaded or unleaded. Do not use premium gasoline. Do not
overfill (no fuel in filler neck).
9. Tire Pressure
CHECK AIR PRESSURE IN TIRES!!
It is common industry practice to overinflate the tires. This is done to guarantee an airtight seal. Prior
to riding the Fun- art for the first time, you may need to reduce the air pressure in the tires to the
specifications stated below:
nobby Tread Turf Tread
Rear Tires 10 PSI 10 PSI
Front Tires 4 PSI 12 PSI
Proper tire pressures will increase the life of the tire and enhance the performance of the Fun- art.
D iving on asphalt o conc ete will significantly educe the life of the ti e!!

8
PRE-RIDE INSPECTION
WARNING - Perform this pre-ride inspection e eryday before riding
the ehicle. If not performed, serious damage to the
ehicle and personal injury may result.
1. Engine Oil Level  Add oil if required. Check for leaks. Tighten filler cap securely.
2. Fuel Level  Add fuel if necessary. Do not overfill (no fuel in filler neck). Replace cap tightly. Check
for leaks. Do not mix oil with gas. Only refuel when engine is off and cool.
3. Brakes  Perform a Brake Test: Sit in the vehicle with the brake actuated by pressing on the brake
pedal. Start the engine with the ignition switch on. Increase the engine RPM gradually to ensure the
brake is effective. Do not operate this Fun- art unless the brake is working properly.
. Tires  Check conditions and pressure.
5. Drive Chain  Check condition, tension, lubricate as necessary.
6. Throttle  Check for smooth operation. Assure throttle snaps back to idle. Also, check for frayed
cable or damaged cable conduit. If either condition exists replace the cable assembly before riding.
7. Stop Switch  Perform this stop switch test. While the engine is running, move the steering column
remote stop switch to the OFF position. If this does not stop the engine, move the engine remote
switch to the OFF position. If the engine is not equipped with an engine remote switch, pull the spark
plug wire. Check to insure that the stop switch wire is attached to the terminal on the engine. Do not
ope ate this vehicle with a stop switch that is not functioning p ope ly.
8. All Nuts, Bolts and Fasteners  Check wheels to assure that all axle nuts and lug nuts are tightened
properly. Check and tighten all other fasteners as necessary. Regularly check set screws on
sprockets and drum.
9. Guards  Ensure all protective guards are in place. Neve emove any chain gua d, o clutch
gua d. Each of these covers have a protective purpose, if removed it could endanger the personal
safety of the operator or passenger.
10. Steering System  Ensure that it turns freely.
STARTING INSTRUCTIONS
NOTE: Do not attempt to start or operate this machine without being
completely familiar with all controls necessary to operate this
ehicle safely. Do not start the engine before reading and
understanding all the rules, warnings, and instructions in this
manual.

9
1. Before starting the engine, the operator should be seated in the Fun- art. If the rider is not seated in
the vehicle, it should be placed against a stationary object and started.
2. Do not start the engine before checking to make sure the throttle assembly is in the idle position.
Warning  Each time prior to starting the engine, check throttle assembly to ensure that when the
throttle pedal (right side) is pushed all the way forward the assembly is working smoothly and returns
to idle when released. Do not operate if pedal and engine throttle linkage fail to return to idle.
3. To start a cold engine, pump the engine primer 3 times. If the engine is hot, priming may not be
necessary to restart the engine.
4. Pull recoil starter rope sharply. See Tecumseh engine owners manual. Do not flood the engine by
continuously pulling the starter rope. If engine does not start after two or three pulls of the starter
rope, wait a few minutes then repeat the above procedures.
OPERATIONAL SAFETY TIPS
TURNING MANU V RS
The new rider must learn to shift his weight and control the throttle to allow the rear tires to negotiate the
turn. This is the primary technique to be mastered in riding this vehicle. Practice turning at slow constant
speeds. Defer increased speeds until you are confident of your proficiency and are intimately familiar with
the terrain.
Steer in the direction of the turn, and lean your body to the inside of the turn in order to maximize front tire
traction. Use the throttle to maintain posture throughout the turn.
Incorrect turning techniques may cause the front tires to slide straight ahead without affecting the vehicles
direction of travel. If this should occur, come to a stop, then resume the technique outlined above.
If the front wheels tend to skid in mud, sand, or snow, you may be able to improve control by releasing the
throttle and allowing the vehicle to coast through the turn.
If rear wheel inadvertently skid sideways, correct your slide by steering in the direction of the skid, if you
have room to perform this maneuver safely. Avoid braking or accelerating until you have control.
To avoid skids while traveling on slippery terrain, the rider must exercise a high degree of caution. Turning
maneuvers on slippery terrain are more hazardous than those performed under full traction and must be
done slowly.
PREVENTIVE MAINTENANCE
STORAG
In the event your vehicle is not to be operated for a period in excess of 30 days and at the end of riding
season prepare for storage as follows:
WARNING - Do not drain fuel while engine is hot. Be sure to ove
vehicle outside before draining fuel.

10
1. Drain fuel tank and remove all fuel remaining in the tank by using a suction device or by soaking up the
fuel with a clean rag or towel. Remove all fuel remaining in the carburetor by allowing engine to run
out of fuel. Do not perform any fuel removal procedure while smoking or near an open flame. Dispose
of any rags or towels properly.
2. Lubricate engine cylinder by removing the spark plug and pouring an ounce of lean lubricating oil
through the spark plug hole into the cylinder. Crank the engine slowly to spread oil and replace spark
plug.
3. Do not save or store gasoline over winter. Using old gasoline that has deteriorated from storage will
cause hard starting and affect engine performance.
4. When the vehicle is removed from storage re-read the owners manual, perform any assembly
required, and perform a pre-ride inspection. See Pre-Ride Inspection section of this manual.
GENERAL
Just as your automobile needs professional, mechanical maintenance from time to time, so does this
vehicle. Replacement of the spark plug and ignition points is made necessary by normal use.
Professional air-cooled engine service is easily obtained. Check your phone book yellow pages under
Engine Gasoline.
SERVICE INSTRUCTIONS
Engine Lubrication  You must change the oil in the crankcase after the first two hours of operating your
new engine and after each 25 hours of use thereafter. That will insure proper lubrication in internal parts
and prevent costly repairs due to excessive wear. Refer to Engine Maintenance Instructions.
Kart Lubrication  Every two or three hours of use lubricate the following items with several drops of oil;
steering bearing points, brake rod pivot points, pedal pivot points, steering spindles, and steering rod ends.
Use the same grade of lubricating oil that is used in the engine crankcase.
Chain Lubrication  Fo the best chain life, it should be lub icated with a graphite type of lub icant
such as the sp ay-on type which evapo ates, leaving the g aphite on the chain. Using oil or grease
on the chain in dusty or sandy riding conditions may cause dirt particles to stick to the chain resulting in
rapid wear from abrasion.
Front Wheel Replacement  Care must be used when replacing wheels. Do not ove tighten nuts. It is
only necessary to tighten the nuts so that the wheel turns freely on the axle with minimum endplay. If the
wheel does not turn freely, the nut is too tight.
Rear Wheel Replacement  Loosen the large locknut in the center of the wheel to remove the rear wheel.
Chain Adjustment  After the first two hours of operation, check the chain adjustment and readjust it if it
has more than 1/2 flex. Loosen the engine clamp nuts and slide the engine forward to tighten chain.
For Replacement Parts Please Call:
1-888-38 -5522 (U.S.) 1-888-707-1880 (Canada)

11
SUSPENSION MAINTENANCE
A. EXTREME OUTWARD CAMBER
(NEW SHOCKS, NOT BROKEN IN)
B. SLIGHT OUTWARD CAMBER
(SHOCKS BROKEN IN)
C. INWARD CAMBER
(SHOCKS NEED TO BE
ADJUSTED OR REPLACED)
The Suspension System on your Fun- art is specifically designed and set up for the smoothest possible
ride, while maintaining top performance and kart durability. Your Fun- arts suspension system uses four
shock absorbers, two on the front suspension and two on the rear suspension, to comfortably tackle rough
terrain.
The two front shock absorbers affect the camber or slant of your front tires. You may have noticed that your
new Fun- art has an extreme outward camber or slant of the front tires as shown in Figu e A. This is
no mal. They were set this way at the factory for ensuring maximum tread life on the front tires. There are
three important reasons for this outward camber:
1. The weight of the d ive and/o passenge is not on the Ka t.
The added weight of the driver and/or passenger pushes the front and rear suspension down.
2. The Fun-Ka t is not in motion.
When the art is in motion, the front suspension is forced down slightly.
3. The shock abso be s a e new and not b oken in.
Your new Fun- art needs at least one hour of use to break in the shocks and level out the tires. After
the first 30 minutes of use, the outward camber may be reduced by one half. After 1 hour of use the
tires may have almost no or slight outward camber as shown in Figu e B.
When your Fun- art gets an inward camber on the front tires from shock wear as shown in Figu e C and
steering becomes difficult, the shocks will need to be readjusted. Adjust the front suspension to a slight
outward camber as shown in Figu e B by increasing the shocks. Adjust the shocks by following the
Shock Absorber Adjustment  instructions below. When your shocks cannot be adjusted any tighter, they
must be replaced.
D. THREE QUICK CAMBER ADJUSTMENTS
NOTE: Outside holes can be
used for new kart display
purposes with new shocks.
(Setting at NO CAMBER)
POSITION 2
(MIDDLE
HOLE)
POSITION 3
(INSIDE
HOLE)
POSITION 1
(OUTSIDE
HOLE)
To adjust: Remove 3/8 x 1-3/4
Bolts and 3/8 Nylock Nuts attach-
ing the bottom of the Shocks to the
Three Hole Brackets and move to
desired hole then reattach Shocks.
Tighten Bolts.
Your Fun art has an added feature on the A-Arms for three quick Camber Adjustments Figu e D.
Note: The factory attaches the shocks at position 2. You may choose to move them to position 1 and
adjust shocks to set at Slight Outward Camber (Riding Position) until the shocks break in then either
readjust the shocks as shown in Shock Absorber Adjustment or move to position 2. Shocks may
bottom out (cannot be adjusted any tighter)
before you need to set to position 3.
NO CAMBER
SLIGHT
OUTWARD
CAMBER
DISPLAY POSITION RIDING POSITION

12
STEERING WHEEL ASSEMBLY INSTRUCTIONS
STEERING WHEEL CAP
PHILLIPS
HEAD
SCREW
8
43
83
82
1/4
NYLOCK
NUT
STEERING
SHAFT
STEERING
WHEEL
STEERING
SHAFT
STEERING
WHEEL
1/4 - 0 x 1-3/4
HEX HEAD BOLT
1/4 - 0 x 1-3/4
HEX HEAD BOLT
83
82
8
STEERING WHEEL HARDWARE
Item Description Qty.
8 BOLT, 1/4"-20 X1-3/4" HEX 3
43 NUT, 1/4" - 20 LOCK 3
ASCREW 1
A
1. Locate the SHOC ABSORBERS (72) at the
front and rear of the FUN- ART
2. The SHOC S are pre-set for normal
conditions at the factory.
3. Locate the SHOC ADJUSTMENT HOLE at
the base of the spring.
4. Place the end of a narrow screwdriver in the
SHOC ADJUSTMENT HOLE.
5. Turn the SHOC ADJUSTMENT HOLE
counter-clockwise around the SHOC to
decrease shock absorption.
6. Turn the SHOC ADJUSTMENT HOLE
clockwise around the SHOC to increase
shock absorption.
7. Experiment with the adjustment until the
desired effect is attained.
SHOCK ADJUSTMENT HOLE
SHOCK ABSORBER ADJUSTMENT
SHOCK ABSORBER
72

13
SEAT ASSEMBLY INSTRUCTIONS
SHOULDER
BELT
SEAT
ASSEMBLY
LAP
BELT
STUDS
SEAT TAB
5/16 - 18 HEX NUT
5/16 FLAT WASHER
FUN-KART
FRAME
5. Secure the SEAT FRAME ASSEMBLY using
the hardware shown.
6. Place the SEAT CUSHION on the SEAT
FRAME ASSEMBLY. Secure the SEAT
CUSHION to the SEAT FRAME ASSEMBLY
using using the hardware shown.
1. Locate the SEAT FRAME ASSEMBLY, LAP
BELT, and SHOULDER BELT.
2. Align STUDS on the bottom of the SEAT
FRAME ASSEMBLY with the SEAT TAB
HOLES on the FUN- ART FRAME.
3. Slip SHOULDER BELT and LAP BELT
connectors under the rear STUDS on the
bottom of the SEAT FRAME ASSEMBLY.
4. Insert STUDS into SEAT TAB HOLES.
5/16 LOCK WASHER
1/4 - 0 x 1-3/4
HEX BOLT
SEAT
CUSHION
SEAT HARDWARE
Item Description Qty.
8 BOLT, 1/4"-20 X1-3/4" HEX 1
47 NUT, 5/16" LOCK 4
89 WASHER, 5/16" FLAT 4
104 WASHER, 5/16" LOCK 1
104
8
89
47

14
5. Join and secure the FRONT BRUSH GUARD
(20) to the ends of the REAR BRUSH GUARDS
(51) using the hardware shown.
6. Mount the end of the SHOULDER BELT to
the side of the MAIN BRUSH GUARD (21)
using the hardware shown.
N TE: Do not overtighten the hardware
attaching the end of the SHOULDER BELT.
The BELT must rotate.
7. For added security, strap the SAFETY FLAG
(34) tightly to the the REAR BRUSH GUARD
(51) using WHITE CABLE TIE (35). Cut off and
discard the excess CABLE TIE.
1. Secure the MAIN BRUSH GUARD (21) to the
middle tabs on the FUN- ART FRAME, behind
the SEAT, using the hardware shown.
2. Secure the REAR BRUSH GUARD (51) and
SAFETY FLAG (34) to the rear tabs on the
FRAME using the hardware shown.
3. Align holes and secure the REAR BRUSH
GUARDS (51) to the top of the MAIN BRUSH
GUARD (21) using the hardware shown.
4. Secure the FRONT BRUSH GUARD (20) to
the front tabs on the FRAME using the
hardware shown.
TAB
FUN-KART
FRAME
TA B
TA B
SHOULDER
BELT
FRONT BRUSH
GUARD
REAR BRUSH
GUARD
MAIN BRUSH
GUARD
TAB
SAFETY
FLAG
BRUSH GUARD ASSEMBLY INSTRUCTIONS
BRUSH GUARD HARDWARE
Item Description Qty.
9 BOLT, 3/8"-16 X1-3/4" HEX 1
13 BOLT, 5/16"-18 X1-1/2" HEX 1
24 NYLON SPACER 1
35 CABLE TIE (WHITE) 1
45 NUT, 3/8"-16 NYLOCK 1
47 NUT, 5/16"-18 HEX 8
63 BOLT, 5/16"-18 X1" HEX 5
64 BOLT, 5/16"-18 X2-1/4" HEX 4
88 WASHER, 3/8" FLAT 2
89 WASHER, 5/16" FLAT 18
104 WASHER, 5/16" LOCK 2
WHITE
WIRE TIE

15
Attach FOAM (87) to the BRUSH GUARDS using
CABLE T ES (81) as shown.
FOAM ATTACHMENT DIAGRAM

16
Apply Decal kit (00918) as shown in the illustrations below.
(Note: Decals are self-adhesive and require no glue.)
SUGGESTED DECAL APPLICATION
erf Dog logo (2)
applied to both
sides of front.
erf Dog logo (2)
applied to both
sides of rear.
erf Dog logo (1) and
Paw Prints (4).

17
Item Part No. Description Item Part No. Description
1 01263 A-ARM, BLACK LEFT 57 27000100 SPRING PIN, 1/4 X7/8"
2 01264 A-ARM, BLACK RIGHT 58 001474P SCREW, SHEET METAL, #10 x 1/2"
3 H93110W BEARING RETAINER 59 22001400 BOLT, 1/4-20 X 1-1/2" HEX SHOULDER
4 H92010W BEARING, 1" I.D. 60 01225 BOLT, 5/16-18 X5/8" HEX
5 H99502W BEARING, 5/8" I.D. 61 00922 BOLT, 3/8-16 X1-1/2" HEX
6 H93290W BOLT, 5/16-18 X1-1/2" CARRIAGE 62 00920 BOLT, 3/8-16 X2" CARRIAGE
7 H33135W BOLT, 5/16-18 X1-3/4" HEX 63 2200040 BOLT, 5/16-18 X1" HEX
8 H32503W BOLT, 1/4 -20 X1-3/4" HEX 64 00996 BOLT, 5/16-18 X2-1/4" HEX
9 22000300 BOLT, 3/8-16 X1-3/4" HEX 65 26000900 SEAT BELT ASSEMBLY
10 22000900 BOLT, 3/8-16 X2" 66 H92440W SEAT CUSHION
11 H33137W BOLT, 3/8-16X1" CARRIAGE 67 5311069 SEAT FRAME, BLACK
12 H95188W BOLT, 5/16-18 X3/4" CARRIAGE 68 H92740W SEAT RAIL, PAIR
13 2200030 BOLT, 5/16-18 X1-1/2" HEX 69 H93200W SET SCREW, 1/4-28 X1/4"
14 H33136W BOLT, 5/16-24 X1/2" HEX 70 01964 SPACER TUBE, BEARING
15 H36254W BOLT, 5/8-18 X3-3/4" HEX 71 01132 SHAFT, REAR AXLE
16 22001700 BOLT, 5/8-18 X 7" HEX 72 02972B SHOCK ABSORBER
17 H92130W BRAKE BAND 73 00951 SLEEVE, 13-1/8" PVC
18 01135 BRAKE CABLE, 21-1/2" 74 00983 SLEEVE, 4-5/8" PVC
19 H92140W BRAKE DRUM, 4" DIA 75 01133 SPACER, 0.78 I.D. DRIVE
20 01458 BRUSH GUARD, BLACK FRONT 76 32010606 SPINDLE, BLACK LEFT
21 01461 BRUSH GUARD, BLACK MAIN 77 32010506 SPINDLE, BLACK RIGHT
22 31004600 CABLE ATTACHMENT, BLACK 78 H55030W SPRING, 1/2" X 3" COMPRESSION
23 M01001W CABLE TIE, 3-1/4" BLACK 79 23001100 SPROCKET ASSEMBLY
24 001467P NYLON SPACER 80 H92541W SPROCKET, 10 TOOTH
25 H91480W COLLAR, 7/16" BORE X7/8" 81 M12501W CABLE TIE, 11", BLACK
26 35000600 CONTROL ROD, BLACK ZINC 82 32015206 STEERING SHAFT, BLACK
27 00918 DECAL, KIT 83 H92561W STEERING WHEEL, 13" W/CAP
28 Q43203W DRIVE BELT, COMET 84 36000700 THROTTLE CABLE, 40"
29 00994 DRIVE CHAIN 85 23001700 TIE ROD ASSEMBLY
30 02908 DRIVE COVER, BLACK 86 001812P WASHER, 1/4" FLAT
31 Q43200W DRIVEN, TORQUE CONVERTER 87 M72038W FOAM, BLACK
32 Q43201W DRIVER, TORQUE CONVERTER 88 001616P WASHER, 3/8" SPECIAL FLAT
33 Q43160W ENGINE,6.0 HP TECUMSEH 89 001618P WASHER, 5/16" FLAT
34 H92700W FLAG, SAFETY 90 H53132W WASHER, 5/16" INTERNAL TOOTH
35 M13501W CABLE TIE, 23" 91 H56251W WASHER, 5/8" NARROW FLAT
36 H91820W FOOT PEDAL, LEFT 92 46000200 WHEEL, FRONT, CHROME RIMS, KNOBBY
37 H91830W FOOT PEDAL, RIGHT 46000010 WHEEL, FRONT, SILVER RIMS, KNOBBY
38 2014 JACKSHAFT, 5/8" W/WASHER 46000030 WHEEL, FRONT, GREY RIMS, TURF
39 H92250W KEY, 1/4" X1/4" X2" 93 46000300 WHEEL, REAR, CHROME RIMS, KNOBBY
40 01134 KEY, 3/16" X 3/16" X 3-1/4" 46000020 WHEEL, REAR, SILVER RIMS, KNOBBY
41 Q33100W KILL SWITCH ASSEMBLY 46000040 WHEEL, REAR, GREY RIMS, TURF
94 925 WIRE ASSY, 16 GA X107"
43 001203P NUT, 1/4-20 NYLOCK 95 H92690W WIRE CLIP
44 HH10014 NUT, 1-14 THIN NYLOCK 96 00513 SPINDLE SPACER
45 001205P NUT, 3/8-16 NYLOCK 97 01443 MAIN FRAME, BLACK
46 00995 NUT, 3/8-16 JAM 98 00954 REAR SWINGARM, BLACK
47 HH1256T NUT, 5/16-18 NYLOCK 99 01187 BOLT, 9/16-18 X3-3/4" HEX
48 HH62518 NUT, 5/8-18 THIN NYLOC 100 01067 KEY, 1/4" X1/4" X 1"
49 HH37524 NUT, HEX 3/8-24 THIN NYLOCK 101 01226 NUT, 5/16-18 JAM
50 32015306 PITMAN ARM, BLACK 102 01188 NUT, 9/16-18 THIN NYLOCK
51 00941 BRUSH GUARD, BLACK REAR 103 00919 SLEEVE, 2-3/8" PVC
104 000891P WASHER, 5/16" LOCK
53 3258 PLATE, CLUTCH MOUNT BLACK 105 03152 CAP, VINYL.37ID x .25
54 00923 PLATE, COVER MOUNT 106 H32505W SCREW, 1/4-20 X0.50 HEX
55 01528 RETAINING RING, 1" HEAVY 02604 4-CYCLE ENGINE OIL, SAE 30, 20 oz.
56 H91470W RETAINING RING, 1/4" 01465 OWNER’S MANUAL, 32001 SERIES FUN-KART
32001 SERIES REPLACEMENT PARTS IDENTIFICATION
H91780W OWNERS MANUAL, ENGINE

18
MODEL 32001 SERIES

19
VEHICLE REGISTRATION AND WARRANTY CONFIRMATION
IMPORTANT!
Please return this information within 10 days of purchase to validate your warranty.
Return to:
F.F. Acquisition Corp.
Y RF-DOG Warranty Dept.
P.O. Box 1296
West Point, MS 39773
Thank-you fo pu chasing this fine YERF-DOG p oduct. With p ope use, maintenance and se vice this ka t will b ing
many yea s of fun and enjoyment. Please complete this vehicle egist ation and wa anty confi mation fo m to ensu e
p otection unde the te ms and conditions of the wa anty and to ve ify owne ship of this p oduct.
To ensu e maximum safety while ope ating you YERF-DOG Fun Ka t, obse ve the following p ecautions:
OPERATE THIS KART OFF ROAD ONLY
ADULT SUPERVISION FOR OPERATORS UNDER 16 YEARS OLD
WEAR A D.O.T. APPROVED HELMET, PROTECTIVE EYE WEAR, AND CLOTHING
SECURE LONG HAIR AND LOOSE CLOTHING; KEEP ARMS, LEGS, AND FEET INSIDE THE KART
DO NOT OPERATE UNDER THE INFLUENCE OF DRUGS OR ALCOHOL
To ensu e maximum owne satisfaction and unde standing of this p oduct, you should:
READ OWNERS MANUAL BEFORE OPERATING KART
REVIEW AND FULLY UNDERSTAND THE KART AND ENGINE WARRANTIES
INSPECT THE KART UPON DELIVERY
SECURE A COMPLETED COPY OF THIS CERTIFICATE FOR YOUR RECORDS
In signing this document, the pu chase acknowledges that he/she unde stands the wa anty limitations, safety, and
maintenance guidelines outlined above and in the owne s manual and, the efo e, ag ees that all ide s/ope ato s will
adhe e to these specifications.
Model No. Serial No. Date of Purchase
First Name Initial Last Name
Street Address
City State Zip Code
Home Telephone Number Parents Signature
(Please enclose a copy o your proo o purchase.)
