YesTelKorea ED-8800 User manual

NOTICE
Section 15.19 Labelling requirements
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference and
(2)This device must accept any interference received, including
interference that may
cause undesired operation.
Section 15.21 Information to user
The changes or modifications not expressly approved by the party
responsible for compliance
could void the user s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure
compliance requirements,
no change to the antenna or the device is permitted. Any change
to the antenna or
the device could result in the device exceeding the RF exposure
requirements and void users authority to operate the device.
Safety Information
For the safe of user, the headset should be used after
careful reading the followings. When you use the product
wrong, the dangerous situation might happen and also you
might be injured. Please be fully aware of the followings
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCEAND
(2) THIS DEVICE MUSTACCEPTANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
0197 ID TRJED8800

1
Contents
1.Product Package 2
2.Each part Name 2
3.Button Function 3- 4
4. How to use 5- 7
- Headset Power- On and Power- Off
- Pairing Headset Registration
- Playing the music
5.Charging 7- 8
6.Specification 8
7.Terms Explanation 9

2
Product Package
1
(Bluetooth stereo headset) (Ear-jack) (USB Cable (for charge)) (Manual)
Each part Name
2
microphone
LED
complex
function
button complex
function
button
lock
hanger

3

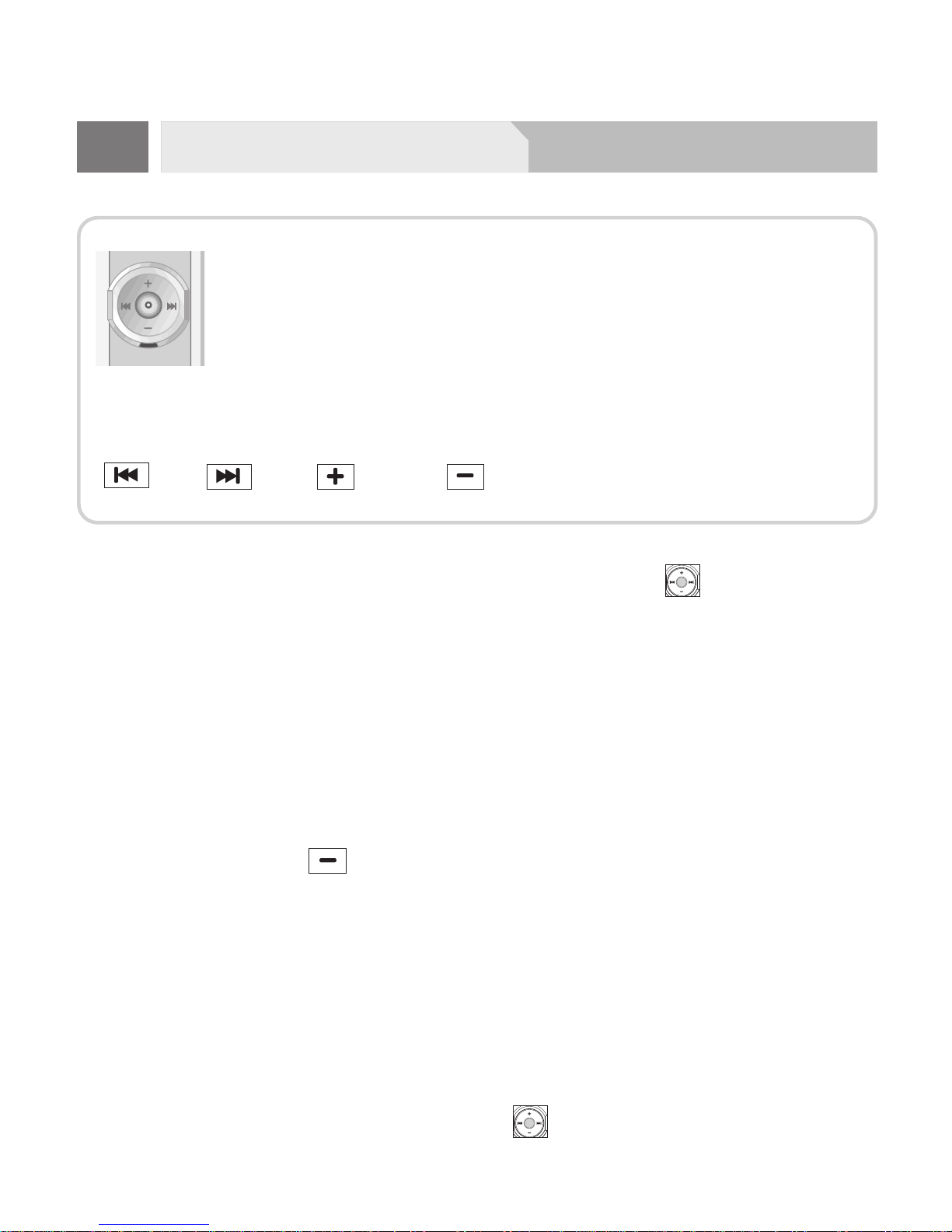

Complex button key explanation
The complex function key working for power, volume, play,
pairing, call, redial, voice call, battery balance display etc. (per
the main device specification, the key function is subject to
change and please refer to the followings. Slight touch
(0.5 seconds), short push (1.5 seconds), long push (4 ~ 5 seconds),
left, right, up, and down.
LED
Stereo Headset! EarCall”
a power: Wearing the earphone, if you press the button little
longer (1.5 seconds), the LED is powered on with the (Do Re Mi
Pa Sol La Si Do) melody sound. If you press the button 4 or 5
seconds, the power is off with the (Do Si La Sol Pa Mi Re Do)
melody and the LED is off. In the initial power on mode, the
pairing mode (LED consecutive blinking) is automatically set.
b Battery balance: The battery balance is displayed if you press the
button downward little longer(1.5 seconds) on the LED 5
stages. (1st stage: under 3.4V, 2nd stage: 3.4V, 3rd stage: 3.6V,
4th stage: 3.8V, 5th stage: over 4.0V, 1st stage under 20% ~ 5th
stage 100% capacity)
c Volume: While listening the music or making the call, pressing the
key upward and downward
d music play: If you push the button shortly the MP3 is played
Button Function
3

4
and another push can stop the music play. During the music
play, the leftward touch makes previous music played and
rightward touch next music played.
e Pairing: After power-on, if you press the button key upward or
downward 4 ~ 5 seconds, the blue LED consecutively blinks
(pairing stand-by status) and you need to follow the main device
(mobile phone) Bluetooth manual (headset, hands-free, stereo
headset) instruction.
When the pairing is finished, the LED flickers and then the blue
LED shortly blinks twice at intervals of 5 seconds. After the
registration is finished, you need again to follow the mobile phone
HS/ HF or Stereo Headset manual instruction.
F After the pairing, in the connection condition between mobile
phone and headset, the mobile phone might not recognize the
headset. In this case, A/ V profile is again connected with the
slight button touch leftward or rightward. While you are
using the Earcall on the Stereo (A/ V) profile, if the connection is
broken, the Stereo profile is connected again with the short-push
button (0.5 seconds)

5
Please use Ear-Call after fully charging a power if the key does not
become ON since through the distribution channel the battery power
can be all worn out.
Headset Power-On and Power-Off
1.Power-On: Press the call button long until you hear the signal
sound. The power is On with LED light on and with (Do Re Mi Pa
Sol La Si Do)signal sound.
2.Power-Off: Press the call button long until you hear the signal
sound. The power is Off with LED light off and with (Do Re Mi Pa
Sol La Si Do)signal sound.
Pairing Headset Registration
1. To use the Headset with other Bluetooth device, the registration
process should be through.
2. Pairing is the wireless link between two devices and once
registered device does not need to register next connection time.
3.There are two kinds of registration stand-by conditions.
After purchasing the headset, if you power on, the LED starts to
blink green color consecutively. And if you press the call button
upward or downward 4 seconds, the LED starts to blink
continuously with the sound of (Di Di Ding)
4. Please register the Headset referring to the Bluetooth mobile
phone.
How to use
4

6
5. After selecting the Bluetooth manual of the Bluetooth mobile
phone, the followings are displayed on the screen like Bluetooth
mode setting -Confirm -Other device registration -Confirm. Press
the confirm button to select one among Headset, Hands-free,
Stereo Headset, then the mobile phone is searching the Bluetooth
device. Depending on the mobile phone model, the mobile phone
registers ED8800 after 5 ~ 7 seconds and ADDR is formed.
Press the OK button and input password [ 0000] in the
password windows, then the Bluetooth mark is created after 5 ~
6 seconds.
6. After the registration finish, the green LED starts to blink twice at
the intervals of 5 seconds. The Bluetooth mark is displayed on
the mobile phone LCD windows at the registration completion.
7. If the LED starts to blink twice at the intervals of 5 seconds, the
pairing is successfully done. If the LED starts to blink
consecutively for scores of seconds, please try again after power
off the headset and mobile phone simultaneously.
8. According to the mobile phone model, if the pairing is blocked,
please try again.
Playing the music
The Stereo Headset should be connected before using.
The headset can work within 10M distance with the Bluetooth mobile
phone for music.
1. Please make sure that the headset has already been paired with
the Bluetooth mobile phone on Stereo Headset profile.
2. The call button has the multiple functions for play/ move

7
forward and next/ pause/ stop. When you listen to the music,
press the call button shortly and music plays
3. In the pairing status, if you press the button shortly the MP3
music is played. While music is playing, if you press the button the
music is paused. Once again you press the button, the music is
played again. While playing the music, if you press the button
leftward, the previous music is played and rightward, the
next music is played. If you press the button again, the music is stopped .
- In the stop status, if you press the button longer, the mobile
phone moves to the initial mode.
4. The music control key is the same as normal MP3 player key.
5. Per Bluetooth mobile phone model, the use can be different.
Please refer to the Bluetooth mobile phone users manual.
Charging
5
A Li-Polymer battery is built in the headset. At one time
charging, the music or consecutive calling time is five hours.
Stand-by time is 200 hours. At the first purchasing time, the
battery is not fully charged at all. Therefore, please use the
headset after completely charging. The charging time from the
full discharge takes approximately 2 hours or so.
This headset uses the latest Li-Polymer battery, Even if you
dont discharge electricity at all fully and charges and it does not
give any influence to a battery life either.
Charging
1. Charging with USB Cable connection

8
2. During charging, the LED starts light on red color
3. The charging is fully done at the red LED blinking
4. If not using USB cable for charging, please use
the approved charger
Specification
General Radio
Chnnel Number
Battery
Operating temperature
Output power
Adapter capacity
time
Stand-by time
sensitivity
Charging method
Charging capacity
Coverage
Size/Weight
Bluetooth profile supported
Bluetooth range (2.402 ~ 2.480MHz)
79Ch (1MHz Spacing)
Li-Polymer 3.7V / 230mAh
-10 ~ 60 C
DC5V, 30mAh
Input: AC100~220V50~60Hz Output: DC5V 330mAh
5 hour (min. 4 hour, max. 6 hour)
200 hour (min. 190 hour, max. 220 hour)
+3dBm / -80dBm
Adapter direct connection / USB cable connection
Charging capacity
DC 4.2V ~3.0V / 150mAh
3~5M (the best sensitivity distance)
10M (in open space)
28 X 66 X 18 mm /28 g
V 1.2 compliant, A/V
6
¢—If there is an obstacle between headset and the mobile phone, a sound quality
is not clean, or a button key cannot operate. And also you need to do the
pairing again if the Stereo headset pairing is blocked.
