YOKO EP3000Y User manual

第1页 共 70 页
User Guide
V1.0.5

第2页 共 70 页
About This User Guide
Pls read all the content of the user guide carefully to use the products safely and effectively. You are
advised of keeping it properly for your using reference for the next query.
Disclaimer
Please do not dismantle the product or tear up the seal on it, otherwise we won’t provide
warranty or replacement service.
The pictures in this user guide are for reference only. If there are any pictures which not match
the actual product, please take actual products as the standard. Updated information is subject to
change without notice.
All information contained in this guide are protected by copyright, and our company reserves all
rights. All or part of this guide is prohibited to excerpt, copy, bundle other products, or sell without
the written permission from us.
Our company has the right of final interpretation of this manual.
Service Information
You need more technical support. Please call us or send us an email. We are glad to serve you.

第3页 共 70 页
Version record
Version number
Version description
Manual
publication date
SV1.0 ZS_27
1.1_QRY_P1_20190925_20190
827e021_190827
Initial version
2019-9-17

第4页 共 70 页
Catalog
1.Product Introduction...................................................................................................................... 10
1.1 Main feature........................................................................................................................... 10
1.2 Unpack your device..............................................................................................................10
1.3 Communication port............................................................................................................10
1.4 Start-up, shutdown, standby and restart.......................................................................... 11
1.5 Maintenance...........................................................................................................................11
1.6 Reading skills.......................................................................................................................... 11
2. Barcode setting..............................................................................................................................12
2.1 Mark Setting...........................................................................................................................12
2.2 Basic barcode setting.......................................................................................................... 12
2.2.1 Turn on/Turn off configuration code.........................................................................12
2.2.2 Restore factory default.................................................................................................13
2.2.3 Read version number...................................................................................................13
2.2.4 Product user configuration......................................................................................... 13
2.2.5 Upper PC and Notepad upload settings.................................................................. 13
2.2.6 Interface mode setting.................................................................................................14
2.2.7 Wigan interface setting-- Wigan protocol format.................................................. 15
2.2.8 Serial port setting..........................................................................................................15
2.2.8.1 Serial port baud rate setting.............................................................................15
2.2.8.2 Serial data bit, stop bit, check bit setting.......................................................16
2.2.9 Lighting control............................................................................................................. 17

第5页 共 70 页
2.2.10 Control character escape...........................................................................................18
2.2.11 GS Control character escape(need to turn on the control character escape
function)....................................................................................................................................... 18
2.2.12 Prefix setting....................................................................................................................18
2.2.13 Suffix setting.................................................................................................................... 19
2.2.14 Unicode Output Mode................................................................................................... 19
2.2.15 Inverse Code Option......................................................................................................20
2.2.16 Virtual keyboard..............................................................................................................20
2.3 Buzzer , LED indicator barcode and vibration prompt setting barcode........................... 21
2.3.1 Beeper Volume setting.................................................................................................... 21
2.3.2 Start-up beep.................................................................................................................... 21
2.3.3 Good read beep................................................................................................................21
2.3.4 Beep pitch-good read.....................................................................................................22
2.3.5 Beep duration-good read.............................................................................................. 22
2.3.6 Error sound........................................................................................................................22
2.3.7 Good-read LED.................................................................................................................23
2.4 Timeout between decodes (Same barcodes)（Self-induction mode）....................23
2.4.1 Timeout between same decode............................................................................ 23
2.4.2 Reading time.............................................................................................................24
2.5 USB keyboard update speed setting...................................................................................... 24
2.6 OA & LF setting（USB keyboard）......................................................................................... 25
2.7 USB keyboard text-transform...................................................................................................25

第6页 共 70 页
2.8 Keyboard layout setting............................................................................................................ 25
2.9 Symbologies................................................................................................................................ 28
2.9.1 enable/disable all symbologies...................................................................................... 28
2.9.2 Codabar............................................................................................................................ 28
2.9.3 Codabar start/ending character setting.......................................................................28
2.9.4 Codabar limitation of length......................................................................................... 29
2.9.5 Code 39............................................................................................................................ 29
2.9.6 Code 39 check bit............................................................................................................ 29
2.9.7 Code 39 Full ASCII........................................................................................................... 30
2.9.8 Code 39 limitation of length....................................................................................... 30
2.9.9 Code 32 (Code 39 needs to be enabled）（Not Enabled）...................................30
2.9.10 Interleaved 2 of 5 （ITF5）.......................................................................................... 30
2.9.11 Interleaved 2 of 5 （ITF5）check bit..........................................................................30
2.9.12 Interleaved 2 of 5 （ITF5）length setting.................................................................. 31
2.9.13 Interleaved 2 of 5 Limitation of length...................................................................... 32
2.9.14 Industrial 2 of 5 (Industrial 25code)（4-24bit）........................................................32
2.9.15 Industrial 2 of 5 Limitation of length........................................................................... 33
2.9.16 Matrix 2 of 5 (matrix 25 code)（4-24 bit）...............................................................33
2.9.17 Matrix 2 of 5 Limitation of length................................................................................ 33
2.9.18 Standard 25..................................................................................................................... 33
2.9.19 Standard 25Limitation of length.................................................................................. 34
2.9.20 Standard 25 check bit setting...................................................................................... 34

第7页 共 70 页
2.9.21 Code 93............................................................................................................................34
2.9.22 Code 93 Limitation of length.......................................................................................34
2.9.23 Code 11（Not Enabled）.............................................................................................. 35
2.9.24 Code 11 check bit output（Not Enabled）................................................................35
2.9.25 Code 11 check bit option（Not Enabled）................................................................ 35
2.9.26 Code 11 Limitation of length（Not Enabled）..........................................................35
2.9.27 Code 128..........................................................................................................................36
2.9.28 Code 128 Limitation of length..................................................................................... 36
2.9.29 GS1-128(requires CODE 128 to be enable）............................................................. 36
2.9.30 ISBT-128........................................................................................................................... 36
2.9.31 Plessey.............................................................................................................................. 36
2.9.32 Plessey Limitation of length......................................................................................... 37
2.9.33 Plessey check bit optional............................................................................................ 37
2.9.34 MSI plessey......................................................................................................................37
2.9.35 MSI plessey Limitation of length................................................................................. 38
2.9.36 MSI plessey check bit output...................................................................................... 38
2.9.37 MSI plessey Check mode selection setting................................................................38
2.9.38 UPC-A.............................................................................................................................. 39
2.9.39 UPC-A check bit............................................................................................................. 39
2.9.40 UPC-A to EAN-13...........................................................................................................39
2.9.41 UPC-E............................................................................................................................... 39
2.9.42 UPC-E check bit............................................................................................................. 40

第8页 共 70 页
2.9.43 UPC-E expand UPC-A...................................................................................................40
2.9.44 EAN/JAN-8......................................................................................................................40
2.9.45 EAN/JAN-13.................................................................................................................... 40
2.9.46 UPC/EAN/JAN extra-code............................................................................................40
2.9.47 EAN13 to ISBN.................................................................................................................41
2.9.48 EAN13 to ISSN................................................................................................................. 41
2.9.49 GS1 DataBar（RSS14）(Stacked).................................................................................. 41
2.9.50 GS1 DataBar（RSS14）(Stacked) AI（01）character send.......................................41
2.9.51 GS1 DataBar Limited......................................................................................................42
2.9.52 GS1 DataBar Limited AI（01）character send...........................................................42
2.9.53 GS1 DataBar Expanded................................................................................................. 42
2.9.54 PDF417............................................................................................................................. 42
2.9.55 Micro PDF417..................................................................................................................43
2.9.56 QR Code..........................................................................................................................43
2.9.57 Micro QR......................................................................................................................... 43
2.9.58 Data Matrix......................................................................................................................43
2.10 User-defined prefix setting......................................................................................................44
2.11 User-defined suffix setting....................................................................................................... 44
2.12 Barcode prefix&suffix order selection................................................................................... 45
2.13 Code ID setting......................................................................................................................... 45
2.14 AIM ID Setting........................................................................................................................... 46
Appendix............................................................................................................................................ 47

第9页 共 70 页
Appendix 1 Data and edit barcode.........................................................................................47
Appendix 2 Barcode type ID table..........................................................................................49
Appendix 3 Invisible character ASCII table............................................................................53
Appendix 4 Visible character ASCII table.............................................................................. 55
Appendix 5 Default setting table.............................................................................................57
Appendix 6 Operational character (USB keyboard)............................................................ 65
Appendix 7 Operational character (serial port and USB-VCOM)......................................67
Some feature configuration instructions and examples.............................................................68
Barcode length limit configuration example................................................................................69

第10 页 共 70 页
1.Product Introduction

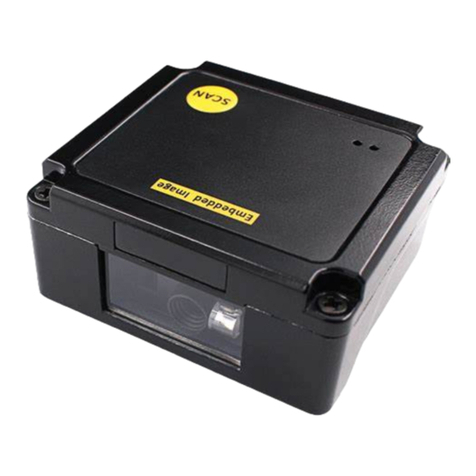

This user guide applies toEP3000Y,EP5000Y,EP6000Y,EP7000Y,EP8000Y ,which identify
1D&2D barcodes by 2D image scanning pattern, and apply the complete set of patent technology
developed by Guangzhou YOKO Electron Co., Ltd. The scanners above are of strong identification
capability, and support automatic continuous scanning mode with fast and flexible scanning speed.
In this chapter, we will introduce the instruction of scanner with pictures, please compare to the
scanner you bought when reading this user guide, which is good for your understanding. This chapter
applies to regular users, maintenance personnel, and software developers.
1.1 Main feature
* Complete independent research and development, possessing the complete set of patent, plug
and play without the need to install driver.
* Wide voltage design to avoid the data can’t be transmitted due to voltage fluctuation.
* 32-bit master chip equipped with patented software, the scanner can smoothly decode
reflective, wrinkled, blurred, and colorful barcode, and can also normally scan in light and dark
environment.
* Adopt all tantalum capacitors and anti-oxidation optical technology, avoiding the problem of
performance declining after long-term using.
1.2 Unpack your device
After you open the shipping carton containing the product, take the following steps:
Take out the accessories from package.Check with the packing list to see if everything
is complete and in good condition. If there are any damaged or missing components,
please keep the original package and contact your supplier for after-sales service.
1.3 Communication port
The scanner must be connected to a host to operate. Host can be a PC, POS machine, intelligent
terminal with USB or RS-232 interface.
USB
USB interface on host
RS-232
RS-232 interface on host

第11 页 共 70 页
1.4 Start-up, shutdown, standby and restart
Start-up：Connect host computer with scanner, which will automatically start-up and in working
state.
Shutdown：Remove the data cable which is connected with scanner; remove the USB which is
connected with host computer; remove the power adapter which is inserted into RS-232 serial
port.Restart：If the scanner crashes or doesn't respond, please switch it off and restart.
1.5 Maintenance
*The window must be kept clean, the supplier do not bear the guarantee responsibility due to the
improper maintenance.
*Avoid the window being wear and tear or scratched by hard object
*Use the hairbrush to remove the stain on the window
*Clean the window with a soft cloth, such as lens cleaning cloth
*Spraying liquid onto the window is prohibited.
*Prohibit any cleaning solvents, except for the cleaning water.
1.6 Reading skills
If the barcode is small, it should be closer to the scanning window; if the barcode is large, it
should be far away from the scanning window a little more, thus easier to be read correctly.
If the barcode is highly reflective (for example, the coated surface), you may need to tilt the
barcode at an angle to successfully scan it.
Barcode scanning example：

第12 页 共 70 页
2. Barcode setting
This model of laser desktop barcode scanner is designed to change settings by reading some
special barcode, which we will give you a detailed introduction and show you all the barcodes for the
corresponding setting in this section.
The greatest advantage of this setting method is direct, intelligible and user friendly.
2.1 Mark Setting
1
2
Configuration Code Turn On (Default)
This is the identification of the scan code function to turn on (default) bar code
function.
The logo consists of two parts:
1.Barcode Section of Setting Code;
2.Set the name of an option or function, such as the function of opening the
configuration code function.
2.2 Basic barcode setting
2.2.1 Turn on/Turn off configuration code
When the configuration code function is turned on, all configuration barcodes can be scanned
for scanner configuration.
When the configuration code function is turned off, other configuration barcodes cannot be
scanned for scanner configuration.You need to reopen to scan the configuration code for scanner
configuration.
Configuration Code Turn Off
Configuration Code Turn On (Default)

第13 页 共 70 页
2.2.2 Restore factory default
Restore Factory Default
2.2.3 Read version number
2.2.4 Product user configuration
Scan the barcode below to save the current parameters of the product as a user
configuration.
Save User Configuration
Scan the barcode below restores the product to a saved user configuration.
Restore User Configuration
2.2.5 Upper PC and Notepad upload settings
Upper PC Upload
Notepad Upload
Upload The Upper Computer And Notepad Simultaneously
Version Number

第14 页 共 70 页
2.2.6 Interface mode setting
The scanning platform supports the interface mode of USB keyboard, USB to
serial port and serial port.
Scan the barcode below to configure it as a USB PC keyboard and USB MAC
keyboard mode.
USB MAC Keyboard(Disable)
Host Mode (Command Decoding +
Physical Serial port)
Do not scan this barcode in USB mode
Scan the barcode below to configure the scanner to serial mode.
Serial Port (Default)
Scan the barcode below to configure the scanning platform to USB to serial mode.
(The driver needs to be installed, please contact the seller)
USB To Serial Port
Switch To 485 Mode
USB Keyboard

第15 页 共 70 页
Device ID Settings
USB Upgrade
2.2.7 Wigan interface setting-- Wigan protocol format
26 bit
34 bit
2.2.8 Serial port setting
2.2.8.1 Serial port baud rate setting
Baud Rate 4800
Baud Rate 9600(Default)
Baud Rate 38400
Baud Rate 19200

第16 页 共 70 页
Baud Rate 57600
Baud Rate 115200
2.2.8.2 Serial data bit, stop bit, check bit setting
7-bit data, 1-bit stop, no parity
7-bit data, 1-bit stop,even parity
7-bit data, 1-bit stop,odd parity
7-bit data, 2-bit stop, no parity
7-bit data, 2-bit stop,even parity
7-bit data, 2-bit stop,odd parity

第17 页 共 70 页
8-bit data, 1-bit stop, no parity (Default)
8-bit data, 1-bit stop,even parity
8-bit data, 1-bit stop,odd parity
8-bit data, 2-bit stop,no parity
8-bit data, 2-bit stop,even parity
8-bit data, 2-bit stop,odd parity
2.2.9 Lighting control
Normal Mode (Default)
Lighting Always Off
Lighting Often Turn On

第18 页 共 70 页
2.2.10 Control character escape
Turn On Control Character Escape
Turn Off Control Character Escape (Default)
2.2.11 GS Control character escape(need to turn on the control character escape function)
Not Replace
The output character "Ç" must Enable virtual keyboard first
（mode1）”or（mode2）or（mode3）
Replace With Ç (Not Enabled)
Replace With |
Replace With ^] (Not Enabled)
Replace With ](Not Enabled)
Replace With <GS> (Not Enabled)
2.2.12 Prefix setting

第19 页 共 70 页
Cancel prefix (Default)
<STX> <Data>
2.2.13 Suffix setting
Cancel Suffix
<Data> <CR (Carriage Return)>
<Data> <LF>
<Data> <CR> <LF> (Default)
<Data> <\t>
<Data> <ETX>
2.2.14 Unicode Output Mode
In order to correctly output according to the specified encoding format, the output encoding
format needs to be specified,for example, simplified Chinese is configured as GBK encoding in
notepad /excel output, and UNICODE encoding in Word output.
When the output encoding format is configured as English/latin-1 encoding, the output mode
under USB keyboard is affected by the switch of virtual keyboard function.When the output
encoding format is configured as GBK encoding/UNICODE encoding, the output mode under USB

第20 页 共 70 页
keyboard is forced to be virtual keyboard output.
English Output （Default）
Unicode Output (Notepad/ Excel)
UNICODE Coding (Word)
2.2.15 Inverse Code Option
（Only 1D/DataMatrix/Aztec）
Only Decode Normal Code
Only Decode Inverse Code
Decode Both Normal Code And Inverse Code(Default)
2.2.16 Virtual keyboard
Mode 1: Characters between 0x20 and 0xFF are output by virtual keyboard mode which is not
supported in the current keyboard layout.Characters between 0x00 and 0x1F are output according to
control character definition.（See Appendix）
Mode 2：Characters between 0x20 and 0xFF are output by virtual keyboard.Characters between 0x00
and 0x1F are output according to control character definition.（See Appendix）
Mode 3：Characters used between 0x00 and 0xFF are output by virtual keyboard.
标准模式
上下镜像模式 2
