Yolico ADVENTURE EASYLIFT Manual

SETUP & TAKEDOWN INSTRUCTIONS
ADVENTURE EASYLIFT 10’X10’ 100 INSTANT CANOPY
SECURING THE CANOPY TOP TO THE FRAME
SINGLE PERSON SETUP
SINGLE PERSON CANOPY SETUP
THANK YOU FOR PURCHASING A YOLI INSTANT CANOPY!
Please carefully review the following instructions and familiarize yourself with parts included
and how to operate your YOLI canopy. Reference parts list for names of each part noted in instructions.
Parts Included: Fully Assembled Frame (1) Canopy Top (1) Wall (1) Wheeled Bag (1) Stakes (4) Anchor Bags (4)
Adventure 100 can be set up and taken down with one person or two. Please see below.
Place the canopy frame in the desired location (Fig. 1A). Position one hand on any frame leg just
below the black fastening strip and place your other hand on the lower eaves bar as shown (Fig. 1B).
1
1
Li the frame leg slightly off the ground so all legs except the leg directly across bearing
the weight clears the ground. Take steps backwards to open the frame as much as possible (Fig. 2A)
2
2
Unfold the canopy top and place it over the open frame (Fig. 3A). Secure each corner by attaching
the corner of the canopy top to the black fastening strip (Fig. 3B). Pull all 4 corners down until
completely over black fastening strip. Your canopy top is now secure to the frame.
3
3
Place the canopy in the desired location for shade. Position one hand on any frame leg just below the black
fastening strip and place your other hand on the lower eaves bar as shown (Fig. 1A). Li the frame leg slightly
off the ground so all legs except the leg directly across bearing the weight clears the ground. Take steps
backwards to open the frame as much as possible (Fig. 1B).
Before proceeding, make sure canopy top is over the eaves on all 4 sides as shown in (Fig. 2A). Stand in the
middle of the eaves between two legs and place your hands on the eaves and li to gain entrance to the
underside of the canopy (Fig. 2B). Once underneath, place your hand on the black center hub as shown
in (Fig. 2C) and push up twisting the hub a ¼turn clockwise to lock in the frame.
Each leg has 3 height adjustments. Li outer leg up and slide out the inner leg to desired height (Fig. 3A).
Repeat for other 3 legs.
4Attach wall to canopy if desired by fastening wall straps around the legs of the frame as pictured (Fig. 4A).
1AFig. 3AFig. 3BFig.2AFig.
1BFig. 2C
Fig. 3AFig. 4AFig.
Fig. 2A 2BFig.
1BFig.
page 1
Fig. 1A

SECURING THE CANOPY TOP TO THE FRAME
TWO PERSON CANOPY SETUP
SINGLE PERSON TAKE DOWN
1
2
3
1
4
3
2
1
SECURING YOUR CANOPY: To harness your canopy to the ground, insert the included metal stakes
into each foot corner. For additional stability, fill anchor bags with sand, dirt or small rocks
(with no sharp edges) and attach to each leg for additional weight to secure your
canopy on any surface as shown in (Fig. 1).
2AFig. 2BFig. 4AFig.
1Fig.
3AFig.
If wall is attached, remove by unfastening wall straps around frame legs.
Slightly li a leg and depress the chrome button to unlock the inner leg and telescope into the outer leg as
shown (Fig. 2A). Repeat by lowering the leg on same side resulting in one low side and one high side
as shown (Fig 2B).
Go underneath the high side of the canopy to turn the hub ¼turn counter clockwise to unlock the frame as
shown (Fig 3A). Walk back out and lower the other two legs as you did in step 2.
Position one hand on any frame leg just below the black fastening strip and li slightly off the ground
walking towards the opposite leg corner to fold the canopy frame as shown (Fig. 4A). Be careful not to pinch
your fingers as the frame closes. Store Canopy in wheeled carry bag. Please see instructions below.
TWO PERSON SETUP
Place the canopy frame in the desired location (Fig. 1A).
With partner, stand on opposite side of the frame. While holding the legs li slightly off the ground taking
a few steps backwards to extend frame at full arm’s length as shown (Fig. 2A)
Unfold the canopy top and place it over the open frame (Fig. 3A). Secure each corner by attaching the corner
of the canopy top to the black fastening strip (Fig. 3B). Pull all 4 corners down until completely
over black fastening strip. Your canopy top is now secure to the frame.
1AFig. 3AFig. 3BFig.2AFig.

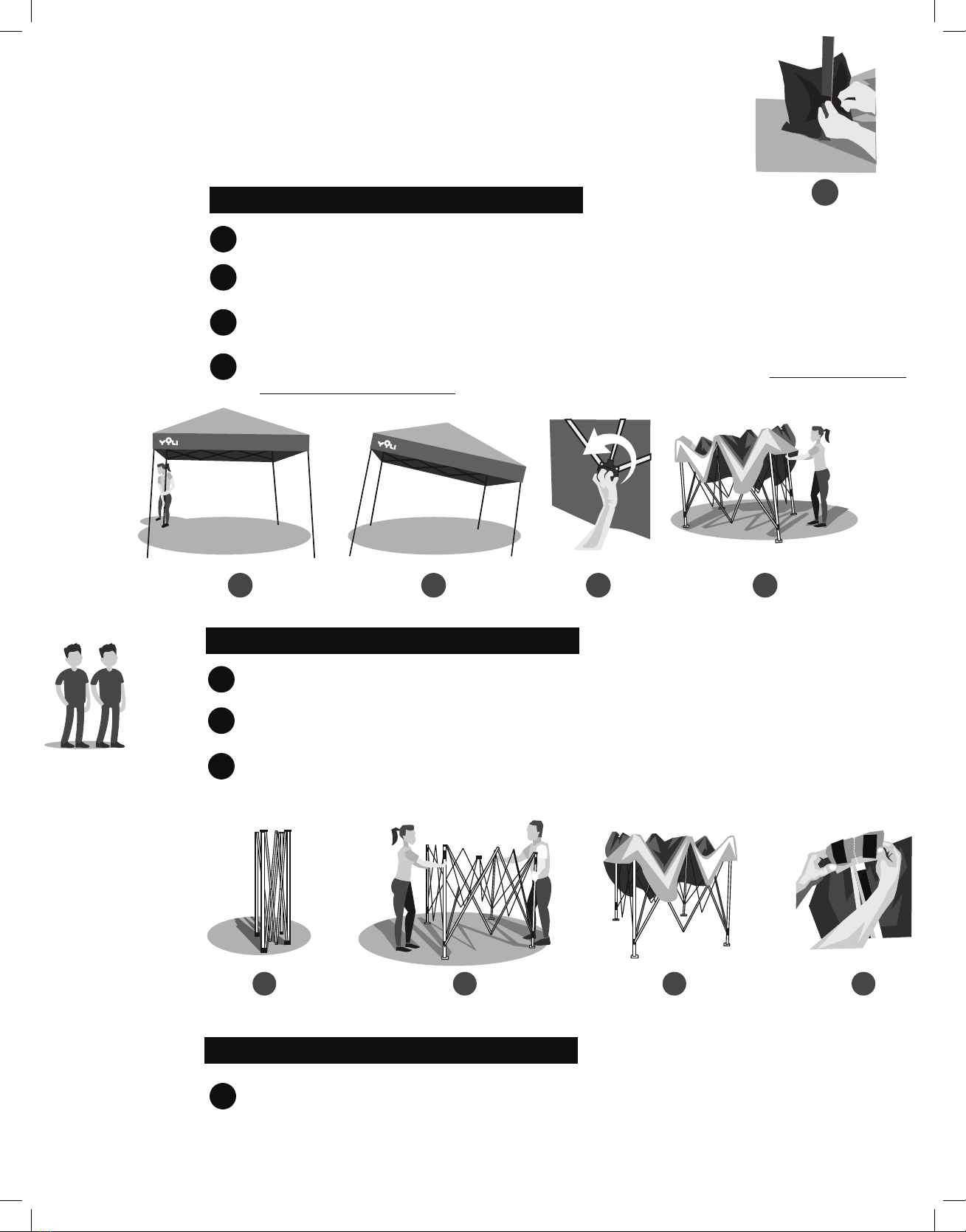

Place the canopy in the desired location for shade. With partner standing on the opposite side of the canopy,
hold the outer legs and lift slightly off the ground stepping backwards (Fig. 1A). With partner hold the top
and bottom of the eaves as pictured in (Fig. 1B) liing slightly off the ground walking backward to extend
the frame.
page 2

TWO PERSON TAKE DOWN
1
2
3
4
2
3
4Attach wall to canopy if desired by fastening wall straps around the legs of the frame as pictured (Fig. 4A).
If wall is attached, remove wall by unfastening wall straps around frame legs.
4AFig.
SECURING YOUR CANOPY: To harness your canopy to the ground, insert the included metal stakes
into each foot corner. For additional stability, fill anchor bags with sand, dirt or small rocks
(with no sharp edges) and attach to each leg for additional weight to secure your
canopy on any surface as shown in (Fig. 1).
1Fig.
Before proceeding, make sure canopy top is over the eaves on all 4 sides.
With partner standing on the same side, extend inner leg from outer leg resulting in one low side and one
high side as shown (Fig 2A). One person walks underneath high side placing their hand on the black center
hub as shown (Fig 2B) and pushes up twisting the hub ¼turn clockwise to lock in the frame.
With partner standing on the low side, slightly li outer leg up and slide out the inner leg to desired height
so all 4 inner legs are extended.
1A
Fig. 2AFig. 2BFig.
1B
Fig.
2AFig. 4AFig. 4BFig.2BFig. 3AFig.
Stand on the same side as your partner and both slightly li a leg in tandem and depress the chrome button
to unlock the inner leg and telescope into the outer leg as shown (Fig 2A).
This will result in one low side and one high side as shown (Fig. 2B).
One person goes underneath the high side of the canopy to turn the hub ¼turn counter clockwise to unlock
the frame as shown (Fig 3A). Walk back out and lower the other two legs with your partner as you did in step 2.
Standing opposite from your partner hold top of the eaves and slightly li walking slowly towards each other
until about ½way closed (Fig. 4A). Be careful not to pinch your fingers as the frame closes!
With partner hold outer legs and walk slowly towards each other until fully closed (Fig. 4B).
Store Canopy in carry bag. Please see instructions.
page 3

YOLI CARRY BAG INSTRUCTIONS
1
2
3
1AFig. 3AFig.2AFig.
WARNING!: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THE FABRIC TOP.
Fabric top meets the flammability requirements of CPAI-84. The fabric will burn if
le in continuous contact with any flame source. The application of any foreign
substance to the fabric top may render the flame-resistant properties ineffective.
This product contains TDCPP and/or TCEP, flame retardant chemicals known to the
State of California to cause cancer.
© East Resource Outdoor Inc. All Rights Reserved.

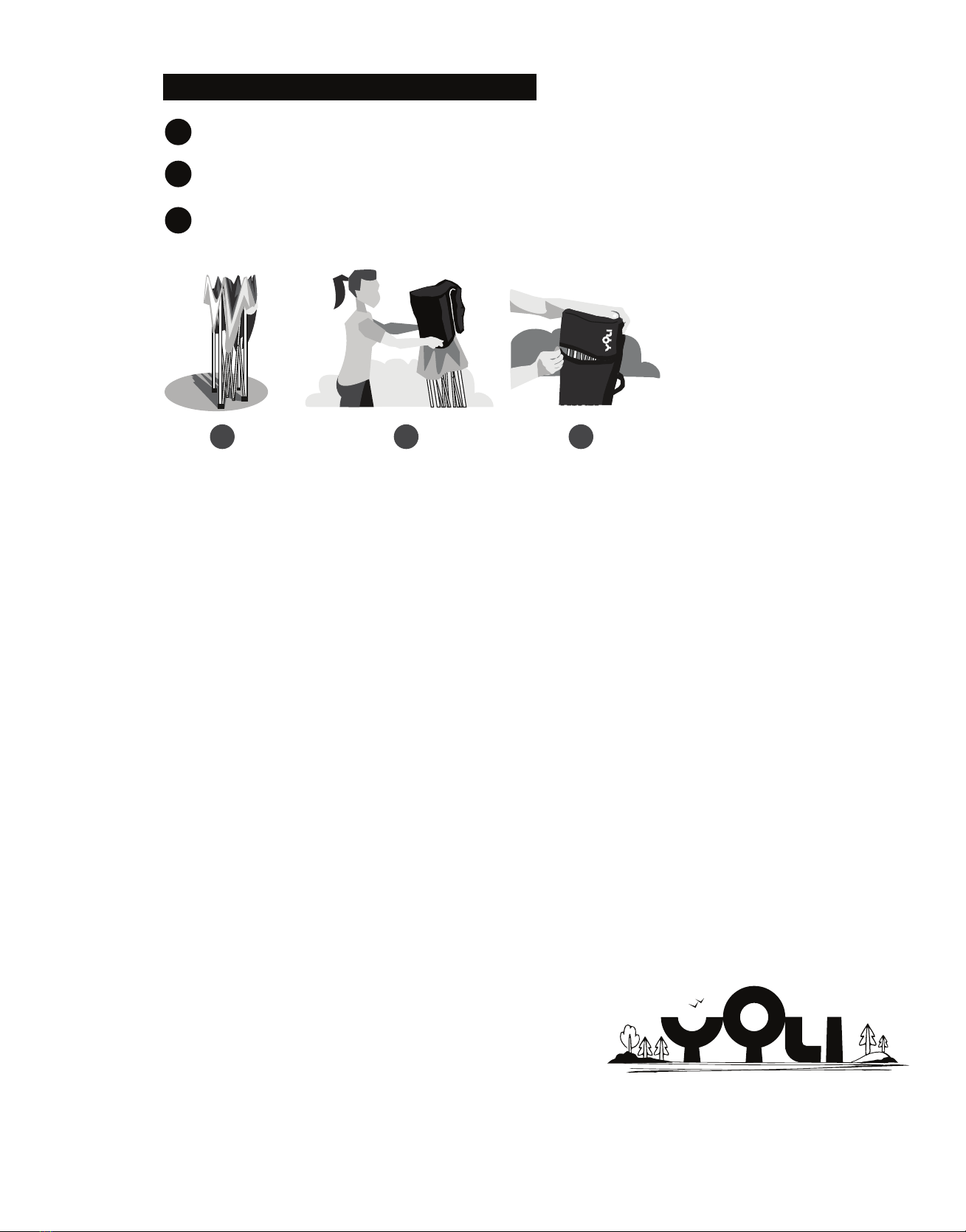

Close your instant canopy completely as shown in (Fig. 1A).
Unzip the carry bag at end and place open end of carry bag over the top of the canopy (Fig. 2A).
Slide carry bag down until the canopy is completely covered.
Flip the bag on opposite end to close bag and zipper shut. (Fig. 3A).
Email us: [email protected].
Call us: [phone]
QUESTIONS?
page 4
