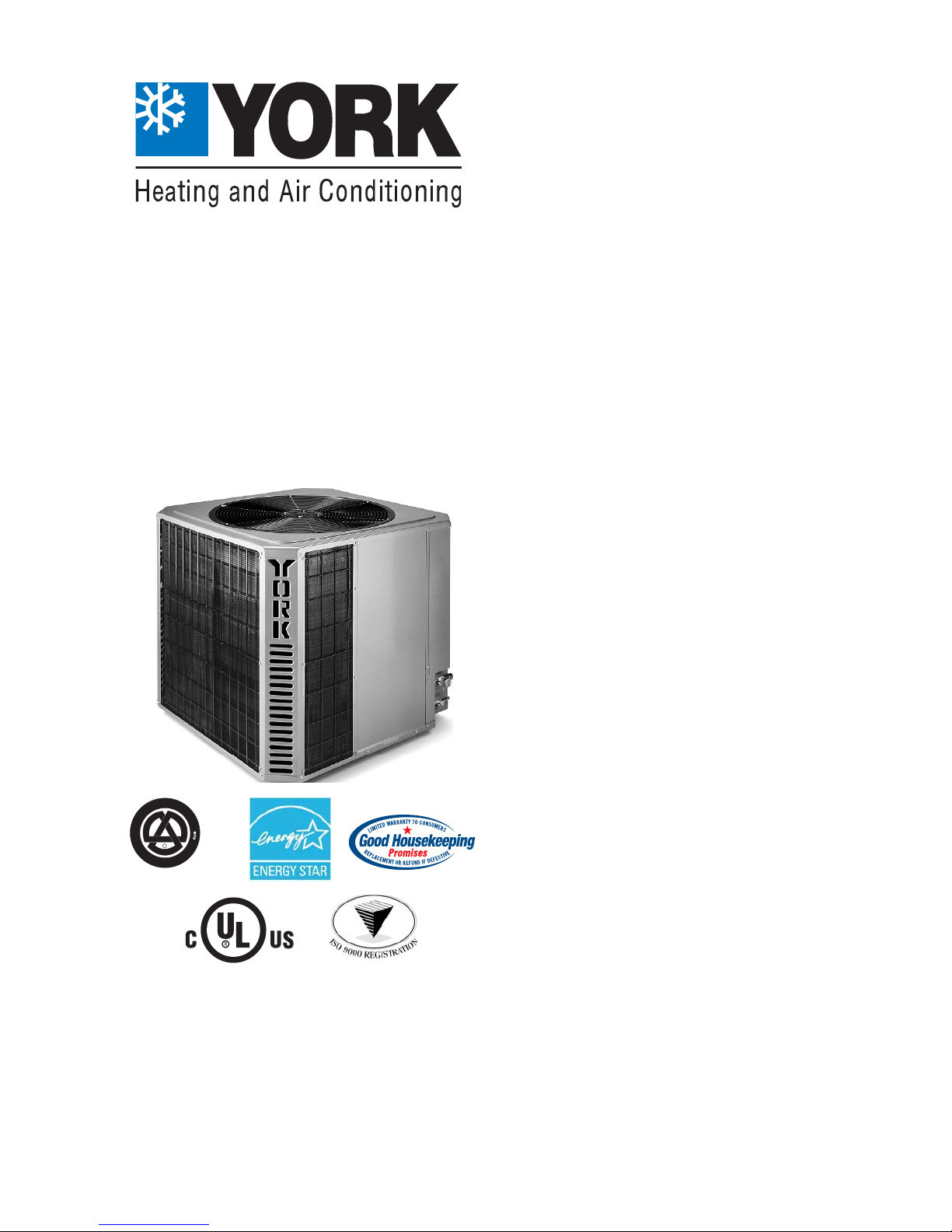

York E4TS030 Quick start guide

036-21342-002 Rev. E (0505)
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
®
TECHNICAL GUIDE
STEALTH
SPLIT-SYSTEM HEAT PUMP
15 SEER
MODELS: E4TS030 THRU 060
(2.5 THRU 5 NOMINAL TONS)
Due to continuous product improvement, specifi
c
tions are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ariprimenet.org.
LISTED
ISO 9001
Certified Quality
Management System
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE
SYSTEM IS LISTED
WITH ARI.
U
NI
T
A
R
Y
HE
A
T
P
U
M
P
T
E
Q
U
I
P
M
E
N
R
S
EC
T
I
O
N
S
A
T
I
O
N
E
RT
I
F
I
C
C
OF
D
ST
A
N
D
A
R
I
A
R
2
4
0
M
A
NU
F
A
CT
U
R
E
R
C
E
R
T
I
F
I
E
D
C
L
Y
OM
P
I
N
G
T
O
A
R
IA
S
DESCRIPTION
The ETS Stealth series heat pump units use Twin Single™
compressor technology to provide cooling efficiencies up to
15.7 SEER and heating efficiencies up to 9.3 HSPF. They are
to be installed with the matching variable speed Enhancer air
handler or Diamond furnace, a corresponding coil and sweat
connect lines. A factory specified balanced port hard shut-off
TXV kit must be used for proper installation and optimum per-
formance.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
QUALITY CONDENSER COILS - The coil is constructed of
copper tube and hardened aluminum fins for durability and long
lasting efficient operation. The fins on the unit are protected
with a decorative grille.
DURABLE FINISH - Cabinet is made of powder painted steel
over pre-painted primer. The pre-treated flat galvanized steel
provides a better paint to steel bond, which resists corrosion
and rust creep. Special primer formulas and glossy earth tone
finish insure less fading when exposed to sunlight. This finish
has been tested to provide 1/3 greater protection than conven-
tional units.
PROTECTED COMPRESSORS - The Twin Single™ compres-
sor is protected against high pressure. Hard start components
are included to ensure start-up under adverse conditions. All
models have standard crankcase heat for added protection.
OPTIMUM PERFORMANCE - The solid-state electronic con-
trolboard optimizes the compressor staging based on load
requirements, provides a 5-minute anti-short cycle timer, and
simplifies troubleshooting with built in self diagnostics.
LOWER INSTALLED COST - Installation time and costs are
reduced by easy power and control wiring connections. All
units contain enough refrigerant for the smallest matching
indoor coil and 15 feet of interconnecting piping. The small
base dimension means less space is required on the ground or
roof.
EFFECTIVE HUMIDITY CONTROL - The inherent design of
the Stealth system and the staging operation of the Twin Sin-
gle™ compressor provide effective humidity control at the low-
est possible operating cost. An optional dehumidification
control accessory is available to maintain the humidity at a set
desired level.
TOP DISCHARGE - The warm air from the top mounted fan is
blown up away from the structure and any landscaping. This
allows compact location on multi-unit applications.
LOW OPERATING SOUND LEVEL - The upward air flow car-
ries the normal operating noise up away from the living area.
The rigid top panel effectively isolates any motor sound. Isola-
tor mounted compressor and the rippled fins of the condenser
coil muffle the normal fan motor and compressor operating
sounds.
LOW MAINTENANCE - Long life permanently lubricated
motor- bearings need no annual servicing.
EASY SERVICE ACCESS - Fully exposed refrigerant connec-
tions and a single panel covering the electrical controls make
servicing easy. Easy access for coil clearing is also provided.
RE-USABLE SERVICE VALVES - Provided on both the liquid
and vapor sweat connections for ease of evacuating and
charging.

036-21342-002 Rev. E (0505)
2Unitary Products Group
SYSTEM OPERATION
This heat pump model is equipped with both YorkGuard V
heat pump control and TS compressor control. The interface
control 6CF board is used to bypass the first stage of heat
when the outdoor temperature falls below certain tempera-
tures. The TS control board is used only to switch between 1
and 2 cylinder operation. The fault codes and pressure switch
on the TS control board are bypassed using the jumpers
between the test and "PS" pins.
1. Anti-short Cycle Timer
The five-minute time delay on YorkGuard V will be used
to prevent the system from short cycling after the ther-
mostat off or power interrupt. This time delay can be
bypassed by temporarily shorting the test terminals on
YorkGuard V for 3 seconds. Since a jumper was factory
installed across the test pins on the TS control board, the
anti-short cycle timer on the TS control board is
bypassed.
2. First Stage Cooling
This heat pump model is equipped with a Twin-Single
compressor. With a call for first stage cooling, the com-
pressor operates one cylinder. The run winding (R) is
connected through the upper left contactor (A) and to the
capacitor and the start winding (S) is connected to line
voltage. The system operates at low discharge pressure
and high suction pressure.
3. Second Stage of Cooling
With a call for second stage cooling, the TS control will
shut the compressor off for two seconds then energize
relays R1 and R2 on the TS control board. This will de-
energize (open) the upper left contactor (A) and energize
(close) the lower right contactor (B), connecting the com-
pressor run winding (R) to the line voltage and start
winding (S) to the capacitor. The compressor runs in the
reverse direction with two cylinders compared to the first
stage. The system will operate with two cylinders until
both first and second stage are satisfied. The Y2OUT
signal from the relay board causes the indoor blower to
function at high speed.
If the room thermostat calls for second stage cooling
(Y2) on two consecutive cooling cycles, the next call for
cooling for either first or second stage will energize the
unit in second stage mode. The above mode will be reset
to permit start up on the first stage with only a Y1 call
when the second stage operation cycle runs less than 15
minutes or when 24V to the TS control board is discon-
nected.
4. 6K Relay on the 6CF Control Board
The 6K relay on the 6CF interface board operates as fol-
lows. See Figure 1:
a. If the YorkGuard V defrost control balance point set-
ting is 45°F, the 6K relay will be:
• Energized if liquid temperature goes below 35°F.
• De-energized if the liquid temperature goes above
35°F AND the ambient is greater than 42°F for five
minutes AND the unit is not in defrost.
b. If the YorkGuard V defrost control balance point set-
ting is at anything but 45°F, the 6K relay will be:
• Energized if liquid temperature goes below 45°F.
• De-energized if the liquid temperature goes above
45°F AND the ambient is greater than 55°F AND
the unit is not in defrost.
5. Heating mode with the de-energized 6K relay
The TS compressor operates similar to the first and sec-
ond stage of cooling modes except there is no O input
from the thermostat, the reversing valve is not energized,
and the system operates in heating heat pump mode.
The YorkGuard V control and the liquid temperature will
not allow the system to go into the defrost mode.
6. Heating mode with the energized 6K Relay
The energized 6K relay on the interface board (6CF) will
connect Y1 and Y2 and disconnect Y2OUT from the TS
control to the indoor blower if the J1 pin is not in the ON
position. The compressor will operate only in second
stage regardless of the first or second stage call from the
thermostat. The indoor blower will operate in low air
mode. The indoor discharge air temperature should be
about 10°F hotter than a normal heat pump. If high-
speed air is preferred, move J1 pin to the ON position at
the interface board (6CF). This will send the Y2OUT sig-
nal back to the indoor blower for the high speed air.

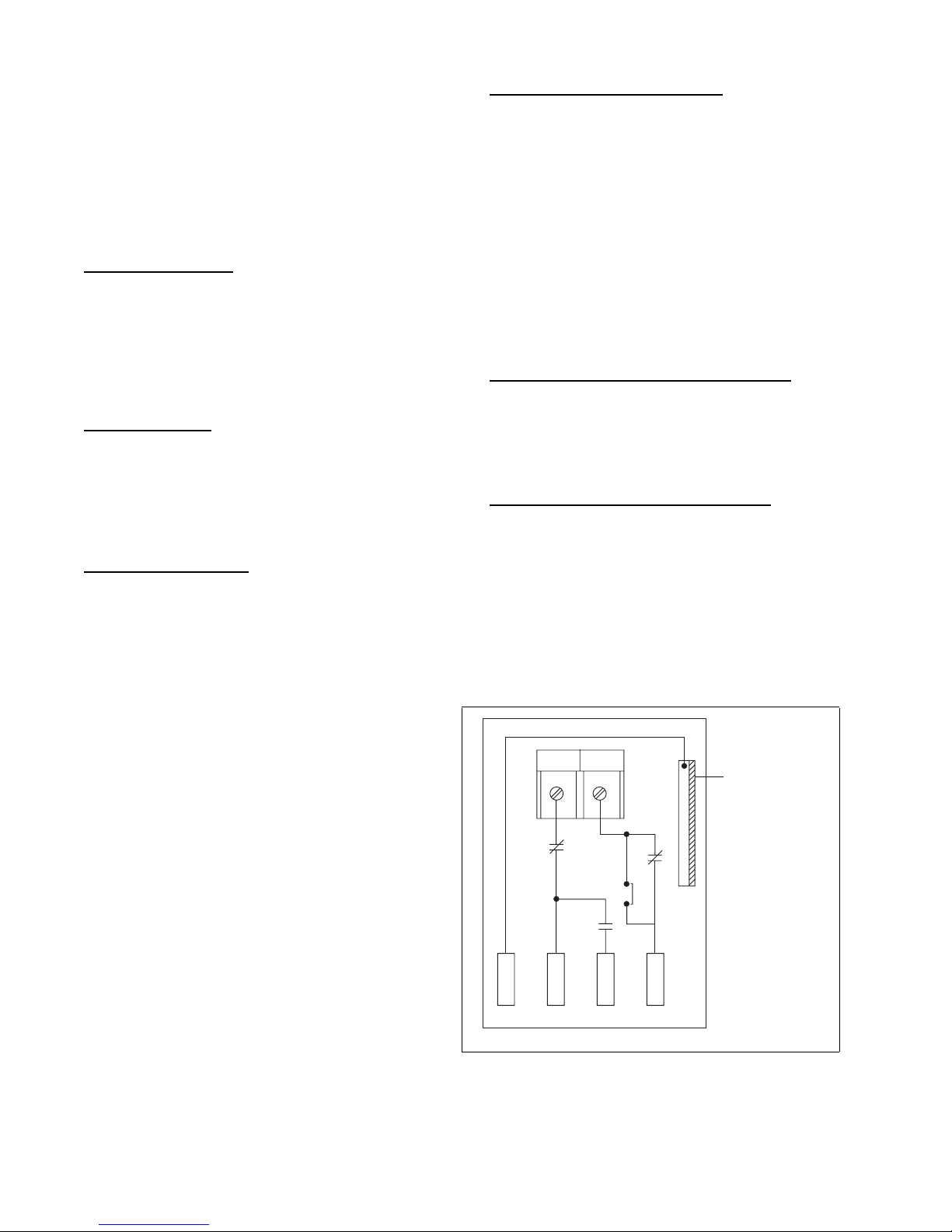

FIGURE 1 : 6CF Interface Board
Y2 Y2 OUT
6K
NC 6K
NC
J1
6K
NO
RY2 Y1 Y2 OUT
24V (R) FROM
YORKGUARD

036-21342-002 Rev. E (0505)
Unitary Products Group 3
Physical and Electrical Data
MODEL E4TS030 E4TS036 E4TS048 E4TS060
UNIT SUPPLY VOLTAGE 208/230-1-60
NORMAL VOLTAGE RANGE 1
1. Rated in accordance with ARI Standard 110, utilizaton range “A”.
187 to 252
MIN. CIRCUIT AMPACITY 14.8 18.3 28.0 34.4
MAX. OVERCURRENT DEVICE AMPS 2
2. Dual element fuses or HACR circuit breaker.
25 30 50 60
COMPRESSOR TYPE T27B264CBCA T27B355CBCA T29A464BBCA T29A544BBCA
COMPRESSOR AMPS RATED LOAD 11.3 14.1 21.2 26.3
LOCKED ROTOR 65 84 130 142
CRANKCASE HEATER YES YES YES YES
FAN MOTOR AMPS RATED LOAD .7 .7 1.5 1.5
FAN DIAMETER INCHES 24 24 24 24
FAN MOTOR
RATED HP 1/10 1/10 1/4 1/4
NOMINAL RPM 825 825 825 850
NOMINAL CFM 2650 2650 3200 3200
COIL
FACEAREASQ.FT.20.020.020.020.0
ROWSDEEP1122
FIN / INCH 16 16 13 13
LIQUID LINE OD 3/8 3/8 3/8 3/8
VAPOR LINE OD 7/8 7/8 7/8 7/8
UNIT CHARGE, (LBS - OZ)3
3. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than
15 feet, add or subtract the amount of refrigerant calculated, using the difference in length multiplied by the per foot value.
9 - 9 10 - 1 12 - 1 13 - 1
CHARGE PER FOOT, OZ .70 .70 .70 .70
OPERATING WEIGHT LBS. 242 242 310 310
All dimensions are in inches. They are subject to change without
notice. Certified dimensions will be provided upon request.
48" OVERHEAD
CLEARANCE
C
B
A
5-1/2
2-3/8
3-1/8
VAPOR
CONNECTION
LIQUID CONNECTION
AIR IN
4 SIDES
UNIT
MODEL
E4TS
DIMENSIONS REFRIGERANT
CONNECTION
LINE SIZE
ABC
LIQUID VAPOR
030 31-7/8 35 35
3/8 7/8
036 31-7/8 35 35
048 31-7/8 35 35
060 37-7/8 35 35

036-21342-002 Rev. E (0505)
4Unitary Products Group
1. Unit factory charge listed on the unit nameplate includes refrigerant for the condensor, the smallest evaporator and for 15 feet of
interconnecting line tubing.
2. Verify the TXV kit and the additional charge required for the specific evaporator coil in the system using the table above.
3. Add additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in the table above.
4. Permanently mark the unit nameplate with the total system charge.
5. Total System Charge = Base charge (as shipped) + adder for evaporator + adder for line set.
Additional R-22 Charge / Orifice Size for Various Matched Systems
OUTDOOR UNIT E4TS030 E4TS036 E4TS048 E4TS060
UNITORIFICE(S)** ————
FACTORY CHARGE, LBS. - OZ. 9 - 9 10 - 1 12 - 1 13 - 1
INDOOR COIL COIL ORIFICE1REQUIRED SYSTEM EXPANSION DEVICE + ADDITIONAL CHARGE, OZ.
G1FA/G1UA048S17,21 78 701 + 0 702 + 0 — —
G1FA/G1UA060S21,24 84 — 702 + 10 703 + 0 703 + 0
G1FA060S21,24T 84 — — 703 + 0 703 + 0
G2FD046(S,H)17 78 701 + 0 702 + 0 — —
G2FD042(S,H)21 78 701 + 0 — — —
G2FD048(S,H)21, 24 84 701 + 6 702 + 0 — —
G2FD060(S,H)24 90 — 702 + 10 703 + 0 703 + 0
G2FD060H24T 90 — — 703 + 0 703 + 0
G2FD061H24 90 — — 703 + 8 703 + 4
REFRIGERANT LINE ADDER OZ. / FT. .70 .70 .70 .70
Airflow
VARIABLE SPEED INDOOR
N1VSB12 Hi/Low CFM 1050/630 — — —
N1VSC16 Hi/Low CFM 1065/650 1185/770 — —
N1VSD20 Hi/Low CFM — 1200/780 1605/1040 1860/1200
P1XDB12V075 Hi/Low CFM 1040/580 1220/690 — —
P1XUB12V055 Hi/Low CFM 1020/570 1200/660 — —
P1DUB16V080 Hi/Low CFM 1050/540 1200/650 — —
P1XUC16V075 Hi/Low CFM 1000/550 1200/650 1605/880 —
P1DUC20V080 Hi/Low CFM — 1220/660 1620/900 1870/1030
P1DUC20V096 Hi/Low CFM — 1200/650 1610/900 1850/1080
P1XUC20V095 Hi/Low CFM — 1200/630 1590/850 1880/1000
P1XUD20V112 Hi/Low CFM — 1260/720 1620/920 1800/990
P1XDD20V112 Hi/Low CFM — 1200/690 1610/850 1870/1010
F(2,3)FV060 Hi/Low CFM — — 1600/1040 1875/1200
Hi CFM — 1000 1200 1600 1900
Max Low CFM — 850 1000 1350 1600
Recommended Low CFM — 600 750 900 1050

036-21342-002 Rev. E (0505)
Unitary Products Group 5
COOLING CAPACITY - Variable Speed Air Handler
UNIT
MODEL
N1VS AIR HANDLER COIL MODEL1
1. G2FD coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING
MODEL ELECTRIC
HEAT KW 2
2. Single phase units require single phase 2HK heaters.
WSTAGE
(# CYL) RATED CFM NET MBH SEER EER
TOTAL SENS.
E4TS030
N1VSB12 5,7.5,10,15,18 17 G2FD046S17 1 630 15200 12200 15.5 13.7
2 1050 29000 21400 12.0
N1VSC16 5,7.5,10,15,20 21 G2FD042S21 1 650 15000 12000 15.4 13.6
2 1065 28600 21000 11.9
G2FD048S21 1 650 15800 12600 15.7 13.9
2 1065 30000 22000 12.1
E4TS036 N1VSC16 5,7.5,10,15,20 21 G2FD048S21 1 770 21400 15400 15.0 13.3
2 1185 36000 25600 11.6
N1VSD20 7.5,10,15,20,25,30 24 G2FD048S24 1 780 21600 15600 15.2 13.6
2 1200 36400 26000 11.8
E4TS048
F(2,3)FV060 10,15,20,25
24
–1 1040 26800 21800 15.0 13.6
2 1600 48000 35600 11.4
N1VSD20 7.5,10,15,20,25,30 G2FD060S24 1 1040 26800 21800 15.0 13.6
2 1605 48000 35600 11.4
G2FD061H24 1 1040 27400 22200 15.2 13.8
2 1605 49000 36400 11.6
E4TS060
F(2,3)FV060 10,15,20,25
24
–1 1220 27800 23400 14.5 13.2
2 1875 55500 40500 10.4
N1VSD20 7.5,10,15,20,25,30 G2FD060S24 1 1200 27800 23400 14.5 13.2
2 1860 55500 40500 10.4
G2FD061H24 1 1200 29000 24000 14.7 13.4
2 1860 57000 41500 10.6
COOLING CAPACITY - Variable Speed Furnace
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL COOLING
STAGE
(# CYL) RATED CFM NET MBH1SEER2EER3
TOTAL SENS.
E4TS030
P1XDB12V 17 G2FD046S17 1 580 13800 10400 15.0 13.3
2 1040 28200 20800 11.6
P1XUB12V 17
G2FD046S17 1 570 13800 10400 15.0 13.3
2 1020 28000 20600 11.6
G1UA048S17 1 570 13800 10400 15.0 13.3
2 1020 28000 20600 11.6
G1FA048S17 1 570 13800 10400 15.0 13.3
2 1020 28000 20600 11.6
P1DUB16V 17
G2FD046S17 1 540 13600 10200 15.0 13.4
2 1050 28200 20800 11.7
G1UA048S17 1 540 13600 10200 15.0 13.4
2 1050 28200 20800 11.7
G1FA048S17 1 540 13600 10200 15.0 13.4
2 1050 28200 20800 11.7
P1XUC16V 21
G2FD042S21 1 600 13600 10400 14.8 13.2
2 1100 28000 20600 11.4
G1UA048S21 1 600 13800 10600 15.2 13.6
2 1100 28800 21400 11.6
G1FA048S21 1 600 13800 10600 15.2 13.6
2 1100 28800 21400 11.6
G2FD048S21 1 600 14200 10800 15.3 13.7
2 1100 29000 21400 11.8
For notes see Page 7.

036-21342-002 Rev. E (0505)
6Unitary Products Group
E4TS036
P1XDB12V 17 G2FD046S17 1 690 20000 15200 14.0 12.4
2 1220 35600 25800 10.8
P1XUB12V 17
G2FD046S17 1 660 19800 15000 14.0 12.5
2 1200 35400 25600 11.0
G1UA048S17 1 660 19800 15000 14.0 12.5
2 1200 35400 25600 11.0
G1FA048S17 1 660 19800 15000 14.0 12.5
2 1200 35400 25600 11.0
P1DUB16V 17
G2FD046S17 1 650 20000 15000 14.0 12.6
2 1200 35600 25600 11.0
G1UA048S17 1 650 20000 15000 14.0 12.6
2 1200 35600 25600 11.0
G1FA048S17 1 650 20000 15000 14.0 12.6
2 1200 35600 25600 11.0
P1XUC16V 21
G1UA048S21 1 640 20200 15200 14.0 12.5
2 1200 35800 25800 11.1
G1FA048S21 1 640 20200 15200 14.0 12.5
2 1200 35800 25800 11.1
G2FD048S21 1 640 20400 15400 14.0 12.6
2 1200 36000 26000 11.1
G1UA060S21 1 640 21000 15800 14.4 13.0
2 1200 37000 26600 11.3
G1FA060S21 1 640 21000 15800 14.4 13.0
2 1200 37000 26600 11.3
E4TS036
P1DUC20V 21
G1UA048S21 1 640 20200 15200 14.1 12.5
2 1200 35800 25800 11.2
G1FA048S21 1 640 20200 15200 14.1 12.5
2 1200 35800 25800 11.2
G2FD048S21 1 640 20400 15400 14.3 12.8
2 1200 36000 26000 11.3
G1UA060S21 1 640 21000 15800 14.6 13.1
2 1200 37000 26600 11.4
G1FA060S21 1 640 21000 15800 14.6 13.1
2 1200 37000 26600 11.4
P1XUC20V 21
G1UA048S21 1 625 20000 15000 14.0 12.6
2 1200 35600 25600 11.0
G1FA048S21 1 625 20000 15000 14.0 12.6
2 1200 35600 25600 11.0
G2FD048S21 1 625 20200 15200 14.2 12.7
2 1200 35800 25800 11.2
G1UA060S21 1 625 20800 15600 14.5 13.0
2 1200 36800 26400 11.3
G1FA060S21 1 625 20800 15600 14.5 13.0
2 1200 36800 26400 11.3
P1XDD20V 24 G2FD048S24 1 690 20400 16200 14.5 12.9
2 1200 36000 27400 11.3
P1XUD20V 24
G1UA048S24 1 715 20600 16000 14.2 12.8
2 1260 36200 27200 11.2
G1FA048S24 1 715 20600 16000 14.2 12.8
2 1260 36200 27200 11.2
G2FD048S24 1 715 20800 16200 14.5 13.0
2 1260 36400 27400 11.4
G1UA060S24 1 715 21400 16600 14.8 13.3
2 1260 37400 28000 11.6
G1FA060S24 1 715 21400 16600 14.8 13.3
2 1260 37400 28000 11.6
For notes see Page 7.
COOLING CAPACITY - Variable Speed Furnace (Continued)
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL COOLING
STAGE
(# CYL) RATED CFM NET MBH1SEER2EER3
TOTAL SENS.

036-21342-002 Rev. E (0505)
Unitary Products Group 7
E4TS048
P1XUC16V 21 G1UA060S21 1 880 23800 17600 14.0 12.6
2 1600 47000 33800 10.8
G1UA060S21 1 880 23800 17600 14.0 12.6
2 1600 47000 33800 10.8
P1DUC20V 21 G1UA060S21 1 900 24200 18000 14.0 12.6
2 1610 47500 34200 10.9
G1FA060S21 1 900 24200 18000 14.0 12.6
2 1610 47500 34200 10.9
P1XUC20V 21 G1UA060S21 1 850 23600 17400 14.0 12.6
2 1590 47000 33800 10.8
G1FA060S21 1 850 23600 17400 14.0 12.6
2 1590 47000 33800 10.8
P1XDD20V 24 G2FD060S24 1 880 24400 18400 14.0 12.5
2 1580 47500 34200 11.0
G2FD061H24 1 880 24800 18800 14.4 12.7
2 1580 48500 34800 11.2
E4TS048 P1XUD20V 24
G1UA060S24 1 915 24800 18800 14.2 12.7
2 1620 48000 34600 11.0
G1FA060S24 1 915 24800 18800 14.2 12.7
2 1620 48000 34600 11.0
G2FD060S24 1 915 24800 18800 14.2 12.7
2 1620 48000 34600 11.0
G2FD061H24 1 915 25200 19200 14.5 12.9
2 1620 49000 35200 11.3
E4TS060
P1XDD20V 24 G2FD060S24 1 1000 27000 20400 13.7 12.6
2 1800 55000 39600 10.0
G2FD061H24 1 1000 28000 20800 14.0 12.8
2 1800 56000 40000 10.2
P1XUD20V 24
G1UA060S24 1 990 27000 20400 13.8 12.5
2 1800 55500 40000 10.2
G1FA060S24 1 990 27000 20400 13.8 12.5
2 1800 55500 40000 10.2
G2FD060S24 1 990 27000 20400 13.8 12.5
2 1800 55500 40000 10.2
G2FD061H24 1 990 28000 20800 14.0 12.8
2 1800 56500 40500 10.4
1. Cooling MBH based on 80° F entering air temperature, 50% RH and rated airflow.
2. SEER (Seasonal Energy Efficiency Ratio) equals the total cooling output in BTU’s during a normal annual usage period for cool-
ing divided by the total electric power input in watt-hours during the same period. Normal annual usage is a combination of both
one and two cylinder operating periods.
3. EER (Energy Efficiency Ratio) equals the total cooling output in BTU’s at 95° F outdoor ambient divided by the total electric power
in watt-hours at those conditions.
COOLING CAPACITY - Variable Speed Furnace (Continued)
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL COOLING
STAGE
(# CYL) RATED CFM NET MBH1SEER2EER3
TOTAL SENS.

036-21342-002 Rev. E (0505)
8Unitary Products Group
HEATING CAPACITY - Variable Speed Air Handler
UNIT
MODEL
N1VS AIR HANDLER COIL MODEL1
1. G2FD coils available with a factory installed horizontal drain pan. See price pages for specific model number.
HEATING
MODEL ELECTRIC
HEAT KW 2
2. Single phase units require single phase 2HK heaters.
WSTAGE
(# CYL) RATED CFM NET MBH HSPF COP@ 47
47 OD 17 OD
E4TS030
N1VSB12 5,7.5,10,15,18 17 G2FD046S17 1 630 13400 – – 3.80 2 630 24600 14400 8.7 3.48
2 1050 26400 15400 9.0 3.60
N1VSC16 5,7.5,10,15,20 21
G2FD042S21 1 650 13200 – – 3.80 2 650 24200 14200 8.7 3.46
2 1065 26000 15200 9.0 3.58
G2FD048S21 1 650 13800 – – 3.88 2 650 24800 14800 8.9 3.52
2 1065 27000 16000 9.2 3.64
E4TS036
N1VSC16 5,7.5,10,15,20 21 G2FD048S21 1 770 19600 – – 3.78 2 770 31600 19000 8.7 3.52
2 1185 35000 20800 9.2 3.54
N1VSD20 7.5,10,15,20,25,30 24 G2FD048S24 1 780 20000 – – 3.86 2 780 32000 19200 8.8 3.62
2 1200 35600 21200 9.3 3.74
E4TS048
F(2,3)FV060 10,15,20,25
24
–1 1040 23800 – – 3.66 2 1040 43500 24800 8.2 3.50
2 1600 47000 26400 8.5 3.58
N1VSD20 7.5,10,15,20,25,30
G2FD060S24 1 1040 23800 – – 3.66 2 1040 43500 24800 8.2 3.50
2 1605 47000 26400 8.5 3.58
G2FD061H24 1 1040 24200 – 3.72 2 1040 44500 25600 8.4 3.58
2 1605 48000 27000 8.7 3.66
E4TS060
F(2,3)FV060 10,15,20,25
24
–1 1220 25800 – – 3.58 2 1220 51000 26400 8.1 3.32
2 1875 54000 28600 8.5 3.44
N1VSD20 7.5,10,15,20,25,30
G2FD060S24 1 1200 25800 – – 3.58 2 1200 51000 26400 8.1 3.32
2 1860 54000 28600 8.5 3.44
G2FD061H24 1 1200 26600 – – 3.64 2 1200 50500 26800 8.3 3.38
2 1860 55000 29200 8.7 3.50

036-21342-002 Rev. E (0505)
Unitary Products Group 9
HEATING CAPACITY - Variable Speed Furnace
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL HEATING
STAGE
(# CYL) RATED CFM NET MBH 1,2 HSPF3COP4@ 47 F
47 OD 17 OD
E4TS030
P1XDB12V075 17 G2FD046S17 1 580 12800 - - 3.58 2 580 24000 14000 8.3 3.38
2 1040 26200 15200 8.6 3.56
P1XUB12V055 17
G2FD046S17 1 570 12800 - - 3.58 2 570 23800 13800 8.3 3.34
2 1020 26000 15000 8.6 3.52
G1UA048S17 1 570 12800 - - 3.58 2 570 23800 13800 8.3 3.34
2 1020 26000 15000 8.6 3.52
G1FA048S17 1 570 12800 - - 3.58 2 570 23800 13800 8.3 3.34
2 1020 26000 15000 8.6 3.52
P1DUB16V080 17
G2FD046S17 1 540 12400 - - 3.54 2 540 24200 14200 8.3 3.39
2 1050 26400 15400 8.6 3.58
G1UA048S17 1 540 12400 - - 3.54 2 540 24200 14200 8.3 3.39
2 1050 26400 15400 8.6 3.58
G1FA048S17 1 540 12400 - - 3.54 2 540 24200 14200 8.3 3.39
2 1050 26400 15400 8.6 3.58
P1XUC16V075 21
G2FD042S21 1 600 13000 - - 3.70 2 600 24800 14600 8.4 3.46
2 1100 27000 15800 8.7 3.64
G1UA048S21 1 600 13200 - - 3.72 2 600 25200 15000 8.5 3.50
2 1100 27400 16400 8.8 3.68
G1FA048S21 1 600 13200 - - 3.72 2 600 25200 15000 8.5 3.50
2 1100 27400 16400 8.8 3.68
G2FD048S21 1 600 13400 - - 3.76 2 600 25400 15200 8.6 3.50
2 1100 27600 16600 8.9 3.68
E4TS036
P1XDB12V075 17 G2FD046S17 1 690 17400 - - 3.56 2 690 31000 18400 7.9 3.26
2 1220 34600 20600 8.3 3.52
P1XUB12V055
17 G2FD046S17 1 660 17200 - - 3.54 2 660 31000 18400 8.0 3.30
2 1200 34600 20600 8.4 3.56
G1UA048S17 1 660 17400 - - 3.58 2 660 31400 18400 8.0 3.32
2 1200 35000 20800 8.4 3.58
G1FA048S17 1 660 17400 - - 3.58 2 660 31400 18600 8.0 3.32
2 1200 35000 20800 8.4 3.58
For notes see Page 12.

036-21342-002 Rev. E (0505)
10 Unitary Products Group
E4TS036
P1DUB16V080 17
G2FD046S17 1 650 17000 - - 3.54 2 650 31000 18400 8.0 3.30
2 1200 34600 20600 8.4 3.56
G1UA048S17 1 650 17200 - - 3.58 2 650 31400 18600 8.0 3.32
2 1200 35000 20800 8.4 3.58
G1FA048S17 1 650 17200 - - 3.58 2 650 31400 18600 8.0 3.32
2 1200 35000 20800 8.4 3.58
P1XUC16V075 21
G1UA048S21 1 640 17000 - - 3.54 2 640 31600 18800 8.0 3.36
2 1200 35200 21000 8.4 3.62
G1FA048S21 1 640 17000 - - 3.54 2 640 31600 18800 8.0 3.36
2 1200 35200 21000 8.4 3.62
G2FD048S21 1 640 17200 - - 3.56 2 640 32000 19000 8.1 3.40
2 1200 35600 21200 8.5 3.66
G1UA060S21 1 640 17600 - - 3.60 2 640 32400 19400 8.4 3.48
2 1200 36000 21600 8.7 3.74
G1FA060S21 1 640 17600 - - 3.60 2 640 32400 19400 8.4 3.48
2 1200 36000 21600 8.7 3.74
P1DUC20V080 21
G1UA048S21 1 650 17200 - - 3.52 2 650 32400 19000 8.1 3.44
2 1220 36000 21200 8.5 3.70
G1FA048S21 1 650 17200 - - 3.52 2 650 32400 19000 8.1 3.44
2 1220 36000 21200 8.5 3.70
G2FD048S21 1 650 17400 - - 3.54 2 650 32600 19400 8.2 3.48
2 1220 36200 21600 8.6 3.74
G1UA060S21 1 650 18000 - - 3.60 2 650 33000 19800 8.5 3.52
2 1220 36600 22000 8.8 3.78
G1FA060S21 1 650 18000 - - 3.60 2 650 33000 19800 8.5 3.52
2 1220 36600 22000 8.8 3.78
P1DUC20V096 21
G1UA048S21 1 640 17000 - - 3.54 2 640 31800 18800 8.0 3.36
2 1200 35400 21000 8.4 3.62
G1FA048S21 1 640 17000 - - 3.54 2 640 31800 18800 8.0 3.36
2 1200 35400 21000 8.4 3.62
G2FD048S21 1 640 17200 - - 3.56 2 640 32000 19000 8.1 3.40
2 1200 35600 21200 8.5 3.66
G1UA060S21 1 640 17600 - - 3.60 2 640 32600 19400 8.4 3.48
2 1200 36200 21600 8.7 3.74
G1FA060S21 1 640 17600 - - 3.60 2 640 32600 19400 8.4 3.48
2 1200 36200 21600 8.7 3.74
For notes see Page 12.
HEATING CAPACITY - Variable Speed Furnace (Continued)
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL HEATING
STAGE
(# CYL) RATED CFM NET MBH 1,2 HSPF3COP4@ 47 F
47 OD 17 OD

036-21342-002 Rev. E (0505)
Unitary Products Group 11
E4TS036
P1XUC20V095 21
G1UA048S21 1 625 16600 - - 3.48 2 625 31800 18800 7.9 3.34
2 1200 35400 21000 8.3 3.60
G1FA048S21 1 625 16600 - - 3.48 2 625 31800 18800 7.9 3.34
2 1200 35400 21000 8.3 3.60
G2FD048S21 1 625 16800 - - 3.52 2 625 32000 19000 8.0 3.38
2 1200 35600 21200 8.4 3.64
G1UA060S21 1 625 17200 - - 3.58 2 625 32600 19400 8.3 3.44
2 1200 36200 21600 8.6 3.70
G1FA060S21 1 625 17200 - - 3.58 2 625 32600 19400 8.3 3.44
2 1200 36200 21600 8.6 3.70
P1XDD20V112 G2FD048S24 1 690 18000 - - 3.56 2 690 32000 19000 8.4 3.54
2 1200 35600 21200 8.7 3.80
P1XUD20V112 24
G1UA048S24 1 715 18000 - - 3.52 2 715 32600 19600 8.3 3.54
2 1260 36200 21800 8.7 3.80
G1FA048S24 1 715 18000 - - 3.52 2 715 32600 19600 8.3 3.54
2 1260 36200 21800 8.7 3.80
G2FD048S24 1 715 18200 - - 3.56 2 715 32800 19800 8.4 3.56
2 1260 36400 22000 8.8 3.82
G1UA060S24 1 715 18800 - - 3.64 2 715 33400 20200 8.7 3.64
2 1260 37000 22400 9.0 3.90
G1FA060S24 1 715 18800 - - 3.64 2 715 33400 20200 8.7 3.64
2 1260 37000 22400 9.0 3.90
E4TS048
P1XUC16V075 21
G1UA060S21 1 880 20800 - - 3.24 2 880 43500 24200 7.7 3.36
2 1600 47000 26200 8.0 3.54
G1FA060S21 1 880 20800 - - 3.24 2 880 43500 24200 7.7 3.36
2 1600 47000 26200 8.0 3.54
P1DUC20V080 21
G1UA060S21 1 890 21000 - - 3.28 2 890 43500 24400 7.8 3.44
2 1620 47000 26400 8.1 3.62
G1FA060S21 1 890 21000 - - 3.28 2 890 43500 24400 7.8 3.44
2 1620 47000 26400 8.1 3.62
P1DUC20V096 21
G1UA060S21 1 900 21400 - - 3.32 2 900 43500 24200 7.8 3.42
2 1610 47000 26200 8.1 3.60
G1FA060S21 1 900 21400 - - 3.32 2 900 43500 24200 7.8 3.42
2 1610 47000 26200 8.1 3.60
P1XUC20V095 21
G1UA060S21 1 850 20200 - - 3.20 2 850 43000 23800 7.6 3.36
2 1590 46500 25800 7.9 3.54
G1FA060S21 1 850 20200 - - 3.20 2 850 43000 23800 7.6 3.36
2 1590 46500 25800 7.9 3.54
For notes see Page 12.
HEATING CAPACITY - Variable Speed Furnace (Continued)
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL HEATING
STAGE
(# CYL) RATED CFM NET MBH 1,2 HSPF3COP4@ 47 F
47 OD 17 OD

036-21342-002 Rev. E (0505)
12 Unitary Products Group
ACCESSORIES
Refer to Price Manual for specific model numbers.
TXV Kit - Factory specified and required for proper unit per-
formance.
E4TS030 = 1TV0701
E4TS036 = 1TV0702
E4TS048 = 1TV0703
E4TS060 = 1TV0703
Room Thermostat - Matching 2-Stage cooling thermostats
are available to provide features required for any installation.
See list below:
2ET03700624 - Honeywell Programmable
2ET03700524 - Honeywell Non-Programmable
2EP32U70124 - White Rodgers Programmable
Dehumidification Control - Model 2HU06700124 available
for use in areas where a higher level of humidity control is
required.
Fossil Fuel Relay (Model 2FF02700101) - Required for use
with all furnace applications.
SOUND RATINGS*
* Rated in accordance with ARI 270-95 Standards.
E4TS048
P1XDD20V112
G2FD060S24 1 880 21400 - - 3.30 2 880 43000 23800 7.7 3.34
2 1580 46500 25800 8.0 3.52
G2FD061H24 1 880 22000 - - 3.38 2 880 44000 24400 7.9 3.42
2 1580 47500 26400 8.2 3.60
P1XUD20V112 24
G1UA060S24 1 915 22200 - - 3.34 2 915 44000 25000 7.8 3.36
2 1620 47500 27000 8.1 3.54
G1FA060S24 1 915 22200 - - 3.34 2 915 44000 25000 7.8 3.36
2 1620 47500 27000 8.1 3.54
G2FD060S24 1 915 22200 - - 3.34 2 915 44000 25000 7.8 3.36
2 1620 47500 27000 8.1 3.54
G2FD061H24 1 915 22600 - - 3.40 2 915 45000 25600 8.0 3.44
2 1620 48500 27600 8.3 3.62
E4TS060
P1XDD20V112
G2FD060S24 1 1000 23400 - - 3.38 2 1000 49500 26000 7.5 3.28
2 1800 54000 28400 7.9 3.46
G2FD061H24 1 1000 23400 - - 3.48 2 1000 50500 26600 7.9 3.35
2 1800 55000 29000 8.2 3.52
P1XUD20V112 24
G1UA060S24 1 990 23200 - - 3.34 2 990 49500 26000 7.6 3.34
2 1800 54000 28400 8.0 3.52
G1FA060S24 1 990 23200 - - 3.34 2 990 49500 26000 7.6 3.34
2 1800 54000 28400 8.0 3.52
G2FD060S24 1 990 23200 - - 3.34 2 990 49500 26000 7.6 3.34
2 1800 54000 28400 8.0 3.52
G2FD061H24 1 990 23200 - - 3.42 2 990 50500 26600 8.0 3.40
2 1800 55000 29000 8.3 3.58
1. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and
no supplemental electric heat operation.
2. Integrated heating capacities include the effect of defrost cycles in the temperature range where they occur.
3. HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided
by the total electric power input during the same period.
4. COP equals MBH output divided by (total KW input x 3.412).
HEATING CAPACITY - Variable Speed Furnace (Continued)
UNIT
MODEL VARIABLE SPEED FURNACE MODEL WCOILMODEL HEATING
STAGE
(# CYL) RATED CFM NET MBH 1,2 HSPF3COP4@ 47 F
47 OD 17 OD
UNIT MODEL SOUND RATINGS
(dba)
1 CYLINDER 2 CYLINDER
030 72 73
036 75 78
048 77 79
060 79 81

036-21342-002 Rev. E (0505)
Unitary Products Group 13
Multipliers for determining the performance with other indoor sections.
HIGH CFM LOW CFM
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
COOLING PERFORMANCE DATA
E4TS030S06A WITH N1VSC1606 / G2FD048S21 - HIGH CFM 2-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 980 1065 1210
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 35.72 32.39 29.01 29.01 27.74 36.45 33.78 30.89 30.89 28.07 37.18 35.17 32.78 32.78 28.39 S.C. 16.87 21.50 26.90 21.61 26.84 17.73 23.46 29.75 24.46 27.62 18.59 25.42 32.61 27.31 28.39
K.W. 2.13 2.11 2.07 2.07 2.00 2.19 2.19 2.12 2.12 2.01 2.26 2.26 2.17 2.17 2.01
85 T.C. 33.76 30.76 27.81 27.81 27.15 34.33 31.89 29.38 29.38 28.08 34.89 33.02 30.96 30.96 29.01 S.C. 16.34 21.18 26.05 20.76 25.72 17.09 22.72 28.08 22.84 27.37 17.84 24.26 30.10 24.91 29.01
K.W. 2.32 2.27 2.21 2.21 2.17 2.38 2.34 2.27 2.27 2.21 2.44 2.40 2.33 2.33 2.24
95 T.C. 31.81 29.13 26.61 26.61 25.99 32.20 30.00 27.87 27.87 27.06 32.60 30.87 29.14 29.14 28.13 S.C. 15.81 20.86 25.21 19.91 24.61 16.46 22.22 27.01 21.72 26.37 17.10 23.59 28.82 23.53 28.13
K.W. 2.51 2.43 2.36 2.36 2.32 2.56 2.49 2.42 2.42 2.38 2.61 2.55 2.48 2.48 2.43
105 T.C. 29.85 27.50 25.40 25.40 24.27 30.08 28.11 26.37 26.37 25.00 30.31 28.71 27.33 27.33 25.73 S.C. 15.28 20.53 24.36 19.06 23.49 15.82 21.61 25.64 20.35 24.61 16.36 22.68 26.93 21.64 25.73
K.W. 2.70 2.59 2.51 2.51 2.45 2.74 2.64 2.57 2.57 2.51 2.78 2.69 2.63 2.63 2.57
115 T.C. 27.96 25.92 24.24 24.24 23.58 28.02 26.27 24.90 24.90 24.03 28.09 26.62 25.56 25.56 24.47 S.C. 14.77 20.22 23.53 18.24 22.41 15.20 21.00 24.31 19.02 23.44 15.63 21.79 25.09 19.80 24.47
K.W. 2.88 2.75 2.65 2.65 2.60 2.92 2.79 2.72 2.72 2.68 2.95 2.83 2.78 2.78 2.76
125 T.C. 26.06 24.33 23.07 23.07 22.40 25.96 24.43 23.43 23.43 22.90 25.86 24.53 23.80 23.80 23.41 S.C. 14.25 19.90 22.71 17.41 21.32 14.58 20.40 22.98 17.69 22.37 14.91 20.90 23.26 17.97 23.41
K.W. 3.06 2.90 2.79 2.79 2.77 3.09 2.94 2.86 2.86 2.85 3.12 2.97 2.93 2.93 2.92
E4TS030S06A WITH N1VSC1606 / G2FD048S21 - LOW CFM 1-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 650 720 770
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 19.20 18.62 17.94 17.94 17.75 19.55 18.71 18.06 18.06 17.86 19.90 18.81 18.17 18.17 17.98 S.C. 9.57 13.15 15.71 10.79 17.10 9.85 13.55 15.58 10.66 17.54 10.13 13.95 15.46 10.54 17.98
K.W. 0.99 0.98 0.97 0.97 0.95 1.01 0.99 0.98 0.98 0.96 1.02 1.01 0.99 0.99 0.98
85 T.C. 18.20 17.39 16.87 16.87 16.60 18.52 17.52 16.99 16.99 16.72 18.83 17.65 17.12 17.12 16.84 S.C. 9.28 12.73 14.29 9.38 16.13 9.59 12.98 14.46 9.54 16.49 9.90 13.22 14.62 9.71 16.84
K.W. 1.07 1.06 1.05 1.05 1.03 1.09 1.07 1.06 1.06 1.05 1.10 1.08 1.07 1.07 1.06
95 T.C. 17.20 16.16 15.80 15.80 15.45 17.48 16.32 15.93 15.93 15.71 17.75 16.48 16.06 16.06 15.97 S.C. 9.00 12.32 12.88 7.96 15.16 9.34 12.41 13.33 8.42 15.57 9.68 12.49 13.79 8.87 15.97
K.W. 1.16 1.15 1.14 1.14 1.12 1.18 1.17 1.15 1.15 1.14 1.20 1.19 1.17 1.17 1.15
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD046S17 0.97 0.96 0.97
N1VSC16 G2FD042S21 0.95 0.94 0.97
Variable Speed
Furnace Coil T.C. S.C. KW
P1XDB12V G2FD046S17 0.94 0.94 0.98
P1XUB12V G2FD046S17 0.93 0.93 0.97
P1XUB12V G1UA048S17 0.93 0.93 0.97
P1XUB12V G1FA048S17 0.93 0.93 0.97
P1DUB16V G2FD046S17 0.94 0.94 0.97
P1DUB16V G1UA048S17 0.94 0.94 0.97
P1DUB16V G1FA048S17 0.94 0.94 0.97
P1DUC16V G2FD042S21 0.93 0.93 0.99
P1DUC16V G1UA048S21 0.96 0.96 1.00
P1DUC16V G1FA048S21 0.96 0.96 1.00
P1DUC16V G2FD048S21 0.97 0.96 0.99
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD046S17 0.94 0.99 0.96
N1VSC16 G2FD042S21 0.93 0.97 0.96
Variable Speed
Furnace Coil T.C. S.C. KW
P1XDB12V G2FD046S17 0.85 0.84 0.90
P1XUB12V G2FD046S17 0.85 0.84 0.90
P1XUB12V G1UA048S17 0.85 0.84 0.90
P1XUB12V G1FA048S17 0.85 0.84 0.90
P1DUB16V G2FD046S17 0.84 0.83 0.88
P1DUB16V G1UA048S17 0.84 0.83 0.88
P1DUB16V G1FA048S17 0.84 0.83 0.88
P1DUC16V G2FD042S21 0.84 0.84 0.90
P1DUC16V G1UA048S21 0.85 0.84 0.88
P1DUC16V G1FA048S21 0.85 0.86 0.88
P1DUC16V G2FD048S21 0.88 0.88 0.90

036-21342-002 Rev. E (0505)
14 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
HIGH CFM
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
COOLING PERFORMANCE DATA
E4TS036S06A WITH N1VSC1606 / G2FD048S21 - HIGH CFM 2-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1000 1185 1350
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 42.71 39.07 35.00 35.00 33.88 43.34 40.24 36.13 36.13 36.54 43.97 41.41 37.26 37.26 39.19 S.C. 21.26 25.43 31.63 26.34 32.81 21.75 27.35 33.71 28.25 36.00 22.25 29.27 35.79 30.17 39.19
K.W. 2.61 2.58 2.47 2.47 2.46 2.73 2.68 2.58 2.58 2.55 2.85 2.79 2.69 2.69 2.64
85 T.C. 40.45 37.03 33.34 33.34 32.20 40.99 38.12 34.47 34.47 34.69 41.53 39.21 35.60 35.60 37.17 S.C. 20.15 24.74 30.32 25.03 31.29 20.83 26.61 32.25 26.76 34.23 21.51 28.48 34.18 28.48 37.17
K.W. 2.84 2.79 2.67 2.67 2.65 2.96 2.89 2.79 2.79 2.73 3.08 3.00 2.90 2.90 2.82
95 T.C. 38.19 34.99 31.68 31.68 30.51 38.64 36.00 32.81 32.81 32.83 39.09 37.01 33.93 33.93 35.15 S.C. 19.04 24.05 29.02 23.72 29.77 19.90 25.61 30.79 25.26 32.46 20.76 27.68 32.56 26.80 35.15
K.W. 3.08 2.99 2.87 2.87 2.85 3.20 3.10 2.99 2.99 2.93 3.31 3.21 3.12 3.12 3.01
105 T.C. 35.93 32.95 30.02 30.02 28.83 36.29 33.88 31.15 31.15 30.98 36.65 34.81 32.27 32.27 33.13 S.C. 17.93 23.36 27.71 22.42 28.26 18.97 25.12 29.33 23.77 30.70 20.02 26.89 30.94 25.11 33.13
K.W. 3.32 3.20 3.07 3.07 3.05 3.43 3.31 3.20 3.20 3.15 3.54 3.42 3.33 3.33 3.24
115 T.C. 33.74 30.98 28.42 28.42 27.19 34.01 31.83 29.53 29.53 29.18 34.29 32.67 30.65 30.65 31.18 S.C. 16.85 22.69 26.44 21.15 26.79 18.07 24.40 27.91 22.31 28.98 19.30 26.12 29.38 23.48 31.18
K.W. 3.55 3.40 3.26 3.26 3.24 3.66 3.51 3.40 3.40 3.36 3.77 3.62 3.54 3.54 3.47
125 T.C. 31.54 29.00 26.81 26.81 25.56 31.73 29.77 27.92 27.92 27.39 31.92 30.54 29.04 29.04 29.22 S.C. 15.77 22.02 25.17 19.88 25.31 17.18 23.68 26.49 20.86 27.26 18.58 25.34 27.81 21.84 29.22
K.W. 3.78 3.60 3.45 3.45 3.42 3.88 3.71 3.60 3.60 3.55 3.99 3.82 3.75 3.75 3.68
Air Handler Coil T.C. S.C. KW
N1VSD20 G2FD048S24 1.01 1.02 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
P1XDB12V G2FD046S17 0.99 1.01 1.06
P1XUB12V G2FD046S17 0.98 1.00 1.04
P1XUB12V G1UA048S17 0.98 1.00 1.04
P1XUB12V G1FA048S17 0.98 1.00 1.04
P1DUB16V G2FD046S17 0.99 1.00 1.04
P1DUB16V G1UA048S17 0.99 1.00 1.04
P1DUB16V G1FA048S17 0.99 1.00 1.04
P1DUC16V G1UA048S21 0.99 1.01 1.04
P1DUC16V G1FA048S21 0.99 1.01 1.04
P1DUC16V G2FD048S21 1.00 1.02 1.05
P1DUC16V G1UA060S21 1.03 1.04 1.06
P1DUC16V G1FA060S21 1.03 1.04 1.06
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC20V G1UA048S21 0.99 1.01 1.03
P1DUC20V G1FA048S21 0.99 1.01 1.03
P1DUC20V G2FD048S21 1.00 1.02 1.03
P1DUC20V G1UA060S21 1.03 1.04 1.05
P1DUC20V G1FA060S21 1.03 1.04 1.05
P1XUC20V G1UA048S21 0.99 1.00 1.04
P1XUC20V G1FA048S21 0.99 1.00 1.04
P1XUC20V G2FD048S21 0.99 1.01 1.03
P1XUC20V G1UA060S21 1.02 1.03 1.05
P1XUC20V G1FA060S21 1.02 1.03 1.05
P1XDD20V G2FD048S24 1.00 1.07 1.03
P1XUD20V G1UA048S24 1.01 1.06 1.04
P1XUD20V G1FA048S24 1.01 1.06 1.04
P1XUD20V G2FD048S24 1.01 1.07 1.03
P1XUD20V G1UA060S24 1.04 1.09 1.04
P1XUD20V G1FA060S24 1.04 1.09 1.04

036-21342-002 Rev. E (0505)
Unitary Products Group 15
Multipliers for determining the performance with other indoor sections.
LOW CFM
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
COOLING PERFORMANCE DATA
E4TS036S06A WITH N1VSC1606 / G2FD048S21 - LOW CFM 1-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 680 770 860
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 25.53 22.96 21.67 21.67 19.33 25.89 23.72 22.21 22.21 20.25 26.24 24.48 22.74 22.74 21.17 S.C. 12.14 15.13 18.09 14.65 19.09 12.67 16.04 19.20 15.76 20.13 13.20 16.95 20.32 16.87 21.17
K.W. 1.35 1.35 1.33 1.33 1.33 1.37 1.37 1.36 1.36 1.34 1.39 1.38 1.38 1.38 1.35
85 T.C. 24.11 21.94 20.57 20.57 18.91 24.68 22.56 21.14 21.14 19.62 25.25 23.19 21.72 21.72 20.34 S.C. 11.53 14.70 17.83 14.38 18.63 12.20 15.80 18.30 14.82 19.48 12.87 16.91 18.78 15.26 20.34
K.W. 1.48 1.47 1.45 1.45 1.44 1.50 1.49 1.47 1.47 1.46 1.53 1.51 1.50 1.50 1.47
95 T.C. 22.70 20.91 19.46 19.46 18.49 23.47 21.40 20.08 20.08 19.00 24.25 21.89 20.70 20.70 19.51 S.C. 10.93 14.27 17.56 14.12 18.17 11.73 15.40 17.40 13.89 18.84 12.54 16.87 17.24 13.66 19.51
K.W. 1.62 1.58 1.56 1.56 1.56 1.64 1.61 1.59 1.59 1.58 1.66 1.63 1.61 1.61 1.60
Air Handler Coil T.C. S.C. KW
N1VSD20 G2FD048S24 1.01 1.01 0.99
Variable Speed
Furnace Coil T.C. S.C. KW
P1XDB12V G2FD046S17 0.93 0.99 1.00
P1XUB12V G2FD046S17 0.93 0.97 0.98
P1XUB12V G1UA048S17 0.93 0.97 0.98
P1XUB12V G1FA048S17 0.93 0.97 0.98
P1DUB16V G2FD046S17 0.93 0.97 0.99
P1DUB16V G1UA048S17 0.93 0.97 0.99
P1DUB16V G1FA048S17 0.93 0.97 0.99
P1DUC16V G1UA048S21 0.94 0.99 1.00
P1DUC16V G1FA048S21 0.94 0.99 1.00
P1DUC16V G2FD048S21 0.95 1.00 1.01
P1DUC16V G1UA060S21 0.98 1.03 1.00
P1DUC16V G1FA060S21 0.98 1.03 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC20V G1UA048S21 0.94 0.99 1.00
P1DUC20V G1FA048S21 0.94 0.99 1.00
P1DUC20V G2FD048S21 0.95 1.00 0.99
P1DUC20V G1UA060S21 0.98 1.03 1.00
P1DUC20V G1FA060S21 0.98 1.03 1.00
P1XUC20V G1UA048S21 0.93 0.97 0.99
P1XUC20V G1FA048S21 0.93 0.97 0.99
P1XUC20V G2FD048S21 0.94 0.99 0.99
P1XUC20V G1UA060S21 0.97 1.01 0.99
P1XUC20V G1FA060S21 0.97 1.01 0.99
P1XDD20V G2FD048S24 0.95 1.05 0.98
P1XUD20V G1UA048S24 0.96 1.04 1.00
P1XUD20V G1FA048S24 0.96 1.04 1.00
P1XUD20V G2FD048S24 0.97 1.05 0.99
P1XUD20V G1UA060S24 1.00 1.08 1.00
P1XUD20V G1FA060S24 1.00 1.08 1.00

036-21342-002 Rev. E (0505)
16 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
HIGH CFM LOW CFM
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
COOLING PERFORMANCE DATA
E4TS048S06A WITH N1VSD2006 / G2FD060S24 - HIGH CFM 2-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1420 1600 1750
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 56.47 53.15 46.83 46.83 39.34 56.73 53.18 47.38 47.38 40.76 56.99 53.21 47.93 47.93 42.18 S.C. 28.32 36.17 42.10 34.23 38.85 29.16 37.77 43.94 36.08 40.51 30.01 39.37 45.77 37.93 42.18
K.W. 3.61 3.49 3.34 3.34 3.30 3.79 3.66 3.48 3.48 3.36 3.97 3.82 3.62 3.62 3.41
85 T.C. 53.54 50.52 44.60 44.60 38.36 53.57 50.59 45.30 45.30 39.65 53.61 50.66 46.00 46.00 40.94 S.C. 27.19 35.23 41.03 33.16 37.86 27.99 36.86 42.50 34.61 39.40 28.79 38.50 43.97 36.06 40.94
K.W. 3.91 3.77 3.59 3.59 3.54 4.09 3.94 3.74 3.74 3.60 4.28 4.10 3.89 3.89 3.66
95 T.C. 50.60 47.89 42.38 42.38 37.29 50.42 48.00 43.22 43.22 38.48 50.24 48.11 44.07 44.07 39.66 S.C. 26.05 34.28 39.96 32.09 36.87 26.81 35.60 41.06 33.14 38.27 27.56 37.63 42.17 34.18 39.66
K.W. 4.21 4.04 3.84 3.84 3.81 4.39 4.21 3.99 3.99 3.87 4.58 4.38 4.15 4.15 3.94
105 T.C. 47.67 45.26 40.15 40.15 35.74 47.26 45.41 41.14 41.14 37.04 46.86 45.56 42.13 42.13 38.34 S.C. 24.92 33.33 38.89 31.02 35.52 25.63 35.04 39.63 31.66 36.93 26.34 36.76 40.36 32.30 38.34
K.W. 4.50 4.32 4.08 4.08 4.04 4.69 4.49 4.25 4.25 4.16 4.88 4.66 4.42 4.42 4.29
115 T.C. 44.83 42.71 37.99 37.99 34.19 44.20 42.90 39.13 39.13 35.62 43.58 43.09 40.26 40.26 37.04 S.C. 23.83 32.41 37.85 29.98 34.03 24.49 34.16 38.23 30.23 35.53 25.15 35.91 38.61 30.48 37.04
K.W. 4.79 4.59 4.33 4.33 4.26 4.98 4.76 4.50 4.50 4.38 5.18 4.93 4.68 4.68 4.49
125 T.C. 41.98 40.16 35.83 35.83 32.61 41.14 40.39 37.11 37.11 34.54 40.30 40.62 38.38 38.38 36.46 S.C. 22.73 31.50 36.81 28.94 32.58 23.34 33.28 36.84 28.80 34.52 23.96 35.06 36.86 28.66 36.46
K.W. 5.08 4.86 4.57 4.57 4.48 5.27 5.03 4.75 4.75 4.64 5.47 5.20 4.93 4.93 4.80
E4TS048S06A WITH N1VSD2006 / G2FD060S24 - LOW CFM 1-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 850 1040 1140
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 28.53 27.17 25.56 25.56 24.29 30.53 28.62 26.71 26.71 24.96 32.53 30.07 27.86 27.86 25.63 S.C. 13.88 20.03 22.49 18.01 23.48 15.36 21.33 23.53 18.80 24.56 16.84 22.62 24.57 19.60 25.63
K.W. 1.67 1.62 1.57 1.57 1.51 1.67 1.63 1.60 1.60 1.56 1.66 1.64 1.62 1.62 1.60
85 T.C. 28.30 26.99 25.39 25.39 24.12 29.30 27.71 25.97 25.97 25.28 30.30 28.44 26.54 26.54 26.43 S.C. 14.72 21.03 23.45 18.97 23.45 15.46 21.68 23.72 18.98 24.94 16.20 22.33 23.99 19.00 26.43
K.W. 1.84 1.79 1.74 1.74 1.69 1.84 1.80 1.76 1.76 1.71 1.84 1.81 1.77 1.77 1.74
95 T.C. 28.06 26.80 25.22 25.22 25.01 28.06 26.80 25.22 25.22 24.11 28.06 26.80 25.22 25.22 23.20 S.C. 15.56 22.03 24.42 19.93 24.67 15.56 21.80 23.92 19.17 23.94 15.56 22.03 23.42 18.40 23.20
K.W. 2.01 1.97 1.91 1.91 1.85 2.01 1.97 1.91 1.91 1.86 2.01 1.97 1.91 1.91 1.87
Air Handler Coil T.C. S.C. KW
N1VSD20 G1FD061S24 1.02 1.02 1.00
F(2,3)FV060 1.00 1.00 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC16V G1UA060S21 0.98 0.95 1.03
P1DUC16V G1FA060S21 0.98 0.95 1.03
P1DUC20V G1UA060S21 0.99 0.96 1.04
P1DUC20V G1FA060S21 0.99 0.96 1.04
P1XUC20V G1UA060S21 0.98 0.95 1.03
P1XUC20V G1FA060S21 0.98 0.95 1.03
P1XDD20V G2FD060S24 0.99 0.96 1.03
P1XDD20V G2FD061H24 1.01 0.98 1.03
P1XUD20V G1UA060S24 1.00 0.97 1.04
P1XUD20V G1FA060S24 1.00 0.97 1.04
P1XUD20V G2FD060S24 1.00 0.97 1.04
P1XUD20V G2FD061H24 1.02 0.99 1.03
Air Handler Coil T.C. S.C. KW
N1VSD20 G1FD061S24 1.02 1.02 1.01
F(2,3)FV060 1.00 1.00 1.00
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC16V G1UA060S21 0.89 0.81 0.96
P1DUC16V G1FA060S21 0.89 0.81 0.96
P1DUC20V G1UA060S21 0.90 0.83 0.97
P1DUC20V G1FA060S21 0.90 0.83 0.97
P1XUC20V G1UA060S21 0.88 0.80 0.95
P1XUC20V G1FA060S21 0.88 0.80 0.95
P1XDD20V G2FD060S24 0.91 0.84 0.99
P1XDD20V G2FD061H24 0.93 0.86 0.99
P1XUD20V G1UA060S24 0.93 0.86 0.99
P1XUD20V G1FA060S24 0.93 0.86 0.99
P1XUD20V G2FD060S24 0.93 0.86 0.99
P1XUD20V G2FD061H24 0.94 0.86 0.99

036-21342-002 Rev. E (0505)
Unitary Products Group 17
Multipliers for determining the performance with other indoor sections.
HIGH CFM LOW CFM
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
COOLING PERFORMANCE DATA
E4TS060S06A WITH N1VSD2006 / G2FD061S24 - HIGH CFM 2-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1540 1860 2075
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 65.80 61.90 55.01 55.01 53.57 65.60 63.40 57.21 57.21 56.10 65.40 64.90 59.41 59.41 58.62 S.C. 32.90 42.32 49.80 40.94 51.43 33.42 44.11 51.70 42.35 55.02 33.94 45.90 53.60 43.76 58.62
K.W. 4.53 4.43 4.30 4.30 4.20 4.76 4.66 4.50 4.50 4.43 4.99 4.89 4.69 4.69 4.65
85 T.C. 62.52 58.95 52.76 52.76 51.36 62.48 60.20 54.76 54.76 53.68 62.44 61.45 56.75 56.75 56.00 S.C. 31.56 41.12 48.61 39.75 49.31 32.21 43.00 50.40 41.02 52.66 32.86 44.88 52.18 42.28 56.00
K.W. 4.95 4.77 4.58 4.58 4.49 5.15 4.99 4.78 4.78 4.72 5.35 5.21 4.99 4.99 4.94
95 T.C. 59.25 56.00 50.51 50.51 49.15 59.36 57.00 52.31 52.31 51.27 59.48 58.00 54.10 54.10 53.39 S.C. 30.22 39.93 47.42 38.57 47.19 31.01 41.50 49.09 39.69 50.29 31.79 43.87 50.76 40.81 53.39
K.W. 5.30 5.10 4.85 4.85 4.78 5.51 5.38 5.07 5.07 5.00 5.72 5.52 5.28 5.28 5.22
105 T.C. 55.97 53.05 48.27 48.27 46.94 56.25 53.80 49.85 49.85 48.86 56.52 54.55 51.44 51.44 50.77 S.C. 28.89 38.73 46.23 37.38 44.68 29.80 40.79 47.79 38.35 47.73 30.71 42.85 49.34 39.33 50.77
K.W. 5.66 5.44 5.13 5.13 5.07 5.87 5.64 5.35 5.35 5.30 6.09 5.84 5.58 5.58 5.53
115 T.C. 52.79 50.19 46.09 46.09 44.80 53.22 50.70 47.47 47.47 46.52 53.64 51.21 48.86 48.86 48.23 S.C. 27.59 37.57 45.08 36.22 42.43 28.63 39.72 46.52 37.06 45.33 29.67 41.86 47.96 37.90 48.23
K.W. 6.06 5.76 5.40 5.40 5.35 6.25 5.96 5.63 5.63 5.58 6.44 6.15 5.86 5.86 5.81
125 T.C. 49.61 47.33 43.91 43.91 42.66 50.19 47.59 45.10 45.10 44.17 50.77 47.86 46.28 46.28 45.69 S.C. 26.29 36.41 43.93 35.07 40.19 27.46 38.64 45.25 35.77 42.94 28.63 40.87 46.58 36.46 45.69
K.W. 6.43 6.09 5.66 5.66 5.64 6.62 6.27 5.91 5.91 5.86 6.80 6.46 6.15 6.15 6.08
E4TS060S06A WITH N1VSD2006 / G2FD061S24 - LOW CFM 1-CYLINDER OPERATION
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1000 1200 1350
ID DB (°F) 80 80 80 75 80 80 80 80 75 80 80 80 80 75 80
ID WB (°F) 72 67 62 62 57 72 67 62 62 57 72 67 62 62 57
75 T.C. 32.55 29.26 27.63 27.63 24.63 34.33 31.48 29.47 29.47 26.89 36.12 33.70 31.31 31.31 29.15 S.C. 17.01 21.12 25.18 18.13 23.65 18.49 23.34 28.06 20.26 26.40 19.97 25.56 30.93 22.39 29.15
K.W. 1.63 1.64 1.61 1.61 1.61 1.73 1.72 1.71 1.71 1.69 1.82 1.81 1.81 1.81 1.77
85 T.C. 30.74 27.96 26.21 26.21 24.10 32.75 29.94 28.06 28.06 26.05 34.76 31.92 29.90 29.90 28.00 S.C. 16.16 20.52 24.82 17.77 23.14 17.81 23.01 26.70 18.87 25.57 19.47 25.50 28.59 19.98 28.00
K.W. 1.85 1.83 1.81 1.81 1.79 1.95 1.93 1.91 1.91 1.89 2.05 2.03 2.02 2.02 1.98
95 T.C. 28.93 26.66 24.80 24.80 23.57 31.16 29.00 26.65 26.65 25.21 33.39 30.13 28.49 28.49 26.85 S.C. 15.31 19.92 24.45 17.40 22.63 17.14 24.00 25.35 17.48 24.74 18.96 25.44 26.25 17.56 26.85
K.W. 2.07 2.03 2.00 2.00 1.98 2.18 2.16 2.12 2.12 2.09 2.28 2.25 2.23 2.23 2.19
Air Handler Coil T.C. S.C. KW
N1VSD20 G1FD060S24 0.97 0.98 0.99
F(2,3)FV060 0.97 0.98 0.99
Variable Speed
Furnace Coil T.C. S.C. KW
P1XDD20V G2FD060S24 0.96 0.95 1.02
P1XDD20V G2FD061H24 0.98 0.96 1.02
P1XUD20V G1UA060S24 0.97 0.96 1.01
P1XUD20V G1FA060S24 0.97 0.96 1.01
P1XUD20V G2FD060S24 0.97 0.96 1.01
P1XUD20V G2FD061H24 0.99 0.98 1.01
Air Handler Coil T.C. S.C. KW
N1VSD20 G1FD060S24 0.96 0.98 0.98
F(2,3)FV060 0.96 0.98 0.98
Variable Speed
Furnace Coil T.C. S.C. KW
P1XDD20V G2FD060S24 0.93 0.85 0.99
P1XDD20V G2FD061H24 0.97 0.87 1.01
P1XUD20V G1UA060S24 0.93 0.85 1.00
P1XUD20V G1FA060S24 0.93 0.85 1.00
P1XUD20V G2FD060S24 0.93 0.85 1.00
P1XUD20V G2FD061H24 0.97 0.87 1.01

036-21342-002 Rev. E (0505)
18 Unitary Products Group
For notes see Page 11.
Multipliers for determining the performance with other indoor sections.
2-CYLINDER OPERATION 1-CYLINDER OPERATION
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HEATING PERFORMANCE DATA
E4TS030S06A WITH N1VSC1606 / G2FD048S21 - HIGH CFM 2-CYLINDER OPERATION
ID CFM 980 1065 1210
OD DB ID DB (°F) MBTUH1,2 KW MBTUH1,2 KW MBTUH1,2 KW
60 60 35.86 2.17 36.10 2.19 36.34 2.20 70 33.48 2.30 33.93 2.31 34.39 2.32
80 31.09 2.43 31.77 2.44 32.44 2.45
47 60 28.88 2.04 29.01 2.07 29.14 2.09 70 26.78 2.14 27.00 2.17 27.22 2.19
80 24.68 2.24 24.99 2.26 25.29 2.29
35 60 22.40 1.90 22.79 1.92 23.17 1.94 70 20.57 1.98 20.94 2.00 21.31 2.02
80 18.73 2.05 19.10 2.08 19.46 2.10
17 60 16.95 1.71 17.09 1.74 17.22 1.78 70 15.20 1.77 15.40 1.84 15.60 1.83
80 13.46 1.83 13.71 1.94 13.97 1.88
760 12.23 1.50 12.34 1.52 12.45 1.54 70 11.24 1.57 11.39 1.60 11.53 1.61
80 10.24 1.64 10.43 1.68 10.62 1.68
-3 60 7.92 1.37 7.99 1.39 8.06 1.41 70 7.28 1.43 7.37 1.46 7.47 1.47
80 6.63 1.49 6.75 1.53 6.87 1.53
E4TS030S06A WITH N1VSC1606 / G2FD048S21 - LOW CFM 1-CYLINDER OPERATION
ID CFM 650 720 770
OD DB ID DB (°F) MBTUH1,2 KW MBTUH1,2 KW MBTUH1,2 KW
60 60 20.36 1.08 20.52 1.09 20.67 1.09 70 18.50 1.16 18.66 1.17 18.81 1.17
80 16.64 1.24 16.79 1.25 16.95 1.25
47 60 16.02 1.05 16.15 1.06 16.28 1.08 70 14.90 1.12 15.00 1.13 15.10 1.14
80 13.77 1.19 13.85 1.20 13.93 1.20
35 60 12.60 1.02 12.71 1.04 12.82 1.07 70 12.00 1.08 12.07 1.10 12.13 1.12
80 11.40 1.13 11.42 1.15 11.45 1.16
Air Handler Coil HIGH CFM LOW CFM
MBTUH KW MBTUH KW
N1VSB12 G2FD046S17 0.98 0.99 0.91 0.96
N1VSC16 G2FD042S21 0.96 0.98 0.90 0.95
Variable Speed
Furnace Coil MBTUH KW MBTUH KW
P1XDB12V G2FD046S17 0.97 1.00 0.89 0.94
P1XUB12V G2FD046S17 0.96 1.00 0.88 0.95
P1XUB12V G1UA048S17 0.96 1.00 0.88 0.95
P1XUB12V G1FA048S17 0.96 1.00 0.88 0.95
P1DUB16V G2FD046S17 0.98 1.00 0.90 0.95
P1DUB16V G1UA048S17 0.98 1.00 0.90 0.95
P1DUB16V G1FA048S17 0.98 1.00 0.90 0.95
P1DUC16V G2FD042S21 1.00 1.00 0.92 0.95
P1DUC16V G1UA048S21 1.01 1.01 0.93 0.96
P1DUC16V GFA048S21 1.01 1.01 0.93 0.96
P1DUC16V G2FD048S21 1.02 1.02 0.94 0.97
Air Handler Coil LOW CFM
MBTUH KW
N1VSB12 G2FD046S17 0.89 0.91
N1VSC16 G2FD042S21 0.88 0.90
Variable Speed
Furnace Coil MBTUH KW
P1XDB12V G2FD046S17 0.85 0.93
P1XUB12V G2FD046S17 0.85 0.93
P1XUB12V G1UA048S17 0.85 0.93
P1XUB12V G1FA048S17 0.85 0.93
P1DUB16V G2FD046S17 0.83 0.91
P1DUB16V G1UA048S17 0.83 0.91
P1DUB16V G1FA048S17 0.83 0.91
P1DUC16V G2FD042S21 0.87 0.91
P1DUC16V G1UA048S21 0.88 0.92
P1DUC16V GFA048S21 0.88 0.92
P1DUC16V G2FD048S21 0.89 0.92

036-21342-002 Rev. E (0505)
Unitary Products Group 19
For notes see Page 11.
Multipliers for determining the performance with other indoor sections.
2-CYLINDER OPERATION
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HEATING PERFORMANCE DATA
E4TS036S06A WITH N1VSC1606 / G2FD048S21 - HIGH CFM 2-CYLINDER OPERATION
ID CFM 1000 1185 1350
OD DB ID DB (°F) MBTUH1,2 KW MBTUH1,2 KW MBTUH1,2 KW
60 60 42.57 2.80 43.13 2.81 43.69 2.82 70 40.33 2.98 40.99 2.99 41.65 3.00
80 38.08 3.17 38.85 3.17 39.61 3.18
47 60 38.00 2.63 38.09 2.64 38.18 2.66 70 35.19 2.77 35.60 2.79 36.01 2.81
80 32.38 2.91 33.11 2.94 33.83 2.96
35 60 30.23 2.37 30.03 2.40 29.82 2.44 70 27.59 2.48 27.79 2.52 27.99 2.57
80 24.96 2.59 25.56 2.64 26.16 2.69
17 60 22.29 2.14 22.47 2.20 22.64 2.25 70 20.61 2.22 21.20 2.27 21.79 2.32
80 18.93 2.29 19.93 2.34 20.94 2.39
760 17.34 1.92 17.41 1.95 17.48 1.97 70 16.08 2.02 16.34 2.05 16.60 2.07
80 14.83 2.12 15.27 2.14 15.71 2.17
-3 60 12.18 1.76 12.23 1.79 12.28 1.81 70 11.30 1.85 11.48 1.88 11.66 1.90
80 10.42 1.94 10.73 1.97 11.04 1.99
Air Handler Coil HIGH CFM LOW CFM
MBTUH KW MBTUH KW
N1VSB12 G2FD046S17 0.98 1.04 0.89 0.94
Variable Speed
Furnace Coil MBTUH KW MBTUH KW
P1XDB12V G2FD046S17 0.97 1.03 0.87 0.96
P1XUB12V G2FD046S17 0.97 1.02 0.87 0.95
P1XUB12V G1UA048S17 0.98 1.03 0.88 0.95
P1XUB12V G1FA048S17 0.98 1.03 0.88 0.95
P1DUB16V G2FD046S17 0.97 1.02 0.87 0.95
P1DUB16V G1UA048S17 0.98 1.03 0.88 0.95
P1DUB16V G1FA048S17 0.98 1.03 0.88 0.95
P1DUC16V G1UA048S21 0.99 1.02 0.89 0.95
P1DUC16V G1FA048S21 0.99 1.02 0.89 0.95
P1DUC16V G2FD048S21 1.00 1.02 0.90 0.95
P1DUC16V G1UA060S21 1.01 1.01 0.91 0.94
P1DUC16V G1FA060S21 1.01 1.01 0.91 0.94
Variable Speed
Furnace Coil HIGH CFM LOW CFM
MBTUH KW MBTUH KW
P1DUC20V G1UA048S21 0.99 1.03 0.89 0.95
P1DUC20V G1FA048S21 0.99 1.03 0.89 0.95
P1DUC20V G2FD048S21 1.00 1.02 0.90 0.95
P1DUC20V G1UA060S21 1.02 1.02 0.92 0.95
P1DUC20V G1FA060S21 1.02 1.02 0.92 0.95
P1XUC20V G1UA048S21 0.99 1.03 0.89 0.96
P1XUC20V G1FA048S21 0.99 1.03 0.89 0.96
P1XUC20V G2FD048S21 1.00 1.03 0.90 0.95
P1XUC20V G1UA060S21 1.02 1.03 0.92 0.96
P1XUC20V G1FA060S21 1.02 1.03 0.92 0.96
P1XDD20V G2FD048S24 1.00 0.98 0.90 0.91
P1XUD20V G1UA048S24 1.02 1.00 0.92 0.93
P1XUD20V G1FA048S24 1.02 1.00 0.92 0.93
P1XUD20V G2FD048S24 1.02 1.00 0.92 0.93
P1XUD20V G1UA060S24 1.04 1.00 0.94 0.93
P1XUD20V G1FA060S24 1.04 1.00 0.94 0.93

036-21342-002 Rev. E (0505)
20 Unitary Products Group
For notes see Page 11.
Multipliers for determining the performance with other indoor sections.
1-CYLINDER OPERATION
NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.
HEATING PERFORMANCE DATA
E4TS036S06A WITH N1VSC1606 / G2FD048S21 - LOW CFM 1-CYLINDER OPERATION
ID CFM 670 770 860
OD DB ID DB (°F) MBTUH1,2 KW MBTUH1,2 KW MBTUH1,2 KW
60 60 24.27 1.49 24.88 1.50 25.48 1.51 70 22.72 1.59 23.42 1.61 24.13 1.62
80 21.16 1.70 21.96 1.71 22.77 1.73
47 60 21.43 1.42 21.73 1.43 22.04 1.44 70 19.73 1.51 20.00 1.52 20.42 1.53
80 18.03 1.59 18.42 1.61 18.81 1.62
35 60 18.92 1.36 18.99 1.36 19.06 1.37 70 17.14 1.42 17.22 1.44 17.30 1.45
80 15.35 1.49 15.45 1.51 15.54 1.52
Air Handler Coil LOW CFM
MBTUH KW
N1VSB12 G2FD046S17 0.98 1.00
Variable Speed
Furnace Coil MBTUH KW
P1XDB12V G2FD046S17 0.87 0.94
P1XUB12V G2FD046S17 0.86 0.94
P1XUB12V G1UA048S17 0.87 0.94
P1XUB12V G1FA048S17 0.87 0.94
P1DUB16V G2FD046S17 0.85 0.93
P1DUB16V G1UA048S17 0.86 0.93
P1DUB16V G1FA048S17 0.86 0.93
P1DUC16V G1UA048S21 0.85 0.93
P1DUC16V G1FA048S21 0.85 0.93
P1DUC16V G2FD048S21 0.86 0.93
P1DUC16V G1UA060S21 0.88 0.94
P1DUC16V G1FA060S21 0.88 0.94
Variable Speed
Furnace Coil LOW CFM
MBTUH KW
P1DUC20V G1UA048S21 0.85 0.93
P1DUC20V G1FA048S21 0.85 0.93
P1DUC20V G2FD048S21 0.86 0.93
P1DUC20V G1UA060S21 0.88 0.94
P1DUC20V G1FA060S21 0.88 0.94
P1XUC20V G1UA048S21 0.83 0.92
P1XUC20V G1FA048S21 0.83 0.92
P1XUC20V G2FD048S21 0.84 0.92
P1XUC20V G1UA060S21 0.86 0.93
P1XUC20V G1FA060S21 0.86 0.93
P1XDD20V G2FD048S24 0.90 0.98
P1XUD20V G1UA048S24 0.90 0.99
P1XUD20V G1FA048S24 0.90 0.99
P1XUD20V G2FD048S24 0.91 0.99
P1XUD20V G1UA060S24 0.94 1.00
P1XUD20V G1FA060S24 0.94 1.00
