York SPLIT-SYSTEM YHJD18 THRU 60 Quick start guide

TECHNICAL GUIDE
SPLIT-SYSTEM
HEAT PUMPS
13 SEER – R-410A
MODELS:
YHJD18 THRU 60
(1.5 THRU 5 NOMINAL TONS - 1 PHASE)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com
Additional rating information can be found at
www.ahridirectory.org
LISTED
ISO 9001
Certified Quality
Management System
397855-YTG-F-0409
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The heat pump condensing unit is the outdoor part of a versatile
system of heating and air conditioning. It is designed to be cus-
tom-matched with one of UPG’s complete line of evaporator
sections, with each serving a specific function. Matching Air
Handlers are available for upflow, downflow, or horizontal appli-
cations to provide a complete system. Electric Heaters are
available, if required. Add-on coils are available for use with
upflow, downflow, or horizontal furnaces and air handlers.
WARRANTY
Single Phase Units:
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
•QUALITY CONDENSER COILS - The coil is constructed of
copper tubing and enhanced aluminum fins for increased
efficiency and corrosion protection.
•PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure, temperature, and
externally by a factory installed high pressure switch. This is
accomplished by the simultaneous operation of high pres-
sure relief valve and a temperature sensor which protects the
compressor if undesirable operating conditions occur. A liq-
uid line filter-drier further protects the compressor.
•DURABLE FINISH - The cabinet is made of pre-painted
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
•LOWER INSTALLED COST - Installation time and costs are
reduced by easy power and control wiring connections.
Available in sweat connect models only. The unit contains
enough refrigerant for matching indoor coils and 15 feet of
interconnecting piping. The small base dimension means
less space is required on the ground or roof.
•TOP DISCHARGE - The warm air from the top mounted fan
is blown up away from the structure and any landscaping.
This allows compact location on multi-unit applications.
•LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise away from the living area.
The rigid top panel effectively isolates any motor sound. Iso-
lator mounted compressor and the rippled fins of the con-
denser coil muffle the normal fan motor and compressor
operating sounds.
•LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
•EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, and a single panel covering the electrical controls
make for easy servicing of the unit.
•SECURED SERVICE VALVES - Secured re-usable service
valves are provided on both the liquid and vapor sweat con-
nections for ease of evacuating and charging.
•U.L. and C.U.L. listed - approved for outdoor application.
•Agency Listed -U.L. and C.U.L. listed - approved for out-
door application. The unit is certified in accordance with the
Unitary Small Equipment certification program, which is
based on ARI Standard 210/240.

397855-YTG-F-0409
2Johnson Controls Unitary Products
All dimensions are in inches. They are subject to change with-
out notice. Certified dimensions will be provided upon request.

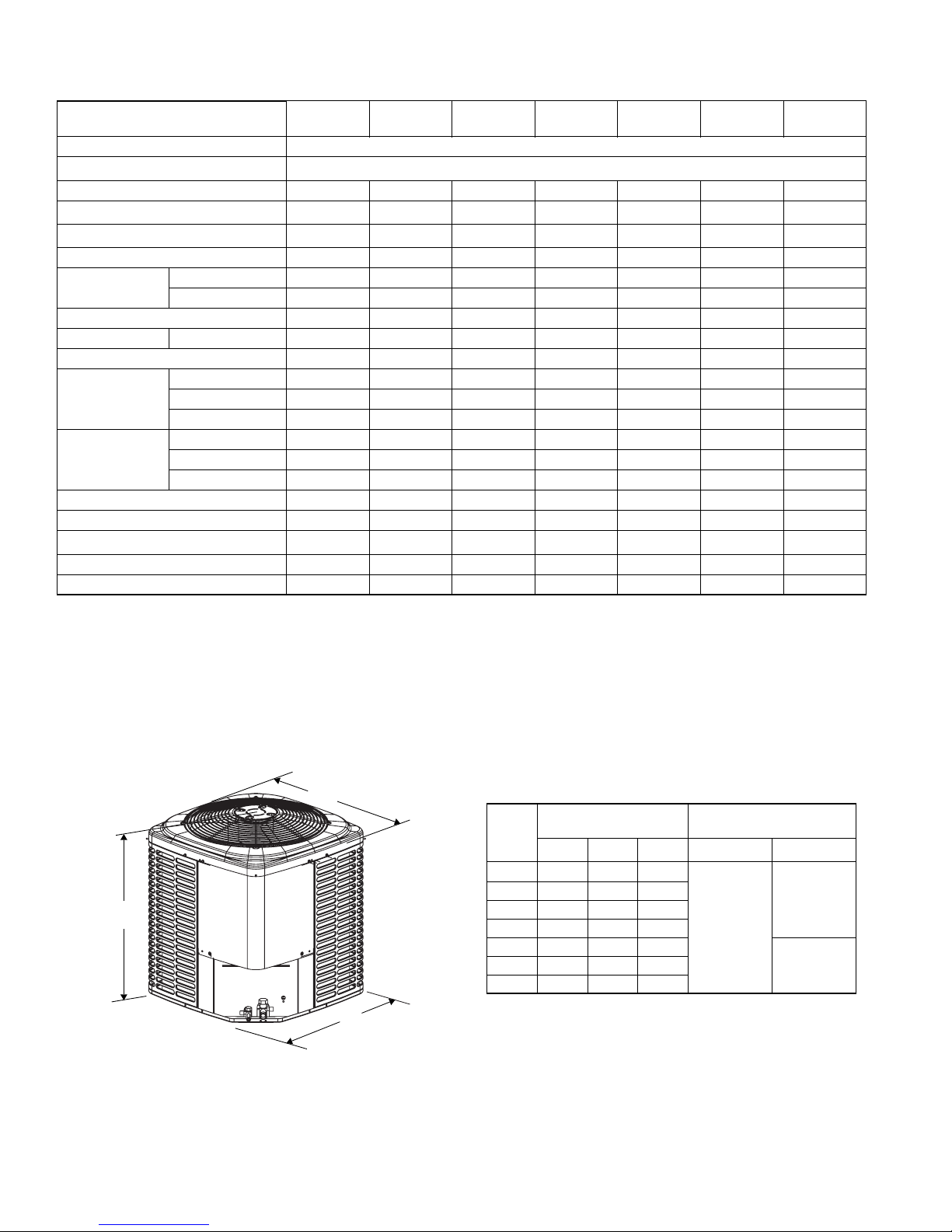

Physical and Electrical Data
MODEL YHJD18
S41S1 YHJD24 S41S1 YHJD30 S41S1 YHJD36 S41S1 YHJD42 S41S1 YHJD48 S41S1 YHJD60 S41S2
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 9.6 12.0 15.4 19.6 28.6 30.9 37.4
Max. Overcurrent Device Amps 215 20 25 30 50 50 60
Min. Overcurrent Device Amps 315 15 20 20 30 35 40
Compressor Type Recip Recip Recip Recip Scroll Scroll Scroll
Compressor Amps Rated Load 7.12 8.9 11.65 14.72 21.76 23.61 28.8
Locked Rotor 47.0 48.0 60.0 83.0 105.0 150.0 150.0
Crankcase Heater Yes Yes Yes Yes No No No
Fan Motor Amps Rated Load 0.70 0.80 0.80 1.5 1.5 1.5 1.5
Fan Diameter Inches 24 24 24 24 24 24 24
Fan Motor Rated HP 1/10 1/8 1/8 1/4 1/4 1/4 1/4 Nominal RPM 825 1075 1075 850 850 850 850
Nominal CFM 2200 2900 3100 3800 3800 3600 3600
Coil Face Area Sq. Ft. 15.7 18.3 21.0 23.58 23.58 23.58 23.6 Rows Deep 1 1 1 1 1 2 2
Fin / Inches 22 22 22 22 22 18 18
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.) 46 - 5 8 - 7 9 - 12 9 - 15 9 - 12 13 - 9 13 - 6
Charge Per Foot, Oz. .62 .62 .62 .62 .67 .67 0.67
Operating Weight Lbs. 172 184 196 208 208 275 290
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add
or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
B
C
A
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A1
1. Including Fan Guard.
B C Liquid Vapor
18 28 34 34
3/8”
3/4”
24 32 34 34
30 36 34 34
36 40 34 34
42 40 34 34 7/8”48 40 34 34
60 40 34 34

Johnson Controls Unitary Products 3
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of interconnecting
line tubing.
2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.
3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For TXV matches requiring additional charge, the refrigerant needs to be weighed in for specific coil match and lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evaporator +
adder for line set.
System Charge for Various Matched Systems
Outdoor Unit YHJD18
S41S1 YHJD24 S41S1 YHJD30 S41S1 YHJD36 S41S1 YHJD42 S41S1 YHJD48 S41S1 YHJD60 S41S2
Required Orifice or TXV 11TVM04E1 1TVM04G1 1TVM04G1 1TVM04H1 1TVM04H1 1TVM04J1 1TVM04K1
Factory Charge, lbs-oz 6 - 5 8 - 7 9 - 12 9 - 15 9 - 12 13 - 9 13 - 6
Indoor Coil2,3 Additional Charge, Oz
FC/MC/PC/UC18AB 0––––––
FC/MC/PC/UC24AB 4––––––
FC/MC/PC30AB 4––––––
FC/MC/PC32A –0–––––
FC/MC/PC35BC –0–––––
FC/MC/PC37A –600–––
FC/MC/PC43BC –600–––
FC/MC/PC/UC48CD – – – 10 0 – –
FC/MC/PC/UC60CD ––––00–
FC/MC62D –––––120
HC18A 1––––––
HC30A 100–––––
HC36B –0–––––
HC42 ––00–––
HC60 ––––00–
HD24 14––––––
HD36 –2–––––
HD48 ––88–––
HD60 ––––07–
AHP18 0––––––
AHP30 –0–––––
AHP36 ––00–––
AHP/SHP48 ––––00–
AHP/SHP60 –––––0–
AHX30 –0–––––
AHX36 –600–––
AHX42 ––––0––
AHX48 ––––00–
AHX60 ––––––0
AV*24 3––––––
AV*36 –600–––
AV/SV*48 ––––00–
AV/SV*60 –––––0–
F4FP24 0––––––
F4FP45 –––00––
F5FP48 ––––00–
F4FV60 –––––0–
F5FP60 –––––0–
F6FP030 –+0–––––
F6FP036 –+0+0––––
F6FP042 – – – + 10 + 0 – –
F6FP048 ––––+0+0–
F6FP060 ––––––0
FOOTNOTES:
1. For applications requiring a TXV use 1TVM series kit.
2. Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.
3. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.

397855-YTG-F-0409
4Johnson Controls Unitary Products
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL W RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER HP WITH MA
YHJD18S41S1 MA08B 17 FC/MC/PC18B 600 17.0 12.6 13.00 11.00
MA08B 17 FC/MC/PC24B 600 17.0 12.9 13.50 11.00
YHJD24S41S1 MA08B 17 FC/MC/PC35B 800 23.0 17.5 13.00 11.00
YHJD30S41S1 MA12B 17 FC/MC/PC43B 1000 29.0 23.4 13.00 11.00
YHJD36S41S1 MA12B 17 FC/MC/PC43B 1200 35.0 26.8 13.00 11.00
MA14D 24 FC/MC/PC48D 1200 35.0 27.0 13.00 11.00
YHJD42S41S1
MA14D 24 FC/MC/PC48D 1400 41.5 31.4 13.00 11.00
MA16C 21 FC/MC/PC48C 1400 41.5 31.4 13.00 11.00
MA14D 24 FC/MC/PC60D 1400 41.0 31.2 13.00 11.00
MA16C 21 FC/MC/PC60C 1400 41.0 31.2 13.00 11.00
YHJD48S41S1 MA16C 21 FC/MC/PC60C 1600 47.0 35.6 13.00 11.00 MA20D 24 FC/MC/PC60D 1600 47.0 35.6 13.00 11.00
MA20D 24 MC62D 1600 47.0 35.6 13.00 11.00
YHJD60S41S1 MA20D 24 MC62D 1800 54.0 42.5 13.00 11.00
13 SEER HP WITH MV - VARIABLE SPEED
YHJD18S41S1 MV12B 17 FC/MC/PC18B 600 17.0 12.9 14.00 12.00
MV12B 17 FC/MC/PC24B 600 17.0 13.2 14.00 12.00
YHJD24S41S1 MV12B 17 FC/MC/PC35B 800 23.0 17.9 14.00 12.00
MV16C 21 FC/MC/PC35C 800 23.0 17.9 14.00 12.00
YHJD30S41S1 MV16C 21 FC/MC/PC35C 1000 29.0 23.6 14.00 12.00 MV12B 17 FC/MC/PC43B 1000 29.0 23.8 14.00 12.00
MV16C 21 FC/MC/PC43C 1000 29.0 24.0 14.00 12.00
YHJD36S41S1
MV12B 17 FC/MC/PC43B 1200 35.0 27.0 13.50 11.50
MV16C 21 FC/MC/PC43C 1200 35.0 27.2 13.50 11.50
MV12D 24 FC/MC/PC48D 1150 35.0 26.8 13.50 11.50
MV16C 21 FC/MC/PC48C 1200 35.0 27.4 13.50 11.50
MV20D 24 FC/MC/PC48D 1200 35.0 27.4 13.50 11.50
YHJD42S41S1 MV16C 21 FC/MC/PC48C 1400 42.0 31.8 14.00 12.00 MV20D 24 FC/MC/PC48D 1400 42.0 32.0 14.00 12.00
MV20D 24 FC/MC/PC60D 1400 41.5 31.8 14.00 12.00
YHJD48S41S1 MV20D 24 FC/MC/PC60D 1600 47.5 36.0 14.00 11.80
MV20D 24 MC62D 1600 47.5 36.0 14.00 12.00
YHJD60S41S1 MV20D 24 MC62D 1800 54.5 43.0 13.50 11.60
13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED
YHJD18S41S1 AV*24 17 – 550 17.0 13.0 14.00 12.00
YHJD24S41S1 AV*36 21 – 750 23.0 18.0 14.00 12.00
YHJD30S41S1 AV*36 21 – 1000 29.0 24.4 14.00 12.00
YHJD36S41S1 AV*36 21 – 1250 35.0 28.0 13.50 11.50
YHJD42S41S1 AV/SV*48 24 – 1400 41.5 32.0 14.00 12.00
YHJD48S41S1 AV/SV*48 24 – 1600 47.5 36.2 14.00 11.80 AV/SV*60 24 – 1650 47.5 36.6 14.00 11.80
F4FV060 24 – 1600 47.5 36.2 14.00 11.80
13 SEER HP WITH AHP / SHP / AHX / F*FP
YHJD18S41S1 AHP18 17 – 600 17.0 12.7 13.00 11.00
F4FP024 17 – 600 17.0 12.6 13.00 11.00
YHJD24S41S1
AHP30 17 – 800 23.0 17.2 13.00 11.00
AHX30 17 – 820 24.0 18.5 14.50 12.50
AHX36 21 – 815 24.0 18.9 14.50 12.50
F6FP030 17 – 850 24.0 18.5 14.25 12.00
F6FP036 21 – 855 24.0 18.6 14.50 12.20
For Notes See Page 5.

Johnson Controls Unitary Products 5
— = Not applicable.
YHJD30S41S1 AHP36 21 – 1000 29.0 23.2 13.00 11.00 AHX36 21 – 1005 29.6 24.6 14.30 12.00
F6FP036 21 – 980 29.0 23.4 14.00 12.00
YHJD36S41S1
AHP36 21 – 1200 35.0 26.8 13.00 11.00
AHX36 21 – 1225 35.0 28.4 14.00 12.00
F4FP045 24 – 1200 35.0 26.8 13.00 11.00
F6FP042 21 – 1405 35.0 31.2 14.00 12.00
YHJD42S41S1
AHP/SHP48 21 – 1400 41.5 31.4 13.00 11.00
AHX42 21 – 1395 41.5 32.0 14.25 12.00
AHX48 24 – 1445 41.5 32.8 14.25 12.00
F4FP045 24 – 1400 41.0 31.2 13.00 11.00
F5FP048 24 – 1450 41.0 32.6 13.00 11.00
F6FP042 21 – 1455 41.5 32.6 14.25 12.00
F6FP048 24 – 1380 41.5 32.4 14.00 11.50
YHJD48S41S1
AHP/SHP60 24 – 1600 47.0 36.0 14.00 11.50
AHX48 24 – 1660 48.0 36.4 14.50 12.00
F5FP048 24 – 1700 47.5 36.6 14.00 11.50
F5FP060 24 – 1700 47.5 36.8 14.00 11.50
F6FP048 24 – 1625 48.0 36.4 14.25 12.00
YHJD60S41S1 AHX60 24 – 1680 54.5 42.0 13.50 11.50
F6FP060 24 – 1710 56.5 42.0 13.50 11.50
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.
Cooling MBH based on 8°F entering air temperature, 50% RH, and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL W RATED
CFM NET MBH SEER EER
TOTAL SENS.

397855-YTG-F-0409
6Johnson Controls Unitary Products
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils
UNIT MODEL
FURNACE** COIL
MODEL
COOLING
CFM RANGE
(Min.-max.) WRATED CFM NET MBH SEER1EER
TOTAL SENS.
YHJD18S41S1
450 - 750 14,17 FC/MC/PC18 600 17.0 12.6 13.00 11.00
450 - 750 14,17 FC/MC/PC24 600 17.0 12.9 13.50 11.00
450 - 750 14 HC18 600 17.0 12.6 13.00 11.00
450 - 750 14 HC30 600 17.0 12.8 13.00 11.00
450 - 750 14 HD24 600 17.0 13.0 13.50 11.00
YHJD24S41S1
600 - 1000 14 FC/MC/PC32 800 23.0 17.5 13.00 11.00
600 - 1000 17,21 FC/MC/PC35 800 23.0 17.5 13.00 11.00
600 - 1000 14 HC30 800 23.0 17.2 13.00 11.00
600 - 1000 17 HC36 800 23.0 17.5 13.00 11.00
600 - 1000 14,17 HD36 800 23.0 16.4 13.00 11.00
YHJD30S41S1
800 - 1200 14 FC/MC/PC37 1000 29.0 23.4 13.00 11.00
800 - 1200 17,21 FC/MC/PC43 1000 29.0 23.4 13.00 11.00
800 - 1200 21 HC42 1000 29.0 23.4 13.00 11.00
800 - 1200 21,24 HD48 1000 29.0 23.4 13.00 11.00
YHJD36S41S1
1000 - 1400 14 FC/MC/PC37 1200 35.0 26.6 13.00 11.00
1000 - 1400 17,21 FC/MC/PC43 1200 35.0 26.8 13.00 11.00
1000 - 1400 21,24 FC/MC/PC48 1200 35.0 27.0 13.00 11.00
1000 - 1400 21 HC42 1200 35.0 26.8 13.00 11.00
1000 - 1400 21,24 HD48 1200 35.0 26.8 13.00 11.00
YHJD42S41S1
1200 - 1600 21,24 FC/MC/PC48 1400 41.5 31.4 13.00 11.00
1200 - 1600 21,24 FC/MC/PC60 1400 41.0 31.2 13.00 11.00
1200 - 1600 21 HC42 1400 41.0 31.2 13.00 11.00
1200 - 1600 24 HC60 1400 41.0 31.2 13.00 11.00
1200 - 1600 21,24 HD60 1400 41.5 31.4 13.00 11.00
YHJD48S41S1 1400 - 1800 24 HC60 1600 47.0 35.6 13.00 11.00 1400 - 1800 21,24 HD60 1600 47.0 35.4 13.00 11.00
1400 - 1800 21,24 MC62 1600 47.0 35.6 13.00 11.00
YHJD60S41S1 1600 - 2000 21,24 MC62 1800 54.0 42.5 13.00 11.00
1. Requires a 2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
** Refer to Quick Selection Chart for specific furnace match-up.

Johnson Controls Unitary Products 7
COOLING CAPACITY - With High Efficiency Motor Furnaces
UNIT
MODEL FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2
YHJD18S41S1
Y*(8,L)C*A12 FC/MC/PC18A 14 620 17.6 12.3 14.50 12.30
Y*(8,L)C*B12 FC/MC/PC18B 17 580 17.4 11.9 14.40 12.20
Y*9C*B12 FC/MC/PC18B 17 610 17.6 12.2 14.60 12.40
Y*(8,L)C*A12 FC/MC/PC24A 14 640 18.0 12.7 14.80 12.50
Y*(8,L)C*B12 FC/MC/PC24B 17 575 17.8 12.2 14.90 12.60
Y*9C*B12 FC/MC/PC24B 17 610 18.0 12.7 14.90 12.60
Y*(8,L)C*A12 FC/MC/PC30A 14 640 18.0 12.7 14.80 12.50
Y*(8,L)C*B12 FC/MC/PC30B 17 575 17.8 12.2 14.90 12.60
Y*9C*B12 FC/MC/PC30B 17 610 18.0 12.7 14.90 12.60
Y*(8,L)C*A12 HC18 14 620 17.6 12.3 14.50 12.30
Y*(8,L)C*A12 HC30 14 590 17.6 12.2 14.40 12.20
Y*(8,L)C*A12 HD24 14 640 18.0 12.6 14.90 12.60
Y*(8,L)C*B12 HD24 17 575 17.9 12.2 14.90 12.60
Y*9C*B12 HD24 17 610 18.0 12.6 15.00 12.70
Y*(8,L)C*A12 UC18A 14 620 17.6 12.4 14.60 12.30
Y*(8,L)C*B12 UC18B 17 580 17.5 12.0 14.60 12.30
Y*9C*B12 UC18B 17 610 17.7 12.3 14.80 12.40
Y*(8,L)C*A12 UC24A 14 640 18.0 12.8 14.80 12.50
Y*(8,L)C*B12 UC24B 17 575 17.8 12.3 14.90 12.60
Y*9C*B12 UC24B 17 610 18.0 12.8 14.90 12.60
Y*(8,L)C*A12 UC30A 14 640 18.0 12.8 14.80 12.50
Y*(8,L)C*B12 UC30B 17 575 17.8 12.3 15.00 12.60
Y*9C*B12 UC30B 17 610 18.0 12.8 15.00 12.60
YHJD24S41S1
T*9X*B12 FC/MC/PC35B 17 785 23.4 17.0 14.10 12.25
T*(8,L)X*A12 FC/MC/PC37A 14 840 24.2 17.9 14.30 12.60
T*(8,L)X*B12 FC/MC/PC43B 17 865 24.4 18.2 14.50 12.70
T*9X*B12 FC/MC/PC43B 17 800 24.0 17.5 14.40 12.50
T*(8,L)X*B12 FC/MC/PC35B 17 850 23.8 17.7 14.40 12.45
T*9X*C16 FC/MC/PC35C 21 715 23.2 16.3 14.60 12.20
T*(8,L)X*A12 FC/MC/PC32A 14 800 23.6 17.1 14.10 12.50
Y*(8,L)C*A12 FC/MC/PC32A 14 775 23.4 16.2 14.10 12.50
Y*(8,L)C*B12 FC/MC/PC35B 17 760 23.4 16.3 14.40 12.80
Y*9C*B12 FC/MC/PC35B 17 815 23.6 16.6 14.10 12.60
Y*(8,L)C*A12 FC/MC/PC37A 14 805 23.8 16.8 14.30 12.70
Y*(8,L)C*B12 FC/MC/PC43B 17 760 23.6 16.4 14.50 12.90
Y*9C*B12 FC/MC/PC43B 17 800 23.8 16.7 14.40 12.80
Y*(8,L)C*B12 HC36 17 760 23.4 16.1 14.30 12.70
Y*9C*B12 HC36 17 815 23.6 16.6 14.20 12.60
Y*(8,L)C*A12 HD36 14 805 23.0 16.0 14.00 12.40
Y*(8,L)C*B12 HD36 17 760 23.0 15.5 13.90 12.50
Y*(8,L)C*C16 HD36 21 855 23.6 16.4 14.40 12.90
Y*(8,L)C*C20 HD36 21 750 23.0 15.5 14.30 12.80
Y*9C*B12 HD36 17 815 23.0 16.0 14.10 12.50
Y*9C*C16 HD36 21 785 23.2 16.0 14.30 12.70
Y*9C*C20 HD36 21 760 23.0 15.5 14.20 12.60
YHJD30S41S1
T*(8,L)X*A12 FC/MC/PC37A 14 1105 30.4 24.4 14.40 12.10
T*9X*B12 FC/MC/PC43B 17 1095 30.4 24.4 14.45 12.15
T*(8,L)X*B12 FC/MC/PC43B 17 1125 30.4 24.2 14.40 12.10
Y*(8,L)C*A12 FC/MC/PC37A 14 980 29.4 21.8 13.60 12.30
Y*(8,L)C*B12 FC/MC/PC43B 17 990 29.6 22.2 14.10 12.70
Y*9C*B12 FC/MC/PC43B 17 1035 29.4 22.0 13.70 12.30
Y*(8,L)C*C16 FC/MC/PC43C 21 990 29.8 22.4 14.50 13.00
Y*(8,L)C*C20 FC/MC/PC43C 21 1000 29.8 22.6 14.60 13.00
For Notes See Page 10.

397855-YTG-F-0409
8Johnson Controls Unitary Products
YHJD30S41S1
Y*9C*C16 FC/MC/PC43C 21 1030 29.6 22.2 14.00 12.60
Y*9C*C20 FC/MC/PC43C 21 995 29.6 22.4 14.40 12.80
Y*(8,L)C*C16 HC42 21 990 29.6 22.4 14.50 13.00
Y*(8,L)C*C20 HC42 21 1000 29.8 22.4 14.50 13.00
Y*9C*C16 HC42 21 1030 29.4 22.2 14.00 12.60
Y*9C*C20 HC42 21 995 29.6 22.4 14.40 12.80
Y*(8,L)C*A12 HD36 14 1000 28.6 21.0 13.50 12.20
Y*(8,L)C*B12 HD36 17 985 28.8 21.0 13.80 12.40
Y*(8,L)C*C16 HD36 21 1020 28.8 21.2 13.90 12.60
Y*(8,L)C*C20 HD36 21 1055 29.2 21.8 14.10 12.70
Y*9C*B12 HD36 17 985 28.8 21.0 13.70 12.40
Y*9C*C16 HD36 21 1005 28.8 21.2 13.90 12.60
Y*9C*C20 HD36 21 1045 28.8 21.0 13.80 12.40
YHJD36S41S1
T*9X*B12 FC/MC/PC43B 17 1270 36.4 27.4 14.00 11.70
T*(8,L)X*B12 FC/MC/PC43B 17 1300 36.4 27.4 14.05 11.70
T*(8,L)X*C16 FC/MC/PC43C 21 1175 36.4 27.0 14.70 12.20
T*9X*C16 FC/MC/PC43C 21 1260 36.4 27.6 14.20 11.80
T*(8,L)X*C20 FC/MC/PC43C 21 1250 36.6 27.6 14.55 12.20
T*9X*C20 FC/MC/PC43C 21 1185 36.2 26.8 14.30 12.00
Y*(8,L)C*A12 FC/MC/PC37A 14 980 34.2 22.6 14.00 11.70
Y*(8,L)C*B12 FC/MC/PC43B 17 1210 35.4 25.0 14.00 11.70
Y*9C*B12 FC/MC/PC43B 17 1200 35.4 25.0 14.00 11.70
Y*(8,L)C*C16 FC/MC/PC43C 21 1205 35.6 25.2 14.60 12.20
Y*(8,L)C*C20 FC/MC/PC43C 21 1190 35.6 25.2 14.80 12.20
Y*9C*C16 FC/MC/PC43C 21 1240 35.4 25.0 14.20 11.80
Y*9C*C20 FC/MC/PC43C 21 1200 35.6 25.2 14.50 12.10
Y*(8,L)C*C16 FC/MC/PC48C 21 1210 36.0 25.4 14.90 12.40
Y*(8,L)C*C20 FC/MC/PC48C 21 1155 36.0 25.4 15.10 12.50
Y*9C*C16 FC/MC/PC48C 21 1195 36.0 25.4 14.70 12.20
Y*9C*C20 FC/MC/PC48C 21 1330 36.0 26.2 14.70 12.10
Y*(8,L)C*C16 HC42 21 1205 35.6 25.2 14.60 12.10
Y*(8,L)C*C20 HC42 21 1190 35.6 25.2 14.70 12.20
Y*9C*C16 HC42 21 1240 35.2 25.0 14.10 11.80
Y*9C*C20 HC42 21 1200 35.4 25.2 14.50 12.00
Y*(8,L)C*B12 HD48 17 1210 35.0 24.8 14.30 11.70
Y*(8,L)C*C16 HD48 21 1210 35.8 25.2 14.80 12.30
Y*(8,L)C*C20 HD48 21 1155 35.8 25.2 14.90 12.40
Y*9C*B12 HD48 17 1150 35.0 24.8 14.20 11.70
Y*9C*C16 HD48 21 1195 35.6 25.0 14.50 12.10
Y*9C*C20 HD48 21 1330 35.6 26.0 14.40 11.80
Y*(8,L)C*C16 UC48C 21 1210 35.8 25.6 15.10 12.30
Y*(8,L)C*C20 UC48C 21 1155 36.0 25.6 15.20 12.40
Y*9C*C16 UC48C 21 1195 35.8 25.4 14.80 12.10
Y*9C*C20 UC48C 21 1330 36.0 26.4 14.70 12.00
For Notes See Page 10.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2

Johnson Controls Unitary Products 9
YHJD42S41S1
T*(8,L)X*C16 FC/MC/PC48C 21 1360 41.5 31.4 13.80 11.75
T*9X*C16 FC/MC/PC48C 21 1425 41.5 31.8 13.60 11.50
T*(8,L)X*C20 FC/MC/PC48C 21 1475 42.0 32.6 14.00 11.75
T*9X*C20 FC/MC/PC48C 21 1420 41.5 32.0 13.60 11.70
T*9X*D20 FC/MC/PC48D 24 1435 41.5 32.0 13.70 11.75
T*(8,L)X*C16 UC48C 21 1400 42.0 32.2 13.80 11.90
T*9X*C16 UC48C 21 1425 42.0 32.0 13.60 11.70
T*(8,L)X*C20 UC48C 21 1515 42.0 33.2 13.90 11.75
T*9X*C20 UC48C 21 1420 42.0 32.0 13.50 11.60
T*9X*D20 UC48D 24 1435 41.5 32.2 13.70 11.75
Y*(8,L)C*C16 FC/MC/PC48C 21 1435 41.5 32.6 13.80 11.90
Y*(8,L)C*C20 FC/MC/PC48C 21 1410 42.0 32.8 14.00 12.00
Y*9C*C16 FC/MC/PC48C 21 1395 41.5 32.6 13.60 11.70
Y*9C*C20 FC/MC/PC48C 21 1430 41.5 32.6 13.60 11.70
Y*9C*D20 FC/MC/PC48D 24 1450 41.5 32.6 13.70 11.80
Y*9C*D20 FC/MC/PC60D 24 1445 42.0 32.8 13.90 12.00
Y*9C*D20 FC/MC62D 24 1455 42.0 33.0 13.80 12.00
Y*(8,L)C*C16 FC/PC60C 21 1420 42.0 32.8 14.00 12.10
Y*(8,L)C*C20 FC/PC60C 21 1410 42.0 32.8 14.20 12.30
Y*9C*C16 FC/PC60C 21 1445 42.0 32.6 13.40 11.70
Y*9C*C20 FC/PC60C 21 1445 42.0 32.8 13.70 11.90
Y*(8,L)C*B12 HD48 17 1350 41.0 30.8 13.20 11.40
Y*(8,L)C*C16 HD48 21 1435 40.5 31.6 13.60 11.60
Y*(8,L)C*C20 HD48 21 1410 41.0 31.0 13.60 11.80
Y*9C*B12 HD48 17 1150 39.0 28.4 13.40 11.20
Y*9C*C16 HD48 21 1395 41.0 30.8 13.30 11.60
Y*9C*C20 HD48 21 1430 41.5 31.8 13.40 11.70
Y*9C*D20 HD48 24 1450 41.0 31.8 13.60 11.70
Y*(8,L)C*C16 UC48C 21 1435 41.5 32.4 13.80 11.90
Y*(8,L)C*C20 UC48C 21 1410 41.5 32.4 13.90 12.00
Y*9C*C16 UC48C 21 1395 41.5 32.2 13.60 11.70
Y*9C*C20 UC48C 21 1430 41.0 32.2 13.50 11.60
Y*9C*D20 UC48D 24 1450 41.5 32.2 13.70 11.80
Y*(8,L)C*C16 UC60C 21 1420 41.5 32.0 13.80 11.90
Y*(8,L)C*C20 UC60C 21 1410 41.5 32.2 14.00 12.10
Y*9C*C16 UC60C 21 1445 41.0 31.8 13.20 11.50
Y*9C*C20 UC60C 21 1445 41.5 32.0 13.50 11.70
Y*9C*D20 UC60D 24 1445 41.5 32.0 13.70 11.90
For Notes See Page 10.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2

397855-YTG-F-0409
10 Johnson Controls Unitary Products
YHJD48S41S1
T*(8,L)X*C16 FC/PC60C 21 1605 46.5 34.6 13.50 11.50
T*9X*C16 FC/PC60C 21 1575 46.5 34.6 13.30 11.40
T*(8,L)X*C20 FC/MC/PC60D 21 1595 46.5 34.6 13.55 11.50
T*9X*C20 FC/PC60C 21 1625 46.5 34.8 13.30 11.40
T*9X*D20 FC/MC/PC60D 24 1490 46.5 34.0 13.50 11.50
T*9X*D20 FC/MC62D 24 1610 47.0 35.4 13.40 11.50
T*(8,L)X*C16 UC60C 21 1640 46.5 34.8 13.40 11.40
T*(8,L)X*C20 UC60D 21 1540 46.5 34.2 13.70 11.70
T*9X*C16 UC60C 21 1575 46.5 34.8 13.20 11.30
T*9X*C20 UC60C 21 1625 46.5 34.8 13.10 11.30
T*9X*D20 UC60D 24 1490 46.0 33.6 13.30 11.40
Y*9C*D20 FC/MC/PC60D 24 1615 46.5 35.2 13.50 11.50
Y*9C*D20 FC/MC62D 24 1630 46.5 35.6 13.40 11.50
Y*(8,L)C*C16 FC/PC60C 21 1625 46.5 35.4 13.50 11.60
Y*(8,L)C*C20 FC/PC60C 21 1605 46.5 35.6 13.80 11.80
Y*9C*C16 FC/PC60C 21 1590 46.5 35.2 13.30 11.40
Y*9C*C20 FC/PC60C 21 1655 46.5 35.2 13.30 11.40
Y*9C*D20 HC60 24 1615 46.0 35.0 13.40 11.40
Y*(8,L)C*C16 HD60 21 1625 46.5 35.4 13.50 11.60
Y*(8,L)C*C20 HD60 21 1605 47.0 35.6 13.70 11.80
Y*9C*C16 HD60 21 1590 46.5 35.2 13.20 11.40
Y*9C*C20 HD60 21 1655 46.5 35.2 13.20 11.40
Y*9C*D20 HD60 24 1615 46.5 35.4 13.40 11.50
Y*(8,L)C*C16 UC60C 21 1625 46.0 34.4 13.40 11.40
Y*(8,L)C*C20 UC60C 21 1605 46.0 34.6 13.70 11.70
Y*9C*C16 UC60C 21 1590 46.0 34.4 13.20 11.30
Y*9C*C20 UC60C 21 1655 46.0 34.4 13.10 11.30
Y*9C*D20 UC60D 24 1615 46.0 34.2 13.30 11.40
YHJD60S41S1
T*(8,L)X*C20 FC/MC62D 21 1665 56.0 41.5 13.80 11.50
T*9X*D20 FC/MC62D 24 1515 54.5 39.0 13.10 11.00
Y*9C*D20 FC/MC/PC60D 24 1615 53.5 41.0 13.30 11.60
Y*(8,L)C*C20 FC/MC62D 21 1615 54.0 41.5 13.60 11.80
Y*9C*C20 FC/MC62D 21 1655 53.5 41.0 13.20 11.40
Y*9C*D20 FC/MC/PC60D 24 1615 53.5 41.0 13.30 11.60
Y*9C*C20 FC/MC62D 21 1655 53.5 41.0 13.20 11.40
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2. Variable speed furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL FURNACE MODEL COIL MODEL1WCOOLING
RATED
CFM Net MBH SEER EER
TOTAL SENS.
13 SEER HP WITH VARIABLE SPEED FURNACES2

Johnson Controls Unitary Products 11
HEATING PERFORMANCE - With Air Handler
UNIT
MODEL* AIR HANDLER COIL1
MODEL
ARI HEATING2
47F17F HSPF
MBH COP KW MBH COP KW STD
13 SEER HP WITH MA
YHJD18S41S1 MA08B FC/MC18B 17.0 3.32 1.50 12.7 3.00 1.24 7.70
MA08B FC/MC24B 17.0 3.44 1.45 10.4 2.60 1.17 7.70
YHJD24S41S1 MA08B FC/MC/PC35B 23.2 3.40 2.00 12.6 2.24 1.65 7.70
YHJD30S41S1 MA12B FC/MC/PC43B 28.2 3.40 2.43 16.6 2.32 2.10 7.70
YHJD36S41S1
MA12B FC/MC/PC43B 35.0 3.42 3.00 21.2 2.36 2.63 8.00
MA14D FC/MC/PC48D 35.0 3.42 3.00 21.4 2.36 2.66 8.00
MA16C FC/MC43C 35.0 3.48 3.03 21.0 2.40 2.56 8.00
MA16C FC/MC48C 35.0 3.48 3.03 21.0 2.40 2.56 8.00
YHJD42S41S1
MA14D FC/MC/PC48D 41.0 3.48 3.45 28.0 2.46 3.34 8.00
MA16C FC/MC/PC48C 41.0 3.48 3.45 28.0 2.46 3.34 8.00
MA14D FC/MC/PC60D 41.0 3.66 3.28 27.8 2.56 3.18 8.00
MA16C FC/MC/PC60C 41.0 3.66 3.28 27.8 2.56 3.18 8.00
YHJD48S41S1 MA16C FC/MC/PC60C 51.0 3.50 4.27 30.6 2.34 3.83 8.00 MA20D FC/MC/PC60D 51.0 3.50 4.27 30.6 2.34 3.83 8.00
MA20D MC62D 50.5 3.38 4.38 30.6 2.28 3.93 8.00
YHJD60S41S1 MA20D MC62D 56.5 3.48 4.76 35.4 2.42 4.29 8.00
13 SEER HP WITH MV - VARIABLE SPEED
YHJD18S41S1 MV12B FC/MC18B 16.7 3.52 1.39 12.7 3.00 1.24 8.00
MV12B FC/MC24B 17.0 3.66 1.36 9.8 2.78 1.03 8.00
YHJD24S41S1 MV12B FC/MC/PC35B 22.8 3.72 1.80 12.4 2.50 1.45 8.00
MV16C FC/MC/PC35C 22.8 3.72 1.80 12.4 2.50 1.45 8.00
YHJD30S41S1 MV12B FC/MC/PC43B 27.8 3.58 2.28 16.1 2.46 1.92 8.00
MV16C FC/MC/PC43C 27.6 3.60 2.25 16.1 2.48 1.90 8.00
YHJD36S41S1
MV12B FC/MC/PC43B 35.0 3.52 2.91 20.8 2.44 2.50 8.00
MV16C FC/MC/PC43C 35.0 3.58 2.87 20.6 2.48 2.43 8.00
MV12D FC/MC/PC48D 35.0 3.54 2.90 20.6 2.48 2.43 8.00
MV16C FC/MC/PC48C 35.0 3.60 2.85 20.6 2.50 2.42 8.00
MV20D FC/MC/PC48D 35.0 3.60 2.85 20.6 2.50 2.42 8.00
YHJD42S41S1 MV16C FC/MC/PC48C 41.0 3.60 3.34 27.4 2.54 3.16 8.00 MV20D FC/MC/PC48D 41.0 3.62 3.32 27.4 2.56 3.14 8.00
MV20D FC/MC/PC60D 41.0 3.84 3.13 27.0 2.68 2.95 8.00
YHJD48S41S1 MV20D FC/MC/PC60D 50.5 3.60 4.11 30.2 2.40 3.69 8.00
MV20D MC62D 50.0 3.48 4.21 30.0 2.34 3.76 8.00
YHJD60S41S1 MV20D MC62D 56.5 3.54 4.68 35.2 2.46 4.19 8.00
13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED
YHJD18S41S1 AV*24 – 16.8 3.62 1.36 11.5 3.18 1.06 8.00
YHJD24S41S1 AV*36 – 22.6 3.68 1.80 12.0 2.44 1.44 8.20
YHJD30S41S1 AV*36 – 27.6 3.64 2.22 16.0 2.50 1.88 8.00
YHJD36S41S1 AV*36 – 35.0 3.68 2.79 20.4 2.54 2.35 8.20
YHJD42S41S1 AV/SV*48 – 41.0 3.64 3.30 27.0 2.58 3.07 8.50
YHJD48S41S1 AV/SV*48 – 50.5 3.62 4.09 30.0 2.42 3.63 8.00 AV/SV*60 – 48.0 3.46 4.06 30.0 2.34 3.76 8.20
F4FV060 – 50.5 3.62 4.09 30.2 2.40 3.69 8.00
For Notes See Page 12.

397855-YTG-F-0409
12 Johnson Controls Unitary Products
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the
total electric power input during the same period.
— = Not Applicable.
13 SEER HP WITH AHP / SHP / AHX / F*FP
YHJD18S41S1 AHP18 – 17.0 3.38 1.47 8.2 2.16 1.11 7.70
F4FP24 – 17.0 3.34 1.49 12.5 3.04 1.21 7.70
YHJD24S41S1
AHP30 – 23.2 3.40 2.00 12.6 2.24 1.65 7.70
AHX30 – 22.63.661.8112.12.421.468.20
AHX36 – 22.63.801.7412.12.481.438.20
F6FP030 – 22.63.601.8412.22.361.518.10
F6FP036 – 22.63.661.8112.12.381.498.10
YHJD30S41S1 AHP36 – 28.2 3.40 2.43 16.6 2.32 2.10 7.70 AHX36 – 27.63.682.2015.92.541.838.00
F6FP036 – 27.23.502.2815.92.461.897.80
YHJD36S41S1
AHP36 – 35.0 3.40 3.02 21.0 2.40 2.56 8.00
AHX36 – 35.03.722.7620.42.562.338.20
F4FP045 – 35.0 3.40 3.02 21.6 2.42 2.62 8.00
F6FP042 – 35.43.782.7421.02.542.428.20
YHJD42S41S1
AHP/SHP48 – 41.0 3.32 3.62 28.2 2.36 3.50 8.00
AHX42 – 41.03.683.2627.02.603.048.50
AHX48 – 41.03.703.2527.02.603.048.50
F4FP045 – 41.0 3.68 3.27 27.8 2.56 3.18 8.00
F5FP048 – 41.0 3.68 3.27 27.6 2.58 3.14 8.00
F6FP042 – 41.03.803.1627.02.662.978.50
F6FP048 – 41.03.683.2627.02.583.078.20
YHJD48S41S1
AHP/SHP60 – 50.5 3.58 4.13 30.2 2.40 3.69 8.00
AHX48 – 48.03.524.0029.02.343.638.20
F5FP048 – 50.5 3.46 4.28 30.6 2.32 3.87 8.00
F5FP060 – 50.5 3.60 4.11 30.2 2.40 3.69 8.00
F6FP048 – 48.03.603.9129.02.403.548.20
YHJD60S41S1 AHX60 – 56.03.444.7734.82.444.188.10
F6FP060 – 57.03.584.6734.02.404.158.10
1. Rated CFM same as for cooling.
2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no
supplemental electric heat operation.
HEATING PERFORMANCE - With Air Handler (Continued)
UNIT
MODEL* AIR HANDLER COIL1
MODEL
ARI HEATING2
47F17FHSPF
MBH COP KW MBH COP KW STD

Johnson Controls Unitary Products 13
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the
total electric power input during the same period.
— = Not Applicable.
HEATING PERFORMANCE - Upflow, Downflow, and Horizontal Furnaces and Coils
UNIT
MODEL* COIL1
MODEL
ARI HEATING2
47F17F HSPF
MBH COP KW MBH COP KW STD
YHJD18S41S1
FC/MC/PC/UC18 17.0 3.32 1.50 12.7 3.00 1.24 7.70
FC/MC/PC/UC24 17.0 3.44 1.45 10.4 2.60 1.17 7.70
HC18 17.0 3.32 1.50 12.7 3.00 1.24 7.70
HC30 17.0 3.38 1.47 10.4 2.60 1.17 7.70
HD24 16.6 3.16 1.54 12.8 3.00 1.25 7.70
YHJD24S41S1
FC/MC/PC32 23.2 3.40 2.00 12.6 2.24 1.65 7.70
FC/MC/PC35 23.2 3.40 2.00 12.6 2.24 1.65 7.70
HC30 23.0 3.40 1.98 12.6 2.24 1.65 7.70
HC36 23.2 3.40 2.00 12.6 2.24 1.65 7.70
HD36 23.2 3.40 2.00 12.6 2.24 1.65 7.70
YHJD30S41S1
FC/MC/PC37 28.2 3.40 2.43 16.6 2.32 2.10 7.70
FC/MC/PC43 28.2 3.40 2.43 16.6 2.32 2.10 7.70
HC42 28.2 3.40 2.43 16.6 2.32 2.10 7.70
HD48 28.2 3.60 2.30 16.6 2.32 2.10 7.70
YHJD36S41S1
FC/MC/PC37 35.0 3.40 3.02 21.2 2.36 2.63 8.00
FC/MC/PC43 35.0 3.42 3.00 21.2 2.36 2.63 8.00
FC/MC/PC48 35.0 3.42 3.00 21.4 2.36 2.66 8.00
HC42 35.0 3.42 3.00 21.2 2.36 2.63 8.00
HD48 35.0 3.40 3.02 20.0 2.16 2.71 8.00
YHJD42S41S1 FC/MC/PC60 41.0 3.66 3.28 27.8 2.56 3.18 8.00 HC60 41.0 3.66 3.28 27.8 2.56 3.18 8.00
HD60 41.0 3.14 3.83 27.6 2.26 3.58 8.00
YHJD48S41S1
FC/MC/PC48 50.5 3.32 4.46 30.8 2.24 4.03 8.00
FC/MC/PC60 51.0 3.50 4.27 30.6 2.34 3.83 8.00
HC60 51.0 3.50 4.27 30.6 2.34 3.83 8.00
HD60 50.0 2.98 4.92 30.6 2.06 4.35 8.00
MC62 50.5 3.38 4.38 30.6 2.28 3.93 8.00
YHJD60S41S1 MC62 56.5 3.48 4.76 35.4 2.42 4.29 8.00
1. Rated CFM same as for cooling.
2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no
supplemental electric heat operation.

397855-YTG-F-0409
14 Johnson Controls Unitary Products
HEATING CAPACITY - With High Efficiency Motor Furnaces
MODEL FURNACE
MODEL COIL1
MODEL
ARI HEATING2
47F17FHSPF
MBH COP KW MBH COP KW STD
13 SEER HP WITH VARIABLE SPEED FURNACES3
YHJD18S41S1
Y*(8,L)C*A12 FC/MC/PC18A 16.7 3.58 1.37 7.7 2.28 0.99 8.00
Y*(8,L)C*B12 FC/MC/PC18B 16.6 3.56 1.37 7.7 2.30 0.98 7.90
Y*9C*B12 FC/MC/PC18B 16.7 3.60 1.36 7.7 2.30 0.98 8.00
Y*(8,L)C*A12 FC/MC/PC24A 17.2 3.70 1.36 10.6 2.90 1.07 8.30
Y*(8,L)C*B12 FC/MC/PC24B 16.8 3.68 1.34 10.1 2.88 1.03 8.20
YY*9C*B12 FC/MC/PC24B 17.1 3.74 1.34 10.5 2.94 1.05 8.30
Y*(8,L)C*A12 FC/MC/PC30A 17.2 3.70 1.36 10.6 2.90 1.07 8.30
Y*(8,L)C*B12 FC/MC/PC30B 16.8 3.68 1.34 10.1 2.88 1.03 8.20
Y*9C*B12 FC/MC/PC30B 17.1 3.74 1.34 10.5 2.94 1.05 8.30
Y*(8,L)C*A12 HC18 16.7 3.58 1.37 7.7 2.28 0.99 8.00
Y*(8,L)C*A12 HC30 16.8 3.58 1.38 10.1 2.80 1.06 8.00
Y*(8,L)C*A12 HD24 16.7 3.56 1.37 8.8 2.48 1.04 8.00
Y*(8,L)C*B12 HD24 16.3 3.50 1.36 9.1 2.62 1.02 7.80
Y*9C*B12 HD24 16.7 3.58 1.37 8.7 2.50 1.02 8.00
Y*(8,L)C*A12 UC18A 16.9 3.62 1.37 9.1 2.58 1.03 8.10
Y*(8,L)C*B12 UC18B 16.7 3.60 1.36 9.7 2.74 1.04 8.00
Y*9C*B12 UC18B 16.8 3.64 1.35 9.1 2.62 1.02 8.10
Y*(8,L)C*A12 UC24A 17.3 3.72 1.36 10.7 2.94 1.07 8.30
Y*(8,L)C*B12 UC24B 16.9 3.70 1.34 10.5 2.96 1.04 8.20
Y*9C*B12 UC24B 17.2 3.76 1.34 10.7 2.96 1.06 8.30
Y*(8,L)C*A12 UC30A 17.3 3.72 1.36 10.7 2.94 1.07 8.30
Y*(8,L)C*B12 UC30B 16.9 3.70 1.34 10.4 2.96 1.03 8.20
Y*9C*B12 UC30B 17.2 3.76 1.34 10.7 2.96 1.06 8.30
YHJD24S41S1
T*9X*B12FC/MC/PC35B22.63.661.8112.02.421.45 8.00
T*(8,L)X*A12 FC/MC/PC37A 23.2 3.82 1.78 12.2 2.48 1.44 8.25
T*(8,L)X*B12 FC/MC/PC43B 23.2 3.84 1.77 12.2 2.50 1.43 8.30
T*9X*B12FC/MC/PC43B23.03.761.7912.12.461.44 8.15
T*(8,L)X*B12 FC/MC/PC35B 22.8 3.74 1.79 12.1 2.44 1.45 8.10
T*9X*C16 FC/MC/PC35C 22.2 3.60 1.81 11.8 2.40 1.44 7.85
T*(8,L)X*A12 FC/MC/PC32A 22.8 3.68 1.82 12.1 2.44 1.45 8.00
Y*(8,L)C*A12 FC/MC/PC32A 22.8 3.52 1.90 12.0 2.28 1.54 8.20
Y*(8,L)C*B12 FC/MC/PC35B 22.6 3.58 1.85 11.9 2.32 1.50 8.20
Y*9C*B12 FC/MC/PC35B 22.8 3.58 1.87 12.3 2.32 1.55 8.20
Y*(8,L)C*A12 FC/MC/PC37A 23.0 3.62 1.86 12.8 2.40 1.56 8.30
Y*(8,L)C*B12 FC/MC/PC43B 22.8 3.64 1.84 12.6 2.42 1.53 8.30
Y*9C*B12 FC/MC/PC43B 23.0 3.64 1.85 12.6 2.40 1.54 8.30
Y*(8,L)C*B12 HC36 22.6 3.56 1.86 12.1 2.34 1.52 8.20
Y*9C*B12 HC36 22.8 3.58 1.87 12.3 2.32 1.55 8.20
Y*(8,L)C*A12 HD36 21.0 3.06 2.01 9.1 1.80 1.48 7.70
Y*(8,L)C*B12 HD36 20.6 3.02 2.00 8.9 1.80 1.45 7.70
Y*(8,L)C*C16 HD36 21.2 3.16 1.97 9.2 1.86 1.45 7.70
Y*(8,L)C*C20 HD36 20.4 3.04 1.97 7.4 1.64 1.32 7.70
Y*9C*B12 HD36 21.0 3.08 2.00 9.1 1.82 1.47 7.70
Y*9C*C16 HD36 20.8 3.10 1.97 9.0 1.82 1.45 7.70
Y*9C*C20 HD36 20.4 3.02 1.98 7.4 1.64 1.32 7.70
YHJD30S41S1
T*(8,L)X*A12 FC/MC/PC37A 29.0 3.68 2.30 16.3 2.48 1.93 7.80
T*9X*B12FC/MC/PC43B29.03.702.3016.32.481.93 7.90
T*(8,L)X*B12 FC/MC/PC43B 29.0 3.68 2.30 16.3 2.48 1.93 7.90
Y*(8,L)C*A12 FC/MC/PC37A 27.8 3.48 2.34 16.3 2.46 1.94 7.80
Y*(8,L)C*B12 FC/MC/PC43B 27.8 3.56 2.29 16.2 2.52 1.88 7.90
For Notes See Page 17.

Johnson Controls Unitary Products 15
YHJD30S41S1
Y*9C*B12 FC/MC/PC43B 28.0 3.50 2.34 16.3 2.48 1.93 7.90
Y*(8,L)C*C16 FC/MC/PC43C 27.6 3.62 2.23 16.0 2.56 1.83 8.00
Y*(8,L)C*C20 FC/MC/PC43C 27.6 3.62 2.23 16.0 2.56 1.83 8.00
Y*9C*C16 FC/MC/PC43C 27.8 3.56 2.29 16.2 2.52 1.88 7.90
Y*9C*C20 FC/MC/PC43C 27.6 3.60 2.25 16.1 2.56 1.84 8.00
Y*(8,L)C*C16 HC42 27.6 3.62 2.23 16.0 2.56 1.83 8.00
Y*(8,L)C*C20 HC42 27.6 3.62 2.23 16.0 2.56 1.83 8.00
Y*9C*C16 HC42 27.8 3.56 2.29 16.2 2.52 1.88 7.90
Y*9C*C20 HC42 27.6 3.60 2.25 16.1 2.54 1.86 8.00
Y*(8,L)C*A12 HD36 26.2 3.08 2.49 14.2 2.10 1.98 7.70
Y*(8,L)C*B12 HD36 26.0 3.12 2.44 14.0 2.12 1.94 7.70
Y*(8,L)C*C16 HD36 26.0 3.12 2.44 14.0 2.14 1.92 7.70
Y*(8,L)C*C20 HD36 26.2 3.18 2.41 14.1 2.16 1.91 7.70
Y*9C*B12 HD36 26.0 3.10 2.46 14.1 2.12 1.95 7.70
Y*9C*C16 HD36 26.0 3.14 2.43 14.0 2.14 1.92 7.70
Y*9C*C20 HD36 26.0 3.12 2.44 14.1 2.12 1.95 7.70
YHJD36S41S1
T*9X*B12 FC/MC/PC43B 35.0 3.60 2.85 20.8 2.52 2.42 8.20
T*(8,L)X*B12 FC/MC/PC43B 35.0 3.60 2.85 20.6 2.52 2.40 8.20
T*(8,L)X*C16 FC/MC/PC43C 34.2 3.66 2.74 20.2 2.58 2.29 8.20
T*9X*C16 FC/MC/PC43C 35.0 3.62 2.83 20.6 2.54 2.38 8.25
T*(8,L)X*C20 FC/MC/PC43C 34.8 3.68 2.77 20.4 2.58 2.32 8.30
T*9X*C20 FC/MC/PC43C 34.6 3.60 2.82 20.4 2.54 2.35 8.20
Y*(8,L)C*A12 FC/MC/PC37A 34.6 3.36 3.02 20.2 2.44 2.43 8.20
Y*(8,L)C*B12 FC/MC/PC43B 35.8 3.46 3.03 20.8 2.44 2.50 8.40
Y*9C*B12 FC/MC/PC43B 35.8 3.48 3.02 20.8 2.44 2.50 8.40
Y*(8,L)C*C16 FC/MC/PC43C 35.4 3.56 2.91 20.4 2.52 2.37 8.50
Y*(8,L)C*C20 FC/MC/PC43C 35.4 3.56 2.91 20.4 2.52 2.37 8.50
Y*9C*C16 FC/MC/PC43C 35.8 3.50 3.00 20.8 2.46 2.48 8.40
Y*9C*C20 FC/MC/PC43C 35.6 3.54 2.95 20.6 2.50 2.42 8.50
Y*(8,L)C*C16 FC/MC/PC48C 35.4 3.58 2.90 20.4 2.54 2.35 8.50
Y*(8,L)C*C20 FC/MC/PC48C 35.4 3.62 2.87 20.4 2.56 2.34 8.60
Y*9C*C16 FC/MC/PC48C 35.6 3.56 2.93 20.6 2.52 2.40 8.50
Y*9C*C20 FC/MC/PC48C 36.2 3.58 2.96 21.0 2.50 2.46 8.60
Y*(8,L)C*C16 HC42 35.4 3.56 2.91 20.4 2.52 2.37 8.50
Y*(8,L)C*C20 HC42 35.4 3.58 2.90 20.4 2.54 2.35 8.50
Y*9C*C16 HC42 35.8 3.50 3.00 20.8 2.46 2.48 8.40
Y*9C*C20 HC42 35.6 3.54 2.95 20.6 2.50 2.42 8.50
Y*(8,L)C*B12 HD48 34.2 3.22 3.11 19.2 2.24 2.51 8.00
Y*(8,L)C*C16 HD48 34.0 3.28 3.04 19.0 2.30 2.42 8.10
Y*(8,L)C*C20 HD48 34.0 3.30 3.02 18.9 2.32 2.39 8.10
Y*9C*B12 HD48 34.4 3.22 3.13 19.3 2.24 2.53 8.00
Y*9C*C16 HD48 34.2 3.26 3.07 19.1 2.28 2.46 8.00
Y*9C*C20 HD48 34.8 3.30 3.09 19.5 2.28 2.51 8.10
Y*(8,L)C*C16 UC48C 36.0 3.68 2.87 20.6 2.56 2.36 8.70
Y*(8,L)C*C20 UC48C 35.8 3.72 2.82 20.6 2.60 2.32 8.70
Y*9C*C16 UC48C 36.0 3.66 2.88 20.8 2.54 2.40 8.60
Y*9C*C20 UC48C 36.6 3.64 2.95 21.0 2.52 2.44 8.70
For Notes See Page 17.
HEATING CAPACITY - With High Efficiency Motor Furnaces (Continued)
MODEL FURNACE
MODEL COIL1
MODEL
ARI HEATING2
47F17F HSPF
MBH COP KW MBH COP KW STD

397855-YTG-F-0409
16 Johnson Controls Unitary Products
YHJD42S41S1
T*(8,L)X*C16 FC/MC/PC48C 41.0 3.82 3.15 27.6 2.66 3.04 8.20
T*9X*C16 FC/MC/PC48C 41.5 3.80 3.20 27.8 2.64 3.09 8.10
T*(8,L)X*C20 FC/MC/PC48C 41.5 3.88 3.13 27.6 2.68 3.02 8.20
T*9X*C20 FC/MC/PC48C 41.5 3.82 3.18 27.6 2.66 3.04 8.10
T*9X*D20 FC/MC/PC48D 41.5 3.86 3.15 27.6 2.66 3.04 8.20
T*(8,L)X*C16 UC48C 41.54.003.0427.42.742.93 8.20
T*9X*C16 UC48C 41.5 3.90 3.12 27.6 2.68 3.02 8.20
T*(8,L)X*C20 UC48C 41.54.043.0127.42.762.91 8.20
T*9X*C20 UC48C 41.5 3.94 3.09 27.6 2.72 2.97 8.20
T*9X*D20 UC48D 41.5 3.98 3.06 27.4 2.74 2.93 8.20
Y*(8,L)C*C16 FC/MC/PC48C 41.5 3.54 3.44 27.6 2.48 3.26 9.00
Y*(8,L)C*C20 FC/MC/PC48C 41.5 3.56 3.42 27.4 2.50 3.21 9.00
Y*9C*C16 FC/MC/PC48C 41.5 3.52 3.46 27.6 2.46 3.29 8.90
Y*9C*C20 FC/MC/PC48C 42.0 3.50 3.52 27.8 2.46 3.31 8.90
Y*9C*D20 FC/MC/PC48D 41.5 3.52 3.46 27.6 2.48 3.26 8.90
Y*9C*D20 FC/MC/PC60D 42.0 3.66 3.36 27.4 2.54 3.16 9.00
Y*9C*D20 FC/MC62D 42.0 3.60 3.42 27.0 2.48 3.19 9.00
Y*(8,L)C*C16 FC/PC60C 42.0 3.68 3.34 27.4 2.56 3.14 9.00
Y*(8,L)C*C20 FC/PC60C 41.5 3.72 3.27 27.2 2.58 3.09 9.10
Y*9C*C16 FC/PC60C 42.0 3.58 3.44 27.8 2.50 3.26 9.00
Y*9C*C20 FC/PC60C 42.0 3.64 3.38 27.6 2.52 3.21 9.00
Y*(8,L)C*B12 HD48 41.0 3.12 3.85 27.0 2.20 3.60 8.70
Y*(8,L)C*C16 HD48 41.0 3.22 3.73 26.8 2.26 3.48 8.80
Y*(8,L)C*C20 HD48 41.0 3.16 3.80 26.8 2.22 3.54 8.80
Y*9C*B12 HD48 40.5 2.96 4.01 26.8 2.12 3.71 8.70
Y*9C*C16 HD48 41.0 3.14 3.83 27.0 2.20 3.60 8.70
Y*9C*C20 HD48 41.0 3.20 3.76 26.8 2.22 3.54 8.70
Y*9C*D20 HD48 41.0 3.24 3.71 27.0 2.26 3.50 8.80
Y*(8,L)C*C16 UC48C 42.0 3.62 3.40 27.4 2.52 3.19 9.00
Y*(8,L)C*C20 UC48C 41.5 3.64 3.34 27.4 2.54 3.16 9.00
Y*9C*C16 UC48C 42.0 3.60 3.42 27.6 2.50 3.24 9.00
Y*9C*C20 UC48C 42.0 3.58 3.44 27.6 2.50 3.24 9.00
Y*9C*D20 UC48D 42.0 3.62 3.40 27.4 2.52 3.19 9.00
Y*(8,L)C*C16 UC60C 41.5 3.64 3.34 27.0 2.50 3.17 9.00
Y*(8,L)C*C20 UC60C 41.5 3.66 3.32 27.0 2.52 3.14 9.10
Y*9C*C16 UC60C 42.0 3.54 3.48 27.4 2.46 3.26 8.90
Y*9C*C20 UC60C 42.0 3.58 3.44 27.2 2.48 3.21 9.00
Y*9C*D20 UC60D 42.0 3.62 3.40 27.2 2.50 3.19 9.00
For Notes See Page 17.
HEATING CAPACITY - With High Efficiency Motor Furnaces (Continued)
MODEL FURNACE
MODEL COIL1
MODEL
ARI HEATING2
47F17FHSPF
MBH COP KW MBH COP KW STD

Johnson Controls Unitary Products 17
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the
total electric power input during the same period.
— = Not Applicable.
YHJD48S41S1
T*(8,L)X*C16 FC/PC60C 47.0 3.46 3.98 32.8 2.28 4.22 8.00
T*9X*C16 FC/PC60C 47.0 3.46 3.98 32.8 2.28 4.22 8.00
T*(8,L)X*C20 FC/MC/PC60D 47.0 3.48 3.96 32.8 2.28 4.22 8.00
T*9X*C20 FC/PC60C 47.0 3.48 3.96 32.6 2.30 4.15 8.00
T*9X*D20 FC/MC/PC60D 46.5 3.50 3.89 32.2 2.32 4.07 8.10
T*9X*D20 FC/MC62D 47.5 3.54 3.93 32.6 2.30 4.15 8.00
T*(8,L)X*C16 UC60C 47.5 3.58 3.89 32.6 2.34 4.08 8.10
T*(8,L)X*C20 UC60D 47.0 3.64 3.78 32.0 2.40 3.91 8.10
T*9X*C16 UC60C 47.5 3.58 3.89 32.6 2.34 4.08 8.00
T*9X*C20 UC60C 47.5 3.60 3.87 32.6 2.34 4.08 8.10
T*9X*D20 UC60D 46.5 3.60 3.79 32.0 2.38 3.94 8.10
Y*9C*D20 FC/MC/PC60D 47.5 3.38 4.12 30.4 2.38 3.74 8.50
Y*9C*D20 FC/MC62D 48.0 3.44 4.09 30.2 2.40 3.69 8.50
Y*(8,L)C*C16 FC/PC60C 47.5 3.40 4.09 30.4 2.40 3.71 8.50
Y*(8,L)C*C20 FC/PC60C 47.5 3.46 4.02 30.2 2.42 3.66 8.60
Y*9C*C16 FC/PC60C 48.0 3.38 4.16 30.6 2.38 3.77 8.50
Y*9C*C20 FC/PC60C 48.0 3.38 4.16 30.6 2.38 3.77 8.50
Y*9C*D20 HC60 48.0 3.48 4.04 30.4 2.44 3.65 8.50
Y*(8,L)C*C16 HD60 47.0 3.22 4.28 30.2 2.24 3.95 8.40
Y*(8,L)C*C20 HD60 47.0 3.24 4.25 30.0 2.28 3.86 8.40
Y*9C*C16 HD60 47.5 3.18 4.38 30.2 2.24 3.95 8.40
Y*9C*C20 HD60 47.5 3.18 4.38 30.2 2.24 3.95 8.40
Y*9C*D20 HD60 47.5 3.20 4.35 30.2 2.24 3.95 8.40
Y*(8,L)C*C16 UC60C 47.5 3.46 4.02 30.2 2.42 3.66 8.50
Y*(8,L)C*C20 UC60C 47.5 3.52 3.95 30.0 2.46 3.57 8.60
Y*9C*C16 UC60C 48.0 3.44 4.09 30.4 2.42 3.68 8.50
Y*9C*C20 UC60C 48.0 3.44 4.09 30.4 2.42 3.68 8.50
Y*9C*D20 UC60D 48.0 3.44 4.09 30.2 2.42 3.66 8.50
YHJD60S41S1
T*(8,L)X*C20 FC/MC62D 56.5 3.60 4.60 32.6 2.46 3.88 8.10
T*9X*D20 FC/MC62D 56.5 3.44 4.81 34.0 2.34 4.26 8.00
Y*9C*D20 FC/MC/PC60D 55.5 3.30 4.93 35.0 2.40 4.27 8.50
Y*(8,L)C*C20 FC/MC62D 55.5 3.42 4.76 34.6 2.44 4.16 8.60
Y*9C*C20 FC/MC62D 56.0 3.36 4.88 35.0 2.40 4.27 8.60
1. Rated CFM same as for cooling.
2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no
supplemental electric heat operation.
3. Variable speed furnaces have B.O.D (Blower on Delay) standard.
HEATING CAPACITY - With High Efficiency Motor Furnaces (Continued)
MODEL FURNACE
MODEL COIL1
MODEL
ARI HEATING2
47F17F HSPF
MBH COP KW MBH COP KW STD

397855-YTG-F-0409
18 Johnson Controls Unitary Products
ACCESSORIES
Refer to Price Manual for specific model numbers.
Start Assist Kit (2SA067*) - May be required on 42, 48, 60
models. Models 18, 24, 30, 36 have been factory installed.
Blower Time Delay - Available to increase efficiency when
installed. Installs on indoor section and maintains blower for
approximately one minute after cooling thermostat has been
satisfied.
Hard Start Kits - Provides required starting torque for use with
Thermal Expansion Valve Kit.
Low Temperature Cutout (2LT06700224) - Prevents heat
pump operation below -1°F ambient temperature.
Compressor Blanket - Designed to further reduce the normal
operating sound.
Add-on Fossil Fuel Control - Interface controls for use with
gas, oil furnaces and the heat pump system are available.
Thermal Expansion Valve Kit - 1TVM900 Series TXV kit used
to improve system performance.
Outdoor Thermostat (2TD06700124) - Provides additional
staging of supplemental electric heat.
Room Thermostats - A wide selection of matching thermostats
is available to provide features required for any installation.
2H/1C, manual changeover electronic non-programmable ther-
mostat.
3H/2C, non-programmable digital thermostat.
3H/2C, auto/manual changeover, electronic programmable, 7-
day, hardwire thermostat.
* For the most current accessory information, refer to the price
book or consult factory.
SOUND POWER RATINGS
* Rated in accordance with ARI 270-95 Standards.
UNIT MODEL (dBA)*
Cooling Heating
018 73.1 80.4
024 72.9 75.0
030 76.8 80.4
036 76.5 78.2
042 72.7 75.2
048 76.7 78.1
060 77.2 78.9

Johnson Controls Unitary Products 19
TYPICAL INSTALLATION
TYPICAL FIELD WIRING
THERMOSTAT
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
TO INDOOR COIL
TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
NEC CLASS 2 WIRING
NEC CLASS 1 WIRING
ALL OUTDOOR WIRING
MUST BE WEATHERPROOF. CONTROL
ACCESS
PANEL
WEATHERPROOF
DISCONNECT
SWITCH
MINIMUM 24” SERVICE
ACCESS CLEARANCE
ON ONE SIDE
48” OVERHEAD
CLEARANCE
10” CLEARANCE
AROUND PERIMETER
NOTE:
THERMOSTAT INDOOR UNIT
OUTDOOR UNIT
LOW VOLTAGE TERMINAL BLOCK
IN AIR HANDLER WITH ELECTRIC HEAT
DEFROST
CONTROL
FIELD
INSTALLED
JUMPER
DEHUMIDIFICATION CONTROL CONNECTION
(Humidistat* Jumper must be removed)
GND.
SCREW
CONTACTOR
T2 T1
L2 L1
M
R
LorX
Y
O
W
G
T2
E2
RR
YY
O
O
W2 W
W1
CC
X/L
G
W1
BK
GND.
LUG
CIRCUIT
BREAKER***
POWER WIRING
24V CONTROL WIRING
(NEC CLASS 2)
JUMPER TERMINALS E AND W TO HEAT
ON FIRST STAGE DURING EMERGENCY HEAT.
TERMINAL NOT USED ON ALL THERMOSTATS. POWER WIRING
208/230-1-60
230-1-50
CHECK THE LOW VOLTAGE TERMINAL BLOCK ON THE INDOOR UNIT FOR THE ACTUAL ARRANGEMENT OF THE TERMINALS.
CONNECT POWER WIRING TO TERMINAL BLOCK 3TB ON UNITS WITHOUT ELECTRIC HEAT OR CIRCUIT BREAKER.
BorC
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
RED
BLK
YEL
ORG
BRN
PUR
WHT
CC
GRY
/66
GRAY FOR USE WITH OPTIONAL OUTDOOR THERMOSTAT KITS.
5
1
2
3
4
5
1
3,4

397855-YTG-F-0409
20 Johnson Controls Unitary Products
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
COOLING PERFORMANCE DATA
CONDENSING UNIT MODEL NO. YHJD18S41S1
INDOOR COIL MODEL NO. AHP18
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 450 600 750
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 17.6 20.2 20.2 22.5 24.9 20.4 21.5 21.8 24.2 26.7 23.2 22.7 23.4 25.9 28.4 S.C. 16.0 14.5 12.5 12.6 10.7 18.5 17.5 14.7 14.7 11.9 21.1 20.6 16.9 16.9 13.2
KW 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0
75 T.C. 16.6 18.6 18.6 20.7 23.0 19.1 19.9 19.9 22.1 24.6 21.6 21.2 21.2 23.6 26.1 S.C. 15.0 13.8 11.8 11.9 10.0 17.3 16.5 14.0 14.0 11.2 19.6 19.3 16.1 16.1 12.4
KW 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
85 T.C. 15.6 16.9 16.9 19.0 21.2 17.7 18.3 18.0 20.1 22.5 19.9 19.7 19.1 21.3 23.7 S.C. 14.1 13.1 11.1 11.2 9.3 16.1 15.5 13.2 13.2 10.5 18.1 17.9 15.3 15.3 11.6
KW 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
95 T.C. 14.5 15.3 15.3 17.2 19.3 16.4 16.8 16.1 18.1 20.3 18.3 18.3 16.9 19.0 21.4 S.C. 13.2 12.4 10.4 10.5 8.6 14.9 14.5 12.4 12.5 9.7 16.6 16.6 14.5 14.5 10.8
KW 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
105 T.C. 13.2 13.6 13.4 15.2 17.0 14.7 14.9 14.2 16.0 17.9 16.3 16.3 15.0 16.7 18.7 S.C. 11.9 11.3 9.6 9.7 7.8 13.3 13.0 11.3 11.5 8.9 14.8 14.8 13.1 13.3 10.1
KW 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5
115 T.C. 11.8 12.0 11.5 13.2 14.8 13.1 13.1 12.3 13.9 15.5 14.3 14.3 13.2 14.5 16.1 S.C. 10.7 10.4 8.9 9.0 7.1 11.9 11.7 10.3 10.6 8.2 13.0 13.0 11.7 12.3 9.3
KW 1.5 1.5 1.5 1.5 1.6 1.5 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6
125 T.C. 10.5 10.3 9.7 11.2 12.6 11.4 11.3 10.5 11.8 13.1 12.3 12.3 11.3 12.3 13.6 S.C. 9.5 9.4 8.2 8.3 6.3 10.4 10.3 9.2 9.7 7.4 11.2 11.2 10.3 11.2 8.6
KW 1.6 1.6 1.6 1.6 1.7 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC18 0.99 0.99 1.00
– FC/MC/PC24 1.01 1.01 1.00
– HC18 0.99 0.99 1.00
– HC30 1.01 1.01 1.00
– HD24 1.03 1.02 1.00
AHP18 – 0.97 0.96 1.00
AV24 – 1.03 1.02 1.00
F4FP024 – 1.00 0.99 1.00
MA08B FC/MC/PC18B 0.99 0.99 1.00
MV12B FC/MC/PC18B 1.02 1.01 1.00
MA08B FC/MC/PC24B 1.01 1.01 1.00
MV12B FC/MC/PC24B 1.04 1.04 1.00
Furnaces Coils T.C. S.C. KW
Y*(8,L)C*A12 FC/MC/PC18A 1.03 1.05 0.93
Y*(8,L)C*B12 FC/MC/PC18B 1.02 1.01 0.92
Y*9C*B12 FC/MC/PC18B 1.03 1.04 0.92
Y*(8,L)C*A12 FC/MC/PC24A 1.06 1.08 0.94
Y*(8,L)C*B12 FC/MC/PC24B 1.04 1.04 0.92
Y*9C*B12 FC/MC/PC24B 1.06 1.08 0.93
Y*(8,L)C*A12 FC/MC/PC30A 1.06 1.08 0.94
Y*(8,L)C*B12 FC/MC/PC30B 1.04 1.04 0.92
Y*9C*B12 FC/MC/PC30B 1.06 1.08 0.93
Y*(8,L)C*A12 HC18 1.03 1.05 0.93
Y*(8,L)C*A12 HC30 1.04 1.04 0.94
Y*(8,L)C*A12 HD24 1.06 1.08 0.94
Y*(8,L)C*B12 HD24 1.05 1.04 0.92
Y*9C*B12 HD24 1.06 1.08 0.93
Y*(8,L)C*A12 UC18A 1.04 1.05 0.93
Y*(8,L)C*B12 UC18B 1.03 1.03 0.92
Y*9C*B12 UC18B 1.04 1.05 0.92
Y*(8,L)C*A12 UC24A 1.06 1.09 0.94
Y*(8,L)C*B12 UC24B 1.05 1.05 0.92
Y*9C*B12 UC24B 1.06 1.09 0.93
Y*(8,L)C*A12 UC30A 1.06 1.09 0.94
Y*(8,L)C*B12 UC30B 1.05 1.05 0.92
Y*9C*B12 UC30B 1.06 1.09 0.93
Furnaces Coils T.C. S.C. KW
