YORKVILLE LP302 User manual

Designed & Manufactured by
YORKVILLE SOUND • Toronto, Canada
Designed & Manufactured by
YORKVILLE SOUND • Toronto, Canada
Système d'Eclairage Controllè par Ordinateur
Computer Controlled Lighting System
U.S.A.
Yorkville Sound Inc.
4625 Witmer Industrial Estate
Niagara Falls, New York
14305 USA
Voice: [phone]
Fax: [phone]
WORLD HEADQUARTERS
WEB ACCESS: http://www.yorkville.com
CANADA
Yorkville Sound
550 Granite Court
Pickering, Ontario
L1W-3Y8 CANADA
Voice: [phone]
Fax: [phone]
Quality and Innovation Since 1963
Printed in Canada
SERVICE MANUAL

IMPORTANT SAFETY INSTRUCTIONS
safety-4v3.eps • Oct. 26/05
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
INSTRUCTIONS PERTAINING TO A
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS
Read Instructions
The Owner’s Manualshould be read and understood
before operation of your unit. Please, save these instruc-
tions for future reference.
Packaging
Keep the box and packaging materials, in case the unit
needs to be returned for service.
Warning
When using electric products, basic precautions should
always be followed, including the following:
Power Sources
Your unit should be connected to a power source only of the voltage
specified in the owners manual or as marked on the unit.This unit has a
polarized plug. Do not use with an extension cord or receptacle unless
the plug can be fully inserted. Precautions should be taken so that the
grounding scheme on the unit is not defeated.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or
table.The product may fall, causing serious personal injury and serious
damage to the product. Use only with cart, stand, tripod, bracket, or
table recommended by the manufacturer or sold with the product.
Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer.
The apparatus should not be exposed to dripping or splashing water;
no objects filled with liquids should be placed on the apparatus.
Terminals marked with the “lightning bolt” are hazardous live; the
external wiring connected to these terminals require installation by an
instructed person or the use of ready made leads or cords.
Ensure that proper ventilation is provided around the appliance.
No naked flame sources, such as lighted candles, should be
placed on the apparatus.
Power Cord
The AC supply cord should be routed so that it is unlikely that it will be
damaged. If the AC supply cord is damaged DO NOT OPERATETHE UNIT.
Service
The unit should be serviced only by qualified service personnel.
AVIS:
AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE,
N’ENLEVEZ PAS LE COUVERT (OU LE PANNEAU ARRIERE)
NE CONTIENT AUCUNE PIECE
REPARABLE PAR L’UTILISATEUR.
CONSULTEZ UN TECHNICIEN QUALIFIE
POUR L’ENTRETIENT
INSTRUCTIONS RELATIVES AU RISQUE
DE FEU, CHOC ÉLECTRIQUE, OU
BLESSURES AUX PERSONNES
Veuillez Lire le Manuel
Il contient des informations qui devraient êtres comprises
avant l’opération de votre appareil. Conservez S.V.P. ces
instructions pour consultations ultérieures.
Emballage
Conservez la boite au cas ou l’appareil devait être
retourner pour réparation.
Attention:
Lors de l’utilisation de produits électrique, assurez-
vous d’adhérer à des précautions de bases incluant
celle qui suivent:
Alimentation
L’appareil ne doit être branché qu’à une source d’alimentation
correspondant au voltage spécifié dans le manuel ou tel qu’indiqué sur
l’appareil. Cet appareil est équipé d’une prise d’alimentation polarisée.
Ne pas utiliser cet appareil avec un cordon de raccordement à moins
qu’il soit possible d’insérer complètement les trois lames. Des
précautions doivent êtres prises afin d’eviter que le système de mise à
la terre de l’appareil ne soit désengagé.
Risque
Ne pas placer cet appareil sur un chariot, un support, un trépied ou une
table instables. L’appareil pourrait tomber et blesser quelqu’un ou subir
des dommages importants. Utiliser seulement un chariot, un support,
un trépied ou une table recommandés par le fabricant ou vendus avec
le produit. Suivre les instructions du fabricant pour installer l’appareil et
utiliser les accessoires recommandés par le fabricant.
Il convient de ne pas placer sur l’appareil de sources de flammes
nues, telles que des bougies allumées.
L’appeil ne doit pas être exposé à des égouttements d’eau ou des
éclaboussures et qu’aucun objet rempli de liquide tel que des vases
ne doit être placé sur l’appareil.
Assurez que lappareil est fourni de la propre ventilation.
Les dispositifs marqués d’une symbole “d’éclair” sont des parties
dangereuses au toucher et que les câblages extérieurs connectés à
ces dispositifs de connection extérieure doivent être effectivés par un
opérateur formé ou en utilisant des cordons déjà préparés.
Cordon d’Alimentation
Évitez d’endommager le cordon d’alimentation. N’UTILISEZ PAS
L’APPAREIL si le cordon d’alimentation est endommagé.
Service
Consultez un technicien qualifié pour l’entretien de votre appareil.

LP304 LP608
YS No. Description Qty. YS No. Description Qty.
3555 40 PIN DUAL IN-LINE IC SOCKET 1 3555 40 PIN DUAL IN-LINE IC SOCKET 1
6939 12MHZ CRYSTAL HC49\FOX120 1 3571 28 PIN X .6" I.C. SOCKET 1
6405 RED 3MM LED 1V7 5MA BRT 1 6939 12MHZ CRYSTAL HC49\FOX120 1
6825 1N4148 75V 0A45 DIODE T&R 2 6405 RED 3MM LED 1V7 5MA BRT 1
6438 1N4004 400V 1A0 DIODE T&R 3 6400 YEL 3MM LED 1V9 6MA HIGHEFF 7
6487 1N5822 40V 3A0 DIODE SCHTKY 3 6825 1N4148 75V 0A45 DIODE T&R 47
6461 1N5240BRL 10V0 0W5 ZENER 5% T&R 1 6438 1N4004 400V 1A0 DIODE T&R 4
6855 NJM7805FA TO220 P 5V0 REG IS V1 1 6944 LM2931T TO220 P 5V0 REG V1 1
5101 BC550C TO92 NPN TRAN T&R TB 2 5101 BC550C TO92 NPN TRAN T&R TB 2
5102 BC560C TO92 PNP TRAN T&R TB 6 5102 BC560C TO92 PNP TRAN T&R TB 3
6935 1455P1 IC SINGLE TIMER 1 6789 2N3904 TO92 NPN TRAN TA 5
6961 80C51BH IC CPU/ROM FOR LP-304 1 6987 NJM2901N IC DUAL COMPARATOR 3
6470 MAC15A6FP TO220 15A TRIAC 400V 4 6935 1455P1 IC SINGLE TIMER 1
6862 MOC3011 OPTO-COUPLER 4 6949 4093BCP IC QUAD 2I/P SCH/TRIG 1
6481 0.5A 60 PTC CURRENT LIMITER 1 6937 74HC373N IC OCTAL LATCH 3 STAGE 4
5404 _27P 100V 10%CAP T&R BEAD NPO 2 6942 74HC139 IC DUAL 2OF4 DECODER 1
5308 _47N 50V 10%CAP T&R BEAD X7R 1 6943 74HC374N IC OCTAL DTYPE LATCH 1
5314 100N 50V 10%CAP T&R BEAD X7R 5 6948 27C64 200NS IC PREPROG. FOR LP-608 1
5827 150N 250V 20%CAP BLK 'X2' 15MM AC 5 6961 80C51BH IC CPU/ROM FOR LP-304 1
5259 __4U7 63V 20%CAP T&R RAD .2"EL 1 6941 MOC5008 OPTO-COUPLER 1
5888 2200U 25V 20%CAP BLK 16X25MM EL 1 5404 _27P 100V 10%CAP T&R BEAD NPO 2
5432 __4N7 50V 10%CAP T&R BEAD Y5R 6
3769 _100UH COIL 18AGW ZOBEL FER CORE 4
5314 100N 50V 10%CAP T&R BEAD X7R 27
3464 WIRE TO BOARD CRIMP 18-24 AWGT/LEAD 7
5322 470N 50V 10%CAP T&R BEAD Z5U 1
3490 CLIP 250X032 14-16AWG DISCO/INSL 2
5861 __4U7 63V 10%CAP T&R AXIAL EL 1
3499 CLIP 250X032 14-16AWG FEMALE BULK 8
5846 _22U 25V 10%CAP T&R AXIAL EL 1
3682 250 MALE PCB TAB BULK CARTRIGE 8
5943 _68U 16V 20%CAP T&R AXIAL EL 4
3922 XLR FEML PCB MT HORZ THIN SNAP-IN 1
5623 330U 16V 20%CAP BLK AXIAL EL 1
3923 XLR MALE PCB MT HORZ MTHOLE-V SNAP 1
4580 ROT BIN 18MM 1BIT ENCODER P18 9
3451 EYELET SMALL 0.089 OD PLATED 8
8543 RECESSED RUBBER BUMPER WITH WASHER 4
3542 EYELET LARGE SE44 TIN-PLAT BRASS 6
3427 MIDI JCK PCB MT HORZ 5PIN DIN 1
3414 INTERNATIONAL PC MOUNT FUSEHOLDER 2
3527 1/4" JCK PCB MT HORZ GOLD __S 1
2431 0.200 AMP SLO-BLO .25X1.25 FUSE 1
3922 XLR FEML PCB MT HORZ THIN SNAP-IN 2
9902 GEL SET FOR DB-304 1
3451 EYELET SMALL 0.089 OD PLATED 26
3501 B52200F006 COMP WASH #4 SMALL 4
3985 LITE CONTROL BATTERIES "AA" 2
8855 SCREWKNOB 5/16"18 X 1" SUPERSTAR 1
3986 PC/2 "AA" BATT. HOLDER 1
3795 #8 GROUND LUG ZIERICK 505-169 6
8498 6-32 X 3/8 STEEL PEM STUD 3
3810 4" NYLON CABLE TIE 12
3810 4" NYLON CABLE TIE 1
9904 PAR 56 LIGHT FIXTURE ALUMINUM 4
3827 SQUARE BUMPER BUTTON BLACK 1
3479 12'3/16 SJT AC LINE CORD BLACK 250" 1
8591 SLIDE POT KNOB-RED 3
3829 HEYCO #1207 STRAIN RELIEF 5
8627 LIGHT SHOW KNOB (BLACK/W RED CAP) 9
8261 GE VELVET LEXAN .007" X 12" X 24" 0.5
8661 BUTTON KNOB FLAT GREY 3
9903 300 WATT PAR_56 NSP BULB 4
8261 GE VELVET LEXAN .007" X 12" X 24" 1
8900 YORKVILLE WARRANTY CARD 2-YR UNLTD. 1
8910 YORKVILLE PRODUCT MANUAL 1
8793 4-40 HEX NUT ZINC 4
8900 YORKVILLE WARRANTY CARD 2-YR UNLTD. 1
8800 6-32 KEPS NUT ZINC 11
3521 SIDE ENTRY PCB CONN .156 8POS 2
8787 8-32 KEPS NUT ZINC 1
3541 24 PIN BREAKAWAY 90 .156 1
8848 5/16 WELDNUT 1
4597 22AWG STRAN TC WIR JMP 9
8883 1/2 X 13 NYLON INSERT LOCK NUT 4
4599 22AWG SOLID SC WIR T&R JMP 204
4597 22AWG STRAN TC WIR JMP 8
4817 1/4W 47R 5% T&R RES 10
4599 22AWG SOLID SC WIR T&R JMP 12
4857 1/4W 220R 5% T&R RES 1
5299 24AWG SOLID SC WIR RAD JMP 3
4821 1/4W 470R 5% T&R RES 2
4617 1/2W 47R 5% T&R RES 4
4823 1/4W 1K 5% T&R RES 4
4819 1/4W 180R 5% T&R RES 4
4826 1/4W 3K3 5% T&R RES 1
4855 1/4W 330R 5% T&R RES 1
4827 1/4W 4K7 5% T&R RES 9
4881 1/4W 360R 5% T&R RES 4
4829 1/4W 10K 5% T&R RES 39
4821 1/4W 470R 5% T&R RES 1
4832 1/4W 22K 5% T&R RES 8
4823 1/4W 1K 5% T&R RES 2
4834 1/4W 47K 5% T&R RES 20
4827 1/4W 4K7 5% T&R RES 8
4836 1/4W 68K 5% T&R RES 1
4829 1/4W 10K 5% T&R RES 3
4838 1/4W 100K 5% T&R RES 14
4838 1/4W 100K 5% T&R RES 1
4849 1/4W 180K 5% T&R RES 1
4886 1/4W 200K 5% T&R RES 1
4842 1/4W 330K 5% T&R RES 2
4842 1/4W 330K 5% T&R RES 2
4843 1/4W 470K 5% T&R RES 2
8741 4-40 X 1/2 PAN PH MS JS500 4
4874 1/4W 560K 5% T&R RES 1
8842 #4 X 5/16 PAN QUAD TYPE A JS500 BLK 4
4844 1/4W 1M 5% T&R RES 3
8799 #6 X 1/4 PAN PH TYPE B JS500 2
4845 1/4W 2M2 5% T&R RES 1
8801 6-32 X 3/8 PAN PH TAPTITE JS500 13
3677 _5" 8C-26AWG RIB 3/4" NOTCH 0.1" 2
8830 6-32 X 7/8 PAN PH MS JS500 3
8870 #4 X 1/4 PAN PH TYPE A ZINC 2
8803 8-32 X 3/8 PAN QUAD TAPTITE JS500 18
8742 4-40 X 3/8 PAN PH TAPTITE JS500 4
8815 8-32 X 3/4 PAN PH TAPTITE JS500 1
8801 6-32 X 3/8 PAN PH TAPTITE JS500 6
8762 10-32 X1/2 TRUSS QUAD TAPTITE JS500 4
8803 8-32 X 3/8 PAN QUAD TAPTITE JS500 16
8783 10-32 X 1 PAN QUAD TT JS500 BLACK 1
8905 YORKVILLE PRODUCT SCHEMATIC 1
8860 1/2-13 X 1 1/4 HEX CAP SCREW ZINC 4
8491 #10 SPLIT LOCK WASHER BO 1
3503 FIBRE WASHER 0.5ID, 0.75OD 0.04 THK 17
3744 SNAP IN .375 SPACER RICHCO 3
3509 SWS 3602 BLK. SHOULD.WASHER(MICRO) 17
3833 8 X 3/8 (250 OD,.171 ID)NY SPACER 1
3436 DPDT PUSH SW PCMT H BREAK B4 MAKE 3
8884 .505 I. D. SPRING TENSION WASHER 4
3588 SPST FOOT SW LUG MOMENTARY ON 8
8852 #6 INTERNAL TOOTH LOCKWASHER 1
8820 #8 FLAT WASHER JS500 1
8463 1.468 X .515 X .05 NYLON WASHER BLK 4
1234 G-20/LP-304 LP-504D XFMR 1

LP-302
YS No. Description Qty. YS No. Description Qty.
3555 40 PIN DUAL IN-LINE IC SOCKET 1
6939 12MHZ CRYSTAL HC49\FOX120 1
6405 RED 3MM LED 1V7 5MA BRT 1
6825 1N4148 75V 0A45 DIODE T&R 2
6438 1N4007 400V 1A0 DIODE T&R 3
6487 1N5822 40V 3A0 DIODE SCHTKY 3
6461 1N5240BRL 10V0 0W5 ZENER 5% T&R 1
6855 NJM7805FA TO220 P 5V0 REG IS V1 1
5101 BC550C TO92 NPN TRAN T&R TB 3
5102 BC560C TO92 PNP TRANSISTOR T&R TB 4
6935 1455P1 IC SINGLE TIMER 1
6961 80C51BH IC CPU/ROM FOR LP-304 1
6470 MAC15A6FP TO220 15A TRIAC 400V 2
6862 MOC3011 OPTO-COUPLER 2
6481 0.5A 60 PTC CURRENT LIMITER 1
5404 _27P 100V 10%CAP T&R BEAD NPO 2
5314 100N 50V 10%CAP T&R BEAD X7R 5
5316 150N 50V 10%CAP T&R BEAD X7R 1
5827 150N 250V 20%CAP BLK 'X2' 15MM AC 2
5266 680N 250V 20%CAP BLK 'X2' 30MM AC 1
5259 __4U7 63V 20%CAP T&R RAD .2"EL 1
5888 2200U 25V 20%CAP BLK 16X25MM EL 1
3769 _100UH COIL 18AGW ZOBEL FER CORE 2
3490 CLIP 250X032 14-16AWG DISCO/INSL 2
3499 CLIP 250X032 14-16AWG FEMALE BULK 4
3601 RING TERMINAL 16AWG WIRE & #8 SCREW 1
3682 250 MALE PCB TAB REE
L
11
3498 1/4" JCK PCB MT HORZ 2
3922 XLR FEML PCB MT HORZ THIN SNAP-IN 1
3923 XLR MALE PCB MT HORZ MTHOLE-V SNA
P
1
3542 EYELET LARGE SE44 TIN-PLAT BRASS 4
3414 INTERNATIONAL PC MOUNT FUSEHOLDE
R
2
2431 0.200 AMP SLO-BLO .25X1.25 FUSE 1
9902 GEL SET FOR LP-304 1
3501 B52200F006 COMP WASH #4 SMALL 3
3806 RECTANGULAR WASHER FOR TRANS SUPPRT 2
8855 SCREWKNOB 5/16"18 X 1" SUPERSTAR 1
3795 #8 GROUND LUG ZIERICK 505-169 2
3801 5/8" BUMPER BUTTON BLAC
K
1
3810 4" NYLON CABLE TIE 11
3852 STICK ON CABLE WRAP ANCHOR 1
9904 PAR 56 LIGHT FIXTURE ALUMINUM 2
3479 12'3/16 SJT AC LINE CORD BLACK 250" 1
3829 HEYCO #1207 STRAIN RELIEF 2
3834 HEYCO #1214 STRAIN RELIEF 1
9903 300 WATT PAR_56 NSP BULB 2
3674 9 CIR CABLE HOLDER .098 2
5989 4 CIR CABLE HOLDER .098 2
8701 4-40 KEPS NUT ZINC 1
8793 4-40 HEX NUT ZINC 3
8800 6-32 KEPS NUT ZINC 8
8848 5/16 WELDNUT 1
8883 1/2 X 13 NYLON INSERT LOCK NUT 2
4597 22AWG STRAN TC WIR JMP 4
4599 22AWG SOLID SC WIR T&R JMP 10
5299 24AWG SOLID SC WIR RAD JMP 1
4617 1/2W 47R 5% T&R RES 2
4819 1/4W 180R 5% T&R RES 2
4855 1/4W 330R 5% T&R RES 1
4881 1/4W 360R 5% T&R RES 3
4821 1/4W 470R 5% T&R RES 1
4823 1/4W 1K 5% T&R RES 2
4827 1/4W 4K7 5% T&R RES 7
4829 1/4W 10K 5% T&R RES 3
4838 1/4W 100K 5% T&R RES 1
4886 1/4W 200K 5% T&R RES 3
4842 1/4W 330K 5% T&R RES 2
3623 17" 4C-26AWG RIBBON CABLE 0.1" 1
3612 23" 9C-24AWG RIBBON HITMP 0.1" 1
8865 4-40 X 5/16 PAN PH MS JS500 1
8741 4-40 X 1/2 PAN PH MS JS500 2
8842 #4 X 5/16 PAN QUAD TYPE A JS500 BLK 4
8801 6-32 X 3/8 PAN PH TAPTITE JS500 24
8830 6-32 X 7/8 PAN PH MS JS500 3
8624 10-32 X 1/2 HEX HD MS JS500 BLK 2
8762 10-32 X1/2 TRUSS QUAD TAPTITE JS500 4
8860 1/2-13 X 1 HEX CAP SCREW ZINC 2
8882 1/2-13 X 5 BOLT ZINC 2
3744 SNAP IN .375 SPACER RICHCO 3
8884 .505 I. D. SPRING TENSION WASHER 2
8852 #6 INTERNAL TOOTH LOCKWASHER 1
8463 1.468 X .515 X .05 NYLON WASHER BLK 4
3436 DPDT PUSH SW PCMT H BREAK B4 MAKE 3
1234 G-20/LP-304 LP-504D XFMR 1

LP304 - manufactured prior to Nov /05
YS No. Description Qty.
3555 40 PIN DUAL IN-LINE IC SOCKET 1
6939 12MHZ CRYSTAL HC49\FOX120 1
6405 RED 3MM LED 1V7 5MA BRT 1
6825 1N4148 75V 0A45 DIODE T&R 2
6438 1N4004 400V 1A0 DIODE T&R 3
6487 1N5822 40V 3A0 DIODE SCHTKY 3
6461 1N5240BRL 10V0 0W5 ZENER 5% T&R 1
6855 NJM7805FA TO220 P 5V0 REG IS V1 1
5101 BC550C TO92 NPN TRAN T&R TB 2
5102 BC560C TO92 PNP TRAN T&R TB 6
6935 1455P1 IC SINGLE TIMER 1
6961 80C51BH IC CPU/ROM FOR LP-304 1
6470 MAC15A6FP TO220 15A TRIAC 400V 4
6862 MOC3011 OPTO-COUPLER 4
6481 0.5A 60 PTC CURRENT LIMITER 1
5404 _27P 100V 10%CAP T&R BEAD NPO 2
5308 _47N 50V 10%CAP T&R BEAD X7R 1
5314 100N 50V 10%CAP T&R BEAD X7R 5
5827 150N 250V 20%CAP BLK 'X2' 15MM AC 5
5259 __4U7 63V 20%CAP T&R RAD .2"EL 1
5888 2200U 25V 20%CAP BLK 16X25MM EL 1
2448 15.0 AMP CIRCUIT BREAKER 1
3769 _100UH COIL 18AGW ZOBEL FER CORE 4
3464 WIRE TO BOARD CRIMP 18-24 AWGT/LEAD 7
3490 CLIP 250X032 14-16AWG DISCO/INSL 2
3499 CLIP 250X032 14-16AWG FEMALE BULK 8
3682 250 MALE PCB TAB BULK CARTRIGE 8
3922 XLR FEML PCB MT HORZ THIN SNAP-IN 1
3923 XLR MALE PCB MT HORZ MTHOLE-V SNAP 1
3451 EYELET SMALL 0.089 OD PLATED 8
3542 EYELET LARGE SE44 TIN-PLAT BRASS 6
3414 INTERNATIONAL PC MOUNT FUSEHOLDER 2
2431 0.200 AMP SLO-BLO .25X1.25 FUSE 1
9902 GEL SET FOR DB-304 1
3501 B52200F006 COMP WASH #4 SMALL 4
8855 SCREWKNOB 5/16"18 X 1" SUPERSTAR 1
3795 #8 GROUND LUG ZIERICK 505-169 6
3810 4" NYLON CABLE TIE 12
9904 PAR 56 LIGHT FIXTURE ALUMINUM 4
3479 12'3/16 SJT AC LINE CORD BLACK 250" 1
3829 HEYCO #1207 STRAIN RELIEF 5
8261 GE VELVET LEXAN .007" X 12" X 24" 0.5
9903 300 WATT PAR_56 NSP BULB 4
8900 YORKVILLE WARRANTY CARD 2-YR UNLTD. 1
8793 4-40 HEX NUT ZINC 4
8800 6-32 KEPS NUT ZINC 11
8787 8-32 KEPS NUT ZINC 1
8848 5/16 WELDNUT 1
8883 1/2 X 13 NYLON INSERT LOCK NUT 4
4597 22AWG STRAN TC WIR JMP 8
4599 22AWG SOLID SC WIR T&R JMP 12
5299 24AWG SOLID SC WIR RAD JMP 3
4617 1/2W 47R 5% T&R RES 4
4819 1/4W 180R 5% T&R RES 4
4855 1/4W 330R 5% T&R RES 1
4881 1/4W 360R 5% T&R RES 4
4821 1/4W 470R 5% T&R RES 1
4823 1/4W 1K 5% T&R RES 2
4827 1/4W 4K7 5% T&R RES 8
4829 1/4W 10K 5% T&R RES 3
4838 1/4W 100K 5% T&R RES 1
4886 1/4W 200K 5% T&R RES 1
4842 1/4W 330K 5% T&R RES 2
8741 4-40 X 1/2 PAN PH MS JS500 4
8842 #4 X 5/16 PAN QUAD TYPE A JS500 BLK 4
8799 #6 X 1/4 PAN PH TYPE B JS500 2
8801 6-32 X 3/8 PAN PH TAPTITE JS500 13
8830 6-32 X 7/8 PAN PH MS JS500 3
8803 8-32 X 3/8 PAN QUAD TAPTITE JS500 18
8815 8-32 X 3/4 PAN PH TAPTITE JS500 1
8762 10-32 X1/2 TRUSS QUAD TAPTITE JS500 4
8783 10-32 X 1 PAN QUAD TT JS500 BLACK 1
8860 1/2-13 X 1 1/4 HEX CAP SCREW ZINC 2
8882 1/2-13 X 5 BOLT ZINC 2
3744 SNAP IN .375 SPACER RICHCO 3
3833 8 X 3/8 (250 OD,.171 ID)NY SPACER 1
8884 .505 I. D. SPRING TENSION WASHER 4
8852 #6 INTERNAL TOOTH LOCKWASHER 1
8820 #8 FLAT WASHER JS500 1
8463 1.468 X .515 X .05 NYLON WASHER BLK 4
1234 G-20/LP-304 LP-504D XFMR 1

1/4
LM339
U14
4
5
2
100n
C39
2N3904
Q2
Q3
2N3904
2N3904
Q4
2N3904
Q5
OE
LE
D7
D6
D5
D4
D3
D2
D1
D0
Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0
V-
V+
74HC373
U6
1
23
45
67
89
10
11
1213
14 15
1617
18 19
20
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
CE
OE
D0
D1
D2
D3
D4
D5
D6
D7
PGM
VPP
VCC
NC
VSS
27C64
U3
1
2
3
4
5
6
7
8
9
1011
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
47R
R106
D47
47R
R68
100K
R111
47K
R109
47K
R110
D46
22K
R107
D48
LAMP_6
P7
LAMP_7
P8
D49
100n
C32
LAMP_8
P9
LAMP_3
P4
LAMP_5
P6
47R
R29
470R
R113
100n
C22
OUT
IN
SW3
1
2
3
4K7
R28
100n
C27
LAMP_1
P2
LAMP_2
P3
10K
R26
10K
R30
OE
LE
D7
D6
D5
D4
D3
D2
D1
D0
Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0
V-
V+
74HC373
U7
1
23
45
67
89
10
11
12 13
1415
16 17
18
19
20
YELLOW
LD7
YELLOW
LD6
YELLOW
LD5
YELLOW
LD4
YELLOW
LD3
YELLOW
LD2
BC560
Q7
100n
C30
D20
OE
LE
D7
D6
D5
D4
D3
D2
D1
D0
Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0
V-
V+
74HC373
U2
1
2
3
45
67
89
10
11
1213
14 15
1617
18 19
20
YELLOW
LD1
10K
R66
100K
R69
LAMP_4
P5
47K
R70
4n7
C44
OE
LE
D7
D6
D5
D4
D3
D2
D1
D0
Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0
V-
V+
74HC373
U4
1
23
45
67
89
10
11
1213
14 15
1617
18 19
20 OE
CLK
D7
D6
D5
D4
D3
D2
D1
D0
Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0
V-
V+
74HC374
U8
1
23
45
67
89
10
11
1213
14 15
1617
18 19
20
47K
R117
0
1
P0.7
P0.6
P0.5
P0.4
P0.3
P0.2
P0.1
P0.0
VCC
EA
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
PSEN
ALE
XTAL2
XTAL1
VSS
P3.4/TO
P3.5/T1
P3.6/WR
P3.7/RD
RST
P3.0/RXD
P3.1/TXD
P3.2/INT
P3.3/INT
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P1.0
80C31BH
U1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
D21
4K7
R120
47K
R71
22K
R73
D23
D22
SCENE_1
SW4
1/4
LM339
U12
4
5
2
1/4
LM339
U12
6
7
1
BLACKOUT
SW11
D25
10K
R72
D24 100n
C33
47R
R74
100K
R75
D18
47K
R76
10K
R27
RED
LD8
10K
R23
10K
R22
27p
C12
47K
R77
22K
R79
D19
DB304
TO
JB1
1
32
DB304
TO
JB2
1
32
330uF
16V
C15
1K
R32
22K
R67
MC14093B
U11
1
2
3
IN
REF
OUT
LM2931Q6
1
2
3
47K
R33
D13
1K
R31
47K
R65
2N3904
Q8
12MHZ
XT1
D12
470R
R112
BC560
Q1
1N4004
D11
1N4004
D10
100n
C16
100n
C17
3.6V
B1
MIDI-IN
JB3
1
2
3
45
10K
R47 10K
R48
10K
R49
220R
R35
4n7
C1
1/4
LM339
U9
4
5
2
A
C
NC
MOC5008
U10
2
1
35
4
6
68u
16V
C4
10K
R50
D14
1K
R36
D27
100n
C28
100n
C31
SCENE_2
SW5
SCENE_3
SW6
SCENE_4
SW7
EFFECTS
SW10
47K
R64
100n
C29
100n
C21
10K
R108
100n
C20
100n
C18
100n
C19
27p
C13
10K
R51
10K
R53
10K
R55
10K
R57
10K
R59
10K
R52
10K
R54
10K
R56
10K
R58
10K
R60
10K
R62
10K
R61
EY1
MC14093B
U11
5
6
4
EBC
2N3904
SCENE_6
SW9
100K
R63
MC14093B
U11
8
9
10
D26
SCENE_5
SW8
1/4
LM339
U12
8
9
14
D29
10K
R78
D28 100n
C34
47R
R80
100K
R81
330K
R20
47K
R82
47K
R83
22K
R85
D31
D30
1/4
LM339
U12
10
11
13
68K
R21
D33
10K
R84
D32 100n
C35
47R
R86
10K
R102
100n
C41
D45
D44
22K
R101
D42 47K
R104
47K
R103
100K
R105
D43
47R
R100
100n
C38
1/4
LM339
U14
6
7
1
10K
R96
MC14093B
U11
12
13
11
D41
D40
22K
R95
D38 47K
R98
47K
R97
100K
R99
D39
47R
R94
100n
C37
1/4
LM339
U14
8
9
14
100n
C11
10K
R18 10K
R19
RATE-SELECT
P1
10K
R89
2M2
R38
100K
R39
3K3
R40
OUT
IN
FACTORY
SW2
1
2
3
100K
R37
470n
C23
D15
1M
R16
BC550
Q10
10K
R2
47K
R1
4n7
C2
4n7
C3
470K
R11
D1 D2
D3
10K
R3
100K
R4
1K
R5
D4
10K
R6
1M
R8
1M
R7
68u 16V
C8
180K
R17
4K7
R15
D7
1K
R14
100K
R13
10K
R12
D6D5
4n7
C6
470K
R10
100N
C5
100K
R9
1/4
LM339
U9
6
7
1
1/4
LM339
U9
8
9
14
10K
R43
10K
R44 D16
D17
100n
C25
100n
C26
10K
R45
10K
R46
D37
D36
4K7
R34
1E
2E
1A0
1A1
2A0
2A1
VCC
GND 1Y0
1Y1
1Y2
1Y3
2Y0
2Y2
2Y1
2Y3
74HC139
U5
1
15
2
3
14
13
16
84
5
6
7
12
10
11
9
47R
R25
4K7
R114
22K
R88
SRT
AUDIO_IN
GOLD_T&R
JB4 1
2
3
4
5
6
D34
100n
C7
1N4004
D50
D8
4u7
63V
C10
RES
GND
TRG
OUT
C.V
TH
DIS
VCC

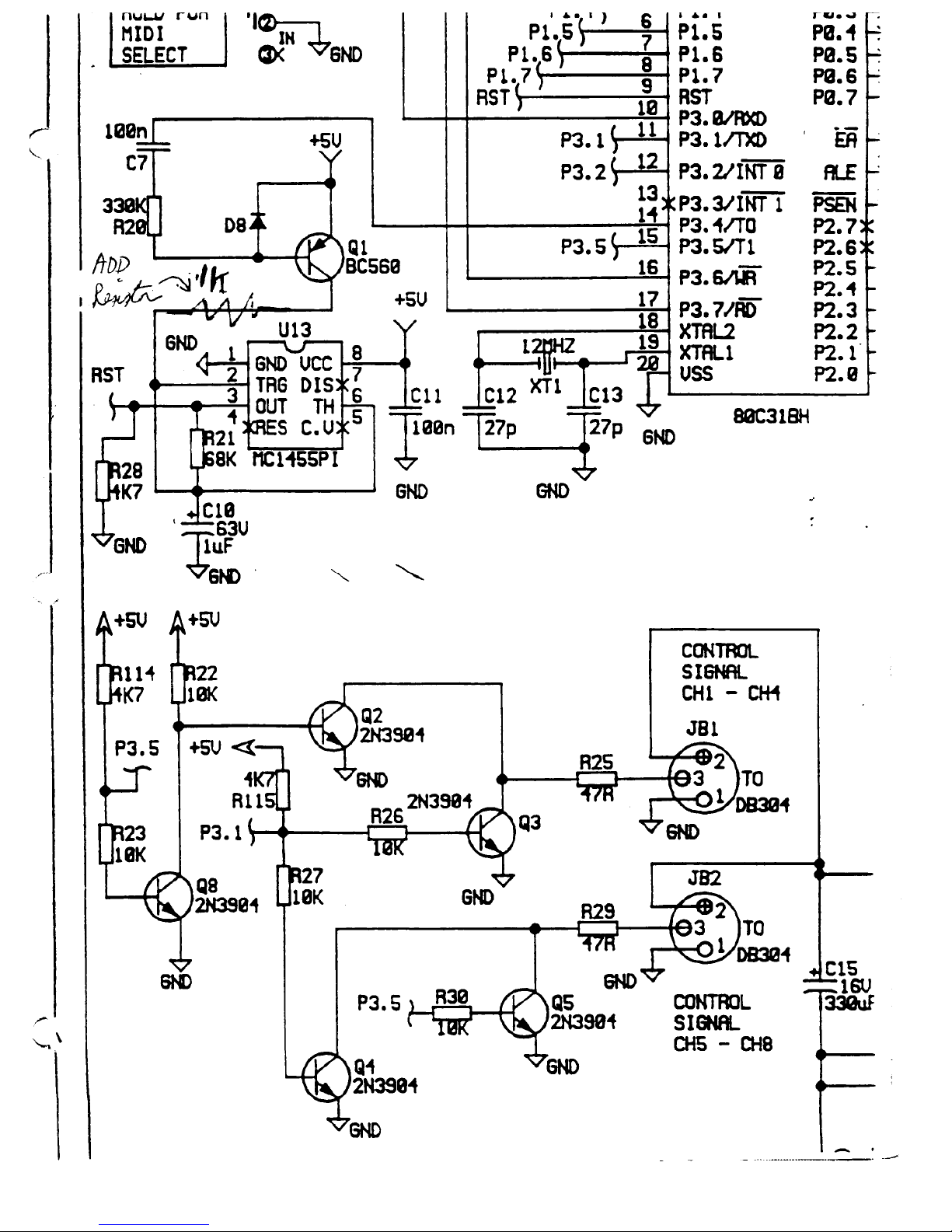

MC1455PI
U13
1
2
3
45
6
7
8
47K
R92
47K
R91
100K
R93
D35
47R
R87
100n
C36
1/4
LM339
U14
10
11
13
4K7
R115
100K
R41
BC550
Q9 100n
C24
22uF
25V
C40
68u16V
C9
68uF
16V
C42
OUT
IN
SW1
1
2
3
EY2
47K
R116
1N4004
D51
4n7
C43
4K7
R118
330K
R119
YORKVILLE SOUND LTD PCB #:
DESIGN BY:
SCH ISSUE:PCB VER:
OFDWG #:
FOR MODEL(S):
TITLE:
CAD FILE NAME:
C:\PCAD\EXE\
DATE:
DRAWN BY: 11VIC.STOM.WOOD
5.00
M1031-5.00
LP608
MAR/21/05FOOT-CONTROLLERC\M1031.SCH
M1031
BC560
Q11
4K7
R34A
560K
R34B
D9
BC550C
CBE
BC560C
P3.5
P3.5
P3.5
TS_ON
TS_ON
TS_ON
TS_ON
TS_ON
TS_ON
TS_ON
TS_ON
TS_ON
RST
RST
P3.1
P3.1
3.6V
3.6V
3.6V
3.6V
3.6V
P3.2
P3.2
P3.2
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V+5V
+5V
+5V
+5V
+5V
+5V+5V
+5V+5V
+5V+5V
TS_REF
TS_REF
TS_REF
TS_REF
TS_REF
TS_REF
TS_REF
TS_REF
TS_REF TS_REF
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND GND
GND
GNDGND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SCENE_6
SCENE_5
SCENE_4
SCENE_3
SCENE_2
SCENE_1
+5V_U1
+5V_U1
D0
D0
D0
D0
D0
D1
D1
D1
D1
D1
D2
D2
D2
D2
D2
D3
D3
D3
D3
D3
D4
D4
D4
D4
D4 D5
D5
D5
D5
D5
D6
D6
D6
D6
D6
D7
D7
D7
D7
D7
P1.5
P1.5
P1.7
P1.7
P1.4
P1.4
P1.6
P1.6
P1.3
P1.3
TS_PLS
TS_PLS
TS_PLS

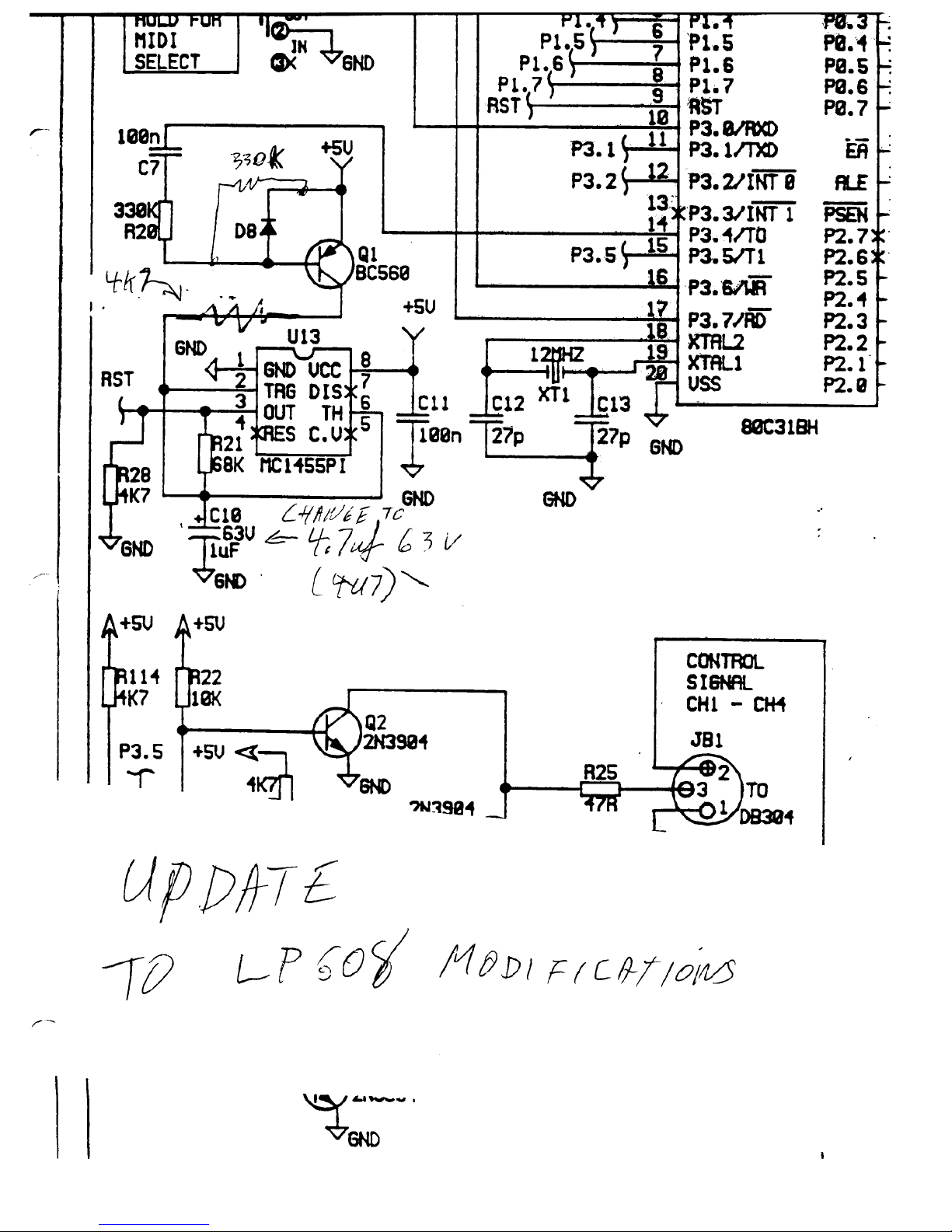

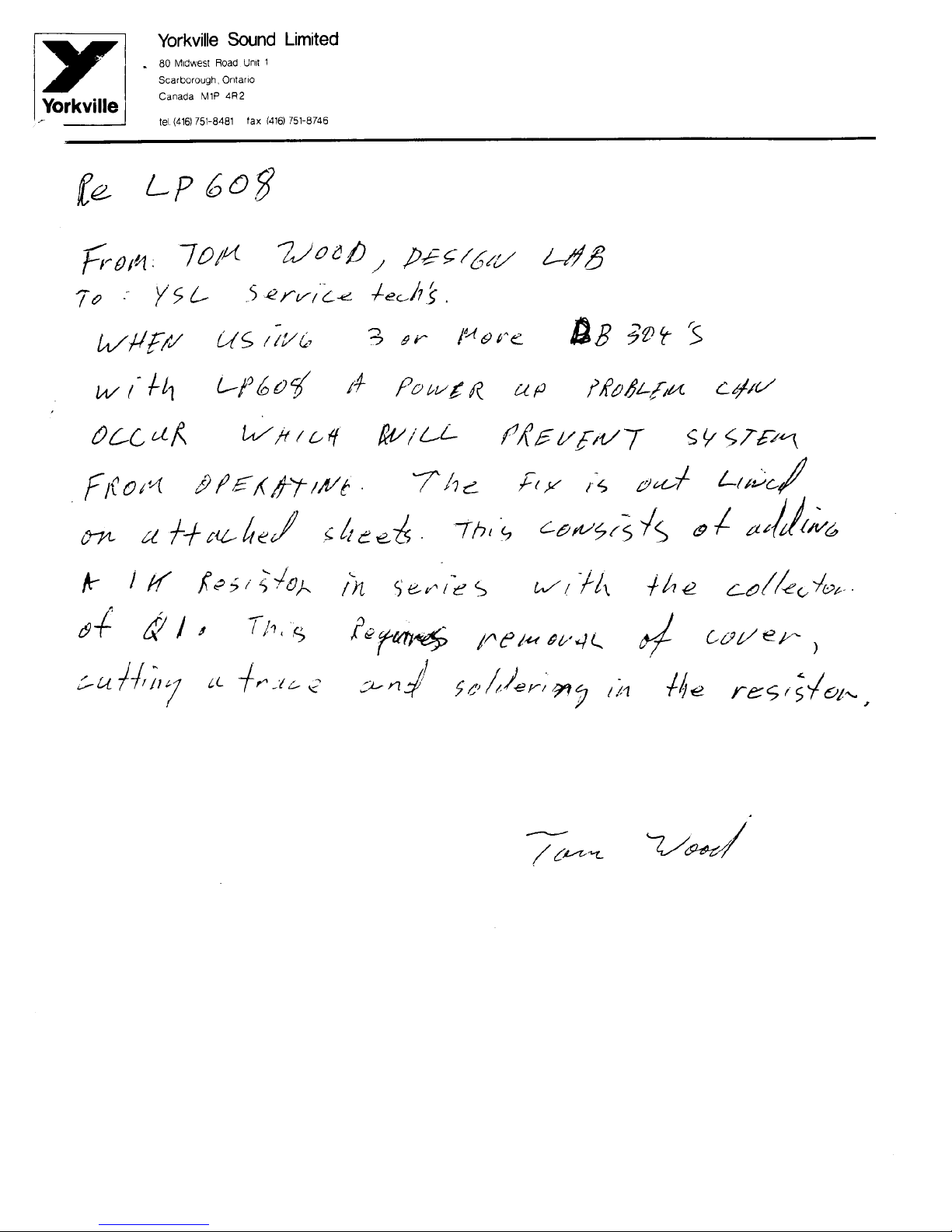

MEMORY LOSS AFTER SHUT DOWN
THESE PARTS ADDED TO ELIMINATE
TO PIN 7 OF U11
TO PIN 12 OF U11
Vcc 3, GND 12LM339
CONTROL
CONTROL
BEFORE USING
WHEN MEMORY IS LOST, LOAD FACTORY PRESET
ALL UNMARKED DIODES ARE IN4148
NOTES;NOTES;
CH5 - CH8
CH1 - CH4
SIGNAL
SIGNAL
MODE
SCENE
EFFECTS
BUS 1
SELECT
OF U11.
IS CONNECTED TO SUPPLIES
IS CONNECTED TO SUPPLIES
OF U9.
BYPASS CAPACITOR
BYPASS CAPACITOR FUNCTION
SWITCH
TOUCH
MIDI
HOLD FOR
PRESET
U:\M1031V15.PRN

SHEAR SHEAR
SHEAR SHEAR
SHEARSHEAR
ROUTE
GAGE
0.01"/HOLE
VCD
.020"
.012"
.008"
.005"
.020"
.012" .008"
.005"
.020"
.012" .008"
.005"
.020"
.012"
.008"
.005"

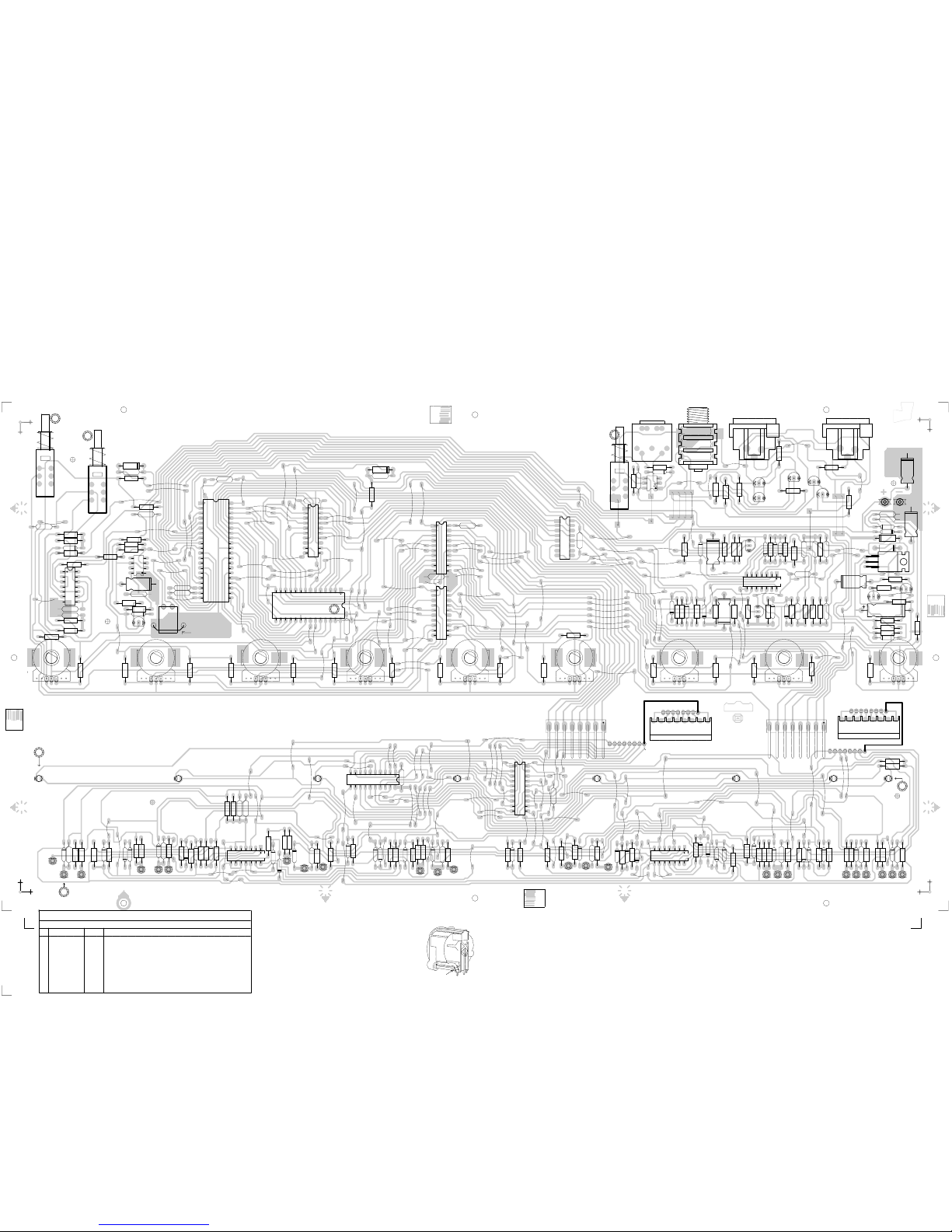

SOLDERSIDE M1031-5.00
ER:5.00
M1031
VER:5.00
M1031
YSL LTD

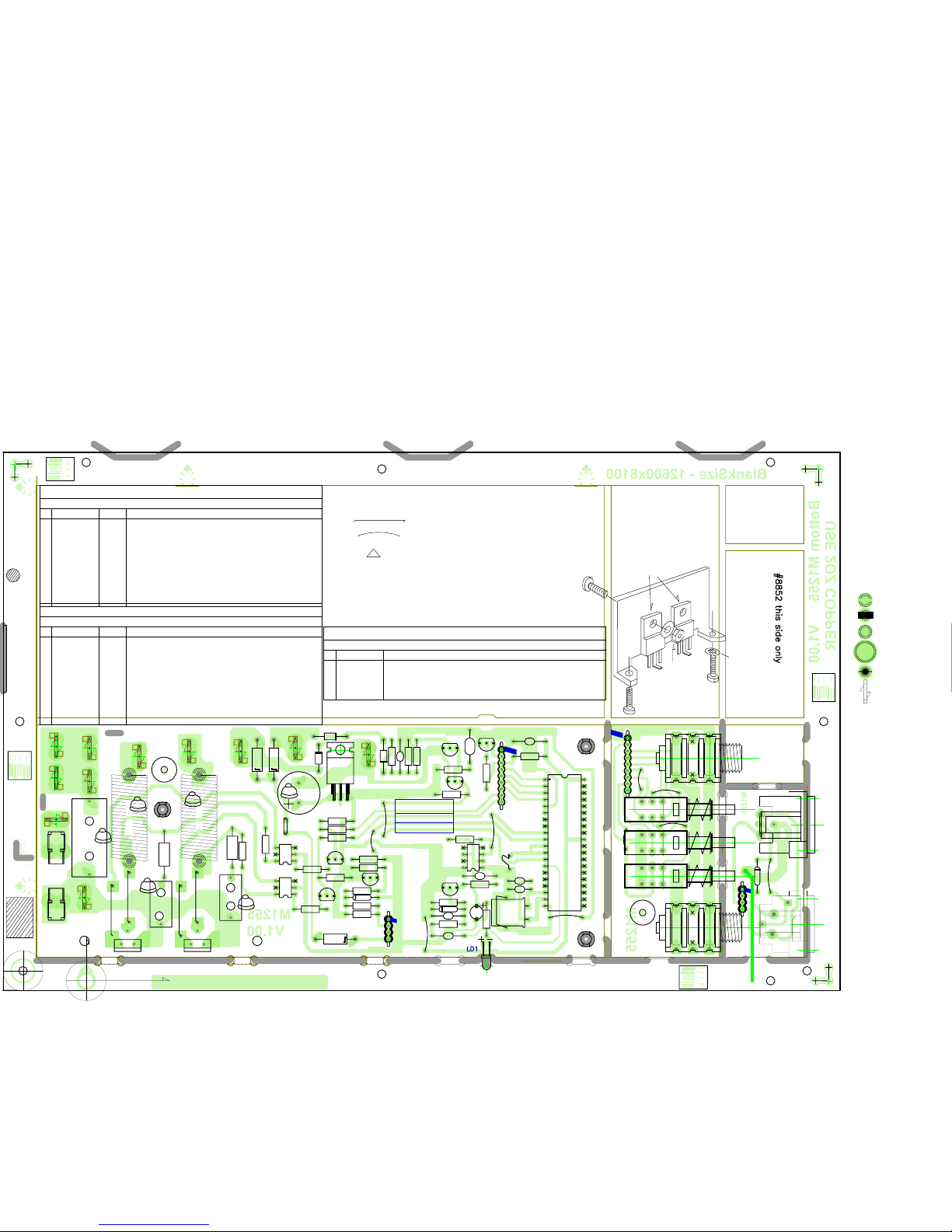

BLANK SIZE=19.000"X10.225"
DRILL DETL M1031-4.00
U14
NJM2901
U12
NJM2901
U9
NJM2901
C39
100N
C32
100N
C22
100N
C27
100N
C30
100N
C33
100N
C12
27P
C16
100N
C17
100N
C1
4N7
C28
100N
C31
100N
C29
100N
C21
100N
C20
100N
C18
100N
C19
100N
C13
27P
C34
100N
C35
100N
C38
100N
C37
100N
C11
100N
C23
470N
C2
4N7
C3
4N7
C6
4N7
C5
100N
C25
100N
C26
100N
C7
100N
C40
25V 22U
C36
100N
C24
100N
Q2
2N3904
Q3
2N3904
Q4
2N3904
Q5
2N3904
Q8
2N3904
U6
74HC373
U7
74HC373
U2
74HC373
U4
74HC373
U8
74HC374
U3
27C64
6948
R106
47R
R68
47R
R111
100K
R109
47K
R110
47K
R107
22K
R29
47R
R113
470R
R28
4K7
R26
10K
R30
10K
R66
10K
R69
100K
R70
47K
R71
47K
R73
22K
R72
10K
R74
47R
R75
100K
R76
47K
R27
10K
R23
10K
R22
10K
R77
47K
R79
22K
R32
1K
R67
22K
R33
47K
R31
1K
R65
47K
R112
470R
R47
10K
R48
10K
R49
10K
R35
220R
R50
10K
R36
4K7
R64
47K
R108
10K
R51
10K
R53
10K
R55
10K
R57
10K
R59
10K
R52
10K
R54
10K
R56
10K
R58
10K
R60
10K
R62
10K
R61
10K
R63
100K
R78
10K
R80
47R
R81
100K
R20
330K
R82
47K
R83
47K
R85
22K
R21
68K
R84
10K
R86
47R
R102
10K
R101
22K
R104
47K
R103
47K
R105
100K
R100
47R
R96
10K
R95
22K
R98
47K
R97
47K
R99
100K
R94
47R
R18
10K
R19
10K
R89
10K
R38
2M2
R39
100K
R40
3K3
R37
100K
R16
1M
R2
10K
R1
47K
R11
470K
R3
10K
R4
100K
R5
1K
R6
10K
R8
1M
R7
1M
R17
180K
R15
4K7
R14
1K
R13
100K
R12
10K
R10
470K
R9
100K
R43
10K
R44
10K
R45
10K
R46
10K
R34
4K7
R25
47R
R88
22K
R92
47K
R91
47K
R93
100K
R87
47R
R41
100K
D47 4148
D46
4148
D48 4148 D49 4148
D20
4148
D21
4148
D23
4148
D22
4148
D25
4148
D24 4148
D18 4148 D19 4148
D13 4148
D12 4148
D14
4148
D27
4148
D9 4148
D26
4148
D29
4148
D28 4148
D31 4148 D30 4148
D33 4148
D32 4148 D45 4148
D44 4148
D42
4148
D43 4148
D41 4148 D40 4148
D38 4148
D39
4148
D15
4148
D1
4148
D2
4148
D3
4148
D4
4148
D7 4148
D6 4148
D5 4148
D16 4148
D17 4148
D37 4148 D36 4148
D34 4148
D8 4148
D35 4148
P2
BRIGHTNESS
4580
LAMP-1
SW3
TOUCH-SWITCH
3436
SW1
MIDI/SELECT
3436
LD7
YELLOW
LD6
YELLOW
LD5
YELLOW
LD4
YELLOW
LD3
YELLOW
LD2
YELLOW
LD1
YELLOW
LD8
RED
Q7
BC560
Q1
BC560
Q10
BC550
Q9
BC550
U1
80C31BH
J16
J21
J13
J3
J45
J48
J11
C42
68U
16V
C4
68U 16V
U11
MC14093B
Q6
LM2931
REG
D11
1N4004
D10
1N4004
J85
JB3
MIDI-IN
3427
C8
68U 16V
C10
4U7
63V
U5
74HC139
JB4
AUDIO_IN
U13
MC1455P1
SW2
FACTORY-PRESET
3436
EY1
J153
J82
J33 J34
J214
C43
4N7
J20
J167
J5
P1
EFECTS_RATE
4580
RATE_SELECT
J51
J50
J56
J71
D50
1N4004
J25
J75
J37
J39
1
BUS-1
J55 J53 J54
J4
J64
J80
J111
J35
J124
J125
J107
J108
J113
J112
J116
J115
J60
J117
J132
J137
J180
J162
J176
J175
J174
J173
J139
J138
J146
J147
J150
J151
J156
J155
J145
J129 J130
J152
J143
J159
J160
J161
J164
J158
J122
J149 J148
J144
J120
J98
J208
J99
R115
4K7
J186
R116
47K
R118
4K7
C9
68U 16V
J157
1BUS-1 13677
13677
1
MOLEX-CABLE
J189
J190 J191
J81
J134
J193
J221
J187
J163
C41
100N
J212
J200
J199
J166
P9
BRIGHTNESS
4580
LAMP-8
J38
J202
J44
J93
J23 J24
J52
J79
J192
J90
J92
J88
J179
J29
J12
J168
J207
J30
J27
J204
J73
J26
J28
J57
J67
J43
J65
J63
J77
J62
J87
J140
J70
J32
J141
J17
J142
J114
J118
J127
J128
J121
J106
J100
J105
J102
J101
J184
J123
J195
J171
J210
J196
J83
J135
J49
J154
J119
J109
J74
J69
J201
J194
J213
J217
J169
J136
J95
J97
J209
J133
J131
J206
J183
J172
J177
J215
J8
J216
J68
J15
J6
J22
J47
J46
J84
1
D51
1N4004
J91
J78
J72
C15
330U
16V
C44
4N7
J66
J94
J86
J76
J205
J14
GUIDE
ETCH
GUIDE
ETCH
GUIDE
ETCH
P8
BRIGHTNESS
4580
LAMP-7
P7
BRIGHTNESS
4580
LAMP-6
P6
BRIGHTNESS
4580
LAMP-5
J31
J19
EY2
J18
P5
BRIGHTNESS
4580
LAMP-4
P4
BRIGHTNESS
4580
LAMP-3
J96
R114
4K7
J1
J2
J59 J58
U10
MOC5008
R117
47K
J9
J7
3541 8POS.RT.ANGLE_MOLEX
3521
CONNECTOR#2
1
3677
1
MOLEX-CABLE
J170
3541
1
3677
8POS.RT.ANGLE_MOLEX
3521
CONNECTOR#1
GUIDE
ETCH
6
3
P3
BRIGHTNESS
4580
LAMP-2
A_BAL_INPUT
PART#3922
A_BAL_INPUT
PART#3922
5
7
2
2
11
10
9
8
7
6
5
4
3
2
1
# DESCRIPTION OF CHANGEVER#DATE
MODEL(S):-
D
D
D
D
D
D
D
D
MAR/21/05
DEC/15/04
OCT/15/97
V
V
V
V
V
V
V
V
5.00
4.10
4.00
N
N
N
N
N
N
N
N
PC#6843 MASK SPREAD TO 0.030"
FIX ROUTERED HOLWS FOR SWITCHES
PC#5471_REPLACE_XLR’S_#3660->#3922
LP-608
M1031.PCB_DATABASE_HISTORY
J211
R34B
560K
R34A
4K7
Q11
BC560
R120
4K7
R119
330K
PRODUCTION NOTES
BROKEN HERE
THIS CONNECTION MUST BE
C4,C8,C9,C42 #5943 68u AXIAL IS SUBSTITUTED BY ANY CAP 47u->110u 10V MIN
ASSEMBLY M1031-5.00
PIN 1 PIN 1
PIN 1
PIN 1
3527
BRN BRN YEL
YEL
BRN
BRN BRN
BRN
BRN
BRN
BRN BRN BRN BRN
BRN BRN
BRN BRN YEL
YEL
YEL YEL
YEL
YEL
MOMENTARY
MOMENTARY
BLANK SIZE=19.000"X10.225"
XT1
HAND INSERTED
JUMPER
6939

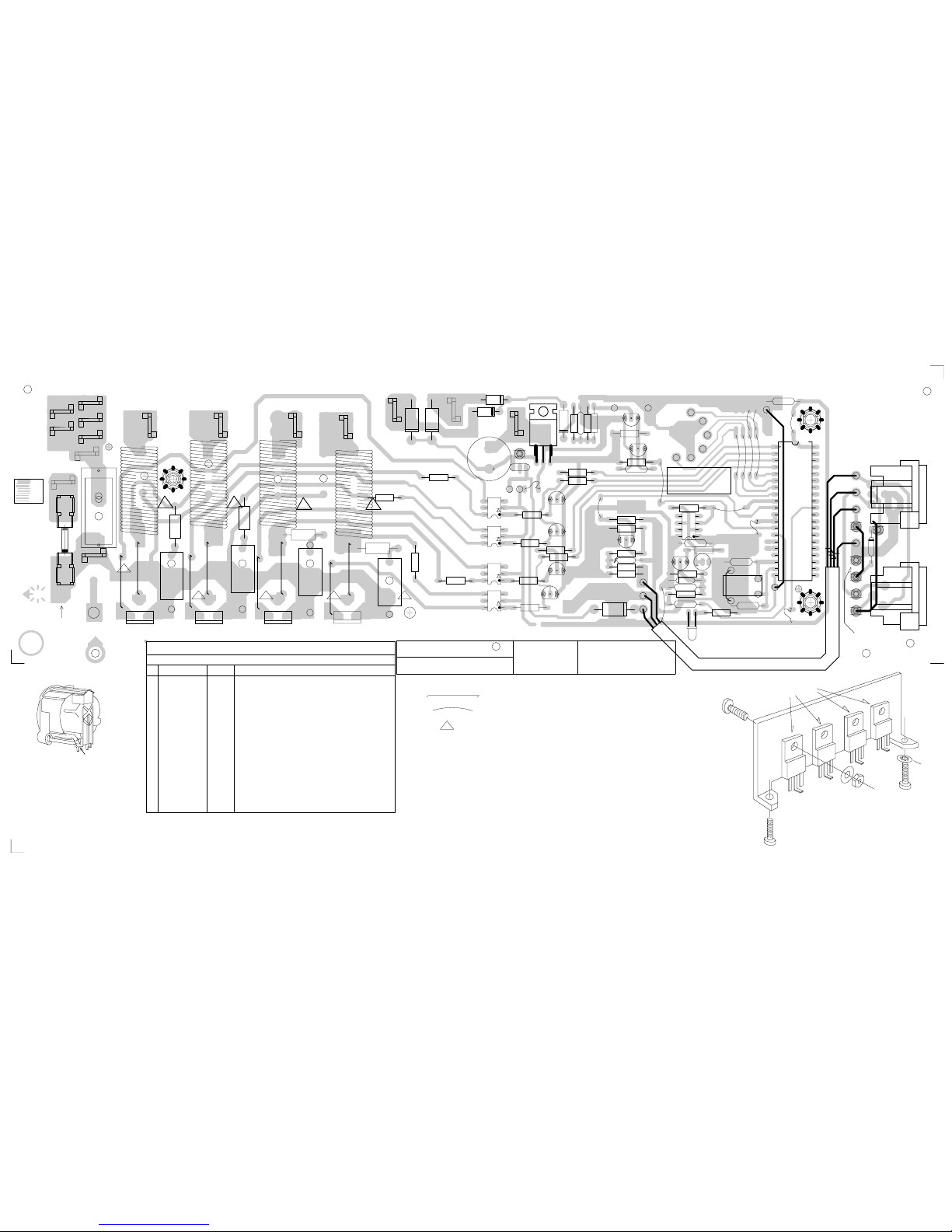

PCB MECH M1031-5.00

1N5822
D1
1N5822
D2
100n
C16
1K
R31
BC550
Q1 BC550Q2
1K
R1
100K
R4
470R
R28
120VAC
60Hz
117VA 1234
T1
TAB2
RED
LD1
IN REF OUT
7805Q13
1
2
3
2200u
25V
C2
0
1
P0.7
P0.6
P0.5
P0.4
P0.3
P0.2
P0.1
P0.0
VCC
EA
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
PSEN
ALE
XTAL2
XTAL1
VSS
P3.4/TO
P3.5/T1
P3.6/WR
P3.7/RD
RST
P3.0/RXD
P3.1/TXD
P3.2/INT
P3.3/INT
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P1.0
80C51BH
U1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
180R
R18
10K
R2
A
C
NC MT
NC
MT
MOC3011
U7
1
2
34
5
6
4K7
R3
330R
R5
12MHZ
XT1
RES
GND
TRG
OUT C.V TH
DIS
VCC
MC1455PI
U8
1
2
3
45
6
7
8
4u7
63V
C5
360R
R13
D6
100n
C4
100n
C3
BC560
Q4
MALE
XLR JB1
13
2
4K7
R6
4K7
R7
10K
R9
10K
R8
BC560
Q3
10V
500mW
ZD1
250V
.15uF
C1
.2A
F2
100uH
L2
250V
.15u
C9
47R
0.5W
R23
MT1
MT2
GMAC15A6FP
Q8
BC560
Q7
360R
R17
4K7
R16
BC560
Q5
MT1
MT2
GMAC15A6FP
Q6 47R
0.5W
R15
250V
.15u
C8
100uH
L1
A
C
NC MT
NC
MT
MOC3011
U6
1
2
34
5
6
180R
R14
TAB1
TAB5
360R
R25
BC560
Q11
MT1
MT2
GMAC15A6FP
Q12 250V
.15u
C11 100uH
L4
A
C
NC MT
NC
MT
MOC3011
U5
1
2
34
5
6
180R
R26
TAB6
360R
R21
BC560
Q9
MT1
MT2
GMAC15A6FP
Q10
47R
0.5W
R27
250V
.15u
C10
100uH
L3
A
C
NC MT
NC
MT
MOC3011
U4
1
2
34
5
6
180R
R22
TAB3
1N4004
D8
4K7
R12
4K7
R20
4K7
R24
330K
R10
1N5822
D3
27p
C6
27p
C7
EY3 EY1
10
9
8
7
6
5
4
3
2
1
# DESCRIPTION OF CHANGEVER#DATE
MODEL(S):-
D
NOV/16/05
NOV/08/02
APR/16/99
.
JUN/12/98
.
OCT/23/97
FEB/24/97
FEB/23/95
V
4.40
4.30
4.20
.
4.10
.
4.00
3.90
3.80
N
PC#7007_REMOVE_CIR_BRKR
PC#6571_C20_47N->150N
CLARIFY_EPROM_JUMPERS
VERSION
PC#5752_ADD_POWER_SWITCH_TO_CE
PC#5472_R15,19,23,27_10R->47R
PC#5470_CHANGES_FOR_CE_MODEL
PC#5321_R5_1K-->330R
PC#4737_D1,D2,D3_MBR160-->1N5822
LP-304
M1030.SCH_DATABASE_HISTORY
EY2
EY6
TAB4
J18

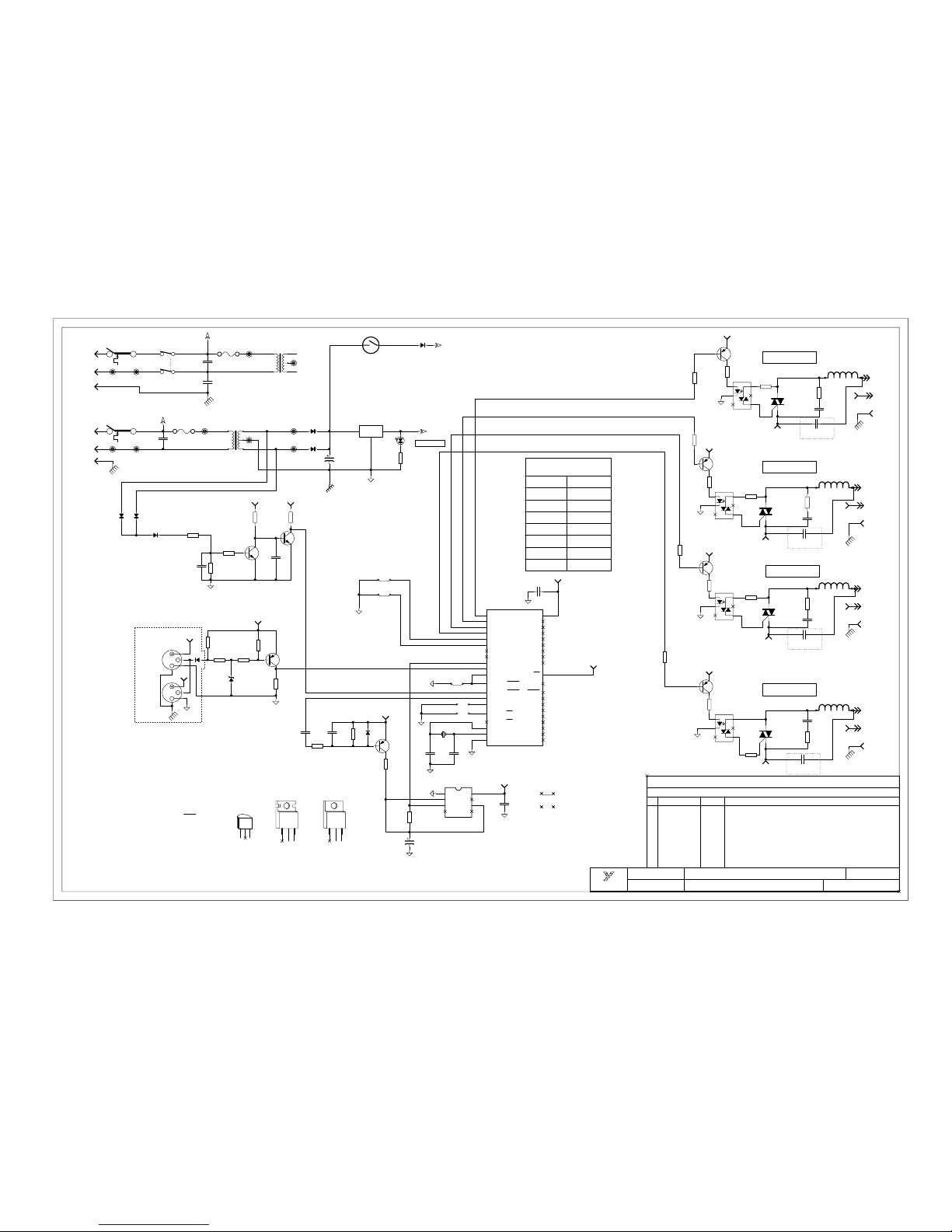

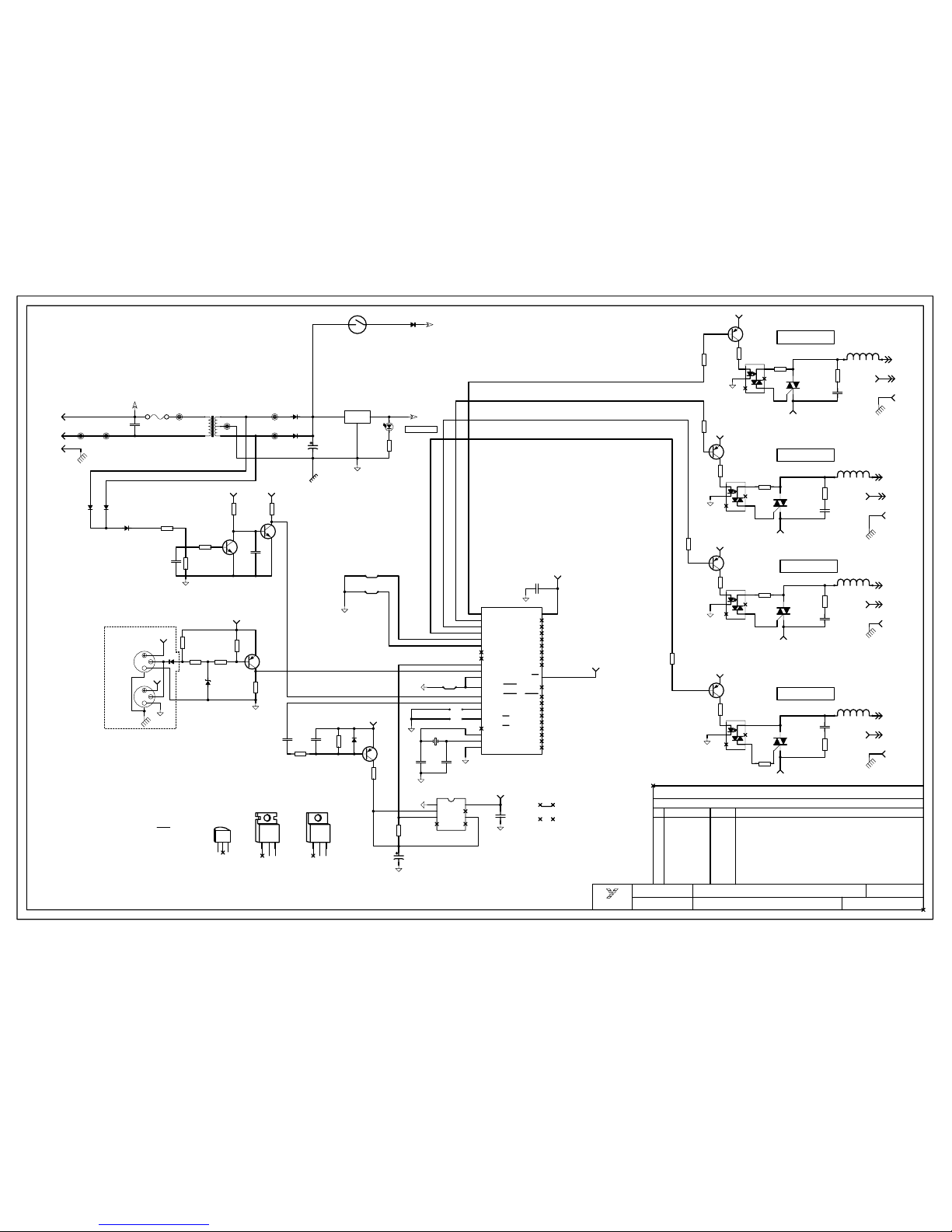

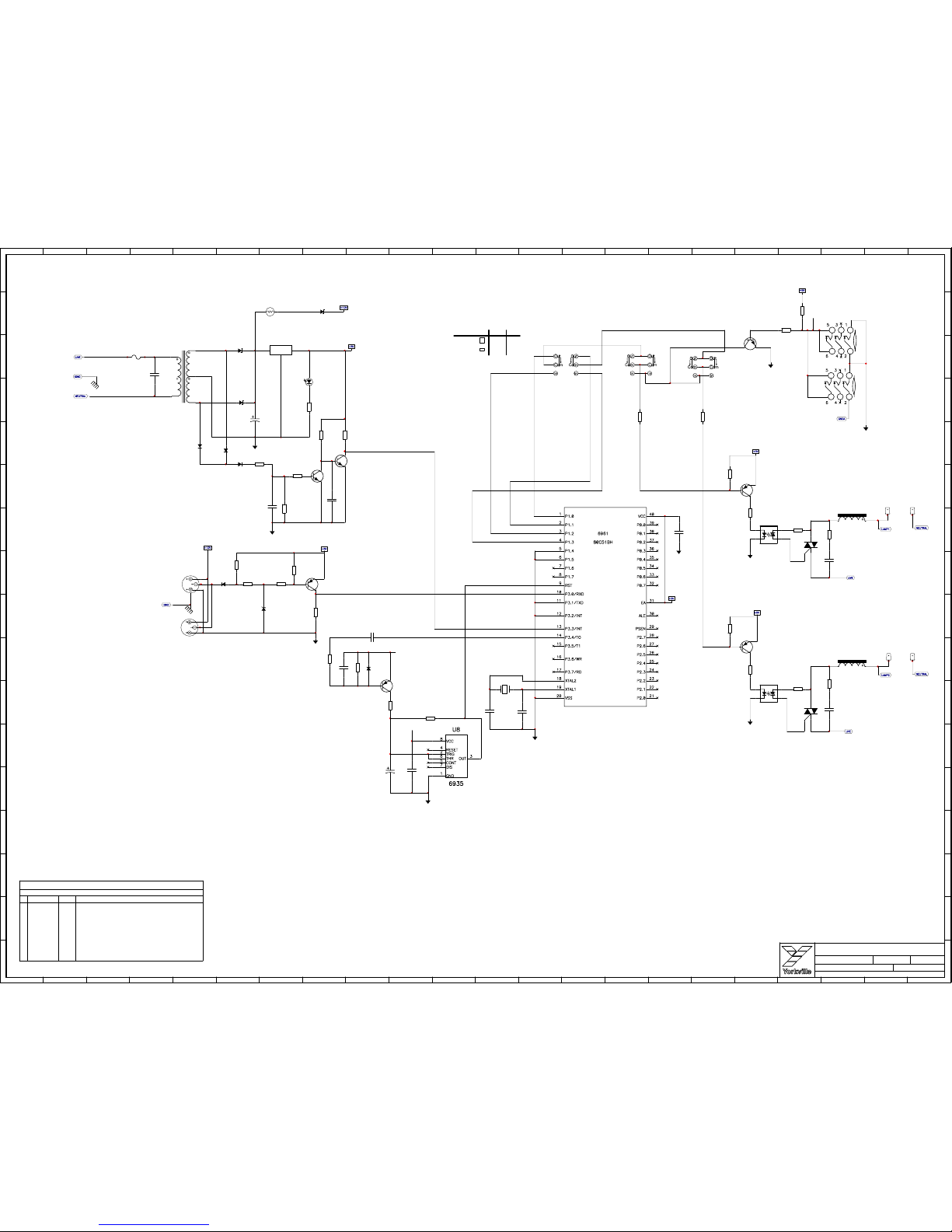

YORKVILLE NAME: PCB#&VER:
MODELS: SCH ISSUE:
TITLE:
DATE:
M1030
LP-304E
LP-304
M1030.SCH
NOV/16/2005
DIMMER_BAR
4.40
J17
MT1 MT2
G
MAC15A6FP
EY5
TAB7
TAB8
100n
C12
100n
C13
J19
EBC
BC560
D9
EY4
150n
C20
FEMALE
XLR JB2
13
2
IN
REF OUT
7805
47R
0.5W
R19
4K7
R30
330K
R29
0.5A_PTC
PTC
S1
200K
R11
1N4004
D5
1N4004
D4
J22
J20
WHITE
AC.FUSED
AC.FUSED
AC.FUSED
AC.FUSED
AC.FUSED
+12V
+12V
+12V
UGND
UGND
UGND
UGND
NEUTRAL
NEUTRAL
NEUTRAL
NEUTRAL
HOT
HOT
HOT
HOT
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V+5V
GREEN
BLACK
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
JUMPER NOT INSTALLED
JUMPER INSTALLED
300 WATT BULBS
FACTORY SETTING IS FOR
EPROM
ONLY REQUIRES EXTERNAL
ROM
AND PROGRAM IN INTERNAL
YSL PT# 6961 80C51BH CPU
YSL PT# 6938 80C31BH CPU
EXECUTES INTERNAL PROGRAM
IF PIN 31 IS HIGH CPU
PROGRAM
CPU EXEUTES EXTERNAL
NOTE IF PIN 31 IS LOW
BC550
JB2
CONTROLLER INPUT
FC608
JB1
STUFF J38 BUT NOT J21 WITH 80C31BH,
74HC373 AND 27C64
POWER ON
TO JB1,JB2
INDICATES PCB BREAKAWAY
CHANNEL 4
CHANNEL 3
CHANNEL 2
CHANNEL 1
CIRCUITRY WITHIN DASH LINES
*
*
*
*
WITH OUT U2 74HC373 AND U3 27C64
OR STUFF J21 BUT NOT J38 WITH 80C51BH
DAISYCHAIN OUT
ALL UNMARKED ARE IN4148
NOTES:

.020"
.012"
.008"
.005"
SHEAR
VCD
M1030-9.00
BLANK SIZE=13.800"X8.100"
.
.
Q1 BC550
Q2
BC550
R4 100K
R2 10K
R3 4K7
R5 330R
R13
360R
R11
200K
R6 4K7
R7 4K7
R9
10K R8
10K
R17
360R
R16
4K7
R25
360R
C11
150N 275V
R21
360R
R12
4K7
R20
4K7 R24
4K7
R10
330K
.
.
TB5
250TAB
FUNCTION
.
.
TB6
250TAB
FUNCTION
.
.
TB2
.
.
TB4
.
.
J21
TB7
250TAB
FUNCTION
.
.
TB3
.
.
C20
150N
D5
4004
D4
4004
250TAB
FUNCTION
.
.
250TAB
FUNCTION
J42
Q13 7805
POS_REG
Q6
MAC15A6FP
U1
80C51BH
U7
MOC3011
.
.
.
.
U6
MOC3011
U5
MOC3011
U4
MOC3011
U8
MC1455PI
D6
4148
C4
100N
C3
100N
C1
VALUE
SEE
C6
27P
C7
27P
Q3
BC560
Q11
BC560
Q5
BC560
NOTE
FOR
Q9
BC560
Q7
BC560
ZD1
10V
L2
100uH100uH
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
# DESCRIPTION OF CHANGEVER#DATE
MODEL(S):-
D
.
NOV/16/05
.
APR/26/05
MAR/18/05
NOV/07/02
MAY/28/98
NOV/20/97
.
.
.
.
OCT/09/97
FEB/24/97
JUL/17/95
.
.
.
FEB/22/94
V
.
9.00
.
8.00
7.00
6.10
6.00
5.00
.
.
.
.
4.00
3.81
.
.
.
.
3.80
N
HOLDER_WITH_TAB
PC#7037_REPLACE_EYELET_AT_FUSE
WITH_TABS
PC#6887_REPLACE_AC_EYELETS
PC#6843_REDO_MASK_
PC#6571_C20_47N->150N
PC#5720_REDO_RE_CSA_SPACINGS
PC#5524_REDO_FOR_LP304_CE
->47R_1/2W
PC#5472_R15,R19,R23,R27_10R
NEW_CHOKE
->680N_ADD_C14_680N,NEW_XLR’S
PC#5470_FOR_LP304CE_C1_150N
PC#5321_R5_1K-->330R
PC4862
.
PC#4737
.
PC#4739
LP-304/304E/504/504E
M1030.PCB_DATABASE_HISTORY
Q12
MAC15A6FP
Q8
MAC15A6FP
C13
100N
J3
L3
100uH100uH
C8
150N 275V
R14
180R
F2
#3414
D1
1N5822
D3
1N5822
C5
4U7 63V
J4
J5
D2
1N5822
J6
J8
J2
J7
C9
150N 275V
J1
L4
100uH100uH
J12
GUIDE
ETCH
J18
J20
J9
J13 J14 J15 J16
J10
250TAB
FUNCTION
J11
4148
R22
180R
R26 180R
J17
C2
2200U
25V
-
+
LD1
RED
R1
1K
C10
150N 275V
R18
180R
C12 100N
.
.
PTC_050
250TAB
FUNCTION
Q4
BC560
MODELPCB#
ISSUE#
DATE NOV/16/05
9.00 M1030 LP304
R27
47R
0.5W
R23
47R
0.5W
R19
47R
0.5W
R15
47R
0.5W
R28 470R
J26
Q10
MAC15A6FP
250TAB
FUNCTION
250TAB
FUNCTION
TB1
.
.
L1
100uH100uH
J19
J41
TB8
250TAB
FUNCTION
J22
D8
1N4004
C16 100N
R31 1K
R30
4K7
R29
330K
MALE
PART#3923
FEMALE
PART#3922
. .
CE-T80MA/230V
CSA-.2ASB/250V
SHLD GRN
GRN
WHTWHTRED BLK
BROKEN HERE
THIS CONNECTION MUST BE
PT# 3922
PT#6481
CRYSTAL

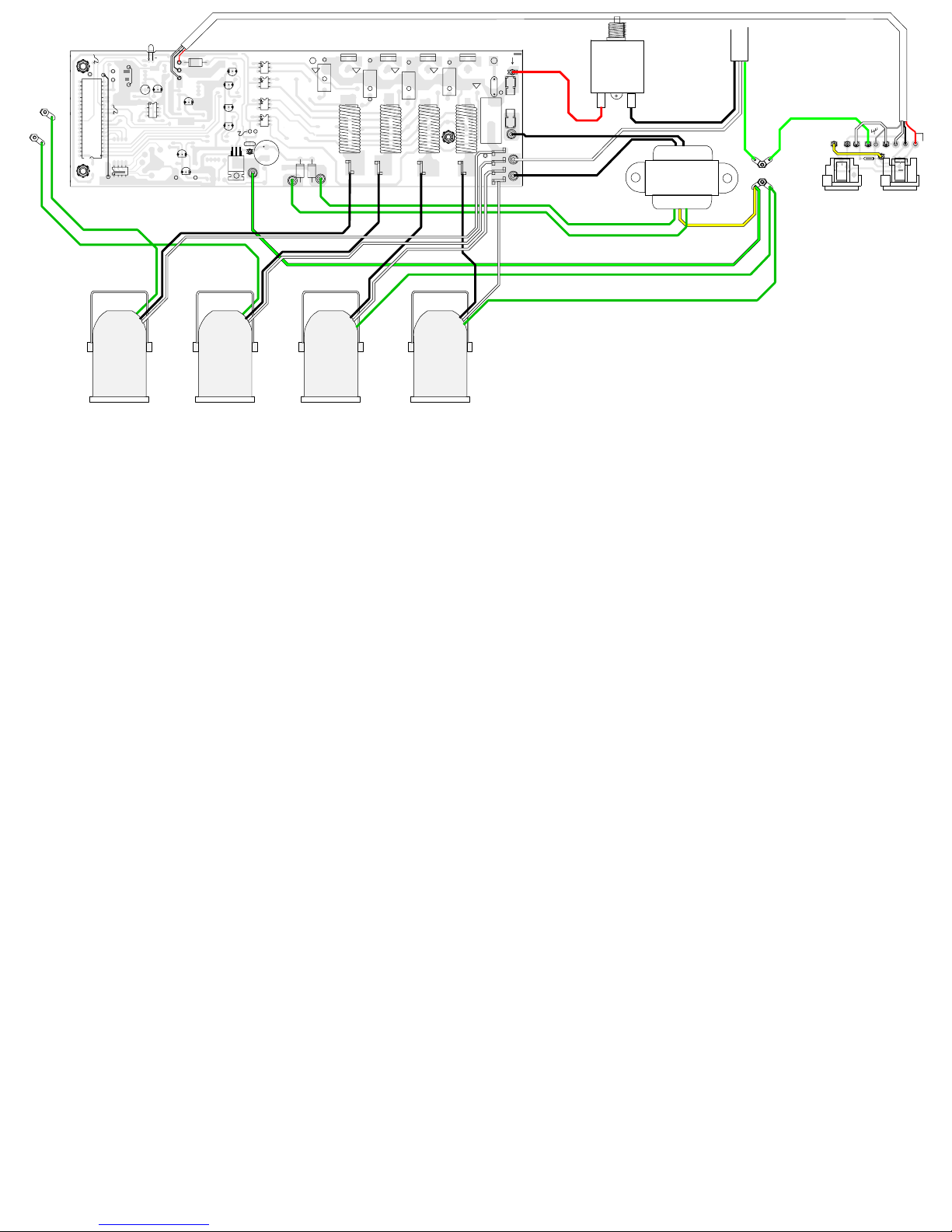

ASSEMBLY M1030-9.
0
ADD GOOP
M795
#8801
#8852 this side only
#3501
repeat hardware for, Q10, Q8, Q6
#8801
#8793
Q6
Q8
Q10
Q12
#8741
M1030 heatspreader
SHIELDED CABLE
BLK
VALUE FOR C1 150N 250V FOR N.A. FOR CE 680N PT#5266
INDICATES STRANDED JUMPER WIRE
5
INDICATES RTV
INDICATES SOLID WIRE JUMPER
2
3
1
GND
231
4
3
PAD ADDED FOR NEW AC CAP
1N5822
D1,D2,D3 FROM MBR150 TO
12V SUPPLY FOR M505 CHANGED
LP504/504E E POINT OF
2

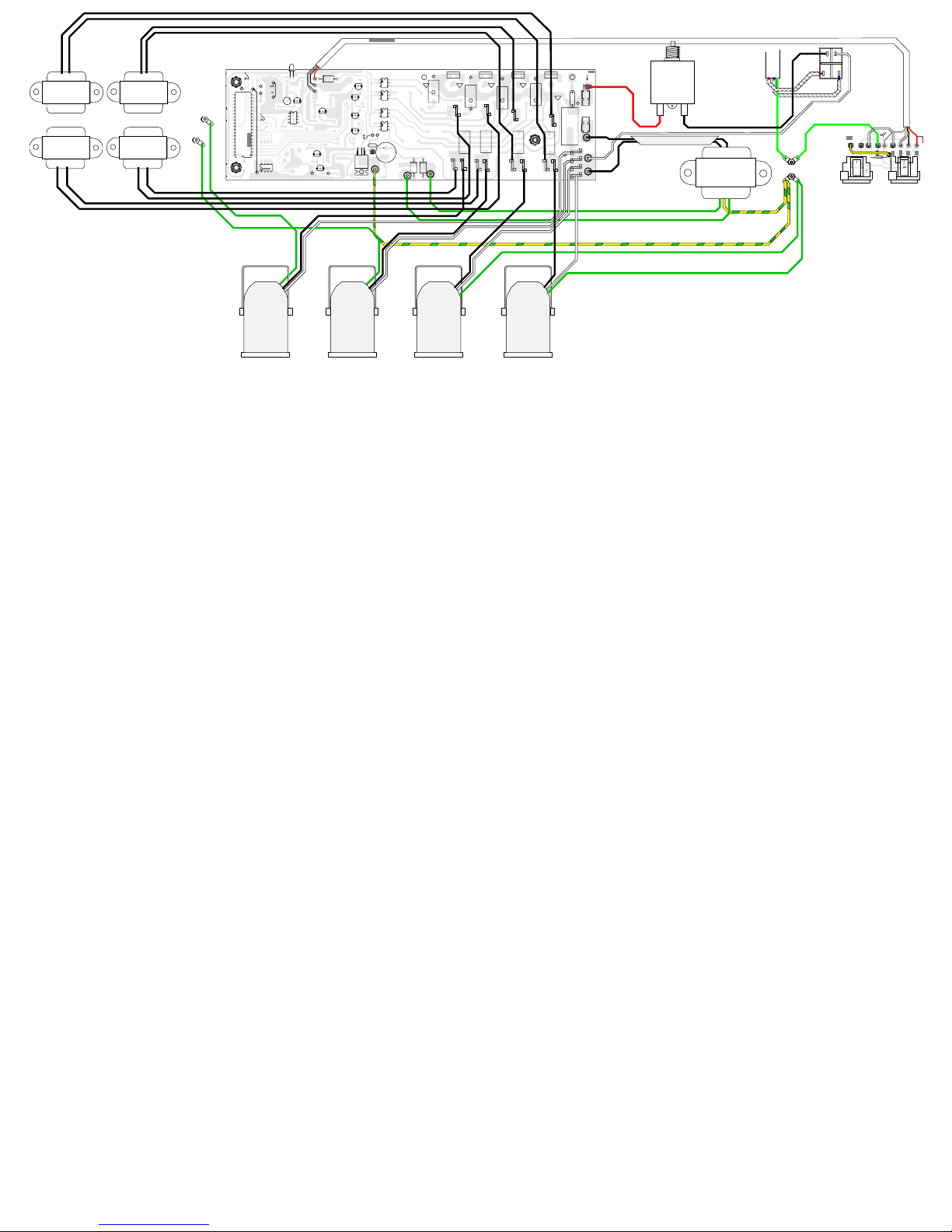

1PRODUCTION NOTES
10" WIRE
BLANK SIZE=13.800"X8.100"
WHT 12MHZ
XT1
RED
VERSION 9.00
T2 T2 T2 T2
T1 T1 T1 T1GATE GATE GATE GATE
M1030
LP304/LP504
3" BLK
YELLOW
WHT
LP304
NO GRN WIRE FOR

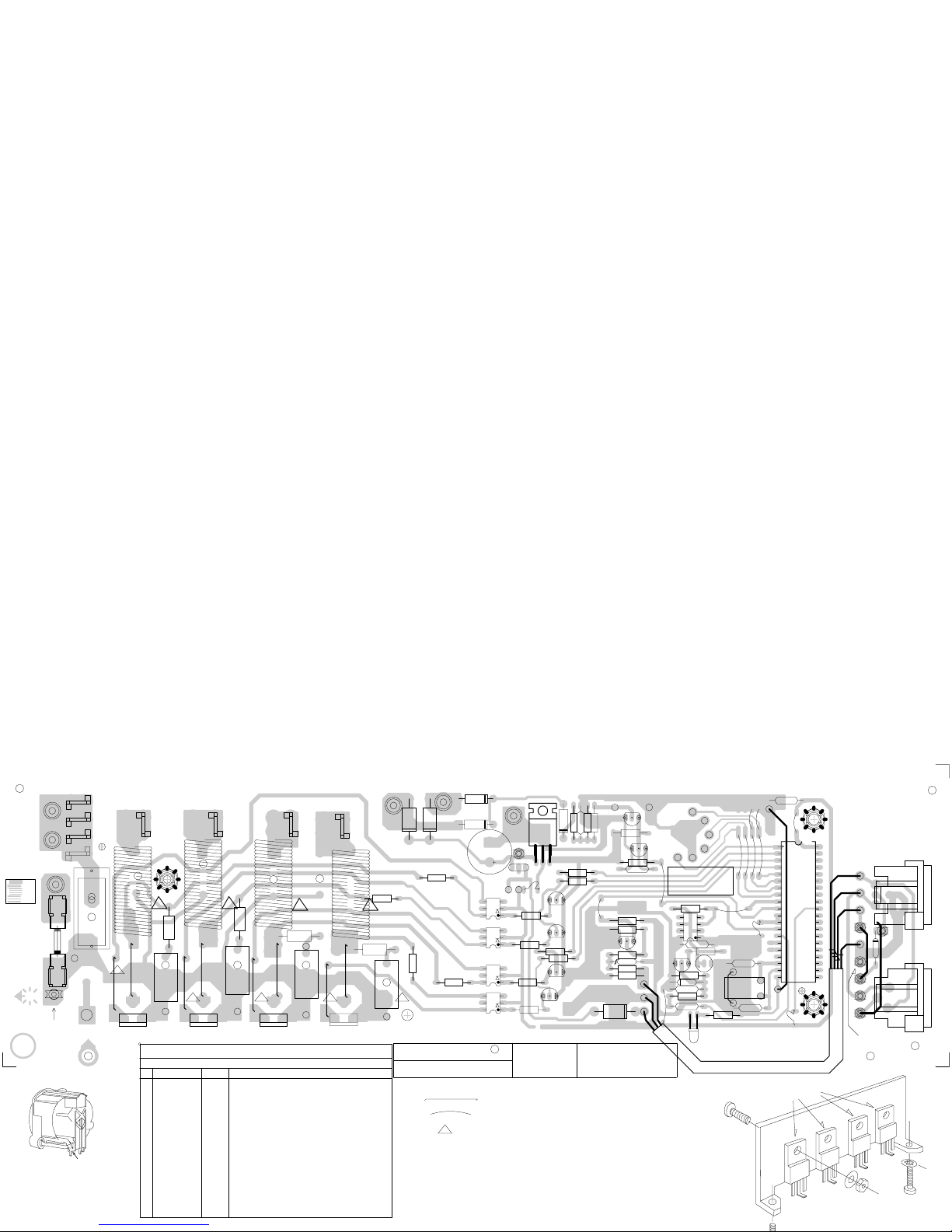

PCB MECH M1030-9.
0

1N5822
D1
1N5822
D2
100n
C16
1K
R31
BC550
Q1
BC550Q2
1K
R1
100K
R4
15A
BR1
470R
R28
120VAC
60Hz
117VA
1234
T1
8A
TAB2
RED
LD1
IN
REF
OUT
7805Q13
1
2
3
2200u
25V
C2
230VAC
50Hz
117VA
1239
0
1
P0.7
P0.6
P0.5
P0.4
P0.3
P0.2
P0.1
P0.0
VCC
EA
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
PSEN
ALE
XTAL2
XTAL1
VSS
P3.4/TO
P3.5/T1
P3.6/WR
P3.7/RD
RST
P3.0/RXD
P3.1/TXD
P3.2/INT
P3.3/INT
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P1.0
80C51BH
U1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
180R
R18
10K
R2
A
C
NC MT
NC
MT
MOC3011
U7
1
2
34
5
6
4K7
R3
330R
R5
12MHZ
XT1
RES
GND
TRG
OUT
C.V
TH
DIS
VCC
MC1455PI
U8
1
2
3
45
6
7
8
4u7
63V
C5
360R
R13
D6
100n
C4
100n
C3
BC560
Q4
MALE
XLR
JB1
13
2
4K7
R6
4K7
R7
10K
R9
10K
R8
BC560
Q3
10V
500mW
ZD1
250V
.15uF
C1
.2A
F2
100uH
L2
250V
.15u
C9
47R
0.5W
R23
MT1
MT2
G
MAC15A6FP
Q8
BC560
Q7
360R
R17
4K7
R16
BC560
Q5
MT1
MT2
G
MAC15A6FP
Q6
47R
0.5W
R15
250V
.15u
C8
100uH
L1
A
C
NC MT
NC
MT
MOC3011
U6
1
2
34
5
6
180R
R14
TAB1
TAB5
360R
R25
BC560
Q11
MT1
MT2
G
MAC15A6FP
Q12
250V
.15u
C11 100uH
L4
A
C
NC MT
NC
MT
MOC3011
U5
1
2
34
5
6
180R
R26
TAB6
360R
R21
250V
680n
C1.
BC560
Q9
MT1
MT2
G
MAC15A6FP
Q10
47R
0.5W
R27
250V
.15u
C10
100uH
L3
A
C
NC MT
NC
MT
MOC3011
U4
1
2
34
5
6
180R
R22
TAB3
1N4004
D8
4K7
R12
4K7
R20
4K7
R24
T80mA
330K
R10
1N5822
D3
27p
C6
27p
C7
EY3 EY1
10
9
8
7
6
5
4
3
2
1
# DESCRIPTION OF CHANGEVER#DATE
MODEL(S):-
D
d
NOV/08/02
APR/16/99
.
JUN/12/98
.
OCT/23/97
FEB/24/97
FEB/23/95
V
v
4.30
4.20
.
4.10
.
4.00
3.90
3.80
N
N
PC#6571_C20_47N->150N
CLARIFY_EPROM_JUMPERS
VERSION
PC#5752_ADD_POWER_SWITCH_TO_CE
PC#5472_R15,19,23,27_10R->47R
PC#5470_CHANGES_FOR_CE_MODEL
PC#5321_R5_1K-->330R
PC#4737_D1,D2,D3_MBR160-->1N5822
LP-304/LP-304E
M1030.SCH_DATABASE_HISTORY
EY2
EY6
TAB4
J18
YORKVILLE NAME: PCB#&VER:
MODELS: SCH ISSUE:
TITLE:
DATE:
M1030
LP-304E
LP-304
M1030.SCH
NOV/08/2002
DIMMER_BAR
4.30
J17
MT1 MT2
G
MAC15A6FP
EY5
TAB7
TAB8
100n
C12
100n
C13
J19
EBC
BC560
D9
EY4
150n
C20
FEMALE
XLR JB2
13
2
IN
REF OUT
7805
47R
0.5W
R19
4K7
R30
330K
R29
0.5A_PTC
PTC
S1
200K
R11
1N4004
D5
1N4004
D4
250V
4n7
CE2
250V 150N
250V 150N
250V 150N
250V 150N
J22
J20
LIVE AC.FUSED
AC.FUSED
AC.FUSED
AC.FUSED
AC.FUSED
+12V
+12V
+12V
UGND
UGND
UGND
UGND
UGND
NEUTRAL
NEUTRAL
NEUTRAL
NEUTRAL
NEUTRAL
HOT
HOT
HOT
HOT
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V+5V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
JUMPER NOT INSTALLED
JUMPER INSTALLED
MAC15A6FP
CE ONLY
CE ONLY
CE ONLY
CE ONLY
5 MH PT#3835
LP304CE M1030
L1 --> L4
# 1239
230V AC 50HZ
CE POWER SUPPLY
REMOVE JUMPER J20
FOR 500 WATT BULBS
300 WATT BULBS
FACTORY SETTING IS FOR
T80mAF2
EPROM
ONLY REQUIRES EXTERNAL
ROM
AND PROGRAM IN INTERNAL
YSL PT# 6961 80C51BH CPU
YSL PT# 6938 80C31BH CPU
EXECUTES INTERNAL PROGRAM
IF PIN 31 IS HIGH CPU
PROGRAM
CPU EXEUTES EXTERNAL
NOTE IF PIN 31 IS LOW
BC550
PART#
8ABR1
330R 1/2W
R26
R14,R18,R22
MOC3021
EUROPEAN MODEL
Q12
Q6,Q8,Q10,
REFERENCE #
U4...U7
TRANSFORMER
T1
JB2
CONTROLLER INPUT
FC608
JB1
STUFF J38 BUT NOT J21 WITH 80C31BH,
74HC373 AND 27C64
POWER ON
TO JB1,JB2
INDICATES PCB BREAKAWAY
CHANNEL 4
CHANNEL 3
CHANNEL 2
CHANNEL 1
CIRCUITRY WITHIN DASH LINES
*
*
*
*
*
WITH OUT U2 74HC373 AND U3 27C64
OR STUFF J21 BUT NOT J38 WITH 80C51BH
DAISYCHAIN OUT
ALL UNMARKED ARE IN4148
NOTES:
U:\M1030V43.PRN

.020"
.012"
.008"
.005"
SHEAR
VCD
M1030-6.00
BLANK SIZE=13.800"X8.100"
D4
1N4004
D5
1N4004
.
.
Q1
BC550
Q2
BC550
R4
100K
R2
10K
R3
4K7
R5
330R
R13
360R
R11
200K
R6
4K7
R7
4K7
R9
10K
R8
10K
R17
360R
R16
4K7
R25
360R
C11
150N 275V
R21
360R
R12
4K7
R20
4K7
R24
4K7
R10
330K
.
.
TB5
250TAB
FUNCTION
.
.
TB6
250TAB
FUNCTION
.
.
TB2
.
.
TB4
.
.
J21
EY3
TB7
250TAB
FUNCTION
.
.
TB3
.
.
C20
150N
EY1
EY2
EY6
EY4
J42
Q13
7805
POS_REG
Q6
MAC15A6FP
U1
80C51BH
U7
MOC3011
.
.
.
.
U6
MOC3011
U5
MOC3011
U4
MOC3011
U8
MC1455PI
D6
4148
C4
100N
C3
100N
C1
VALUE
SEE
C6
27P
C7
27P
Q3
BC560
Q11
BC560
Q5
BC560
NOTE
FOR
Q9
BC560
Q7
BC560
ZD1
10V
L2
100uH100uH
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
# DESCRIPTION OF CHANGEVER#DATE
MODEL(S):-
D
D
D
D
D
MAR/21/05
NOV/07/02
MAY/28/98
NOV/20/97
.
.
.
.
OCT/09/97
FEB/24/97
JUL/17/95
.
.
.
FEB/22/94
V
V
V
V
V
7.00
6.10
6.00
5.00
.
.
.
.
4.00
3.81
.
.
.
.
3.80
N
N
N
N
N
PC#6843_MASK_SPREAD_TO_30MIL
PC#6571_C20_47N->150N
PC#5720_REDO_RE_CSA_SPACINGS
PC#5524_REDO_FOR_LP304_CE
->47R_1/2W
PC#5472_R15,R19,R23,R27_10R
NEW_CHOKE
->680N_ADD_C14_680N,NEW_XLR’S
PC#5470_FOR_LP304CE_C1_150N
PC#5321_R5_1K-->330R
PC4862
.
PC#4737
.
PC#4739
LP-304/304E/504/504E
M1030.PCB_DATABASE_HISTORY
Q12
MAC15A6FP
Q8
MAC15A6FP
C13
100N
J3
L3
100uH100uH
C8 150N
275V
R14
180R
F2
#3414
D1
1N5822
D3
1N5822
C5
4U7 63V
J4
J5
D2
1N5822
J6
J8
J2
J7
C9
150N 275V
J1
L4
100uH100uH
J12
GUIDE
ETCH
J18
J20
J9
J13 J14 J15 J16
J10
J11
4148
R22
180R
R26
180R
J17
C2
2200U
25V
-
+
LD1
RED
R1
1K
C10
150N 275V
R18
180R
C12
100N
.
.
PTC_050
EY5
Q4
BC560
MODELPCB#
ISSUE#
DATE MAR/21/05
7.00
M1030 LP304
R27
47R
0.5W
R23
47R
0.5W
R19
47R
0.5W
R15
47R
0.5W
R28
470R
J26
Q10
MAC15A6FP
TB1
.
.
L1
100uH100uH
J19
J41
TB8
250TAB
FUNCTION
J22
D8
1N4004
C16
100N
R31
1K
R30
4K7
R29
330K
MALE
PART#3923
FEMALE
PART#3922
. .
CE-T80MA/230V
CSA-.2ASB/250V
SHLD GRN
GRN
WHTWHTRED BLK
BROKEN HERE
THIS CONNECTION MUST BE
PT# 3922
PT#6481
CRYSTAL
ASSEMBLY M1030-7.0
ADD GOOP
M795
#8801
#8852 this side only
#3501
repeat hardware for, Q10, Q8, Q6
#8801
#8793
Q6
Q8
Q10
Q12
#8741
M1030 heatspreader
SHIELDED CABLE
BLK
VALUE FOR C1 150N 250V FOR N.A. FOR CE 680N PT#5266
INDICATES STRANDED JUMPER WIRE
5
INDICATES RTV
INDICATES SOLID WIRE JUMPER
2
3
1
GND
231
4
3
PAD ADDED FOR NEW AC CAP
1N5822
D1,D2,D3 FROM MBR150 TO
12V SUPPLY FOR M505 CHANGED
LP504/504E E POINT OF
2
1PRODUCTION NOTES
10" WIRE
BLANK SIZE=13.800"X8.100"
WHT
12MHZ
XT1
RED
VERSION 7.00
T2 T2 T2 T2
T1 T1 T1 T1GATE GATE GATE GATE
M1030
LP304/LP504
3" BLK
YELLOW
WHT
LP304
NO GRN WIRE FOR
PCB MECH M1030-7.0
P:\1030V61.PRN

17 17
16 16
15 15
14 14
13 13
12 12
11 11
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
1 1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
N
N
O
O
P
P
Q
Q
R
R
S
S
T
T
U
U
V
V
Product
Date:
Filename:
PCB# ofSheet
Rev:
21
1.00
M1255-1V0sch.sch2002
LP302
Wed Aug 03, 2005
M12552 BULB LIGHT BAR
Product
Date:
Filename:
PCB# ofSheet
Rev:
21
1.00
M1255-1V0sch.sch2002
LP302
Wed Aug 03, 2005
M12552 BULB LIGHT BAR
IN
1,2 5,6
4007
D8
3,4
1-4
7,8
5-8
1N5240BRL 10V0
ZD10W5
1/4W
.
330K
R10
150N 50V
C20
100N 50V
C4
4148
D6
OUT
680N250V C1
4007
D5
4148
D9
1/4W
.
4K7
R6
C2
25V2200U
4007
D4
1/4W
.
4K7
R7
1/4W
.
100K
R4
1/4W
.
4K7
R3
TO92
BC560C
Q4
5102
1/4W
.
4K7
R30
ASSIGN
12MHZ
XT1:A
6939
1/4W
.
4K7
R12
1/4W
.
4K7
R16
S4:B
1
2
MOC3011
U5:A
6862
Q7
BC560C
5102
TO92
1
2
MOC3011
U4:A
6862
Q5
BC560C
5102
TO92
1/2W
.
47R R19
1/4W
.
180R
R18
1/2W
.
47R R15
1/4W
.
180R
R14
3682
WHITE W6
F1
3414
FUSEHOLDER
1/4W
.
470R
R28
D1
3A01N5822
D2
3A01N5822
1/4W
.
10K
R8
100N 50V
C16
1/4W
.
330R
R5
1/4W
.
1K
R1
OUTIN
GND
6855
TO220 NJM7805FA
Q13
1/4W
.
330K
R29
BC550C
5101
TO92
Q2
C5
63V4U7
100N 50V
C12
27P 100V
C6
S2:B
S3:B
1/4W
.
360R
R17
1/4W
.
360R
R13
Q9
5101
TO92
BC550C
150N 250V
C9
150N 250V
C8
G
MT1 MT2
TO220
MAC15A6FP
Q8
6470 1/4W
.
360R
R25
3682
WHITE
FROM LAMP
W4
G
MT1 MT2
MAC15A6FP
TO220 Q6
6470
1/4W
.
200K
R11
CHANNEL ASSIGN SWITCH
CHANNEL
3922
DAISY CHAIN OUT
J2:A
XLR FEMALE
CONTROLLER INPUT
J1
3923
XLR MALE
100N 50V
C3
TO92
BC560C
Q3
5102
TO92
BC550C
Q1
5101
1/4W
.
1K
R31
1/4W
.
10K
R2
POWER ON
LD1
RED
6405
S1
PTC
0.5A
6481
D3
3A01N5822
CONTROLLER
6
4
MOC3011
U5:B
6862
1/4W
.
200K
R20
100N 50V
C13
6
4
MOC3011
U4:B
6862
1/4W
.
200K
R21
ST R
---
J4
LINK
1/4W
.
4K7
R24
3682
BLACK W9
FROM LAMP
5
4
1
2
3
XF1
Part#1234
117 VA
60 Hz
1/4W
.
10K
R9
27P 100V
C7
S2:A
3436
CHANNEL ASSIGN
CHAN 2OVER-RIDE
S4:A
3436
3682
BLACK W8
FROM LAMP
ST R
---
J3
BLACK-OUT
L13769
100UH
L23769
100UH
S3:A
CHAN 1OVER-RIDE
3436
U1
13
10
7
4
1
9
11
12
8
#
2
3
5
6
VER#
MODEL(S):-
DATE DESCRIPTION OF CHANGE
V
V
V
V
1.00
V
V
V
V
V
V
V
.
D
D
D
D
JAN/2005
N
N
N
N
DERIVED FROM M1030
LP-302
D
D
D
D
D
D
D
1-JUN-2005
N
N
N
N
N
N
N
AH: PC#6924, CHANGE C1 TO 680N 275V PART#5266
M1255 DATABASE HISTORY

VCD
CLINCH
ORIGIN LONG AXIS
SHORT AXIS
INSERT
ORIGIN
USE 2OZ COPPER
Pcb Mech M1255 V1.00
StepAndRepeat - [email protected]@3.600
BlankSize - 12600x8100
TAB
NORMAL
SOCKET
SOCKET WITH DIRECTION
NORMAL LARGE
SOCKET UPSIDE DOWN
Q8
GRN 4 1/2"
#8801
#3501
ADD GOOP
#8801
M795
V1.00
3
1
#8741
Q6
Q10
#8793
2
Top AssyM1255
INDICATES RTV
PRODUCTION NOTES
INDICATES SOLID WIRE JUMPER
M1155 heatspreader
repeat hardware for Q8
INDICATES STRANDED JUMPER WIRE
RT
V
V
T
R
RT
V
V
T
R
V
T
R
V
T
R
RT
V
RT
V
-
+
GUIDE
ETCH
GUIDE
ETCH
V
T
R
V
T
R
RT
V
RT
V
GUIDE
ETCH
GUIDE
ETCH
12
9
6
3
#
13
11
10
5
4
8
7
2
1
DATE
MODEL(S):-
VER# DESCRIPTION OF CHANGE
D
D
DV
V
V
V
V
D
D
N
N
N
N
N
D
D
DV
V
V
1.00
V
V
V
JAN/2005
D
D
DN
N
N
DERIVED FROM M1030
N
N
N
LP-302
M1255 DATABASE HISTORY
1-JUN-2005 AH: PC#6924, CHANGE C1 TO 680N 275V PART#5266.
2
21
12
9
6
3
#
13
11
10
5
4
8
7
2
1
DATE
MODEL(S):-
VER# DESCRIPTION OF CHANGE
D
D
DV
V
V
V
V
D
D
N
N
N
N
N
D
D
DV
V
V
V
V
V
V
V
D
D
D
D
DN
N
N
N
N
N
N
N
M1255 DRILLING HISTORY
LP-302
77
4
1
6
5
3
#
2
MODEL(S):-
PC#
*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY
PENDING CHANGE
X
X
X
X
X
PC
PC
PC
PC
PC
LP-302
M1255 PENDING CHANGES
. Check the Transformer and finilize the color of the sec. wires
POWER ON
5V0 REGULATOR
DAISY CHAIN OUT CONTROLLER INPUT
CHAN 1 OVER-RIDE
CHANNEL ASSIGN
LINKBLACK-OUT
CHAN 2 OVER-RIDE
6481
5989
3678
3674
6862
6405
5266
6470
6862
6855
3674
3414
6470
6961
5989
3678
3922
3923
34363436 3436
PTC
47R
1/2W
180R
180R
4007
100N
330R
1K
4K7
27P
MOC3011
1N5822
BC560C
470R
200K
4K7
200K
4007 BC550C
RED
27P
4U7
63V
BC550C
4148
680N
250V
{Watts}
MAC15A6FP
100UH
250V
150N
1N5822 1N5822
MOC3011
47R
1/2W
BC560C
4007
NJM7805FA
TO220
{Watts}
100K
1K
12MHZ
4K7
360R
330K
4148
330K
4K7
10K
10K
360R
150N
250V
100N
100N
100N
BC560C
10K
BC560C
BC550C
200K
4K7
100N
360R
150N
25V
2200U
{Watts}
MAC15A6FP
100UH
80C51BH
1455P1
4K7
4K7
10V0
V1.00
S1
X7
W17
X2
R15
R18
R14
D8
C16
R5
X6
R1
X18
X16
X14
R12
C6
X20
X12
W12
LINE CORD
BLACK
W6
WHITE
W9
FROM LAMP
BLACK
U5
D3
Q7
R28
R20
R16
R21
D5
LP302
M1255
Q1
C7
C5
Q9
X11
D9
X13
W4
FROM LAMP
WHITE
X1
C1
Q8
X4
L2
X3
C8
D2
D1
U4
R19
Q5
D4
X5
Q13
R4
R31
XT1
W3
X10
R24
R13
R10
D6
R29
R30
R8
R2
R17
C9
W1
BLACK
XFMR PRIMARY
W7
LINE CORD
WHITE
W11
XFMR SEC
RED
C3
C12
C4
Q3
R9
Q4
Q2
R11
R3
C13
R25
C20
W8
BLACK
FROM LAMP
W2
BLACK
XFMR PRIM
C2
F1
Q6
L1
W10
XFMR SEC
RED U1
W5
W16
U8
W15
TO CHASSIS GND
YELLOW
J2
J1
R6
R7
ZD1
S3
S2
J4
- - -
J3
- - -
S4

M1030-5.00
SHIELDED CABLE
FILE NAME LP304AC.DRW
LP304
CENTER TAP OF TRANSFORMER
MUST GO TO CHASSIS GROUND
FEMALE MALE
GRN WHT
WHT
RED
BLK
SHIELD
4 1/2" GREEN

FILE NAME LP304EAC.DRW
LP304E
CENTER TAP OF TRANSFORMER
MUST GO TO CHASSIS GROUND
ADD
#3495 TUBING
ADD 4"
#3505 TUBING
DBL/INSUL
WIRE
DBL/INSUL
WIRE
DBL/INSUL
WIRE
BRN
BLUE
#3835
#3835
#3835
#3835
FEMALE MALE
SHIELD
4 1 /2" GREEN
