YOSHINO SP200 User manual

User Manual
SP200
Portable Solar Panel 200W
Rated Output: 200W / 18.24V

01
Tech support based in the USA!
1 [phone] [email protected]
Operating hours are 8:00 am - 4:30 pm PST (M-F).
Model
Rated Power
Cell Efficiency
Rated Voltage
Rated Current
Open Circuit Voltage
Short Circuit Current
MC4 Output
Operating Temperature Range
Dimensions Folded
Unfolded
SP200
200W
23%
18.24V
12.06A
21.8V
12.66A
200W / 18.24V
14 to 158°F / -10 to 70°C
19.4 x 30.8 x 0.8 inches / 494 x 782 x 20 mm
71.7 x 30.8 x 0.2 inches / 1820 x 782 x 5 mm
IP67
Thank you for purchasing a Yoshino solar panel. Before attempting to use this product.
Please read these instructions carefully to learn about the features and capabilities of
the solar panel and how you can get the best out of it.

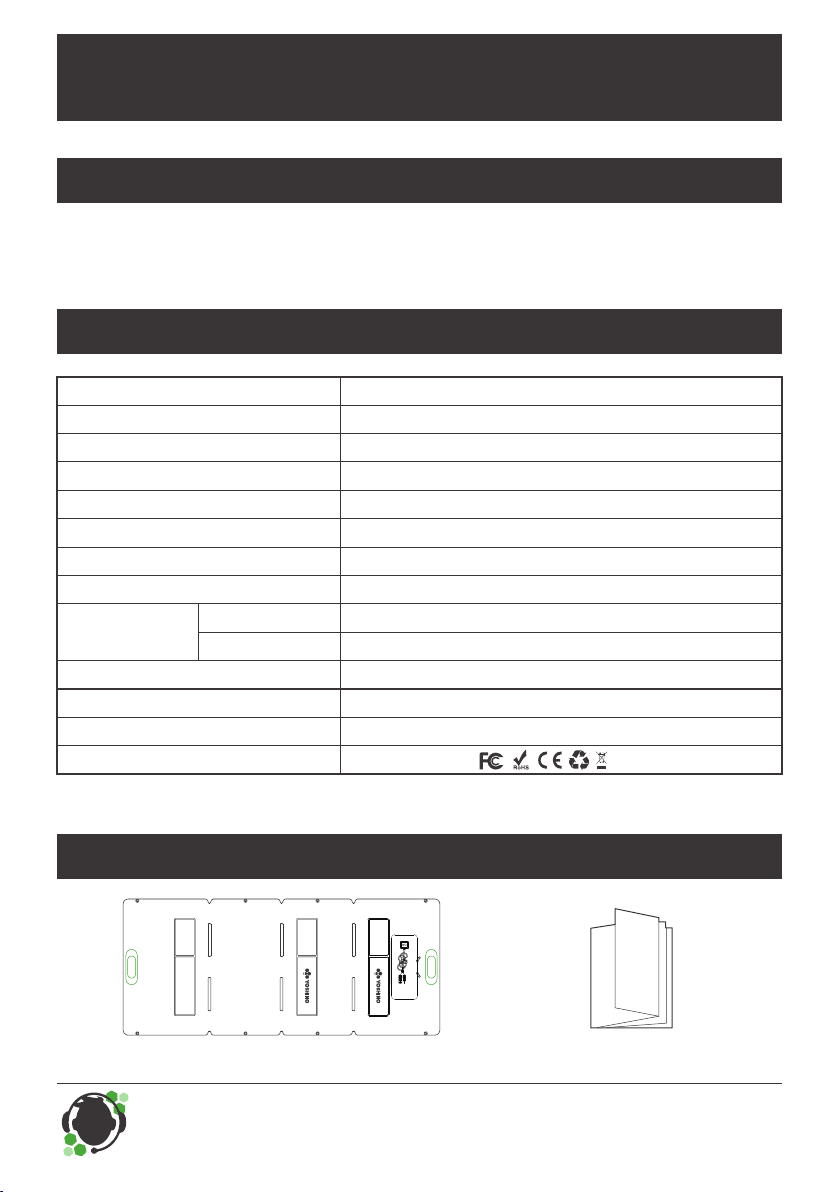

Product Features
In the Box
1. One piece foldable design for easy setup and transport.
2. Carefully selected monocrystalline solar cells for reliable performance.
3. Protective ETFE lamination and IP67 rating provides protection against the environment.
Technical Specifications
User Manual
IP67
IP Rating
12 Months
Warranty Period
Tested And Certified
SP200 Solar Panel

Tech support based in the USA!
1 [phone] [email protected]
Operating hours are 8:00 am - 4:30 pm PST (M-F).
Morning and Winter Noon or Summer
90° 90°
Correct Angle Correct Angle
1. Unzip the cable storage pouch on back of unit to access the MC4 connection cable.
2. Unfold the solar panels and spread the stands on back of unit to support the solar panels.
3. Plug the MC4 connection cable to the MC4 to XT60 connection cable provided with the
portable power station.
Unfolded Front Unfolded Back
Operating Instructions
+
-
+
-
02
MC4 to XT60 Cable (not included)
MC4 Connector
SP200 B330 SST
12
3
Folded
2

03
Tech support based in the USA!
1 [phone] [email protected]
Operating hours are 8:00 am - 4:30 pm PST (M-F).
Supported Product
B330 SST
B660 SST
B1500 SST
B2000 SST
B3000 SST
B4000 SST
SP200(200W)
*√
*√
√
√
√
√
Supported Product
B330 SST
B660 SST
B1500 SST
B2000 SST
B3000 SST
B4000 SST
SP200(200W)
×
×
√
√
√
√
Supported Product
B330 SST
B660 SST
B1500 SST
B2000 SST
B3000 SST
B4000 SST
SP200(200W)
×
×
√
√
√
√
Example 1
Example 2 (Series)
The SP200 Solar Panel can be used to charge Yoshino Portable Power Stations in series or
parallel as shown in the following illustrations.
+
-
+
-
+
-+
-
-
+
Example 3 (Series)
+
-+
-
+-+-
Limited 100W
SP200 Solar Panel does not include the MC4 to XT60 Cable. This cable is included with all
Yoshino Portable Power Stations.
*Note:
*MC4 to XT60 Cable (not included)
*MC4 to XT60 Cable (not included)
*MC4 to XT60 Cable (not included)
1
1
1
2
2
2
2

04
Tech support based in the USA!
1 [phone] [email protected]
Operating hours are 8:00 am - 4:30 pm PST (M-F).
1. Why isn't my device charging?
A. Check cable is connected properly and securely.
B. Check the panel is getting adequate sunlight.
C. Check the surface of the panel is clean and clear of debris.
2. Why won't my solar panel reach the maximum rated power output?
The rated power of the solar panel is a value calculated under STC, or standard test
conditions with a surface temperature of 25C, air mass of 1.5, and a solar intensity of
1000W/m².
Under actual use the solar panel will be affected by the sun's intensity and angle.
3. Is my solar panel waterproof?
The solar panel has a rating of IP67. While it is resistant to water and rain, it is not water-
proof and should not be left outside in constant wet conditions.
Frequently Asked Questions
Warranty
Limited Warranty
These after-sales polices apply to Yoshino Technology, Inc. (Yoshino) products
purchased directly from YoshinoPower.com or authorized resellers in North America and
are provided only to the original purchaser of the product.
By using your Yoshino product, you agree to be bound by these terms. If you do not
agree or are not eligible for these terms of use, do not use your Yoshino product and
return to the place of purchase or contact us within seven days to obtain a refund in
accordance with our return policies.
What is Covered
Under this limited warranty, Yoshino Technology, Inc. warrants that each product will be
free from defects in material and workmanship for a period of 12 months from the date
the product is purchased or delivered to the purchaser. This limited warranty is contin-
gent on the purchaser registering the product on Yoshino’s website or contacting
Yoshino customer service to create an activation using the purchase receipt or accept-
ed proof of purchase.
Limited Warranty
These after-sales polices apply to Yoshino Technology, Inc. (Yoshino) products
purchased directly from YoshinoPower.com or authorized resellers in North America and
are provided only to the original purchaser of the product.
By using your Yoshino product, you agree to be bound by these terms. If you do not
agree or are not eligible for these terms of use, do not use your Yoshino product and
return to the place of purchase or contact us within seven days to obtain a refund in
accordance with our return policies.
What is Covered
Under this limited warranty, Yoshino Technology, Inc. warrants that each product will be
free from defects in material and workmanship for a period of 12 months from the date
the product is purchased or delivered to the purchaser. This limited warranty is contin-
gent on the purchaser registering the product on Yoshino’s website or contacting
Yoshino customer service to create an activation using the purchase receipt or accept-
ed proof of purchase.
Note:
This warranty applies only for customers who purchased their product on Yoshino's
website or Yoshino authorized retailers. Do not use your product until you have read the
terms of the warranty.

05
Tech support based in the USA!
1 [phone] [email protected]
Operating hours are 8:00 am - 4:30 pm PST (M-F).
What is Not Covered
This policy does not cover the following:
Product that has been abused, misused, or otherwise not operated within the
parameters of the literature provide with the product
Product with evidence of water damage or from use in bad weather (i.e., rain,
dust/sandstorms)
Product that has been modified or had a repair attempted by anyone other than a
Yoshino authorized repair facility
Any product not purchased directly from Yoshino or an authorized reseller
To Obtain Warranty Service Contact Customer Support at customersupport@yoshi-
no-power.com
What is Not Covered
This policy does not cover the following:
Product that has been abused, misused, or otherwise not operated within the
parameters of the literature provide with the product
Product with evidence of water damage or from use in bad weather (i.e., rain,
dust/sandstorms)
Product that has been modified or had a repair attempted by anyone other than a
Yoshino authorized repair facility
Any product not purchased directly from Yoshino or an authorized reseller
To Obtain Warranty Service Contact Customer Support at customersupport@yoshi-
no-power.com

yoshinopower.com
For FAQs and more information, please Visit:
