Yotta DPI-208 Instruction Manual

Installation / User manual
Ver. 1.0
September 2022
DPI-208 & DPI-480

Table of contents
1. Important Safety Instructions....................................................................................................................2
1.1 Safety Instructions................................................................................................................................2
1.2 Radio Interference Statement...........................................................................................................3
1.3 Symbols replace words on the equipment, on a display, or in manuals.................................4
2. Yotta DPI-208 and DPI-480 System Introduction.................................................................................5
3. Yotta DPI-208 and DPI-480 Microinverter Introduction.......................................................................7
4. Yotta DPI-208 and DPI-480 System Installation...................................................................................8
4.1 Additional Installation components .............................................................................................8
4.2 Required Parts and Tools from you.............................................................................................8
4.3 PV Rapid Shutdown Equipment (PVRSE).............................................................................................9
4.4 Installation Procedures...........................................................................................................................10
4.4.1 Step 1 - Verify the grid voltage to match with microinverter rating...........................10
4.4.2 Step 2 - Install the AC bus cable......................................................................................10

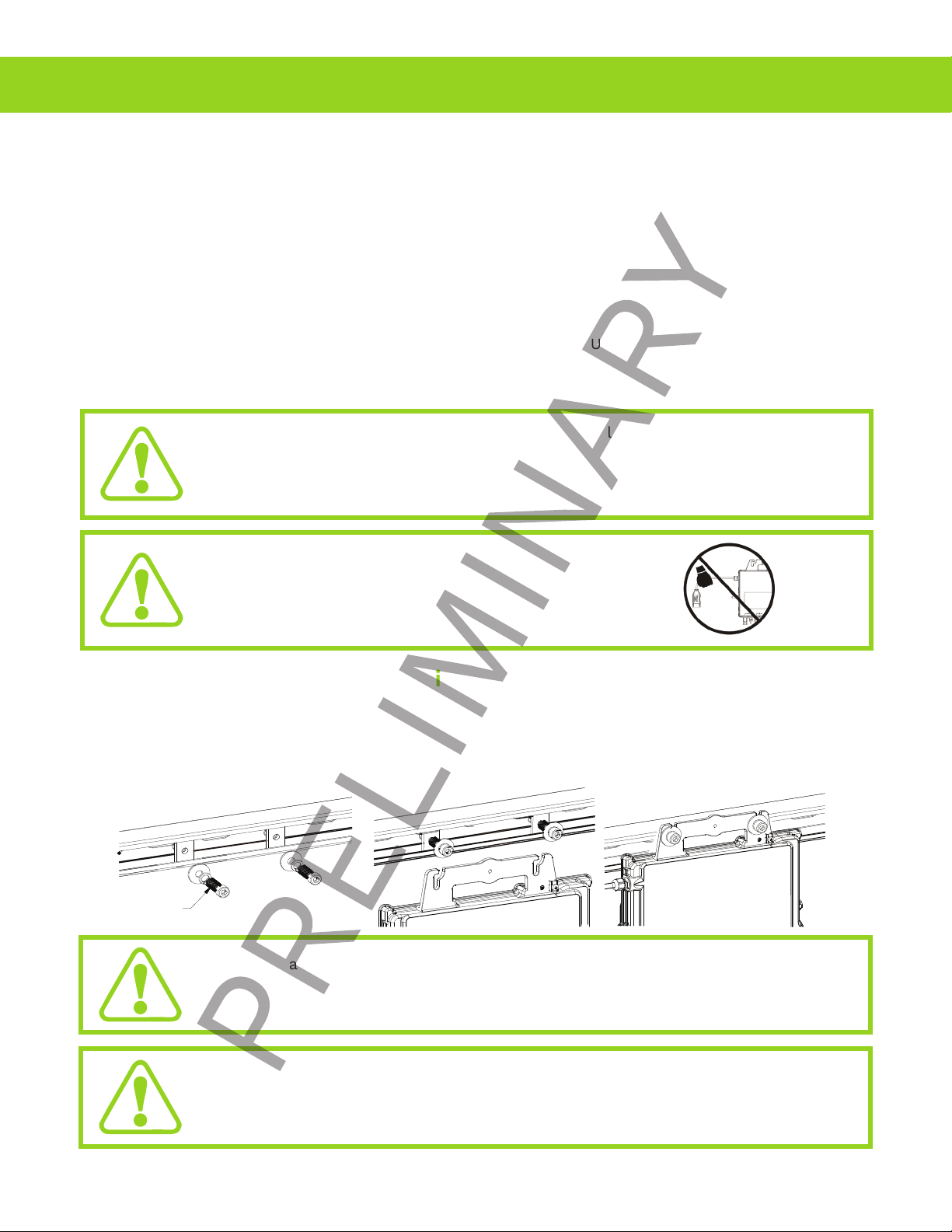

4.4.3 Step 3 - Attach the Microinverters to the racking.........................................................10
4.4.4 Step 4 - Ground the system..............................................................................................11

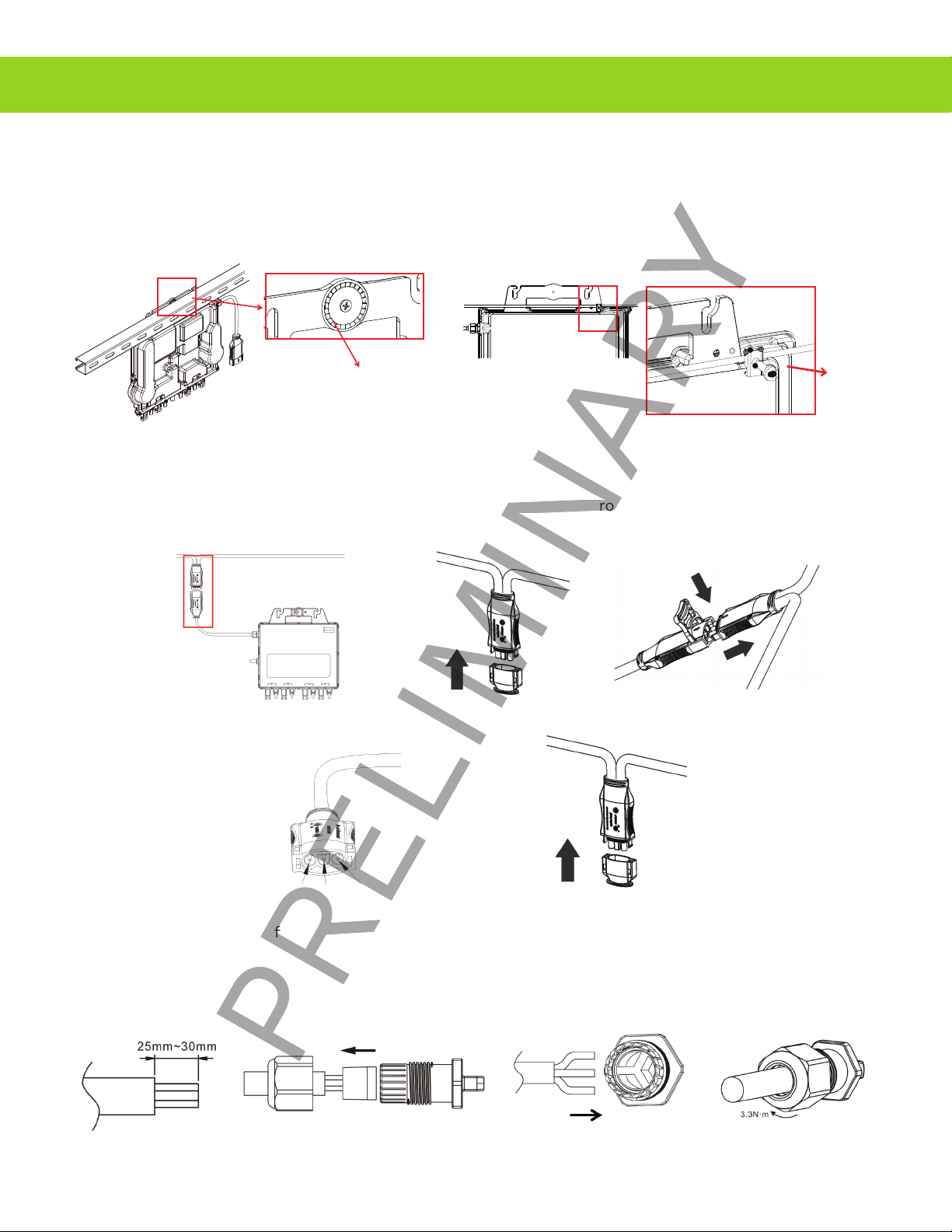

4.4.5 Step 5 - Connect the DPI-208 and DPI-480 Microinverter to AC bus cable...........11
4.4.6 Step 6 - Install a AC bus protective end cap at the end of AC bus cable...............11

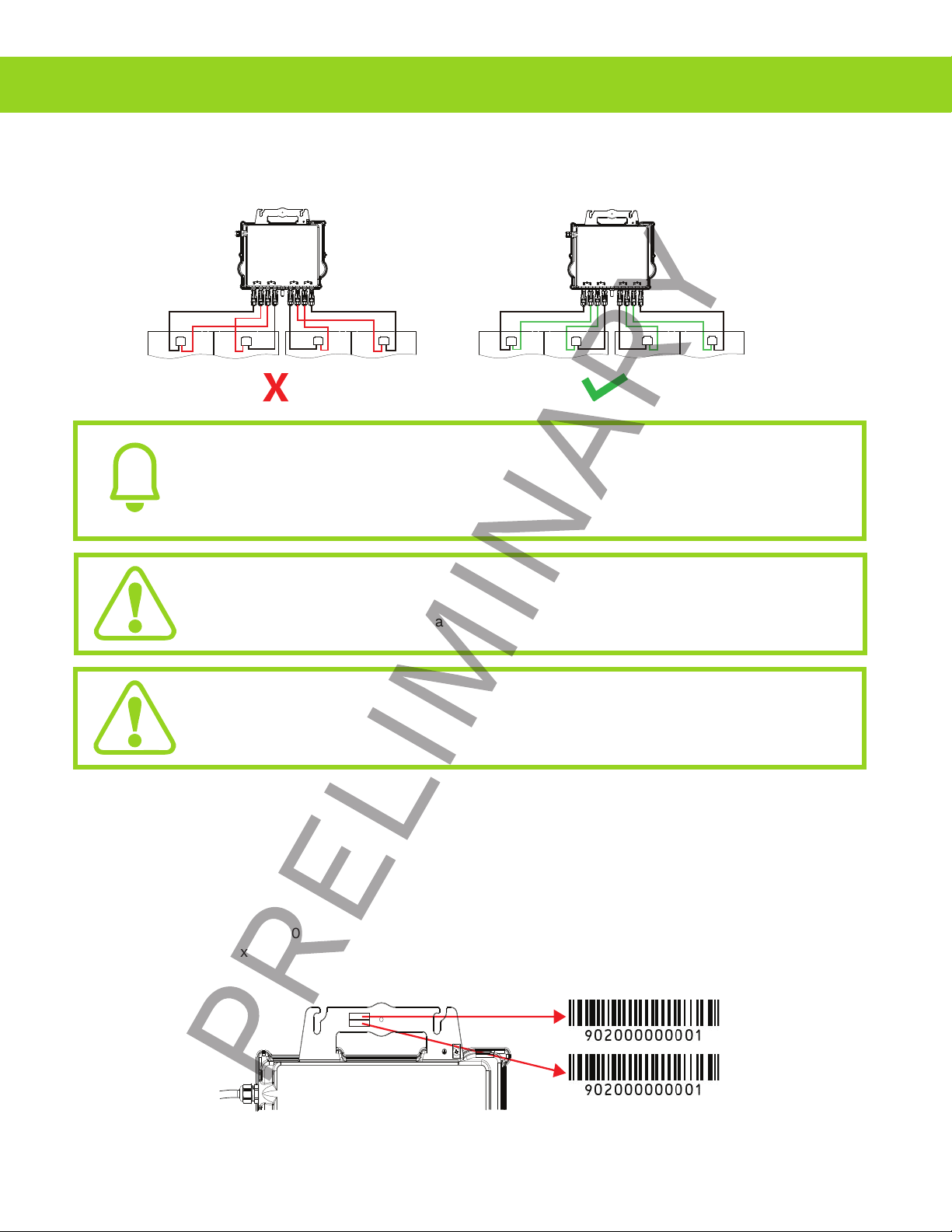

4.4.7 Step 7 - Connect DPI-208 and DPI-480 Microinverters to the PV Modules.............12

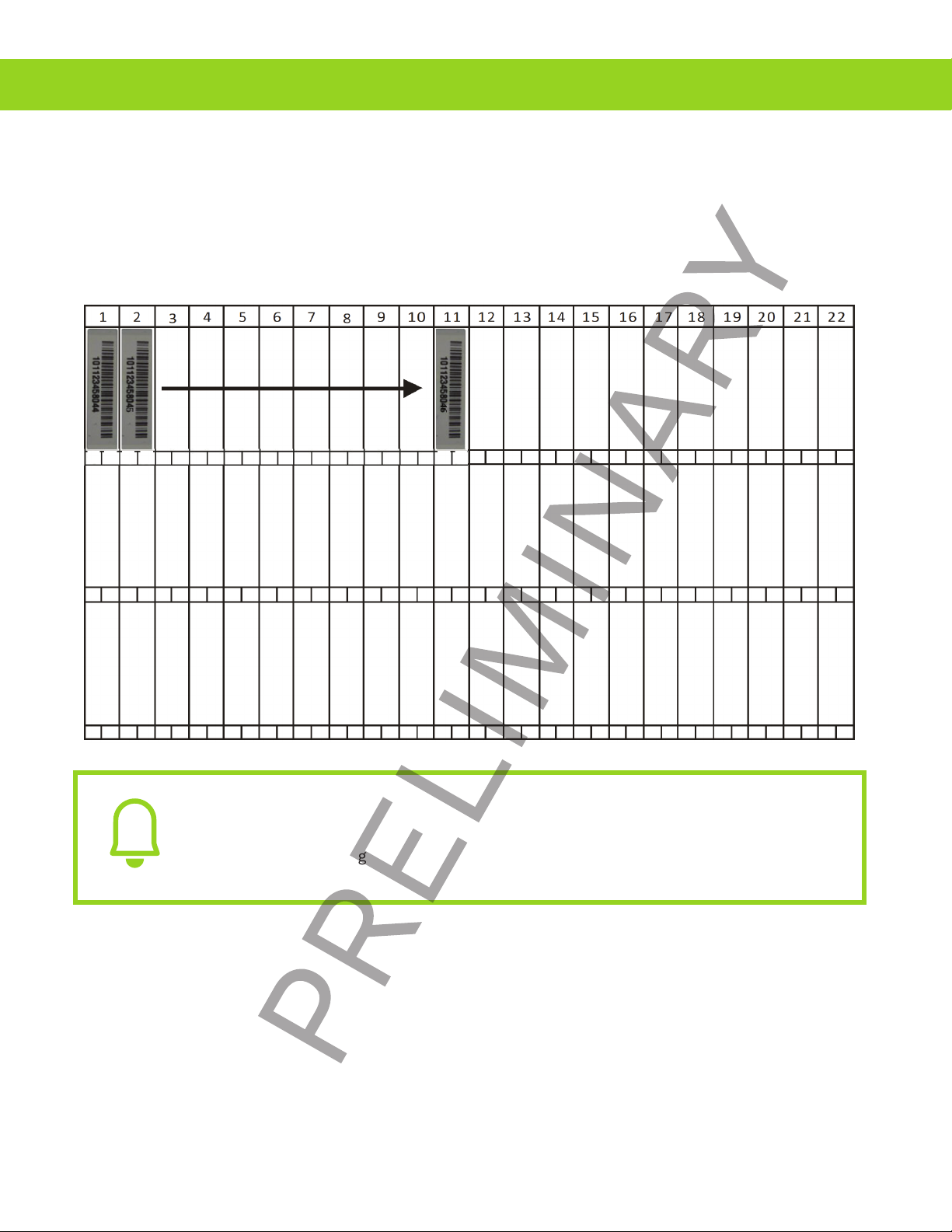

4.4.8 Step 8 - Complete the DPI-208 and DPI-480 installation map...............................
..12
5. Yotta DPI-208 and DPI-480 System Operating Instructions............................................................13
6. Troubleshooting...........................................................................................................................................14
6.1 Status Indications and Error Reporting........................................................................................14
6.1.1 Start up LED.............................................................................................................................14
6.1.2 Operation LED.........................................................................................................................14
6.1.3 GFDI Error................................................................................................................................14
6.1.4 Other Faults............................................................................................................................14
6.2 Troubleshooting a non-operating DPI-208 and DPI-480 Microinverter...............................15
6.3 Maintenance.....................................................................................................................................15
7. Replacing a DPI-208 and DPI-480 Microinverter..................................................................................16
8. Technical Data..............................................................................................................................................17
8.1 DPI-208 and DPI-480 Microinverter Datasheet......................................................................18
8.1 DPI-208 and DPI-480 Microinverter Datasheet......................................................................19
9. Wiring Diagram...........................................................................................................................................20
9.2 DPI-208 and DPI-480 Connected to Delta grids....................................................................20
9.3 DPI-208 and DPI-480 Connected to WYE grids......................................................................21
10. DPI-208 and DPI-480 Accesories..........................................................................................................22
10.1 Wiring Diagram...............................................................................................................................22
10.2 Accessories Summary.................................................................................................................23
1

This manual contains important instructions to follow during installation and maintenance of the Yotta
DPI-208 and DPI-480 Grid Support Utility Interactive Microinverter. To reduce the risk of electrical shock
and ensure the safe installation and operation of the DPI-208 and DPI-480 Microinverter, the following
symbols appear throughout this document to indicate dangerous conditions and important safety
instructions. Specifications are subject to change without notice - please ensure you are using the most
1. Important Safety Instructions
This symbol indicates a situation where not following instructions may cause a seri-
ous hardware or safety issue and/or put people in danger. Be extremely cautious
when performing this task.
This symbol provides important indication to follow in order to optimize the DPI-208
and DPI-480 Microninverters operations. Follow these instructions closely.
- Do NOT disconnect the PV module from the DPI-208 and DPI-480 Microinverter without first discon-
necting the AC power.
- Only qualified professionals should install and/or replace Yotta DPI-208 and DPI-480 Microinverters.
- Perform all electrical installations in accordance with local electrical codes.
- Before installing or using the DPI-208 and DPI-480 Microinverter, please read all instructions and warn-
ing notices in the technical documents and on the DPI-208 and DPI-480 Microinverter system and the
solar array.
- Be aware that the case of the DPI-208 or DPI-480 Microinverter is the heat sink and can reach a tem-
perature of 80°C. To reduce risk of burns, do not touch the case of the DPI-208 and DPI-480 Microinvert-
er.
- Do NOT attempt to repair the DPI-208 or DPI-480 Microinverter. If it fails, contact Yotta ENERGY Cus-
tomer Support to obtain an RMA number and start the replacement process. Damaging or opening the
DPI-208 and DPI-480 Microinverter will void the warranty.
- Caution! Unlike other Yotta microinverters, DPI-208 and DPI-480 do not provide a ground connection
through the AC connector. Ensure the microinveter is grounded, connect the AC then do the DC connec-
tions.
- Please install isolation switching devices on the AC side of the inverter.
- Caution!– Hot surfaces - To reduce the risk of burns - Do not touch. Risk of electric shock-(a) both AC
and DC voltage source are terminated inside this equipment. Each circuit must be individually discon-
nected before servicing, and (b) When the photovoltaic array is exposed to light, it supplies a DC voltage
to this equipment. Warranty void if cover removed. No user serviceable parts inside. Refer servicing to
qualified service personnel. This inverter has an integral ground-fault detector / interrupter (GFDI). This
Utility-Interactive Inverter contains active anti-islanding protection (IEEE1547) and is tested per FCC/IC.
1.1 Safety Instructions
2

FCC/IC Compliance：The equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules (ICES-003), which are designed to protect against
harmful interference in a residential installation. The equipment could radiate radio frequency energy
and this might cause harmful interference to radio communications if instructions are not followed
when installing and using the equipment. But there is no guarantee that interference will not occur in a
particular installation. If this equipment causes harmful interference to radio or television reception, the
following measures might resolve the issues:
A) Relocate the receiving antenna and keep it well away from the equipment.
B) Consult the dealer or an experienced radio / TV technical for help.
*Changes or modifications not expressly approved by the party responsible for compliance may
void the user’s authority to operate the equipment.
Federal Communication Commission Interference Statement
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Non-modification Statement:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
1.2 Radio Interference Statement
1. Important Safety Instructions
3

1. Important Safety Instructions
1.3 Symbols replace words on the equipment, on a display, or in
manual.
Caution! Risk of electric shock
Caution! Hot surface
Notice, danger! This device directly connected with electricity generators
and public grid
Person adequately advised or supervised by an electrically skilled person to enable him or her to
perceive risks and to avoid hazards which electricity can create. For the purpose of the safety informa-
tion of this manual, a "qualified person" is someone who is familiar with requirements for safety, elec-
trical system and EMC and is authorized to energize, ground, and tag equipment, systems, and circuits
in accordance with established safety procedures. The inverter and complete system may only be
commissioned and operated by qualified personnel.
Qualified personnel
4

2. Yotta DPI-208 and DPI-480 System Introduction
The Yotta DPI-208 and DPI-480 Microinverter is used in utility-interactive grid-tied applications, com-
prised of three key elements:
-Yotta DPI-208 and DPI-480 Microinverter
- Yotta Energy Communication Unit (ECU)
-Yotta Energy Monitor and Analysis (EMA) web-based monitoring and analysis system
5

This integrated system improves safety; maximizes solar energy harvest; increases system reliability, and
simplifies solar system design, installation, maintenance, and management. In a typical string inverter
installation, PV modules are connected in series adding the PV panel voltages which can exceed 1000VDC
at the end of the PV string. This extreme high DC voltage brings a risk of electrical shocks or electrical
arcs which could cause fire.
Yotta DPI connects PV modules are connected in parallel which does not increase the PV panel voltage.
DC voltages in the system never exceeds PV panel Voc, which is typically lower than 60Vdc. This low volt-
age is considered “safe to touch” by fire departments and negates the risk of electrical shock, electrical
arcs and fire hazards
Yotta DPI-208 and DPI-480 maximize PV energy production
2. Yotta DPI-208 and DPI-480 System Introduction
Two PV modules in parallel inside the Yotta DPI-208/480 and share Maximum Peak Power Tracking
(MPPT) controls, which ensures that the maximum power is produced to the utility grid regardless of the
performance of the other PV modules in the array. When PV modules in the array are aected by shade,
dust, orientation, or any situation in which one module underperforms compared with the other units,
the Yotta DPI-208 and DPI-480 Microinverter ensures top performance from the array by maximizing the
performance of each module pair within the array.
More reliable than centralized or string inverters
The distributed Yotta DPI-208 and DPI-480 Microinverter system ensures that no single point of system
failure exists across the PV system. Yotta Microinverters are designed to operate at full power at ambient
outdoor temperatures of up to 149°F (65°C). The inverter case is designed for outdoor installation and
complies with the IP67 environmental enclosure rating.
Simple to install
You can install individual PV modules in any combination of module quantity, orientation, type, and
power class. However, modules connected to the same MPPT channel must have the same electrical
specifications and be the same power class.
Smart system performance monitoring and analysis
The Yotta Energy Communication Unit (ECU) is installed by simply connecting it to AC power and provid-
ing an Ethernet or Wi-Fi connection to a broadband router or modem. After installing and configurating
the ECU, the full network of Microinverters automatically reports to the Yotta Energy Monitor and Analysis
(EMA) web server. The EMA software displays performance trends, informs you of abnormal events, and
controls system shutdown when it is needed. (See ECU manual for instructions.)
6

The Yotta DPI-208 and DPI-480 Microinverter connect to 3 phase grids and operate with most 60 and 72
cell PV modules. Contact Yotta Energy Customer Support for checking compatibility. For more informa-
tion, please see the Technical Data section of this manual.
Yotta's DPI family is expanded with the DPI-208/480 native 3-phase quad microinverters at power ratings
up to 1800VA (for the DPI-480) designed to be used with modern larger power PV modules. With a
balanced 3-phase output, 4 DC inputs, encrypted ZigBee signals, the DPI-208/480 family benefits from
an entirely new architecture.
The components are encapsulated with silicone to reduce stress on the electronics, facilitate thermal
dissipation, enhance waterproof properties, and ensure maximum reliability of the system via rigorous
testing methods including accelerated life testing.
The new DPI-208/480 is interactive with power grids featuring RPC (Reactive Power Control) to better
manage photovoltaic power spikes injected into the grid. In addition, it provides 96.5% peak eciency
with 20% less components compared to the last generation product.
3. Yotta DPI-208 and DPI-480 Microinverter Introduction
Model Number AC grid PV module Module Connector
DPI-208 and DPI-480 60Hz / 208V
60Hz / 480V
60, 72 Cell MC-4 Type
7

A PV system using DPI-208 and DPI-480 Microinverters is simple to install. Each Microinverter easily
mounts on the PV racking, directly beneath the PV module(s). Low voltage DC wires connect from the PV
module directly to the Microinverter, eliminating the risk of high DC voltage. Installation MUST comply
with local regulations and technical rules.
- Perform all electrical installations in accordance with local electrical codes.
- Be aware that only qualified professionals should install and/or replace DPI-208
and DPI-480 Microinverters.
- Before installing or using an DPI-208 and DPI-480 Microinverter, please read all
instructions and warnings in the technical documents and on the Microinverter
system itself as well as on the PV array.
- Be aware that installation of this equipment includes the risk of electric shock.
- Do not touch any live parts in the system, including the PV array, when the
system has been connected to the electrical grid.
It is strongly recommended to install surge protection devices in the dedicated meter
box.
- Bus Cable
- ECU (Sold separately)
- AC Connectors Male/Female (if extending the bus cable)
- Bus Cable End Cap (Sold separately)
- Bus Cable Y-CONN Cap (Sold separately)
- Bus Cable unlock tool (Sold separately)
4.1 Additional Installation componets for DPI-208 and DPI-480
4. Yotta DPI-208 and DPI-480 System Installation
In addition to your PV array and its associated hardware, you will need the following items:
- An AC connection junction box.
-Mounting hardware suitable for module racking.
- Accessories and tools to securely attach the mounting system.
4.2 Required Parts and Tools from you
8

4.3 PV Rapid Shutdown Equipment (PVRSE)
This product is PV Rapid Shut Down Equipment and conforms with NEC-2014 and NEC-2017 section
690.12, for AC and DC conductors, when installed according to the following requirements:
1) Microinverters and all DC connections must be installed inside the array boundary.
2) The array boundary is defined as 305 mm (1 ft.) from the array in all directions, or 1 m (3 ft.) from the
point of entry inside a building.
This rapid shutdown system must be provided with an initiating device and (or with) status indicator
which must be installed in a location accessible to first responders, or be connected to an automatic
system which initiates rapid shutdown upon the activation of a system disconnect or activation of another
type of emergency system.
The initiator shall be listed and identified as a disconnecting means that plainly indicates whether it is in
the “o” or “on” position. Examples are:
1) Service disconnecting means
2) PV system disconnecting means
3) Readily accessible switch or circuit breaker
The handle position of a switch or circuit breaker is suitable for use as an indicator. Refer to NEC for more
information.
Additionally, in a prominent location near the initiator device, a placard or label must be provided with a
permanent marking including the following wording:
’PHOTOVOLTAIC SYSTEM EQUIPPED WITH RAPID SHUTDOWN’ The term ‘PHOTOVOLTAIC’ may be replaced
with ‘PV.’
Refer to NEC 690.65 to ensure placard meets all audit requirements.
9

A) The AC bus is installed at a position matching the microinverter location.
B) One end of the AC bus enters the junction box for connection to the power grid.
C) Wire the conductors of the AC bus: L1 - BLACK; L2 - RED; L3 - BLUE. DPI-208/480 are compatible with
Delta and WYE grids and do not require a neutral connection. The AC bus cable does not provide a neu-
tral or ground wire. Grounding must be accomplished using one of the 2 methods noted.
Wiring colour code can be dierent according to local regulations, check all the
wires of the installation before connecting to the AC bus to be sure they match.
Wrong cabling can damage irreparably the microinverters. Such issue is not cov-
ered by the warranty.
A) Mark the location of the Microinverter on the rack. Take into consideration the position of the PV
module junction box or any other obstructions.
B) Mount one Microinverter at each of these locations using hardware recommended by your module
racking vendor. When installing the Microinverter, make sure the grounding washer is facing the racking.
4.4 Installation Procedures
4. Yotta DPI-208 and DPI-480 System Installation
4.4.1 Step 1 - Verify the grid voltage to match with Microinverter
rating
4.4.2 Step 2 - Install the AC bus cable
Do NOT carry the inverter using the AC cable.
4.4.3 Step 3 - Attach the Microinverters to the racking
Prior to installing any of the DPI-208 and DPI-480 Microinverter, verify that the
utility Voltage at the point of common connection matches the voltage rating on
the Microinverter label.
Do not place the inverters (including DC and AC connectors) in direct exposure to
the sun, rain, or snow. Allow a minimum of 2 cm (3/4”) of space around the Micro-
inverter case for heat dissipation and proper air flow. The racking used to attach
the microinverter should be reliably grounded.
10

4.4.4 Step 4 - Ground the system
4. Yotta DPI-208 and DPI-480 System Installation
4.4.5 Step 5 - Connect the DPI-208 and DPI-480 microinverter to AC
bus cable
Connect the DPI-208 and DPI-480 to the AC bus cable. Push the Microinverter AC connector to the Bus
cable connector. Listen for the "Click".
*Use the Bus Cable Unlock Tool of AC Bus to split the connectors.
NOTE: AC connector
interface should be as
shown.
NOTE: Cover any unusued con-
nectors with bus cable Y-CONN
caps to protect the connectors.
4.4.6 Step 6 - Install a AC bus protective end cap at the end of AC
bus
AB C D
11
Grounding washer
WARNING! SHARP EDGES
Grounding
Lug
AB
There’s two options to properly ground the microinverter:
A) Using the grounding washer.
B) Using grounding copper wire through the grounding lug.
L1 L2 L3

4.4.7 Step 7 - Connect DPI-208 and DPI-480 Microinverters to the
PV Modules
4. Yotta DPI-208 and DPI-480 System Installation
Double check to make sure all of the AC and DC wiring has been correctly installed.
Ensure that none of the AC and/or DC wires are pinched or damaged. Make sure
that all of the junction boxes are properly closed.
When plugging in the DC cables, the microinverter should immediately blink green
ten (10) times. This will happen as soon as the DC cables are plugged in and will
show that the microinverter is functioning correctly. This entire check function will
start and end within ten (10) seconds of plugging in the unit, so pay attention to
these lights when connecting the DC cables.
4.4.8 Step 8 - Complete the DPI-208 and DPI-480 installation map
Fill in the Yotta Registration Cards which provide system information and the Installation Map. Feel free to
provide your own layout if a larger or more adnvanced installation map is required. The layout map provid-
ed is designed to accomodate labels in vertical or horizontal orientation to meet all the field PV connec-
tions.
A) Each DPI-208 and DPI-480 Microinverter has removable serial number labels.
B) Peel labels o, ax one to the respective location on the Yotta DPI-208 and DPI-480 Installation Map
according to the layout on the roof.
12
Each PV module must be carefully connected to the same channel. Never split pos-
itive and negative cables into two dierent channels, otherwise the inverter will be
damaged and warranty will not apply.

The Yotta DPI-208 and DPI-480 Installation Map is a diagram of the physical location of each DPI-208 and
DPI-480 Microinverter in your PV system. Each DPI-208 and DPI-480 Microinverter has a removable serial
number label located on the mounting plate. Peel the label and place it according to the respective loca-
tion on the Yotta DPI-208 and DPI-480 Installation Map.
Yotta DPI-208 and DPI-480 Microinverter & Energy Communication
Unit Warranty
4. Yotta DPI-208 and DPI-480 System Installation
A) The layout of the Microinverters serial numbers on the warranty card is only suit-
able for general arrangement.
B) Warranty card is located in the appendix (Last page of this manual).
C) You can use Scanning Gun or mobile phone to scan the serial numbers on the map
when setting up the ECU (see ECU manual).
13

1) Turn ON the AC circuit breaker on each Microinverter AC branch circuit.
2) Turn ON the main utility-grid AC circuit breaker. Your system will start producing power after a locally
mandated delay, usually 5 minutes..
3) The units should start blinking green every 2 seconds five minutes after turning on the AC circuit break-
er. This means they are producing power normally, but have not yet connected to the ECU. After the ECU
has been plugged in, setup acknowledges the Microinverters, they will start to blink green every 10 sec-
onds.
4) Install and setup the ECU according to the instructions in the ECU manual
5) The Yotta DPI-208 and DPI-480 Microinverters will start to send performance data over ZigBee to the
ECU. The time required for all the Microinverters in the system to report to the ECU will vary with the
number of Microinverters in the system. You can verify proper operation of the Yotta DPI-208 and DPI-480
Microinverters via the ECU. See the ECU Installation and Operation Manual for more information.
To operate the DPI-208 and DPI-480 microinverter PV system:
5. DPI-208 and DPI-480 System Operating Instructions
14

Qualified personnel can use the following troubleshooting steps if the PV system does not operate
correctly:
6.1 Status Indications and Error Reporting
6. Troubleshooting
6.1.1 Start up LED
One quick red light followed by three short green blinks when DC power is first applied to the Microinvert-
er indicates a successful Microinverter startup.
6.1.2 Operation LED
Flashing Slow Green (5 sec. gap) - Producing power and communicating with ECU
Flashing Slow Red (5 sec. gap) - Not producing power but communicating with ECU
Flashing Fast Green (2 sec. gap) - Not communicating with ECU over 60mins, but still producing power.
Flashing Fast Red (2 sec. gap) - Not communicating with ECU over 60mins and not producing power.
6.1.3 GFDI Error
A solid red LED indicates the Microinverter has detected a Ground Fault Detector Interrupter (GFDI) error
in the PV system. Unless the GFDI error has been cleared, the LED will remain red and the ECU will keep
reporting the fault. After the ground fault error is fixed, follow the instructions in the ECU Installation and
Operation Manual to clear this GFDI error reporting.
6.1.4 Other Faults
All other faults are reported to the ECU. Refer to the ECU Installation and Operation Manual for a list of
Only qualified personnel should directly handle the Yotta DPI-208 and DPI-480
1) Never disconnect the DC wire connectors under load. Ensure that no current is
flowing through the DC wires prior to disconnecting.
2) Always disconnect AC power before disconnecting the PV module wires from the
Yotta DPI-208 and DPI-480 MIcroinverter.
3) The DPI-208 and DPI-480 Microinverter is powered by PV module DC power.
AFTER disconnecting the DC power, when reconnecting the PV modules to the
Microinverter, be sure to watch for the three short LED flashes.
14

6.2 Troubleshooting a non-operating DPI-208 and DPI-480 Microinverter
6. Troubleshooting
There are two possible overall areas of trouble:
A) The Microinverter itself may be having problems.
B) The Microinverter itself is working fine but it is having trouble communicating with the ECU. The items
below refer to Microinverter issues, not communication issues (addressed in the ECU manual).
A quick way to tell whether the issue is wih the Microinverter or a communication problem with the ECU:
1) Diagnosing the Microinverter: A red light – either blinking or solid on the Microinverter, or no light at all.
No light, or a red light, means it is definitely a Microinverter problem.
2) Diagnosing from the ECU:
A) No-Data-Display: This is probably a communication issue, not a Microinverter problem.
B) Problems with erratic display: Data is displayed for some period and then no data is displayed. Most
likely a communication issue.
C) 0 watts, or 2 watts: Possibly a Microinverter problem.
D) Erratic data display that is not coordinating with data displays from other units is most likely a Microin-
verter problem.
To troubleshoot a non-operating DPI-208 and DPI-480 Microinverter,
Follow the steps below in order:
No need for maintenance.
Do not attempt to repair the DPI-208 and DPI-480 Microinverter. If troubleshooting
methods fail, please return the microinverter to your distributor for replacement.
6.3 Maintenance
1) Verify the utility voltage and frequency are within ranges shown in the Technical Data section of this
manual.
2) Check the connection to the utility grid. Verify utility power is present at the inverter in question by
removing AC, then DC power. Never disconnect the DC wires while the microinverter is producing power.
Re-connect the DC module connectors and watch for three short LED flashes.
3) Check the AC branch circuit interconnection between all the microinverters. Verify each inverter is
energized by the utility grid as described in the previous step.
4) Make sure that any AC breaker are functioning properly and are closed.
5) Check the DC connections between the microinverter and the PV module.
6) Verify the PV module DC voltage is within the allowable range shown in the Technical Data of this
manual.
7) If the problem persists, please call Yotta Energy Customer Support.
15

Follow the procedure to replace a failed Microinverter
7. Replacing a DPI-208 and DPI-480 Microinverter
A) Turn o circuit breaker first.
B) Disconnect the Microinverter from the PV Module, in the order shown below:
1) Disconnect the inverter AC connector from the AC Bus.
2) Disconnect the first AC connector in the branch circuit.
3) Disconnect the PV module DC wire connectors from the microinverter.
4) Remove the Microinverter from the PV array racking.
C) Install a replacement Microinverter to the rack. Remember to observe the flashing LED light as soon
as the new Microinverter is plugged into the DC cables.
D) Connect the AC cable of the replacement Microinverter on the AC bus.
E) Close the branch circuit breaker, and verify operation of the replacement Microinverter.
16

Grid Support Details
8. Technical Data
The DPI-208 and DPI-480 is a grid support interactive inverter. This type of inverter is also known as a Grid
Support Utility Interactive Inverter . The DPI-208 and DPI-480 also comply with California Rule 21. The grid
support function is controlled by the ECU .
1) Be sure to verify the voltage and current specifications of your PV module match
with those of the Microinverter. Please refer to the datasheet or user manual.
2) You must match the DC operating voltage range of the PV module with the
allowable input voltage range of the Yotta DPI-208 and DPI-480 Microinverter.
3) The maximum open circuit voltage of the PV module must not exceed the
specified maximum input voltage of the DPI-208 and DPI-480 Microinverter,
Simultaneous use of Fixed Power Factor and Volt/VAr is not supported.
Manufacture’s Stated Accuracy
17

8.1 DPI-208 and DPI-480 Microinverter Datasheet
Meets the standard requirements
for Distributed Energy Resources
(UL-1741) and identified with the
CSA Listed Mark
Model DPI-208 DPI-480
Input Data (DC)
Peak Power Tracking Voltage 32V-45V
Operating Voltage Range 26V-60V
Maximum Input Voltage 60V
Maximum Input Current 20A x 4
Maximum Input Short Circuit Current 25A per input
Output Data (AC)
Maximum Continuous Output Power 1728VA 1800VA
Nominal Output Voltage/Range 208V/183V-229V 480V/422V-528V
Adjustable Output Voltage Range 166V-240V 385V-552V
Nominal Output Current 4.8Ax3 2.17Ax3
Nominal Output Frequency/Range 60Hz/59.3Hz-60.5Hz
Adjustable Output Frequency Range 55Hz-65Hz
Power Factor 0.99/0.8 leading...0.8 lagging
Maximum Units per 30A branch 5 11
AC Bus Cable AWG 10
Eciency
Peak E ciency 96.5%
Nominal MPPT E ciency 99.5%
Night Power Consumption 40mW
Mechanical Data
Operating Ambient Temperature Range -40°F to +149°F(-40°C to +65°C)
Storage Temperature Range -40°F to +185°F(-40°C to +85°C)
Dimensions (W x H x D) 14” 9.5” 1.8” (359mm X 242mm X 46mm)
Weight 13 lbs (6kg)
DC Connector Type Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling Natural Convection - No Fans
Enclosure Environmental Rating Type 6
Features
Communication (Inverter To ECU) Encrypted ZigBee
Isolation Design High Frequency Transformers, Galvanically Isolated
Energy Management Yotta Vision EMA
Warranty 10 Years Standard ; 25 Years Optional
Certificate&Compliance
Safety, EMC & Grid Compliances
UL-1741; CSA C22.2 No. 107.1-16; CA Rule 21 (UL 1741 SA); FCC
Part15; ANSI C63.4; ICES-003; IEEE1547; NEC2014 & NEC2017
Section 690.11 DC Arc-Fault circuit; Protection NEC2014 &
NEC2017 & NEC2020 Section 690.12 Rapid Shutdown of PV
systems on Building
"(1) Nominal voltage/frequency range can be extended
beyond nominal if required by the utility.
(2) Limits may vary. Refer to local requirements to dene the
number of microinverters per branch in your area.
(3) Inverter may enter low power mode in environments with
poor ventilation or limited heat dissipation
(4) Recommend no more than 80 inverters register to one
ECU for stable communication. "
(1)
(1)
(2)
(3)
(4)
18
