Yuan nT19AX02 User manual

SOLUTIONS FOR GROWTH n - TECH SOLUTIONS
nT
Operation Manual
Operation Manual
HDMI/SDI/ STREAMING AND RECORD WITH
BATTERY BACKUP AND 4G
nT19AX02 | SC6C01 M4G

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
2
2/26
Index
1. PACKAGE CONTENT ............................................................................................................................ 3
2. PRODUCT INTRODUCTION .................................................................................................................. 4
2.1. PRODUCT BRIEF ........................................................................................................................... 4
2.2. SPECIFICATION ............................................................................................................................. 7
3. WEB UI ................................................................................................................................................... 9
3.1. IP FINDER ....................................................................................................................................... 9
3.2. SOURCE ........................................................................................................................................ 10
3.3. ENCODER ..................................................................................................................................... 11
3.4. RECORD ........................................................................................................................................ 12
3.4.1. STORAGE CONTENT............................................................................................................. 12
3.5. STREAMING ................................................................................................................................ 13
3.5.1. EXAMPLE: RTSP ................................................................................................................... 14
3.5.2. EXAMPLE: RTMP .................................................................................................................. 15
3.5.3. EXAMPLE: YOUTUBE .......................................................................................................... 16
3.6. CG .................................................................................................................................................. 18
3.7. SYSTEM ........................................................................................................................................ 19
3.7.1. NETWORK SETTING ............................................................................................................. 19
3.7.2. TIME SETTING ...................................................................................................................... 20
3.7.3. FIRMWARE UPDATE ............................................................................................................ 20
3.7.4. ACCOUNT SETUP ................................................................................................................. 22
3.7.5. SYSTEM RELATED ................................................................................................................ 22
3.8. WIRELESS .................................................................................................................................... 22
3.8.1. WI-FI SETTING ...................................................................................................................... 22
3.8.2. 4G/LTE .................................................................................................................................... 25
4. VERSION ............................................................................................................................................... 26
4.1. VERSION 1.0 ................................................................................................................................. 26
4.2. VERSION 1.1 ................................................................................................................................. 26
4.3. VERSION 1.3 ................................................................................................................................. 26
4.4. VERSION 1.4 ................................................................................................................................. 26
4.5. VERSION 1.5 ................................................................................................................................. 26
4.6. VERSION 1.6 ................................................................................................................................. 26
4.7. VERSION 1.7 ................................................................................................................................. 26

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
3
3/26
1. PACKAGE CONTENT
Product Name Quanties
SC6C0N1 M 4G 1

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
4
4/26
2. PRODUCT INTRODUCTION
2.1. PRODUCT BRIEF

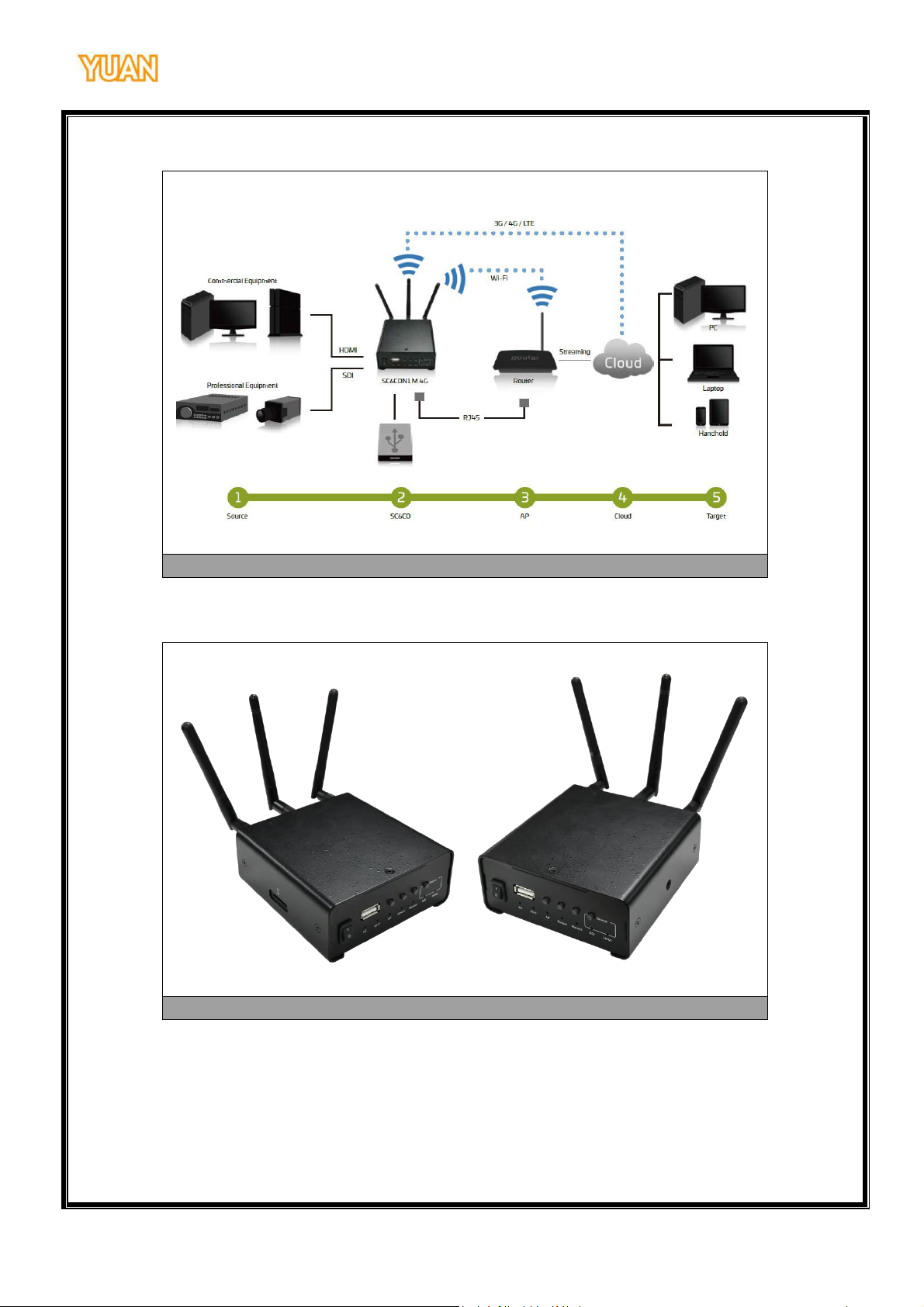

Application
SC6C0N1 M 4G provides 1 x 3G-SDI and 1 x HDMI for video signal input with audio
embedded feature, it also provided a 3.5mm audio jack for stereo analog audio input.
Left side / Front side / Right side
In the left side, there is a mini-sim card slot for 3G/4G/LTE usage, and in the right side is a
cradle head hole for user to fixed SC6C0N1 M 4G on camera.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
5
5/26

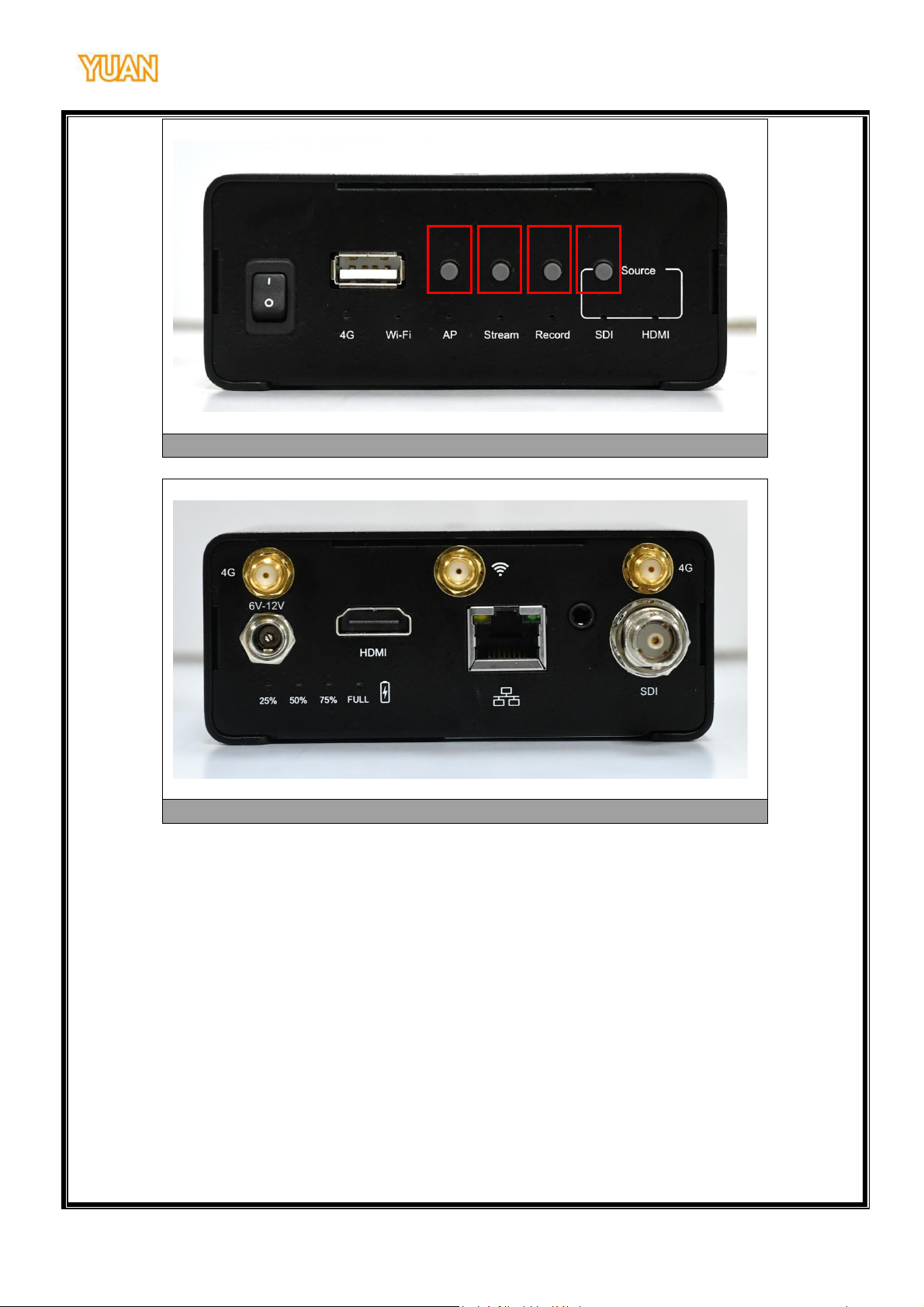

Front panel detail
Back panel detail
Besides control button, in front panel, SC6C0N1 M 4G provides power switch, USB 2.0. USB
2.0 interface is for user to capture input AV signal. 4 control buttons are using to on/o ffAP,
Stream, record mode and select input interface.
In back panel, SC6C0N1 M 4G provides Wi-Fi / 4G / RJ45 for internet connectivity and SDI /
HDMI / 3.5mm audio jack for AV signal input. User can also check battery life and re-charge
battery in back panel.
1 2 3 4

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
6
6/26
The form below is the LED sign and button control method.
1.4G/Wi-Fi/AP Button Switching Loop
1 AP Mode(AP LED Light up)
2 Client Mode(Wi-Fi LED Light up)
3 AP Mode+4G(AP / 4G LED Light up)
2.Stream Button
Press to stream, LED meanings are listed as below
 Green LED: Streaming enable.
 LED off: Streaming disable.
※The streaming method will switch between last streaming setting and stop
streaming.
3.Record Button
Press to record, LED meanings are listed as below
 Green LED: Recording.
 Green+Red LED: Closing file.
 LED off: Not recording.
※Before recording, please remember to check the willing file name inside
WebUI.
4.Source Button
Press to select signal, LED meanings are listed as below
 Green LED: Interface selected and signal locked.
 Green+Red LED: Interface selected but signal unlock.
 LED off: Interface not selected
Stand alone power switch can let user turn off SC6C0N1 M 4G to save battery life. Two 18650
batterys can provide about 3~4 hours of 1080P60 streaming.

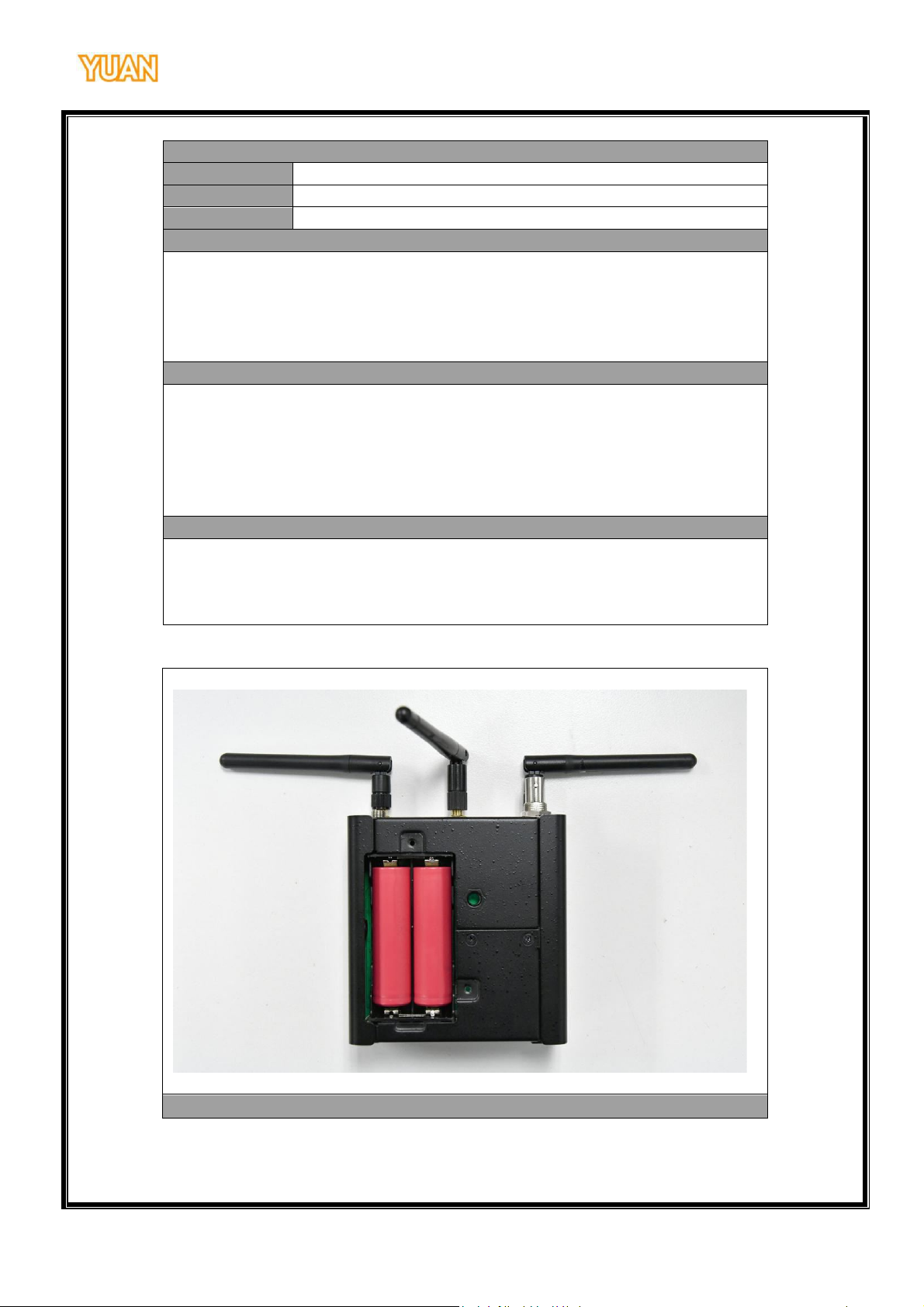

Bottom panel
In the bottom, there is the battery cover and other cradle head for user to fixed SC6C0N1 M 4G
in the other way.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
7
7/26
2.2. SPECIFICATION
Model SC6C0N1 M 4G
Max. FPS 60/50fps @ 1920x1080p
Recording
Mode Hardware Compression, Real-Time Mode
4G Support LTE
 LTE FDD: Max 150Mbps (DL)/Max 50Mbps
(UL)
 LTE TDD: Max 130Mbps (DL)/Max 35Mbps
(UL)
Input
Interfaces
Video
 1 x HDMI
 1 x SDI
Audio
 1 x 3.5mm stereo analog audio
 SDI/HDMI embedded audio
Video
Feature
H.264/AVC , Baseline / Main / High Profile
Configurable bit rate up to 10Mbps
Supported Resolutions
 Input:
 1920x1080
(P60/P50/P30/P25/P24/i60/i50)
 1280x720 (P60/P50), 1280x1024
(P60),1280x960 (P60)
 1024x768 (P60),800x600 (P60), 720x480
(P60/i60)
 640x480 (P60), 720x576 (P50/i50)
 Output:
 Resize Range from 160x128 to
1920x1080(P60)
 *Output Include Down Scaling.
Audio
Feature
 AAC-LC
 Configurable bit rate range from 32Kbps to
384Kbps
 Sample rate : 48KHz, 16bit
Network
Feature
 1x RJ45 for 10/100Mbps Ethernet
 DHCP client
Wifi:
 802.11b/g/n
 Support 150Mbps PHY rate
Support
Streaming
protocol
 TS over TCP/UDP/HTTP (unicast & multicast)
 RTSP over HTTP/TCP/UDP (RTSP
Elementary Stream)
 RTMP(Publish)
 HLS
Misc.
Features
 1x USB 2.0 Host for USB storage
 Web UI for system configuration
 Firmware upgradable
 LED indicator

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
8
8/26
 Status With Power Recycle
 1 x sim card slot(For 3G/4G/LTE usage)
Record
Format MP4
System Requirement
Power
Supply
 DC 12V (With DC Adapter)
 2 x 18650 Battery slot (3.7V / 2600mAh)
Device Size 102(W)*42(H)*106(D)mm

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
9
9/26
3. WEB UI

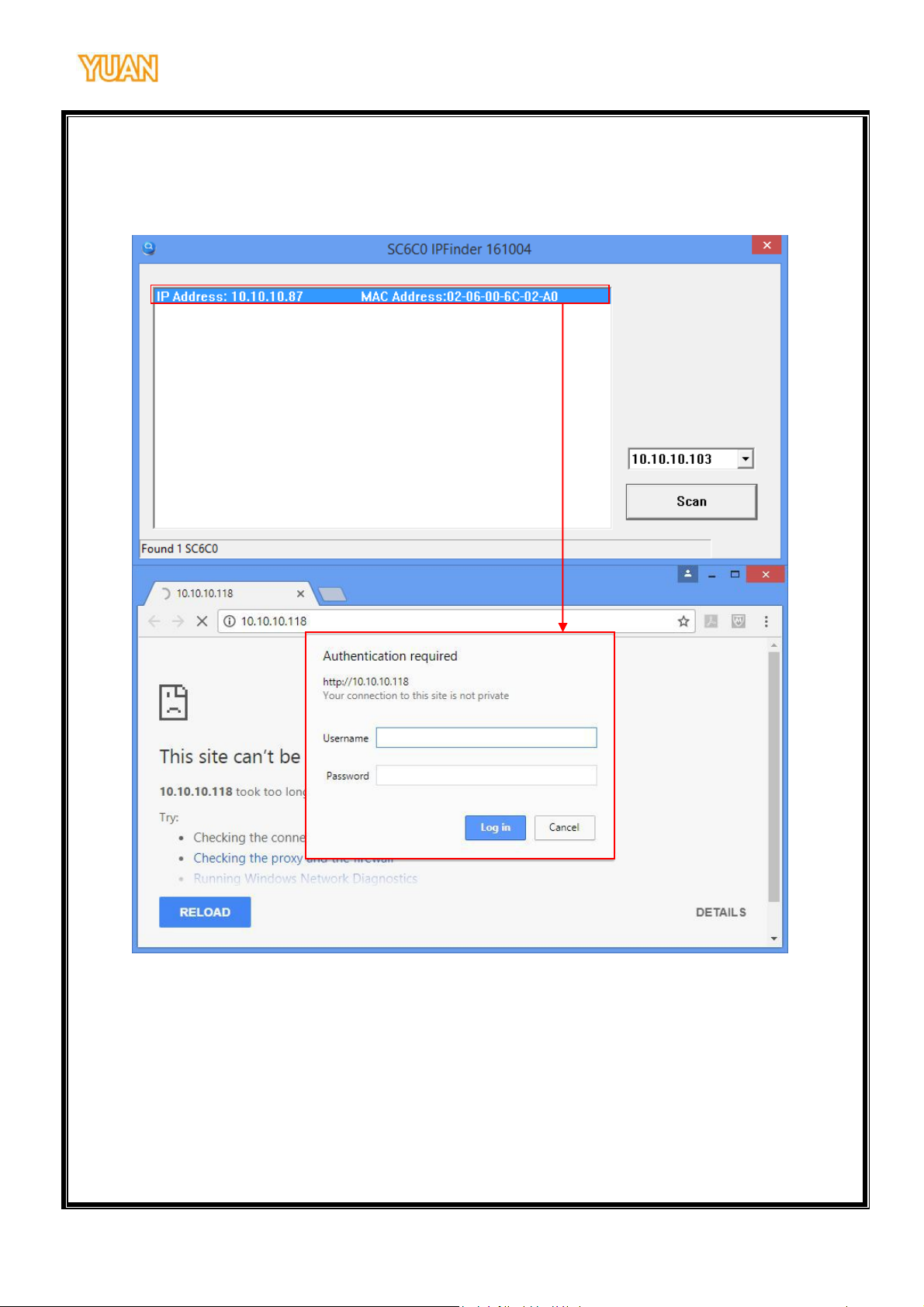

3.1. IP FINDER
In the beginning, user can execute IP Finder to find SC6C0N1 M 4G, please make sure host
(PC) and target (SC6C0N1 M 4G) are in the same netmask.
After double click the MAC address (The MAC address is provided in the bottom of SC6C0N1
M 4G), the user will open the web browser automatically, please provide default user name and
password to login the SC6C0N1 M4G.
Default user name: admin
Defaule password: 000000
After login the system, the web UI will display inside browser automatically.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
10
10/26

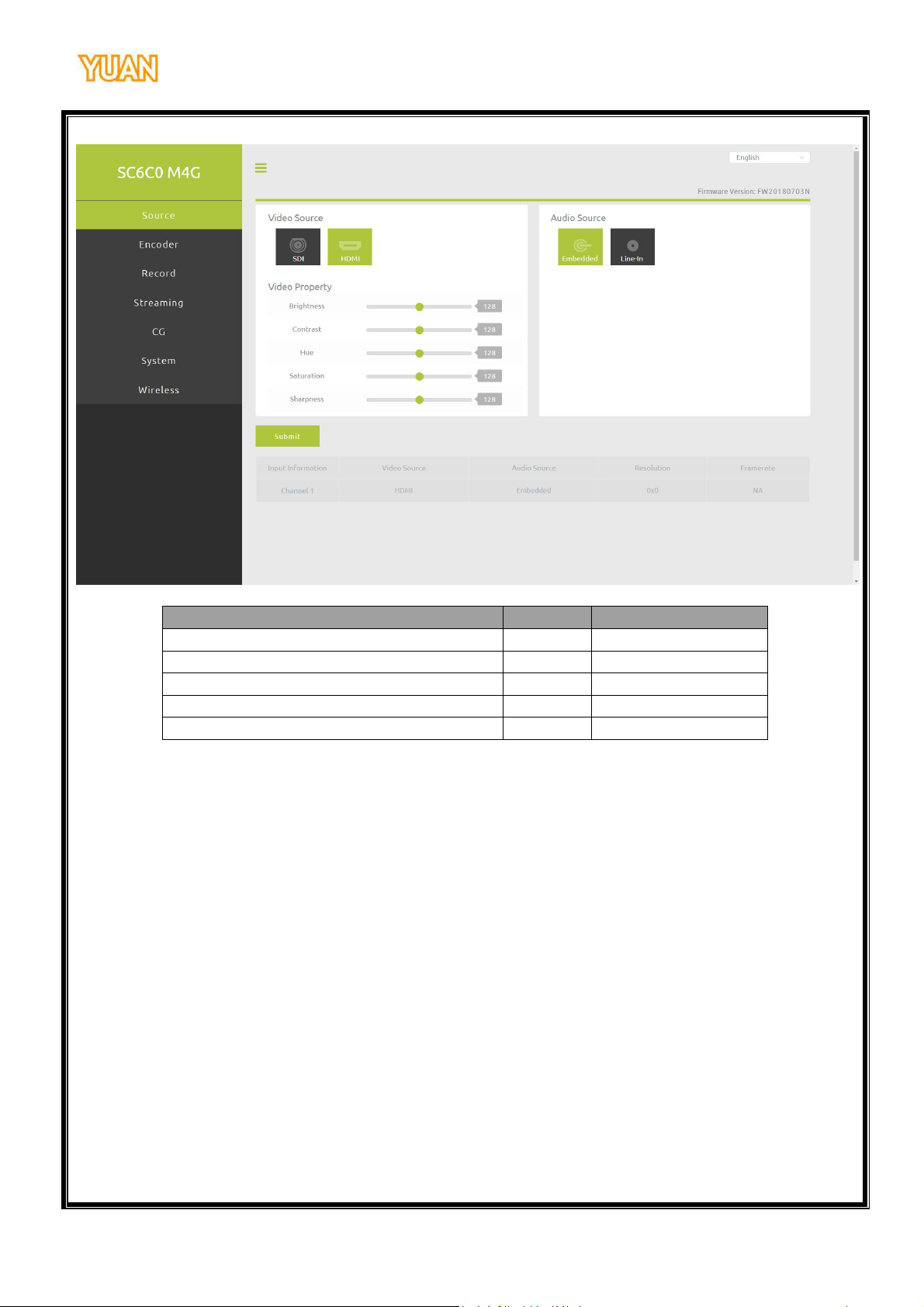

3.2. SOURCE
In source page, user can decide input interface and finetune video format.
Video Tuning Default Range
brightness 128 0~255
contrast 128 0~255
hue 128 0~255
saturation 128 0~255
sharpness 128 0~255

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
11
11/26
3.3. ENCODER
In encoder page, user can change encode parameters here.
Parameter Range
Resolution 1920*1080~160*128
Framerate 60~1
Profile Baseline
Main
High
Video Bitrate ( bps ) 16M~256K
Audio Bitrate ( bps ) 384K~32K
GOP 180~1
Position (X, Y, Width, Height) Depending on screen
size
H.264 Encode: User can adjust here for H.264 profile selection, it supports high, main and
baseline.
Cropping: The place and size of cropping are listed as below. The cropped area will
displayed in keep aspect ratio mode.
Default value (X, Y, W, H) = (0, 0, 0, 0)
W Range : 128~1920
Y&H Range: 128~1080
※Please remind, if user had use only main stream, the SC6C0N1 M 4G can streaming
1080P60, but if activate main and sub streaming, the main streaming can exceed to
1080P30, sub streaming can exceed to 960*540P30.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
12
12/26
3.4. RECORD
Record page contains storage media that user used, user can check left storage capacity and
format newly storage media here.
※When the Format USB Disk is not attached, the button will disable; When the USB disk is
attached but not formatted, the Format USB Disk button will enable but without information;
Only if the USB disk is attached and corrected formatted, the USB disk information and
usbstorage information will displayed.
3.4.1. STORAGE CONTENT
Storage Content block contains mounted USB flash disk information, when necessary, the
USB flash can be formatted here (Format to FAT32).
The index block will display the connected storage here.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
13
13/26

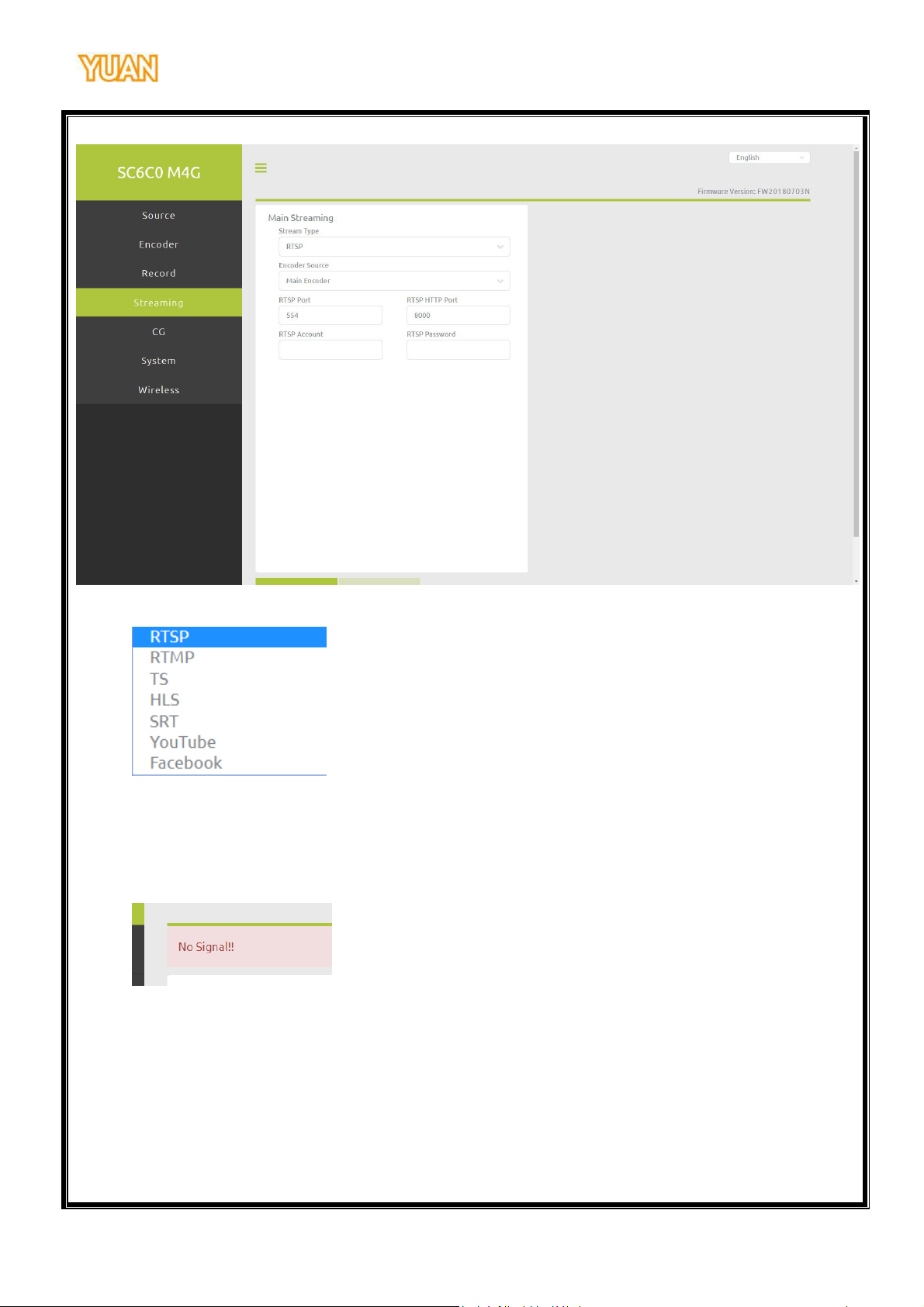

3.5. STREAMING
For streaming, here are RTSP / RTMP / TS / HLS / SRT / YouTube / FaceBook streaming
methods available.
Streaming server function can be only activating when the AV signal is already input to
SC6C0N1 M 4G.
When the signal is not connect, SC6C0N1 M 4G will generate an error message to remind user
to connect the signal.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
14
14/26

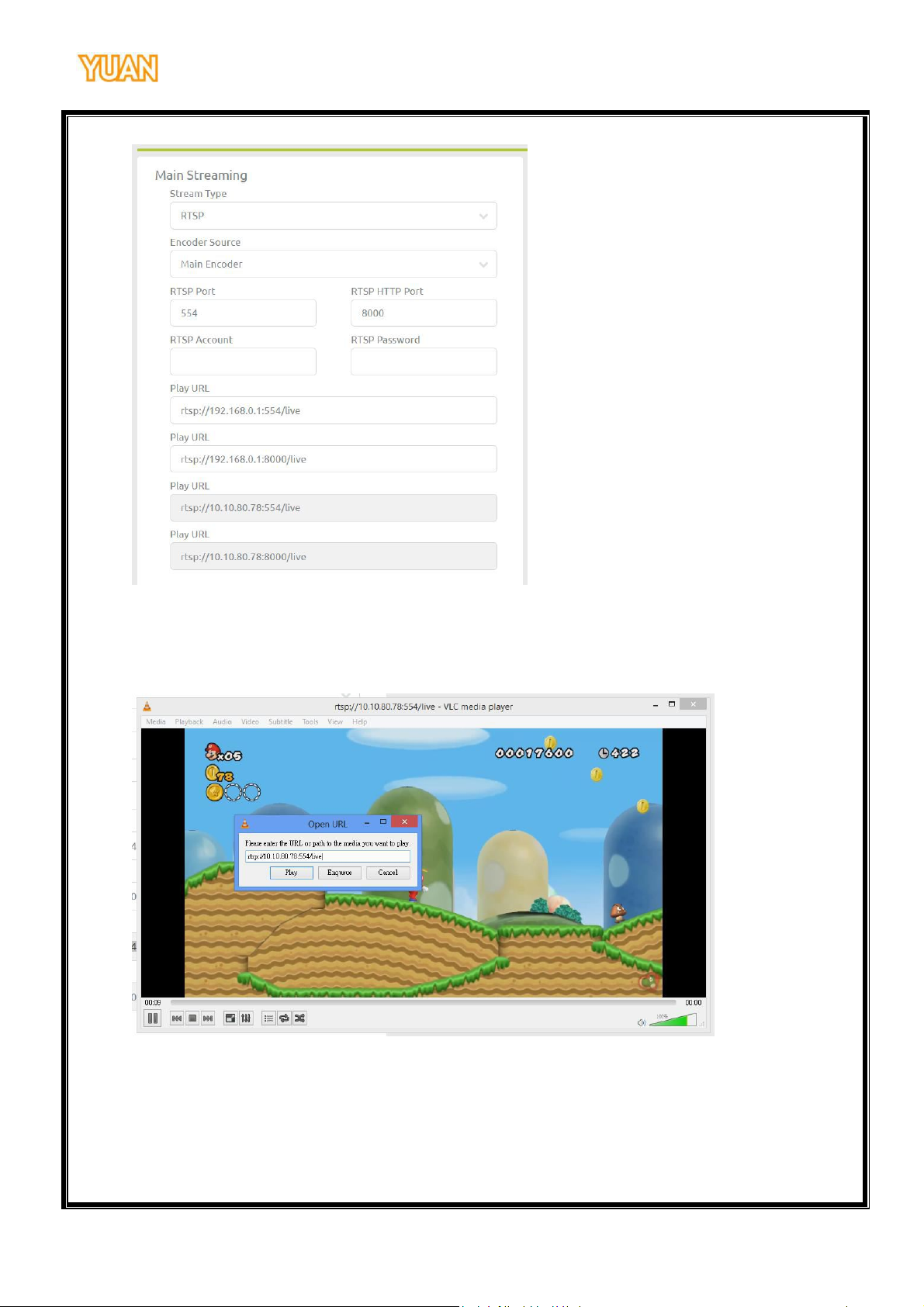

3.5.1. EXAMPLE: RTSP
After selecting Stream Type to RTSP, the SC6C0N1 M 4G will generate Play URL for user to
receive RTSP stream.
Open VLC media player→[Media]→[Open Network Stream] or direct press [Ctrl]+[V] to print
streaming to VLC media player

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
15
15/26

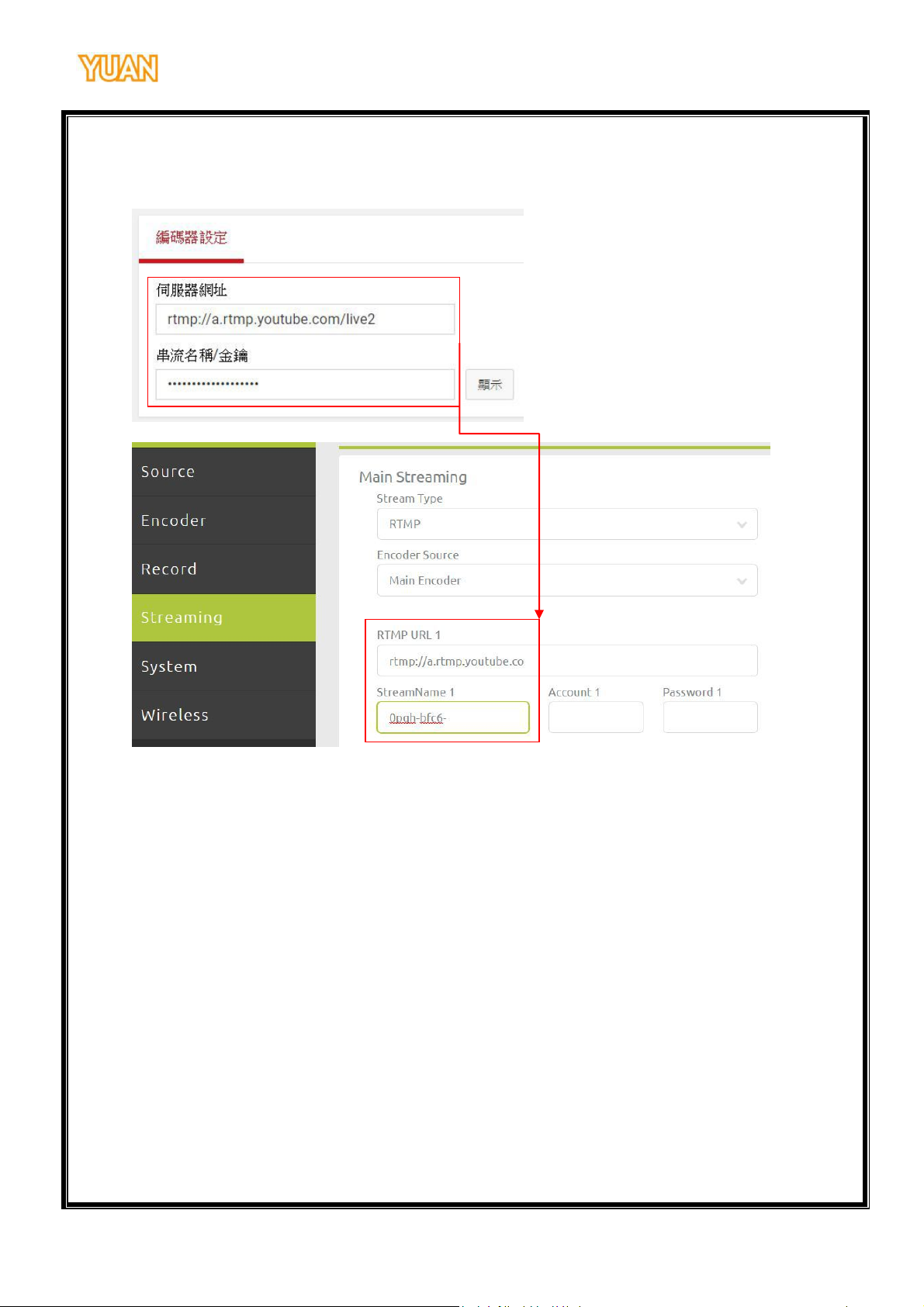

3.5.2. EXAMPLE: RTMP
RTMP can use for streaming live video to facebook, youtube, and etc.
Please enter youtube live and copy server URL to SC6C0N1 M 4G for SC6C0N1 M 4G to
streaming video.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
16
16/26
3.5.3. EXAMPLE: YOUTUBE
Besides RTMP, SC6C0 also provides a simple way for user to streaming their Live video to
YouTube or Facebook.

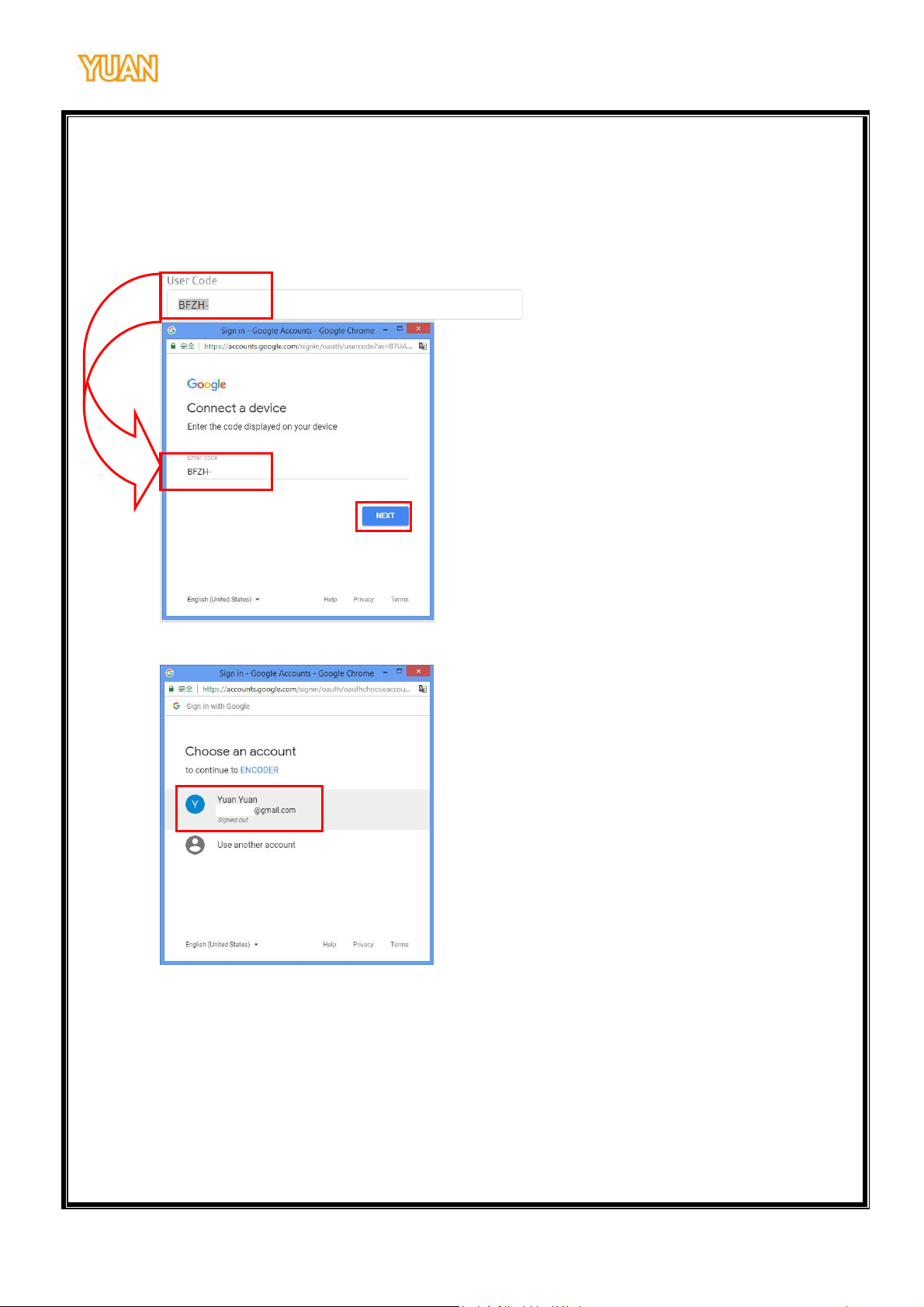

After select Streaming Type to YouTube and press start streaming, SC6C0 will
automatically generate USER CODE for user to connect with YouTube/Facebook account.
(Remember to allow the browser popup window for connecting youtube/facebook)
After press NEXT, the connectable user account will appear for user to select.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
17
17/26

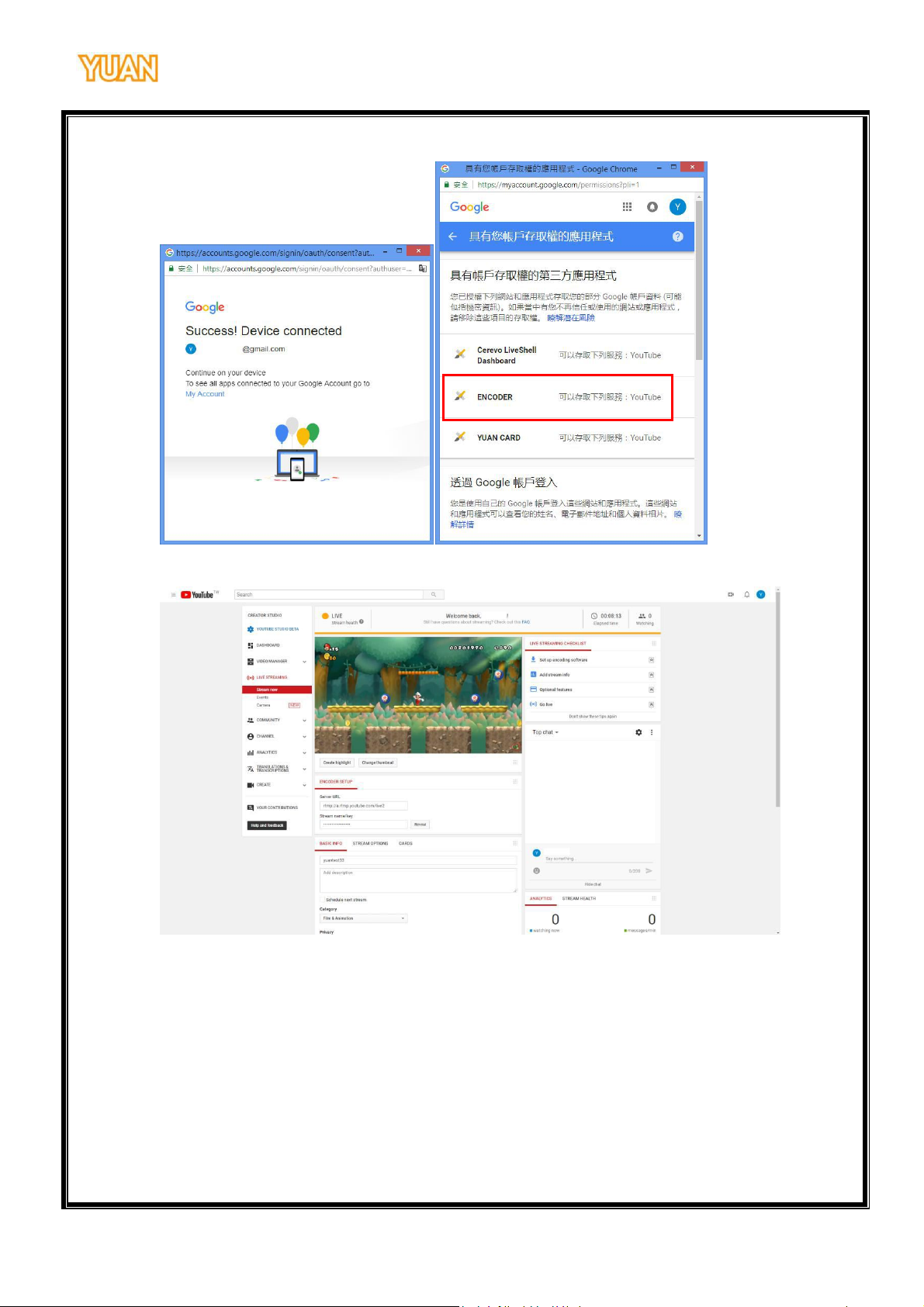

After the account is connected, the video will automatically live streaming to
youtube/facebook; User can also check the connected SC6C0 inside the popup window.
Youtube live video streaming will automatically generates after the setting is completed.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
18
18/26
3.6. CG
Here provides user to add OSD to video and streaming.
Location X/Y: Defines the position of the OSD, the schematic diagram is listed as below.
Background: On/Off the background.
Text Size: The OSD text size.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
19
19/26
3.7. SYSTEM

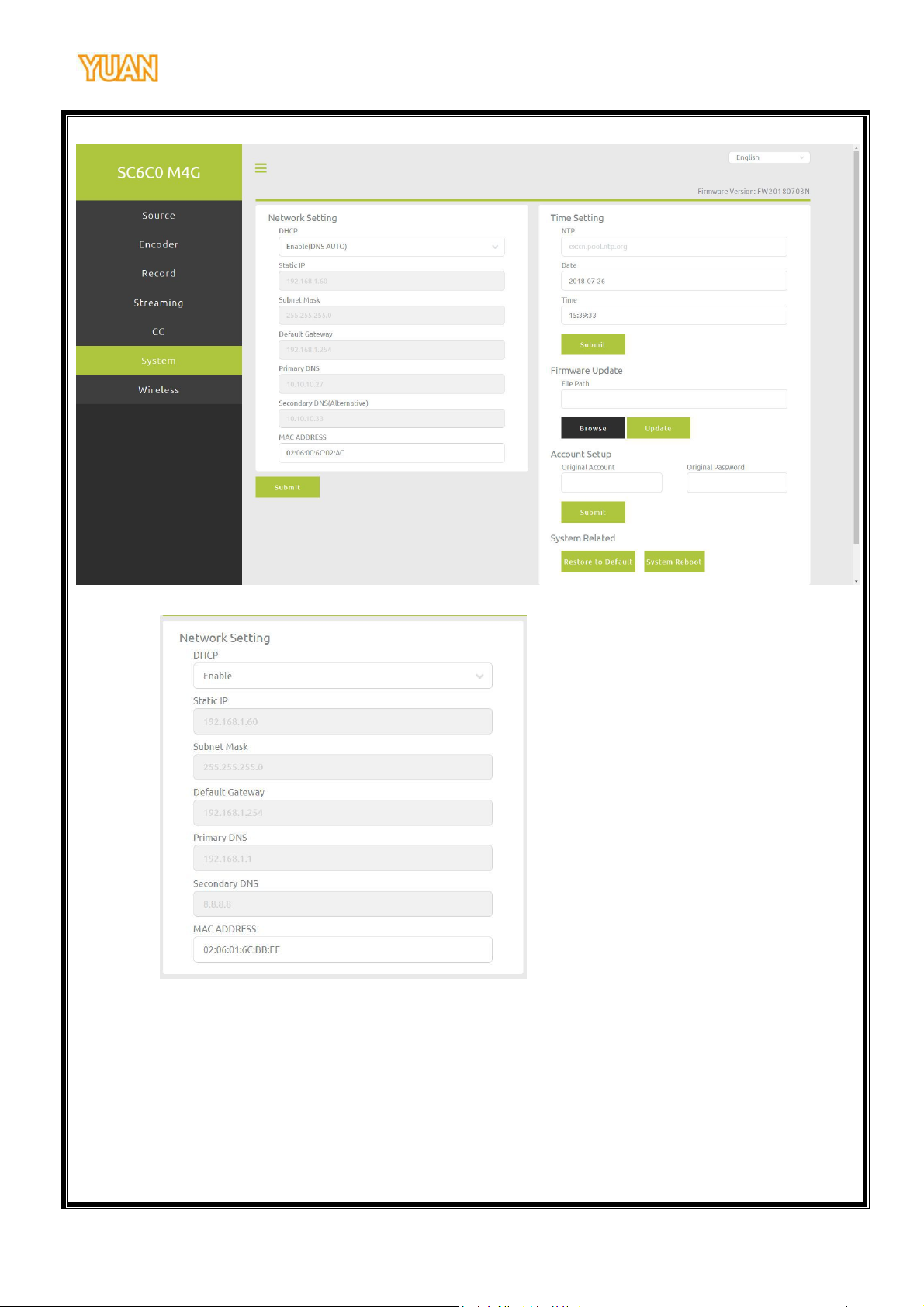

3.7.1. NETWORK SETTING
User can decide disable or enable DHCP mode, when disable DHCP mode, please
remember assign all necessary information for SC6C0N1 M 4G.

This information contained herein is the exclusive property of YUAN and shall not be distributed, reproduced, or disclosed in whole or in part without prior
written permission of YUAN.
20
20/26
3.7.2. TIME SETTING
User can update system time in this block.
3.7.3. FIRMWARE UPDATE
User can update firmware and check firmware version in this block; please don’t turn o ff
system when the firmware update is in the process!!!
Before start firmware upgrade procedure, please unzip the firmware package and make sure
the directory of firmware file. (The file name will be FW201XXXXXXX )
1. Please click browse button and find firmware.
