Yuan SC601 User manual

SC601
User GuideV6.
2016.08.15

2
Index
SC601 Overview.................................................................................................... 3
1.IP Finder .............................................................................................................. 4
2.Responsive Bootstrap ................................................................................. 6
3.Login SC601 Web Server.............................................................................. 7
4.Network Setup ................................................................................................ 8
5.Stream Server ................................................................................................ 10
6.Video Tuning .................................................................................................. 17
7.Encoder Setup ................................................................................................ 18
8.Volume Tuning................................................................................................ 20
9.Record Stream ............................................................................................... 21
10.Firmware Update ...................................................................................... 22
11.Account Setup ............................................................................................. 23
12.Reset to Default ......................................................................................... 25
13.RS-485 ........................................................................................................... 26
Appendix ................................................................................................................ 29

3
SC601 Overview
Item
Description
Input
Interfaces
Video
1x BNC for 3G / HD / SD-SDI
1x HDMI, 1x DVI-I for DVI-D/HDMI and DVI-A/ VGA
3xBNC for YPbPr/CVBS/S-Video
Audio
1xStereo audio through
1xRCA for Analog L/R audio
SDI/HDMI/DVI-D embedded audio
1x3.5 mm phone jack
Video
Feature
H.264/AVC , Main / High Profile
Configurable bit rate up to 10Mbps
Supported input /output resolutions
1080@50p / 60p (1080p25 / 30p output)
1080@50i / 59.94i / 60i
720p@50p / 59.94p / 60p
576@50p / [email protected]
576@50i /[email protected]
Audio
Feature
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate : 48KHz, 16bit
Network
Feature
1x RJ45 for 10/100Mbps Ethernet
DHCP client
Supported Streaming
Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
RTMP(Local & Publish)
HLS
Misc.
Features
RS-485
1x USB 2.0 Host for USB storage
Web UI for system configuration
Firmware upgradable
LED indicator
Auto Signal Detection
Record Format
MP4
TS

4
Power Supply
DC 12V (With DV Adapter)

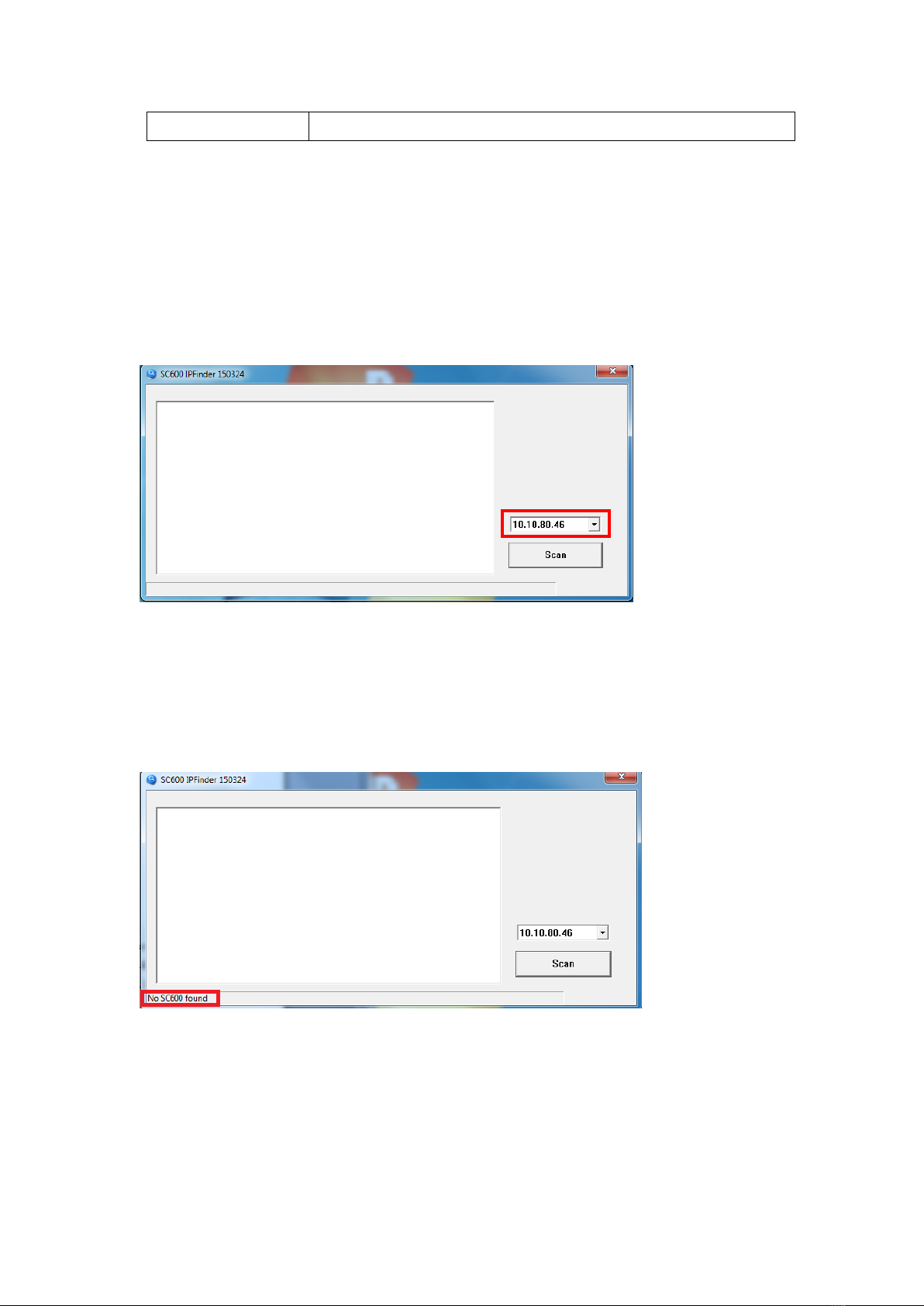

1. IP Finder
a. Make sure your computer and SC601 are in the same Local Area
Network.(Make sure SC601 is connected to a Router not a Hub!!)
b. Execute SC601 IP Finder.exe .
i. If the network is
available, local IP
Address shows on (Pic
1.).
(Pic 1.)
ii. If the network is
NOT available, shows
on (Pic 2.).
(Pic 2.)

5

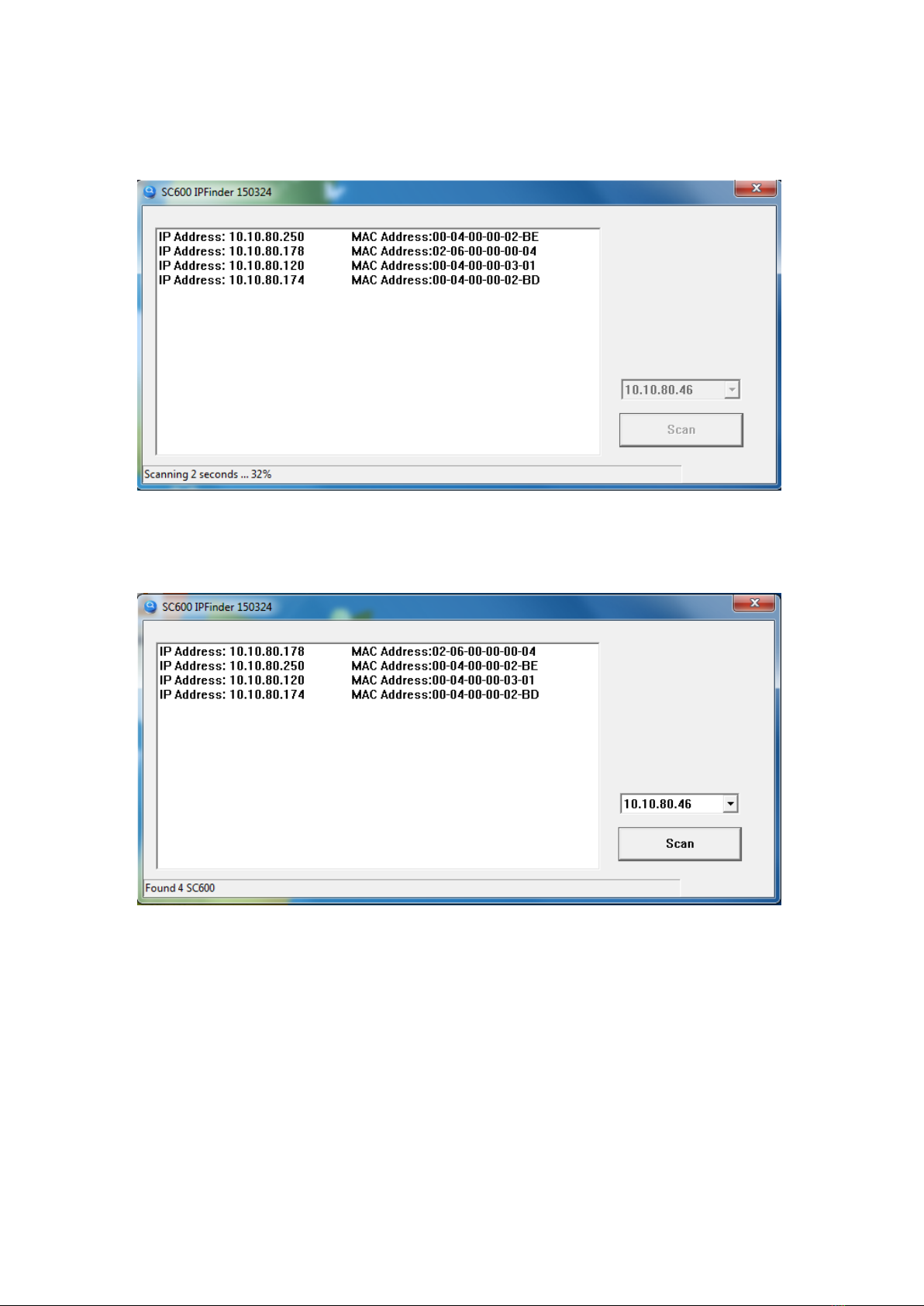

c. Click “Scan”
i. In scanning
(Pic 3.)
ii. Scan completed.
(Pic 4.)
SC601 default IP Address mode is dynamic by DHCP, you can set as static IP Address on
Web Server.
(Tips:User can double click the column of IP address or MAC address, and the home page of stream server will be pop out on the
default server.)

6

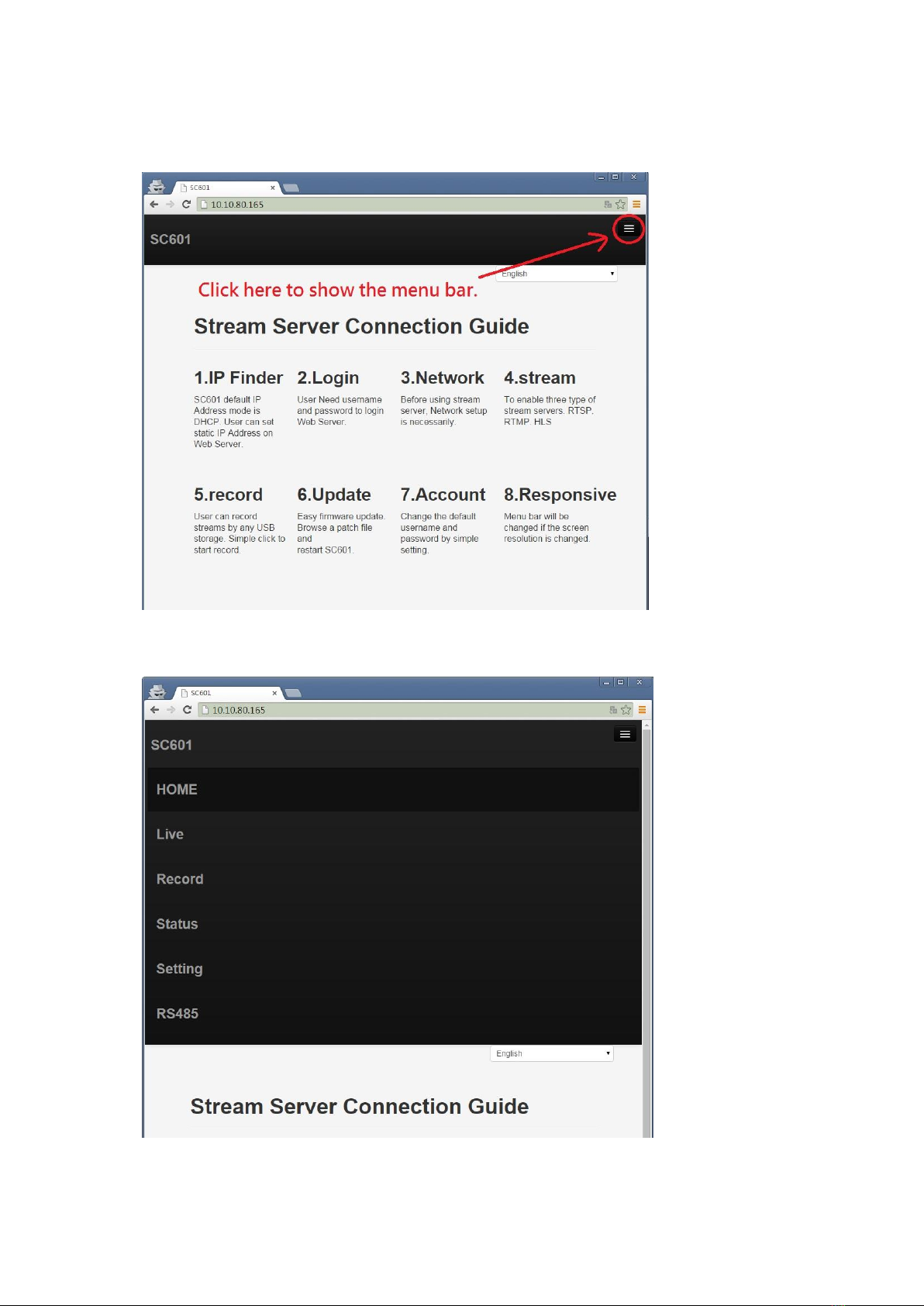

2. Responsive Bootstrap
If the screen
resolution of the
browser is less than
1024x768, the
menu bar would be
automatically hide
to an icon in the
upper of the right
corner.
(Pic 5.)
User can click the
button to show the
full menu bar.
in the upper of the
right corner .
(Pic 6.)

7

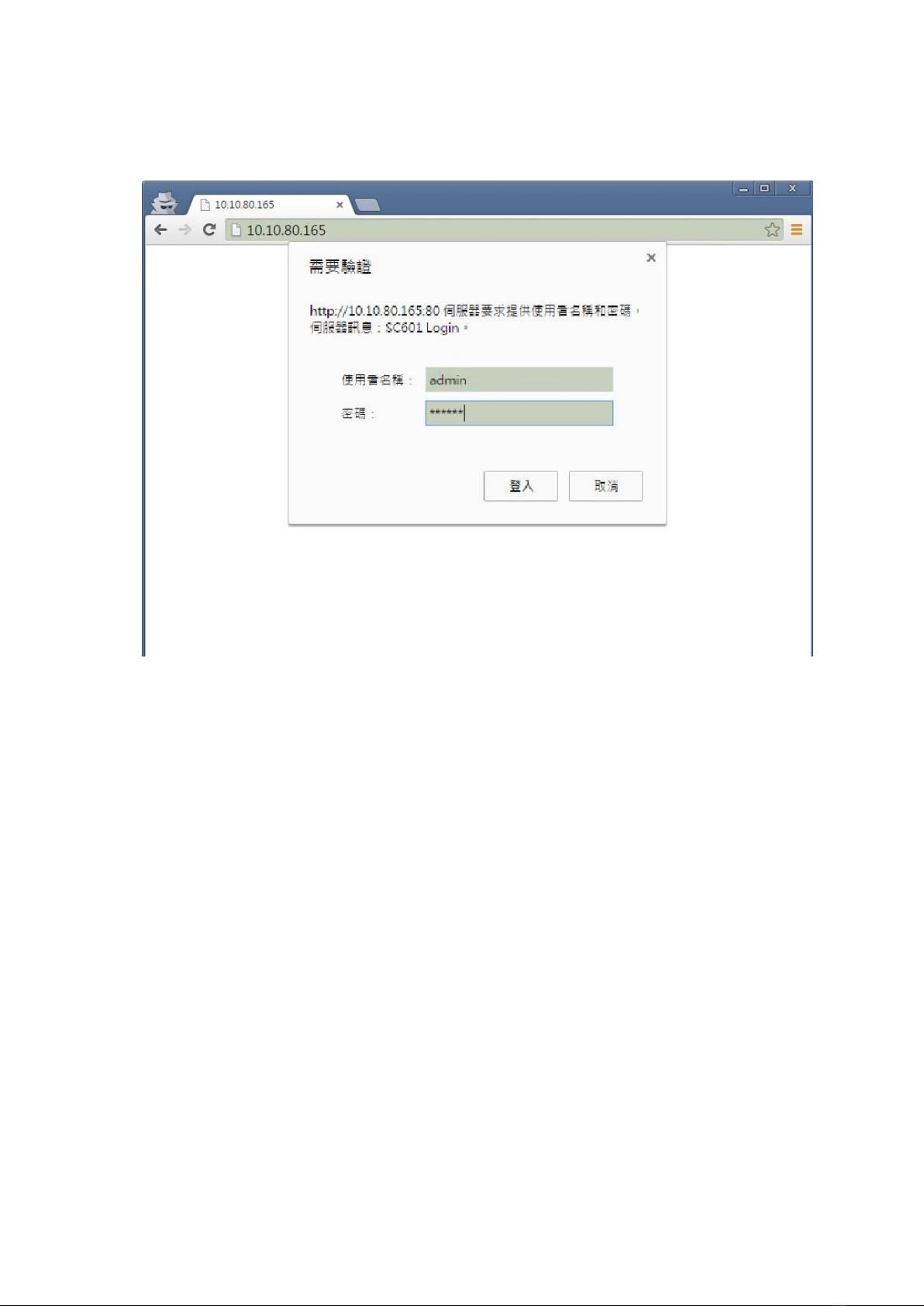

3. Login SC601Web Server
(Pic 7.)
Before login to SC601 web server, user has to input Username and Password.
Username: admin Password:000000.

8
4. Network Setup
(Pic 8.)
LoginWeb Server and select Setting Network Setup, as above.
There are two IP Address modes, Dynamic (DHCP) and Static (fixed).
The button can save the network configuration.
Click the button to show the configuration changed immediately but will not be saved.
Clear all values of current input.

9

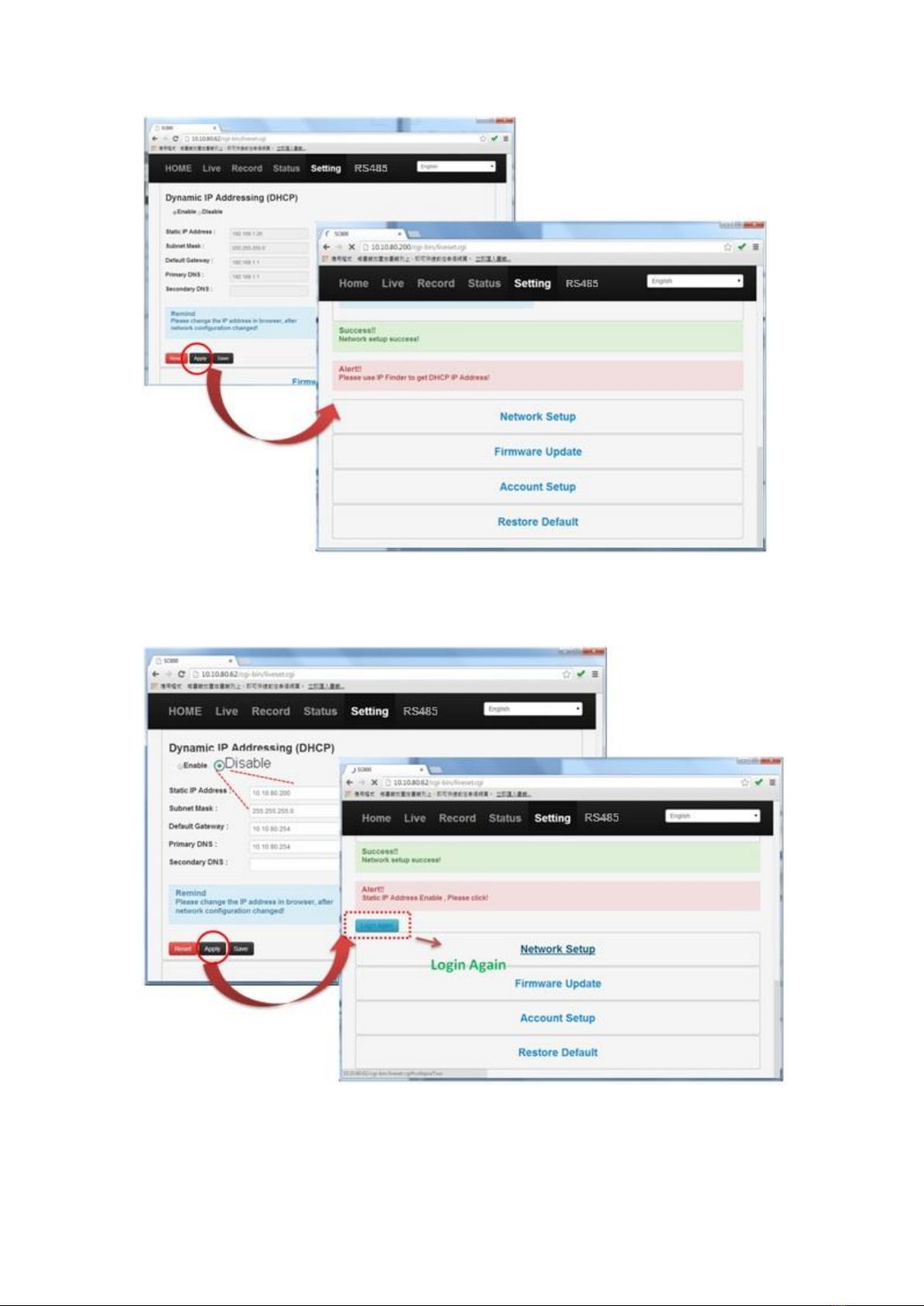

(Pic 9.)
After Enabling DHCP, please use IP Finder to get the dynamic IP address and login again.
(Pic 10.)
After DHCP Disable, please click the button “Login Again” to login again.
5. Stream Server

10
General setting
(Pic 11.)
1. Select source first. (HDMI, DVI, DVI_A, CVBS, S-Video, YPbPr, SDI)
2. Then select server and apply setting. (RTSP, RTMP, HLS, RTMP_Publish, RTSP_ES
and Raw UDP)
3. Press the button of and Loading.
4. The RTSP URL will be showed.
(Tips:HLS can only be streamed on the devices which are produced by Apple co.(EX: ipad , iphone) )
(Tips: Press button of to initial the status of Live Stream Setup.)
RTSP

11
(Pic 12.)
1. After the server of RTSP has started, user can go to the RTSP address first.(Pic 12.)
2. Open VLC media player and follow the instruction.
3. Copy the RTSP URL to the column.
4. Play.

12

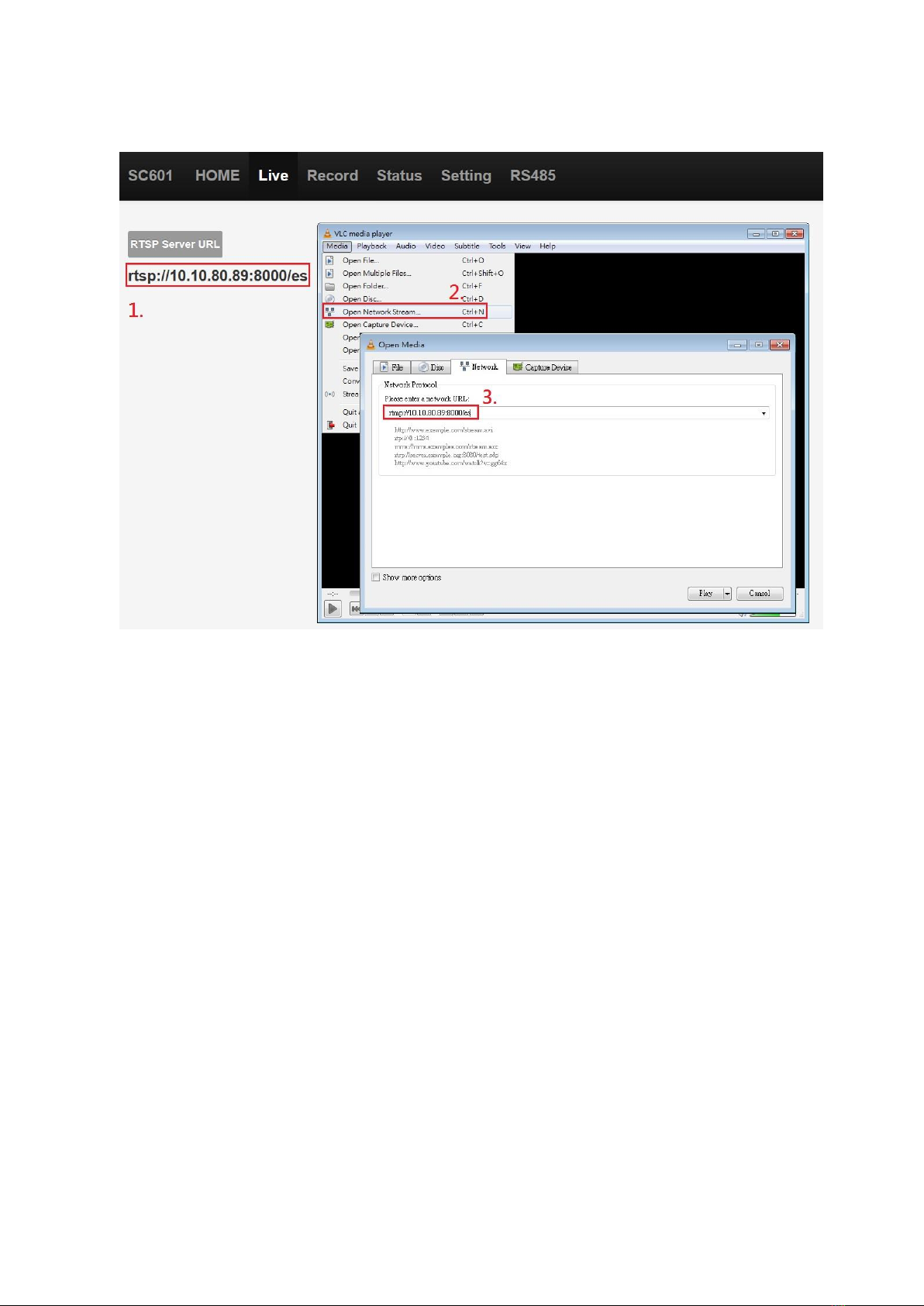

RTSP_ES
(Pic 13.)
1. After the server of RTSP_ES has started, user can go to the RTSP address first.(Pic 12-1.)
2. Open VLC media player and follow the instruction.
3. Copy the RTSP URL to the column.
4. Play.

13
RTMP
(Pic 14.)
1. The setting of RTMP is the same as“general setting”.(Pic 11.)
2. After stream server and source are running, go to the live page to watch the RTMP streaming.

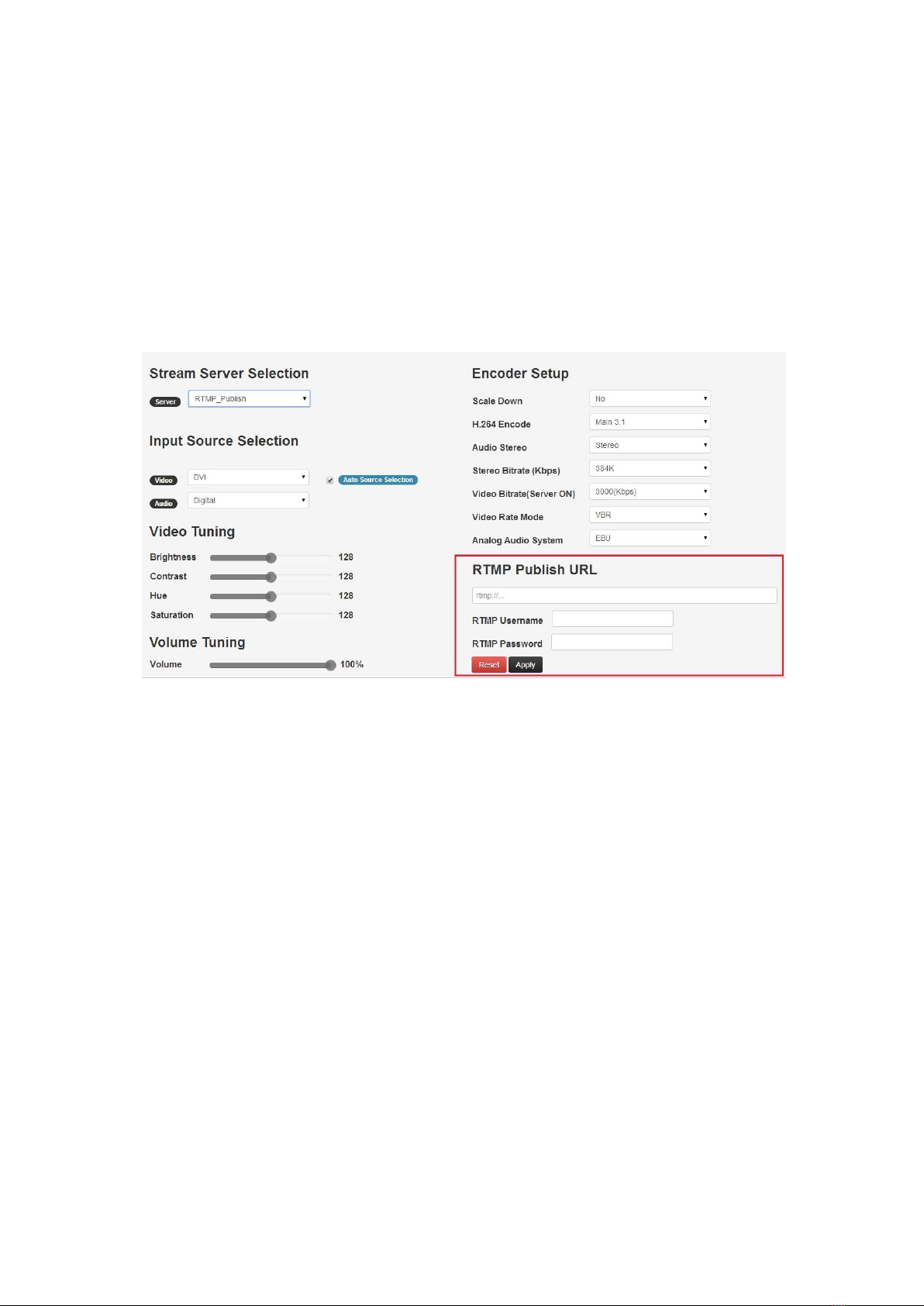

RTMP Publish
(Pic 15.)

14
1. If there is a RTMP Publish URL, the RTMP URL could be pasted into the correspond
column.
2. Apply setting.
3. Go to Your channel and watch the live streaming.
RTMP Publish Authentication
(Pic 16.)
RTMP authentication is only valid on publishing to Adobe Flash Media Server &
Wowza Server. User can set multiple sets of account information on Adobe Flash Media Server.

15

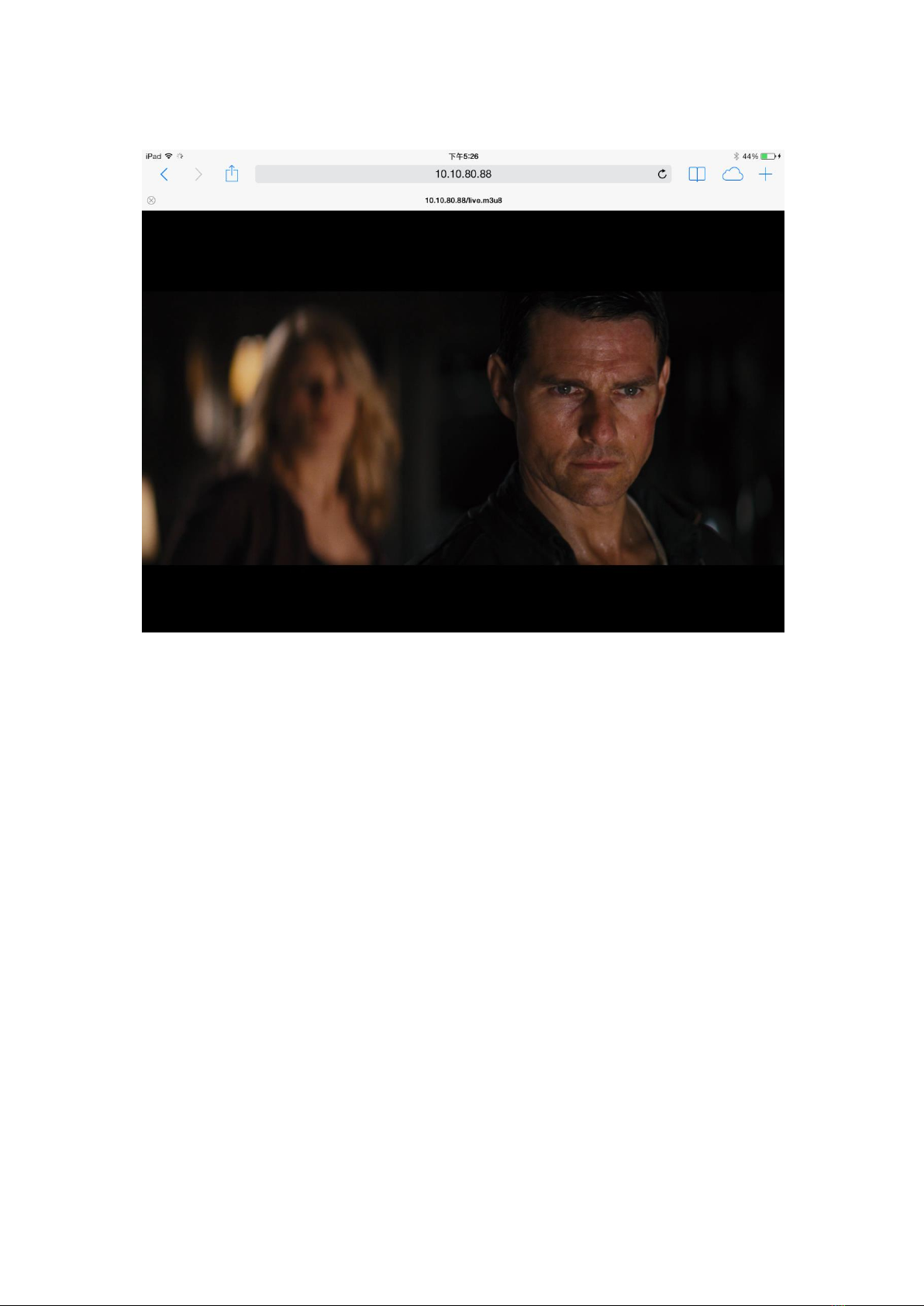

HLS
(Pic 17.)
For Apple devices, such as iPad or iPhone, login SC601Web Server by Safari browser.
(Tips: SC601 support live streaming to the internet via “Wowza Server”,”Adobe FMS”,“Ustream”,”Twhich”, and
“Youtube”.The way of obtain steaming key can be found on the related website.。)

16
Raw UDP
(Pic 18.)
1. Enter the IP address (in the range of 224.0.0.0 to 239.255.255.255) and Port number
2. Click
3. OpenVLC and follow the instruction

17
6.VideoTuning
(Pic 19.)
User can adjust these parameters during watching live stream.The extra function of CVBS
and S-Video is Sharpness.When user watch live stream and doing video tuning, the stream server
would not be terminated or restart.
(Tips:There is no video tuning option in SDI input source。)

18
7. Encoder Setup
(Pic 20.)
1. Scale Down
(Table 2.)
2. H.264 Encoder:
Support Main3.0,Main3.1 and High4.0。
3.Audio Stereo:
Proviide (Stereo) & (Mono)。
4. Stereo Bitrate:
From 32(Kbps) to 384(Kbps)。
5.Video Bitrate(Server OFF):
Record Only(bear). Up to 16000(Kbps)
Video Bitrate(Server ON):
Stream Only(bear). Up to 12000(Kbps)。
Record+stream: Up to 6000(Kbps)。
6.Video Rate Mode:
VBR & CBR。
7.Audio Source:
Only HDMI and DVI and SDI Support Digital
8.Analog Audio System:
EBU & SMPTE。
(Table 1.)
(Tips:When video bitrates is higher than 6000kbps and doing recording at the same time, SC601 does not guarantee the quality in
the status.)

19
*Scale Down
Output
Input
Output
1920x1080
1440x1080
1440x900
1280x720
960x540
720x576
720x480
320x240
1080p60
(to p30)
O
Down
Down
Down
Down
Down
Down
Down
1080i60
O
Down
Down
Down
Down
Down
Down
Down
1080p50
(to p25)
O
Down
Down
Down
Down
Down
Down
Down
1080i50
O
Down
Down
Down
Down
Down
Down
Down
720p60
N/A
N/A
N/A
O
Down
Down
Down
Down
720p50
N/A
N/A
N/A
O
Down
Down
Down
Down
576p60
N/A
N/A
N/A
N/A
N/A
O
Down
Down
480p60
N/A
N/A
N/A
N/A
N/A
N/A
O
Down
PAL
(digital)
N/A
N/A
N/A
N/A
N/A
O
Down
Down
NTSC
(ditital)
N/A
N/A
N/A
N/A
N/A
N/A
O
Down
PAL
(analog)
N/A
N/A
N/A
N/A
N/A
O
Down
Down
NTSC
(analog)
N/A
N/A
N/A
N/A
N/A
N/A
O
Down
Original
Scaling down
N/A
(Not
Allow)
(Table 2.)

20
8.VolumeTuning
(Pic 21.)
User can adjust HDMI and DVI volume when audio source input is digital.TheVolume can be
down or up. Only digital source input is worked.
