Yuhuan Global WBX-10 User manual

WBX-10 Bracelet User Manual
0086 10086

Foreword
Thank you for using Bracelet--mobile phone partner. It is a healthy,
Eco-friendly, high-end, fashion and wearable product.
This manual in includes : product function ,the way of use and the operation
instruction .Please read it carefully in order to achieve the best using effect and to
prevent unnecessary damage .Do not change the accessories of the unit ,disassemble
it .otherwise ,it will beyond the range of the warranty.
Package Content: Bracelet, USB Charging clip, User manual, warranty card
When you get a BRACELET, at first you can install the APK program on the smart
phone which can realize the functions of SMS, Facebook message, QQ and other
instant messaging reminders.

APK Access mode 1: Download the APK via the QRcode
APK Access mode 2: Download from our webpage
http://www.yuhuan-global.com/download.php?CM_ID=78#.VIGrEtLF98E

1. Schematic diagram
(According to below diagram, it include A key (up key), B key (down key), OLED
display screen, connection identifier, charging identifier, speaker, microphone,
Battery holes)
Charging identifier Microphone
Connection identifier A key
Screen B key
Speaker
Press the B key for 3 seconds, it will display ”power on”, push 3 seconds again, it will
display ”power off”.

2. Pair and connection
First time use, please connect bracelet with mobile phone by Bluetooth.
Follow the steps below:
Press the B key for 5-6 seconds till the screen display “Pairing”. In this process, it will
show “power on” first, don’t let go until it shows “pairing”)
Turn on the mobile phone Bluetooth, search device and find “bracelet” ,confirm the
connection. Once connected, there will be a vibration and a little cell phone icon
appears on the upper left Reminding distance depends on the mobile phone brand.
Short press any key to stop the vibration.
3. Functions
A: Pedometer: Show the steps, Meters, Calorie burned.
B: Clock
C: Phonebook: Show telephone number and name.
D: Notification: Notify of incoming SMS, Facebook message, QQ and other
instant messaging app’s
E: Camera
F: Language: 12 kinds of language

4. Answer incoming Calls
When the cell incomes, pressing A key or B key to start to talk or directly answer the
phone. When the phone is being dialed out, “ Call” or “Active Call” is displayed ,press
the A key or B key to get through the phone cell.(Notice: “ Call ”shows dialing
out ,“Active Call” means the call is being connected. When phone is being answered,
short press A key or B key can switch the sound to bracelet and talk by the microphone
on bracelet. When the bracelet is connected, long press A key or B key for 3 seconds
to hang up.
5. Transfer to phone
Press the A key for 2 seconds, when active cell, it transfer to the phone;
6. Music player
When properly connected, the music playing on the phone can be synchronized.
When music is played, short press A key or B key to make the volume+/-.

If the music should be switch back on the mobile phone ,just turning off media audio
connection under the mobile phone Bluetooth option, if this operation is being done on
the phone , this can be done directly over the phone. times every 3 seconds ,total 9
times ,and try to connect with phone , meanwhile, it shows “Mobile phone without
induction”. It tries to connect once every 10 minutes until connected or press any key
to stop connecting. When disconnected, press any key will start to search and connect
phone device.
7. Reset
If system is halted, such as no display, switch failure, can’t connection etc., turning
off or charging and the device will be reset.

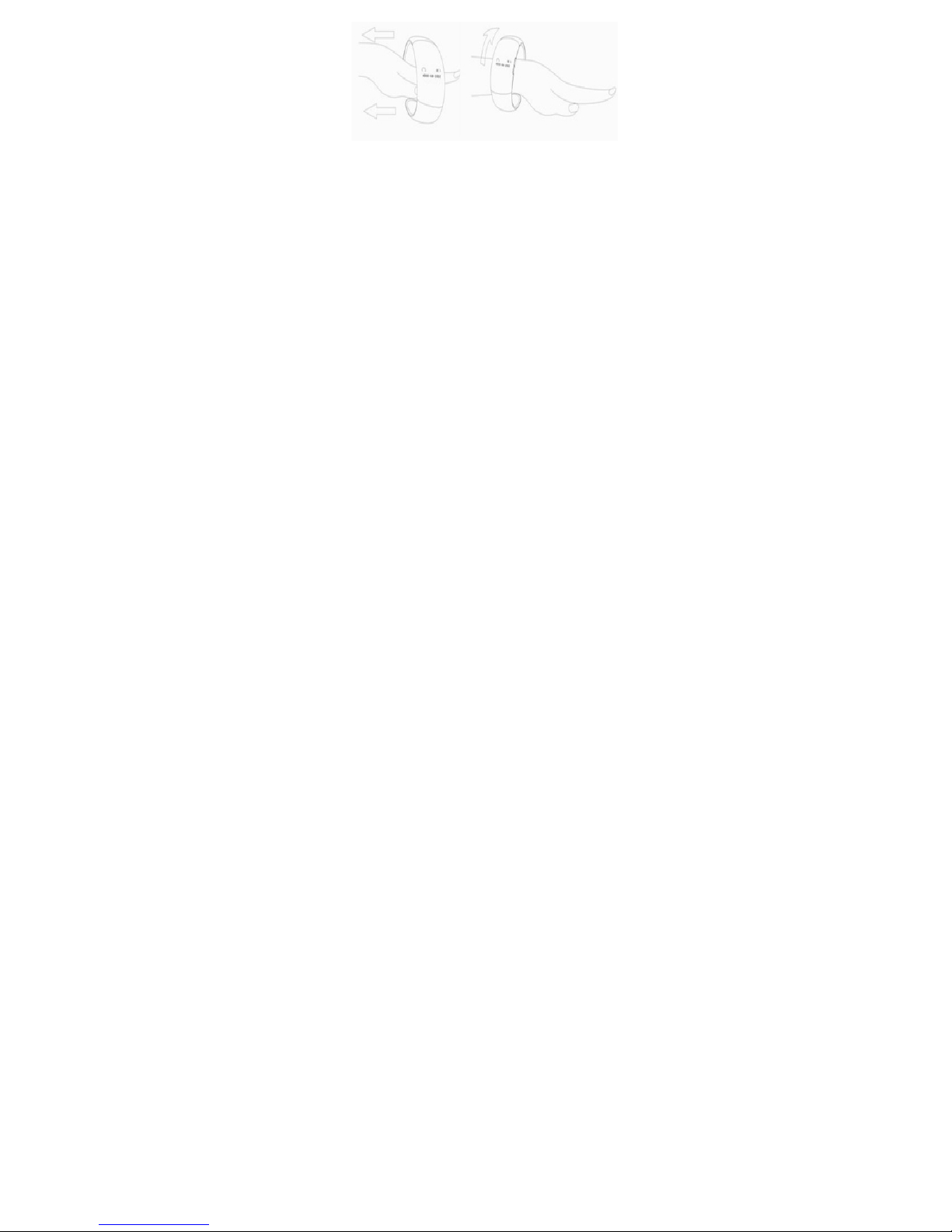

8. How to wear it
Put your hands fiat and keep palm down, wear it from hand side (refer to left
picture) Turn to keep it on the best position (refer to right picture)
The max width of the legs are 5CM, please do not open it too wide to break it.

Product Function:
Pedometer
Incoming call reminder with vibrating
Anti-lost reminder with vibrating
Display caller number/ name
Transfer to phone
Answer the incoming call
Synchronize music play
Message notification
OLED screen showing the time
Away from the phone radiation
Alarm clock reminder
Support Chinese traditional; Chinese simplified; English; Korean; Russian; Spanish;
French; German language; Italian; Portuguese; Arabic and other languages.

Notice:
1. Please keep the charging clamp and bracelet form an angle of 90 degrees when
charging.
2. If it cannot be connected with mobile phone or working properly, please reset or
charge it.
3. Charge it timely to avoid power off and clock reset .
4. Maximum distance of two feet is 5cm, do not stretch the feet too far away to prevent
fracture.
5. Charging
Charge more than 2 hours for first time use. When charging, the screen will display
charging logo.
6.Power on and power off, Refer to diagram, up key is A key , down key is B key.
Non intelligent phone of Bluetooth version <2.1 will be required to input password,
the password is “0000”.

7.Incoming calls reminder
When properly connected, bracelet will sustained vibrate when calls coming in.
It shows caller’s number or name when calls coming in. If you use apple series
phone, the caller’s name will be displayed directly on the screen.
Double-click any key to stop the vibration or directly answer the phone.
Press any key for 3 seconds to reject calls.
8.Anti-lost reminder
When the bracelet is 10-20 meters away from the cell phone, bracelet will remind
with vibrating, and once every 10 minutes.
When cell is connected, short press A key or B key to make the volume+/-
You can switch the sound between mobile devices and bracelet freely through the
Bluetooth setting on mobile.
9.Dial out the last outgoing cell
Double-click A key or B key to Dial out the last outgoing call.
When lt shows “Call”, press any key can start to talk.

10.Hang up phone
Press the B key for 2 seconds, when active cell or outgoing cell, it hang up the
phone;
11. Time setting
Press A key for 3 seconds to enter the time adjusting mode.
Pressing B key continuously to set the “hour” time.
Short press A key to enter the minute adjusting mode, press B key to adjust
“minute”. After adjust the minute, short press A key to confirm.
Short press any key, the current time will be displayed.
Short press any function key, the time on the screen will be displayed
lf there is not enough power, Please charge it in time to avoid over discharge,
otherwise, the time be disordered.
12. Disconnect and connect
When watch and mobile phone is disconnected, it will vibrate 3 secs.

13. Safety instruction
Not use any corrosive solvent to clean the product.
Not place it in high temperature circumstance for a long time.
Not soak it in water
Not repair or disassemble it by yourself,
14. Specifications
Model: WBX10
Battery: Lithium polymer
Bluetooth version: V4.1
Working voltage: 3.3v~4.2v
Working current: 2.0~200 mA
Charging time : 2h
Stand-by time: 48
