Operator's Manual
MODEL TX162
HC1500
TRAILER
Maximum Field Rating
1500 lb.

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5
2
Operator's Manual
TX162 HC1500 TRAILER
INTRODUCTION
Yutrax™ oers a full line of engineered outdoor gear. We appreciate your purchase of our world class ATV trailer. Follow these few
simple instructions and your product will be sure to give you many years of trouble free pleasure. Instructions should be kept in a
safe place and reviewed at least annually. .
If for any reason you have a problem with your product or are missing any parts, DO NOT return to the retailer, contact the
Yutrax™ Customer Service Department at 800-345-6007 for assistance.
CONTENTS
Introduction/Warranty ..................................................................................................................................................................................................................2
Warnings.............................................................................................................................................................................................................................................3
Assembly Instructions ...............................................................................................................................................................................................................4-8
Illustrated Parts Breakdown.........................................................................................................................................................................................................9
WARRANTY
Yutrax, a division of Ardisam Incorporated, oers a one year limited warranty to be free from defects in materials and workmanship for the
service life of the product, not to exceed twelve consecutive months from the date of purchase. This warranty applies to the original owner
with a proof of purchase and is not transferable. This warranty applies only to products which have not been subjected to negligent use,
misuse, alteration, accident or if repairs have been made by anyone outside our factory. This warranty supersedes all other warranties either
expressed or implied and all other obligations or liabilities on our part. Ardisam, Inc., does not assume, and does not authorize any other person
to assume for us, any liability in connection with the sale of our products. Warranty work must be sent directly to Ardisam, Inc. or one of our
authorized service centers and performed by them. To obtain warranty service and/or replacement instructions, you must have prior approval
from Ardisam, Inc. before shipping your package to us by calling our customer service department at 800-345-6007 or by writing to: Ardisam, Inc.,
P.O. Box 666, 1160 Eighth Avenue, Cumberland, WI 54829 for a return material authorization number (RMA#). All items must be shipped prepaid.
Ardisam, Inc. will at no charge, repair or replace, at their discretion, any defective part which falls under the conditions stated above. Ardisam
retains the right to change models, specications and price without notice.
For replacement parts, phone [phone] or go online to www.yutrax.com.

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 3
Operator's Manual
TX162 HC1500 TRAILER
READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY
STOP
MODEL TX162
TOTAL WEIGHT LIMIT  1500 LB.
WARNING
This product carries strict weight restrictions. Do Not use
this product if you exceed the total weight limit.
Stopping distance increases with speed and weight
of towed load. Travel slowly and allow extra time and
distance to stop.
Total towed weight must not exceed limits specied in
towing vehicle operator’s manual.
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
INSPECTION, MAINTENANCE & USE INSTRUCTIONS
PROVIDED BEFORE EACH USE. FAILURE TO FOLLOW
ALL WARNINGS AND INSTRUCTIONS COULD RESULT
IN SERIOUS INJURY OR DEATH.
BE SURE TO FOLLOW ALL INSTRUCTIONS PROVIDED.
IF ANY INSTRUCTIONS ARE NOT UNDERSTOOD OF IF
YOU HAVE PART ISSUES CALL 8003456007 BEFORE
USING.
DOUBLE CHECK ASSEMBLY STEPS TO BE CERTAIN
YOU HAVE CORRECTLY ASSEMBLED THIS PRODUCT.
WARNING
Always use as an ATV trailer only.
Never tow behind vehicle on a highway. For o-road use
only!
Always follow the manufacturer’s recommendations for
weight limits for towed equipment and towing on slopes.
Excessive towed load can cause loss of traction and loss
control on slopes. Reduce towed weight when operating
on slopes.
Never shift to neutral and coast downhill.
Never drive in excess of 10 MPH while using this product.
Always use only approved hitches. Tow only with a
machine that has a hitch designed for towing. Do not
attach towed equipment except at the approved hitch
point.
Never turn sharply. Use additional caution when turning
or operating under adverse surface conditions. Use care
when reversing.
Always inspect before each & every use to be sure there
is no product damage or loose/missing bolts or hardware.
Over time, nuts and bolts may become loose from
vibration.
Be sure to always have the correct amount of air pressure
in tires. This will help deter from unnecessary wear and/
or damage. Air pressure can be found on side wall of tire.
Always be sure lock pins are latched to prevent accidental
removal.
Never use a damaged ATV trailer.
Always keep bystanders away when you operate a towed
attachment.
Always before you back machine and attachment, look
carefully behind attachment for bystanders.
Never allow people or animals to ride in the ATV trailer! It
is not designed for that matter.
Never use when intoxicated or using over-the-counter
medication or prescription drugs.
Never use carelessly – Think Safety!

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5
4
Operator's Manual
TX162 HC1500 TRAILER

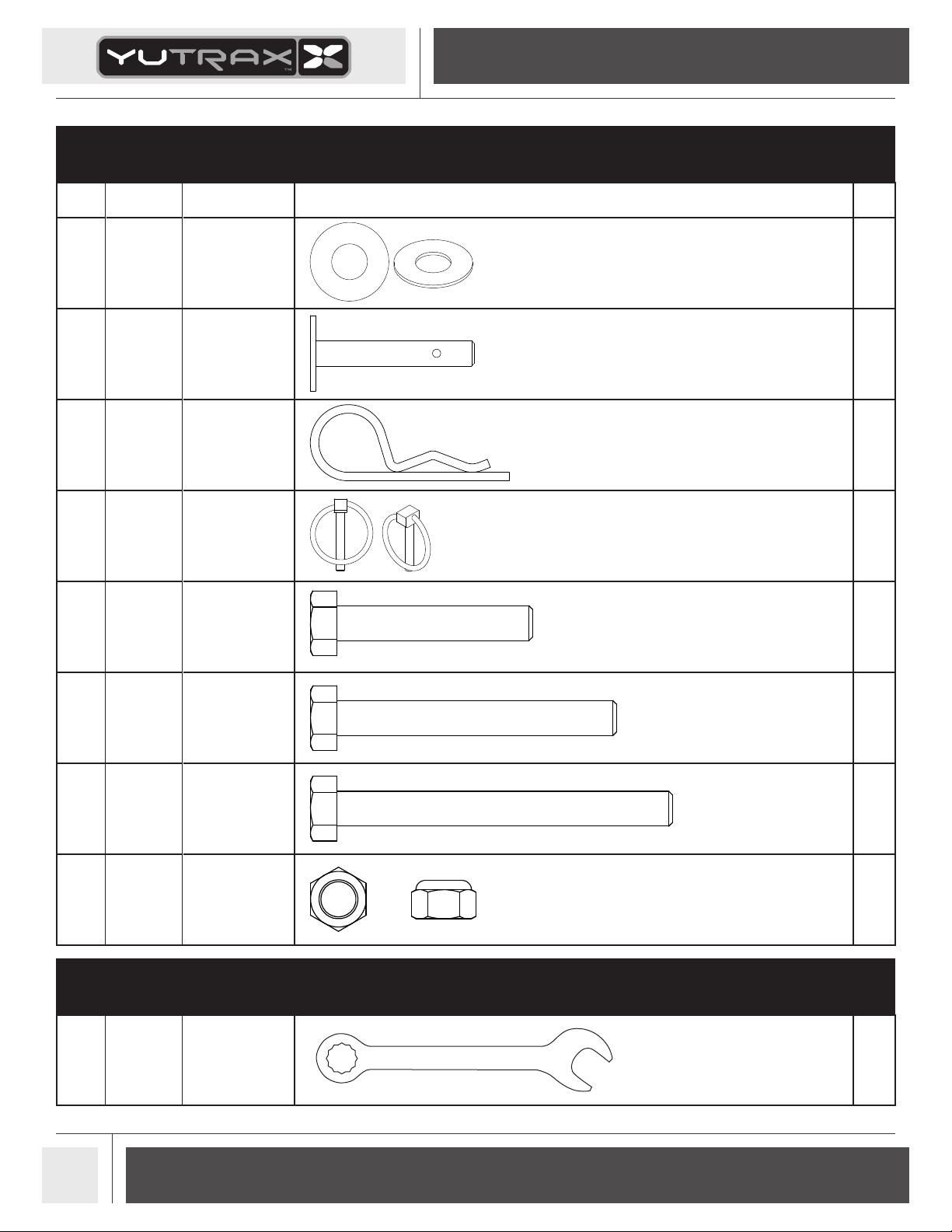

- - 1/2 IN WRENCH 2
Item Part No. Description Image Qty
10 # 36535
WASHER STEEL
25 X 45 X 2.40
MM
4
13 # 25033 HITCH PIN 1
14 # 12118 HAIRPIN 1/8 IN 1
15 # 37772 LOCK PIN 6 X 40
MM 2
17 # 8655B BOLT 5/16 X
13/4 IN 2
18 #53730B BOLT 5/16 X
21/2 IN 11
19 # 29010B BOLT 5/16 X 3 IN 2
20 # 60G5NYB NUT 5/16 IN 15
HARDWARE LIST
TOOLS FOR ASSEMBLY
1/2

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 5
Operator's Manual
TX162 HC1500 TRAILER

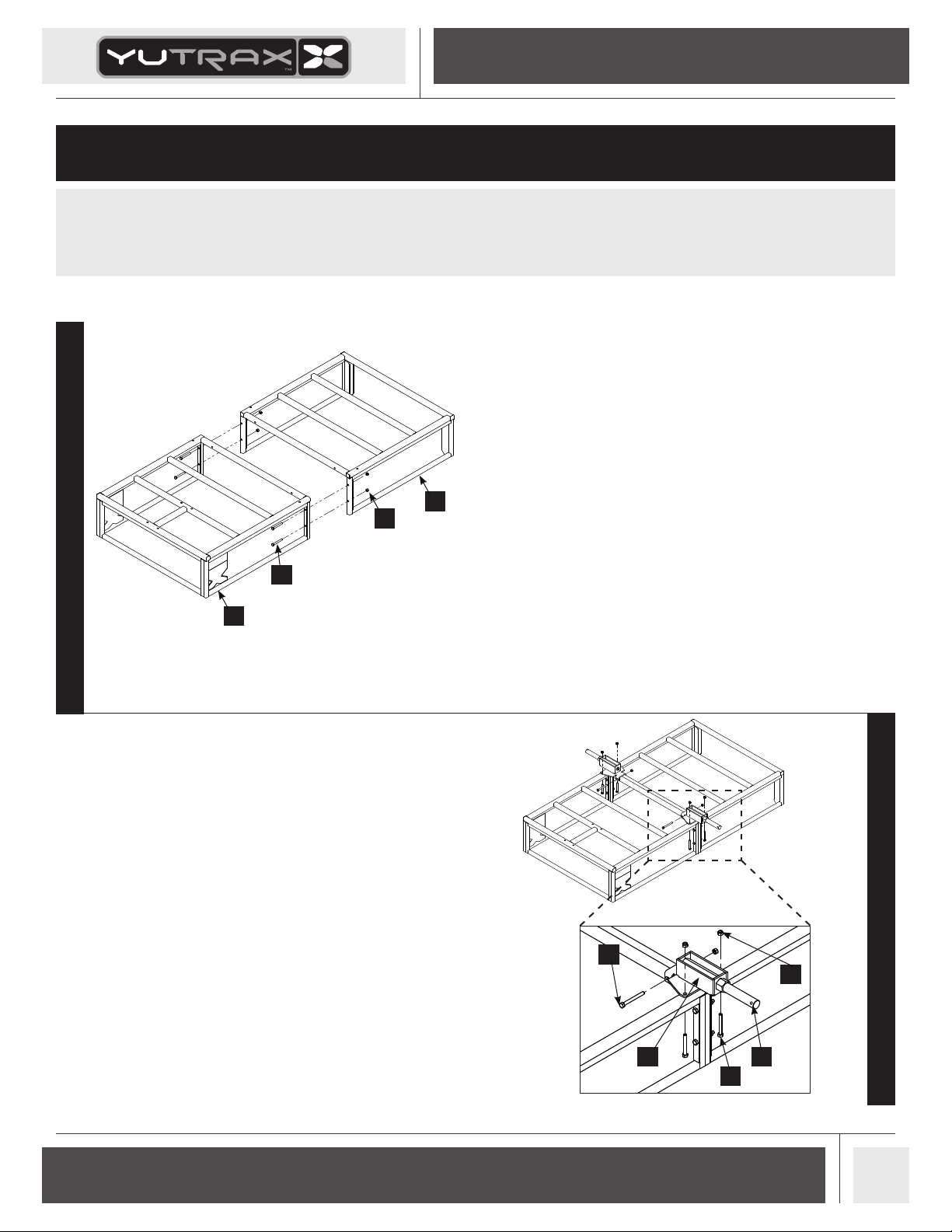

IMPORTANT ASSEMBLY TIP:
Do not tighten any nut and bolt combinations completely until all parts are assembled together! Finger tighten plus one turn of a
wrench only! This will temporarily hold the lock- nut on the bolt while helping alignment of all parts! After all parts are assem-
bled together, all nut and bolt combinations must be completely tightened.
STEP 1
STEP 2
2. Attach each spindle bracket (3) to the bottom of the trailer frames (5 & 6)
using two 5/16-18 x 2 ½ IN bolts (18), one 5/16-18 x 3 IN bolt (19), and three
nuts (20).
Note: For easier assembly place unit upside down
1. Attach front and rear trailer frames (5 & 6) using four 5/16-18 x 2 ½ IN bolts
(18) and nuts (20).
Note: For easier assembly place unit upside down
mesh hidden for clarity
mesh hidden for clarity
18
20
6
8
18
19
20
3
5
ASSEMBLY INSTRUCTIONS

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5
6
Operator's Manual
TX162 HC1500 TRAILER
STEP 3
STEP 4
4. Insert the trailer tongue (1) into end of the tongue receiver (2) and secure
using one 5/16-18 x 2 ½ IN bolt (18) and nut (20).
3. Attach the tongue receiver (2) to the front trailer frame (5) using two 5/16-18
x 2 ½ IN bolts (18), two 5/16-18 x 1 ¾ IN bolts (17), and four nuts (20).
Note: Orient tongue receiver so strengthening band faces the front of the
trailer.
18
20
1
18
2
20
2

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 7
Operator's Manual
TX162 HC1500 TRAILER
STEP 5-7
STEP 8
5. Tighten all nut and bolt assemblies. Be sure not to over tighten or crush
tubing when tightening.
6. Slide assembly wheel/tire (9) onto spindle between two 45MM washers (10)
and secure by inserting lock pin 6 x 40MM (15) through the end of the hex
spindle (8).
7. Repeat Step 6 for the other side.
8. Slide the removable tailgate (7) into the slots on the rear trailer frame (6).
Slide the removable side rails (4) into the top side of the front and rear trailer
frames (5 & 6).
10
4
7
9
10
8
910 15
13
14
10
15

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5
8
Operator's Manual
TX162 HC1500 TRAILER
PARTS LIST
OPTIONAL ACCESSORIES
ITEM # PART # DESCRIPTION QT Y.
1 36315 TRAILER TONGUE 1
2 36318 TONGUE RECEIVER 1
3 36321 SPINDLE BRACKET 2
4 36322 SIDE RAIL 5
5 36328 FRONT TRAILER 1
6 36333 REAR TRAILER 1
7 36336 TAILGATE 1
8 36338 HEX SPINDLE 2
9 36529 ASSEMBLY WHEEL/TIRE 18 X 9.5-8 IN 2
10 36535 WASHER STEEL 25 X 45 X 2.40 MM 4
11 WF516B WASHER STEEL 5/16 X 7/8 X 5/64 IN 2
12 32783 SQ PLUG 25 MM 4
13 25033 HITCH PIN 1
14 12118 HAIRPIN COTTER PIN 1/8 IN 1
15 37772 LOCK PIN 6 X 40 MM 2
16 1401B BOLT 5/16 X 1-1/4 IN 2
17 8655B BOLT 5/16 X 1-3/4 IN 2
18 53730B BOLT 5/16 X 2-1/2 IN 11
19 29010B BOLT 5/16 X 3 IN 2
20 60G5NYB NUT 5/16 IN 15
PART # DESCRIPTION
TX113 2”Ball Hitch Kit

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 9
Operator's Manual
TX162 HC1500 TRAILER
ILLUSTRATED PARTS BREAKDOWN
4
7
12
6
9
8
3
20
10
15
10
20
20
5
12
20
20
20
18 18
18
14
13
18
2
1
19
11
17
16
