Toliman 30C User Manual

Preface
Please read this document carefully in order to understand the ZOLAR™ Toliman 30C (hereinafter
referred to as Product) and use it reasonably. Refer to the ocial website (www.z-cam.com/zolar)
for the latest version of this document and updated product information.
Please contact Shenzhen ImagineVision Technology Limited (hereinafter referred to as
ImagineVision) or its authorized distributor/resellers, in case of any product queries about installa-
tion or operation.
Safety Guideline
Please read and follow this Safety Guideline and all the terms associated to this Product carefully, to
know your legal rights, responsibilities, and safety instructions, otherwise, it may result in product
damages, safety accidents and personal injuries. By using this Product, you hereby signify that you
have read, understood, acknowledged and accepted this Safety Guideline and all the terms and
conditions associated with this Product, and assume responsibility for any behaviors or consequen-
ces. You undertake to use this Product on normal and reasonable purpose, and agree to this Guide-
line and all the terms and conditions associated with this Product, as added, reduced, amended,
modified made by ImagineVision from time to time.
ImagineVision provides no expressed or implied guarantee in relation to this Product, assumes no
loss or legal responsibility raised from misuse of this Product contrary to this Safety Guideline and
the terms associated to this Product, accepts no indirect, consequent, punitive, occasional, special,
criminal-punitive loss or legal responsibility. Under any circumstances, the total liability of
ImagineVision shall NOT exceed the price paid by you to ImagineVision for the product.
Safety Warning
This Product is not intended for use by persons under the age of 18. Keep out of reach of children.
1 . Keep children away when operating the product.
2. Do not stare at the light source as it may cause permanent eye damage.
3. Wear gloves before touching heated surfaces of the product to prevent burns.
4. Wear gloves when touching sharp edges and corners of the product to prevent cuts.
5. Do not block or cover the vents of the product.
6. Product is not waterproof and not dust proof. Prevent water and dust from entering into the pro-
duct which may cause damages.
7. Position the power cables so that it will not be tripped over, or accidentally pulled out causing the
product to shut down.
8. If an extension power cable is required, the minimum amperage rating should not be less than
that of the product’ s own power cable.
9. When using the device with AC DC Power Adapter, connect it to a grounded power outlet.
10.Do not place the product near any flammable and/or volatile liquid to prevent potential damages.
2
Disclaimer
All product features and technical specifications stated are subject to the sole interpretation and
explanation of Shenzhen ImagineVision Technology Limited, and subject to change without notice.
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

3
MENU
Preface
Safety Guideline
Safety Warning
Disclaimar
Product Description
Product Description
Product Highlight
Product Overview
Main Unit
Main Unit Controller
PSU
Remote Controller
Packing List
Ready to use
Installation
Power Supply
Start Up
Menu Operation
Remote Controller Connection
Mobile App
Bluetooth®Connection
Wi-Fi Connection
Firmware Upgarde
Operation Guide
Correlated Color Temperature Adjustment
Intensity Adjustment
Favorites
Light Eect
Light Control
ZolarLink Multi Light Sync
Indicator Status
Settings
2
2
2
2
5
5
5
6
6
7
8
9
10
11
11
12
14
14
14
15
15
16
16
17
17
17
17
18
20
21
25
26
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

4
Accessories
ZOLAR™ Stylist 32x32
ZOLAR™ Barndoor 32x32（Optional Accessory）
ZOLAR™ SoftBox Accessory Kit 32x32（Optional Accessories）
Product Specifications
Photometric data
Warranty Policy
Warranty Scope
Warranty Period
Warranty Arrangement
Limited Warranty
FCC Compliance Statement
RF Warning Statement
28
28
30
32
34
36
37
37
37
37
37
38
38
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Product Description
ZOLAR™ professional LED lighting system is developed by Shenzhen ImagineVision Technology
Limited, the same successful team that created Z CAM Cinema Cameras. ZOLAR™ products are de-
veloped with profound color science knowledge, leading image processing algorithms, as well as
camera lens and sensor calibration expertise. Delivering high fidelity color reproduction and excel-
lent color rendition with performances very close to natural daylight.
Our in-house developed “Self Adaptive Spectral Nonlinear Dynamic Illuminance Calibration System”
eliminates the inconsistent LED performance issues. In addition, our revolutionary solution allows a
mixture of ZOLAR™ light series to be used simultaneously without any visible color deviation (color
matching mode will be added to other ZOLAR™ series).
ZOLAR™ Toliman is a Bi-color LED light panel series targeting professional video productions. Its ex-
cellent soft light performance and high fidelity color reproduction has set a new benchmark for the
industry. Designed with dual full spectrum LEDs to deliver continuous light spectrum across full CCT
range with exceptionally high CRI & TLCI scores, particularly in R9, R12, R13 & R15. No compromise.
Spectral Similarity Index (SSI) is developed by The Academy of Motion Picture Arts and Sciences to
evaluate the fidelity of color reproduction particularly for LED light, from a single chip CMOS digital
camera point of view. It quantitatively compares the spectrum of the test light with that of a desired
reference light source, expressing the similarity as a single number on a scale up to 100. High values
indicate a high likelihood of high fidelity color reproduction by most cameras. SSI of ZOLAR™ Toliman
is close to or exceeds 90, across full CCT range (3,200K~5,600K), a leading standard in the industry.
Higher score implies higher fidelity color reproduction, particularly the skin tone. This is exactly why
these scores exist.
ZOLAR™, The sun is the limit!
• CRI: Ra ≥ 98 (R9 & R12 up to 98), TLCI ≥ 98;
• Spectral Similarity Index SSI up to 90;
• Power consumption 200W, Output > 7,500 lux at 1m / 3.28ft;
• DMX, Art-Net 4 & sACN + powerCON
• ZOLAR Stylist precision directional super light transmissible panel: control beam angle,
light diusion, no color shift;
• Multi Light Sync - ZolarLink (wireless / cable), rapid auto sync grouping;
• Built in Light Eect (synchronized) for dierent scene applications;
• Bluetooth + Wi-Fi mixed control: Remote Controller, mobile app (iOS & Android).
5
Product Description
Product Highlight
Version 1.0.0
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Main Unit
6
10
11
18
19
20
21
23
22
01
02
04
03
05 06
[02] 3x ZOLAR Stylist Clot
Slot 1
Reflective
Membrane
Slot 2
Slot 3
ZOLAR Stylist
Product Overview
1.Corner Guard
2. 3x ZOLAR Stylist Slot
3. Tilt Lock Clamping Lever
4. Yo ke Mount
5. Hand Knob Swivel Screw Clamp
6. Spigot
7. Vent Holes
8. Quick Release Button
9. V-Mount Plate
10. DMX Output
11. DMX Input
12. Ethernet Port
13. Bottom Handle
14. Vent Holes
15. Top Handle
16. Main Unit Controller
17. Power Switch
18. Battery Input
19. Power Input
Version 1.0.0
07
08
10
09
11
12
14
13
15
16
18
17
19
20
05
21
20. Remote Controller Port
21. M-I-S Selector
22. Antenna Port
23. Slide Latch
RearFront
Top
Bottom
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

24
25
26
27
28
29
30
31
32
24. Main Unit Controller LCD Screen
25. Indicator
26. Rotary Encoder
27. Mode Button
28. Menu Button
29. Favorite Button
30. F3 Button
31 .F2 Button
32. F1 Button
[16] Main Unit Controller
Main Unit Controller
ZOLAR™ Toliman 30C User Manual
7
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

8
2
2
2
2
5
5
5
6
6
7
8
9
10
11
11
12
14
14
14
15
15
16
16
17
17
17
17
18
20
21
25
26
Version 1.0.0

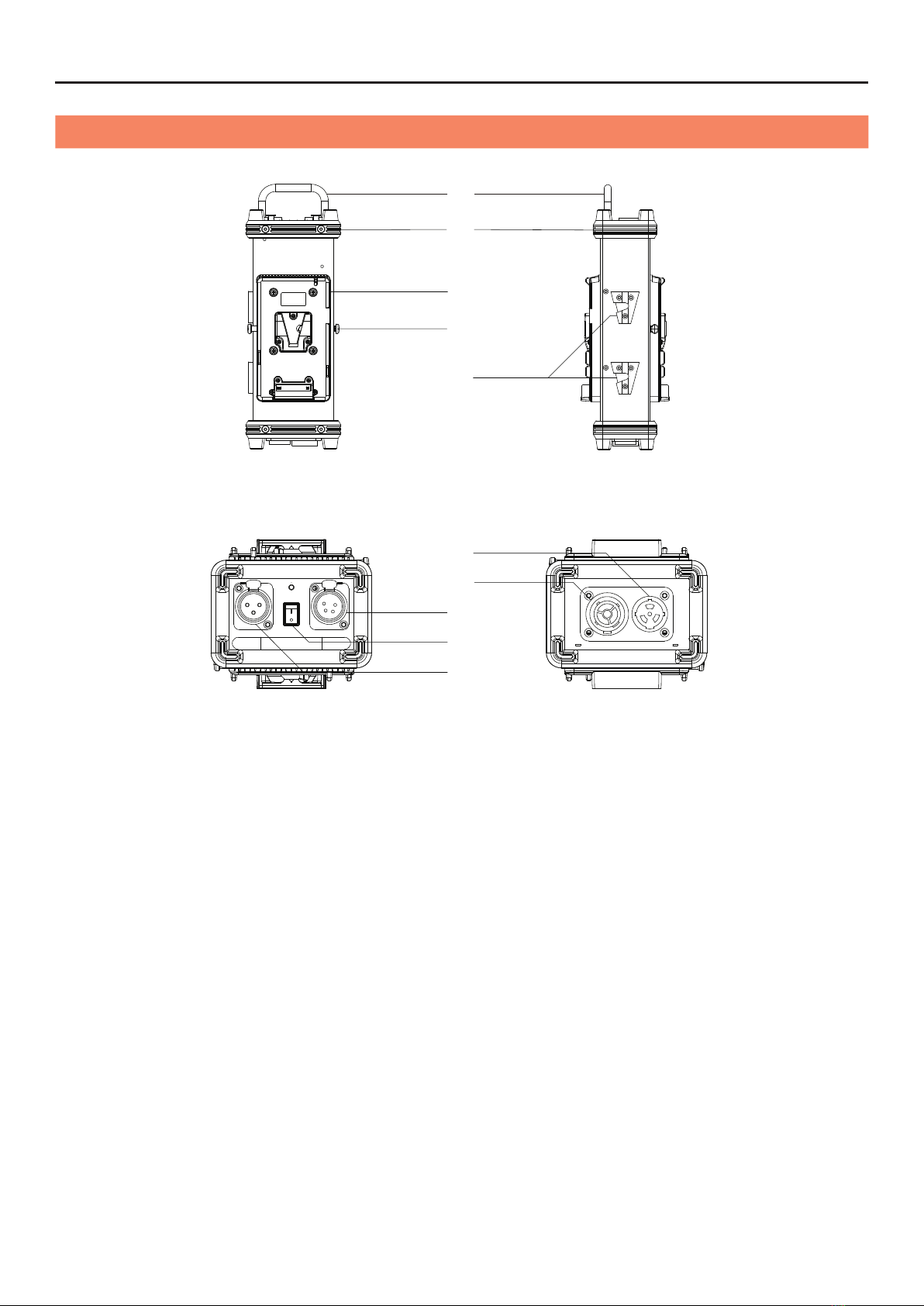

33. PSU Handle
34. Corner Guard
35. V-Mount Battery Plate
36. Quick Release Button
37. V-Mount Clip
38. AC Input
39. AC Loop Out
40.Battery Power Output
41 . Power Switch
42. DC Power Output
Power Supply Unit
Front Left
Top Bottom
33
34
35
36
37
38
39
40
41
42
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

43. Remote Controller LCD Screen
44. Rotary Encoder
45. Left Button
46. F1 Button
47. F2 Button
48. Mode Button
49. Right Button
50. F3 Button
51 . Menu Button
52.Favorite Button
53. Power Switch
54. Remote Controller Port
43
44
45
46
47
48
49
50
51
52
54
Front
Bottom
Right
9
44
Remote Controller
53
Version 1.0.0
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

10
Packing List
Before using this product, please check that the package contains all of the following items. If not,
please contact your sellers immediately.
Main Unit
1 pc
Remote Controller
Cable
1 pc
Antenna
1 pc
Remote Controller
1 pc
ZOLAR Stylist W - Side A
ZOLAR Stylist W 32x32
Version 1.0.0
[55] AC Power Cable*（CN）
1 pc
[56] DC Power Cable（3-Pin）
1 pc
[57] Battery Power
Cable（4-Pin）
1 pc
Power Supply Unit
1 pc
CN Plug
UK Plug
US Plug
EU Plug
Power plug varies
according to socket
types for each
country.
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Ready To Use
Installation

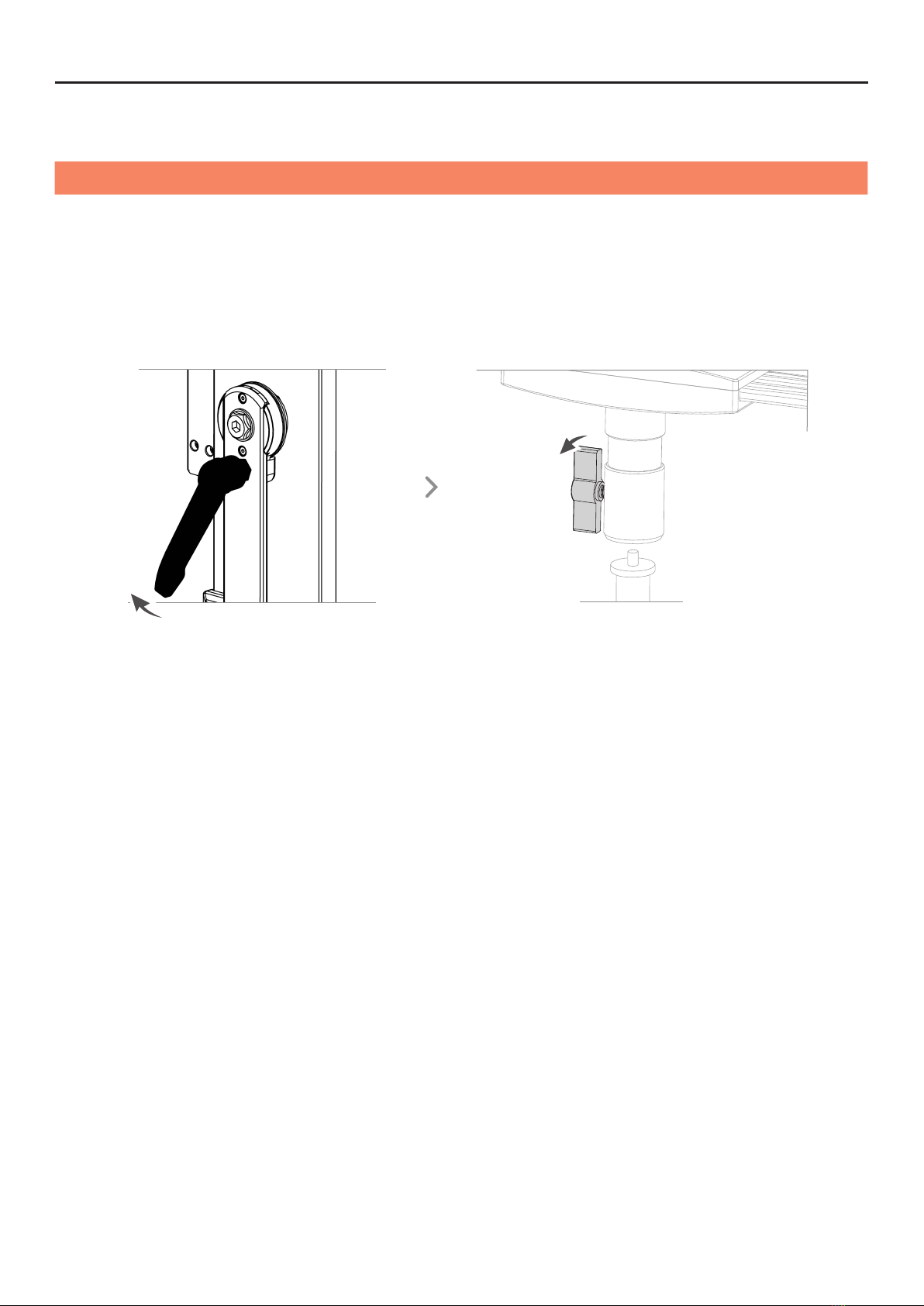

1. Rotate Tilt Lock Clamping Lever [03] to adjust the inclination between Main Unit and Yoke Mount
[04]. Rotate anti-clockwise to loosen and clockwise to tighten. Angle of inclination is adjustable
±360°;
2. Mount the Main Unit onto light stand head mount through Spigot [06], rotate Hand Knob Swivel
Screw Clamp [05] clockwise until it is tightened;
3. Repeat above step 1 to adjust the inclination between Main Unit and Yoke Mount [04] afterwards.
11
Graphic: Main Unit Installation
Version 1.0.0
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

12

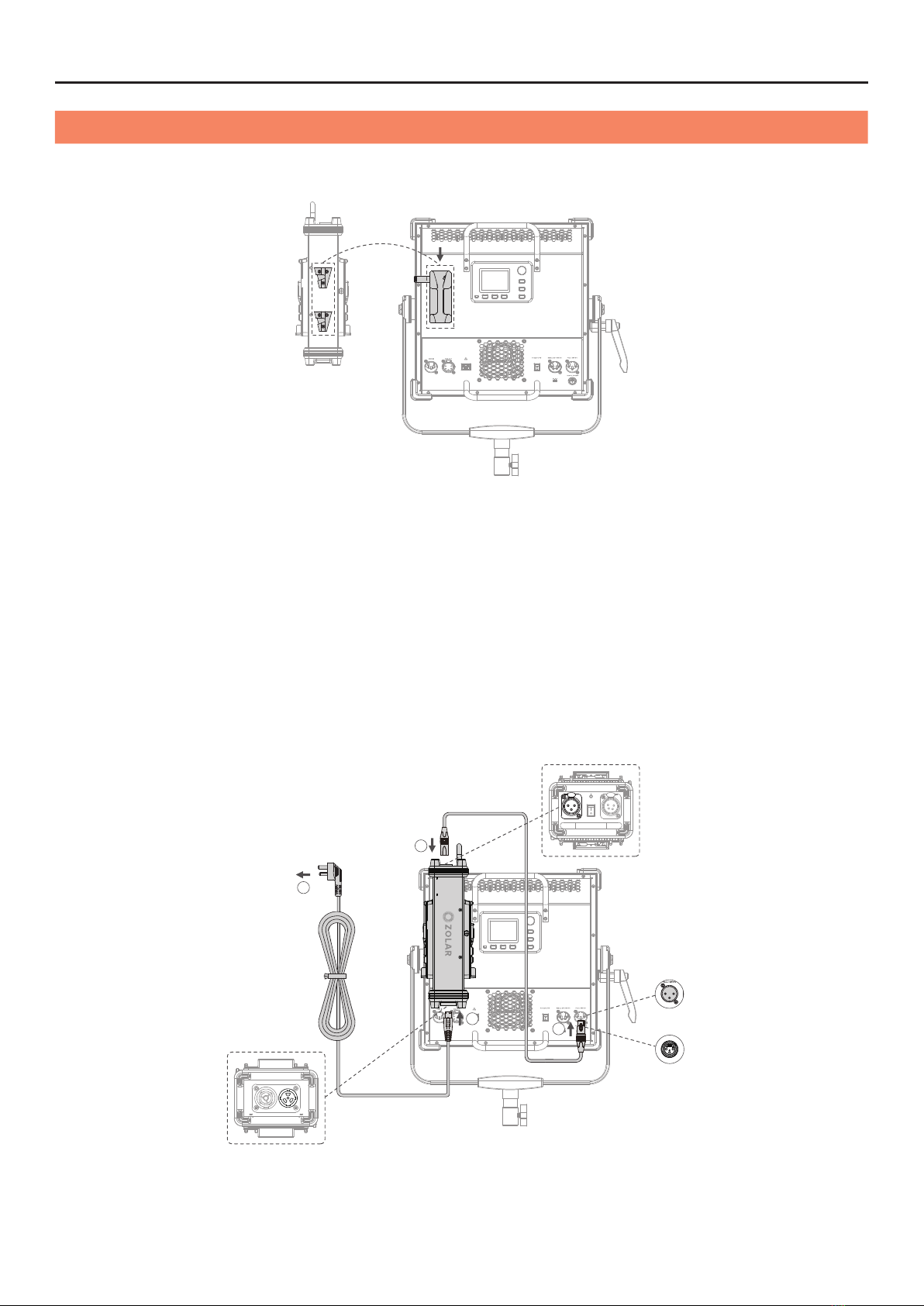

Power Supply
Power Supply Unit PSU can be mounted onto the Main Unit through V-Mount Clip [37] and V-Mount
Plate [09] .
Version 1.0.0
Using AC Power

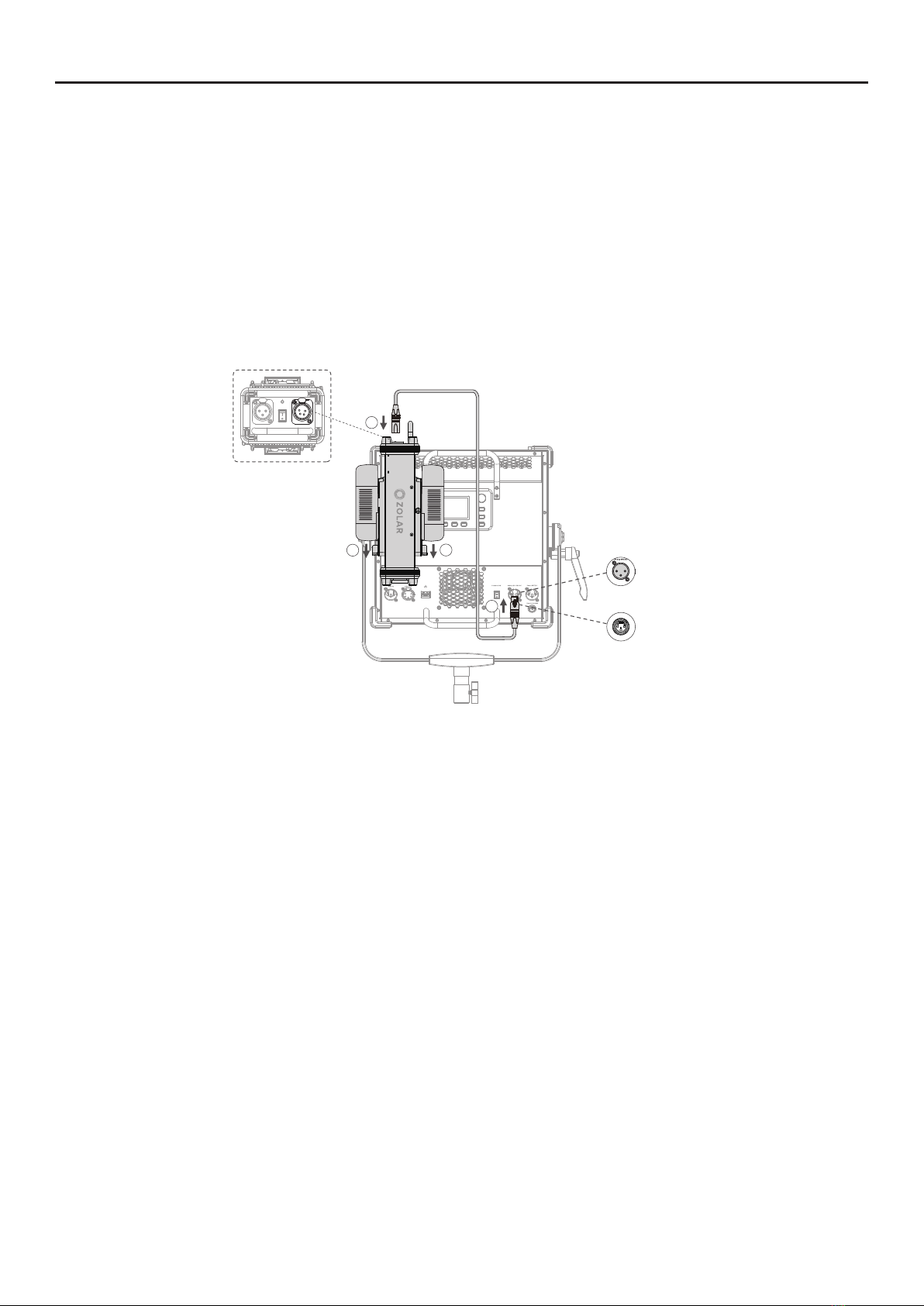

1. Connect one end of the DC Power Cable (3-Pin) [56] to the DC Power Output [42] of the PSU, and
the other end to the Power Input [19] of the Main Unit;
2. Connect AC Power Cable [55] to AC Input [38] of the PSU;
3. Connect AC Power Cable [55] plug to AC power outlet (110240 V, 50/60 Hz);
4. To disconnect, make sure the power switch is in OFF position, unplug AC Power Cable [55] from
power outlet, press and hold the safety lock of AC Power Cable [55] to pull it out from the PSU,
press and hold the safety flake on the PSU DC Power Output [42] to pull out DC Power Cable [56]
from the PSU, press and hold the safety lock of DC Power Cable [56] to pull it out from the Main
Unit.
1
2
AC 110v-240v
3
4
Graphic: PSU Installation
Graphic: AC Power Supply Connection
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

13
Version 1.0.0
Using Battery*
1. Mount V-Mount battery onto V-Mount Battery Plate [35] of the PSU, one on each side;
2. Push gently downwards and lock into position;
3. Connect one end of the Battery Power Cable (4-Pin) [57] to the Battery Power Output [40] of the
PSU, the other end to the Battery Input [18] of the Main Unit;
4. To unmount the battery, press and hold the Quick Release Button [36] of the PSU and lift the
battery upward. Press and hold the safety flake on the Battery Power Output [40] of the PSU to
disconnect the Battery Power Cable [57]. Press and hold the safety lock of the Battery Power
Cable [57] plug to pull it out from the Main Unit.
12
3
4
* Only 14.8V V-Mount batteries can be used. Not included in the standard package.
Graphic: Battery Power Supply Connection
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

14
Start Up
1. Verify power supply connection;
2. Turn Power Switch [41] on the PSU to “ | ” position;
3. Turn Power Switch [17] on the Main Unit to “ | ” position;
4. To power o, simply turn Power Switch [17] on the Main Unit to “ O ” position;
5. Turn Power Switch [41] on the PSU to “ O ” position.
Menu Operation
1. Press Menu Button [28] on the Main Unit Controller [16] to enter the menu;
2. Rotate Rotary Encoder [26] clockwise to move cursor downward, anti-clockwise to move cursor
upward. Press to confirm selection. Press Menu Button [28] to return to the upper level menu.
Remote Controller Connection
1. Connect the Remote Controller cable [58] to the Remote Controller Port [20] of the Main Unit, the
other end to the Remote Controller Port [54] of the Remote Controller;
2. Turn Power Switch [53] to “ON” position to start using;
3. Press and hold Right Button [49] to suspend light output of Main Unit, press and hold again to
resume light output;
4. To turn o Remote Controller, simply turn Power Switch [53] to “OFF” position.
Version 1.0.0
Graphic: Remote Controller Connection
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

15
Bluetooth® Connection
Screw in the antenna clockwise to the Antenna Port [22]. Download and install ZOLAR™ Mobile App.
1. Connect mobile device to Main Unit
a) Press Menu Button [28] on the Main Unit Controller [16] during standby mode to enter menu;
b) Rotate Rotary Encoder [26] to select “Information” and note down the serial number;
c) Open ZOLAR™ Mobile App on the mobile device, click the three dots on the top right corner to
enter Settings;
d) Select “Bluetooth” in Connections, then click top left corner arrow sign to return to home menu;
e) Click the device icon on top of the home screen and select the corresponding Main Unit, then
click to confirm;
f) Press Menu Button [28] to return to upper level menu;
g) ZOLAR™ Mobile App is now ready to control the Main Unit.
2. Disconnect mobile device from Main Unit
a) Quit ZOLAR™ Mobile App and Bluetooth will be disconnected automatically.
b) Bluetooth connection will be reestablished automatically when ZOLAR™ Mobile App is opened
again.
Mobile App
ZOLAR™ Mobile App (iOS & Android)
Scan the corresponding QR code below to download and install ZOLAR™ Mobile app, then use
Bluetooth or Wi-Fi to connect and control the Main Unit.
App Store (iOS)
Version 1.0.0
Google Play (Android) 
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Wi-Fi Connection
Screw in the antenna clockwise to the Antenna Port [22]. Download and install ZOLAR™ Mobile App.
1 . Connect Main Unit to wireless router (2.4GHz frequency band only)
a) Press Menu Button [28] on the Main Unit Controller [16] during standby mode to enter menu;
b) Rotate Rotary Encoder [26] to select “Wi-Fi” , press once to enter Wi-Fi menu;
c) Rotate Rotary Encoder [26] to select “QR Code” , press once to display the QR Code;
d) Turn on WiFi and Bluetooth on mobile device. Then connect to the wireless router through
Wi-Fi.
e) Open ZOLAR™ Mobile App on the mobile device, click the three dots on the top right corner
to enter Settings;
f) Select “Wi-Fi configuration, position the viewfinder onto the QR Code to scan;
g) Once successfully scanned, SSID of the router will be shown, enter password then click
“Connect” ;
h) Once successfully connected to the router, click top left corner arrow sign to return to home
menu;
i) Press Menu Button [28] to return to upper level menu;
j) ZOLAR™ Mobile App is now ready to control the Main Unit.
2. Disconnect Main Unit from wireless router
a) Press Menu Button [28] on the Main Unit Controller [13] during standby mode to enter menu;
b) Rotate Rotary Encoder [26] to select “Wi-Fi” , press once to enter WiFi menu;
c) Rotate Rotary Encoder [26] to select “Disconnect” , press and select Yes, then press again to
confirm disconnection.
Firmware Upgrade
Download and install ZOLAR™ Mobile App. Connect Main Unit to wireless router. Power level should
be 50% or above if using battery power. Ensure no interruption of power supply during the upgrade
process:
1. Open ZOLAR™ Mobile App on the mobile device. Select Firmware Upgrade in main menu. List of
Main Units connected to the wireless router and available firmware version will be shown.
2. Select the corresponding Main Unit, click Upgrade, press Confirm to start. Firmware version will
be shown on the Main Unit Controller [13] display. Upgrade process will take approximately 4
minutes;
3. Upgrade is successful once the upgrade progress bar reaches 100%. Main Unit will restart auto-
matically;
4. In case of upgrade failure, repeat the above steps to upgrade again.
Attention:
· Main Unit must be placed within 3 meters of the wireless router during the upgrade process. Otherwise there is a
chance of upgrade failure.
· All necessary permissions must be granted to ZOLAR™ Mobile App. Otherwise there is a chance of upgrade failure.
16
Version 1.0.0
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Operation Guide
Correlated Color Temperature Adjustment
1. Press Mode Button [27] on the Main Unit Controller [16] during standby mode, rotate Rotary
Encoder [26] to select CCT, press to enter CCT menu;
2. Press F1 Button [32] to enter CCT adjustment mode;
3. Rotate Rotary Encoder [26] clockwise to increase color temperature. Each click increases 50K.
Highest value is 5,600K;
4. Rotate Rotary Encoder [26] anti-clockwise to decrease color temperature. Each click decreases
50K. Lowest value is 3,200K;
5. Press F1 Button [32] again to lock the current color temperature, and quit the CCT adjustment
mode.
Intensity Adjustment
1. Press F3 Button [30] on the Main Unit Controller [16] during standby mode to enter Intensity
adjustment mode;
2. Rotate Rotary Encoder [26] clockwise to increase intensity. Each click increases 0.1%. Highest
value is 100%;
3. Rotate Rotary Encoder [26] anti-clockwise to decrease intensity. Each click decreases 0.1%.
Lowest value is 0%;
4. Press F3 Button [30] again to lock the current intensity, and quit the intensity adjustment mode.

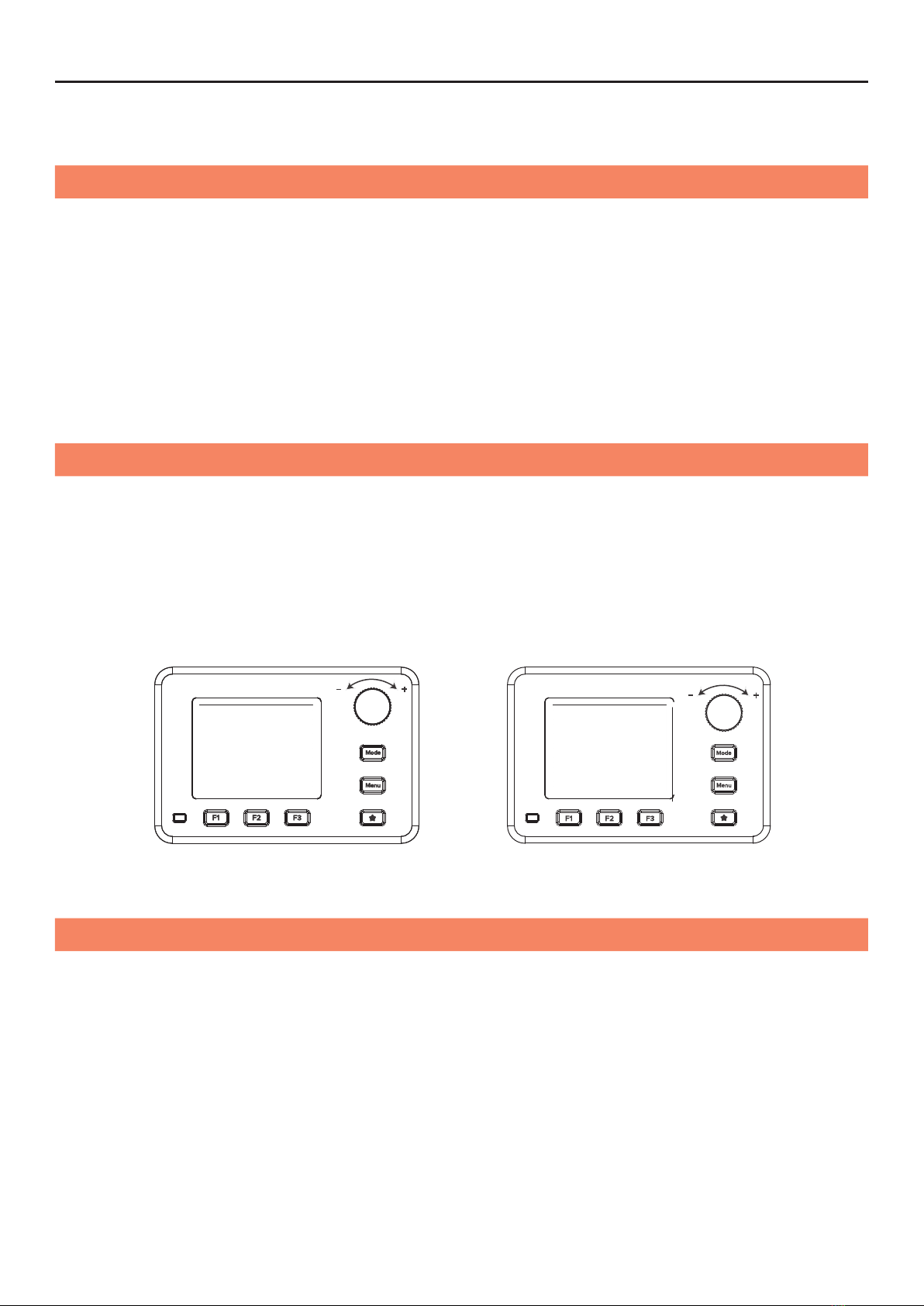

Graphic: CCT Adjustment Interface Graphic: Intensity Adjustment Interface
Favorites
1. Confirm the intensity and CCT values that need to be collected;
2. Press and hold the Favorite Button [29] of the Main Unit Controller [16] until "Saved" is displayed
at the top of the screen, then release it, and the preference has been favorited;
3. If you want to use the favorites, click the Favorites Button [29] to display the list of all favorites;
4. Rotate Rotary Encoder [26], after selecting it, press the Rotary Encoder [26] to confirm, and then
press the Favorite Button [29] to return;
5. If you want to delete your favorites, after selecting them in the favorites list, press the F3 Button
[30] to choose whether to delete them;
6. To delete all favorites, long press the F3 Button [30] to choose whether to delete all.
17
Version 1.0.0
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Light Eect
ZOLAR™ built in light eect library consists of commonly used light eects on-set production and in
TV broadcast studios. Ideal substitute for special light eect equipment.
List of light eects：
· Cloud Passing
· Explosion
· Fire
· Fireworks
· Fluorescent Flicker
· Lightning
· Paparazzi
· Pulsing
· Strobe
· Television
· Welding
· Process
· Fade In/Out
18
Version 1.0.0
Cloud Passing Explosion Fire Fireworks
Fluorescent
Flicker
Lightning Paparazzi Pulsing Strobe
Television Welding Process Fade In/Out
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
Graphic: Light Eects Icons

19
Version 1.0.0
Select light eect either directly on the Main Unit Controller menu, or through Art-Net / sACN. Each
light eect can be set individually. Settings of eect can be saved in Favorite for quick retrieval.
1. Eect Selection
a) Press Mode Button [27] on the Main Unit Controller [13] during standby mode, rotate Rotary
Encoder [26] to select Eect, press to enter Eect menu;
b) Press Rotary Encoder [26] once again to show the Eect list;
c) Rotate Rotary Encoder [26] to select an eect from the list, press to confirm, and return to
Eect menu;
2. Adjustment of Eect Intensity
a) Press F3 button [30] in Eect menu to enter intensity adjustment mode;
b) Rotate Rotary Encoder [26] to select the desired intensity, press F3 Button [30] to lock the
intensity, and quit intensity adjustment mode.
3. Settings of Eect
a) Press F1 button [32] in Eect menu to enter Settings;
b) Rotate Rotary Encoder [26] to select and adjust settings of the eect, select Exit or press
Menu Button [28] to quit settings.
4. Start/Stop Eect
a) When Eect is not in operation, press F2 Button [31] to start Eect;
b) When Eect is in operation, press F2 Button [31] to stop Eect, Main Unit will cease light
output.
c) Start/Stop Eect operation is only allowed in Eect menu.
5.Quit Eect
Press Mode Button [27] on the Main Unit Controller [16] in Eect menu, rotate Rotary Encoder
[26] to select CCT, press Rotary Encoder [26] to confirm and quit Eect.
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Tip: When you choose the basic intensity value in the flat area of the dimming curve, the dynamic range of the light
eect will be very low in this intensity. Change to another light eect or select another dimming curve to obtain
a more dynamic light eect.
Light Control
ZOLAR™ Toliman 30S supports four Dimming Curves, the Dimming Curves are overall situation and
can be controlled through the main unit menu, Art-Net / sACN or DMX.
Dimming Curve
· Exponential (default setting): The dimming precision is higher at lower intensity and lower at
higher intensity. Use this dimming curve if you want to use high precision at low intensity.
· Logarithmic: The dimming precision is lower at lower intensity and higher at higher intensity.
Use this dimming curve if you want to use high precision at high brightness.
· Linear: The intensity change is proportional to the value adjusted by the Rotary Encoder [26] .
· S-curve: The dimming precision is high at both lower and higher intensity, and lower at intensity
levels in between. Use this dimming curve for high precision at low and high intensity levels.
1. Press the Menu Button [28] on the Main Unit Controller [16] to enter the menu interface;
2. Rotate Rotary Encoder [26], select “Light Control” , and press the Rotary Encoder [26] to enter
the next level menu;
3. Select “Dimming Curve” and press the Rotary Encoder [26] to enter the next level menu;
4. Rotate Rotary Encoder [26], after selecting the dimming curve, press the Rotary Encoder [26] to
confirm;
5. Select “Exit” or press the Menu Button [28] to return to the original menu step by step.
Set Dimming Curve
20Version 1.0.0
ZOLAR™ Toliman 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
