Vega 30C User Manual

Preface
Please read this document carefully in order to understand the ZOLAR™ Vega 30C (hereinafter
referred to as Product) and use it reasonably. Refer to the ocial website (www.z-cam.com/zolar)
for the latest version of this document and updated product information.
Please contact Shenzhen ImagineVision Technology Limited (hereinafter referred to as
ImagineVision) or its authorized distributor/resellers, in case of any product queries about installa-
tion or operation.
Safety Guideline
Please read and follow this Safety Guideline and all the terms associated to this Product carefully, to
know your legal rights, responsibilities, and safety instructions, otherwise, it may result in product
damages, safety accidents and personal injuries. By using this Product, you hereby signify that you
have read, understood, acknowledged and accepted this Safety Guideline and all the terms and
conditions associated with this Product, and assume responsibility for any behaviors or consequen-
ces. You undertake to use this Product on normal and reasonable purpose, and agree to this Guide-
line and all the terms and conditions associated with this Product, as added, reduced, amended,
modified made by ImagineVision from time to time.
ImagineVision provides no expressed or implied guarantee in relation to this Product, assumes no
loss or legal responsibility raised from misuse of this Product contrary to this Safety Guideline and
the terms associated to this Product, accepts no indirect, consequent, punitive, occasional, special,
criminal-punitive loss or legal responsibility. Under any circumstances, the total liability of
ImagineVision shall NOT exceed the price paid by you to ImagineVision for the product.
Safety Warning
This Product is not intended for use by persons under the age of 18. Keep out of reach of children.
1 . Keep children away when operating the product.
2. Do not stare at the light source as it may cause permanent eye damage.
3. Wear gloves before touching heated surfaces of the product to prevent burns.
4. Wear gloves when touching sharp edges and corners of the product to prevent cuts.
5. Do not block or cover the vents of the product.
6. Product is not waterproof and not dust proof. Prevent water and dust from entering into the pro-
duct which may cause damages.
7. Position the power cables so that it will not be tripped over, or accidentally pulled out causing the
product to shut down.
8. If an extension power cable is required, the minimum amperage rating should not be less than
that of the product’ s own power cable.
9. When using the device with AC DC Power Adapter, connect it to a grounded power outlet.
10.Do not place the product near any flammable and/or volatile liquid to prevent potential damages.
2
Disclaimer
All product features and technical specifications stated are subject to the sole interpretation and
explanation of Shenzhen ImagineVision Technology Limited, and subject to change without notice.
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

3
MENU
Preface
Safety Guideline
Safety Warning
Disclaimar
Product Description
Product Description
Product Highlight
Product Overview
Main Unit
Main Unit Controller
PSU
Remote Controller
Packing List
Ready To Use
Installation
Power Supply
Start Up
Menu Operation
Remote Controller Connection
Mobile App
Bluetooth® Connection
Wi-Fi Connection
Firmware Upgarde
Operation Guide
CCT Mode
HSI Mode
xy coordinate Mode
Gel Mode
Source Matching
RGBW Mode
Light Eect
2
2
2
2
5
5
5
6
6
7
8
9
10
11
11
12
14
14
14
15
15
16
16
17
17
19
20
21
22
23
24
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

4
 Light Control
 ZolarLink Multi Light Sync
 Indicator Status
 Settings
Accessories
 ZOLAR™ Stylist 32x32
 ZOLAR™ Barndoor 32x32（Optional Accessory）
 ZOLAR™ SoftBox Accessory Kit 32x32（Optional Accessories）
Product Specifications
Photometric data
Warranty Policy
 Warranty Scope
 Warranty Period
 Warranty Arrangement
 Limited Warranty
FCC Compliance Statement
RF Warning Statement
26
27
31
32
34
34
36
38
40
42
43
43
43
43
43
44
44
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Product Description
• CRI: Ra ≥ 97 (R9 & R12 up to 97), TLCI ≥ 98;
• Spectral Similarity Index SSI up to 90;
• Full RGBAW Color Gamut
• CCT range: 2,000K 20,000K
• DMX, Art-Net 4 & sACN + powerCON
• ZOLAR Stylist precision directional super light transmissible panel: control beam angle,
light diusion, no color shift;
• Multi Light Sync - ZolarLink (wireless / cable), rapid auto sync grouping;
• Built in Light Eect (synchronized) for dierent scene applications;
• Bluetooth + Wi-Fi mixed control: Remote Controller, mobile app (iOS & Android).
5
Product Description
Product Highlight
Version 1.0.0
ZOLAR™ Vega 30C User Manual
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ professional LED lighting system is developed by Shenzhen ImagineVision Technology
Limited, the same successful team that created Z CAM Cinema Cameras. ZOLAR™ products are de-
veloped with profound color science knowledge, leading image processing algorithms, as well as
camera lens and sensor calibration expertise. Delivering high fidelity color reproduction and
excellent color rendition with performances very close to natural daylight.
Our in-house developed “Self Adaptive Spectral Nonlinear Dynamic Illuminance Calibration System”
eliminates the inconsistent LED performance issues. In addition, our revolutionary solution allows a
mixture of ZOLAR™ light series to be used simultaneously without any visible color deviation (color
matching mode will be added to other ZOLAR™ series).
ZOLAR™ Vega is a 5-color LED light panel series targeting professional video productions. Its wide
CCT range, excellent soft light performance and high fidelity color reproduction has set a new
benchmark for the industry. Designed with 5-color full spectrum LEDs and RGBAW algorithm to
deliver continuous light spectrum across full CCT range with exceptionally high CRI & TLCI scores,
particularly in R9, R12, R13 & R15. No compromise.
Spectral Similarity Index (SSI) is developed by The Academy of Motion Picture Arts and Sciences to
evaluate the fidelity of color reproduction particularly for LED light, from a single chip CMOS digital
camera point of view. It quantitatively compares the spectrum of the test light with that of a desired
reference light source, expressing the similarity as a single number on a scale up to 100. High values
indicate a high likelihood of high fidelity color reproduction by most cameras. SSI of ZOLAR™ Vega is
close to or exceeds 90, across full CCT range (2,000K~20,000K), a leading standard in the industry.
Higher score implies higher fidelity color reproduction, particularly the skin tone. This is exactly why
these scores exist.
ZOLAR™, The sun is the limit!

Main Unit
6
10
11
18
19
20
21
23
22
01
02
04
03
05 06
[02] 3x ZOLAR Stylist Clot
Slot 1
Reflective
Membrane
Slot 2
Slot 3
ZOLAR Stylist
Product Overview
1.Corner Guard
2. 3x ZOLAR Stylist Slot
3. Tilt Lock Clamping Lever
4. Yo ke Mount
5. Hand Knob Swivel Screw Clamp
6. Spigot
7. Vent Holes
8. Quick Release Button
9. V-Mount Plate
10. DMX Output
11. DMX Input
12. Ethernet Port
13. Bottom Handle
14. Vent Holes
15. Top Handle
16. Main Unit Controller
17. Power Switch
18. Battery Input
19. Power Input
Version 1.0.0
07
08
10
09
11
12
14
13
15
16
18
17
19
20
05
21
20. Remote Controller Port
21. M-I-S Selector
22. Antenna Port
23. Slide Latch
RearFront
Top
Bottom
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

24
25
26
27
28
29
30
31
32
24. Main Unit Controller LCD Screen
25. Indicator
26. Rotary Encoder
27. Mode Button
28. Menu Button
29. Favorite Button
30. F3 Button
31 .F2 Button
32. F1 Button
[16] Main Unit Controller
Main Unit Controller
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
7
Version 1.0.0
ZOLAR™ Vega 30C User Manual

8
Version 1.0.0
33. PSU Handle
34. Corner Guard
35. V-Mount Battery Plate
36. Quick Release Button
37. V-Mount Clip
38. AC Input
39. AC Loop Out
40.Battery Power Output
41 . Power Switch
42. DC Power Output
Power Supply Unit
Front Left
Top Bottom
33
34
35
36
37
38
39
40
41
42
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

43. Remote Controller LCD Screen
44. Rotary Encoder
45. Left Button
46. F1 Button
47. F2 Button
48. Mode Button
49. Right Button
50. F3 Button
51 . Menu Button
52.Favorite Button
53. Power Switch
54. Remote Controller Port
43
44
45
46
47
48
49
50
51
52
54
Front
Bottom
Right
9
44
Remote Controller
53
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

Packing List
Before using this product, please check that the package contains all of the following items. If not,
please contact your sellers immediately.
10
Remote Controller
Cable
1 pc
Antenna
1 pc
Remote Controller
1 pc
ZOLAR Stylist W - Side A
ZOLAR Stylist W 32x32
Version 1.0.0
Main Unit
1 pc
[55] AC Power Cable*（CN）
1 pc
[56] DC Power Cable（3-Pin）
1 pc
[57] Battery Power
Cable（4-Pin）
1 pc
Power Supply Unit
1 pc
CN Plug
UK Plug
US Plug
EU Plug
Power plug varies
according to socket
types for each
country.
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

Ready To Use
Installation

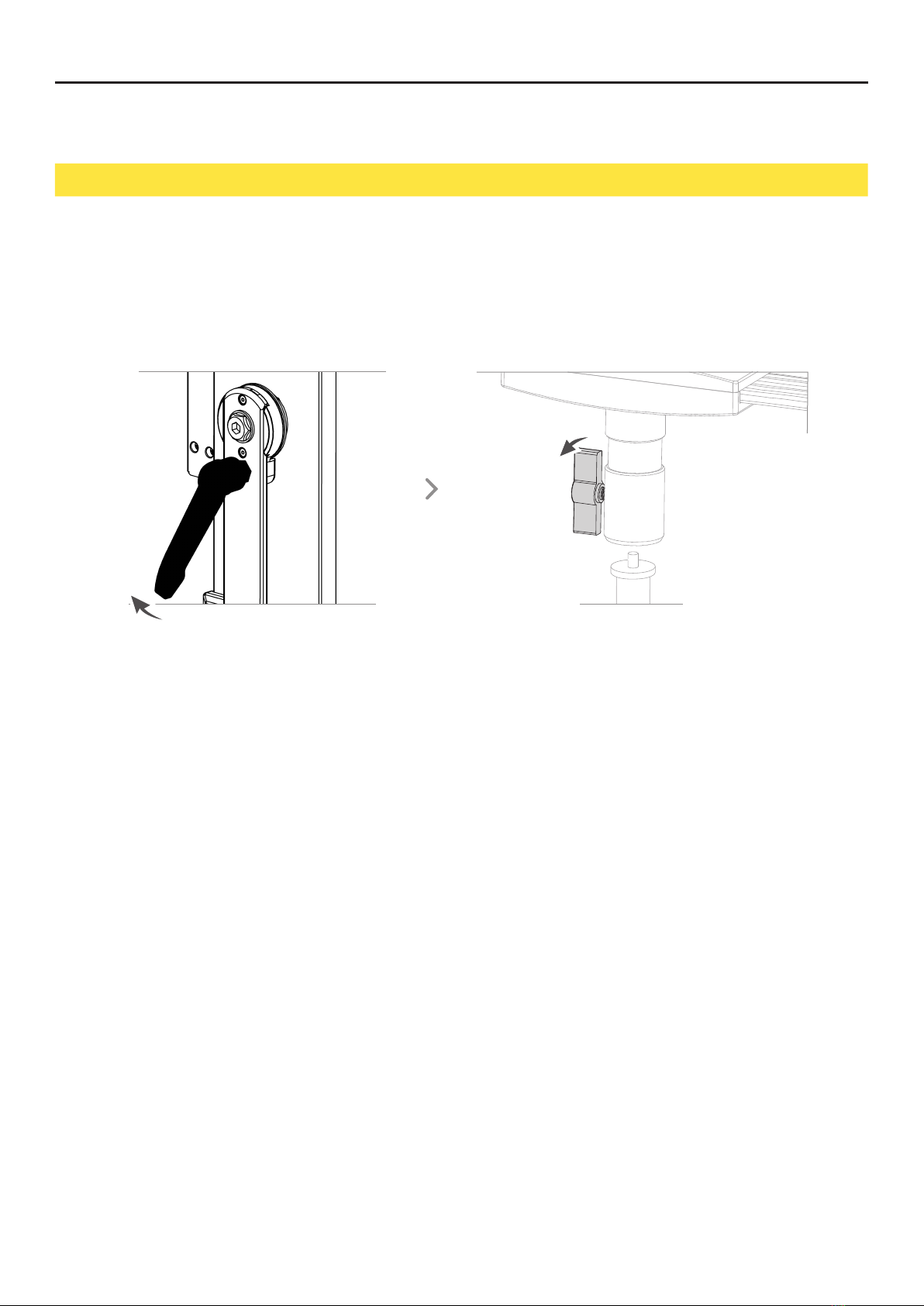

1. Rotate Tilt Lock Clamping Lever [03] to adjust the inclination between Main Unit and Yoke Mount
[04]. Rotate anti-clockwise to loosen and clockwise to tighten. Angle of inclination is adjustable
±360°;
2. Mount the Main Unit onto light stand head mount through Spigot [06], rotate Hand Knob Swivel
Screw Clamp [05] clockwise until it is tightened;
3. Repeat above step 1 to adjust the inclination between Main Unit and Yoke Mount [04] afterwards.
11
Graphic: Main Unit Installation
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

12
Power Supply

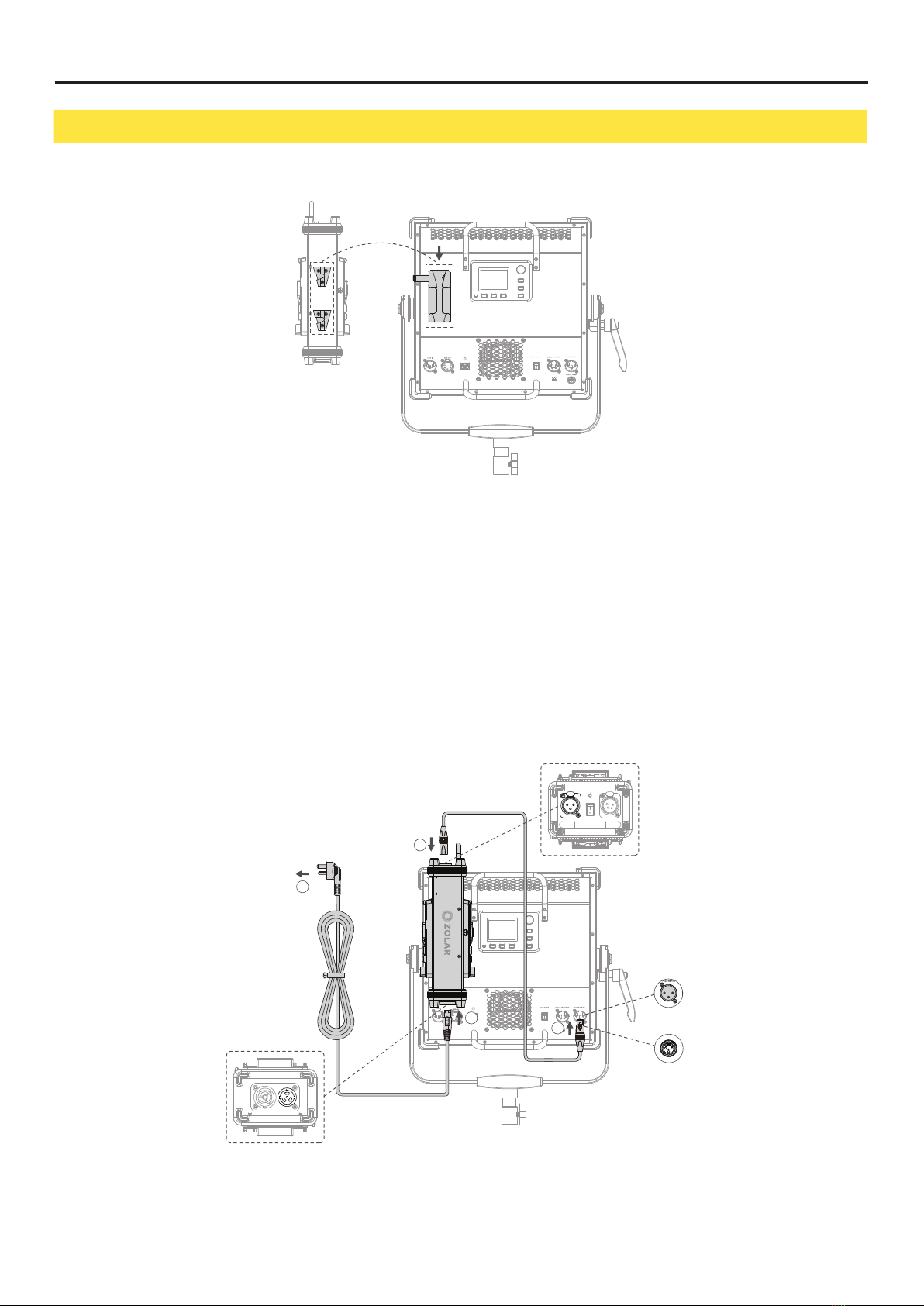

Power Supply Unit PSU can be mounted onto the Main Unit through V-Mount Clip [37] and V-Mount
Plate [09] .
Version 1.0.0
Using AC Power
1. Connect one end of the DC Power Cable (3-Pin) [56] to the DC Power Output [42] of the PSU, and
the other end to the Power Input [19] of the Main Unit;
2. Connect AC Power Cable [55] to AC Input [38] of the PSU;
3. Connect AC Power Cable [55] plug to AC power outlet (110240 V, 50/60 Hz);
4. To disconnect, make sure the power switch is in OFF position, unplug AC Power Cable [55] from
power outlet, press and hold the safety lock of AC Power Cable [55] to pull it out from the PSU,
press and hold the safety flake on the PSU DC Power Output [42] to pull out DC Power Cable [56]
from the PSU, press and hold the safety lock of DC Power Cable [56] to pull it out from the Main
Unit.
1
2
AC 110v-240v
3
4
Graphic: PSU Installation
Graphic: AC Power Supply Connection
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

© 2022 深圳视觉科技有限公司 版权所有
13
Version 1.0.0
Warning: When using PSU serial connection for AC Loop Out, the maximum number of serial devices is 12.

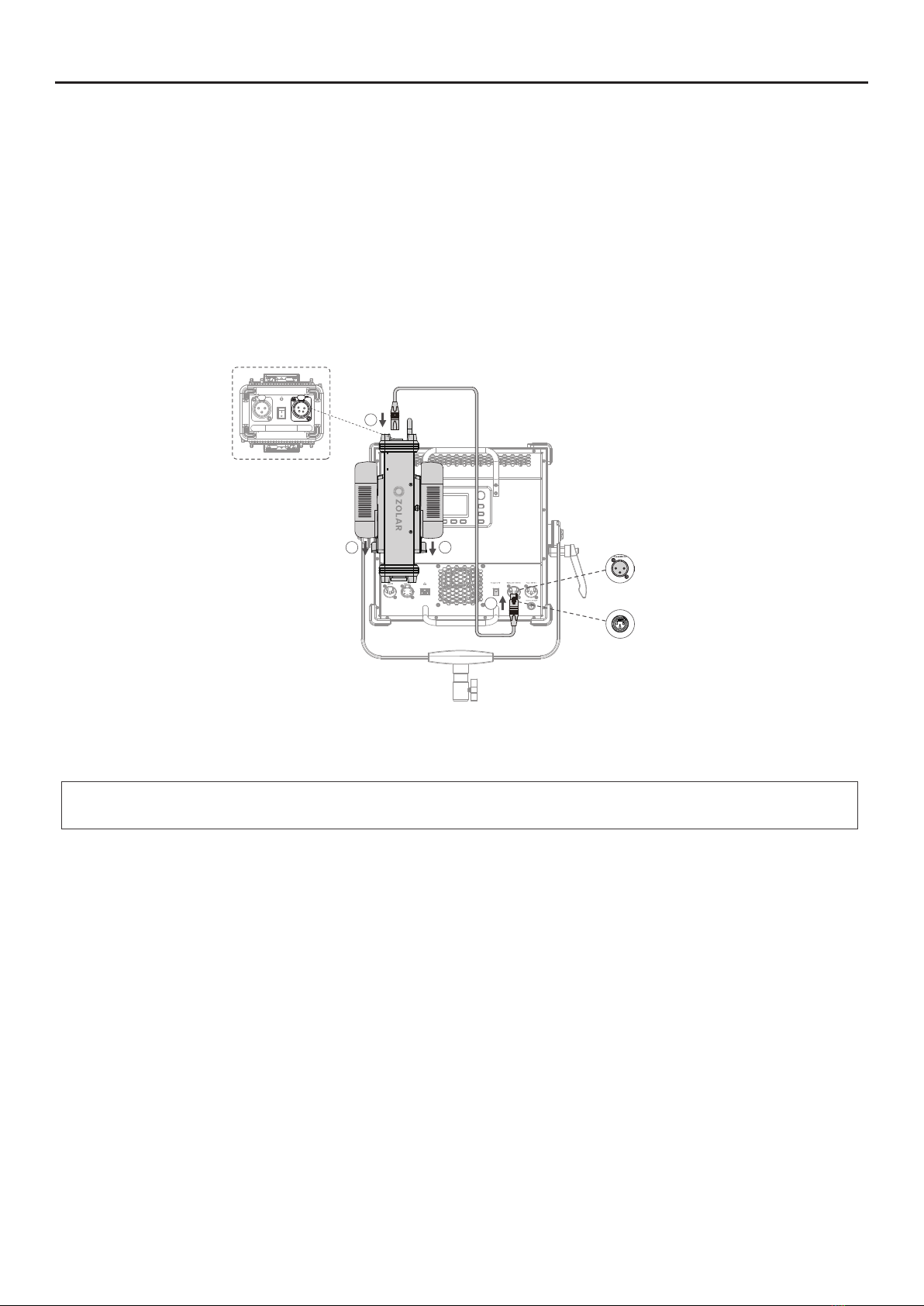

Using Battery*
1. Mount V-Mount battery onto V-Mount Battery Plate [35] of the PSU, one on each side;
2. Push gently downwards and lock into position;
3. Connect one end of the Battery Power Cable (4-Pin) [57] to the Battery Power Output [40] of the
PSU, the other end to the Battery Input [18] of the Main Unit;
4. To unmount the battery, press and hold the Quick Release Button [36] of the PSU and lift the
battery upward. Press and hold the safety flake on the Battery Power Output [40] of the PSU to
disconnect the Battery Power Cable [57]. Press and hold the safety lock of the Battery Power
Cable [57] plug to pull it out from the Main Unit.
12
3
4
* Only 14.8V V-Mount batteries can be used. Not included in the standard package.
Graphic: Battery Power Supply Connection
ZOLAR™ Vega 30C User Manual

14
Start Up
1. Verify power supply connection;
2. Turn Power Switch [41] on the PSU to “ | ” position;
3. Turn Power Switch [17] on the Main Unit to “ | ” position;
4. To power o, simply turn Power Switch [17] on the Main Unit to “ O ” position;
5. Turn Power Switch [41] on the PSU to “ O ” position.
Menu Operation
1. Press Menu Button [28] on the Main Unit Controller [16] to enter the menu;
2. Rotate Rotary Encoder [26] clockwise to move cursor downward, anti-clockwise to move cursor
upward. Press to confirm selection. Press Menu Button [28] to return to the upper level menu.

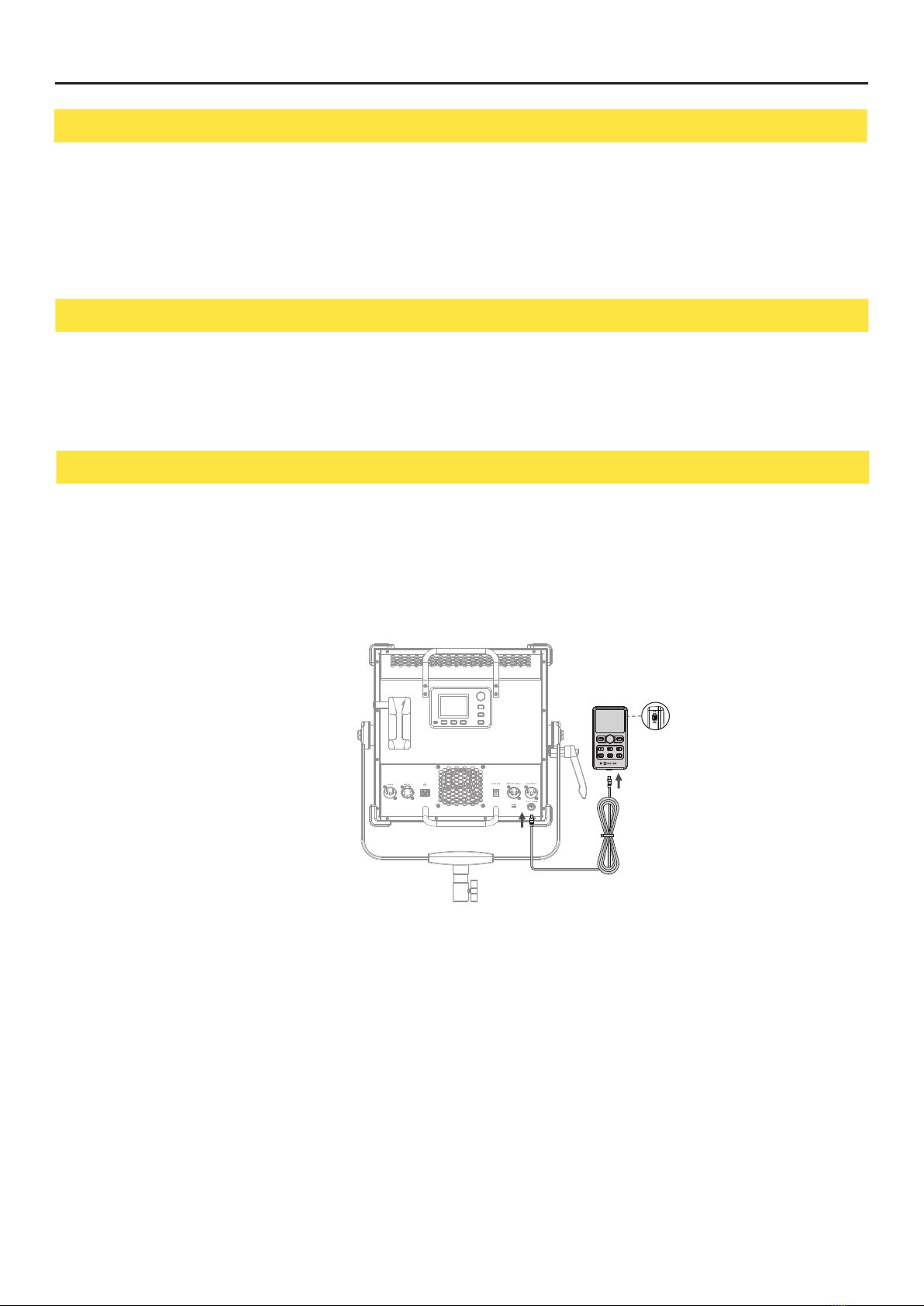

Remote Controller Connection
1. Connect the Remote Controller cable [58] to the Remote Controller Port [20] of the Main Unit, the
other end to the Remote Controller Port [54] of the Remote Controller;
2. Turn Power Switch [53] to “ON” position to start using;
3. Press and hold Right Button [49] to suspend light output of Main Unit, press and hold again to
resume light output;
4. To turn o Remote Controller, simply turn Power Switch [53] to “OFF” position.
Version 1.0.0
Graphic: Remote Controller Connection
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

15
Bluetooth® Connection
Screw in the antenna clockwise to the Antenna Port [22]. Download and install ZOLAR™ Mobile App.
1. Connect mobile device to Main Unit
a) Press Menu Button [28] on the Main Unit Controller [16] during standby mode to enter menu;
b) Rotate Rotary Encoder [26] to select “Information” and note down the serial number;
c) Open ZOLAR™ Mobile App on the mobile device, click the three dots on the top right corner to
enter Settings;
d) Select “Bluetooth” in Connections, then click top left corner arrow sign to return to home menu;
e) Click the device icon on top of the home screen and select the corresponding Main Unit, then
click to confirm;
f) Press Menu Button [28] to return to upper level menu;
g) ZOLAR™ Mobile App is now ready to control the Main Unit.
2. Disconnect mobile device from Main Unit
a) Quit ZOLAR™ Mobile App and Bluetooth will be disconnected automatically.
b) Bluetooth connection will be reestablished automatically when ZOLAR™ Mobile App is opened
again.
Mobile App
ZOLAR™ Mobile App (iOS & Android)
Scan the corresponding QR code below to download and install ZOLAR™ Mobile app, then use
Bluetooth or Wi-Fi to connect and control the Main Unit.
App Store (iOS)
Version 1.0.0
Google Play (Android) 
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

Wi-Fi Connection
Screw in the antenna clockwise to the Antenna Port [22]. Download and install ZOLAR™ Mobile App.
1 . Connect Main Unit to wireless router (2.4GHz frequency band only)
a) Press Menu Button [28] on the Main Unit Controller [16] during standby mode to enter menu;
b) Rotate Rotary Encoder [26] to select “Wi-Fi” , press once to enter Wi-Fi menu;
c) Rotate Rotary Encoder [26] to select “QR Code” , press once to display the QR Code;
d) Turn on WiFi and Bluetooth on mobile device. Then connect to the wireless router through
Wi-Fi.
e) Open ZOLAR™ Mobile App on the mobile device, click the three dots on the top right corner
to enter Settings;
f) Select “Wi-Fi configuration, position the viewfinder onto the QR Code to scan;
g) Once successfully scanned, SSID of the router will be shown, enter password then click
“Connect” ;
h) Once successfully connected to the router, click top left corner arrow sign to return to home
menu;
i) Press Menu Button [28] to return to upper level menu;
j) ZOLAR™ Mobile App is now ready to control the Main Unit.
2. Disconnect Main Unit from wireless router
a) Press Menu Button [28] on the Main Unit Controller [13] during standby mode to enter menu;
b) Rotate Rotary Encoder [26] to select “Wi-Fi” , press once to enter WiFi menu;
c) Rotate Rotary Encoder [26] to select “Disconnect” , press and select Yes, then press again to
confirm disconnection.
Firmware Upgrade
Download and install ZOLAR™ Mobile App. Connect Main Unit to wireless router. Power level should
be 50% or above if using battery power. Ensure no interruption of power supply during the upgrade
process:
1. Open ZOLAR™ Mobile App on the mobile device. Select Firmware Upgrade in main menu. List of
Main Units connected to the wireless router and available firmware version will be shown.
2. Select the corresponding Main Unit, click Upgrade, press Confirm to start. Firmware version will
be shown on the Main Unit Controller [13] display. Upgrade process will take approximately 4
minutes;
3. Upgrade is successful once the upgrade progress bar reaches 100%. Main Unit will restart auto-
matically;
4. In case of upgrade failure, repeat the above steps to upgrade again.
Attention:
· Main Unit must be placed within 3 meters of the wireless router during the upgrade process. Otherwise there is a
chance of upgrade failure.
· All necessary permissions must be granted to ZOLAR™ Mobile App. Otherwise there is a chance of upgrade failure.
16
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
ZOLAR™ Vega 30C User Manual

Operation Guide
Correlated Color Temperature（CCT）Mode
1. Press Mode Button [27] on the Main Unit Controller [16] during standby mode, rotate Rotary
Encoder [26] to select CCT, press to enter CCT menu;
2. Press F1 Button [32] to enter CCT adjustment mode;
3. Rotate Rotary Encoder [26] clockwise to increase color temperature. Each click increases 50K.
Highest value is 5,600K;
4. Rotate Rotary Encoder [26] anti-clockwise to decrease color temperature. Each click decreases
50K. Lowest value is 3,200K;
5. Press F1 Button [32] again to lock the current color temperature, and quit the CCT adjustment
mode.
Green-Magenta Adjustment
Graphic: CCT Adjustment Interface
© 2022 深圳视觉科技有限公司 版权所有
17
Version 1.0.0
G/M
Correlated Color Temperature Adjustment
CCT Mode is a simple white light control mode that controls CCT and Intensity, also provides a
balance adjustment of the Green-Magenta hue.
CCT
20000K
0.00
1. Press F2 Button [31] on the Main Unit Controller [16] during CCT Mode to enter G/M adjustment
mode;
2. Rotate Rotary Encoder [26] clockwise to increase green hue and decrease magenta hue. Each
click increases 0.01. Highest value is 1.00;
3. Rotate Rotary Encoder [26] anti-clockwise to increase magenta hue and decrease green hue.
Each click decreases 0.1%. Lowest value is -0.01;
4. Press F2 Button [31] again to lock the current hue, and quit the G/M adjustment mode.
Graphic: G/M Adjustment Interface
ZOLAR™ Vega 30C User Manual

© 2022 深圳视觉科技有限公司 版权所有
18
Version 1.0.0
Intensity Adjustment
1. Press F3 Button [30] on the Main Unit Controller [16] during CCT Mode to enter Intensity
adjustment mode;
2. Rotate Rotary Encoder [26] clockwise to increase intensity. Each click increases 0.1%. Highest
value is 100%;
3. Rotate Rotary Encoder [26] anti-clockwise to decrease intensity. Each click decreases 0.1%.
Lowest value is 0%;
4. Press F3 Button [30] again to lock the current intensity, and quit the intensity adjustment mode.
Graphic: Intensity Adjustment Interface
CCT
20000K
Intensity
ZOLAR™ Vega 30C User Manual

© 2022 深圳视觉科技有限公司 版权所有
19
Version 1.0.0
HSI Mode
Hue Adjustment
Saturation Adjustment
HSI Mode is used to control Hue, Saturation and Intensity.
亮度色温
色温 Saturation
Hue
1. Press Mode Button [27] on the Main Unit Controller [16] during standby mode, rotate Rotary
Encoder [26] to select HSI, press to enter HSI menu;
2. Press F1 Button [32] to enter Hue adjustment mode;
3. Rotate Rotary Encoder [26] anti-clockwise to increase hue value. Each click increases 0.1°.
Highest value is 360.0°;
4. Rotate Rotary Encoder [26] clockwise to decrease hue value. Each click decreases 0.1°.
Lowest value is 0.0°;
5. Press F1 Button [32] again to lock the current hue, and quit the Hue adjustment mode.
Graphic: Hue Adjustment Interface
1. Press F2 Button [31] on the Main Unit Controller [16] during HSI Mode to enter Saturation
adjustment mode;
2. Rotate Rotary Encoder [26] clockwise to increase saturation. Each click increases 0.01%. Highest
value is 100%;
3. Rotate Rotary Encoder [26] anti-clockwise to decrease saturation. Each click decreases 0.01%.
Lowest value is 0%;
4. Press F2 Button [31] again to lock the current saturation, and quit the Saturation adjustment mode.
Graphic: Saturetion Adjustment Interface
ZOLAR™ Vega 30C User Manual

© 2022 深圳视觉科技有限公司 版权所有
20Version 1.0.0
xy Coordinate Mode
x Coordinate Adjustment
y Coordinate Adjustment
xy Coordinate Mode determines the color displayed in the CIE 1931 color gamut by adjusting the xy
coordinate value. The Intensity can be adjusted as usual.
x y
1. Press Mode Button [27] on the Main Unit Controller [16] during standby mode, rotate Rotary
Encoder [26] to select xy Coordinate Mode, press to enter xy Coordinate menu;
2. Press F1 Button [32] to enter x Coordinate Adjustment mode;
3. Rotate Rotary Encoder [26] clockwise to increase x value. Each click increases 0.001;
4. Rotate Rotary Encoder [26] anti-clockwise to decrease x value. Each click decreases 0.001;
5. Press F1 Button [32] again to lock the current x Coordinate, and quit the x Coordinate adjustment
mode.
Graphic: x Coordinate Adjustment Interface
1. Press F2 Button [31] on the Main Unit Controller [16] during xy Coordinate Mode to enter y
Coordinate Adjustment mode;
2. Rotate Rotary Encoder [26] clockwise to increase y value. Each click increases 0.001;
3. Rotate Rotary Encoder [26] anti-clockwise to decrease y value. Each click decreases 0.001;
4. Press F1 Button [32] again to lock the current y Coordinate, and quit the y Coordinate adjustment
mode.
Graphic: y Coordinate Adjustment Interface
ZOLAR™ Vega 30C User Manual
