Zagg ProCut M12 User manual


ProCut M12
User Guide
PLEASE NOTE THIS MACHINE IS TO BE
USED FOR COMMERCIAL USES ONLY.

2IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ THESE IMPORTANT SAFETY INSTRUCTIONS
THIS DEVICE IS INTENDED FOR RETAIL USE ONLY
WARNING
To reduce the risk of fire, electrical shock or personal injury, it is important that you read and
understand all the instructions and warnings that come with InvisibleShield on Demand (ISOD)
ProCut M12 Electronic Cutter Machine (“Product”).
ELECTRICAL SHOCK HAZARD
Product is an electrical device. Use with caution. Observe the following precautions:
• Do not operateProduct onwet surfaces or near any water sources (tub, shower, sink, etc.).
• Keep liquids and beverages away from Product.
• Unplug Product from outlet when not inuse or before cleaning.
• Unplug Product when removing or installing Blades or Blade Holder.
PINCH HAZARD
Cutting Carriage can pinch fingers or hand. Feed Rollers can catch hair or clothing.
• Keep fingers away from moving parts.
• Keep hair and clothing away from moving parts.
CUTTING HAZARD
Cutting Blades are sharp.Handle with care.
• Keep fingers away from exposed blade.
Keep away from Children
• Choking hazard. Small parts.
GENERAL SAFETY RULES:
• Read and understand all the instructions and warnings that come with the Product.
• Always operateProduct ona dry, clean, level surface.
• Do not operateProduct with wet hands.
• Keep areaof operationwell lit.
• Do not operateProduct near flammable liquids or gases.
• Do not operateProduct out of doors.
• Do not unplug Product by tugging or pulling the power cord.
SAVE THESE INSTRUCTIONS AND WARNINGS andkeep them near your ProCut M12 Machine.
Please visit zaggisod.com/docs/ for more information.
NOTICEThe device complies with Part 15 of the FCC Rules.Operation is subject to the following two
conditions:(1) this device may not causeharmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

3
4
1
7
CONTENTS
CONTENTS
1. ISOD ProCut M12 (616 x 154 x 190mm)
2. Tablet Mount
3. Tablet
4.
5.
6.
7.
Universal Power Supply
Blade Holder
USB-C Cord
Power Cord (Region Specic)
CONTENTS
Optional Extras
12" x 24" XL Cutting Mats also available (sold separately). Visit http://zaggisod.com/docs/contact.html to see a complete selection
of available accessories.
00000-00000-00000-00000
eCAL lite
00000-00000-00000-00000
eCAL lite
Helvetica Nue 35 Thin
Adobe Jenson Pro
eCAL lite
application window for booklet page 3
Helvetica Nue 65 Medium
eCAL lite
Access Code Sticker
5
1
-
2
3
4
2
3
6

4
Right Side of Machine
Depth Selection
Arrow

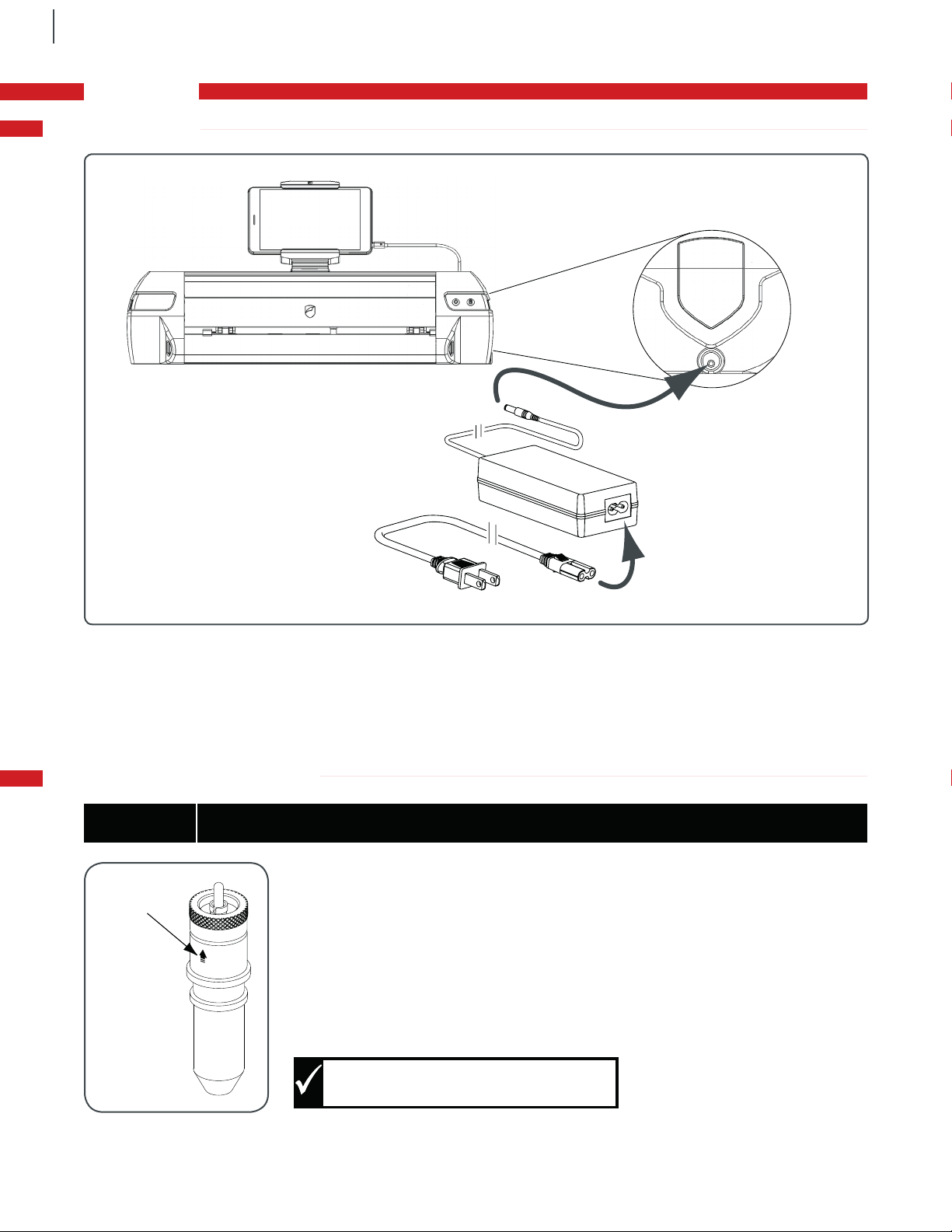

1. Plug Power Cord into Universal Power Supply.
2. Plug Universal Power Supply into sideof ISOD ProCut M12 Machine.
3. For Bluetooth®connection instructions please see zaggisod.com/docs/.
CONNECTING
SET UP
DO NOT adjust blade depth while ProCut M12 Machine is operating.
NOTICE
SET UP
SETTING THE BLADE DEPTH
Lower Number for Thinner Material
Higher Number for Thicker Material
Printed on a ring around the Blade Holder Top are Blade Depth Settings,ranging from 1
to 9. These numbers can be selected individually by setting theDepth Selection Arrow on the
number relative tothe material you will be cutting.
As a general rule, thinner materials, require alowernumber Blade Depth Setting,
require a higher numberBlade Depth setting.
For optimal results, try a test cut and make the necessary adjustments to thesettings
before performing the final cut.
while thicker materials
1
-
2
3
4

5
Lift open Machine Cover to
expose Carriage and Blade
Holder Clamp.
LoosenClamp by turning
Clamp Screwcounterclockwise,
approximately 1/2 of a turn.
Place Blade Holder intoClamp,
making sure that Depth Selection
Arrow is facing out.
1 2 3
Rollers
Guides
Angled
Cutting Edge
Safety Cap
Insert this end
into Blade Holder
Non-Cutting End
Tighten Blade Holder by turning
the Clamp Screw clockwise, until
Blade Holder is secure.
4
SET UP
CAUTION: CUTTING HAZARD Blade is sharp, handle withcare.
WARNING: MOVING PARTS Keep ngers, hair and clothing away.
CAUTION: CUTTING HAZARD Keep ngers away from exposed blade.
CAUTION: Always unplug ProCut M12 Machine before removing or installing Blade Holder.

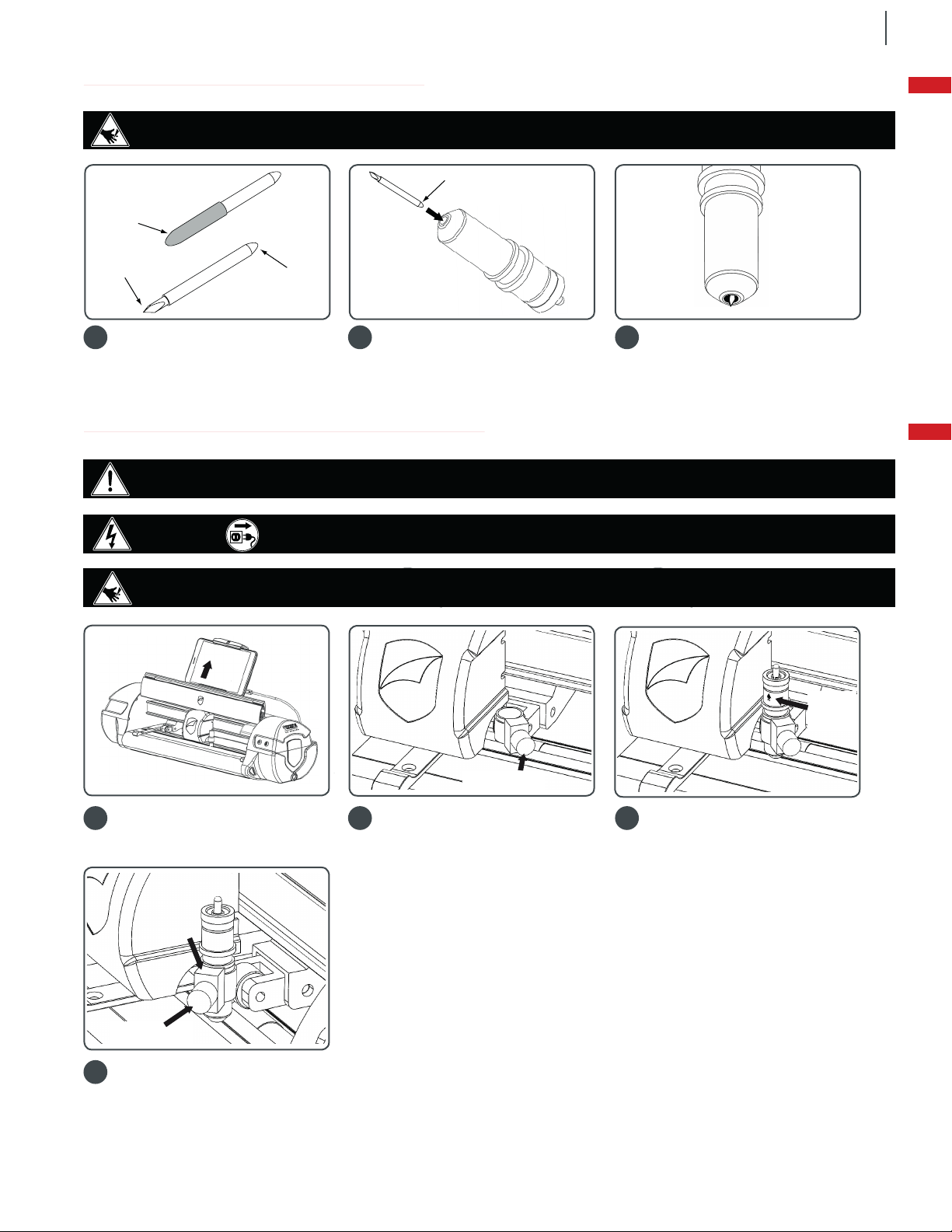

INSTALLING THE CUTTING BLADE HOLDER
Carefully remove Safety Cap from
Blade, exposing Angled Cutting
Edge.
Carefully insert Non-Cutting End
of Blade intohole at bottom of
Blade Holder. Blade is held in
place magnetically.
Note that Bladeis exposed, but
barely visible, when inserted
properly.
1 2 3
INSERTINGTHE BLADE INTOTHE BLADE HOLDER
Clamp Screw
Depth
Arrow
Clamp
Clamp Screw

6TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
ZAGG PROCUT
Processor
Memory
Size
Weight
Color
Housing Disassemble
Main Material
Power
Input
Recharge Input
Output
Working Environment
Waterproof
Max Media Width
Max Cutting Width
Cutting Precision
Max Linear Cutting Speed
Max Curve Cutting Speed
Max Cutting Force
Bluetooth
Output RF dBm (EIRP)
Operating Frequency
Antenna Type (dBi)
Modulation
Power Supply Type
PNL
Machine
Power Adaptor
Power Cord
USB-C Cable
Tablet Holder
Blade Holder
PRODUCT NAME
Basic Info
Machine
Work
Data Connection
Interface
In Box/Parts
MODEL NO: M12
STM32F103 RET6
Flash 16GB
616 x 154 x 190mm
9.1 Kgs
Grey + Red
Main Board + Plastic Case + Hardware Body + Cutting Blade
Plastic + Metal
48W
AC100-240V 1.5A 50-60Hz
DC5V 1A
24V 2.7A DC
+5°C - +35°C
No
368mm
307mm
0.09mm
250mm/s
200mm/s
750g
2.4G
0.5dBm
2400-2483.5MHz
1.5dBi
GFSK
AC Adapter
Yes
x1
x1
x1
x1
x1
x1
