Zanussi BHHPTB08L 865307 User manual

ZANUSSI
P R O F E S S I O N A L
HANDLING SYSTEM for HOOD TYPE DW
PRE-WASH TABLES L>R
865309
SINGLE PLASTIC SYPHON 2" 1 1 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 6 8 8 12 16
Max. speed, m/min
Basin dimensions 500x400x300h 500x400x300h 600x500x300h 500x400x300h 500x400x300h
height 300 300 300 300 300
Upstand dimensions - mm
height 1170 1170 1170 1170 1170
depth 745 745 745 745 745
width 800 1200 1200 1400 1800
External dimensions - mm
BHHPTB08L
865307
BHHPTB12L
865309
BHHPT6B12L
865315
BHHPTBH14L
865311
BHHPTB18L
865313
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
Some Zanussi dishwasher models
can perform to their full potential, if
combined with the Zanussi Handling
System range. The modular system
allows to design ergonomic and
reliable solutions to handle, transport
and sort kitchenware, obtaining the
most effective flow in the
dishwashing room. The Basic range
has been specifically designed to
create an ergonomic and efficient
small dishwashing area to satisfy
specific capacity and space
requirements. The range consists of
loading and unloading tables,
prewash tables and sorting units.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� The tables are supplied
knocked-down and are easy to
assemble.
� As standard, the tables are to be
secured to the dishwasher and fitted
with one pair of legs at the other
end.
� The stainless steel feet can be
adjusted ± 50 mm to ensure that the
tables drain back into the
dishwasher.
� All models incorporate an overflow
siphon.
� Model 865311 is equipped with a
scraping hole.
� 700x500x300mm bowl is available
upon request.
� Splashback included on all tables.
� Designed for 500x500 mm
dishwashing racks.
� Can be equipped with useful
accessories such as plain
undershelves and pre-rinse units.
� The deep anti-drip profiles are
completely folded with a lower edge
for safe and easy cleaning.
� All surfaces are smooth with a
polished finish.
� Constructed in AISI 304 stainless
steel.
� Square 40x40 mm tubular legs in
AISI 304 stainless steel.
� 98% recyclable by weight.
� CFC free packaging.
� Developed and produced in ISO
9001 certified factory.

EADC2 2012-07-26 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
UNDERSHELF FOR DISHWASHING TABLES 800MM 865351
UNDERSHELF FOR DISHWASHING TABLES
1800MM
865354
UNDERSHELF FOR DISHWASHING TABLES
1400MM
865353
UNDERSHELF FOR DISHWASHING TABLES
1200MM
865352 865352
STRAINER BASKET FOR PREWASH TABLES 864068 864068 864068 864068
PRE-WASH SPRAY UNIT,SINGLE HOLE 855315 855315 855315 855315 855315
FLOOR FASTENING KIT FOR 2 SQUARE LEGS 865386 865386 865386 865386 865386
BASKET GUIDE FOR DW TABLES W/BOWL 600MM 865370
BHHPTB08L
865307
BHHPTB12L
865309
BHHPT6B12L
865315
BHHPTBH14L
865311
BHHPTB18L
865313
ACCESSORIES MODELS
OPTIONAL ACCESSORIES

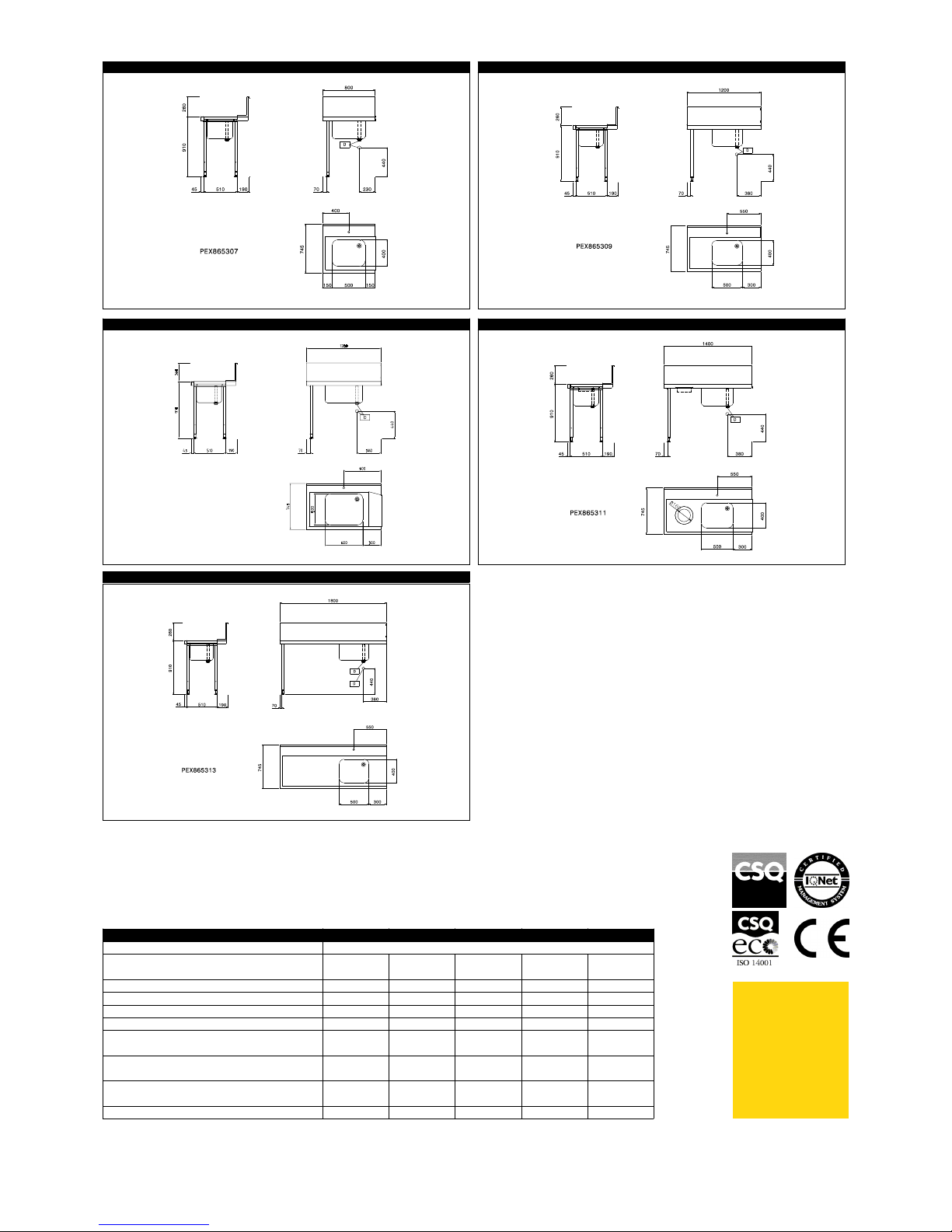

865307 865309
865315 865311
865313
