Zanussi ZPO1BPC Operator's manual

ZPO1BPC Pizza Oven Manual &
Safety Instructions
WARNING: PLEASE ENSURE YOU HAVE READ THROUGH THE
SAFETY AND OPERATING INSTRUCTIONS BEFORE USE.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
For Customer Services & Spare Parts pleasecall 03301230597
Or visit us at zanussiheatingandcooling.uk
Please scan the QR code for step by step video
assembly instructions. Alternatively, you can visit:
zanussiheatingandcooling.uk. From here, please select
the product that you are looking to build and view the
‘How To’ video located at the bottom of the page.

Safety Instructions
3-5
Parts List & Feature Diagram
6
Pizza
Oven Assembly 7-17
Lighting
And Extinguishing Your Pizza Oven 18-20
Cooking With
Your Pizza Oven 21-22
Cleaning Instructions
23
Troubleshooting
24-25
Guarantee and Customer Services
26
2
ZPO1BPC
ZPO1BPC Pizza Oven

SAFETY INSTRUCTIONS
WARNING: IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Before you start to build and use your pizza oven, please read these
instructions thoroughly:
•Please dispose of all plastic bags carefully and keep them away from
children.
•Check all the parts provided against the list in this instruction manual to
make sure you have all of the parts listed. If not, contact your local store
who will be able to help you.
•Take a few moments to familiarize yourself with the contents and before
starting, check all holes are clear of any paint residue.
•When you are ready to start, make sure that you have plenty of space and
a clean dry area for assembly.
•Important - Whilst every care is taken in the manufacture of this product,
care must be taken during assembly in case sharp edges are present.
Please read and follow this advice when cooking on your grill:
•ALWAYS wash your hands before or after handling uncooked meat and
before eating.
•ALWAYS keep raw meat away from cooked meat and other foods.
•Before lighting your oven, ensure pizza oven grill surfaces and tools are
clean and free of old food residues.
•DO NOT use the same utensils to handle cooked and uncooked foods.
•Ensure all meat is cooked thoroughly before eating.
•CAUTION - eating raw or under cooked meat can cause food poisoning
(e.g. bacteria strains such as E.coli).
•To reduce the risk of under cooked meat, cut it open to ensure it is
cooked all the way through internally before consuming.
•CAUTION - if meat has been cooked sufficiently the meat juices should
be clear in colour and there should be no traces of pink/red juices or meat
colouring.
3
ZPO1BPC

•Pre-cooking of larger meat of joints is recommended before finally
cooking in your pizza oven.
•After cooking with your pizza oven always clean the grill cooking surfaces
and utensils.
Safety Warnings:
•WARNING –Pellet pizza oven give off CARBON MONOXIDE when used,
which is poisonous and can kill. DO NOT use a pizza oven indoors or
either in a tent, caravan or awning.
•WARNING - Do not use indoors! OUTDOOR USE ONLY. Do not use the
pizza oven in a confined and/or habitable space e.g. houses, tents,
caravans, motor homes, boats. Danger of carbon monoxide poisoning
fatality.
•DO NOT use this product as a furnace.
•Ensure that the product is positioned on a permanent, flat, level, heat
resistant, non-flammable surface always from flammable items, including
wooden fences or overhanging trees.
•Ensure the product has a minimum of 2 meters overhead clearance and
has a minimum of 2 m clearance from other surrounding items.
•WARNING! Do not use spirit or petrol for lighting or relighting! Use only
firelighters complying to EN 1860-3!
•DO NOT handle or move the product whilst alight as it will become hot.
•NEVER leave a burning fire unattended.
•Keep children and pets at a safe distance from the product when in use.
•DO NOT cook before the fuel has a coating of ash.
4
ZPO1BPC
Carbon Monoxide
Poisoning Hazard
Do not use in
Motor Homes
Do Not Use
Indoors
Do Not Use in
Tents
Use in open
Spaces

•The pizza oven shall be heated up and the fuel kept red hot for at least 15
minutes prior to the first cooking on the pizza oven.
•Always use heat resistant gloves when handling the product. Do not
touch any metal parts while the pizza oven is in use; only touch the oven
door, hopper assembly, pizza peel, and fire box assembly using the
handles provided.
•Still be careful when using the handles to operate the oven door, hopper
assembly, pizza peel, and fire box, as metal parts of the pizza oven are
likely to become hot.
•Ensure that the pizza oven has cooled down completely before removing
ash.
•Keep a fine water sprayer at hand to extinguish any small flare-ups;
otherwise, use baking powder or salt to extinguish if the fire increases in
size.
•To extinguish the unit - stop adding fuel and allow the fire in the pizza
oven to die or douse with water.
•To prolong the life of your pizza oven grill do not leave it outside
unprotected, use a suitable pizza oven cover when not in use.
•DO NOT store flammable materials near this product.
•DO NOT use aerosols near this pizza oven.
•DO NOT use coal in this product.
•DO NOT attempt to move the product when it is hot or in using.
•Flames may blow outside of the metal in the ways noted below:
A. at the back, where flames burn;
B. from the top of hopper assembly when the lid is opened;
C. from the front of the pizza oven when the door is opened;
D. from the top of the chimney.
•Modification of the pizza oven may be dangerous, is not permitted, and
will nullify any warranty.
•Failure to follow the instructions in this manual could result in serious
injury or property damage.
5
ZPO1BPC

You will need:
PART DESCRIPTION QTY PART DESCRIPTION QTY
A Pizza oven body
assembly
1 J Pizza stone 1
B Chimney pipe 1 K Oven door 1
C Hopper shovel 1 L Door handle 1
D Hopper assembly 1 M Chimney lid 1
E Pellet grid 1 N Ash tray support brackets 1
F Fire box assembly handle 1 O Screw (M4x10) 4
G Fire box assembly 1 P Pizza peel 1
H Ash tray 1 Q Storage/Carry Bag 1
I Poker 1
6
ZPO1BPC
N
O
P
WHAT’S INCLUDED?
Here’s everything you need
Q

PIZZA OVEN ASSEMBLY
STEP 1 –Unfoldingthe legs
•With assistance, place the pizza oven body assembly (A)
upside down on a soft, level surface.
•Then unfold all four legs (which come pre-assembled),
as illustrated in the diagram below.
7
ZPO1BPC
A

PIZZA OVEN ASSEMBLY

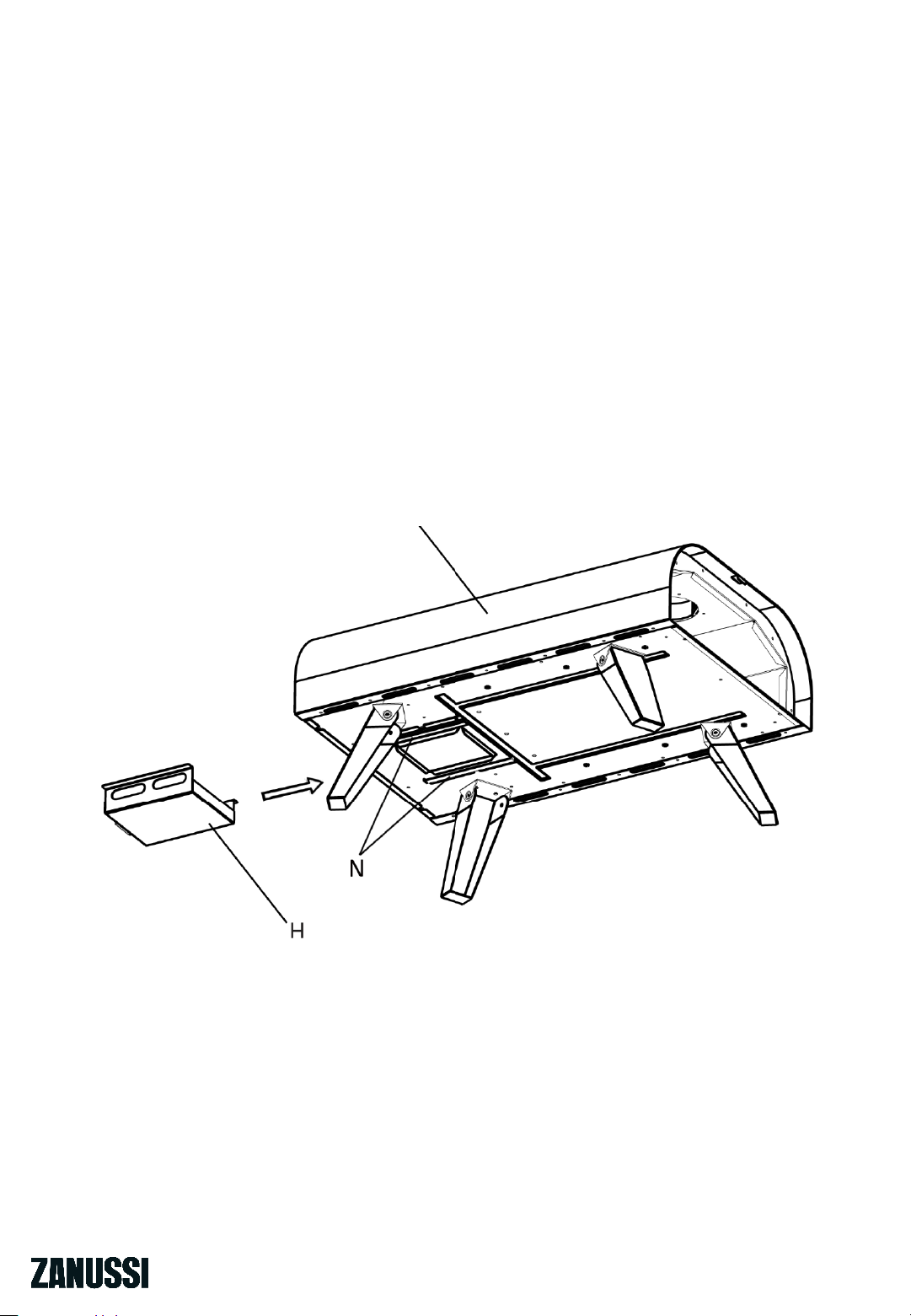

STEP 2 –Attaching the ash tray
•Attach the ash tray (H) to the pizza oven body assembly
(A), by sliding it into the ash tray support brackets (N),
as illustrated in the diagram below.
8
ZPO1BPC
A

PIZZA OVEN ASSEMBLY
STEP 3 –Installing the hopper assembly
9
ZPO1BPC
•Flip over the pizza oven body assembly (A), so that the legs
are now placed on a flat level surface.
•Install the hopper assembly (D) to the pizza oven body
assembly (A) with 2 of the screws (O) provided, as illustrated
in the diagram below.
•Tighten the screws with a screwdriver.
OX 2

PIZZA OVEN ASSEMBLY
STEP 4 –Inserting the pizza stone
•Slide the pizza stone (J) into the pizza oven assembly
(A) as illustrated in the diagram below.
10
ZPO1BPC

PIZZA OVEN ASSEMBLY
STEP 5 –Assembling the door
ZPO1BPC
•Attach the door handle (L) to the oven door (K) with 2 of the
screws (O) provided, as shown in the diagram below.
•Tighten the screws with a screwdriver.
OX 2
11

PIZZA OVEN ASSEMBLY
STEP 6 –Assembling the chimney pipe
•Place the chimney pipe (B) into the pizza oven body assembly
(A), making sure the marker on the chimney pipe (B) is aligned
with the marker on the pizza oven body assembly (A).
•Then by hand, turn the pipe anti-clockwiseto secure it in
position, as shown in the diagram below.
•Place the chimney lid (M) into the chimney pipe (B), pushing
down to secure it. The bottom of the chimney lid (M) should be
fully covered by the chimney pipe (B).
ZPO1BPC 12

PIZZA OVEN ASSEMBLY

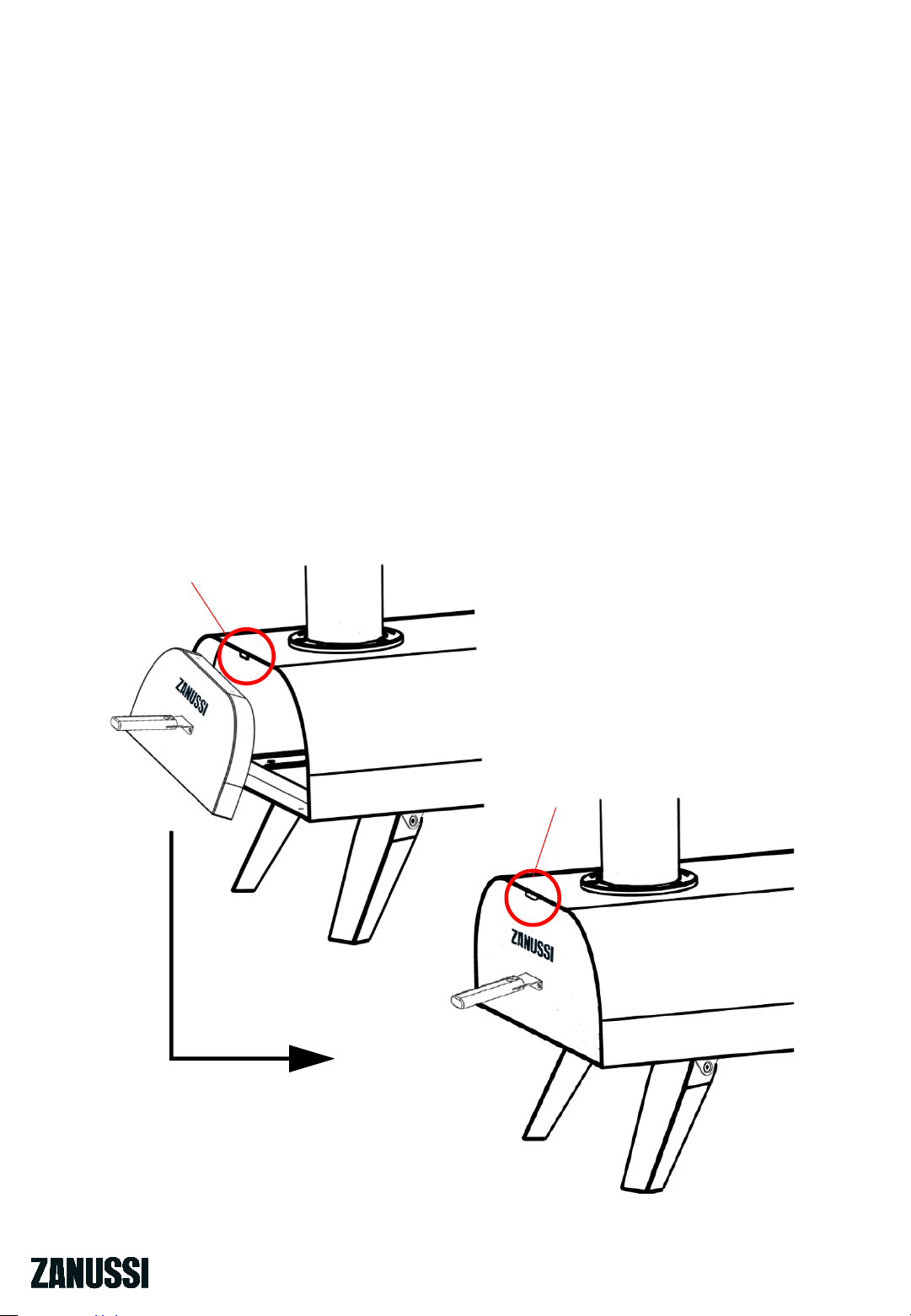

STEP 7 –Operating the oven door
•The pizza oven body assembly (A) has a lip at the top of the space
where the oven door (K) is placed. This means that the oven door
(K) must be inserted into the pizza oven body assembly (A) at an
angle.
•Using the door handle (L) to operate the oven door (K), hook the
oven door (K) behind the lip, and then push the bottom of the oven
door (K) into place. This will secure the door shut.
•To remove the oven door (K), use the door handle (L) to pull the
bottom of the door out first. The oven door (K), should now be able
to be removed.
ZPO1BPC 13
Lip
Lip

PIZZA OVEN ASSEMBLY
STEP 8 –Assembling the fire box
•Place the pellet grid (E) into the fire box assembly (G).
•Then slide the assembled fire box into the pizza oven
body assembly (A), as illustrated in the diagram below.
ZPO1BPC 14

PIZZA OVEN ASSEMBLY

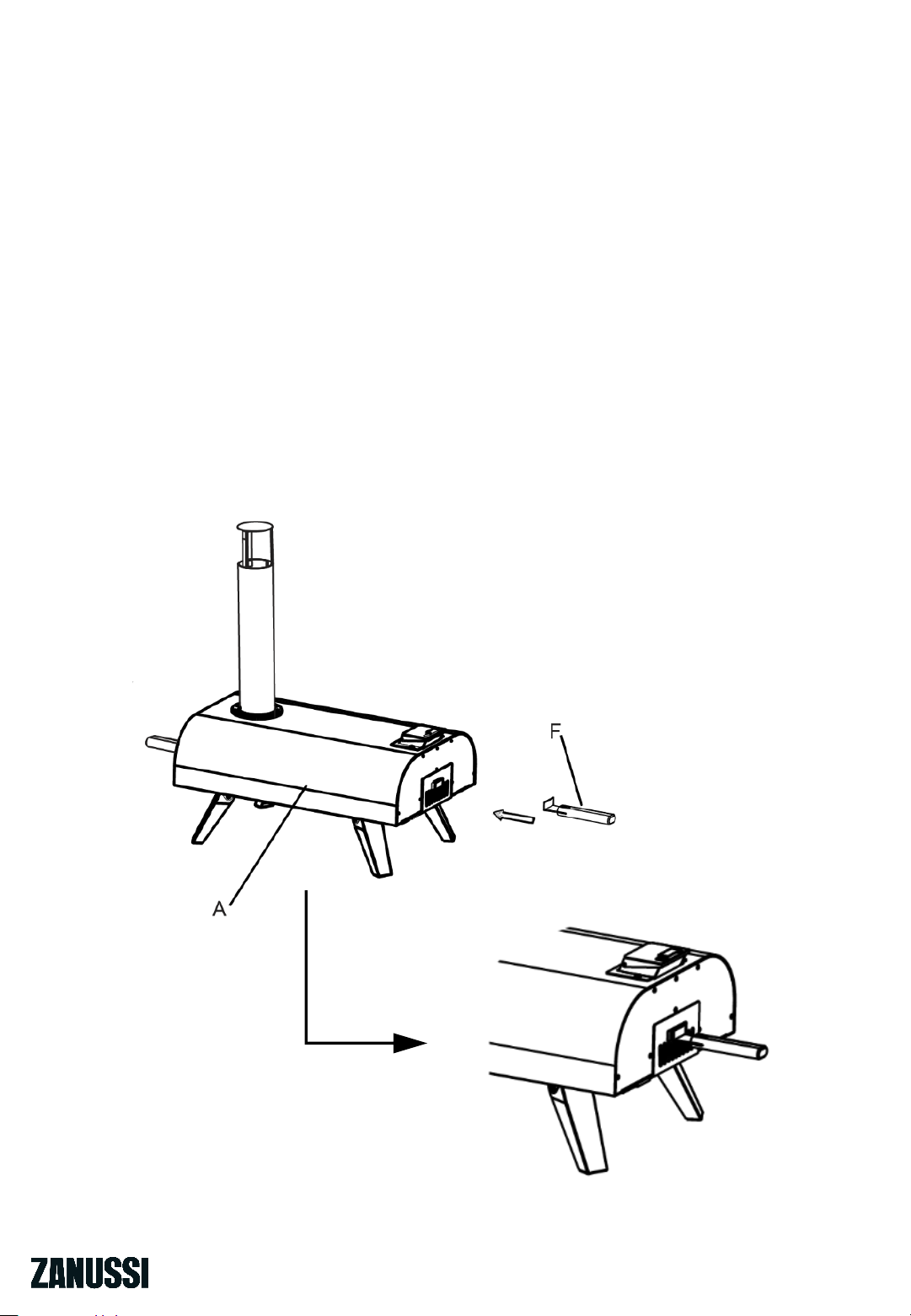

STEP 9 –Using the fire box assembly handle
•The fire box assembly handle (F) comes already assembled and
ready to use.
•This can be done by hooking the metal end of the fire box
assembly handle (F) into the bracket on the fire box assembly (G),
or the ash tray (H), or the lid of the hopper assembly (D).
•Do not leave the fire box assembly handle (F) attached to any of
the locations mentioned above while the pizza oven is in use, as it
may get hot.
ZPO1BPC 15

PIZZA OVEN ASSEMBLY

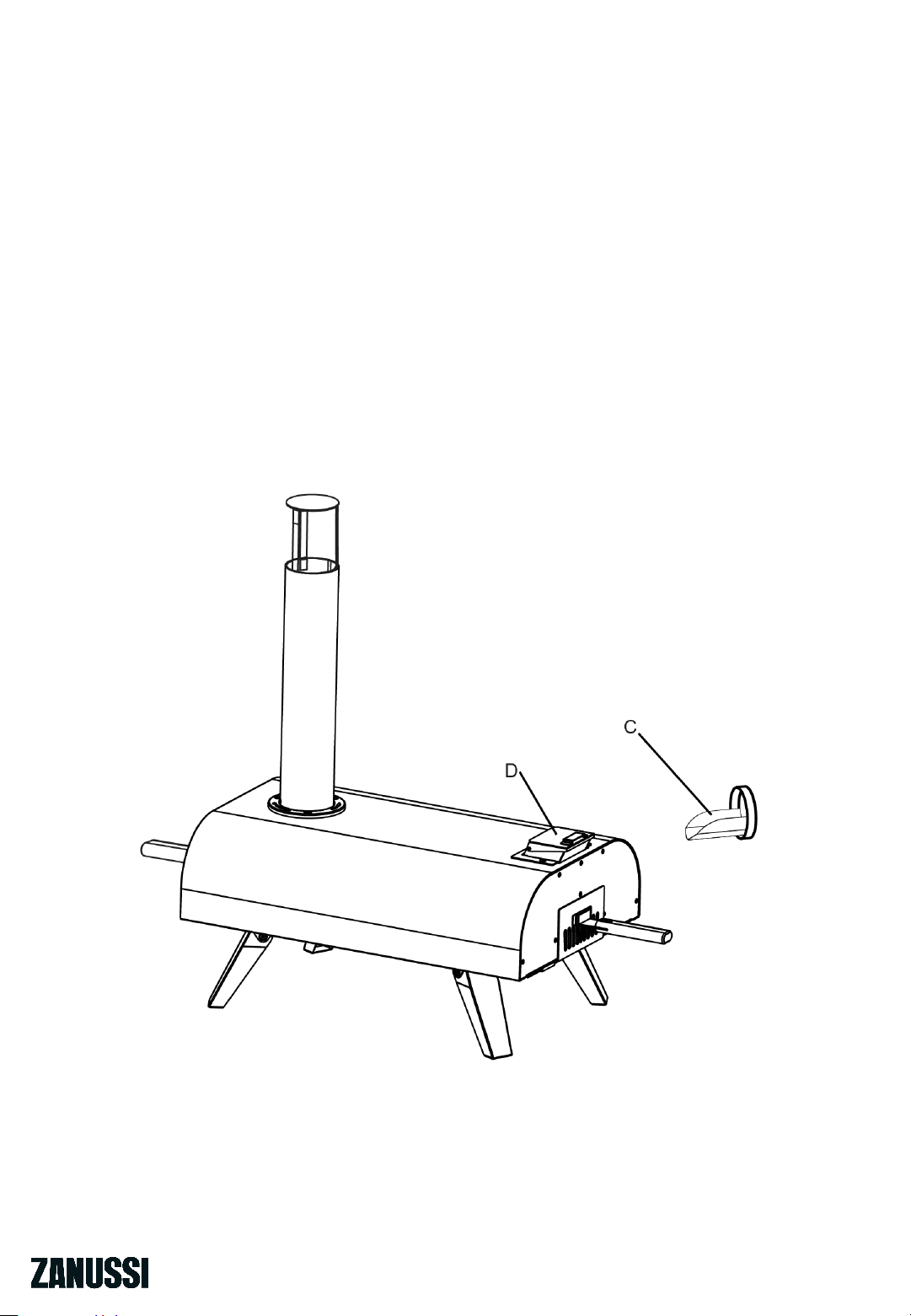

STEP 10 –Using the hopper shovel
•The hopper shovel (C) can be used to shovel wood chips into
the hopper assembly (D), as illustrated in the diagram below
•The hopper shovel (C) can also be used to cover the chimney
pipe (B) while the pizza oven is in storage, once the chimney
lid (M) has been removed.
ZPO1BPC 16

PIZZA OVEN ASSEMBLY
STEP 11 –Using the storage/carrybag
•The storage/carry bag (Q) can be used to help easily store
and transport the pizza oven, as long as the pizza oven is
completely cool.
•The pizza oven and all accessories should only be stored and
transported once cooled and cleaned; please see page 23 for
further cleaning instructions.
•To store the pizza oven, remove the chimney pipe (B) and
chimney lid (M) and place them inside of the cooled pizza
oven body assembly (A), along with the hopper shovel (C), fire
box assembly handle (F), poker (I) and pizza peel (P). Ensure
the oven door (K) is securely closed once all of these are
inside.
•Then wrap the bag around the pizza oven as shown below.
•Flip over the pizza oven and fold the legs down; the straps can
now be threaded and tightened to secure the pizza oven into
the storage/carry bag (Q).
•Flip the pizza oven back over, and use the carry handles on the
storage/carry bag (Q) to help transport and store the pizza
oven.
ZPO1BPC 17

ZPO1BPC 18
Using Pellets:
•Only wood pellets should be burnt in this pizza oven.
•Lightweight, and super efficient, cooking with pellets gives you a wood-
fired experience with minimal fuss.
•You can use either softwood or hardwood pellets; both are fine.
•Pellets have a low moisture content and the result is a small amount of
ash left over after you finish cooking.
•Always store your pellets in an airtight container. If left open, moisture
from the atmosphere can be absorbed by the pellets which will affect
their burn.
STEP 1
Remove the hopper shovel (C) from the top of the chimney pipe (B) and
make sure the chimney lid (M) is on top of the chimney pipe (B).
STEP 2
Place the oven door (K) into position and make sure to only take it off when
adding or adjusting your food.
LIGHTING & EXTINGUISHING
Your Pizza Oven
STEP 3
Take out the pellet grid and fire box
assembly (E & G) with the handle (F),
and use the hopper shovel (C) to
place 100% natural wood pellets
inside, to the level shown in the
diagram below (approx. 300g).
STEP 4
Place the fire box assembly (G) onto
an even and non-flammable surface.
Ignite the hardwood pellets with an
igniter or fire starter and wait for
around 45-90 seconds to allow the
fire to spread.

ZPO1BPC 19
STEP 5
Put the pellet grid and fire box
assembly (E & G) into the back of pizza
oven using the handle (F), place the
oven door (K) in position, and close the
lid of the hopper assembly (D). Allow
this to keep burning for around 18
minutes.
STEP 6
Open the lid of the hopper assembly
(D) carefully with the handle (F), and
add more hardwood pellets (approx.
450g) using the hopper shovel (C).
STEP 7
Close lid of the hopper assembly (D)
with the handle (F), and wait for 2-3
minutes. When the flames appear at
the top of the chimney pipe (B) again,
the oven is now ready to cook your
food! Proceed to follow the
instructions featured on the ‘Cooking
with your pizza oven’ page.
STEP 8
Ensure that you top up the pellets little
and often so that they maintain the
same level in the hopper assembly (D).
Maintaining the same level throughout
your cook allows for consistently high
temperatures.

ZPO1BPC
WARNING: Pellets may still be warm and so heat resistant
gloves should be worn when disposing of ash.
WARNING: Do not use spirit or petrol for lighting or re-
lighting. Use only fire-lighters complying to EN 1860-3.
20
STEP 9
After the burning time exceeds 1 hour, please use the poker (I) to remove
the ash/dust in the ash tray (H), so that the pellets can have appropriate air
venting to continue to burning well.
TO EXTINGUISH
Let the pizza oven burn through any remaining pellets and allow the flames
to come down naturally. Leave the pizza oven to cool completely. Do not
remove ashes until the pizza oven has cooled completely. Once cool, follow
the directions on the ‘Cleaning Instructions’ page.
