Zanussi ZKCXL3X1 User manual

zanussi.com\register
ZKCXL3X1
EN User Manual | Built-In Double Oven

VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanussi.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 4
3. PRODUCT DESCRIPTION............................................................................. 7
4. CONTROL PANEL.......................................................................................... 7
5. BEFORE FIRST USE......................................................................................8
6. DAILY USE......................................................................................................9
7. CLOCK FUNCTIONS.................................................................................... 10
8. USING THE ACCESSORIES........................................................................11
9. ADDITIONAL FUNCTIONS...........................................................................12
10. HINTS AND TIPS........................................................................................ 13
11. CARE AND CLEANING.............................................................................. 16
12. TROUBLESHOOTING................................................................................ 19
13. ENERGY EFFICIENCY...............................................................................20
14. ENVIRONMENTAL CONCERNS................................................................21
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
2 ENGLISH

• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Only a qualified person must install this appliance and
replace the cable.
• Do not use the appliance before installing it in the built-in
structure.
• Disconnect the appliance from the power supply before
carrying out any maintenance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons to avoid an electrical hazard.
• The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
• WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements or the surface of the appliance cavity.
ENGLISH 3

• Always use oven gloves to remove or insert accessories or
ovenware.
• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the appliance door opens without restraint.
• The appliance is equipped with an electric
cooling system. It must be operated with
the electric power supply.
• The built-in unit must meet the stability
requirements of DIN 68930.
Cabinet minimum height
(Cabinet under the worktop
minimum height)
875 mm
Cabinet width 560-570 mm
Cabinet depth 550 mm
Height of the front of the
appliance
888 mm
Height of the back of the
appliance
872 mm
Width of the front of the ap‐
pliance
594 mm
Width of the back of the ap‐
pliance
538 mm
Depth of the appliance 568 mm
Built in depth of the appli‐
ance
547 mm
Depth with open door 858 mm
Ventilation opening mini‐
mum size. Opening placed
on the bottom rear side
560x20 mm
Mounting screws 3.5x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
4 ENGLISH

• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche below
the appliance, especially when it operates
or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance is supplied without a main
plug and a main cable.
2.3 Use
WARNING!
Risk of injury, burns and electric shock or
explosion.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of cavity of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Always cook with the appliance door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure the
door is never closed when the appliance
operates. Heat and moisture can build up
behind a closed furniture panel and cause
subsequent damage to the appliance, the
housing unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
ENGLISH 5

• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
• Do not clean the catalytic enamel with
detergents.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
6 ENGLISH

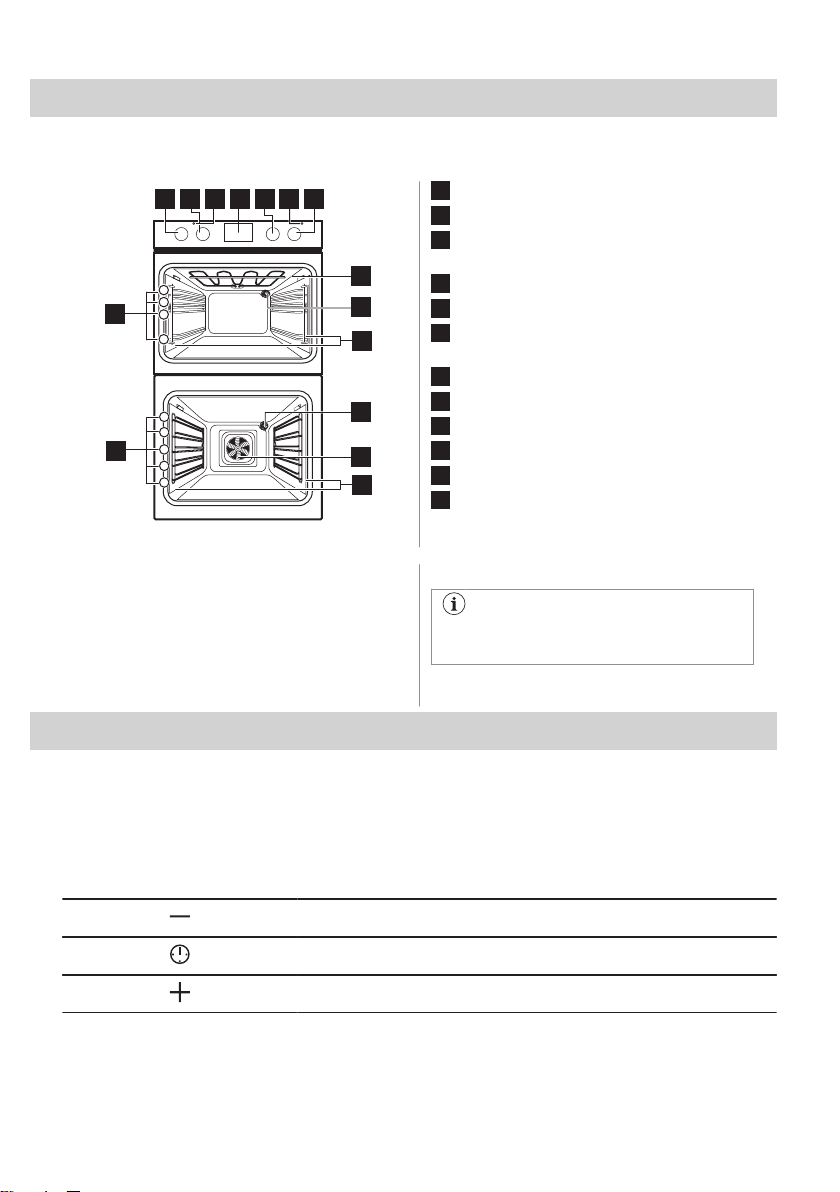

3. PRODUCT DESCRIPTION
3.1 General overview
1 2 4 763
10
9
11
12
1
2
3
4
5
5
8
9
1
2
3
4
12
11
1Knob for the top oven functions
2Knob for the top oven temperature
3Temperature indicator / symbol for the top
oven
4Display
5Knob for the main oven functions
6Temperature indicator / symbol for the
main oven
7Knob for the main oven temperature
8Heating element
9Lamp
10 Fan
11 Shelf support, removable
12 Shelf positions
3.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Trivet
For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
4. CONTROL PANEL
4.1 Retractable knobs
To use the appliance press the knob. The
knob comes out.
4.2 Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
ENGLISH 7

4.3 Display
The display works only with the main
oven.
A B
A. Clock functions
B. Timer
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is
ventilated.
Preheat both ovens. Heat up one oven at a time.

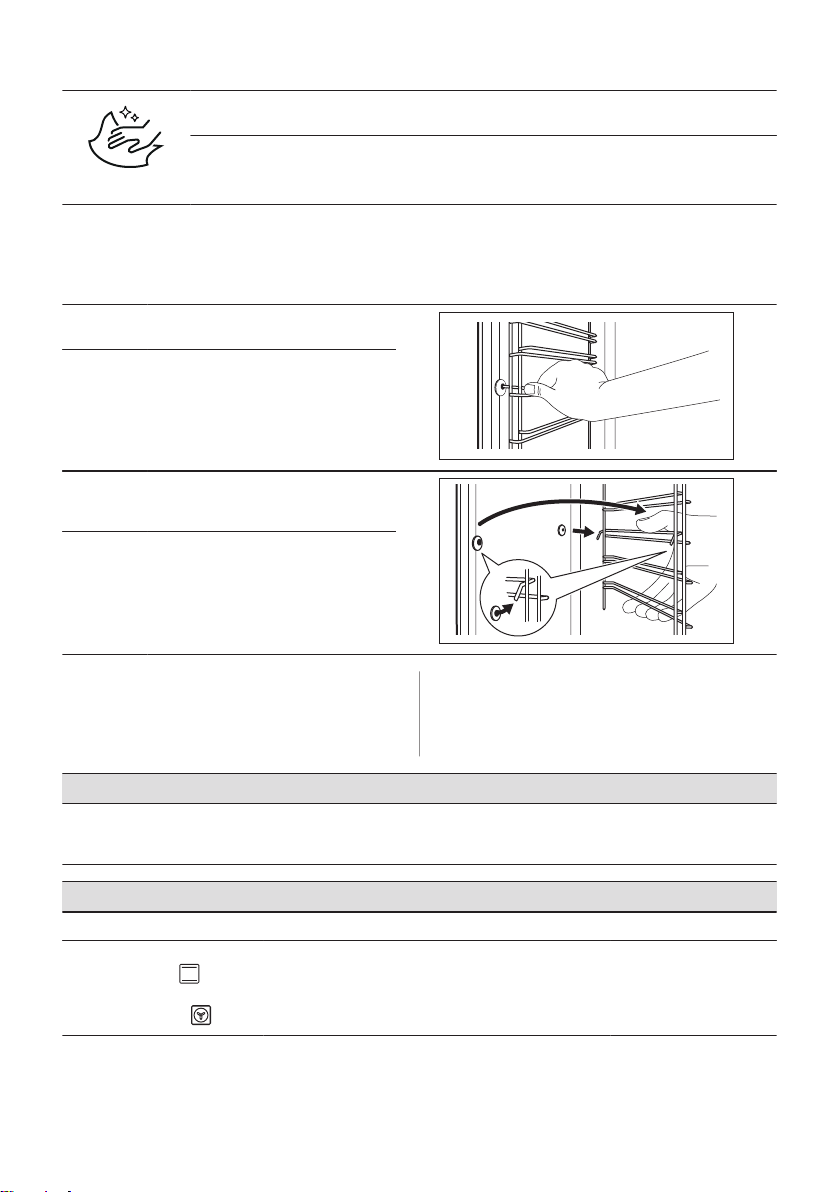

Step 1 Step 2 Step 3
Set the clock Clean the oven Preheat the empty oven
1. , - press to set the time.
After approximately 5 sec., the
flashing stops and the display
shows the time.
1. Remove all accessories and re‐
movable shelf supports from
the oven.
2. Clean the oven and the acces‐
sories only with a microfibre
cloth, warm water and a mild
detergent.
1. Set the maximum temperature
for the function: .
Time: 1 h.
2. Set the maximum temperature
for the function: .
Time: 15 min.
3. Set the maximum temperature
for the function: .
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf supports in the oven.
8 ENGLISH

6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 How to set: Heating function
Step 1 Turn the knob for the heating functions
to select a heating function.
Step 2 Turn the control knob to select the tem‐
perature.
Step 3 When the cooking ends, turn the knobs
to the off position to turn off the oven.
6.2 Top oven functions
Heating function Application
Light
To turn on the lamp.
Conventional Cooking
To bake and roast food on one shelf position.
Top Heat
To brown bread, cakes and pastries. To finish cooked dishes.
Bottom Heat
To bake cakes with crispy bottom and to preserve food.
Grill
To grill thin pieces of food and to toast bread.
Fast Grilling
To grill thin pieces of food in large quantities and to toast bread.
6.3 Main oven functions
Heating function Application
Light
To turn on the lamp.
ENGLISH 9

Heating function Application
True Fan Cooking
To bake on up to two shelf positions at the same time and to dry food.
Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Defrost
To defrost food (vegetables and fruit). The defrosting time depends on the amount and
size of the frozen food.
7. CLOCK FUNCTIONS
7.1 Clock functions
Clock function Application
Time of Day
To set, change or check the time of day.
Only the top oven works without the set time.
Duration
To set how long the oven works.
The function works only for the main oven.
Minute Minder
To set a countdown. This function has no effect on the operation of the
oven. You can set this function at any time, also when the oven is off.
7.2 How to set: Clock functions
How to set: Time of Day
- flashes when you connect the oven to the electrical supply, when there was a power cut or when the timer is
not set.
, - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to change: Time of Day
Step 1 - press repeatedly to change the time of day. - starts to flash.
Step 2 , - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to set: Duration
Step 1 Set an oven function and the temperature.
Step 2 - press repeatedly. - starts to flash.
10 ENGLISH

How to set: Duration
Step 3 , - press to set the duration.
The display shows: .
- flashes when the set time ends. The signal sounds and the oven turns off.
Step 4 Press any button to stop the signal.
Step 5 Turn the knobs to the off position.
How to set: Minute Minder
Step 1 - press repeatedly. - starts to flash.
Step 2 , - press to set the time.
The function starts automatically after 5 sec.
When the set time ends, the signal sounds.
Step 3 Press any button to stop the signal.
Step 4 Turn the knobs to the off position.
How to cancel: Clock functions
Step 1 - press repeatedly until the clock function symbol starts to flash.
Step 2 Press and hold: .
The clock function turns off after few seconds.
8. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
8.1 Inserting accessories
A small indentation at the top increases
safety. The indentations are also anti-tip
devices. The high rim around the shelf
prevents cookware from slipping of the shelf.
ENGLISH 11

Wire shelf:
Push the shelf between the guide bars of the shelf
support.
Deep pan:
Push the tray between the guide bars of the shelf
support.
8.2 Trivet and Grill- / Roasting pan
Step 1 Put the trivet into a deep pan.
Step 2 Put the deep pan on the recommended shelf position.
Roasting larger pieces of meat or poultry on one
shelf position.
Grilling and toasting thin pieces of food in large
quantities.
Make sure the supports of the wire shelf point up. Make sure the supports of the wire shelf point down.
9. ADDITIONAL FUNCTIONS
9.1 Cooling fan
When the appliance operates, the cooling fan
turns on automatically to keep the surfaces of
the appliance cool. If you turn off the
appliance, the cooling fan can continue to
operate until the appliance cools down.
12 ENGLISH

10. HINTS AND TIPS
Refer to Safety chapters.
10.1 Double oven
Top oven
The top oven is the smaller of the two ovens.
It has 4 shelf positions. Use it to cook smaller
quantities of food. It gives especially good
results when used to cook fruitcakes, sweets
and savoury flans or quiche.
Main oven
The main oven is the bigger of the two ovens.
It is particularly suitable for cooking larger
quantities of food.
10.2 Baking
For the first baking, use the lower
temperature.
You can extend the baking time by 10 – 15
minutes if you bake cakes on more than one
shelf position.
Cakes and pastries at different heights do not
always brown equally. There is no need to
change the temperature setting if an unequal
browning occurs. The differences equalize
during baking.
Trays in the oven can distort during baking.
When the trays are cold again, the distortions
disappear.
10.3 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
baked sufficiently.
The shelf position is incorrect. Put the cake on a lower shelf.
The cake sinks and becomes
soggy or streaky.
The oven temperature is too high. Next time set slightly lower oven tempera‐
ture.
The oven temperature is too high
and the baking time is too short.
Next time set a longer baking time and
lower oven temperature.
The cake is too dry. The oven temperature is too low. Next time set higher oven temperature.
The baking time is too long. Next time set shorter baking time.
The cake bakes unevenly. The oven temperature is too high
and the baking time is too short.
Next time set a longer baking time and
lower oven temperature.
The cake batter is not evenly dis‐
tributed.
Next time spread the cake batter evenly on
the baking tray.
The cake is not ready in the
baking time specified in a rec‐
ipe.
The oven temperature is too low. Next time set a slightly higher oven tem‐
perature.
10.4 Baking
Top oven
Food Temperature (°C) Time (min) Shelf position
Biscuits 170 - 190 10 - 20 2
Bread 200 - 220 30 - 35 1
Bread rolls / buns 170-180 10 - 15 1
ENGLISH 13

Food Temperature (°C) Time (min) Shelf position
Cakes:
- Small & Queen 160 - 170 18 - 25 2
- Sponges 160 - 175 20 - 30 2
- Victoria Sandwich 160 - 170 18 - 25 2
- Madeira 140 - 150 75 - 90 2
- Rich Fruit 140 - 150 120 - 150 2
- Gingerbread 140 - 150 75 - 90 2
- Meringues 90 - 100 150 - 180 2
- Flapjack 160 - 170 25 - 30 2
- Shortbread 130 - 150 45 - 65 2
Casseroles:
- Beef / Lamb 160 - 170 150 - 180 1
- Chicken 160 - 180 75 - 90 1
Fish 170 - 190 20 - 30 2
Fish Pie (Potato Topped) 190 - 200 20 - 30 2
Fruit Pies, Crumbles 190 - 200 30 - 50 2
Milk Puddings 150 - 170 90 - 120 2
Pasta, Lasagne etc. 170 - 180 40 - 50 2
Pastry:
- Choux 180 - 190 30 - 40 2
- Eclairs, Profiteroles 180 - 190 30 - 40 2
- Flaky / Puff Pies 210 - 220 30 - 40 2
Shortcrust:
- Mince Pies 190 - 210 15 - 20 2
- Meat Pies 190 - 210 25 - 35 2
- Quiche, Tarts, Flans 180 - 200 25 - 50 2
Scones 220 - 230 8 - 12 2
Shepard's Pie 180 - 190 30 - 40 2
Souffles 190 - 200 20 - 30 2
Vegetables:
- Baked Jacket Potatoes 180 - 190 60 - 90 2
- Roast Potatoes 180 - 190 60 - 90 2
Yorkshire Pudding:
14 ENGLISH

Food Temperature (°C) Time (min) Shelf position
- Large 200 - 210 25 - 40 1
- Individual 210 - 220 15 - 25 1
10.5 Tips on Roasting
Use heat-resistant ovenware.
Roast lean meat covered (you can use
aluminium foil).
Roast large meat joints directly in the tray.
Put some water in the tray to prevent dripping
fat from burning.
Turn the roast after 1/2 - 2/3 of the cooking
time.
Roast meat and fish in large pieces (1 kg or
more).
If level one is suggested put the food directly
on the baking tray
Baste meat joints with their own juice several
times during roasting.
10.6 Grilling
Always grill with the maximum temperature
setting.
Set the shelf into the shelf position as
recommended in the grilling table.
For grilling in the top oven adjust the shelf
position to suit different thicknesses of food.
Always set the pan to collect the fat into the
first shelf position.
Grill only flat pieces of meat or fish.
Always preheat the empty oven with the grill
functions for 5 minutes.
CAUTION!
Always grill with the oven door closed.
Grilling and Fast Grilling - Top oven
Food Time (min)
Bacon Rashers 5 -6
Beefburgers 10 - 20
Chicken Joints 20 - 40
Lamb Chops 15 - 25
Pork Chops 20 - 25
Whole Fish, Trout / Makarel 10 - 12
Fillets, Plaice / Cod 4 - 6
Kebabs 12 - 18
Kidneys, Lamb / Pig 6 - 10
Sausages 20 - 30
Toasted Sandwiches 3 - 4
Steaks:
- Rare 4 - 6
- Medium 6 - 8
- Well Done 12 - 15
ENGLISH 15

10.7 Defrost - Main oven
Remove the food packaging and put the food
on a plate.
Use the first shelf position from the bottom.
Do not cover the food with a bowl or a plate,
as this can extend the defrost time.
Food Quantity
(kg)
Defrosting
time (min)
Further de‐
frosting time
(min)
Comments
Chicken 1 100 - 140 20 - 30 Put the chicken on an upturned saucer in a big
plate. Turn halfway through.
Meat 1 100 - 140 20 - 30 Turn halfway through.
Meat 0.5 90 - 120 20 - 30 Turn halfway through.
Trout 0.15 25 - 35 10 - 15 -
Strawber‐
ries
0.3 30 - 40 10 - 20 -
Butter 0.25 30 - 40 10 - 15 -
Cream 2 x 0.2 80 - 100 10 - 15 Whip the cream when still slightly frozen in pla‐
ces.
Gateau 1.4 60 60 -
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
Cleaning Agents
Clean the front of the appliance only with a microfibre cloth with warm water and a mild de‐
tergent.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent. Do not apply it on the catalytic surfaces.
Everyday Use
Clean the cavity after each use. Fat accumulation or other residue may cause fire.
Do not store the food in the appliance for longer than 20 minutes. Dry the cavity only with a
microfibre cloth after each use.
16 ENGLISH

Accessories
Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm
water and a mild detergent. Do not clean the accessories in a dishwasher.
Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.
11.2 How to remove: Shelf supports
Remove the shelf supports to clean the oven.
Step 1 Turn off the oven and wait until it is
cold.
Step 2 Pull the front of the shelf support
away from the side wall.
Step 3 Pull the rear end of the shelf support
away from the side wall and remove
it.
2
1
Step 4 Install the shelf supports in the oppo‐
site sequence.
11.3 How to use: Catalytic cleaning
The cavity is coated with catalytic enamel. It
absorbs fat during catalysis.
Spots or discolouration of the catalytic
coating have no effect on the cleaning.
Clean one oven at a time.
Before the catalytic cleaning
Turn off the oven and wait until it is
cold.
Remove all accessories and remova‐
ble shelf supports.
Clean the oven floor and the inner
door glass with warm water, soft
cloth and mild detergent.
Clean the oven with catalytic cleaning
Step 1 Step 2 Step 3 Step 4
To clean the top oven set the
function: .
To clean the main oven set
the function: .
Set the maximum oven
temperature.
Duration: 1 h
After cleaning, turn the
knob for the oven func‐
tions to the off position.
When the oven is cold,
clean the cavity with a
wet soft cloth.
ENGLISH 17

11.4 How to remove and install:
Door
You can remove the door and the internal
glass panels to clean it. The number of glass
panels is different for different models.
WARNING!
The door is heavy.
CAUTION!
Carefully handle the glass, especially
around the edges of the front panel. The
glass can break.

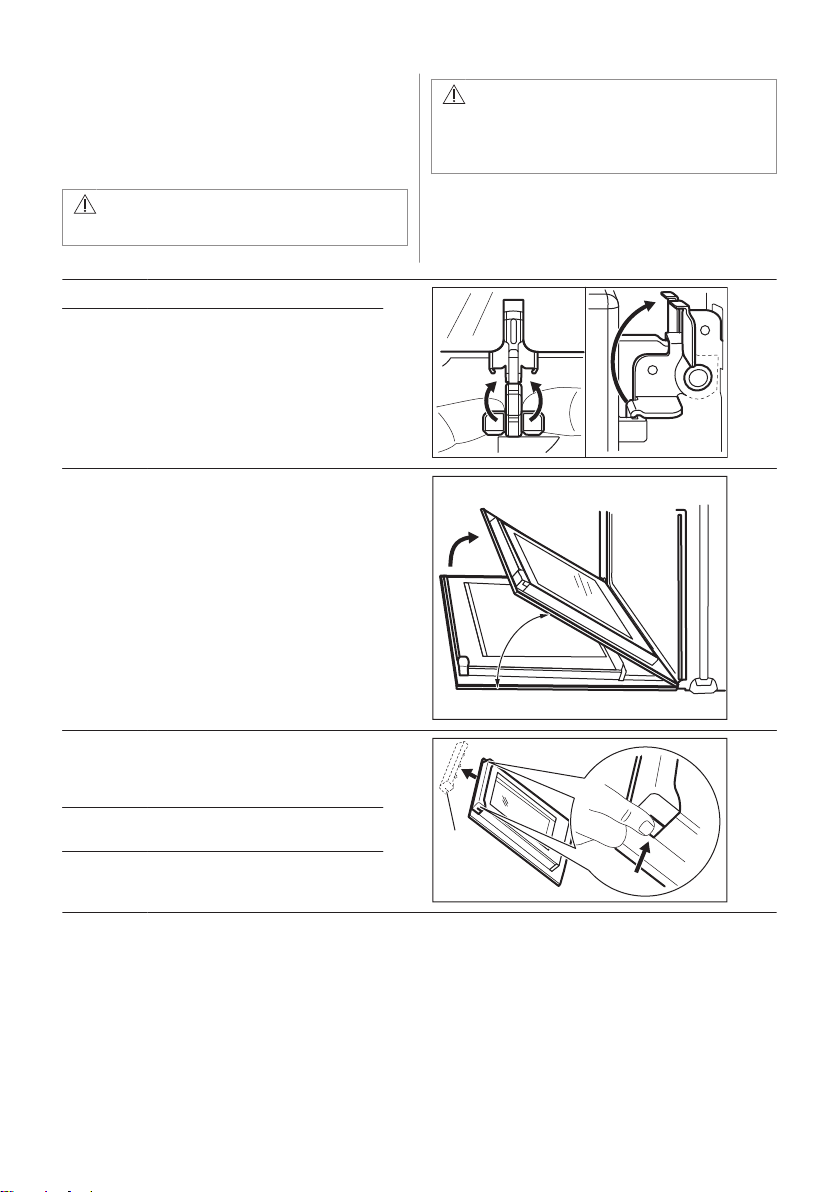

Step 1 Fully open the door.
A
A
Step 2 Lift and press the clamping levers
(A) on the two door hinges.
Step 3 Close the oven door to the first
opening position (approximately 45°
angle). Hold the door with one hand
on each side and pull it away from
the oven at an upwards angle. Put
the door with the outer side down
on a soft cloth on a stable surface.
45°
Step 4 Hold the door trim (B) on the top
edge of the door at the two sides
and push inwards to release the clip
seal.
1
2
B
Step 5 Pull the door trim to the front to re‐
move it.
Step 6 Hold the door glass panels on their
top edge one by one and pull them
up out of the guide.
18 ENGLISH

Step 7 Clean the glass panel with water
and soap. Dry the glass panel care‐
fully. Do not clean the glass panels
in the dishwasher.
Step 8 After cleaning, do the above steps
in the opposite sequence.
Step 9 Install the smaller panel first, then the larger and the door.
Make sure that the glasses are inserted in the correct position otherwise the surface of the door
may overheat.
11.5 How to replace: Lamp
WARNING!
Risk of electric shock.
The lamp can be hot.
Before you replace the lamp:
Step 1 Step 2 Step 3
Turn off the oven. Wait until the
oven is cold.
Disconnect the oven from the
mains.
Put a cloth on the bottom of the cav‐
ity.
Back lamp
Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 What to do if...
In any cases not included in this table please
contact with an Authorised Service Centre.
Problem Check if...
The oven does not heat
up.
The fuse is blown.
The display shows
"12.00".
There was a power cut.
Set the time of day.
The lamp does not work. The lamp is burnt out.
ENGLISH 19

12.2 Service data
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised
Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the front
frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
13. ENERGY EFFICIENCY
13.1 Product Information and Product Information Sheet according to EU
and UK Ecodesign and Energy Labelling Regulations
Supplier's name Zanussi
Model identification ZKCXL3X1 944171729
Energy Efficiency Index Top oven: 106.8
Main oven: 95.2
Energy efficiency class Top oven: A
Main oven: A
Energy consumption with a standard load, conventional mode Top oven: 0.78 kWh/cycle
Main oven: not applicable
Energy consumption with a standard load, fan-forced mode Top oven: -
Main oven: 0.79 kWh/cycle
Number of cavities 2
Heat source Electricity
Volume Top oven: 42 l
Main oven: 66 l
Type of oven Built-In Oven
Mass 48.1 kg
IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐
ods for measuring performance.
13.2 Energy saving
The appliance has features which help
you save energy during everyday
cooking.
Make sure that the appliance door is closed
when the appliance operates. Do not open
the appliance door too often during cooking.
Keep the door gasket clean and make sure it
is well fixed in its position.
Use metal cookware to improve energy
saving.
20 ENGLISH
