Zanussi ZRG16601WA User manual

EN User manual
Refrigerator
ZRG16601WA

Contents
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Operation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Care and Cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Environmental concerns _ _ _ _ _ _ _ _ _ _ 11
Subject to change without notice.
Safety instructions
In the interest of your safety and to ensure the
correct use, before installing and first using the
appliance, read this user manual carefully, in-
cluding its hints and warnings. To avoid unnec-
essary mistakes and accidents, it is important
to ensure that all people using the appliance
are thoroughly familiar with its operation and
safety features. Save these instructions and
make sure that they remain with the appliance if
it is moved or sold, so that everyone using it
through its life will be properly informed on ap-
pliance use and safety.
For the safety of life and property keep the pre-
cautions of these user's instructions as the
manufacturer is not responsible for damages
caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by per-
sons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction con-
cerning use of the appliance by a person re-
sponsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
• Keep all packaging well away from children.
There is risk of suffocation.
• If you are discarding the appliance pull the
plug out of the socket, cut the connection
cable (as close to the appliance as you can)
and remove the door to prevent playing chil-
dren to suffer electric shock or to close
themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance having
a spring lock (latch) on the door or lid, be
sure to make that spring lock unusable be-
fore you discard the old appliance. This will
prevent it from becoming a death trap for a
child.
General safety
Warning!
Keep ventilation openings, in the appliance en-
closure or in the built-in structure, clear of ob-
struction.
• The appliance is intended for keeping food-
stuff and/or beverages in a normal household
and similar applications such as:
– staff kitchen areas in shops, offices and
other working environments;
– farm houses and by clients in hotels, mo-
tels and other residential type environ-
ments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
• Do not use a mechanical device or any artifi-
cial means to speed up the thawing process.
• Do not use other electrical appliances (such
as ice cream makers) inside of refrigerating
appliances, unless they are approved for this
purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is con-
tained within the refrigerant circuit of the ap-
pliance, a natural gas with a high level of en-
vironmental compatibility, which is neverthe-
less flammable.
During transportation and installation of the
appliance, be certain that none of the com-
2
www.zanussi.com

ponents of the refrigerant circuit become
damaged.
If the refrigerant circuit should become dam-
aged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which the
appliance is situated
• It is dangerous to alter the specifications or
modify this product in any way. Any damage
to the cord may cause a short-circuit, fire
and/or electric shock.
Warning! Any electrical component (pow-
er cord, plug, compressor) must be re-
placed by a certified service agent or qualified
service personnel to avoid hazard.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or damaged
power plug may overheat and cause a
fire.
3. Make sure that you can come to the
mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not
insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance
without the lamp cover (if foreseen) of
interior lighting.
• This appliance is heavy. Care should be tak-
en when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are damp/
wet, as this could cause skin abrasions or
frost/freezer burns.
• Avoid prolonged exposure of the appliance
to direct sunlight.
• Bulb lamps (if foreseen) used in this appli-
ance are special purpose lamps selected for
household appliances use only. They are not
suitable for household room illumination.
Daily use
• Do not put hot pot on the plastic parts in the
appliance.
• Do not store flammable gas and liquid in the
appliance, because they may explode.
• Appliance's manufacturers storage recom-
mendations should be strictly adhered to.
Refer to relevant instructions.
Care and cleaning
• Before maintenance, switch off the appliance
and disconnect the mains plug from the
mains socket.
• Do not clean the appliance with metal ob-
jects.
• Regularly examine the drain in the refrigerator
for defrosted water. If necessary, clean the
drain. If the drain is blocked, water will col-
lect in the bottom of the appliance.
Installation
Important! For electrical connection carefully
follow the instructions given in specific
paragraphs.
• Unpack the appliance and check if there are
damages on it. Do not connect the appliance
if it is damaged. Report possible damages
immediately to the place you bought it. In that
case retain packing.
• It is advisable to wait at least four hours be-
fore connecting the appliance to allow the oil
to flow back in the compressor.
• Adequate air circulation should be around
the appliance, lacking this leads to overheat-
ing. To achieve sufficient ventilation follow
the instructions relevant to installation.
• Wherever possible the back of the product
should be against a wall to avoid touching or
catching warm parts (compressor, condens-
er) to prevent possible burn.
• The appliance must not be located close to
radiators or cookers.
• Make sure that the mains plug is accessible
after the installation of the appliance.
• Connect to potable water supply only (If a
water connection is foreseen).
3
www.zanussi.com

Service
• Any electrical work required to do the servic-
ing of the appliance should be carried out by
a qualified electrician or competent person.
• This product must be serviced by an author-
ized Service Centre, and only genuine spare
parts must be used.
Environment Protection
This appliance does not contain gasses
which could damage the ozone layer, in ei-
ther its refrigerant circuit or insulation materials.
The appliance shall not be discarded together
with the urban refuse and rubbish. The insula-
tion foam contains flammable gases: the appli-
ance shall be disposed according to the appli-
cable regulations to obtain from your local au-
thorities. Avoid damaging the cooling unit, es-
pecially at the rear near the heat exchanger.
The materials used on this appliance marked by
the symbol are recyclable.
Operation
Switching on
Insert the plug into the wall socket.
Turn the Temperature regulator clockwise to a
medium setting.
Switching off
To turn off the appliance, turn the Temperature
regulator to the "O" position.
Temperature regulation
The temperature is automatically regulated.
To operate the appliance, proceed as follows:
• turn the Temperature regulator toward lower
settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher
settings to obtain the maximum coldness.
A medium setting is generally the most
suitable.
However, the exact setting should be chosen
keeping in mind that the temperature inside the
appliance depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
Important! If the ambient temperature is high
or the appliance is fully loaded, and the
appliance is set to the lowest temperatures, it
may run continuously causing frost to form on
the rear wall. In this case the dial must be set to
a higher temperature to allow automatic
defrosting and therefore reduced energy
consumption.
First use
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accessories
with lukewarm water and some neutral soap so
as to remove the typical smell of a brand-new
product, then dry thoroughly.
Important! Do not use detergents or abrasive
powders, as these will damage the finish.
4
www.zanussi.com

Daily use
Movable shelves
The walls of the re-
frigerator are equip-
ped with a series of
runners so that the
shelves can be posi-
tioned as desired.
Positioning the door shelves
To permit storage of
food packages of var-
ious sizes, the door
shelves can be
placed at different
heights.
2
1
3
Gradually pull the
shelf in the direction
of the arrows until it
comes free, then re-
position as required.
Helpful hints and tips
Normal Operating Sounds
• You may hear a faint gurgling and a bubbling
sound when the refrigerant is pumped
through the coils or tubing. This is correct.
• When the compressor is on, the refrigerant is
being pumped around and you will hear a
whirring sound and a pulsating noise from
the compressor. This is correct.
• The thermic dilatation might cause a sudden
cracking noise. It is natural, not dangerous
physical phenomenon. This is correct.
• When the compressor switches on or
switches off, you will hear a faint "click" of
the temperature regulator. This is correct.
Hints for energy saving
• Do not open the door frequently or leave it
open longer than absolutely necessary.
• If the ambient temperature is high and the
Temperature Regulator is set to low temper-
ature and the appliance is fully loaded, the
compressor may run continuously, causing
frost or ice on the evaporator. If this happens,
set the Temperature Regulator toward warm-
er settings to allow automatic defrosting and
so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liq-
uids in the refrigerator
• do cover or wrap the food, particularly if it
has a strong flavour
• position food so that air can circulate freely
around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and
place on the glass shelf above the vegetable
drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these should
be covered and may be placed on any shelf.
Fruit and vegetables: these should be thor-
oughly cleaned and placed in the special draw-
er(s) provided.
Butter and cheese: these should be placed in
special airtight containers or wrapped in alumi-
nium foil or polythene bags to exclude as much
air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the door.
5
www.zanussi.com

Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Care and Cleaning
Caution! Unplug the appliance before
carrying out any maintenance operation.
This appliance contains hydrocarbons in
its cooling unit; maintenance and recharg-
ing must therefore only be carried out by au-
thorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with luke-
warm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free from
debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders, highly
perfumed cleaning products or wax polishes to
clean the interior as this will damage the
surface and leave a strong odour.
Clean the condenser (black grill) and the com-
pressor at the back of the appliance with a
brush. This operation will improve the perform-
ance of the appliance and save electricity con-
sumption.
Important! Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners con-
tain chemicals that can attack/damage the
plastics used in this appliance. For this reason
it is recommended that the outer casing of this
appliance is only cleaned with warm water with
a little washing-up liquid added.
After cleaning, reconnect the equipment to the
mains supply.
Defrosting of the refrigerator
Frost is automatically eliminated from the evap-
orator of the refrigerator compartment every
time the motor compressor stops, during nor-
mal use. The defrost water drains out through a
trough into a special container at the back of
the appliance, over the motor compressor,
where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water
overflowing and dripping onto the food inside.
Use the special cleaner provided, which you
will find already inserted into the drain hole.
Periods of non-operation
When the appliance is not in use for long peri-
ods, take the following precautions:
1. disconnect the appliance from electricity
supply
2. remove all food
3. defrost and clean the appliance and all ac-
cessories
4. leave the door/doors open to prevent un-
pleasant smells.
Important! If the cabinet will be kept on, ask
somebody to check it once in a while to prevent
the food inside from spoiling in case of a power
failure.
What to do if…
6
www.zanussi.com

Warning! Before troubleshooting,
disconnect the mains plug from the mains
socket.
Only a qualified electrician or competent
person must do the troubleshooting that is not
in this manual.
Important! There are some sounds during
normal use (compressor, refrigerant
circulation).
Problem Possible cause Solution
The appliance is noisy The appliance is not supported
properly
Check if the appliance stands stable
(all the four feet should be on the
floor)
The appliance does not
operate. The lamp does
not operate.
The appliance is switched off. Switch on the appliance.
The mains plug is not connected to
the mains socket correctly.
Connect the mains plug to the mains
socket correctly.
The appliance has no power. There
is no voltage in the mains socket.
Connect a different electrical appli-
ance to the mains socket.
Contact a qualified electrician.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates
continually.
The temperature is not set correct-
ly.
Set a higher temperature.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too fre-
quently.
Do not keep the door open longer
than necessary.
The product temperature is too
high.
Let the product temperature de-
crease to room temperature before
storage.
The room temperature is too high. Decrease the room temperature.
Water flows on the rear
plate of the refrigerator.
During the automatic defrosting
process, frost defrosts on the rear
plate.
This is correct.
Water flows into the refrig-
erator.
The water outlet is clogged. Clean the water outlet.
Products prevent that water flows
into the water collector.
Make sure that products do not
touch the rear plate.
Water flows on the ground. The melting water outlet does not
flow in the evaporative tray above
the compressor.
Attach the melting water outlet to the
evaporative tray.
The temperature in the ap-
pliance is too low.
The temperature regulator is not set
correctly.
Set a higher temperature.
The temperature in the ap-
pliance is too high.
The temperature regulator is not set
correctly.
Set a lower temperature.
The door is not closed correctly. Refer to "Closing the door".
7
www.zanussi.com

Problem Possible cause Solution
The product temperature is too
high.
Let the product temperature de-
crease to room temperature before
storage.
Many products are stored at the
same time.
Store less products at the same
time.
The temperature in the re-
frigerator is too high.
There is no cold air circulation in
the appliance.
Make sure that there is cold air circu-
lation in the appliance.

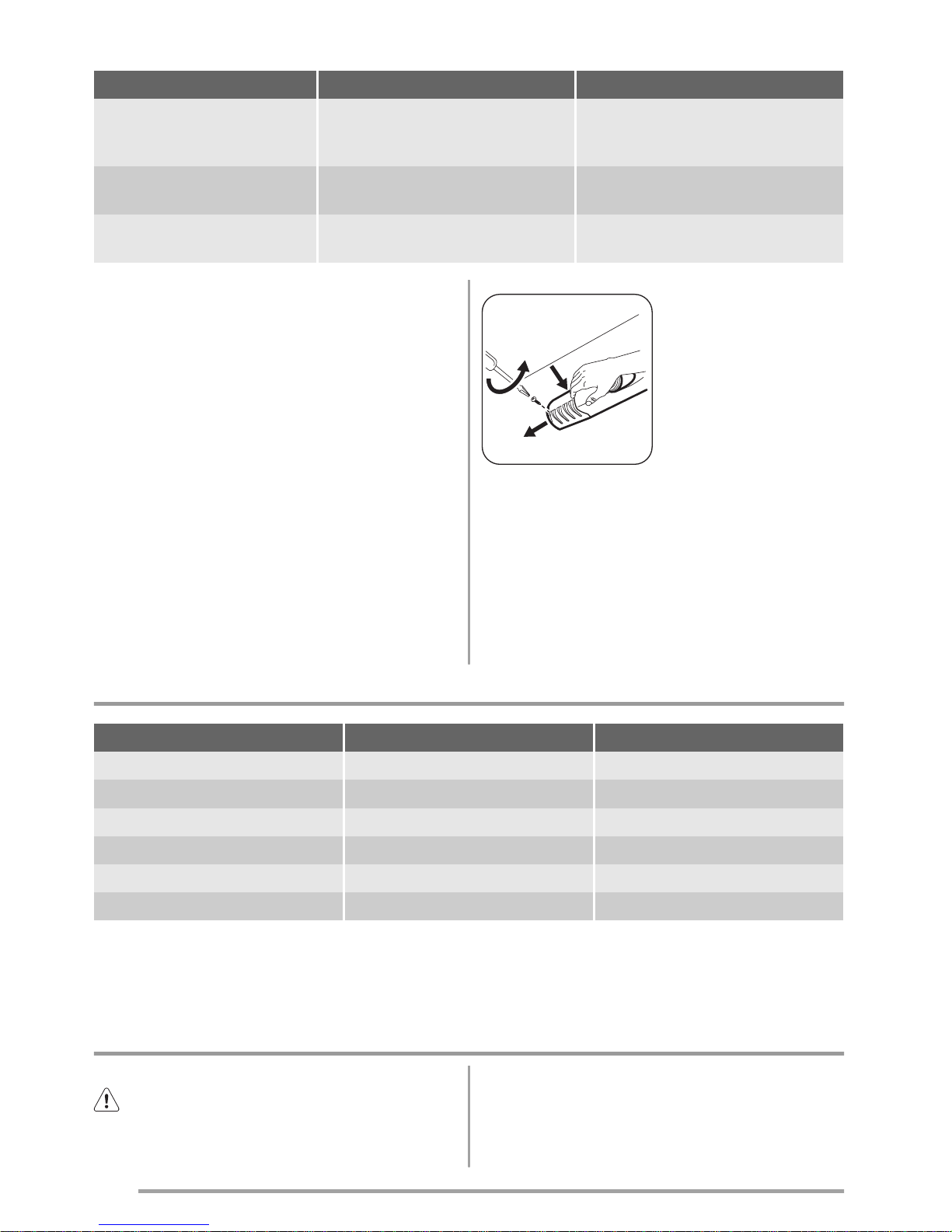

Replacing the bulb
If you want to replace the bulb, do these steps:
1. Break the circuit of the appliance.
2. Unscrew the lamp cover securing screw.
3. Unhook the moving part by pressing it as
shown in the figure.
4. Replace the bulb with one of the same
power and specifically designed for house-
hold appliances (the maximum power is
shown on the light bulb cover).
5. Fix the lamp cover in place.
6. Screw the lamp cover securing screw.
7. Reconnect the appliance.
8. Open the door and check if the light
comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "In-
stallation".
3. If necessary, replace the defective door
gaskets. Contact the Service Center.
Technical data
Dimension
Height 850 mm
Width 595 mm
Depth 635 mm
Voltage 230 V
Frequency 50 Hz
The technical information are situated in the rat-
ing plate on the internal left side of the appli-
ance and in the energy label.
Installation
Caution! Read the "Safety Information"
carefully for your safety and correct
operation of the appliance before installing the
appliance.
8
www.zanussi.com

Positioning
This appliance can be installed in a dry, well
ventilated indoor, also in a garage or cellar, but
for optimum performance install this appliance
at a location where the ambient temperature
corresponds to the climate class indicated on
the rating plate of the appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N+16°C to + 32°C
ST +16°C to + 38°C
T+16°C to + 43°C
Levelling
When placing the ap-
pliance ensure that it
stands level. This can
be achieved by two
adjustable feet at the
bottom in front .
Location
The appliance should be installed well away
from sources of heat such as radiators, boilers,
direct sunlight etc. Ensure that air can circulate
freely around the back of the cabinet. To ensure
best performance, if the appliance is positioned
below an overhanging wall unit, the minimum
distance between the top of the cabinet and
the wall unit must be at least 100 mm . Ideally,
however, the appliance should not be posi-
tioned below overhanging wall units. Accurate
levelling is ensured by one or more adjustable
feet at the base of the cabinet.
If the cabinet is placed in a corner and the side
with the hinges facing the wall, the distance be-
tween the wall and the cabinet must be at least
10 mm to allow the door to open enough so
that the shelves can be removed.
Warning!
min.
100 mm
15 mm 15 mm
It must be possible to disconnect the appliance
from the mains power supply; the plug must
therefore be easily accessible after installation.
Door reversibility
Important! To carry out the following
operations, we suggest that this be made with
another person that will keep a firm hold on the
doors of the appliance during the operations.
To change the opening direction of the door,
do these steps:
9
www.zanussi.com

1. Remove the plug
from the power sock-
et.
2. Tilt back the appli-
ance carefully so that
the compressor can-
not touch the floor.
3. Unscrew the left
feet.
4. Unscrew the
screws of the door
bottom hinge.
2
1
5. Take off the appli-
ance door by pulling it
slightly downwards.
6. Unscrew the top
door hinge pin of the
appliance then screw
it back on the other
side.
7. Fit the appliance
door on the upper
door hinge pin.
8. Remove the lower
hinge. Put over the pin
in the direction of the
arrow.
9. Unscrew and install
the screw on the op-
posite side.
10. Install the lower
hinge on the opposite
side leaving the posi-
tion of the door un-
changed.
11. Screw in the one
screw in the place set
free on the other side
as well as the right
feet.
12. Remove and install
the handle (if fore-
seen) on the opposite
side.
13. Reposition, level
the appliance, wait for
at least four hours and
then connect it to the
power socket.
Do a final check to make sure that:
• All screws are tightened.
• The door opens and closes correctly.
If the ambient temperature is cold (i.e. in Win-
ter), the gasket may not fit perfectly to the cabi-
net. In that case, wait for the natural fitting of
the gasket.
In case you do not want to carry out the above
mentioned operations, contact the nearest After
Sales Service Force. The After Sales Service
specialist will carry out the reversibility of the
doors at your cost.
Electrical Connection
Caution! Any electrical work required to
install this appliance should be carried out
by a qualified electrician or competent person.
Warning! This appliance must be earthed.
The manufacturer declines any liability
should these safety measures not be observed.
AB
C
D
E
Important! The wires in the mains lead are
coloured in accordance with the following
code:
AGreen and Yellow: Earth
CBrown: Live
10
www.zanussi.com

DBlue: Neutral
As the colours of the wires in the mains lead of
this appliance may not correspond with the col-
oured markings identifying the terminals in your
plug, proceed as follows:
1. Connect the wire coloured green and yel-
low to the terminal marked either with the
letter “E“ or by the earth symbol or col-
oured green and yellow.
2. Connect the wire coloured blue to the ter-
minal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or col-
oured red.
4. Check that no cut, or stray strands of wire
is present and the cord clamp E is secure
over the outer sheath.
5. Make sure the electricity supply voltage is
the same as that indicated on the appli-
ance rating plate.
6. Switch on the appliance.
The appliance is supplied with a 13 amp plug
fitted B. In the event of having to change the
fuse in the plug supplied, a 13 amp ASTA ap-
proved (BS 1362) fuse must be used.
Warning! A cut off plug inserted into a 13
amp socket is a serious safety (shock)
hazard. Ensure that it is disposed of safely.
Environmental concerns
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your
household waste disposal service or the shop
where you purchased the product.
11
www.zanussi.com

www.zanussi.com/shop
212000205-A-482012
