Recommendations
and suggestions
• The Instructions for Use apply
to several versions of this ap-
pliance. Accordingly, you may
nd descriptions of individual
features that do not apply to
your specic appliance.
• The manufacturer will not be
held liable for any damages
resulting from incorrect or
improper installation.
• The minimum safety distance
between the cooker top and
the extractor hood is 650 mm
(some models can be installed
at a lower height, please refer
to the paragraphs on working
dimensions and installation).
• Check that the mains voltage
corresponds to that indicated
on the rating plate xed to the
inside of the hood.
• For Class I appliances, check
that the domestic power supply
guarantees adequate earthing.
Connect the extractor to the
exhaust ue through a pipe
of minimum diameter 120 mm.
The route of the ue must be
as short as possible.
• Do not connect the extractor
hood to exhaust ducts carrying
combustion fumes (boilers,
replaces, etc.).
• If the extractor is used in
conjunction with non-electrical
appliances (e.g. gas burning
appliances), a sufcient degree
of aeration must be guaranteed
in the room in order to pre-
vent the backow of exhaust
gas. The kitchen must have
an opening communicating
directly with the open air in
order to guarantee the entry
of clean air. When the cooker
hood is used in conjunction
with appliances supplied with
energy other than electric,
the negative pressure in the
room must not exceed 0,04
mbar to prevent fumes being
drawn back into the room by
the cooker hood.
• The air must not be discharged
into a ue that is used for ex-
hausting fumes from applianc-
es burning gas or other fuels
(not applicable to appliances
that only discharge the air back
into the room).
• In the event of damage to
the power cable, it must be
replaced by the manufacturer
or by the technical service de-
partment, in order to prevent
any risks.
• If the instructions for installa-
tion for the gas hob specify
a greater distance specied
above, this has to be taken
into account. Regulations
concerning the discharge of
air have to be fullled.
• Use only screws and small
parts in support of the hood.
Warning: Failure to install
the screws or xing device in
accordance with these instruc-
tions may result in electrical
hazards.
• Connect the hood to the mains
through a two-pole switch hav-
ing a contact gap of at least
EN

3
www.zanussi.com
3 mm.
Use
• The extractor hood has been
designed exclusively for do-
mestic use to eliminate kitchen
smells.
• Never use the hood for pur-
poses other than for which it
has been designed.
• Never leave high naked ames
under the hood when it is in
operation.
• Adjust the ame intensity to
direct it onto the bottom of the
pan only, making sure that it
does not engulf the sides.
• Deep fat fryers must be con-
tinuously monitored during use:
overheated oil can burst into
ames.
• Do not ambè under the range
hood; risk of re.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given supervi-
sion or instruction concerning
use of the appliance in a safe
way and understand the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainte-
nance shall not be made by
children without supervision.
• This appliance is not intended
for use by persons (including
children) with reduced physi-
cal, sensory or mental capa-
bilities, or lack of experience
and knowledge, unless they
have been given supervision
or instruction concerning use
of the appliance by a person
responsible for their safety.
• “CAUTION: Accessible parts
may become hot when used
with cooking appliances.”
Maintenance
• The symbol on the product
or on its packaging indicates
that this product may not be
treated as household waste.
Instead it shall be handed
over to the applicable col-
lection point for the recycling
of electrical and electronic
equipment. By ensuring this
product is disposed of correctly,
you will help prevent potential
negative consequences for
the environment and human
health, which could otherwise
be caused by inappropriate
waste handling of this product.
For more detailed information
about recycling of this product,
please contact your local city
ofce, your household waste
disposal service or the shop
where you purchased the
product.
• Switch off or unplug the ap-
pliance from the mains supply
before carrying out any main-
tenance work.

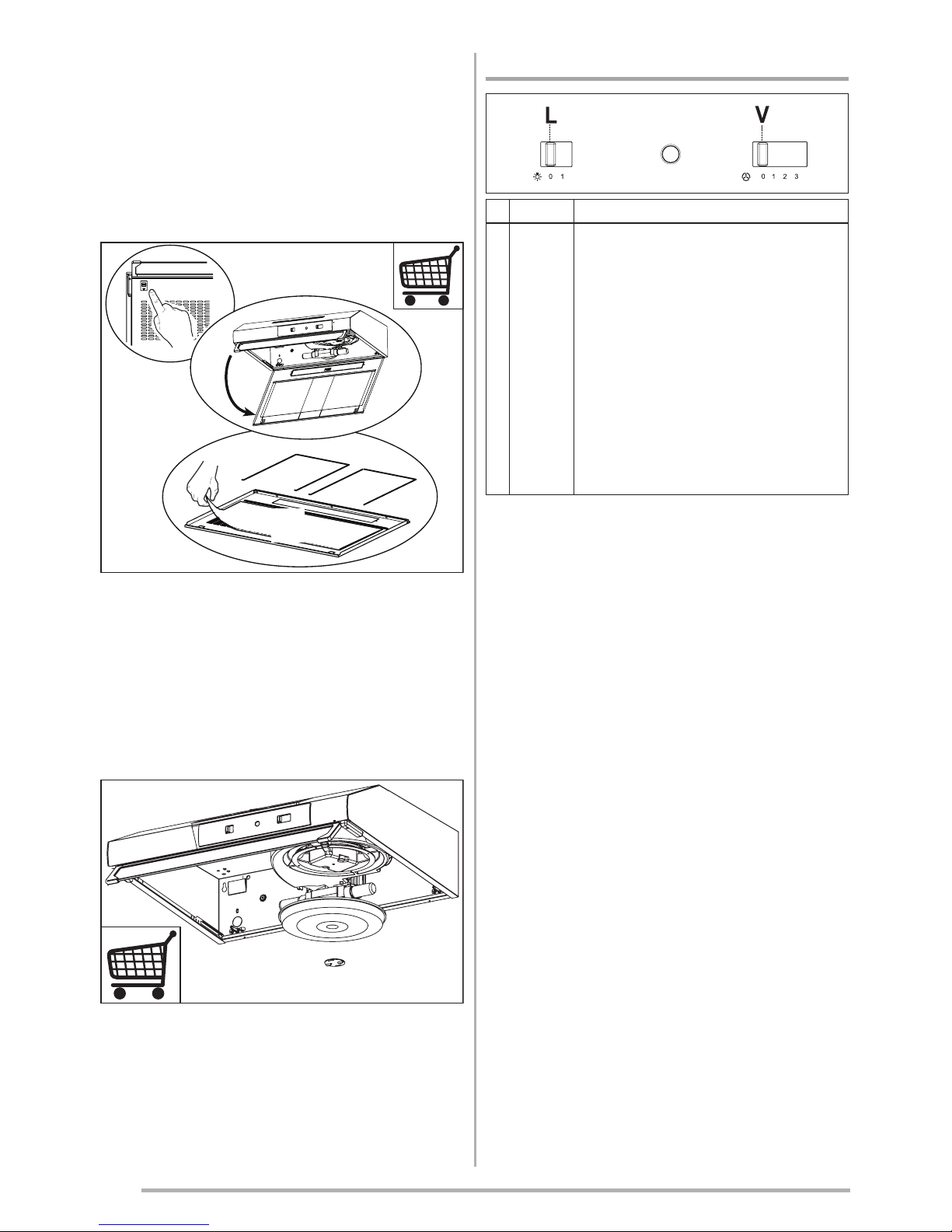

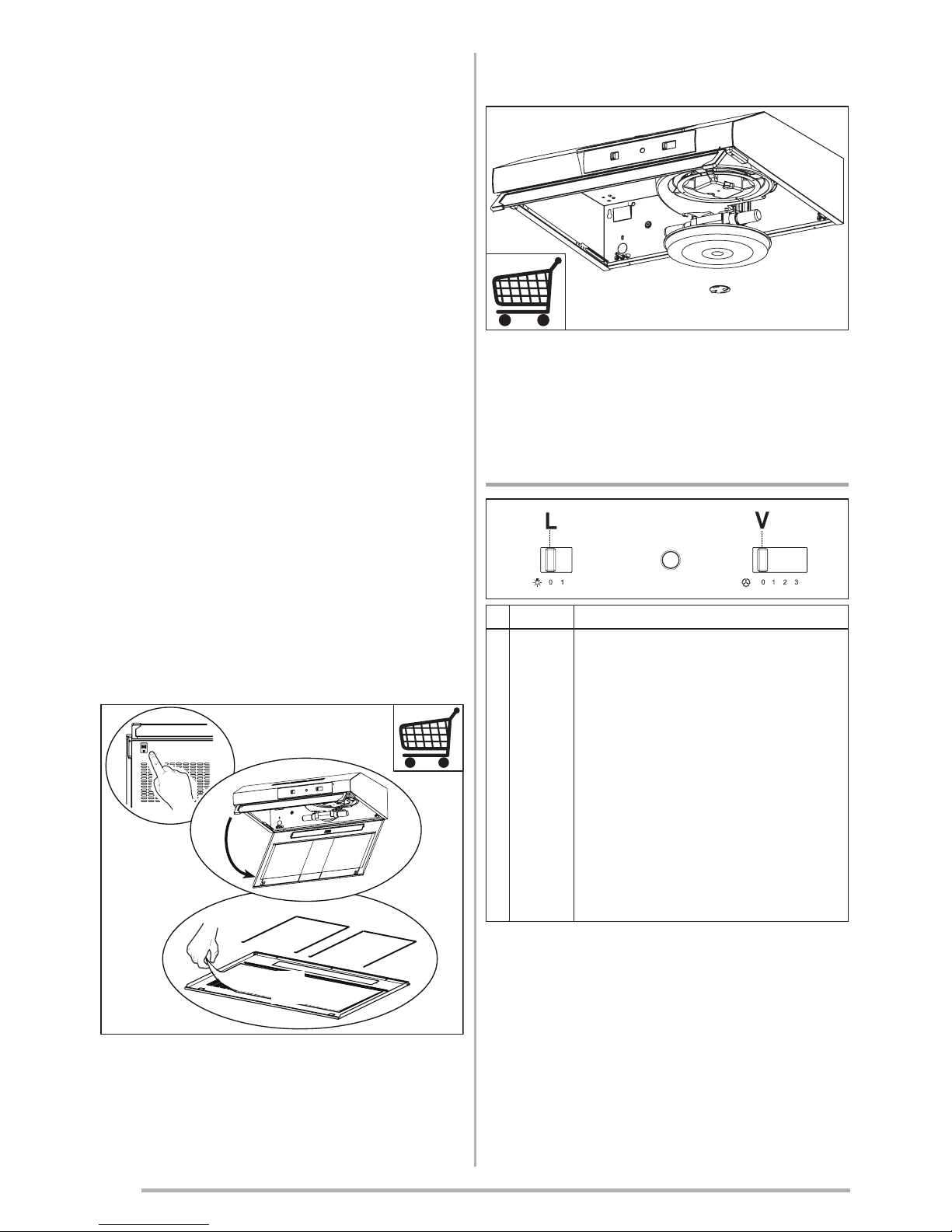

• Clean and/or replace the Filters
after the specied time period
(Fire hazard).
- This lter cannot be washed

4
www.zanussi.com
and should be replaced every
2 months (H).
H
- The Activated charcoal lter
is not washable and cannot
be regenerated, and must be
replaced approximately every
4 months of operation, or more
frequently for particularly
heavy usage (W).
W
• Clean the hood using a damp
cloth and a neutral liquid de-
tergent.
Controls
LLight Switches the lighting system on and off
VSpeed Sets the operating speed of the extractor:
0. Motor Off.
1. Low speed, used for a continuous and
silent air change in the presence of light
cooking vapour.
2. Medium speed, suitable for most operat-
ing conditions given the optimum treated
air ow/noise level ratio.
3. Maximum speed, used for eliminating
the highest cooking vapour emission,
including long periods.

5
www.zanussi.com

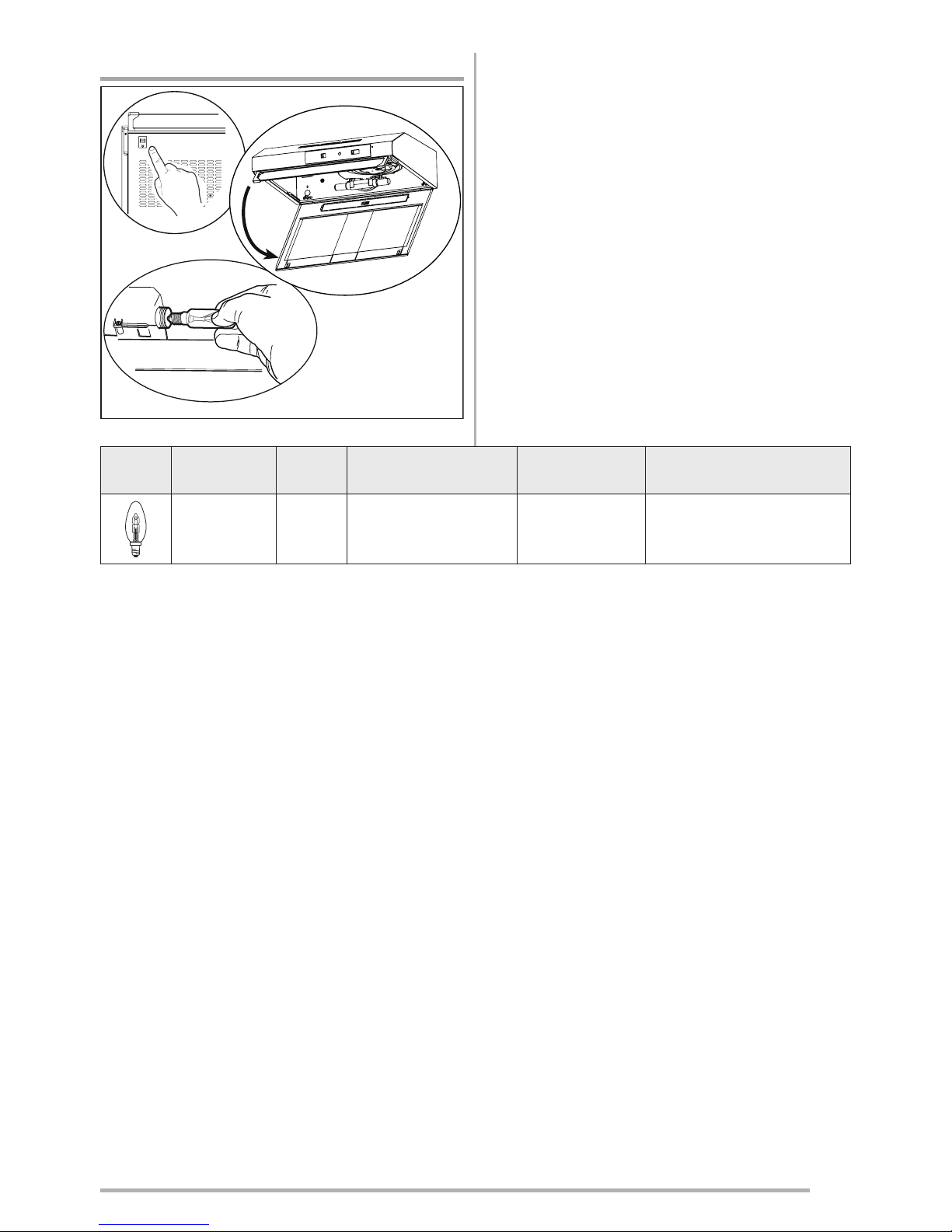

Lighting
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100
