Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.

Contents
30
Maintenance 52
Door seal 52
Bodywork 52
Detergent dispenser drawer 52
Drain pump 52
Water inlet filter 53
Emergency emptying out 53
The dangers of freezing 53
Something not working? 54-55
Warnings 31-32
Disposal 32
Tips for environmental protection 32
Technical specifications 33
Installation 34
Unpacking 34
Positioning 34
Water inlet 34
Water drainage 35
Electrical connection 35
Your new washer-dryer 36
Description of the appliance 37
Door locked pilot light 37
Detergent dispenser drawer 37
Use 38
Control panel 38
Controls 38-41
Washing hints 42
Sorting the laundry 42
Temperatures 42
Before loading the laundry 42
Maximum loads 42
Laundry weights 42
Removing stains 42
Detergents and additives 43
Drying hints 44
International wash code symbols 45
Operating sequence 46-49
Washing programmes 50
Timed drying 51

ENGLISH
31
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• Never touch the machine while standing on a wet
floor or being barefoot.
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash and dry fabrics which are designed to
be machine washed and dried. Follow the
instructions on each garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• If you use a liquid detergent with a dispenser which
has to be placed directly in the drum, remember to
remove this dispenser before drying.
Warnings
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes and
during the drying cycle the door glass may get hot.
Do not touch it!
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.

32
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded, but do not overload it (see maximum moad
on page 30).
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature, so saving energy.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
• The machine will consume less energy if the
laundry is adequately spun before being dried.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.

ENGLISH
Technical specifications
33
DIMENSIONS Height 85 cm
Width 60 cm
Depth 57 cm
WASHING DRYING
MAXIMUM LOAD Cotton 5 kg 2.5 kg
Synthetics 2.5 kg 2 kg
Delicates 2.5 kg -
Woollens 2 kg -
SPIN SPEED 1000 rpm max. (WD 1010)
1200 rpm max. (WD 1210)
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 50 kPa
Maximum 800 kPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Installation
34
Unpacking
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
2. Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor.
3. Remove the polystyrene block from the bottom of
the machine and release the two plastic bags.
4. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.
5. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
6. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.
P1127
P1126
P1124
2
3
1
P0001
P1129
7. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
Water inlet
Connect the water inlet hose to a tap with a 3/4" thread.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
P0021
P1088
P1051
P0002
P1128

ENGLISH
35
Important!
Before connecting up the machine to new pipework
or to pipework that has not been used for some time,
run off a reasonable amount of water to flush out any
debris that may have collected in the pipes.
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
The drain hose must not be kinked.
For a correct functioning of the machine the
drain hose must remain hooked on the proper
support piece situated on the top part of the back
side of the appliance
P1118
P0022
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.
Please ensure that when the appliance is
installed the power supply cable is easily
accessible.

Your new washer-dryer
36
This new washer-dryer meets all modern needs for effective treatment of laundry with low water, energy and
detergent consumption.
•The possibility of selecting the temperature, spin speed and all the options offered by this machine gives
you truly “customised” washing.
• The DELAY START option allows you to delay starting of the wash programme to any time of day, so
allowing you for instance to make use of overnight economy electricity tariffs.
•The programme progress display shows the programme steps selected and the programme phase which
is running.
•The special wool programme with its new delicate wash system treats your woollens with extreme care.
•The balance control device ensures the machine is stable during the spin.
•The Eco valve allows total use of detergent and reduces water consumption so saving energy.
•The drying programmes will give your wash that soft, relaxed feel whatever the weather.
1 Detergent dispenser drawer
2 Control panel
3 Door locked pilot light
4 Door handle
5 Drain pump
6 Adjustable feet
Door locked pilot light
It stays on during the whole programme indicating
that the door is locked.
When the light goes out, the door can be opened
(see page 48).
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Description of the appliance
SYNTHETICS
DELICATES
COTTONS
WOOL
60°C
50°C
90°C
40°C
1200
900
700
500
RINSE
HOLD
S
T
A
R
T
/
P
A
U
S
E
R
E
S
E
T
DELAY
WD 1010
SKIP
EXTRA DRY
STORE DRY
IRON DRY
COTTONS
SYNTHETICS
D
R
Y
I
N
G
T
I
M
E
HAND
WASH
PREWASH
EXTRA
RINSE
UICK
WASH
F
A
B
R
I
C
S
O
P
T
I
O
N
S
S
P
I
N
S
P
E
E
D
T
E
M
P
E
R
A
T
U
R
E
A
U
T
O
D
R
Y
30°C
COTTONS
STORE DRY
SYNTHETICS
O
N
/
O
F
F
6
4
3
1 2
5
C0063

ENGLISH
37
Use
SINTETICOS
DELICADOS
ALGODON
LANA
60°C
40°C
90°C
30°C
1000
900
700
400
AGUA EN
LA CUBA
S
T
A
R
T
/
P
A
U
S
A
A
N
U
L
.
RETARDO
WD 1010
PROGR.
ESPEC.
EXTRA SECO
SECO ARMARIO
HUMEDO
PLANCHA ALGODON
SINTETICOS
LAVADO
A MANO
PRELAVADO
ACLARADO
ADICIONAL
LAVADO
RAPIDO
T
E
J
I
D
O
S
O
P
C
I
O
N
E
S
C
E
N
T
R
I
F
U
G
A
D
O
T
E
M
P
E
R
A
T
U
R
A
S
E
C
A
D
O
A
U
T
O
M
.
FRIO
SECO
ARMARIO
M
A
R
C
H
A
/
P
A
R
A
D
A
12 3 4 5 6 7 8910111213
S
E
C
A
D
O
A
T
I
E
M
P
O

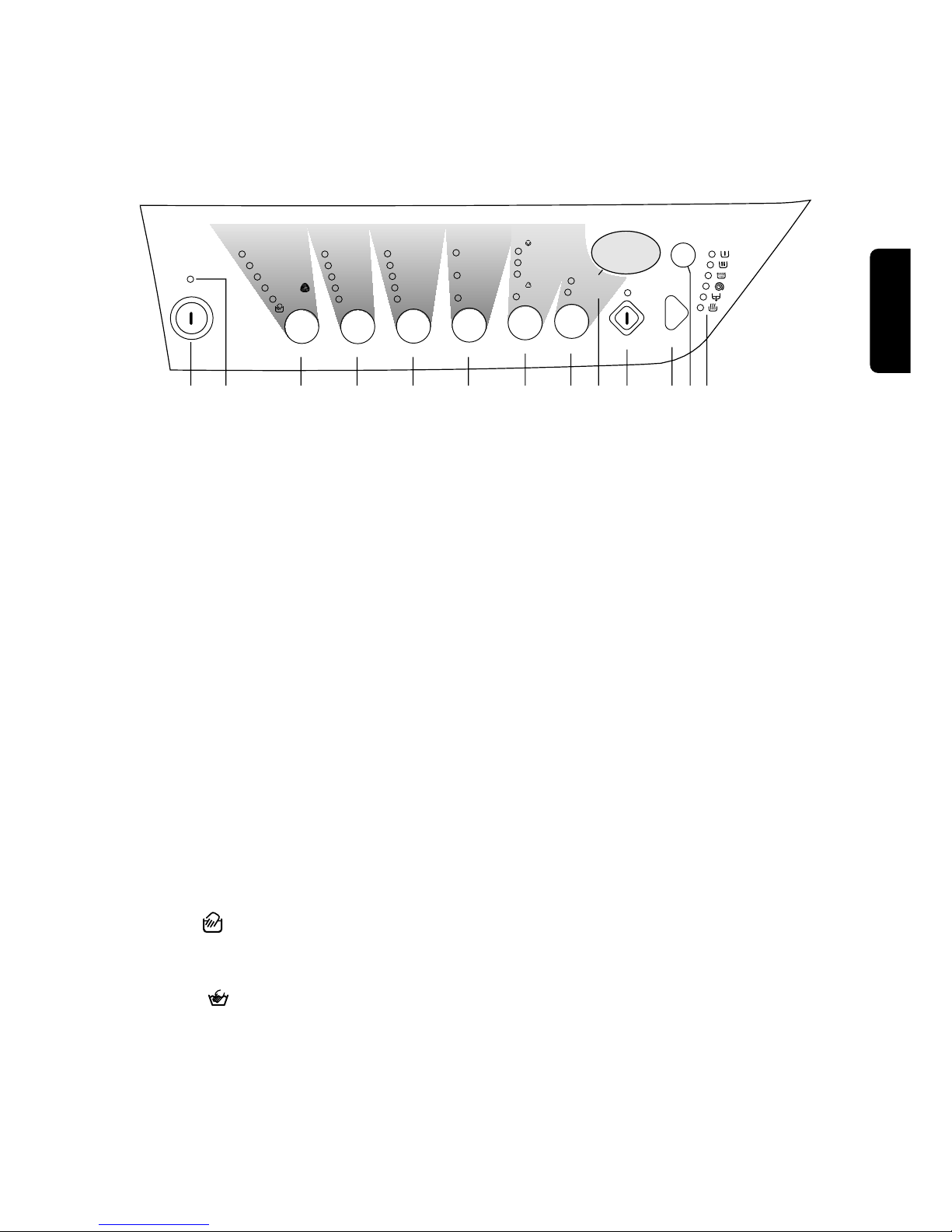

Control panel
1 ON/OFF button
(MARCHA PARADA)
Press this button to switch the washing machine on.
The display (9) will show three blinking dashes or a
blinking zero. You will find more detailed
explanations on pages 38-39 (see “DISPLAY”).
Press the ON/OFF button again to switch the
machine off.
2 MAINS-ON light
This light is connected to the ON/OFF button. It lights
up when you press the button, and goes out when
you press it again.
3 FABRIC button (TEIJDOS)
Press this button repeatedly to select the programme
on the basis of the type of laundry to be washed. The
light relevant to the selected programme will light up.
The machine will propose a temperature and
automatically select the maximum spin value provided
for the programme you have chosen. You can change
these values by operating buttons 4 and 5.
Hand wash (Lavado a mano)
When you select this programme, you obtain a
particularly delicate washing, suitable for articles of
clothing whose label indicates that they must be
hand-washed .
4 TEMPERATURE button
Press this button repeatedly to increase or decrease
the temperature, if you want your laundry to be washed
at a temperature different from the one proposed by the
machine. The relevant light will light up.
Maximum temperatures are 90°C for cotton, 60°C for
synthetic fabrics, 40°C for delicate fabrics, wool and
fabrics to be hand-washed (HAND WASH programme).
By selecting position FRIO the machine will wash with
cold water. To be used for extremely delicate items,
such as curtains.
Important!
By depressing TEMPERATURE (TEIJDOS) and
SPIN SPEED (CENTRIFUGADO) buttons
simultaneously, the acoustic signal when selecting
the programmes, in case of incorrect option and at
the end of the cycle is suppressed.
5 SPIN SPEED button
(CENTRIFUGADO)
Press this button repeatedly to change the spin
speed, if you want your laundry to be spun at a
speed different from the one proposed by the
machine. The relevant light will light up.
Maximum speeds are:
• for cotton: 1,000 rpm (WD 1012) or 1,200
(WD1210);
• for synthetic fabrics, wool, and fabrics to be hand-
washed: 800 rpm;
• for delicate fabrics: 600 rpm.
RINSE HOLD (AGUA EN LA CUBA) position :
when you choose this option, the machine will not
drain the water of the last rinse, so as not to wrinkle
the laundry.
At the end of the cycle, the START/PAUSE button
light will flash to indicate that the water must be
drained and a zero fixe will appear in the display.
The DOOR LOCKED light remains lit.
To complete the cycle, choose one of the following
options:
• Draining and spin:
- Press the START/PAUSE button. The machine

will drain the water, then spin the laundry at the
maximum speed provided for the selected
programme.
-Select spin speed by means of button 5, and
press the START/PAUSE button.
•Drain only
- Press the RESET (ANUL.) button once, so as to
cause the DRAIN light to light up, then press
the START/PAUSE button.
Important! If you accidentally press the RESET
(ANUL.) button more than once, the display will show
three blinking dashes. To drain the water, select
any washing programme by means of the FABRIC
(TEJIDOS) button, then press RESET (ANUL.) three
times in order to select the DRAIN position (only
the DRAIN light will remain lit)
then press again the START/PAUSE button.
The RINSE HOLD option cannot be selected for the
automatic WASHING & DRYING programme.
6 OPTIONS button (OPCIONES)
Press this button to select the following options:
• PREWASH (PRELAVADO): select this option if
you wish your laundry to be prewashed at 30°C
before the main wash (not available for wool and
hand-wash cycle).
The prewash ends with a short spin in
programmes for cotton and synthetic fabrics,
whereas in the programme for delicate fabrics the
water is only drained.
• SUPER RINSE (ACLARADO ADICIONAL): this
option can be selected with all programmes
except the wool programme and hand wash.
The machine performs 4 rinses instead of 3. This
option is recommended for people who are allergic
to detergents, and in areas where the water is very
soft.
• QUICK WASH (LAVADO RAPIDO): this option is
for laundry that is only slightly soiled (not for wool
and HAND WASH programme).
The washing time will be reduced according to the
type of fabric and the selected temperature.
7 Automatic Drying button
(SECADO AUTOMATICO)
By means of this button you can choose the required
degree of drying for cottons and synthetics:
EXTRA SECO = Extra dry (cottons)
SECO ARMARIO = Store dry (cottons and synthetics)
HUMEDO PLANCHA = Iron dry (cottons)
The corresponding pilot light illuminates.
The drying time is automatically adjusted by the
machine: the laundry will be dried to the selected
degree of dryness.
8 Timed D
rying button
(SECADO A TIEMPO)
If you wish to carry out a timed programme instead
of an electronic programme push this button: the
light corresponding to the selected fabric illuminates.
To select COTTON (ALGODON) push the button for
two seconds.
To select the drying time push the button until the
drying time you want appears in the display
according to the fabrics (cotton or synthetics) you
have to dry. Every time you push the button the time
increases by 5 mins.
For COTTON you can select a drying time from 10
minutes to 130 minutes.
For SYNTHETICS you can select a time from 10
minutes to 100 minutes.
9 Display
The following pieces of information are shown on the
display:
• Three blinking dashes, when a programme is
cancelled by means of the RESET (ANUL.) button.
The three blinking dashes will also appear when you
press the ON/OFF button to switch the machine on,
if the previously selected cycle has been erased.
---
38

ENGLISH
•Duration of washing programme in hours
and minutes, after you have selected a
programme.
While the programme is running (after you have
pressed the START/PAUSE button), the displayed
time value decreases by one unit every minute.
•Drying time: the selected drying time is displayed
in minutes or hours and minutes.
After starting the programme, the remaining time is
updated every minute.
• The machine has stopped with water in the tub,
at the end of a programme with the RINSE HOLD
(AGUA EN LA CUBA) option: this is indicated by a
static zero.
• The machine has completed the programme:
this is indicated by a blinking zero. At the same
time, the door locked light goes out. The zero will
reappear when you switch the machine on, unless
the previous programme has been erased by
means of the RESET (ANUL.) button.
Important!
The first time you use the machine, when you
switch it on, it may display a blinking zero and give an
audible warning signal. This is due to the fact that the
machine has performed a washing cycle during the
manufacturer’s inspection tests, and this cycle has not
been erased after its completion.
0
1.25
2.05
•Delay start (Arranque retardado), a time value
indicated in hours and selected by means of the
relevant button.
The delay time is displayed for 3 seconds, then the
duration of the selected programme reappears.
After you have pressed the START/PAUSE button,
the countdown begins, and the delay time value
decreases by one unit every hour.
You can delay the start of the selected programme
by up to 24 hours in one hour intervals.
• An incorrect option selection has been made:
this is indicated by the message Err when a
function incompatible with the current programme
is selected.
The incorrect selection is also indicated by an
audible warning signal.
• An alarm code indicates a fault in the machine
operation (see the relevant chapter on page 54).
E20
39

10 START/PAUSE button
This button has three functions:
•Start: after you have selected the desired
programme and options, press this button to start
the machine. The light above the button will stop
flashing and remain lit.
If you have selected a delay time by means of
button 12, the countdown will begin and will be
shown on the display.
•Pause: when you press this button again, the
programme in progress is interrupted. The light
above the button will start flashing. To restart the
programme, press the button again.
When you PAUSE the cycle, the DOOR LOCKED
light goes out, and it becomes possible to open the
door, provided
• the machine is not in the heating or drying phase;
• the level of the water is not high;
• the drum is not turning.
Important! You must set the machine to PAUSE
before you make any change in the programme in
progress.
•Draining of water and spinning after the
execution of programmes with the RINSE HOLD
(AGUA EN LA CUBA) option.
11 RESET (ANUL.) button
At the end of a programme, you must press this
button once or repeatedly, in order to clear the
contents of the memory (the display will show three
blinking dashes); otherwise, the next time you switch
the machine on, the blinking zero will reappear and
the audible warning signals relevant to the end of the
previous cycle will be given.
You can also press the RESET (ANUL.) button to
exclude one or several phases of the programme
which is running, as indicated below.
- set the machine to PAUSE by pressing the
START/PAUSE button (the relevant light will flash);
- press the RESET (ANUL.) button once or several
times, until the required phase(s) is(are) cancelled
(the light next to the name of the phase(s) will go out).
Example:
In this case, only the
spin (at the speed
provided for the
selected type of fabric)
will be performed.
This button allows you also to select special
programmes, such as RINSES, SPIN and DRAIN.
• If the machine is already switched on because it
has just performed a washing programme, proceed
as follows:
- depress RESET (ANUL.) once or repeatidly to
cancel the previously performed programme (three
blinking dashes will appear on the display);
- select the type of fabric by means of button
TEJIDOS;
- select the special programme:
• RINSES AND SPIN
Depress RESET (ANUL.) once, the pilot light
(WASH) goes out.
• SPIN
Depress RESET (ANUL.) twice, the pilot lights
WASH and RINSES go out.
• DRAIN
Depress RESET (ANUL.) three times, the pilot
lights WASH , RINSES and SPIN go
out and the only pilot light will remain lit.
Example:
In this case the
machine will perform
the rinses and spin.
• If the machine is switched off:
- depress ON/OFF button to switch it on;
- select the type of fabric by means of button
TEJIDOS:
- select the special programme as previously
described.
40

ENGLISH
12 DELAY (RETARDO) button
This button makes it possible to delay the starting of
the programme by up to 24 hours. The delay you
have selected is shown on the display for about 3
seconds; afterwards, the duration of the programme
reappears.
You must select this option after you have set the
programme and before you press the
START/PAUSE button.
The time value shown on the display will decrease
by one unit every hour.
You can change the delay time at any moment,
before you press the START/PAUSE button.
If you have already pressed the START/PAUSE
button, and you wish to change or cancel the delay
time, proceed as follows:
• set the machine to PAUSE by pressing the
START/PAUSE button;
• press the DELAY button until the display shows the
desired delay time or
• press the DELAY button once, to erase the delay
time. The display will indicate “0h”.
• press the START/PAUSE button again.
Important!
The door will be locked throughout the delay time
(DOOR LOCKED light lit).
If you need to open the door, you must first set the
washing machine to PAUSE by pressing the
START/PAUSE button. After you have closed the
door, press the START/PAUSE button again.
13 Programme phase indicator
lights
When you select a programme, the lights relevant to
the phases that form the programme light up.
After you have started the programme, only the light
relevant to the phase that is currently being carried
out will remain lit.
41

42
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
90° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
Frio (cold) for delicate items (e.g. net curtains),
30°-40° mixed laundry including synthetic fibres
and woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any

ENGLISH
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees”
of hardness. Information on hardness of the water
in your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
Degrees of water hardness
residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
43
Level Characteristic
Degrees
German
°dH
French
°T.H.
soft
medium
hard
very hard
0- 7
8-14
15-21
more than
21
0-15
16-25
26-37
more than
37
1
2
3
4

44
Drying hints
As a dryer, the machine works on the condensation
principle.
Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
Load
Warning:
Loads of washed laundry exceeding these values
must be divided before being dried, otherwise
poor results will be obtained.
Garments not suitable for drying
• Particularly delicate items such as synthetic
curtains, woollen and silk, garments with metal
inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and
duvets must not be machine dried.
• Garments padded with foam-rubber or materials
similar to foam-rubber must not be machine dried;
they represent a fire hazard.
• Also, fabrics containing residues of setting lotions
or hair sprays, nail solvents or similar solutions
must not be machine dried in order to avoid the
formation of harmful vapours.
Drying symbols on garment labels
Always look at the garment label to check whether
garments can be machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
Duration of the drying cycle
The drying time can vary according to
• the final spin speed;
• the required degree of drying (extra dry, store dry
or iron dry);
• the type of laundry;
• the size of load.
The usual drying times for the timed programmes are
indicated in the programme chart. As you become
more familiar with the appliance, you will discover
the drying times that best suit your needs according
to the various type of fabric. It is a good idea to make
a note of these times.
Fibre residue
After drying fluffy fabrics, such as new towels, it is
advisable to perform the rinse programme to be
sure that any residue that may remain in
the tub is completely removed and does not stick to
garments dried afterwards.
After each drying cycle the filter should be
checked and cleaned.
Additional drying
Should the laundry still be too wet at the end of the
programme, set another short drying cycle.
Warning! To prevent the formation of creases or
shrinking of fabrics, avoid excessive drying.
max. load
(dry weight)
2.5 kg
2kg
Linen and cottons
Synthetics
Sort of laundry

ENGLISH
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C
Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C
Warm iron
max 150°C
Lukewarm iron
max 110°C
Do not iron
Dry cleaning Dry cleaning
in all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger
Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
45

46
To switch the machine on, press the ON/OFF button
: the mains-on light comes on.
The display will show three blinking dashes or a
blinking zero.
5. Select the desired programme/
fabric
Press the FABRIC (TEIJDOS) button repeatedly, in
order to select the desired programme/fabric. The
relevant light will light up.
The lights relevant to the phases that form the
programme will light up.
The display will show the duration of the selected
programme, calculated on the basis of the maximum
load for each type of fabric. The START/PAUSE
button light will start flashing.
If the load of laundry to be washed is small, at the
beginning of the cycle the display will still indicate the
duration relevant to the maximum load. The duration
value will be gradually adjusted during the execution
of the cycle.
SINTETICOS
DELICADOS
ALGODON
LANA
LAVADO
A MANO
T
E
J
I
D
O
S
------
0
M
A
R
C
H
A
/
P
A
R
A
D
A
Operating sequence
Wash only
Before the first wash we recommend that you pour 2
litres of water into the main wash compartment
of the detergent drawer in order to activate the
ECO valve. Then run a cotton cycle at 60°C, with the
machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1. Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out the prewash, pour detergent
into the appropriate compartment marked .
3. Measure out the additives
If required, pour fabric softener into the compartment
marked without exceeding the «MAX» mark.
4. Switch the machine on
C0065
C0064
P0004

ENGLISH
If your laundry is only slightly soiled, select the
QUICK WASH (LAVADO RAPIDO) option.
The relevant light illuminates.
9. Select the DELAY TIME
Before you start the programme, if you wish the
starting to be delayed, press the DELAY
(RETARDO) button repeatedly, or keep it pressed, to
select the desired delay. The selected delay time
value (up to 24 hours) will appear on the display for 3
seconds, then the duration of the programme will
appear again.
10. Start the programme
Press the START/PAUSE button. The relevant light
will stop flashing, the DOOR LOCKED light will light
up, and only the light relevant to the phase that is in
progress will remain lit.
If you have chosen a delayed start, the machine will
begin the countdown.
The display will show the duration of the programme
or the selected delay.
11. How to change a programme
during its cycle
Before you make any change, you must pause the
machine by pressing the START/PAUSE button.
It is possible to change any phase before the
programme carries it out.
Changing the type of fabric or temperature is
possible, obviously, only during the washing phase.
When you make a change in these two parameters,
the machine will resume the cycle from the
beginning.
S
T
A
R
T
/
P
A
U
S
A
RETARDO
47
6. Select the temperature
Press the TEMPERATURE button if you wish to
select a temperature value different from the one
proposed by the machine.
The relevant light will light up.
7. Select the spin speed or the
RINSE HOLD (AGUA EN LA
CUBA) option
Press the SPIN SPEED (CENTRIFUGADO) button
repeatedly, in order to select the desired spin speed
or the RINSE HOLD (AGUA EN LA CUBA) option.
The relevant light will light up.
If you select the RINSE HOLD option, the machine
will stop at the end of the programme with the water
still in the tub.
8. Select the desired options
If your laundry is very dirty, it may be advisable to
select the PREWASH (PRELAVADO) option.
If you wish the laundry to undergo an extra rinse,
select the SUPER RINSE (ACLARADO ADICIONAL)
option.
Press the OPTIONS (OPCIONES) button so as to
cause one or both of the lights to light up.
PRELAVADO
ACLARADO
ADICIONAL
LAVADO
RAPIDO
O
P
C
I
O
N
E
S
1000
900
700
500
AGUA EN
LA CUBA
C
E
N
T
R
I
F
U
G
A
D
O
60°C
40°C
90°C
30°C
T
E
M
P
E
R
A
T
U
R
A
FRIO
