Introduction
Thanks for purchasing 9908 UHF Radio. Please read this manual carefully to learn its functions and operations
before using.
With elegant design, stable performance, and easy-to-use feature, transceiver 9908 is developed for widely
using. It offers you a normal communication when you are in the rural area, forest zone, pasturing area or sea area.
The fine appearance of 9908 meets your needs of personality.
Thank you for your support and interest in our products.
Included
Please take the transceiver from the carton carefully. Please check if the package including the spare parts as
below. If there are any items lost or damaged during moving,please submit claim immediately to the delivery.

3
Table of Spare Parts
Spare Parts
Unit
quantity
Antenna
pc
1
Belt Clip
pc
1
Li-ion Battery Pack
pc
1
Adapter
pc
1
Charger
pc
1
Qualified Card
pc
1
User manual
pc
1
Handstrap
pc
1

4
Features
1.Frequency：430MHz-470MHz 15.TX/RX CTCSS/CDCSS adjustable
2.Easy Operation by OLED display 16.STEP5/6.25/10/12.5/20/25/50/100K
3. 7.4V 1800mAh Li-ion battery 17.Scanning ：VFO/Channel
4.DPMR digital and analog communication 18.SQL（0-9）
5.Analog Wide/Narrow：25K/12.5K 19.Backlight On/Off
6.High/Low Power ：4w/1w 20.Power SAVE
7.Analog CTCSS 51，Digital CTCSS 107 for each + - 21.MONITOR
8. 199 Channels, 1 Emergency Channel and 22.Lower battery alert
can not be deleted. 23.Key lock and keypad tone
9.Voice Encryption 24.PC program /Manual input frequency
10.TOT OFF-30/60/90/120/150.../600S 25.Message Send and Receive
11.VOX 26.Group/Selective Call
12.Emergency Call
13.PRI
14.OFF SET

55
Specification
General Transmitter
Receiver
Frequency
430-470MHz
Channel 199
Channel Spacing
Digital 6.25KHZ
Analog 12.5kHz or
25kHz
Working Temperature －20℃～＋60℃
Voltage 7.4V
Standby Current (power
Save)
About 40mA
Output Power
UHF≤4W
TX current HI≤1.6A
Modulation FM
Maximum frequency
deviation
≤±5kHz or
≤±2.5kHz
Residucal Radiation <-60dB
Sensitivity
≤-122dBm(12dB SINAD)
Squelch Sensitvity ≤0.16uV
Intermodulation Rejection 60dB
Audio Power ≥500mW
RX current ≤140mA
Standby 15mA

66
Know the Radio
Scheme
1.Antenna 2.Power/Volume Knob
3.Indicator light 4.PTT
5.KEY1 6.KEY2
7.External SP+MIC/program connector/
extended function connector
8.OCLD display 9.DTMF keypad(1~9,*,#)
10.MIC 11.Speaker
12.Battery 13.Battery Buckle
14.Belt clip 15.Hand strap hole

7
Menu
Icon Feature Note
Receive 00
CTCSS 02
DCS
Message 03

8
Scanning 05
Off Set 07
Signal 08
Battery 09
VOX 11
Reverse Frequency （With this state
transmitting and receiving will be
reversed， ）
13
High/Low 16
Channel 17

99
Preparation Before Using
Install the Antenna
Install the antenna as picture shows and rotate it clockwise till tight.
Note: Don’t hold the antenna or hang the keys or external mic on the Antenna ,in case of destroying the
performance of radio .

10
Install the battery Disassembling of battery
Install the batter along the rear case of radio Press the fixed buckle of the battery(P1),then push
properly as following pictures show：down the battery off the transceiver(P2)
P1 P1
P2 P2

11

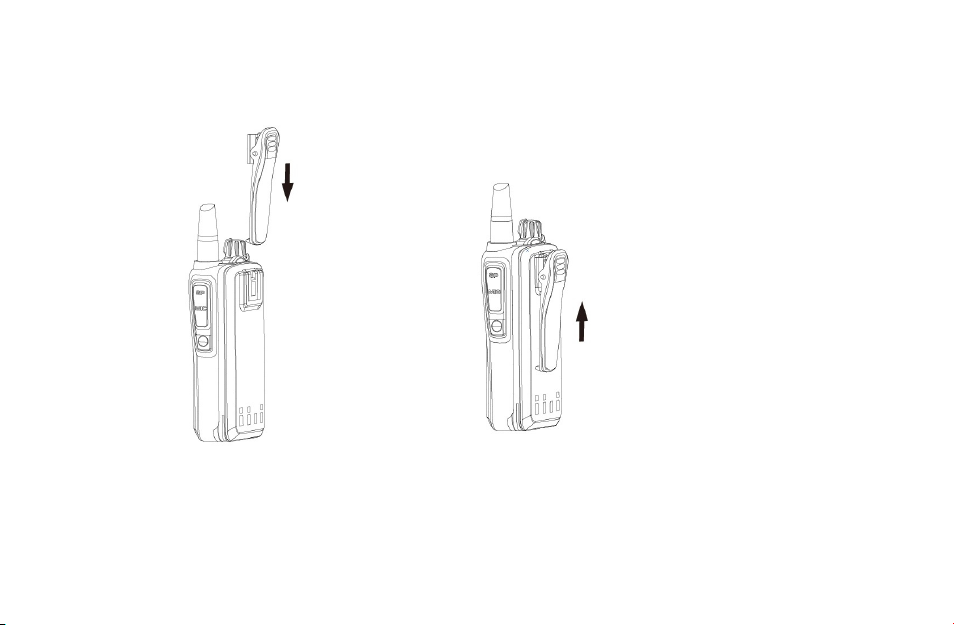

Install and take off the belt clip
If necessary ,fix the belt clip with two screws (3*6) as picture shows:：
Install disassembly
Note:1.When installing the belt clip , do not use any glue to fix screws,otherwise, it will damage the housing.
2. Take off the belt before disassembling the battery.

1212
Install external microphone
Install the microphone as picture shows,：
Charging
The battery pack is not fully charger when finished,and please charge it before using
The battery can not reach the normal capacity for the first time charging after purchasing or storing it more than two
months.However,it will return the normal capacity after charging and discharging repeatedly 3-5 times.。

1313
Charging steps as below：
1. Insert the AC adaptor line to the charging hole of desk-top .
2. Connect the power with AC adaptor.
3.Put Li-ion battery or Radio with battery on the desk top.
As following pictures show
P1 P2 P3
Note: 1.Please make sure the battery connect with the touching piece of the charging terminal.
2.Green light indicates power on or the battery is full.Red light indicates the charging just beginning. Charge in
power-off mode, the indicate red light is on, and it is off when finish charging.
3. Do not short-circuit the battery terminals or dispose of batteries in fire.
4.Do not disassemble the housing of the battery.
5. It will take 6 hours for full charge.

14
Basic Functions
1）Power on /Off
Turn power on/off by power key .
Please input password if setted,operate like this ：
(1) Input password when LCD display：“――――――”
(2)Inputting 0-9 by DTMF keys and display corresponding interface。
(3)After input ,transceiver check password automatically . If yes, then power on ,if not ,back to (1)
2）Select a Channel
Choose requested Channel by ( / ）,199 channels Maximum ,Channel Name can be programmed
at most 8 characters。
Long press（/）to quick select.
3）Transmission
Press【PTT】 to transmit， Release【PTT】 to receiver。 Red lights while transmitting ,Green lights while receiving .
Note :Press PTT to stop transmitting and prompt if set the BCLO.
Contact List（Digital Mode）
(1) Press【Contact List 】（programmable）or enter menu to check contact list.

15
(2) Press（/）to choose ID code on the contact list。
(3) Press 【PTT】to transmit
Note : Press PTT to transmit and get default contact . If not ,transceiver reminds users no contact available . Single
call to input contact person . Group call only for program .
DTMF （Analog Mode）
(1) Press【DTMF】（Programmable）or enter menu to operate.
(2) Press（/）to choose on the DTMF list；
(3) Press【PTT】to transmit，release PTT to quit.
Note ,With being Analog ,press DTMF to transmit DTMF code ,long press to continuously transmitting code .Short
press to send single code .
4）Receiving a Call
Adjust volume level by controller while receiving information from caller . Decode information first then receiving
if channel sets with code .
A、Receive Main/Sub Code （Analog）
Can receive information once transceiver gets matched DTMF main/sub code .
B、Receive Group/Single/All Call （Digital）

16
Can receive information once transceiver gets match ID from group/single/All call.
Press PTT to communicate within limited time .
Menu Operation
1）Menu Operation
(1) Press（ ）；
(2) Press（/）to choose menu ，Long press （ ）to get hot menu if transceiver with
DTMF keys，press DTMF No.keys to get corresponding menu；
(3) Press（ ）
(4) Press（/）to set functions，Press DTMF keys to set functions if transceiver with DTMF
keys .Repeat (3) (4) if do have many submenus .
(5) Normally ,press（ ） to confirm setting and back previous step . Press S 1 to quit and back to menu .
(6) Particularly for programmable function menu ,press（) to confirm and back to previous step；Press
（/）
to choose requested ； Press
【S2】
to delete present setting； press 【S1】 to quit and back
to previous step .

17
(7) 10s for operating any menu .Once over 10s ,transceiver quit and back tot main interface .
Note :1 No limited time for Message editing .
2 while operating ,press PTT to back main interface and no confirmation .
2) Menu Setting List（Digital Mode）
Item Chinese English Chinese Menu English Menu
1工作模式 MODE
(1)信道模式
(2)记忆模式
(3)频率模式
(1) CH MODE
(2) MR MODE
(3) VFO MODE
2频道类型 CH TYPE
(1)模拟频道
(2)数字频道
(3)混合频道-数字发射
(3)模拟频道-模拟发射
(1)ANALOG
(2)DIGITAL
(3)MIXER-D
(4)MIXER-A
3发射功率 TX POWER
(1)低功率
(2)高功率
(1)LOW
(2)HIGH
4静噪等级 SQL
(1)0 级
…
(6)5 级
…
(10)9 级
(1)SQL-0
…
(6)SQL-5
…
(10)SQL-9
5* 本机码
LOCAL
CODE
七位 ID 号码（不带*）

18
6* 联系人 CONTACTS 64 组，号码中可带(*)
7* 发件箱
MSG
OUTBOX
短信息发送列表（最大 20 条）
8* 收件箱 MSG INBOX 短信息接收列表（最大 20 条）
8带宽设置 W/N BAND
(1)宽带
(2)窄带
(1)WIDTH
(2)NARROW
10* 话音加密 ENCRYPT
(1)关
(2)开
(1)OFF
(2)ON
11 密钥列表 ERP LIST 32 位密钥
12 时间显示 TIME
(1)关
(2)开
(1)OFF
(2)ON
13* 日期/时间
DATE AND
TIME
——
14 差频方向 SHIFT
(1)无
(2)正差频
(3)负差频
(1)NONE
(2)PLUS
(3)MINUS
15 频率步进 STEP
(1)5.0KHz
(2)6.25KHz
(3)10.0KHz
(4)12.5KHz
(5)25.0KHz
(6)50KHz
(7)100KHz
16 差频频率 OFFSET 0～50MHz，默认 0.6MHz（VHF）/7.6MHz（UHF）

19
17 省电设置 BATT SAVER
(1) 关
(2) 1：1
……….
(11) 1:10
(12) 1:11
(13) 1:12
(1)OFF
(2)1:1
………
(11) 1:10
(12) 1:11
(13) 1:12
18 超时设置 TOT 0～600s，步进 30s
19 背光灯模式 BACKLIGHT
(1)关
(2)开
(3)自动
(1)OFF
(2)ON
(3)AUTO
20 提示音设置 BEEP TONE
(1)关
(2)开
(1)OFF
(2)ON
21 开机密码 PASSWORD
(1)关
(2)开
(1)OFF
(2)ON
22 声控设置 VOX
(1)关
(2)开
(1)OFF
(2)ON
23 声控灵敏度 VOX LEVEL
(1)0 级
…
(6)5 级
…
(10)9 级
(1)LEVEL 0
…
(6)LEVEL 5
…
(10)LEVEL 9
24 扫描模式 SCAN MODE
(1)时间
(2)载波
(3)搜索
(1) TO
(2) CO
(3) SE

20
25 频率模式扫描 VFO SCAN
(1) ±1MHz
(2) ±2MHz
(3) ±5MHz
(4) PMS
(5) BAND
26 语言设置 LANGUAGE
(1)英文
(2)中文
(1)ENGLISH
(2)CHINESE
Note : The menu with * operation ,please refer to the following details.
Menu Operating List（MD Mixed Digital Mode ）
Note : Only Menu 26 in the mode of digital transmitting and not reset to dual frequency mode .
Item Chinese English Chinese Menu English Menu
1工作模式 MODE
(1)信道模式
(2)记忆模式
(3)频率模式
(1) CH MODE
(2) MR MODE
(3) VFO MODE
2频道类型 CH TYPE
(1)模拟频道
(2)数字频道
(3)混合频道-数字发射
(3)模拟频道-模拟发射
(1)ANALOG
(2)DIGITAL
(3)MIXER-D
(4)MIXER-A
3发射功率 TX POWER
(1)低功率
(2)高功率
(1)LOW
(2)HIGH
4静噪等级 SQL
(1)0 级
…
(6)5 级
…
(1)SQL-0
…
(6)SQL-5
…
