Zavio F3210 User manual

1
Content
Safety Instruction............................................................................................................................................................2
Minimum System Requirement & Product Feature....................................................................................................4
Minimum System Requirement ....................................................................................................................................4
Product Feature..............................................................................................................................................5
Main Page........................................................................................................................................................................6
Basic Setup........................................................................................................................................................9
Account..........................................................................................................................................................9

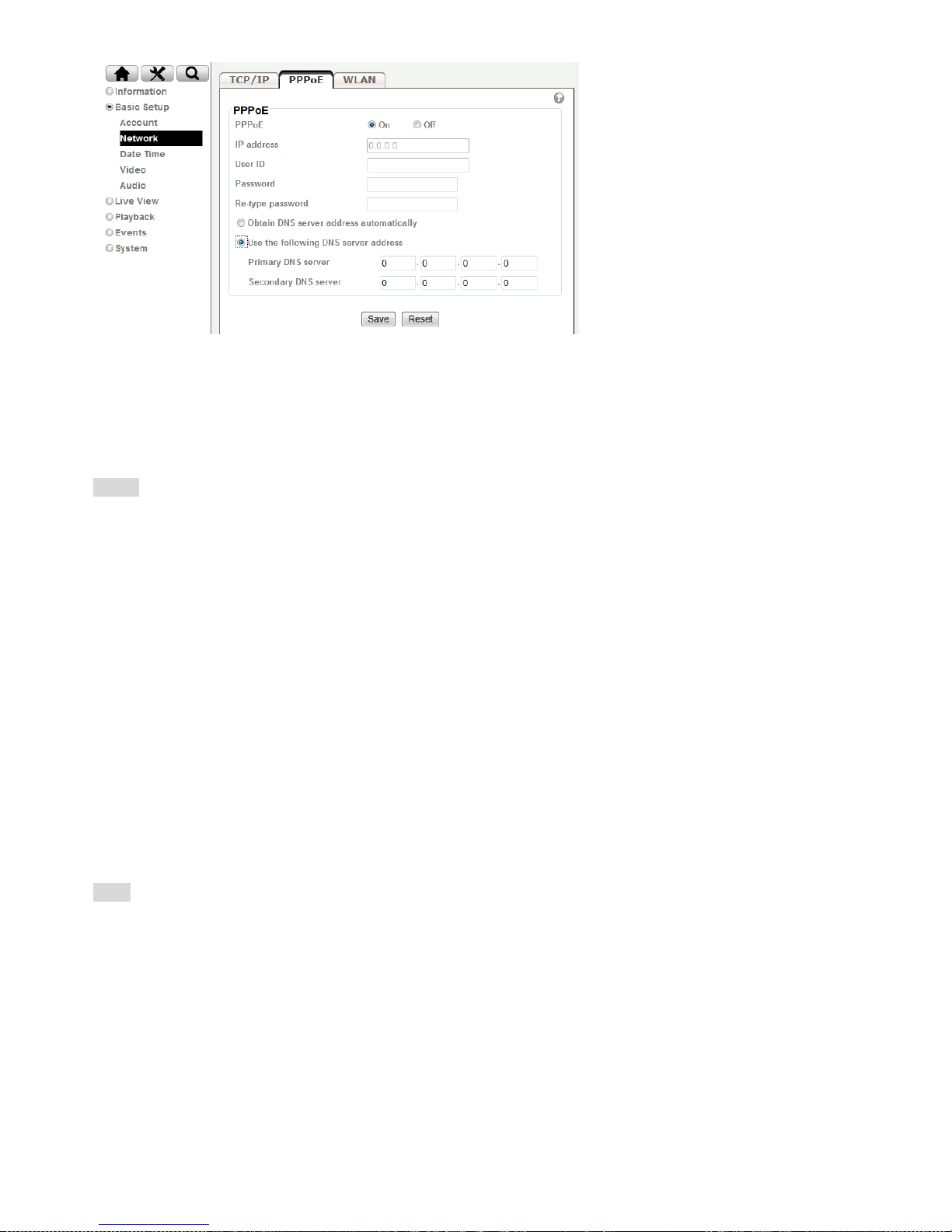

Network........................................................................................................................................................ 10

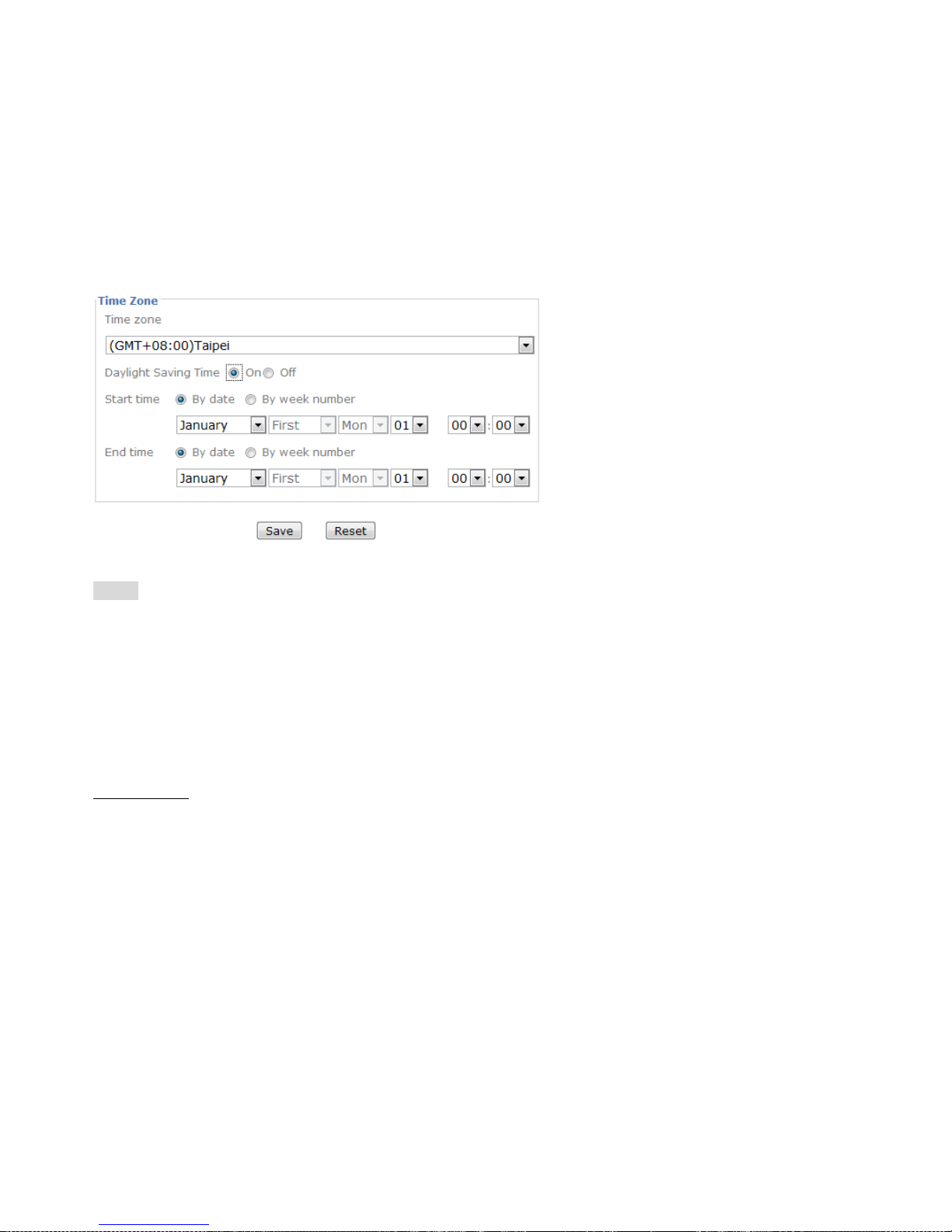

Date Time..................................................................................................................................................... 12

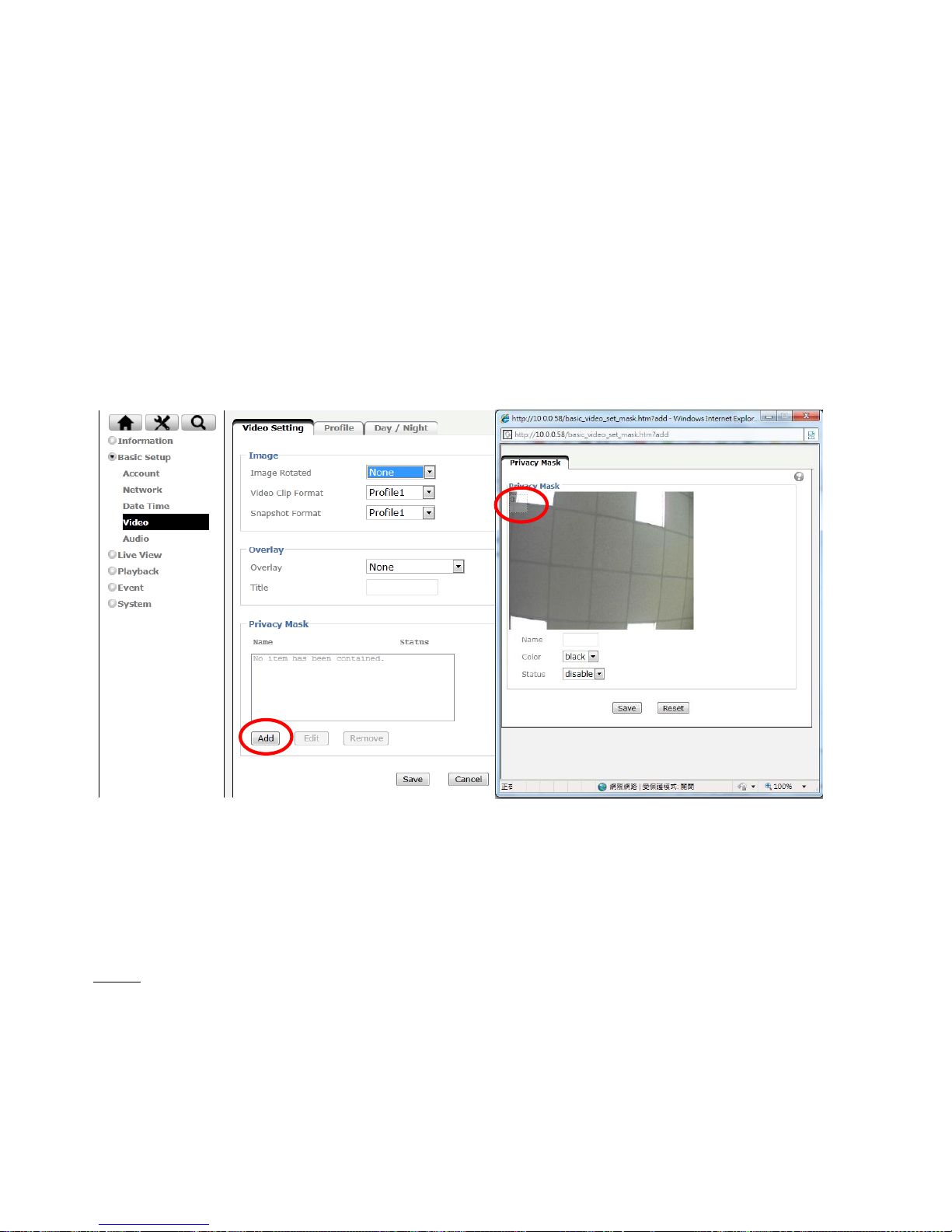

Video............................................................................................................................................................ 13
Audio............................................................................................................................................................ 16
Live View......................................................................................................................................................... 16
Video............................................................................................................................................................ 16
Audio............................................................................................................................................................ 17
Camera Setting............................................................................................................................................. 17
PTZ Control................................................................................................................................................. 19
Playback.......................................................................................................................................................... 19
Client PC...................................................................................................................................................... 19
Network Storage .......................................................................................................................................... 20
Local Storage ............................................................................................................................................... 20
Event................................................................................................................................................................ 21
Event Server................................................................................................................................................. 21
Event List..................................................................................................................................................... 21
Motion Detection......................................................................................................................................... 23
Audio Detection........................................................................................................................................... 23
Schedule....................................................................................................................................................... 24
System ............................................................................................................................................................. 24
Maintenance................................................................................................................................................. 24
Date Time..................................................................................................................................................... 24
Security........................................................................................................................................................ 24
Network Basic..............................................................................................................................................25
Network Advanced....................................................................................................................................... 25
Digital I/O.................................................................................................................................................... 27
LED..............................................................................................................................................................27
System Log .................................................................................................................................................. 27
Electromagnetic Compatibility (EMC)........................................................................................................ 28
FCC statement.............................................................................................................................................. 28
CE Mark Warning........................................................................................................................................ 28

2
User Manual
Safety Instruction
Before you use this product
This product has been designed with safety in mind. However, the electrical products can cause fires which
may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the
following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in
your local region before using this product for surveillance purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage or other
hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
Extremely hot or cold places
(Operating temperature: 0 °C to + 40 °C [32 °F to 104°F] )
Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
Locations subject to strong vibration or shock

3
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet.
If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2 Contact
your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using
a soft cloth dampened with a small quantity of detergent solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface.

4
Minimum System Requirement & Product Feature
System Requirement
For normal operation and viewing of the network camera, it’s recommended that your
system meet these minimum requirements for proper operation:
Item
Requirements
CPU
Minimum Intel® Core 2 Duo or higher (Core i3 or above is
recommended)
Graphic Card
256 MB RAM graphic cards
(or equivalent on-board graphic cards)
RAM
Minimum 1 GB of RAM,(2GB or above is recommended)
Operating
System
Window 2000, 2003, XP, Vista or Windows 7
Mac OS Leopard 10.5 or later
Web Browser
Internet Explorer 6 or later
Note:
1. If using Windows 98 or Windows ME, please install IPInstaller before using WEB UI to ensure the system
runs normally.
2. If not able to view the recorded video file, please install Xvid codec while installing Intelligent IP Installer.
(For Windows 98, ME or 2000 server, the codec might not work properly. Please download Xvid codec 1.0
from the internet.)
3. Please keep updating the latest Windows software and service package. (Ex: Net Framework, Windows
Media Player, Enhance ActiveX Security)

5
Product Features
SYSTEM
Resolutions
H.264 / MPEG-4 / Motion JPEG:
Screen Resolution
Higher than 1024 * 720 pixels
Compressing format
H.264 / MPEG-4 / Motion JPEG
Frame Rate
Up to 30 fps at 1920*1080
Image settings
Rotation: Mirror, Flip, Mirror Flip
Brightness / Contrast / Saturation
Overlay capabilities: time, date, text and privacy image
Image snapshot
Yes
Video Recording
Yes
Full Screen Viewing
Yes
Digital Zoom
10x digital
Audio
Two-way (full / half duplex) with built-in microphone and speaker
Audio compression: G.711 μ law, a law, and AMR
Mobile Phone Live View
Through 2.5 WAP
Alarm Sending
FTP Client / SMTP / Network Storage / HTTP Event
Security
Password Protection / HTTPS encryption / IP Filter
Alarm Buffer
Input: alarm buffer, motion detection, audio detection
Output: network storage, FTP, SMTP, Pre-and post alarm buffer
Supported protocols
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,
DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP,
3GPP/ISMA RTSP
Simultaneous
Connection
Up to 10 users
Operating conditions
0℃~ 40℃(32℉~ 104℉)
HARDWARE
Lens
M12 Board lens
IR LED
5 φ LEDs x 6
IR working distnce
10M
I/O
1in / 1out
PIR Sensor
Passive infrared (PIR) motion sensor with configurable sensitivity.
Max range: 6 m
Local Storage
Support MicroSD card
Power
5V DC, 1A , Max 5W
NETWORK
Ethernet
10 / 100 Base T

6
Main Page
Toolbar of Main Page

7
Profile
Click the drop-down menu to choose video compression mode of Live
View among H.264, MPEG-4, MJPEG and H.264.
Note: As long as the operating system is not able to afford loading under
H.264 mode, please downgrade the mode to MPEG-4 or MJPEG.
View Size
Select the desired view size of image resolution between Fit
Screen and Full Screen.
Protocol Select the transferring protocol among TCP, UDP, and HTTP.
Video Buffer
Turn the Video Buffer function On / Off. The Video Buffer function
makes the streaming more smoothly in unsteady network environment,
but might cause a little delay in live view.
Client Setting

8
PTZ
Click the Home button and it brings you back to the center no matter what position you are
at.
Move the camera view to the direction that the various arrows you click on.
Preset
Use the various direction arrows to steer the camera view to the required position，and name
it for the specified position.
Patrol
Before starting this function, it requires to specify Guard tour settings in the Setting

9
Basic Setup
Account

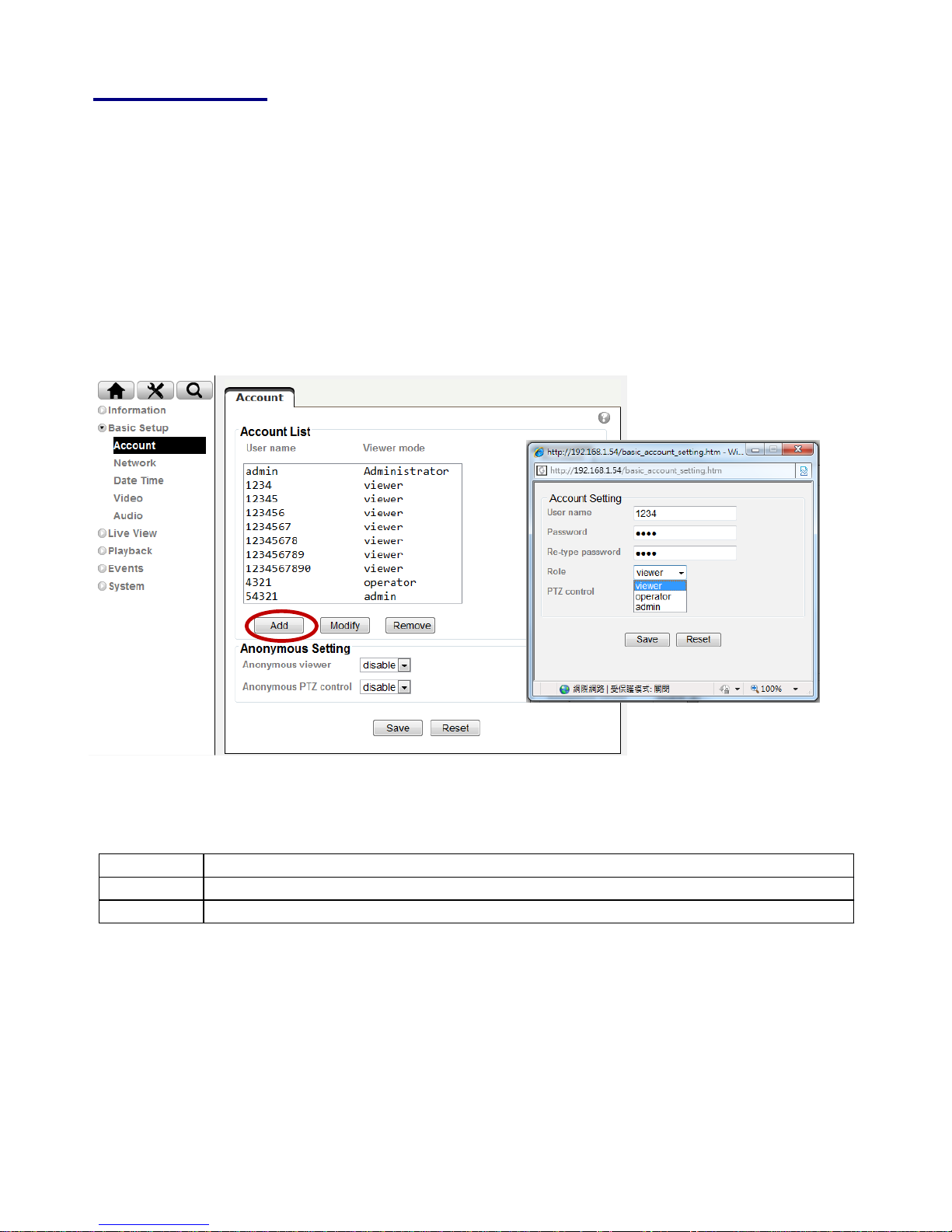

Account List
The device default account and password setting is “admin / admin”. That means everyone who knows IP
address can access the device including all configuration. It is necessary to create a new password if the device
is intended to be accessed by specific ones.
Click “Add”to create the accounts to the specific users. There are 1 default account and 9 accounts that you
may assign 3 different viewer modes as you wish. The instruction of 3 viewer modes listed as below:
Anonymous Setting
There is a drop-down menu for both “Anonymous viewer”and “Anonymous PTZ control”to disable or enable
the function.
Viewer
Operator
Administrator
It only allows the user to access to the Live View page.
It allows to view the Live View page, create and modify events, and adjust certain other settings.
It allows the user to watch the live view and access all configurations.
