1. Summary
1.1 Brief overview
This document describes the electrical characteristics, RF performance, size,
and application environment of WG1608-5G. Under the introduction of this
document, end users or developers can quickly understand the hardware
functions of WG1608-5G.

深圳市智博通电子有限公司
第3页 共 10 页
WG1608-5G is 5G CPE product for home use. It accesses the Internet through
5G mobile communication dial-up or 1000Mbps WAN port dial-up, and then
shares the Internet network through wireless WiFi 5 and 1000Mbps wired LAN.
1.2 Reference standard
Related standard specifications:
USB3.0/USB2.0 Bus standard
PCI- Express Bus standard
TF Card Interface standard
SIM/USIM Interface standard
IEEE802.11n/g/b/a/ac
IEEE802.3/802.3u/802.ab
PCI Express M.2 Specification Rev1.1
Mini PCI Express Card Electro mechanical Specification Revision
1.0-2003
5G mobile communication standard, determined by the selected 5G
mobile communication module

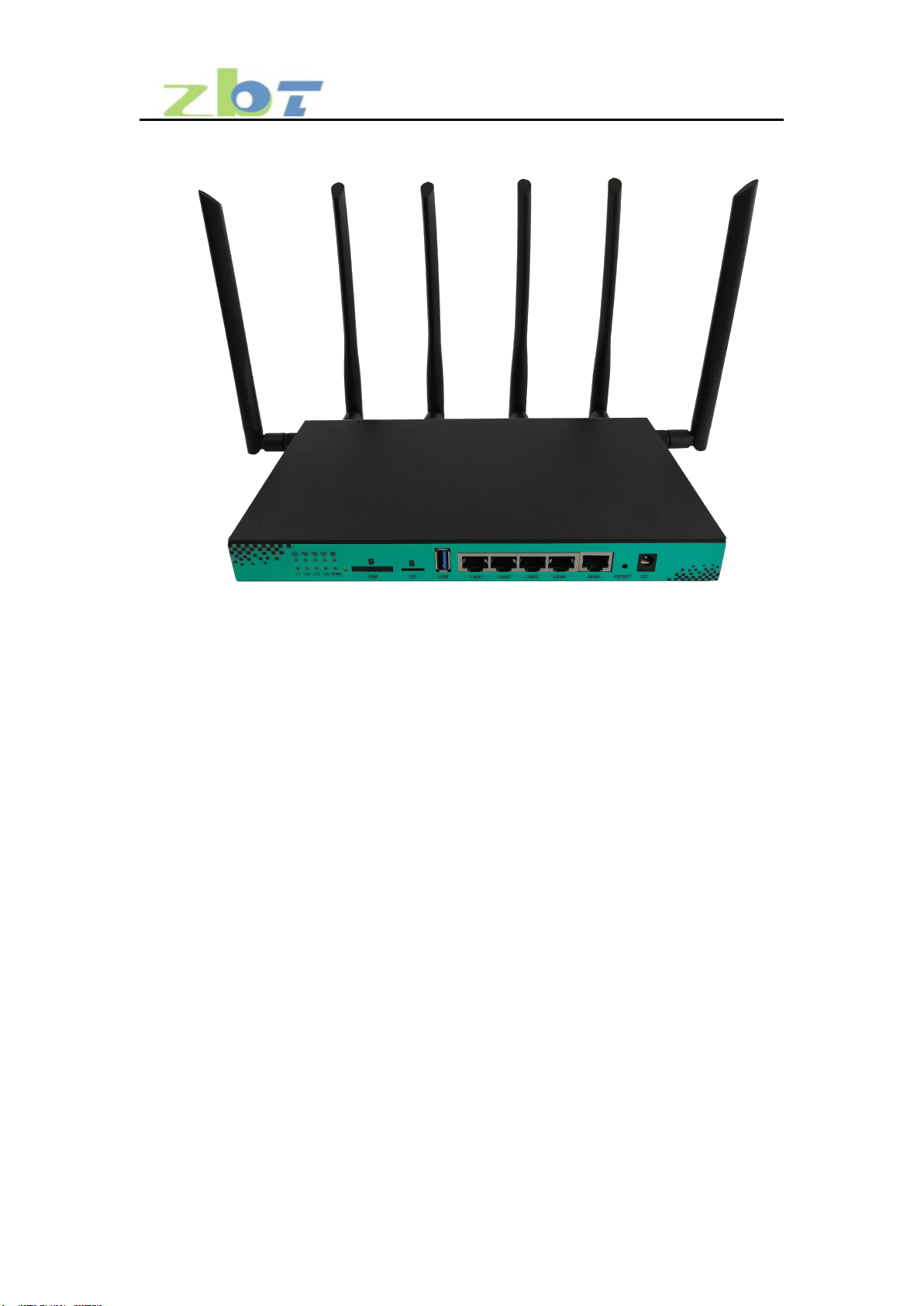

2. Product picture

深圳市智博通电子有限公司
第4页 共 10 页
3. Main features of the product
Adopt MT7621A project, MIPS dual-core CPU, the main frequency is
up to 880MHZ
2.4G rate up to 300Mbps, 5.8G rate up to 867Mbps, 5.8G supports
MU-MIMO
Using high-speed 256MB DDR3 with 16MB Nor Flash
1WAN, 4LAN all 1000M adaptive network ports, support automatic flip
(Auto MDI/MDIX)
Support USB3.0 and TF card storage interface, can be used to expand
SMABA or FTP network storage function
Support "One-key flash mode", that is, long press the reset button to
enter the rescue flash mode
Built-in M.2 standard interface, can be used to connect 5G mobile

深圳市智博通电子有限公司
第5页 共 10 页
communication module
External standard SIM card interface, support SIM/USIM card
External high gain omnidirectional antenna, wireless signal 360
degrees without dead angle
4. Hardware function
4.1 Hardware interface introduction
Ethernet
Port
1*WAN port,1000Mbps supports auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u/802.ab
4*LAN port,1000Mbps support auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u/802.ab
USB
Interface
1*USB3.0 slot
TFcard
Interface
TF card slot
SIMcard
Interface
1*sim card slot, support SIM/USIM
Power
Interface
DC5.0*2.1MM interface
Button
1*reset
Antennas
2* omnidirectional 5dbi 2.4G and 5.8G antennas
4*omnidirectional 5dbi 5G mobile communication antennas,
1*GPS antenna
M.2
Interface
Built-in M.2 slot, support PCIE and USB3.0 bus
4.2 Indicator function introduction
WAN LED
Connect to the Internet port always bright, flashes when
have data communication
LAN1 LED
Connect to the Internet port always bright, flashes when
have data communication
LAN2 LED
Connect to the Internet port always bright, flashes when
have data communication

深圳市智博通电子有限公司
第6页 共 10 页
LAN3 LED
Connect to the Internet port always bright, flashes when
have data communication
LAN4 LED
Connect to the Internet port always bright, flashes when
have data communication
Adapter LED
Always bright when power on, No light when the power
supply is faulty or not connected
2.4G WIFI LED
Open 2.4G WIFI function is always bright, flashes when
there is data communication；when not open 2.4G WIFI
or 2.4G WIFI function fails, Not bright
5.8G WIFI LED
Open 5.8G WIFI function is always bright, flashes when
there is data communication；when not open 5.8G WIFI
or 5.8G WIFI function fails, Not bright
Move 5G LED
When the routing system recognizes and successfully
mounts the 5G mobile communication module, it is
always bright. When the 5G mobile communication
module is faulty or does not access the 5G mobile
communication module, it does not light.
Internet LED
The device dials successfully through 5G mobile
communication module or WAN port. It is always bright
when communication with the Internet is normal, and it is
off when the device cannot access the Internet
4.3 Hardware platform introduction
Processor
MT7621A MIPS dual core CPU， 880MHZ Main frequency
2.4GWIFI
chipset
MT7603EN IEEE 802.11n/g/b,Maximum rate 300Mbps
5.8GWIFI
chipset
MT7613AEN IEEE 802.11ac/a,Maximum rate 867Mbps
Ram
DDR3 256MB
Flash
Nor Flash 16MB
Not support NAND Flash
5. Description of power supply and power consumption
Test Conditions
Min
Rated
value
Max
Unit

深圳市智博通电子有限公司
第7页 共 10 页
Operating
Voltage
T A = 25°C
6
12
32
V
Absolute
working
voltage
T A = 25°C
5.5
36
V
Working
current
VIN=12V，T A =
25°C
0.4
0.6
1.5
A
Please use the ZBT standard power adapter to supply power to this product. If
not use the ZBT standard power supply, please strictly follow the above power
supply specifications to supply power to this product, otherwise it will damage
the product. If you use batteries or vehicle power supply, please be sure to
take anti-static and anti-surge measures.
6.WIFI Wireless Parameter Introduction
6.1 WIFI 2.4G
Compatible with IEEE 802.11 b/g/n, support IEEE 802.11 d/h/k; support
20MHz, 40MHz, using 2T2R MIMO antenna technology, the maximum
connection rate is up to 300Mbps. The following is a description of the power
frequency, reception sensitivity, and transmission power of 2.4G WIFI.
Explanation
Max
Rated
value
Min
Unit
Working
Frequency
2484
2412
MHz
Receive
Sensitivity
11 Mbps CCK
-86
-87.5
-89
dBm
54 Mbps OFDM
-72
-74
-76
dBm
BW=20MHz
MCS 7
-70
-72
-74
dBm
BW=40MHz
MCS 7
-68
-70
-71
dBm
Transmit
11 Mbps CCK
20
19
18
dBm

深圳市智博通电子有限公司
第8页 共 10 页
Power
54 Mbps OFDM
18
17
16
dBm
BW=20MHz
MCS 7
18
17
16
dBm
BW=40MHz
MCS 7
17
16
15
dBm
6.2 WIFI 5.8G
Compatible with IEEE 802.11 a/ac, support IEEE 802.11 d/e/h/i/k/r/w; support
20MHz, 40MHz, 80MHz, adopt 2T2R MIMO antenna technology, the highest
connection rate is up to 867Mbps. The following is a description of the power
frequency, receiving sensitivity, and transmit power of 5.8G WIFI.
Explanation
Max
Rated
value
Min
Unit
Working
Frequency
5825
5180
MHz
Receive
Sensitivity
54 Mbps OFDM
-72
-74
-75
dBm
BW=20MHz
MCS 7
-70
-72
-73
dBm
BW=40MHz
MCS 7
-69
-70
-71
dBm
BW=80MHz
MCS 9
-58
-59
-60
dBm
Transmit
Power
54 Mbps OFDM
19
18
17
dBm
BW=20MHz
MCS 7
18
17
16
dBm
BW=40MHz
MCS 7
18
17
16
dBm
BW=80MHz
MCS 9
17
16
15
dBm
7. Introduction of structural parameters and accessories

深圳市智博通电子有限公司
第9页 共 10 页
Weigh
（KG）
1.22KG
Case Size
L*W*H=240MM*135MM*25MM
Color
Black
Accessories
Power
Adapter
12V/2A 1PCS
Manual
1PCS
Certificate
of
conformity
1PCS
Cable
Category 5 network cable 1PCS
SIMcard
cover
1PCS
Antennas
5G move antenna compatible 4G\3G\2G
frequency band 4PCS
1*GPS antenna
2.4G and 5.8G dual frequency antenna
2PCS
8. Dual frequency antenna
This product has a built-in M.2 interface, which can be used to expand 5G
mobile communication functions. The built-in M.2 interface supports USB3.0
and PCIE bus. The specific support of 5G mobile communications for NSA or
SA is determined by the selected 5G module. At present, this product has
completed the joint debugging with Guanghetong's FM150 series module.
9. Product working environment requirements
Operating
temperature
0℃to 40℃
Storage
temperature
-40℃to 70℃
Working
humidity
10% to 90%RH Non-condensing
Storage
humidity
5% to 90%RH Non-condensing

深圳市智博通电子有限公司
第10 页 共 10 页
10. Software configuration information
Default IP
192.168.1.1
Username
Password
root/admin
2.4G SSID
WIFI-XXXXXX (X is the last 6 digits of MAC address), no
password by default
5.8G SSID
WIFI-5G-XXXXXX (X is the last 6 digits of MAC address),
no password by default
Above is the general default preparation information of the product. The WIFI
SSID may be different when using our OS firmware or OPENWRT firmware,
but the default IP and WEB login name and password of this product remain
unchanged. For other detailed software functions, please refer to the product
description.
