Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
󲒱󲒲󲒳󲒴󲒵www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

4
Function Description
Micro3 slider motor is compatible with of lengths of 500/700/1000 sliders.
2.5mm shutter
release cable port
Power Indicator Light
Speed Indicator
Light
Waypoint Release
Button
Left
Right
Power Button
USB Type-C Port
Fixing screw
Battery compartment
Battery lock

5
Function Introduction
Name
Function
Power Indicator Light
Green: full power
Yellow: medium power
Red: low power
Blue: on
Speed Indicator Light
The number of lights from 1 to represent the low, medium, and
high speed respectively
Waypoint Release
Button
Holding the Waypoint Release Button for 1s, after the green light
flashes, the motor stops, and starts to set the waypoint, you can
manually drag the slider. After selecting the waypoint, press the
Waypoint Release Button again, the green light is always on, the
motor starts, and the waypoint setup over.
Left
Slider moves to the left
Right
Slider moves to the right
Power Button
Power switch/waypoint creating
2.5mm shutter
release cable port
The slider can be directly connected to the camera through the
shutter cable to control the camera’s photo function.
USB Type-C Port
Power supply to the slider motor (5V/2A)
Fixing screw
For fixing the motor on the slider
Battery compartment
Compatible with F550/F750/F970 lithium batteries
Battery lock
For fixing the battery to the battery compartment
Function
Pressing the button
Beep
Turn on the power
Long press the power button
3s
/
Turn off the power
Long press the power button
3s
/
Move left
Long press the left button
/
Move right
Long press on the right button
/
Speed adjustment
Click the power button
/
Create waypoint
Double click the power button
Waypoint 1 set, beep once
Waypoint 2 set, beep twice
Clear all waypoint
Long press left button + right
button
One long beep
Getting Started
Double click the power button
/
Loop starts/pauses
Click (left button/right button
+ power button)
Beep once
Auto left/right movement
Double click left/right button
/
Setting waypoint manually
Holding the Waypoint Release
Button 1s and the green light
of the button flashes, Drag the
slider to set up waypoints
manually.
/

6

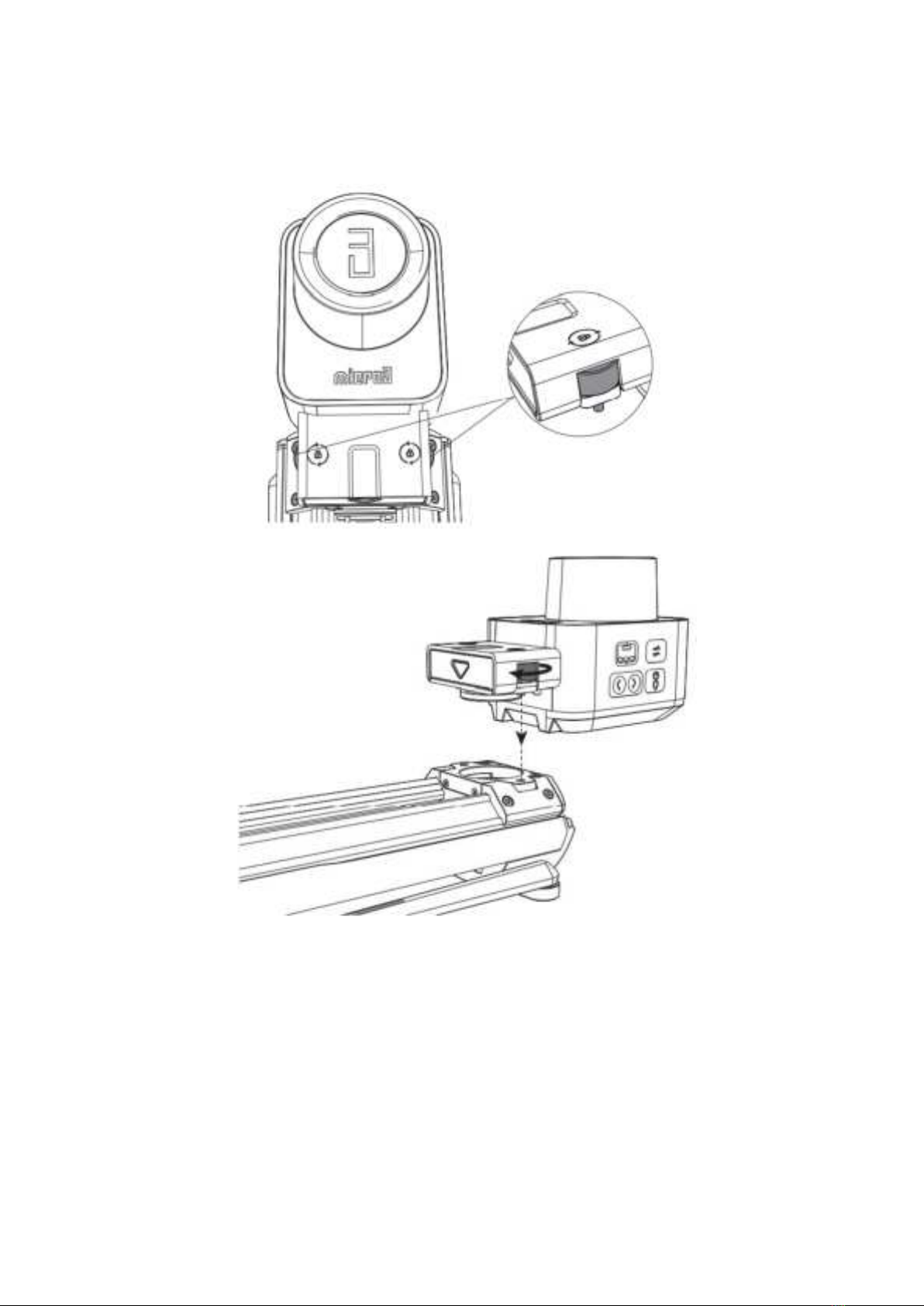

Slider motor installation
A detailed video of operation can be viewed on the official website:
https//www.zeapon.com

7
Setting waypoint through physical buttons
1. Press and hold the power button 3s to power on
2. Press and hold the left button to make the slider run to the desired position
3. Double-click the power button to set the A point
4. Long press the right button to make the slide run to the desired position
5. Double-click the power button to set point B
6. Double-click the power button to start or click (left button/right button + power
button) to start looping.
1. Press and hold the power button 3s to power on
2. Holding the Waypoint Release Button 1s and flash green light
3. Drag the platform on the slider to your preferred position
4. Double click the power button to set point A
5. Drag the platform on the slider to your preferred position
6. Double-click the power button to set point B
7. Double-click the power button to start or click (left button/right button + power
button) to start looping
(Due to the large torque of the motor, more force is required when dragging the
platform, please hold the support leg of the slider with one hand and drag the platform
with another hand set up waypoint.
Physical button can only set AB two points, cell phone APP can set multi-point track.

8

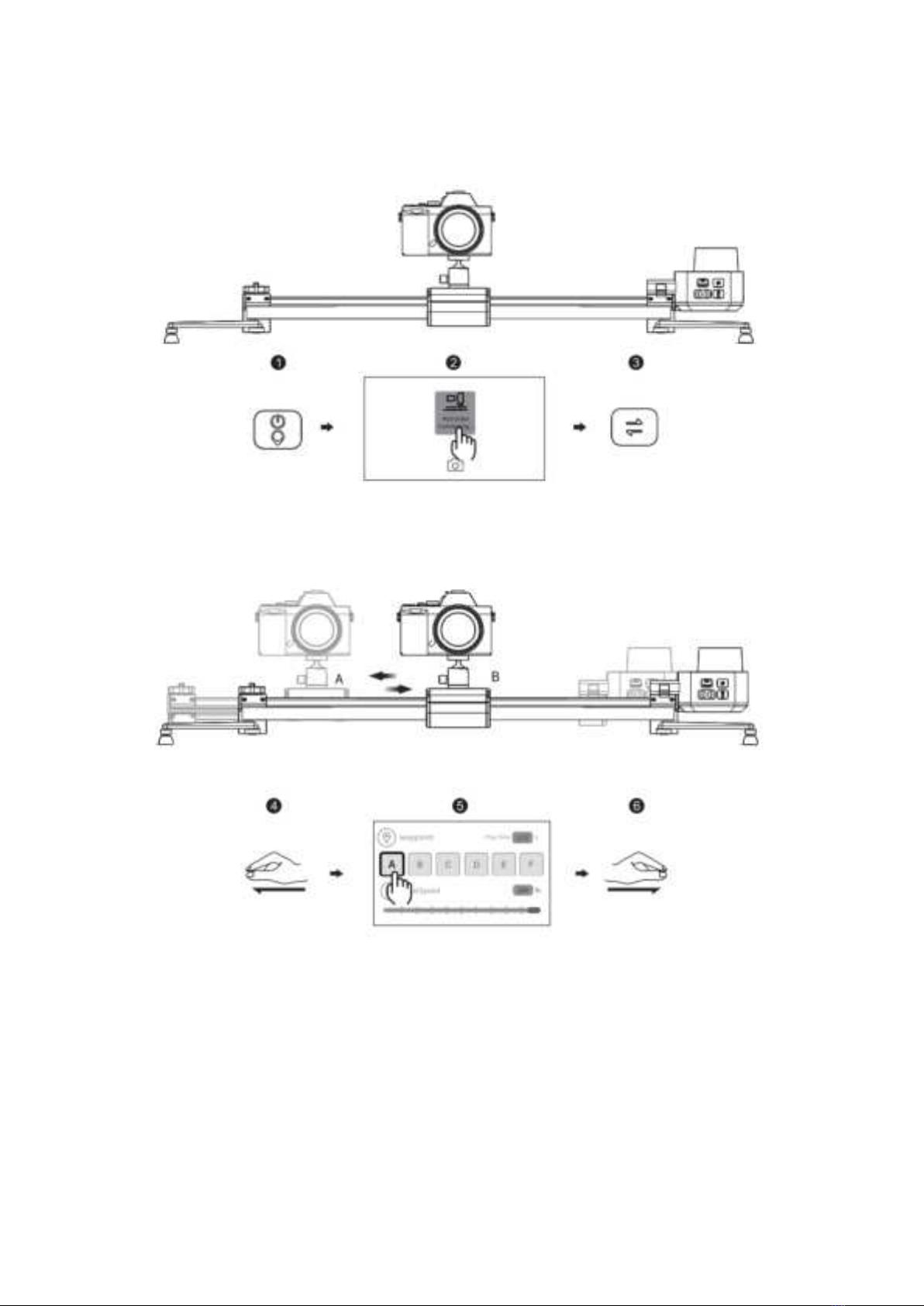

Setting waypoint through APP
1. Press and hold the slider motor power button 3s to power on
2. Open the app and connect the corresponding slider
3. Holding the Waypoint Release Button 1s and flash green light
4. Drag the platform on the slider to your preferred position
5. Click the position to set the as point A
6. Drag the platform on the slider to your preferred position

9

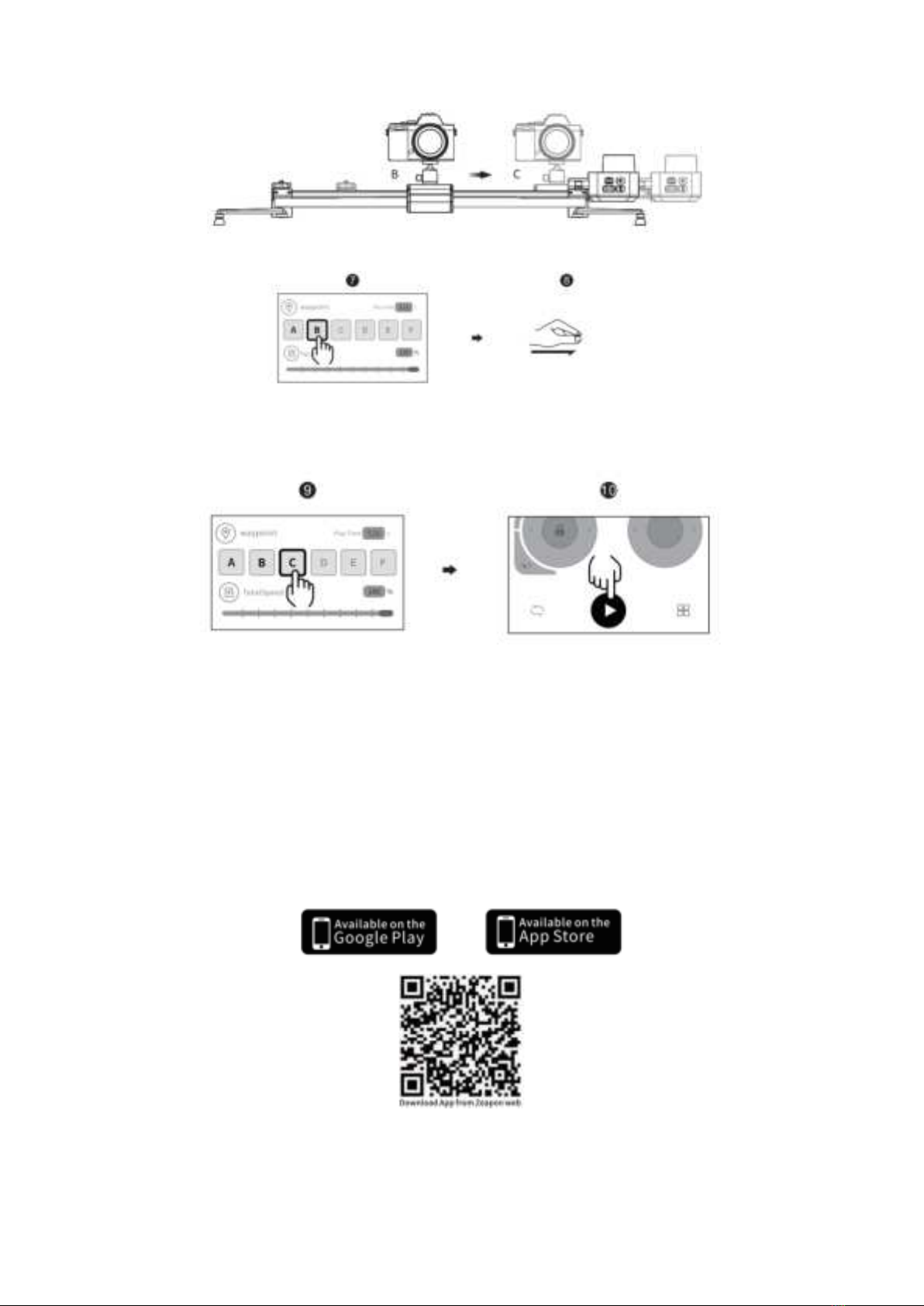

7. Click the position to set the as point B
8. Drag the platform on the slider to your preferred position
9. Click the position to set the as point C
10. Click the start button, the slide will run from point A to point C
Five waypoints from A-E can be set via the APP.
Tips
Please go to the major application markets to search “Zeapon Lab” or ZEAPON official
website to download and install the APP!
Please note: this product does not provide batteries and battery chargers, if necessary,
please purchase separately!

10
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation, and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g., during transport,
cleaning by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.
