Zenitel ICX 500 Guide

ICX-500
Mounting & Installation Manual
A100K11931 EN

This document serves as a basic mounting and installation guide for the ICX-500
Intelligent Communication Gateway.
For instructions on configuration visit wiki.zenitel.com/wiki/ICX_Web.
The ICX-500 product package comprises the following components:
Item Number Item Name Description
1002000100 ICX-500 Intelligent Communication Gateway
1002500010 IA-RS1 Rack Shelf for ICX-500
1002500020 IA-MB1 Mounting Bracket for ICX-500
1002510000 IPS-AC1 PSU, Input 85-264 VAC, Output 48 VDC,
DIN-Rail
About

Contents
1Safety Information 4
2Description 4
3Wall/Shelf Mounting 6
4Rack Mounting 8
5Installation 10
6Start up 12

4
Safety information
This manual describes the necessary steps to install the ICX-500. It contains
important instructions that must be followed. ICX-500 must be installed by a trained
technician in accordance with national and local regulations.
Zenitel takes no responsibility for damages caused by improper or inadequate
mounting.
The ICX-500 is intended for use in restricted access areas for trained service
personnel and/or operators, and is not to be installed in locations where children are
likely to be present.
Description
Front View
123
456
1Power LED Steady green when power is applied to the ICX-500
2Status LED Flashing green when the ICX-500 is running
3Fault LED Steady amber when the system reports an error. The LED will be lit during application
or system reset, or if there is a temperature alarm.
4Active LED Steady blue when the ICX-500 is operational. In a system with redundant servers, the
Active LED will be lit on the operational gateway, and not lit on the standby gateway
5Link LED Steady green when the Ethernet link 0 or 1 is up. There is one LED for each Ethernet
port
6RX/TX LED Flashing when receiving or transmitting data on Ethernet port 0 or 1.
7Securing hole 2 x screw holes, diagonally placed, for M4 screws. Used for rack mounting
7
7

5
Rear View
1Status LEDs Indicates the same as the LED lights on the front
of the box.
2Ethernet port Eth0 / Eth1
Two 100Mbps Ethernet interfaces. Each Ethernet
port is equipped with LED indicators for link and
activity.
3Power in 24-48VDC
ICX-500 is powered by a DC power supply with
nominal voltage 24VDC or 48VDC (Min/Max:
20VDC-63VDC)
4Console port RS232 RJ45
RS232 port is the RJ45 part of the dual connector
RS232/USB. This is a console port for debugging
purposes. Com parameters: 115.200 baud, 8 data
bits, no parity, 1 stop bit.
5USB A port
6USB Micro-B
7Fault Relay 3 pole terminal block Fault relay is used to indicate system status
together with Fault LED
8SD card slot Used for external storage or system recovery
9Factory Default
Button Tact switch Used for resetting ICX-500 to factory default
settings
1
23
4
56
7
8
9

6
Wall / shelf mounting
The ICX-500 can be mounted on any flat surface such as a wall or shelf using the IA-
MB1 Mounting Bracket. The following example is the procedure for wall mounting.
1
2
HxW: 120x90 mm
Skip this step
if mounting on
wood or steel surface
Drill Bit 5 mm

7
3
3x Flat Head Washer
Screws, ø4.2 x 25 mm
3x Nylon Plugs 5 mm
(not included)
4
4x Mounting clips
5

8
2A blanking front can be inserted into the
unused position if only one slot is required.
Rack mounting

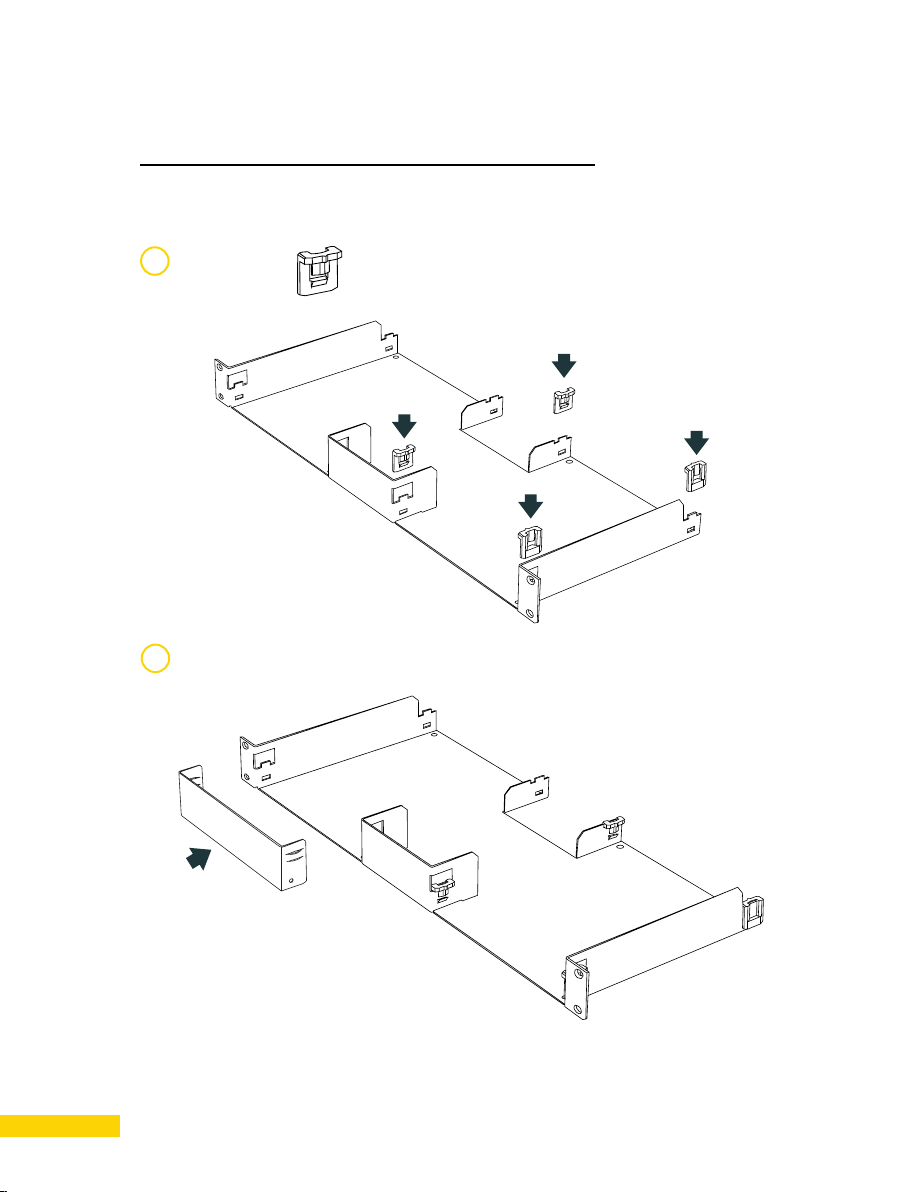

Use the IA-RS1 Rack Shelf when mounting the ICX-500 into a 19” 1HU rack. Two
ICX-500 units can be placed side by side on the rack shelf.
1(2x) 4x Mounting clips

9
3
42x M4x8mm countersunk screws
The securing holes can also be used to mount
the unit to a shelf other than the IA-RS1.
Note that the maximum insertion depth is 6 mm.

10
Installation
Network

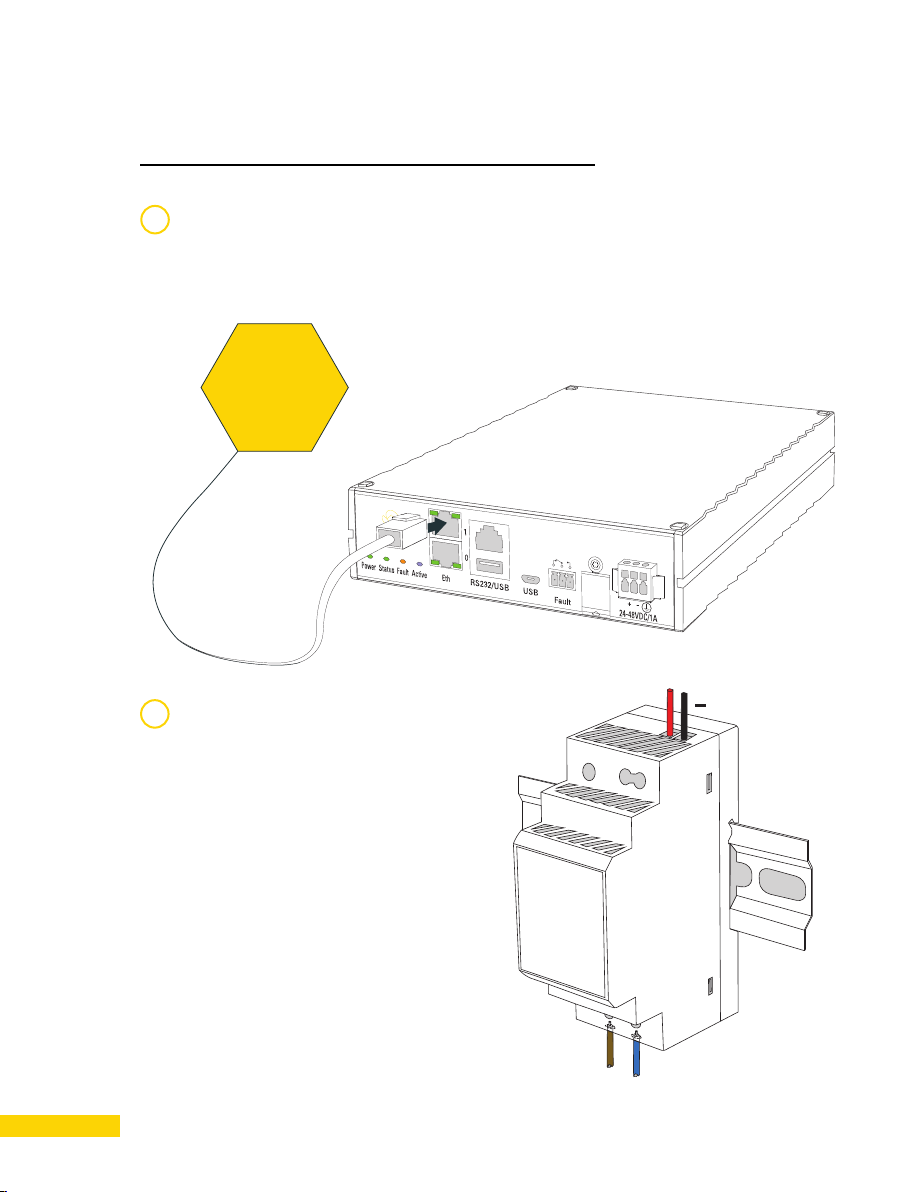

Connect the ICX-500 to the IP network. Use an Ethernet cable. Connect the
cable to Ehernet Port 1.
1
IP
network
2Power supply
Mount the IPS-AC1 power supply
on a DIN rail and terminate the
power cables.
+ Power out
Power in
L1 N

11
Connect the ICX-500
Connect the power cable to the ICX-500. Then connect the power supply to a
100-240VAC power source.
3

12

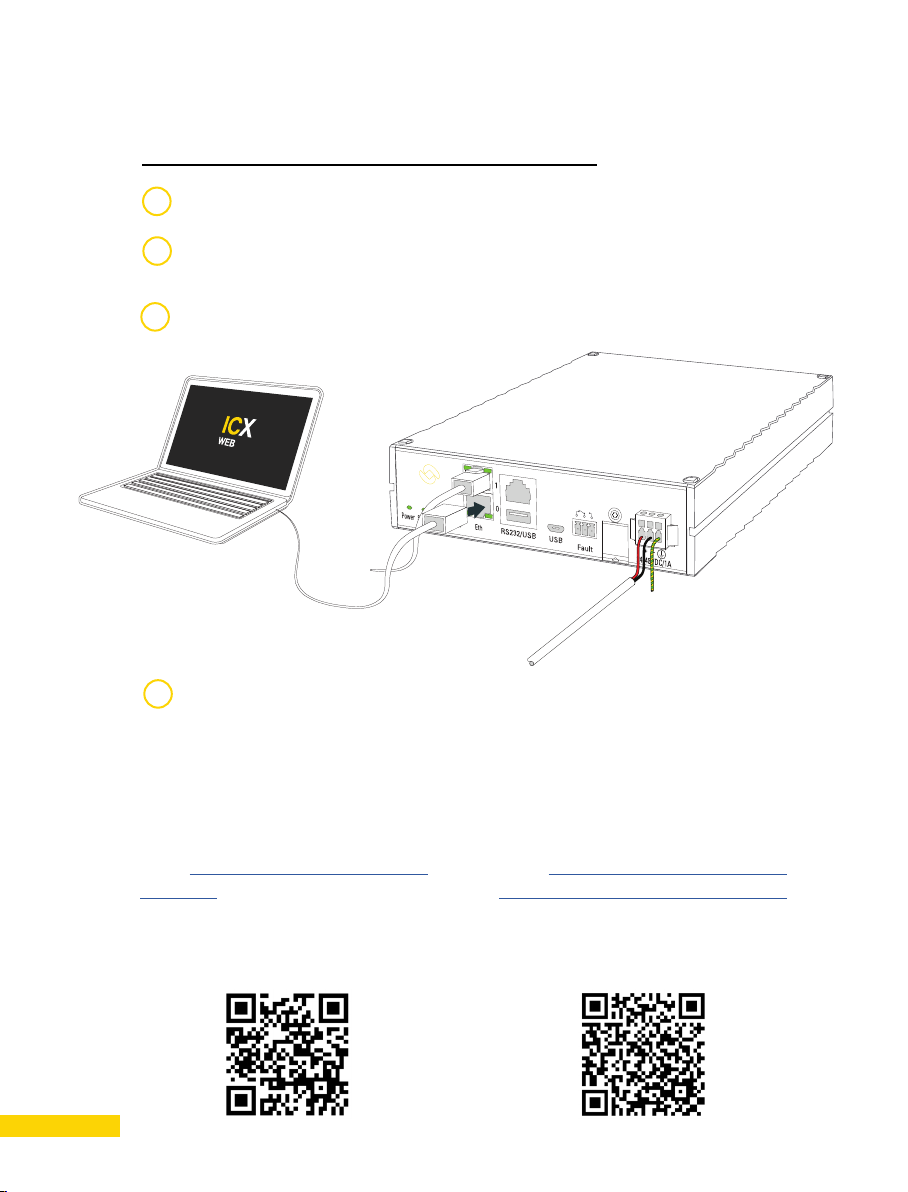

Connect a laptop to Ethernet port 0. Use an Ethernet cable.
3
Connect to web server - ICX Web. The ICX-500 comes with an embedded
web server which provides functions for system configuration, monitoring and
upgrade.
Open a web browser (e.g.Firefox or Chrome), and log on to the web server using
IP address 169.254.1.5.
4
Start up
Power up the IXC-500. The system uses approx. 20 seconds to start up.
1
Watch the LEDs. During startup the Power LED and the Fault LED will be lit.
When up and running, the green status LED will start flashing.
2
Go to https://wiki.zenitel.com/wiki/
ICX_Web, or scan the QR-code below
for instructions on how to perform the
system configuration.
Go to https://wiki.zenitel.com/wiki/
Category:ICX-AlphaCom_Platform,
or scan the QR-code below for more
information on the ICX-AlphaCom
platform.
