Zenith HydroTap G4 Series User manual

802254NZ - HT BC User Guide 10.18 v3.02 Page 1 of 28
• Tap Operation.................. Pages 3-10
• LCD Screen & Menu ....... Pages 11-23
• Maintenance .................... Pages 24-25
• Home Menu Icons ........... Page 26
• Cleaning........................... Page 27
• Contact Details................ Page 28
Date of Installation............../.........../..........
Affix Model Number
Label Here
802254NZ
HydroTap BC100/75
HydroTap BC160/125
HydroTap BC160/175
HydroTap BC240/175
HydroTap Residential
Zenith HydroTap G4
User Guide
®

Page 2 of 28 802254NZ - HT BC User Guide 10.18 v3.02
** This user manual has been written according to firmware version B02.6.8
Please check the following website for the latest user manual:
zenithwater.co.nz

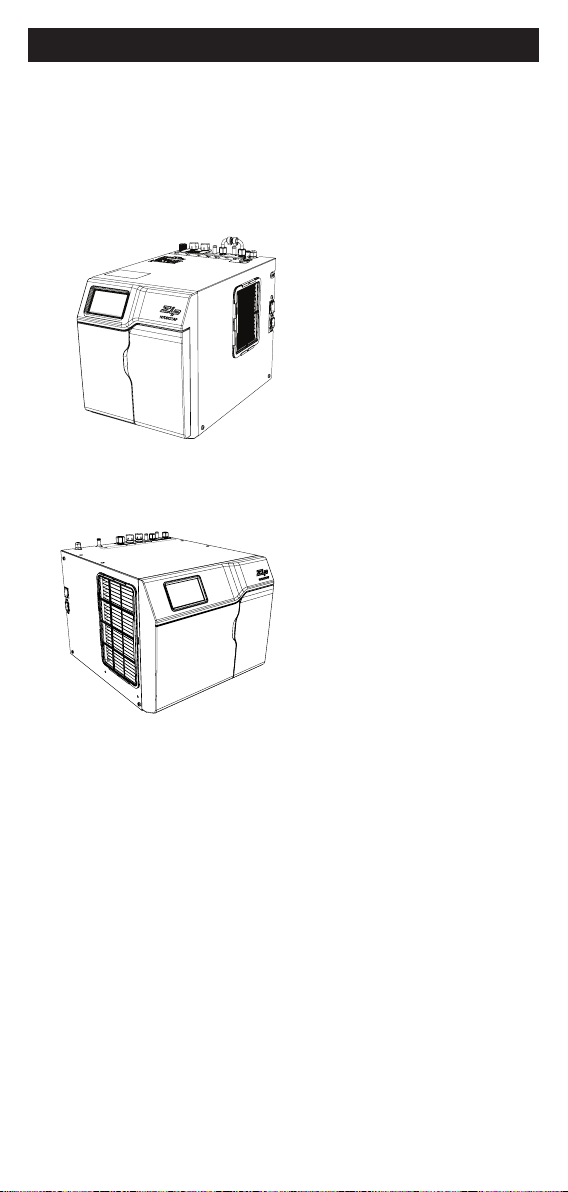

BC Residential
BC100/75
BC160/125
BC160/175
BC240/175

802254NZ - HT BC User Guide 10.18 v3.02 Page 3 of 28
To activate the safety
for Classic & Elite taps
(From the tap):
After selecting to allow the safety setting
from the menu screen. Place a finger on
the safety lock, then depress the Classic
Blue/Chilled lever or touch the Elite Blue/
Chilled Button, while keeping both fingers
in position for a period of approximately
ten seconds.The Classic safety lock
indicator light will now be illuminated or
the Elite lights will flash, momentarily.
To deactivate the safety
(From the tap):
First place a finger on the safety lock,
then depress the Classic Blue/Chilled
lever or touch the Elite Blue/Chilled
Button, while keeping both fingers in
position for a period of approximately ten
seconds. The Classic safety lock indicator
light will now extinguish or the Elite lights
will flash, momentarily.
For Hot Isolation:
Not for HydroTap Arc/Cube and Celsius
AIO (see page 20).
The safety lock feature is provided to prevent boiling water flowing if the hot
lever is inadvertently operated.
This function can be activated and deactivated from either the Tap or from the
touch screen display (Located on the unit in the cupboard).
Safety Lock
Tap Safety Lock
HydroTap Classic
To set the tap safety setting: (Classic & Elite)
1. Press [MENU] button for main
menu.
2. Press [Setting] button.
3. Press [Safety] button.
4. Press button -YES / NO to
allow or disallow the safety
setting to be changed on the tap.
Note: The Factory setting is set at YES
A
B
C
A
Elite Tap

Page 4 of 28 802254NZ - HT BC User Guide 10.18 v3.02
Elite Tap:
The Elite tap uses touch sensitive
controls to dispense Boiling and
Chilled water.
When operating the tap, ensure
the touch surface is dry as mois-
ture may interfere with the sensor
touch control.
The safety lock can be controlled
from either the tap or from the
touch screen display (see page 3)
Boiling Button Chilled Button
Safety Lock
Tap functions
Classic Tap:
The Classic tap uses lever control
to dispense Boiling and Chilled
water.
The safety lock can be controlled
from either the tap or from the
touch screen display (see page 3).
Boiling Button Chilled Button
Safety Lock

802254NZ - HT BC User Guide 10.18 v3.02 Page 5 of 28

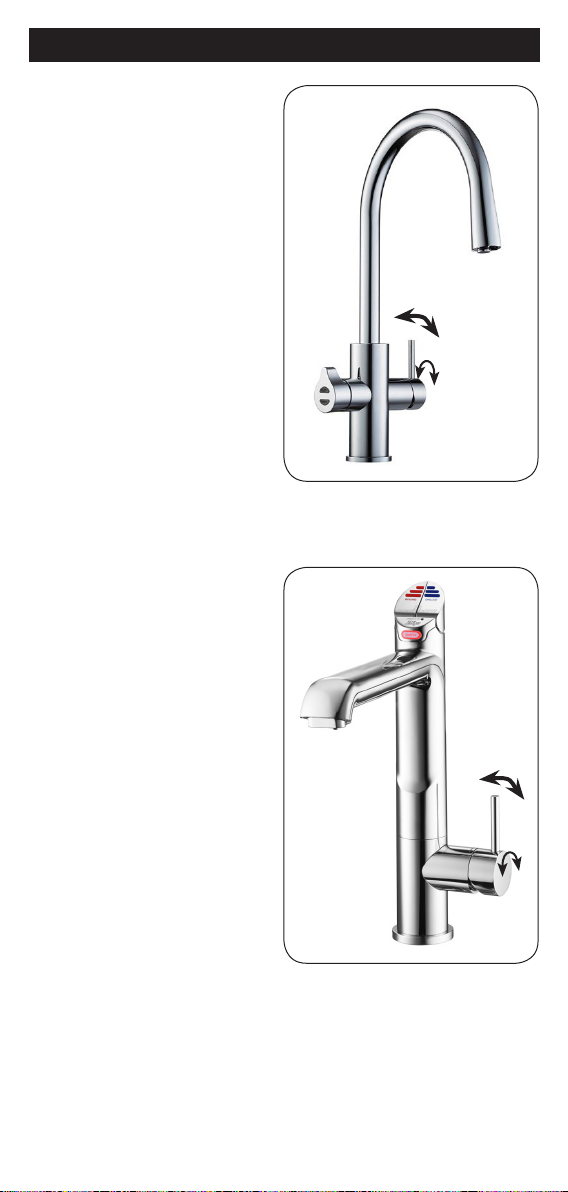

Classic All-In-One Tap:
The top levers and safety lock
button of the Classic AIO tap are
operated in the same way as a
Classic HydroTap to dispense
Boiling and Chilled water.
The Mixer tap lever is operated as a
classic ‘Flick Mixer’. The hot side is
marked with a red mark and the cold
side with a blue mark, for dispensing
cold to warm water.
Lifting the handle up will decrease
the flow rate and lowering the
handle will increase the flow rate.
Lift the handle all the way up to turn
the tap off.
When the handle is moved towards
the blue mark, the temperature is decreased and when moved towards
the red mark, the temperature is increased. The final temperature will be
dependant on the temperature of the incoming cold water.
For convenience, the spout may be swivelled, left or right through 120°.
Tap functions
Celsius All-In-One Tap:
The Celsius AIO combines the
tap functions of the Arc/Cube tap
and the Classic Mixer tap. Please
see AIO tap and Arc/Cube tap
functions for the Celsius AIO.

Page 6 of 28 802254NZ - HT BC User Guide 10.18 v3.02
Tap functions
Mixer Tap:
Lifting the handle up will
decrease the flow rate and
lowering the handle will increase
the flow rate. Raise the handle
all the way up to turn the tap off.
When the handle is moved
towards the BLUE mark, the
temperature is decreased
and when moved towards the
RED mark, the temperature is
increased. The final temperature
will depend on the temperature
of the incoming cold water.
Tapping the select button will
allow the choice of Boiling (RED)
with safety, Chilled (BLUE) or
Sparkling (WHITE) water mode.
The Arc/Cube control may be
rotated in a forward or reverse
direction to dispense Boiling or
Chilled water.
The rotary control is spring load-
ed in the anticlockwise direction
and when released, will return to
the OFF position. When rotated
clockwise the tap operates in a
“Pot fill” mode. Water will flow
from between 5 and 15 seconds
(this is user adjustable). To reset,
return the handle to the “Off”
position and repeat the step. The
lever has to be manually returned
to the “Off” position.
After activating the Boiling mode, all the lights will flash for 2 seconds, during
which time you may dispense water. When the rotary control is returned to the
Off position the light will continue to flash for an additional 3 seconds, allowing
you to dispense more water.
The control light will automatically default to the Chilled (BLUE) mode after 30
seconds of inactivity.
Rotary control
Select Button
Safety Lock
HydroTap Arc/Cube and Celsius AIO:

802254NZ - HT BC User Guide 10.18 v3.02 Page 7 of 28
Arc/Cube Tap
Tap operation
HydroTap Classic and
Classic All-In-One taps
Depress the “Blue” lever to dispense
Chilled water. Pulling forward the Blue
lever allows the tap to operate in a
“no-touch” mode. Water will flow from
between 5 and 15 seconds (this is
user adjustable). To reset, return the
handle to the “Off” position and repeat
the step. The lever has to be manually
returned to the “Off” position.
NOTE:
Chilled water will not be dispensed
if the safety button is accidentally
covered.
Elite Tap
Touch the Chilled button to dispense
Chilled water.
Elite Tap
Press or pull lever
Classic Tap
Indicator
light
To dispense Chilled water:
HydroTap Arc/Cube and
Celsius AIO
If not showing BLUE, gently tap the select
button until the indicator light turns BLUE.
Rotating the control, when the indicator
light is BLUE, allows the dispensing of
chilled water.
Select
button

Page 8 of 28 802254NZ - HT BC User Guide 10.18 v3.02
Tap operation
To dispense Boiling water: (WITH SAFETY ON)
HydroTap Classic:
Depress the Red lever, while simultaneously covering the safety lock button
with a second finger. These two actions need to occur simultaneously within
2 seconds for the successful dispensing of boiling water.
Elite Tap:
Place one finger on the safety lock, then touch the boiling button with a
second finger while keeping both fingers in position.
These two actions need to occur simultaneously within 2 seconds for the
successful dispensing of boiling water.
HydroTap Arc/Cube and Celsius AIO:
Gently tap the select button until the indicator light turns RED. Then tap the
safety button twice until the RED light flashes (This will flash for approx 2
seconds). Boiling water may be dispensed by rotating the control while the
RED light is flashing.
To dispense Boiling water: (WITH SAFETY OFF)
HydroTap Classic:
Depressing the Red lever allows the dispensing of boiling water.
Pulling forward the Red lever allows the tap to operate in a “no-touch” mode.
Water will flow from between 5 and 15 seconds (This is user adjustable).
To reset, return the handle to the “Off” position and repeat the step. The lever
has to be manually returned to the “Off” position.
Elite Tap:
Touching the boiling button allows the dispensing of boiling water.
HydroTap Arc/Cube and Celsius AIO:
Gently tap the select button until the indicator light turns RED.
Rotating the control , when the indicator light is RED, allows the dispensing of
boiling water.

802254NZ - HT BC User Guide 10.18 v3.02 Page 9 of 28

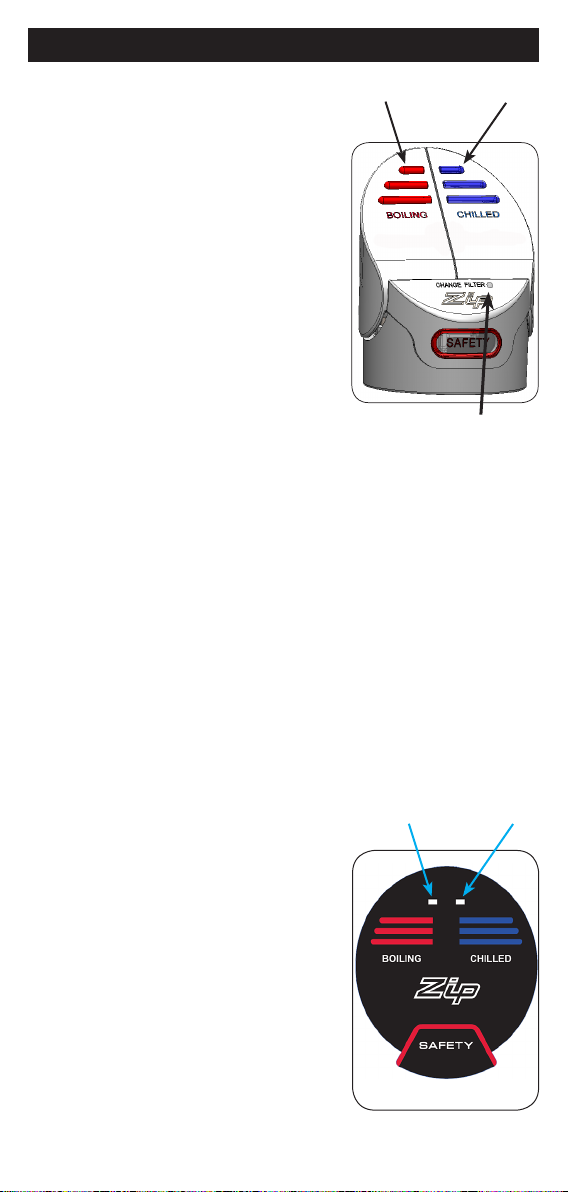

Tap lights
Warning: (All)
Flashing warning light:
When the indicator light flashes fast and
continuous, a system fault has occurred.
Check for details on the command centre
LCD screen. If unable to rectify, call a
qualified service agent.
Filter light
Blue Chilled Water Light:
(Not available on Elite)
On all the time:
This indicates that the temperature of the
chilled water is within the set temperature
range.
Flashing slowly:
This indicates that the chilled water is not within
the set temperature range. While flashing,
water may be dispensed, but not at the set
temperature. When the chilled water is at the
set temperature, the light will stop flashing. This
may take several minutes.
During heavy usage, the temperature may rise
out of the normal range.
Blue LightsRed Lights
Red Boiling Water Light: (All)
On all the time:
This indicates that the boiling water is ready.
Flashing slowly:
This indicates that the boiling water is below
the desired temperature.
Wait for the light to stop flashing before
dispensing water. The flashing light will typically
occur after switching on, or coming out of sleep
mode.
Filter LightRed Light
Elite Tap
Classic Tap

Page 10 of 28 802254NZ - HT BC User Guide 10.18 v3.02
Filter light: Classic & Elite
Filter Light Off:
This indicates the filter is operating within its
normal specified lifespan.
Filter Change light flashing slowly:
The light will flash slowly when the filter is due
for replacement and the LCD will show “Filter
Change”. Refer to “Replacing the filter” in
section ‘C’ of this document.
Filter Light
Filter light
Filter Lights
HydroTap Arc/Cube & Celsius AIO:
Flashing filter lights:
All three tap lights (Safety; Select and Indica-
tor light) will flash every
10 seconds, indicating a Filter change is
required.
Safety Light
Indicator light
Select light
Elite Tap
Classic Tap
Turn filter light OFF:
(All models)
Refer to “Filter Reset” in section ‘C’ of this
document.
Light intensity varies from site to site, there-
fore it is recommended that a re-calibration be
performed at the time of the installation.
All direct natural sun light must be shaded
from the HydroTap, during the calibration.
This can be achieved by closing any nearby
curtains, blinds, etc. or by shading the top
slightly. Do not touch or cover the “Safety
Sensor“ while calibrating.
Safety Sensor Calibration (lever models)
Arc/Cube Tap
Pull both levers forward
Safety
sensor

802254NZ - HT BC User Guide 10.18 v3.02 Page 11 of 28

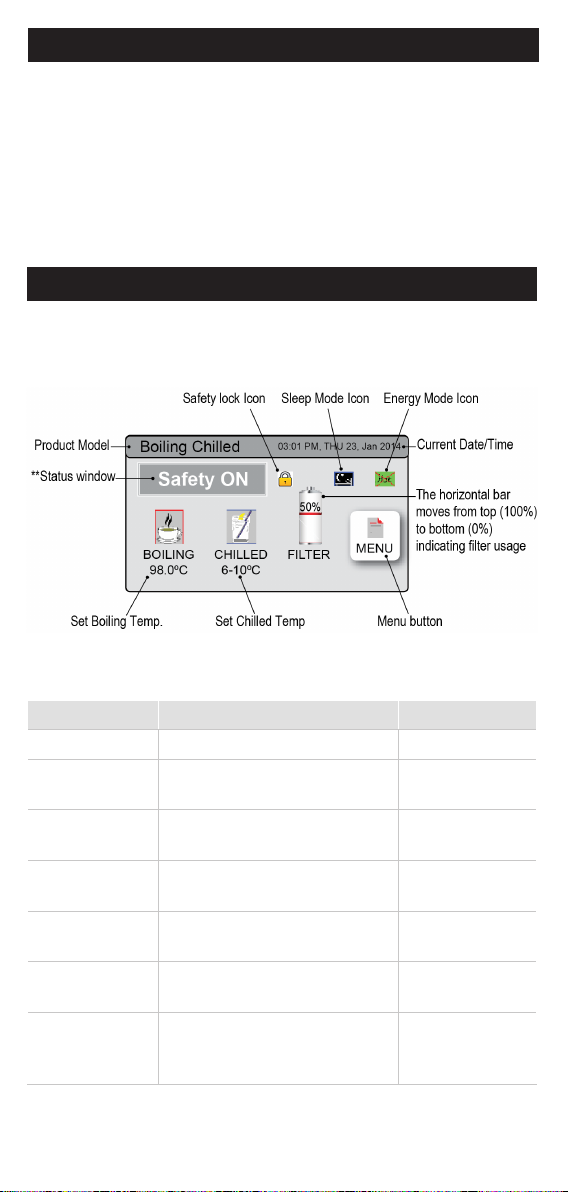

3LCD Screen
NOTE: As an energy saving feature, the home screen will turn OFF After
5 minutes of non use. Touching the darkened LCD panel will reactivate the
home screen.
Zenith HydroTap has a ‘TOUCH’ screen for easy setup and operation adjust-
ment. See page 26 for icon details.
Other possible messages in status window:
Status** Information Notes
Safety OFF Safety lock is deactivated -
Safety ON Safety lock is activated Refer to section
G - safety
System Fault Product has one or more system
faults
Refer to section B
Sleep Mode System is in sleep mode. Boiling
water or hot water is not available.
Refer to section
G - Energy mode
Change Filter External/Internal filter needs to be
replaced
Refer to section C
System Off System off in off mode. No boiling
water or chilled water available.
Refer to section
G - Energy mode
Hot Isolated Hot isolation has been activated.
Boiling water or hot water is not
available.
Refer to section
G - Safety
1. With the unit in Normal operating mode and with the safety
enabled
2. Turn the power OFF
3. Pull both tap levers to the forward position
4. Turn ON the power
5. The unit will calibrate the safety switch
6. Return the levers to the neutral position.
7. To check the calibration, dispense Boiling water, in normal light
conditions with the safety enabled.
Safety Sensor Calibration (lever models)

Page 12 of 28 802254NZ - HT BC User Guide 10.18 v3.02
3LCD Screen Menu
Main
Menu Sub Menu Sub Menu Options Section
Lan-
guage
• English
• Deutsch
A
Info
• Product Info
• System Faults
• Filter Log
• Recent Fault Log
• Energy
• Product serial no.
• Lists
B
Install
• Filter Flush
• Filter Reset
• Boiling Calibration
• Boost
• Lux sensor
calibration
• Advanced options
(Residential only)
• Reset
• Calibration
• Boost
• Cavitation & pulsing
options (Residential
Only)
C
Service Password protected
D
Security • Enable Password • Set Password
E
Comm’s
• WiFi Setup
• Cloud Server
Registration
• WiFi options
• Generate new
connection key
• WiFi status
F
Settings
• Date/Time
• Temperature
• Filter
• Energy Modes
• Safety
• Dispense Times
• 12hr/24hr Mode
• Hot/Cold Setpoint
• Filter Life (Litres)/
(Months)
• Sleep and Modes
• Safety Settings
• Hot Isolation
• Hot/Cold Dispensing
G

802254NZ - HT BC User Guide 10.18 v3.02 Page 13 of 28
A Set Language
LCD Screen operation - Section A
1. Press [MENU] for main menu.
2. Press [Language] button.
3. Select the country to change the
language
4. Press [<=] button for the previous
menu
B System Information
In this section, you can find your product serial number, check system fault
messages or view the event logs of your product.
LCD Screen operation - Section B
1. Press [Product Info] to view the
product information.
2. Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1. Press [System Faults] to check the
fault information;
2. Press [<=] button for the previous
menu or press
[Home] button to return to the
home screen.
1. Press [Filter Log] to view filter
information.
2. Press [<=] button for the previous
menu

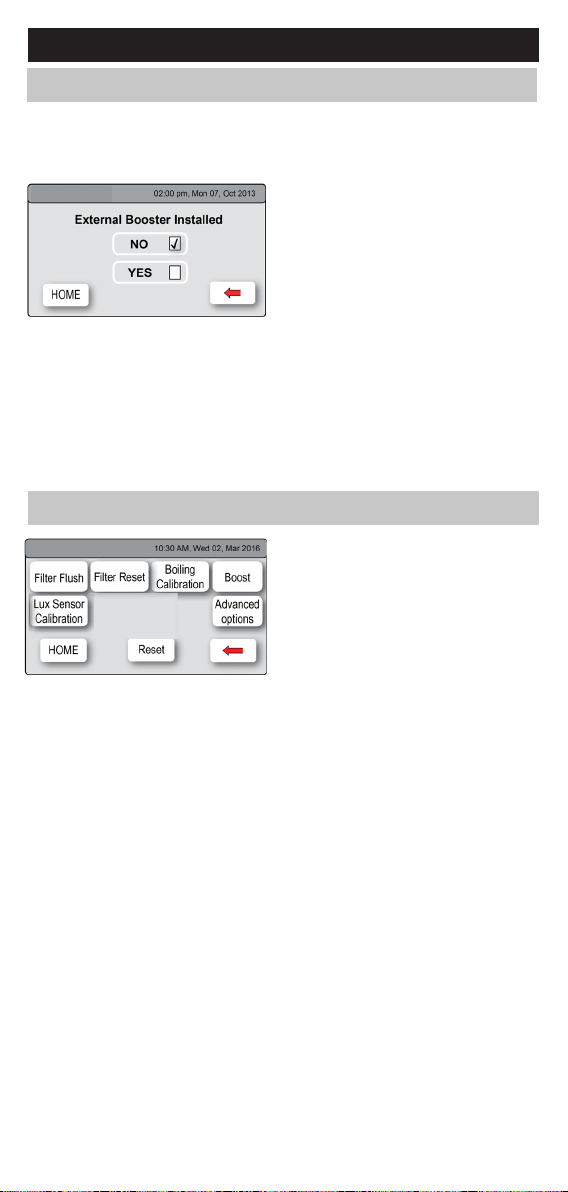

1. Press the [MENU] button for main
menu.
2. Press the [Info] button to view the
product serial number and other
key information.
1. Press [Recent Fault Log] to view
the last recorded faults
2. Press [<=] button for the previous
menu
Boiling Chilled
Boiling Chilled
Boiling Chilled
Boiling Chilled
Boiling Chilled

Page 14 of 28 802254NZ - HT BC User Guide 10.18 v3.02

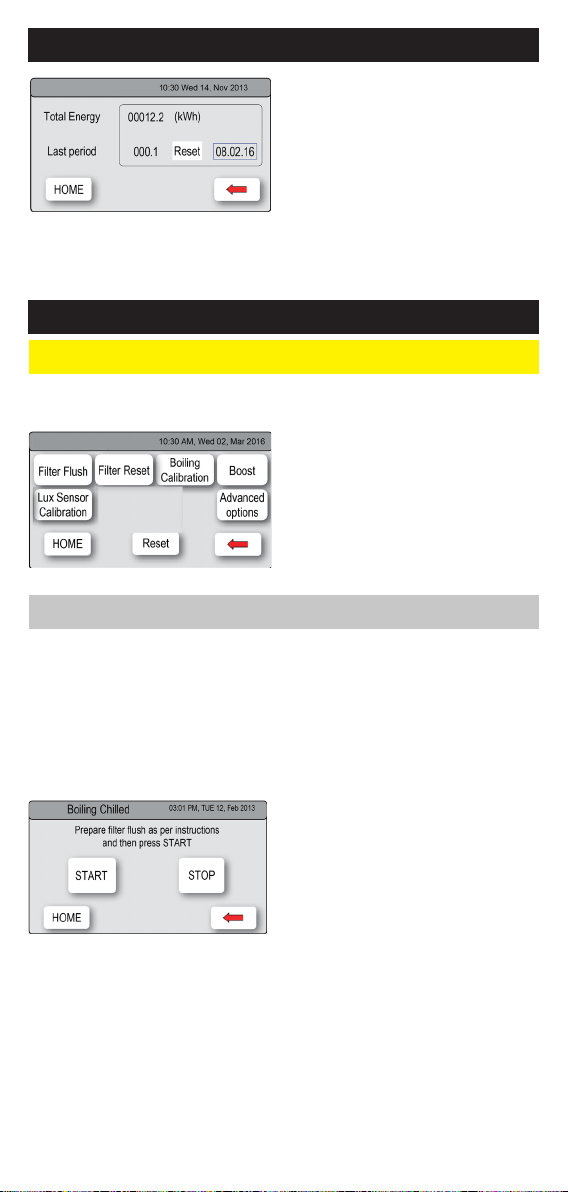

C Install
Have a 10L bucket or similar container (not supplied) at the ready to hold
a quantity of water that will be ejected while the Filter Flush Mode is in
operation. Open the filter access door on the front of the HydroTap and the
filter cartridge will be exposed. Located to the rear RHS of the cartridge is a
flush line and the flush line stop cock. Place the valve end of the flush line
into the bucket or container.
Once your Zenith HydroTap G4 unit has been installed, use the Install menu
to configure the system settings for your product.
1 - Filter Flush
Note: Run at least 10 Litres
of water through to flush the
filter of any excess black carbon
particles (this is normal). Once
the filter flush has finished,
press the Stop button to display
the main menu
Sub menu:
1. Filter Flush
2. Filter Reset
3. Boiling Calibration
4. Booster
5. Lux Sensor Calibration
6. Advanced options
7. Reset
1. Press [MENU] button for main
menu.
2. Press [Install] button.
3. Press [Filter Flush] button. Turn the
stop cock ON.
4. Press [Start] button to start filter
flush. Once the filter flush is
finished, Turn the stop cock OFF
first (to ensure the cock is properly
closed) then press [Stop] to end
filter flush mode.
5. Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
6. The filter counter will need to be
reset.
1. Press [Energy] to view Energy
information.
2. The Total energy consumption will
be displayed, or
3. Select reset to restart the energy
counter.
4. Press [<=] for the previous menu or
press [Home] to return to the home
screen.
LCD Screen operation - Section C
LCD Screen operation - Section B
Boiling Chilled
Boiling Chilled

802254NZ - HT BC User Guide 10.18 v3.02 Page 15 of 28

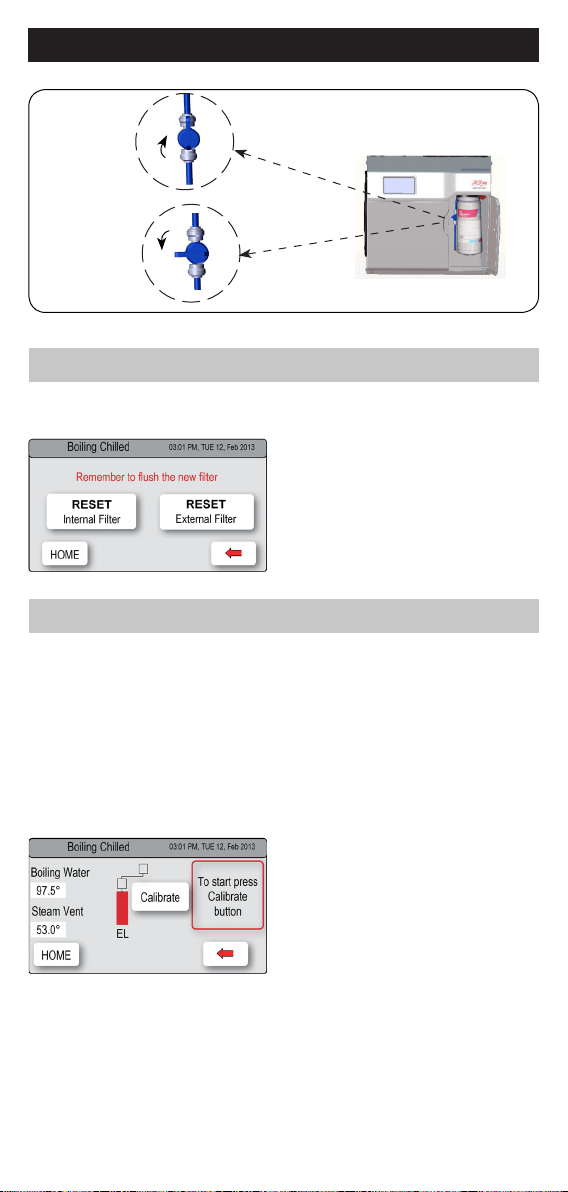

OPEN
Position
CLOSED
Position
ON
OFF
After replacing the filter and flushing, the counters must be reset.
On start up, the Zenith HydroTap starts a self-calibration program. Once
complete, the system reverts back to normal operation. If you would like to
calibrate the system anytime after initial installation, please follow the steps
below.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Hot Calibration] button.
4. In the next screen, press [Calibrate]
to start calibration. Calibration will
take about 10 minutes.
Boiling Calibration Screen
3 - Boiling Calibration
2 - Filter Reset
LCD Screen operation - Section C
NOTE: Occasionally the system will vent steam from the tap. This is normal
operation as HydroTaps are programmed to re-calibrate at regular intervals.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Filter Reset] button.
4. Press [Reset Internal Filter] button
5. To set the filter life or edit filter
usage, refer to section G- Filter.

Page 16 of 28 802254NZ - HT BC User Guide 10.18 v3.02
6. - Lux Sensor Calibration
1. Press [MENU] for main menu.
2. Press [Install] .
3. Press [Lux Sensor Calibra-
tion]
4. The lights on the Tap head will flash
to confirm calibration.
5. Check for correct tap operation by
selecting ‘Lux Sensor → OFF’.
When the room is darkened (below
the calibrated light level), the tap
lights will turn OFF after approx 30
seconds.
LCD Screen operation - Section C
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Booster] button.
4. If a Booster is installed, select YES to
enable the Booster.
5. If no Booster is installed, select NO.
This function should only be considered when a Booster unit is installed.
4. - Booster
Note: Failing to make the correct selection for ‘Booster’ will affect product
performance.
Boiling Chilled
Boiling Chilled

802254NZ - HT BC User Guide 10.18 v3.02 Page 17 of 28

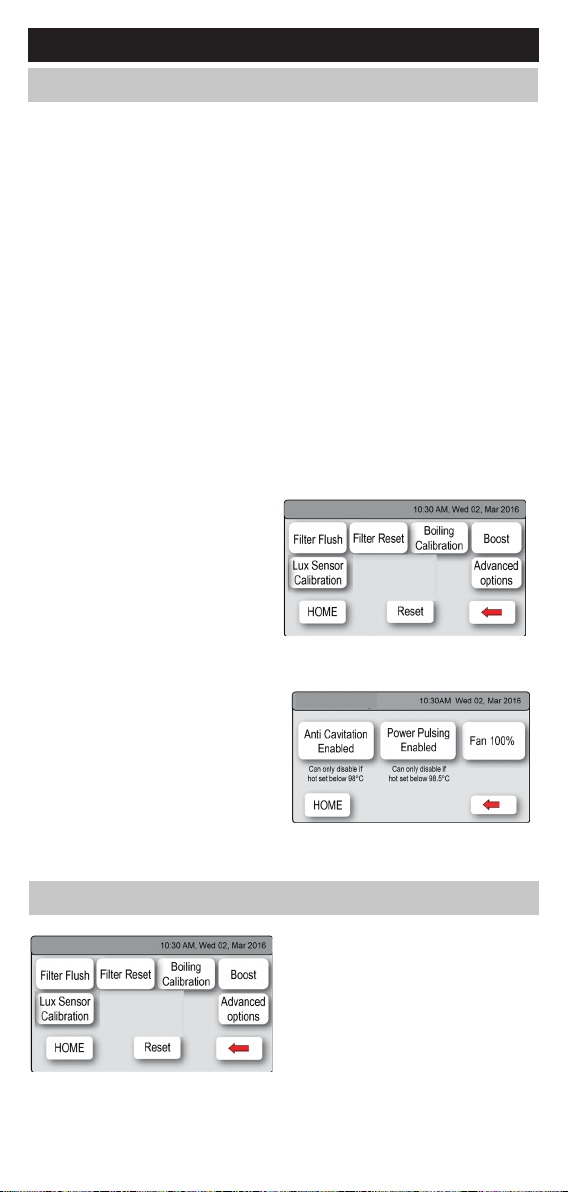

1. Press [MENU] for main menu.
2. Press [Install].
3. Press [Reset] to power down and
restart the system. This is useful if you
need to reset a password in section
E.
Pump anti cavitation mode:
This feature sends two electric pulses every 5minutes to the pump. This
prevents the build up of air bubbles inside the pump and ensures an even
flow of hot water at the tap.
Power Pulsing mode:
This is a default set point control feature which ensures the hot water is
maintained as close as possible to the set point. This is achieved by applying
a closer tolerance to the set point temperature range. It is estimated that 1 in
15,000 installations could experience intermittent flickering lights, during the
boiling water recovery period. Disabling may overcome the flickering lights,
however, the unit may experience increased steaming.
Fan speed adjustment:
If the undersink unit is operating near 35°C then the fan speed must be
100%. The fan speed may be adjusted for quieter operation only if the
operating temperatures are considerably lower than 35°C.
1. Press [MENU] for main menu.
2. Press [Install] .
3. Press [Advanced Options].
In this screen (depending on the set temperatures)
you may Enable or Disable:
• The pump Anti Cavitation mode or
• The Power Pulsing mode
You may adjust the fan speed to 50%
or 75% or 100%
7. - Advanced options (Residential Only)
LCD Screen operation - Section C
8. - Reset (restart)
Boiling Chilled
Boiling Chilled
Boiling Chilled

Page 18 of 28 802254NZ - HT BC User Guide 10.18 v3.02
E Security
The Zenith HydroTap G4 allows the appliance coordinator to set up a pass-
word to protect against users changing the preferred system settings.
To set a password
1. Press [MENU] button for main
menu.
2. Press [Security] button.
3. Press [Enable Password}
4. Enter a 4 digit password
LCD Screen operation - Section E
To change a password
1. Press [MENU] button for main
menu.
2. Press [Security] button.
3. Press [Change Password}
4. Enter your old 4 digit password
5. Then enter your new 4 digit
password. You will need to
enter your password to access
the settings screen. If you have
forgotten the password, please
disconnect the power and restart
your HydroTap unit.
Note: In New Zealand call a licensed electrician, plumber, or Zenith free call
on 0800 558 055, for assistance, service, spare parts, or enquiries.
D Service
LCD Screen operation - Section D
This section is reserved for service technicians only
F Communication - WiFi (Select models)
This section allows the user to use WiFi to monitor the product remotely.
Follow the set up instructions supplied with the WiFi unit (sold separately).
LCD Screen operation - Section F

802254NZ - HT BC User Guide 10.18 v3.02 Page 19 of 28
1. Press [MENU] button for main
menu.
2. Press [Temperature] button.
3. To adjust the temperature, press
the relevant temperature button and
then use the up and down arrows.
1. Press [MENU] button for main
menu.
2. Press [Setting] button.
3. Press [Date/Time] button.
4. Select 12 hour mode or 24 hour
mode. The selected mode will be
displayed in dark grey colour with a
tick box on the right.
5. Press [NEXT] button to set time.
Set Date / Time
Zenith HydroTaps are designed to operate within 1ºC to 2ºC of set point for
boiling water and between 6ºC to 10ºC for chilled drinking water. All boiling
water units are self calibrating to 98ºC, which is the recommended setting.
Adjustments to the 98ºC setting are not recommended however, under
certain circumstances adjustments may be made between 68º - 100ºC. It
should be noted that a 20% energy saving in standby power can be achieved
when the 98ºC setting is selected over the 100ºC setting. Furthermore,
the 100ºC setting is not recommended as the delivery rate of water will be
affected.
Set Temperature
1. Select individually the hour,
minutes and day and adjust using
the up and down arrows.
2. Select individually the date, month
and year and adjust using the up
and down arrows.
3. Press [HOME] to return to the
Home screen.
LCD Screen operation - Section G
G Settings
1. Press the [MENU] button for main
menu.
2. Press the [Settings] button.
Boiling Chilled

Page 20 of 28 802254NZ - HT BC User Guide 10.18 v3.02
LCD Screen operation - Section G
To edit the filter life:
1. Press [MENU] button for main
menu.
2. Press [Setting] button.
3. Press [Filter] button.
4. Press [Filter Life] button, for Internal
or External filter.
5. To change filter life, first select filter
life (Litres) or filter life (Months),
then adjust using the up or down
arrows.
Note: Filter Life increases in 500
litre increments to a maximum of
10000 litres. Factory set at 4000
litres (Residential) or 6000 litres
(Commercial).
Filter
Zenith HydroTap G4 allows the user to adjust filter life and edit filter usage.
Note: The filter life may be set as a
function of Litres used, or in months
from the filter change. When the first of
these functions is reached (i.e. Litres or
months expired), the filter warning light
will be illuminated on the tap.
Either of these functions may be
disabled (See below).
If the filter counter is accidentally reset,
it can be edited here.
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Edit Filter] button for
Internal or External filter.
5. To edit, select Edit Usage(Litres) or
Edit Usage (Months), then adjust
using the up or down arrows.
6. Press [HOME] to return to the
Home screen.
Boiling Chilled
Boiling Chilled
