Zephyr elica Optica EOP-E42ASX Installation guide

JAN06.0101

2
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these Instr ctions for the Local Electrical Inspectors se.
INSTALLER: Please leave these Instr ctions with this nit for the owner.
OWNER: Please retain these instr ctions for f t re reference.
Safety Warning: T rn off power circ it at service panel and lock o t panel, before wiring this appliance.
Req irement: 120 V AC, 60 Hz. 15 or 20 A Branch Circ it
E page 2
F page 21
S page 41
APPROVED FOR RESIDENTIAL APPLIANCES
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS

3
www.zephyronline.com
Table of Contents
Important safety Notice .....................................................................4
Electrical & Installation req irements ............................................. 5
Electrical requirements .............................................................. 5
Before installing the hood ........................................................... 5
List of Materials ................................................................................. 6
Parts supplied: ........................................................................... 6
Parts not supplied ...................................................................... 6
Dimensions and clearances.............................................................. 7
Installation Instr ctions ..................................................................... 8
Venting methods ........................................................................ 8
Preparation ................................................................................ 8
Installation - D ctwork Calc lation Sheet ...................................... 9
Installation ....................................................................................... 10
Electrical connection ................................................................ 12
Description of the hood & Controls ................................................ 14
Controls ................................................................................... 1
Description of control panel: ..................................................... 1
Maintenance .................................................................................... 15
Cleaning ................................................................................... 15
Grease filter ............................................................................. 15
Replacing the light bulb: ........................................................... 15
Trouble Shooting ...................................................................... 16
Warranty........................................................................................... 17
List of Part and Accessories............................................................ 18

4
Important safety Notice
CAUTION:
FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR
VAPORS.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning the unit, switch power off at service panel and lock service panel disconnecting means to
prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service panel.
C. Installation Work and Electrical Wiring ust Be Done By Qualified Person(s) In Accordance With All Applicable Codes
& Standards, Including Fire-rated Construction.
D. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back- drafting. Follow the heating equipment manufacturers guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code authorities.
E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
F. Ducted systems must always be vented to the outdoors.
CAUTION:
To r duc risk of fir and to prop rly xhaust air, b sur to duct air outsid - do not v nt xhaust air into spac s
within walls, c ilings, attics, crawl spac s, or garag s.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.
Install this hood in accordance with all requirements specified.
WARNING
To R duc Th Risk Of Fir Or El ctric Shock, Do Not Us This Hood With Any Ext rnal Solid Stat Sp d
Control D vic .
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE.
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) S OTHER FLA ES with a close-fitting lid, cookie sheet, or other metal tray, then turn off the gas burner or the electric
element. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE
FIRE DEPART ENT.
b) NEVER PICK UP A FLA ING PAN - you may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
OPERATION
a. Always leave safety grills and filters in place. Without these components, operating blowers could catch onto hair,
fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
* NOTE: Please check our website for revisions before doing any custom work.
READ AND SAVE THESE INSTRUCTIONS

5
www.zephyronline.com
Electrical & Installation requirements
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customers responsibility:
 To contact a qualified electrical installer.
 To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
 latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0- 91 - latest edition**
and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPORTANT:
Save Installation Instructions for electrical inspectors use.
The range hood must be connected with copper wire only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through metal electrical
conduit.
Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70  latest edition*, or CSA
Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0- 91 - latest edition** and all local codes and
ordinances.
A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply conduit (at the range hood
and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 2269
** CSA International 85 1 East Pleasant Valley Road Cleveland, Ohio 44131-5575
BEFORE INSTALLING THE HOOD
1. For the most efficient air flow exhaust, use a straight run or as few elbows as possible.
CAUTION: Vent unit to outside of building, only.
2. At least two people are necessary for installation.
3. The hood is fitted with Screws and Drywall Anchors suitable for most surfaces, consult a Qualified Installer, check if
they perfectly fit with your cabinet/wall.
4. Do not use flex ducting.
5. COLD WEATHER installations should have an additional backdraft damper installed to minimize backward cold air
flow and a nonmetallic thermal break to minimize conduction of outside temperatures as part of the ductwork. The
damper should be on the cold air side of the thermal break.
The break should be as close as possible to where the ducting enters the heated portion of the house.
6. ake up air: Local building codes may require the use of ake-Up Air Systems when using Ducted Ventilation
Systems greater than specified CF of air movement.
The specified CF varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

6
List of Materials
PARTS SUPPLIED:
 Blower unit housing
 Hood canopy
 etal filter x 1
 Halogen light bulb x 2
 Duct covers
 Duct Cover support bracket (3 pieces to assemble)
 Hardware Packet:
4x8 screws x 4 (to assemble Duct cover support bracket)
6x70 screws x 2 (to fix duct cover support bracket)
10x60 wall anchors x 2 (to fix duct cover support bracket)
5x45 screws x 3 (2 to fix lower support bracket + 1 to fix blower unit)
6,5x3,5 screws x 8 (to fix hood canopy to blower unit housing)
2,9x6,5 screws x 4 (to fix duct cover)
Allen spanner x 1
Lower support bracket
Tem p l at e
Use, Care and Installation guide
PARTS NOT SUPPLIED
 Duct, conduit and all tools required for installation.
Ductl ss R circulating Kit
to be used only in the Ductl ss (r circulating) v rsion
includ s: charcoal filter, charcoal filter support and fixing bracket, deflector
Int rnal blow r
To be used only in case of Internal blower installation.
In-lin blow r
To be used only in case of in-line blower installation
Nois r duction spong
Note: may be already included on internal/in-line blower package.
CAUTION
To reduce the risk of fire and electric shock, install this rangehood only with integral blowers mod. EBI-600 rated 120V
60Hz 450W or with remote blowers mod. EBN-1100 rated 120V 60Hz 900W, manufactured by Elica.

7
www.zephyronline.com

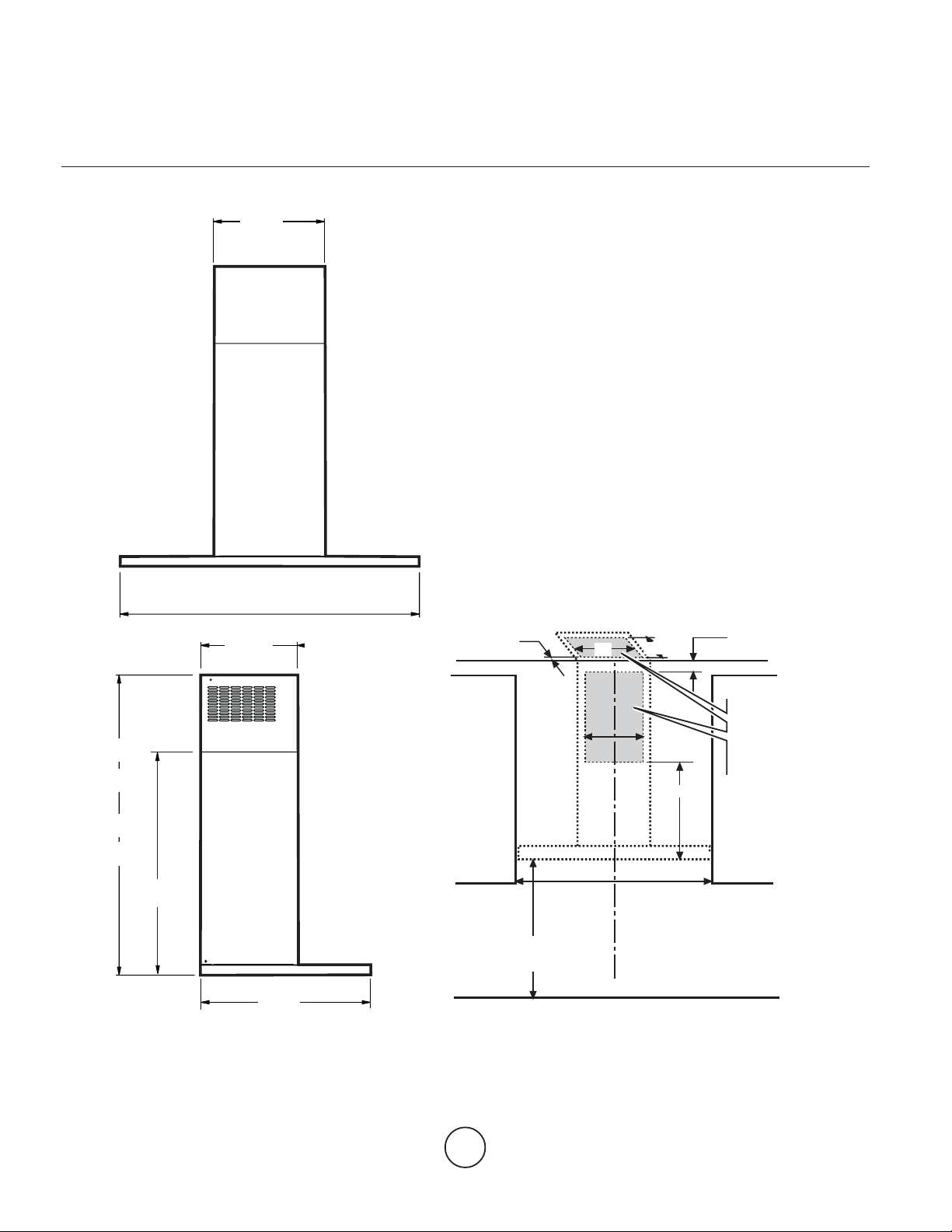

Dimensions and clearances
* Ductl ss (r circulating) v rsion ONLY
Not : if n c ssary ord r th prop r duct cover
extension kit.
36" - 42"
1/2" 2"min
Side
Cabinet Side
Cabinet
36" - 42"
min. cabinets opening widths
24" to 32"
bottom of canopy
to cooking su face
ceiling
Cente Line
12"
20"min
12" 10" 1/2
Ducting
and conduit
a ea
passage(Duct
bends a e not
conside ed)
26" 12/16
min
30" 14/16
20" 8/16
11" 12/16
13" 6/16
min
27" 9/16*
8"min*
max
46" 4/16*
max
50" 3/16

8
Installation Instructions
Closely follow the instr ctions set o t in this man al.
All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this
manual, is declined.

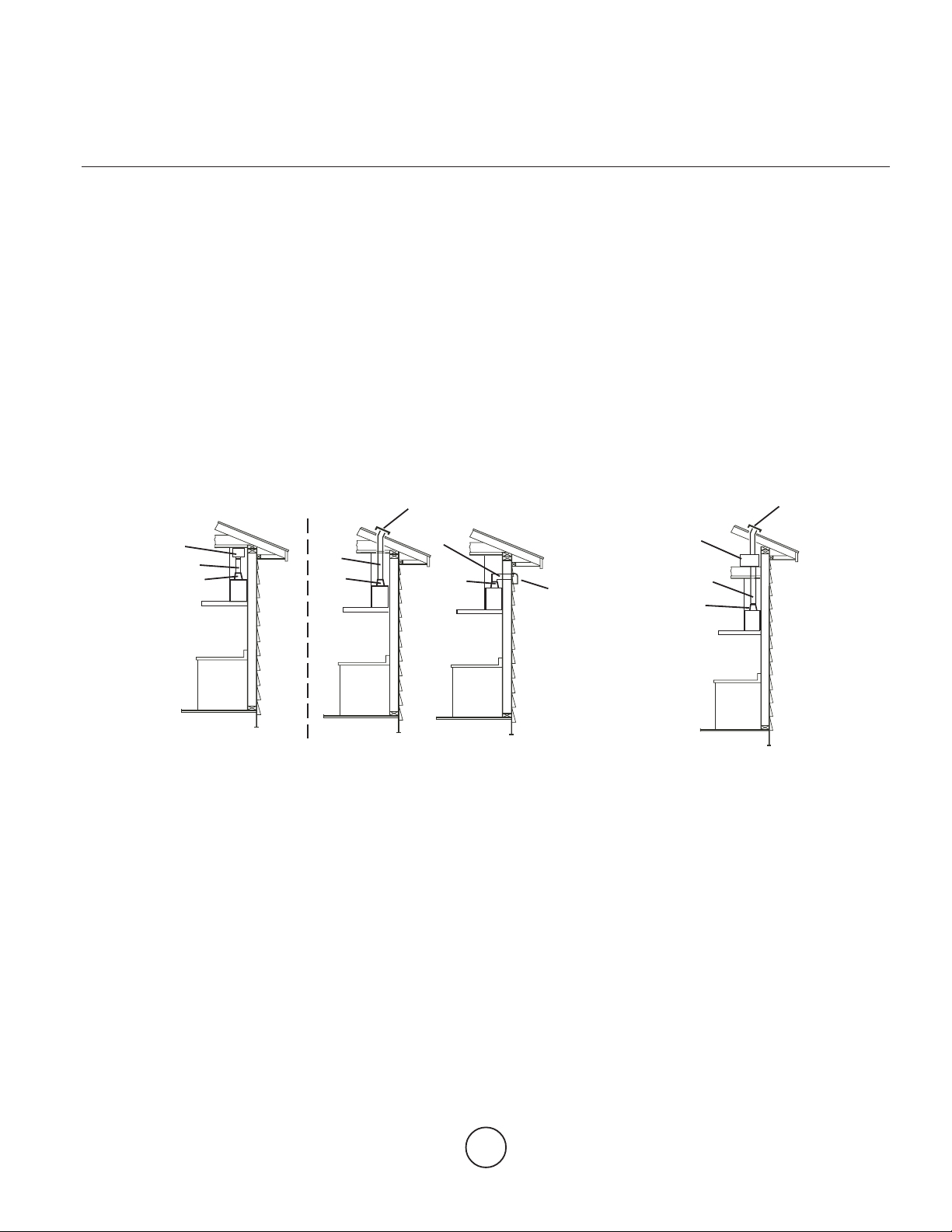

VENTING METHODS
The hood is equipped with a transition B for discharge of fumes to the outside (Ducting v rsion).
Should it not be possible to discharge cooking fumes and vapour to the outside, the hood can be used in the Ductl ss
(r circulating) v rsion. Attach a charcoal filter and the deflector F on the duct cover support bracket G. Fumes and
vapors are recycled through the top grille H by means of a duct connected to the transition B and the transition mounted
on the deflector F.
NOTE: For ductl ss (r circulating) v rsion only: purchas th Ductl ss R circulating Kit.
Minimum Duct Siz (Ducting/Ductl ss v rsion): 8" Round Pip .
PREPARATION
Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be
constructed.
Fittings material is provided to secure the hood to most types of walls/ceilings.
However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling.
The weight of the hood is:
Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
Hood installation height above cooktop is the users preference. The lower the hood above the cooktop, the more efficient
the capturing of cooking odors, grease and smoke.
Th hood shall b install d at 24" minimum to 32" abov th count rtop.
Check your ceiling height and the hood height maximum before you select your hood.
D cting version
D ctless
(recirc lating)
version
BBB
Pipe
Pipe
Pipe
F-H-
G
Side wall cap
with gravity
damper
Roof pitch w/
Flashing and cap
D cting version
with In-line blower
Roof pitch w/
Flashing and cap
R mot
v ntilator
B
Pip

9
www.zephyronline.com
Installation - Ductwork Calculation heet
3 1/4  x 1 
Rect.,
straight
6  Round,,
straight
7", 8
Round,,
straight
3 1/4  x 1 
Rect.9 °
elbow
3 1/4  x 1 
Rect.45°
elbow
3 1/4  x 1 
Rect.9 °
flat elbow
3 1/4  x 1 
Rect.
wall cap
with damper
3 1/4  x 1 
Rect.to
6  round
transition
3 1/4  x 1 
Rect.to
6  round
transition
9 ° elbow
6  Round,,
9 ° elbow
6  Round,,
45°elbow
1 Ft. x ( ) =
1 Ft. x ( ) =
1 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
24 Ft. x ( ) =
3 Ft. x ( ) =
5 Ft. x ( ) =
15 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
6" Round
wall cap
with damper
6 Round,
roof cap
6 Round to
3 1/4  x 1 
rect.
transition
6 Round to
3 1/4  x 1 
rect.
transition
9 ° elbow
7", 8" round
9 ° elbow
7", 8" round
45° elbow
7", 8" Round
wall cap
with damper
7", 8"
Round,
roof cap
7 Round to
3 1/4  x 1 
rect.
transition
7 Round to
3 1/4  x 1 
rect.
transition
9 ° elbow
3 Ft. x ( ) =
3 Ft. x ( ) =
1 Ft. x ( ) =
16 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
3 Ft. x ( ) =
3 Ft. x ( ) =
8 Ft. x ( ) =
15 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Duct pieces Equivalent number
lenght x used = Total
Duct pieces Equivalent number
lenght x used = Total
Subtotal column 2 =
Subtotal column 2 =
Total ductwork =
Subtotal column 1 =
Maximum Duct Length: For satisfactory air movement, the total
duct length should not exceed 1 equivalent feet.

10
Installation
ASSEMBLING THE DUCT COVER SUPPORT
BRACKET (3 PARTS):
The three parts should be fixed with 4 screws, the
support extension is adjustable and should correspond
to the internal width of the upper duct cover.
1. If possible, disconnect and move freestanding or
slide-in range from cabinet opening to provide easier
access to rear wall. Otherwise put a thick, protective
covering over countertop, cooktop or range to
protect from damage or dirt. Select a flat surface for
assembling the unit. Cover that surface with a
protective covering and place all canopy hood parts
and hardware in it.
2. Determine and mark the centerline on the wall where
the canopy hood will be installed.
3. Select a mounting height comfortable for the user
and mark on wall behind cooktop.

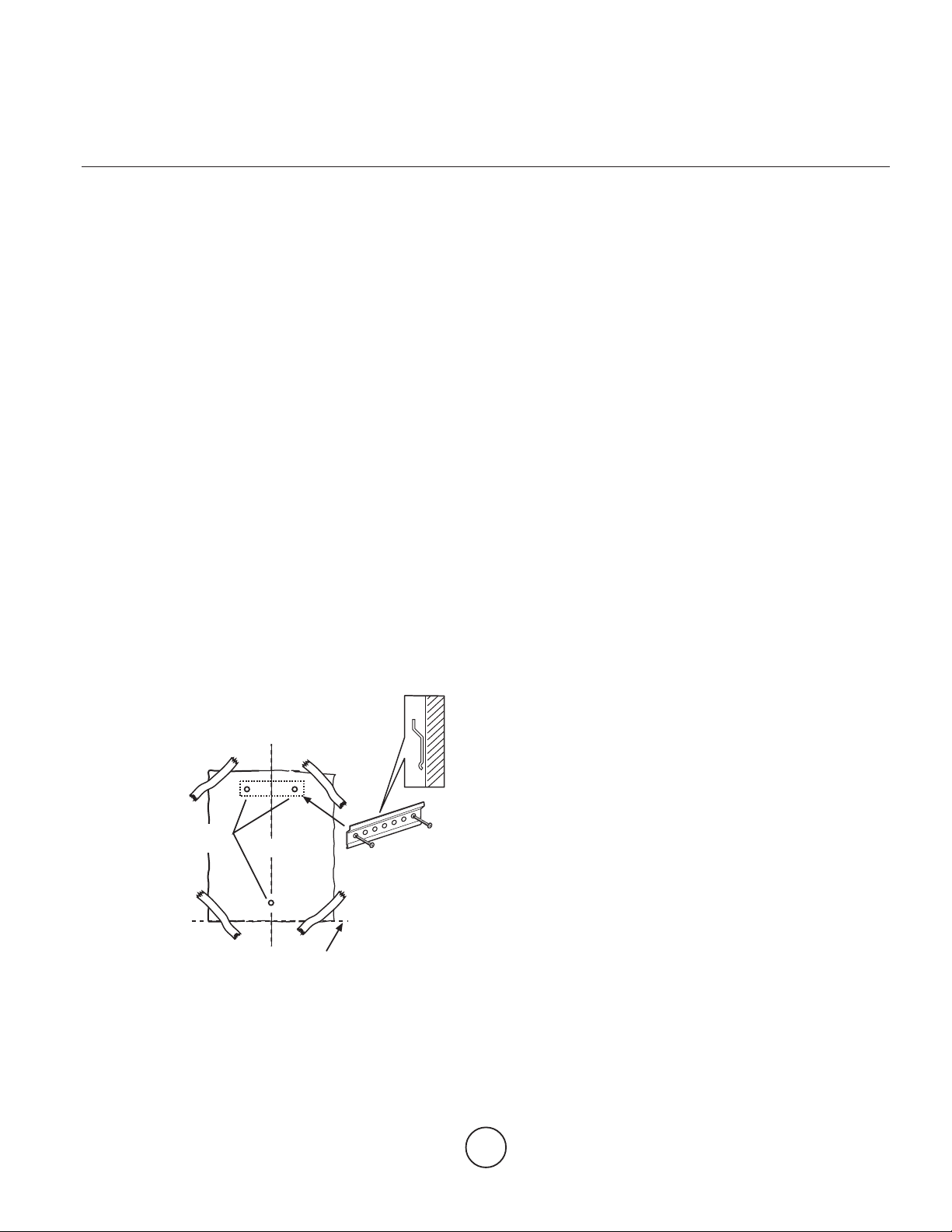

4. Tape template, matching center-line and hood
bottom as shown in Figure below.
5. Place the lower support bracket on the template
making it coincide with the traced rectangle, mark
center of two fastener location and one lower
fastener location then remove template.
C
L
centerline
mounting
height
reference
fasteners
locations lower
support
bracket
6. ark wall with horizontal line 1" above highest and
1" below lowest fastener location.
7. Find studs behind drywall by tapping wall or using a
stud finder. ark the center of the studs with a
vertical line to the right and left of the marked
fastener location.
8. Not : all fastener location must span the studs
otherwise proceed as follows:
Cutout drywall along marked lines. Install each
necessary between studs firmly flush with already
existing stud front. ake sure all mounting screws
will anchor to added studs. Replace drywall and
refinish.
9. Determine and make all necessary cuts in the wall
for the vent system. Install the vent system before
the canopy hood. See Venting methods and
Dimensions and clearance paragraphs.
Not - for Ductl ss - r circulating - installations:
Vent system is not required.
10. Determine the required height for the conduit and cut
a 1-1/4" (3.2 cm) hole at this location.
Run wires through hole according the National
Electrical Code or CSA Standards and local codes
and ordinances.
Note: If a In-line blower installation is required/
needed, then provide an additional hole/conduit.
There must be enough power supply cable from the
fused disconnect (or circuit breaker) box to make the
connection in the hoods Junction box/es.
Use caulking to seal all openings.
Do Not turn on power until installation is completed.
11.Remark center line and hood bottom on same
location as before and tape template on wall as in
step 4 above.
12. ount the lower support bracket with wood screws
(supplied in mounting hardware kit) on locations
marked on template, then remove template.
13.Install duct cover support bracket to wall flush to
ceiling with drywall anchors supplied (the duct cover
support bracket should be installed about 1/8 (3mm)
away from the ceiling).
For Ductl ss (r circulating) installations
Install the deflector (available as an extra kit) under
the duct cover support bracket.

11
www.zephyronline.com
14. Not : disregard this step if intending to install a in-
line blower.
Purchase and install the Internal blower (see
paragraph Before installing the hood - Parts not
supplied for model reference).
15. If supplied dismounted for shipping, assemble the
lower part of the hood with the internal blower
housing:
a. Remove the grease filter (see also Care & Use
section - Charcoal filter).
b. Rest the internal blower housing on a flat surface
and thread completely the lower part of the hood
onto it.
REAR VIEW
c. Connect all cables:
d. Fasten the hood to the motor unit using 8
screws from the bottom.
BOTTOM
VIEW
REAR SIDE
FRONT SIDE
Installation

12

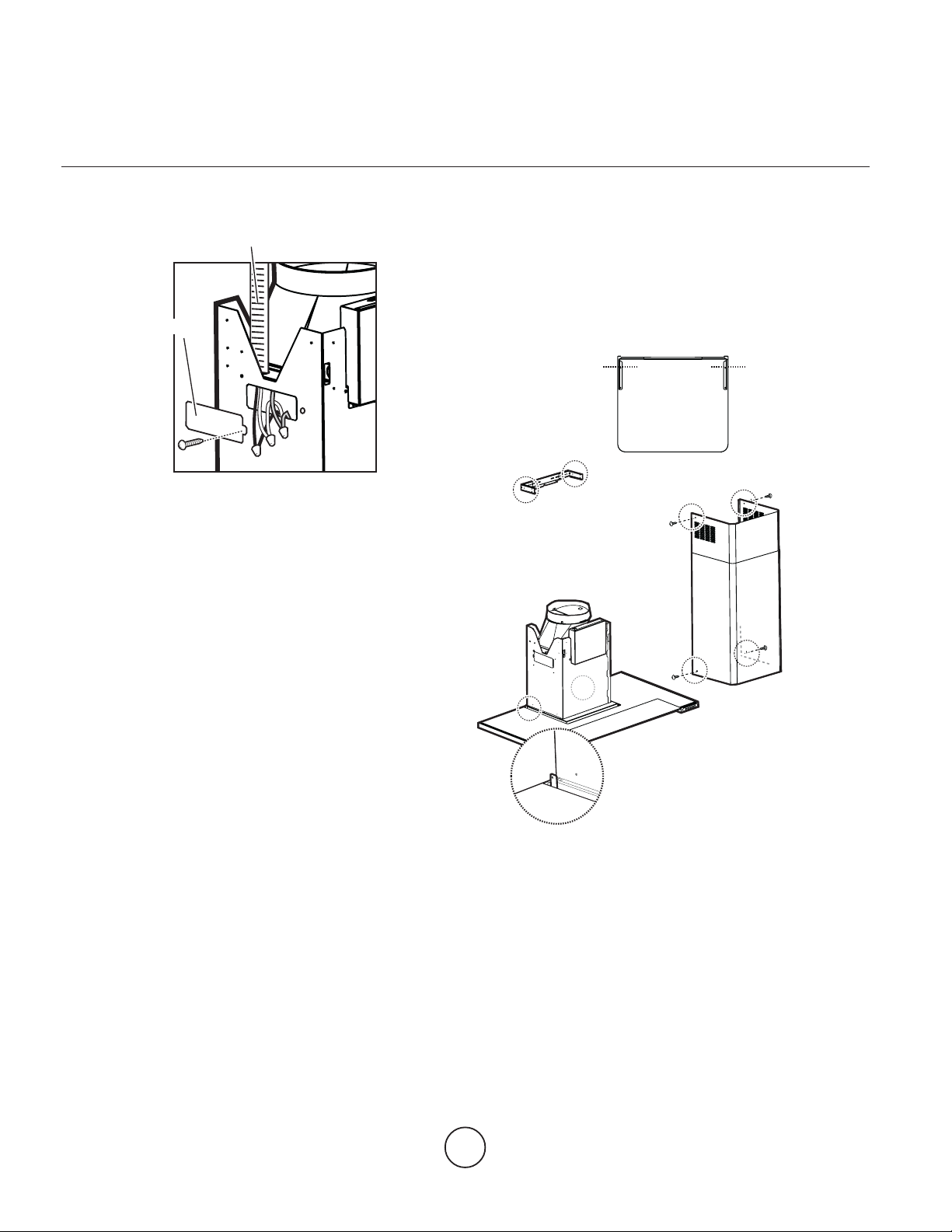

16. Hang hood with the 2 mounting hooks.
WARNING
Exc ssiv W ight Hazard - Us two or mor p opl
to mov and install rang hood. Failur to do so can
r sult in back or oth r injury.
17.Level the appliance, using a carpenters level across
bottom of hood with leveling screws in mounting
hooks.
18. Secure hood with 1 screw on bottom.
Duct
cove
suppo t
b acket
Lowe
suppo t
b acket
Hooks
Rea view
Hooks
bottom
sc ew
hole
19. Connect ducting to transition. Seal with duct tape.
Do not use duct smaller than the transition.
For Ductl ss - r circulating - installations only:
provide and install a duct to connect hood transition to
deflector (the deflector is available as an extra kit).
20. Electrical connection
WARNING
El ctrical Shock Hazard
Warning: Turn off pow r circuit at th s rvic pan l
b for wiring this unit.
120 VAC, 15 or 20 Amp circuit r quir d.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FITTED WITH AN ELECTRICAL
JUNCTION BOX WITH 3 WIRES, ONE OF WHICH
(GREEN/YELLOW) SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST ELECTRIC
SHOCK, THE GREEN AND YELLOW WIRE UST BE
CONNECTED TO THE GROUNDING WIRE IN YOUR
HO E ELECTRICAL SYSTE , AND IT UST UNDER
NO CIRCU STANCES BE CUT OR RE OVED.
Failur to do so can r sult in d ath or l ctrical
shock.

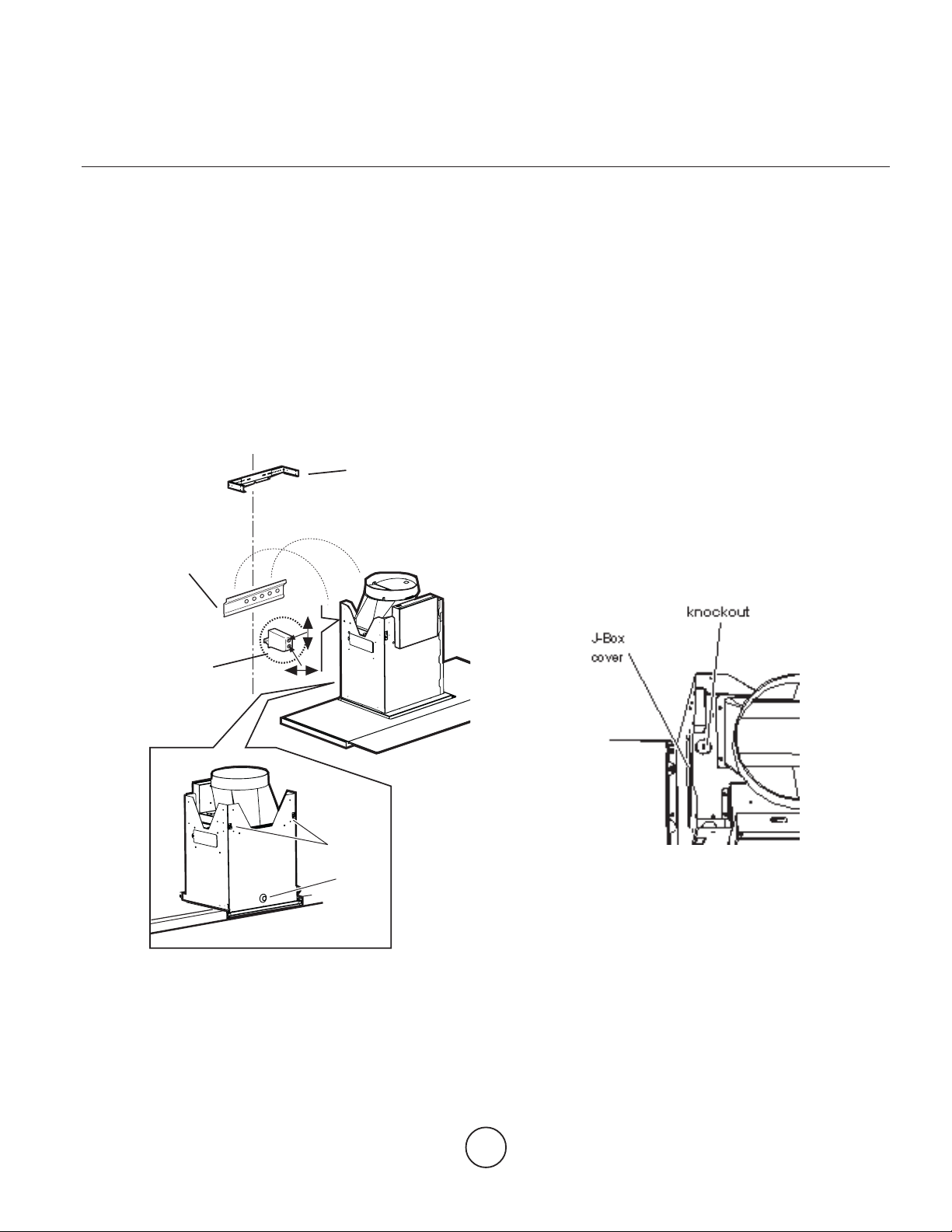

Facing the front of the range hood, remove the left
knockout and the Junction box cover and install the
conduit connector (cULUS listed) in junction box.
Run 3 wires; black, white and green ,according to the
National Electrical Code and local codes and
ordinances, in 1/2" conduit from service panel to
junction box.
Installation

13
www.zephyronline.com
J-Box cover
Conduit
Connect black wire from service panel to black or red in
junction box, white to white and green to green-yellow.
Close junction box cover.
21. Not : disregard this step if the hood has been fitted
with an internal blower.
Purchase and install a In-line blower (see paragraph
Before installing the hood - Parts not supplied for
model reference).
22. For Ductl ss (r circulating) installations
Install one charcoal filter (available as an extra kit).
23. Check all light bulbs to make sure they are secure in
their sockets.
Turn power on in service panel.
Check lights and blower operation.
24. Install filters.
25. Install duct cover with 4 screws.
Note: Upper Duct Cover may be placed upside down
to hide (or unhide) ventless slots.
Upper
duct cover
Lower
duct cover
Duct
cove
suppo t
b acket
Duct cove
suppo t b acket
If rang hood do s not op rat :
 Check that the circuit breaker is not tripped or the
house fuse blown.
 Disconnect power supply. Check that wiring is
correct.
Installation

14
Description of the hood & Controls
1 Control panel
2 Grease filter
3 Grease filter release handle
4 Halogen lamp (position and nr. of lamps may vary)
5 Hood canopy
6 Duct cover
7 Air outlet (used for Ductless version only)
CONTROLS
Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes
approximately after terminating cooking.
Description of control panel:
A. on/off light switch
B. on/off aspiration switch and minimum power selection
B+C. medium power selection aspiration switch
B+D. maximum power selection aspiration switch
ABCD
6
4
4
32
5
1
7

15
www.zephyronline.com
Maintenance
Prior to any maintenance operation ensure that the cooker hood is disconnected from the power supply.
CLEANING
The cooker hood should be cleaned regularly internally and externally.
For cleaning use a cloth moistened with a neutral liquid detergents. Avoid abrasive detergents.
Warning:
Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire
risks.
Therefore we recommend oserving these instructions.
GREASE FILTER
This must be cleaned once a month using non aggressive detergents, either by hand or in the dish-washer, which must be
set to a low temperature and a short cycle.
When washed in a dish-washer, the grease filter may discolour slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle (a-b).
REPLACING THE LIGHT BULB:
WARNING
Disconn ct th hood from l ctricity and b sur th lights ar cool.
If new lights do not operate, make sure the lights are inserted correctly before calling service.
 Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
 Remove the damaged light and replace with a new 12 Volt, 20 Watt (maximum) halogen light made for a G-4 base
SUITABLE FOR USE IN OPEN LU INAIRES. Follow package directions and do not touch new light with bare hands.
 Reinstall the light cover.

16
Trouble hooting
After installation, the
unit doesnt work?
Light works, but motor is
not turning.
The unit is vibrating.
The motor is working,
but the lights are not.
The hood is not venting
out properly.
etal filter is vibrating.
1. The power source is not turned ON.
2. The power line and the cable locking
connector is not connecting properly.
3. The switch board and control board
wirings are disconnected.
4. The switch board or control board is
defective.
1. The motor is defective, possible
seized.
2. The thermally protected system
detects if the motor is too hot to
operate and shuts the motor down.
3. Damaged condenser.
1. The motor is not secure in place.
2. Damaged blower wheel.
3. The hood is not secured in place.
1. Defective halogen bulb.
2. The light bulb is loose.
1. The hood might be hanging to high
from the cook top.
2. The wind from the opened windows or
opened doors in the surrounding area
are affecting the ventilation of the
hood.
3. Blocking in the duct opening or
ductwork.
4. The direction of duct opening is
against the wind.
5. Using the wrong size of ducting.
1. etal filter is loose.
Iss e Ca se What to do
1. ake sure the circuit breaker and the
units power is ON.
2. Check the power connection with the
unit is connected properly.
3. ake sure the wirings between the
switch board and control board are
connected properly.
4. Change the switch board or control
board.
1. Change the motor.
2. The motor will function properly after the
thermally protected system cool down.
3. Change the condenser.
1. Tighten the motor in place.
2. Change the blower wheel.
3. Check the installation of the hood.
1. Change the halogen bulb.
2. Tighten the light bulb.
1. Adjust the distance between the cook
top and the bottom of the hood within
24 and 32 range.
2. Close all the windows and doors to
eliminate the outside wind flow.
3. Remove all the blocking from the duct
work or duct opening.
4. Adjust the duct opening direction.
5. Change the ducting to at least 8 or
higher.
1. Change the metal filter.

17
www.zephyronline.com
Warranty
TO OBTAIN SERVICE UNDER WARRANTY:
or any Service Related Q estions, please call:
1-888-880-8368
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date.
Please keep a copy of your dated proof of purchase (sales slip) in order to obtain service under warranty.
One Year Service Repair Warranty:
For one year from date of original purchase, we will provide free of charge, service labor to repair any failed
parts or components due to manufacturing defects.
One Year Parts Warranty:
For one year from date of original purchase, we will provide free of charge, nonconsumable replacement
parts or components that failed due to manufacturing defects. Consumable parts not covered by this warranty
include: Light Bulbs, etal and Carbon Filters.
Who is Covered:
This warranty is extended to the original purchaser for products purchased for ordinary home use in the 48
mainland states, Hawaii and Washington D.C. In Canada and Alaska, this warranty is Limited. There might
be costs associated with shipping the products to our designated service locations or you might need to pay
service technicians travel costs, to have the appliance repaired in-home.
This Warranty will be Voided when:
Product damaged through negligence, misuse, abuse, accident. Improper installation and failure to follow
installation instructions.
When product is used commercially or other than its intended purpose. Damaged because of improper
connection with equipment of other manufacturers. Repaired or modified by anyone other than Zephyrs
Authorized Agents.
What is Not Covered:
Consumable parts such as light bulbs, filters, and fuses. Services outside of service area and the labor cost
incurred in connection with the removal, shipping and reinstallation cost, nor does it cover any other
contingent expenses. The natural wear of finish, and wear due to improper maintenance, use of corrosive
and abrasive cleaning products, pads, and oven cleaner products. Chips, dents or cracks due to abuse,
misuse, freight damage, or improper installation. Service trips to your home to teach you how to use the
product. Damage of product caused by accident, fire, floods or act of God.
This warranty is valid in the United States and Canada. It is non-transferable and applies only to the original
purchaser and does not extend to subsequent owners of this product. Any applicable implied warranties,
including the warranty of merchantantability, are limited in duration to a period of express warranty as
provided herein beginning with the date of original purchase at retail and, no warranties, whether express or
implied, shall apply to this product thereafter.
Have your product proof of purchase with date ready for warranty issues.
Or write to:
Zephyr Corporation
Service and Warranty Department
395 Mendell Street
San Francisco, CA 94124

18
List of Part and Accessories
Part Description Part#
halogen b lb, 12V 20 W
metal filter
Part Description Part#
D ctless Recirc lating Kit
charcoal replacement filter
d ct cover extension kit
internal blower - 600 cfm
in-line blower - 1100 cfm
ZRC-00AT
EBI-600A
EBN-1100A
Z0F-C060
Z1C-00AT
Z0B-0013

19
www.zephyronline.com

20
