Zephyr MESA DME-M90ASSX User manual

www.zephyronline.com
MESA
DME-M90ASSX
DME-M90AMBX
DME-M90ASGX
RANGE HOOD - Installation instructions
ENGLISH..........................3
FRANÇAIS.......................27

Table of Contents
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 8
DUCTING CALCULATION SHEETS.......................................................................................pag. 9
HOOD SPECIFICATION..................................................................................................pag. 10
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 11
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 14
- DUCTING OPTIONS.....................................................................................pag. 17
- MOUNTING THE RANGE HOOD.............................................................pag. 18
- POWER SUPPLY CONNECTION..............................................................pag. 19
TOUCH CONTROL............................................................................................................pag. 20
OPTIONAL REMOTE CONTROL..................................................................................pag. 21
MAINTENANCE ................................................................................................................pag. 22
WIRING DIAGRAMS........................................................................................................pag. 23
LIST OF PARTS AND ACCESSORIES ........................................................................pag. 25
WARRANTY .......................................................................................................................pag. 26
- 3 -

IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of fire or electric shock, do not use this fan with
any Solid-State Speed Control Device.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION -To avoid motor bearing damage and noisy and/or unbalanced im-
pellers, keep drywall spray, construction dust, etc. off power unit.
CAUTION - Please read specification label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, se-
curely fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smok
Safety instructions 1/4
- 4 -

ing and greasy spillovers that may ignite. Heat oils slowly on low or medium
settings.
B. Always turn hood ON when cooking at high heat or when flambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low
to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam ex-
plosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to
operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
aBased on “kitchen firesafety tips” published by NFPA
Proper maintenance of the Range Hood will assure proper performance of
the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated con-
struction.
Safety instructions 2/4
- 5 -

B. Sufficientairisneededfor proper combustionandexhaustingofgasesthrough
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wir-
ing and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause
fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any mainteinance operation, disconnect the hood from
the electrical service.
The manufacturers will not to accept any responsibility for eventual damages,
because of failure to observe the above instructions.
Safety instructions 3/4
Electrical Requirements
Important:
- Observe all governing codes and ordinances.
- It is the customer’s responsibility to be aware of these below:
- To contact a qualified electrical installer.
- To assure that the electrical installation is adequate and in conformance with
National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-
94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
- If codes permit and a separate ground wire is used, it is recommended that a
qualified electrician determine that the ground path is adequate.
- Do not ground to a gas pipe.
- Check with a qualified electrician if you are not sure the range hood is pro-
perly grounded.
- 6 -

- Do not have a fuse in the neutral or ground circuit.
- This appliance requires a 120V 60Hz electrical supply and connected to an
individual properly grounded branch circuit protected by a 15 or 20 ampere
circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please
also refer to Electrical Diagram on product.
- A cable locking connector (not supplied) might also be required by local co-
des. Check with local requirements, purchase and install appropriate connector
if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts
02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
Federal Communication Commission Interface Statement
- This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
- This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that in-
terference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Safety instructions 4/4
- 7 -

Box marked
'120 VAC input'
Top Cover
Hybrid Baffle Filters
Led Light
List of Materials
Control
Remote Blower
Wiring Harness
Remote Blower
Wiring Extension
Remote Blower
Box
Blower Bracket
Electrical
System Box
Remote Blower
Collar with Damper
Hardware
- 8 -

Ducting Calculation Sheet
Duct pieces To tal
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) = Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Totalductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
Ft. x ( ) = Ft.
15
6”, 7“, 8”
Round
in-line
damper
- 9 -

14-1/16”
10-9/16”
35-5/16”
19-11/16”
10-13/16”
11/16”
11-5/16”
21-3/4”
29-5/8”
2-7/16”
8-11/16”
2-5/8”
front of hood
side of hood
top of hood
Hood Specifications
back of hood
- 10 -

Installation - Internal Blower
NOTE! The device in this version (with
internal suction blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the follow-
ing paragraphs; upon reaching step 8,
the motor plate must not be rotated.
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with internal blower models CBI-290A or CBI-600A.
For external and in-line blower preparation please turn to page 14.
1. Remove the (2) screws securing the top
cover. See Fig.1
2. Remove the 6” round metal knockout
plate from the blower plate by using a
flat head screwdriver. See Fig.2
3. Remove the (6) screws securing the blo-
wer plate to the blower housing and re-
move blower plate. See Fig.3
4. Install internal blower into blower plate
and secure using (4) screws included
with the blower. See Fig.4
- 11 -

5. Secure capacitor box connected to the
provided cable to the blower plate using
(2) screws included with the blower. See
Fig.5
6. Secure Green/Yellow ground wire con-
nected to the cable to the provided ca-
pacitor to blower plate. Fig.6
7. Attach the 6 pin male molex connector
from blower wire to the 6 pin female mo-
lex connector located inside the blower
housing. See Fig.7
8. Install the blower and plate on the inside
of the blower housing: carry out the in-
structions at step 2 in reverse order then
use the screws provided to complete in-
stallation. (Tot. 12). Fig.8
9. Connect 9 pin male molex connector
from blower wire to 9 pin female molex
connector on the capacitor wire. See
Fig.9
- 12 -

WARNING! Place electrical wiring inside
the blower housing.
10. Put the top cover back on.
The hood is now ready to be installed on
the wall.
- 13 -

NOTE! The device in this version
(with external blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the follow-
ing paragraphs; upon reaching step 4,
the blower plate must be rotated and
installed in the opposite direction.
The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with remote blowers rated maximum 6.2 A.
For internal blower instructions please turn to page 11.
Installation - External & In-Line Blower
Preparation
1. Remove the (2) screws securing the top
cover. See Fig.1
2. Remove the (6) screws securing the blo-
wer plate to the blower housing and
remove blower plate. See Fig.2
3. Remove the 8” round metal knockout
plate from the blower plate by using a
flat head screwdriver. See Fig.3
4. Install the plate with the outlet facing
the wall, inside the motor casing: carry
out the instructions at stage 2 in rever-
se order then use the screws provided
to complete installation. (Tot. 12). See
Fig.4
- 14 -

5. Install the flange and fix it to the blower
plate with the (4) screws. Fig. 5
6. Put the top cover back on.
7.With the aid of a slotted screwdriver, bre-
ak the grommet of circular hole through
which the wires pass. Fig. 6
8. Insert the female connector in the ter-
minal box already attached to the hood.
Fig. 7A
Pass the wires of the remote motor throu-
gh the terminal box hole and connect
them to the connector wires. Fig.7B
Note: Carry out the power supplly con-
nection in accordance with the national
electric code, ANSI/NFPA 70-1999.
Note1: A cable lock (not included) may be
required by local codes. Please review
local codes for more information.
- 15 -

9. Attach 6 pin male molex connectors to 6
pin female molex connectors inside blo-
wer housing. See Fig. 8
Note2: Check local codes to determine
minimum wire gauge.
See manual included with external and
in-line blower for instructions on instal-
ling the blower.
- 16 -

WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 17 -

MOUNTING HEIGHTS
The range hood must be installed at a minimum
height of 24 inches (61cm) from the cooking
surface. If a connecting duct work composed
of two parts is used, the upper part must be
placed outside the lower part. Do not connect
the range hood duct to the same duct used to
exhaust hot air or fumes from another appliance.
Before proceeding with the assembly instructions
remove the decorative mesh filters so that the
range hood is easier to handle.
MOUNTING TO THE WALL
1. Place the paper template included with your
hood on the wall to determine where to add
the screws for mounting the hood. Make sure
the bottom of the template aligns with the
bottom of where the hood will be located.
See Fig. 9
2. Lift the hood onto the screws and
adjust to make sure the hood is
level.
3. When the hood has been adjusted
tighten the screws to secure the
hood in place.
NOTE: Screws must be fastened into
wooden studs so wood blocking may
be necessary. If using wall anchors
make sure to check your local codes
for suitability and type of anchors
to use.
NOTE1: For the various installations use screws and screw anchors suited to the
type of wall (minimum screw size: 1/4" diameter x 2-3/4" length).
Installation - Mounting the Range Hood
- 18 -

Installation - Power Supply Connection
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.
POWER SUPPLY CONNECTION
For connection to the power supply refer to
the following:
1. Remove the power supply cover by un-
doing the (2) screws Fig. 1.
2. Connect the wires of the hood to those
of the power supply as described. Fig. 2 :
BLACK = L line
WHITE = Nneutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
be installed to provide the range hood po-
wer supply disconnection.
- Connect the electrical conduit to the Field
Wiring Compartment using listed conduit
fittings.
- Carry out the power supplly connection in
accordance with the national electric code,
ANSI/NFPA 70-1999.
3. Insert the wires into the box, then close
the box cover, securing it using the screws
that were previously removed.
- 19 -

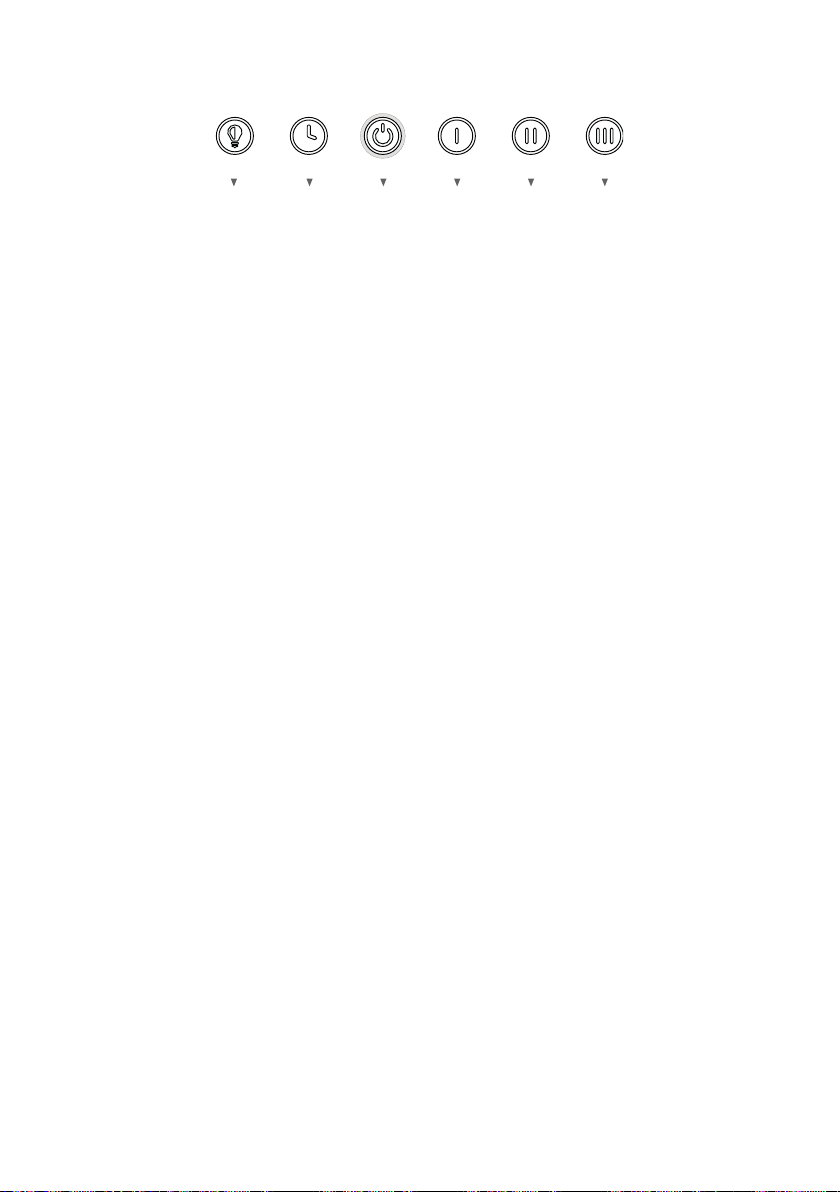

Touch Control
A – Lights Button: Lights are three level (high, medium, low). From stand-by-on mode,
touch once for high, twice for medium, three times for low, four times to cycle back.
B - Delay Off Button: Press the Delay Off Button to enable the ten-minute delay-off
function, no matter at what speed the fan is running at. B button will start blinking
indicating the delay off function is enabled. After ten minutes the fan and lights will
turn off. Delay off function can be disabled by pressing B button, changing the speed,
or pressing the Power Button C.
C - Power Button: Press once to activate all button stand by mode allowing control of
other button functions. All buttons will illuminate indicating stand by mode. Press the
Power Button again to turn the hood off (fan and lights). The stand by mode will remain
active for 30 seconds.
D - Low Speed Button: In stand-by mode: Press once for low speed.
E - Medium Speed Button: In stand-by mode: Press once for medium speed.
F - High Speed Button: In stand-by mode: Press once for high speed.
MESH FILTER CLEAN REMINDER (always enabled): after 60 hours of fan usage, button
A blinks when the hood is in stand-by, indicating it is time to clean the mesh filters. To
Reset the function: with the hood in stand-by, press and hold the B button for 4 to 5
seconds, the A button will stop blinking, and the 60-hour timer will reset.
CHARCOAL FILTER REPLACE REMINDER (disabled by default, must be enabled by user
if recirculating hood): To enable Charcoal Filter Replacement Function hold buttons D
and F simultaneously for four seconds. The A button will quickly flash 3 times indicating
the Charcoal Filter Replacement Function is enabled. After 200 hours of fan usage, the B
button will blink while the hood is on, indicating it is time to replace the charcoal filters.
To Reset the Charcoal Filter Replace Reminder function: Hold the B button for 4 to 5
seconds until it stops flashing, and the 200-hour timer will reset.
Order replacement charcoal filter kit number Z0F-C010 through your local dealer, www.
zephyronline.com, or the Zephyr customer service department.
To disable the Charcoal Filter Replacement function, repeat the enable procedure, the A
button will illuminate for 3 seconds then turn off indicating the Charcoal Filter Replace-
ment Function is disabled.
CLEAN AIR FUNCTIOn (disabled by default, must be enabled by the user). To enable
Clean Air function, with hood in stand by, press and hold button E for 4 to 5 seconds.
The E button will start blinking, the fan will turn on low speed for 10 minutes. After
10 minutes the fan will turn off and the 4-hour timer will begin. The E button led will
continue blinking when Clean Air Function is enabled, even if fan is not on. When Clean
Air function is enabled, every 4 hours of non-fan usage the fan will automatically turn
on at low speed for 10 minutes. After 10 minutes the fan will turn off and the 4-hour
timer will reset.
ABCDEF
- 20 -
